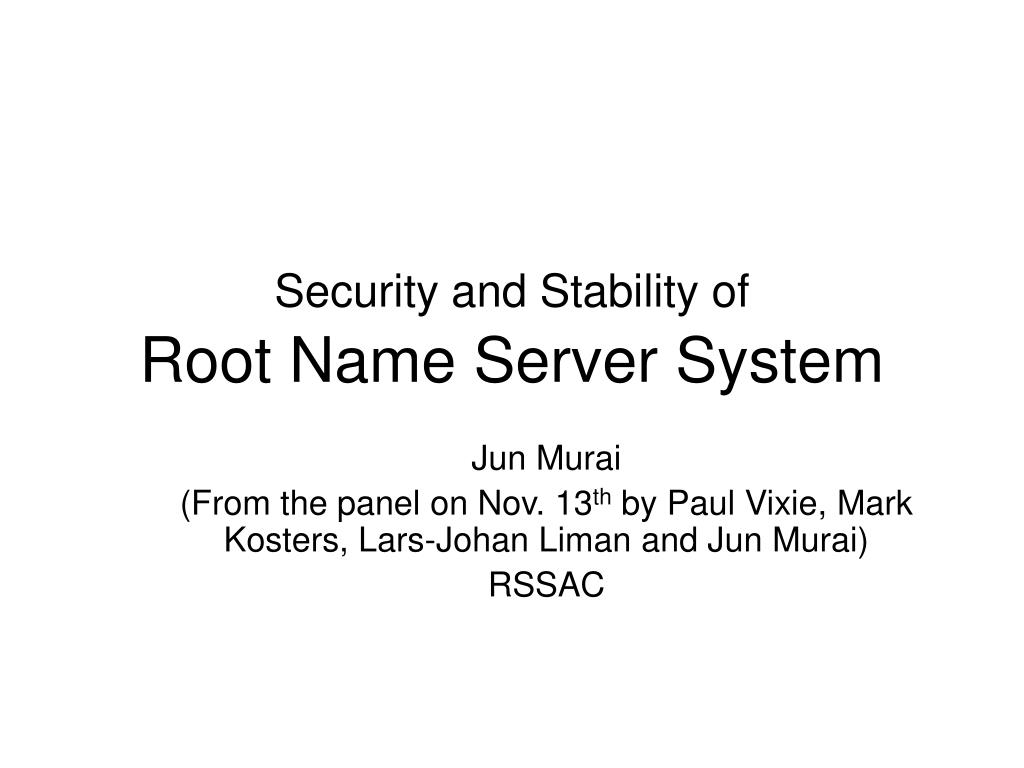

  1. Security and Stability ofRoot Name Server System Jun Murai (From the panel on Nov. 13th by Paul Vixie, Mark Kosters, Lars-Johan Liman and Jun Murai) RSSAC

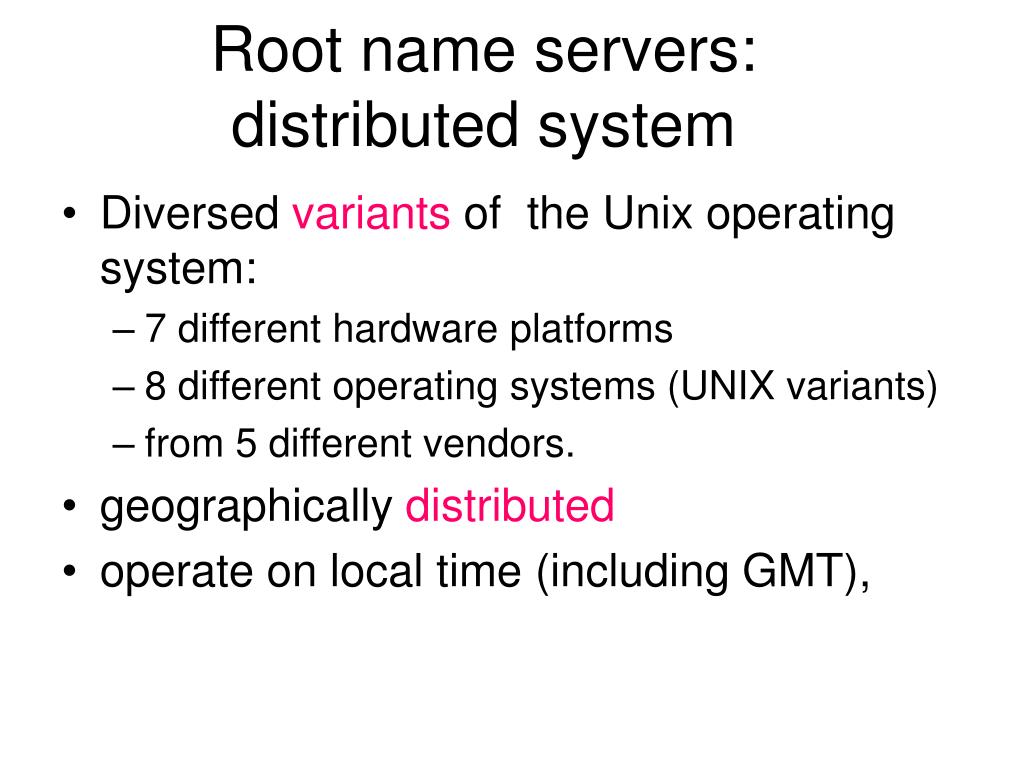

  2. Root name servers: distributed system • Diversed variants of the Unix operating system: • 7 different hardware platforms • 8 different operating systems (UNIX variants) • from 5 different vendors. • geographically distributed • operate on local time (including GMT),

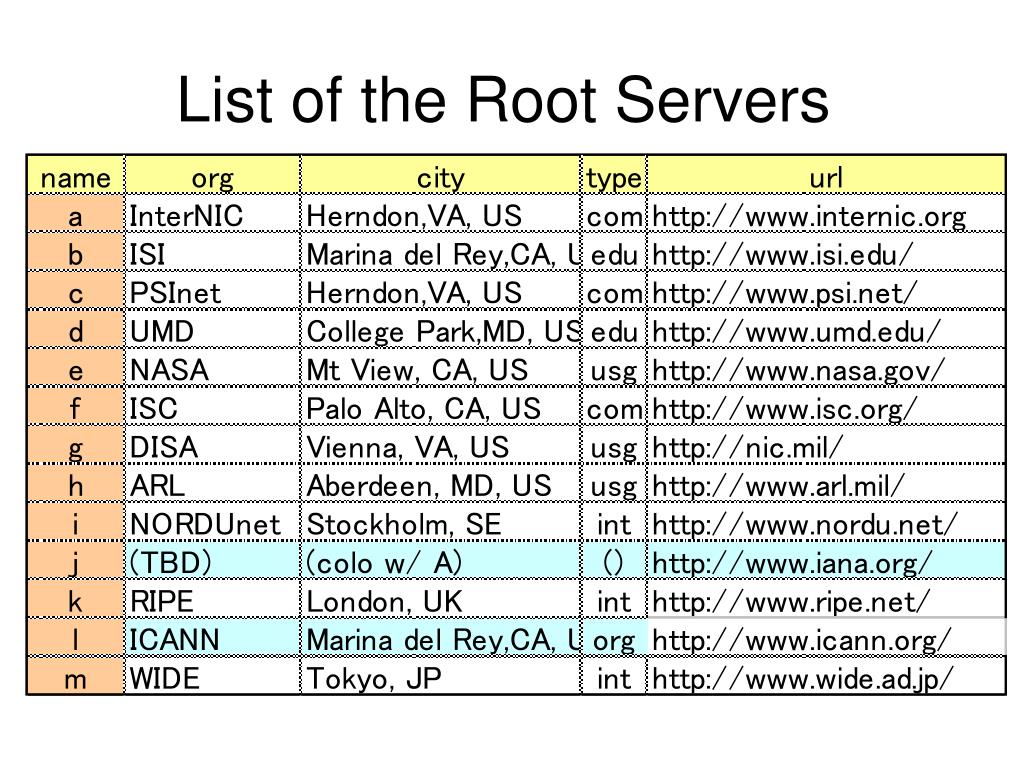

  3. List of the Root Servers

  4. Root name servers: hardware • Access to the machine • controlled physical access • Environment • protection against power grid and cooling failures with UPS protected power • Connections • diverse Internet connectivity in layers 1 through 3.

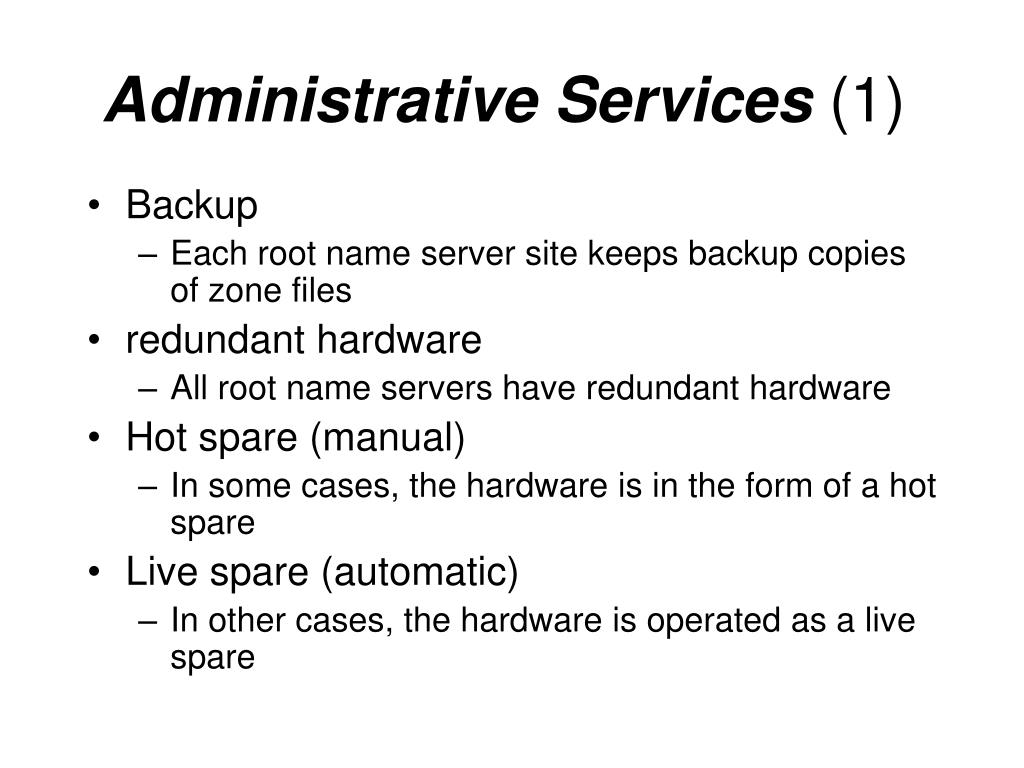

  5. Administrative Services (1) • Backup • Each root name server site keeps backup copies of zone files • redundant hardware • All root name servers have redundant hardware • Hot spare (manual) • In some cases, the hardware is in the form of a hot spare • Live spare (automatic) • In other cases, the hardware is operated as a live spare

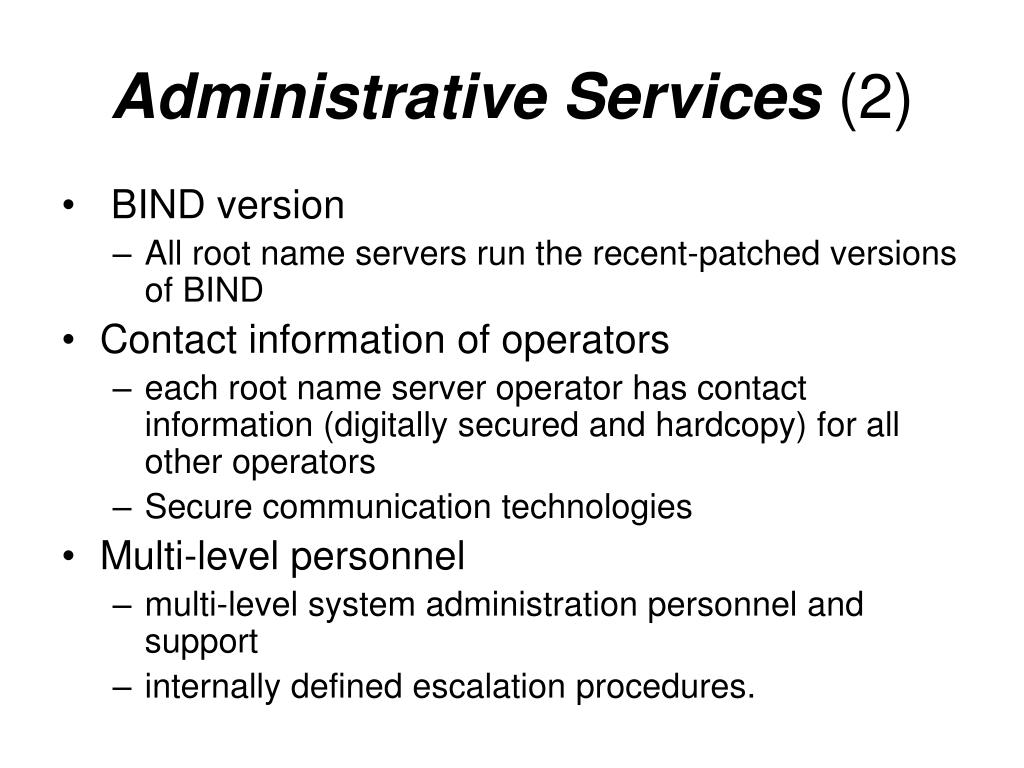

  6. Administrative Services (2) • BIND version • All root name servers run the recent-patched versions of BIND • Contact information of operators • each root name server operator has contact information (digitally secured and hardcopy) for all other operators • Secure communication technologies • Multi-level personnel • multi-level system administration personnel and support • internally defined escalation procedures.

  7. Zone file: high-level process • Additions/modifications/deletions to the root zone high-level process: • Fill out template found at http://www.iana.org/cctld/icp1.htm • Send completed template to root-mgmt@iana.org • IANA (and others) will check technical/political aspects • PGP-signed messages come from IANA with approval from DOC to VeriSign to make changes • Notification of to the root servers • Changes ready to be placed into zone file (and whois)

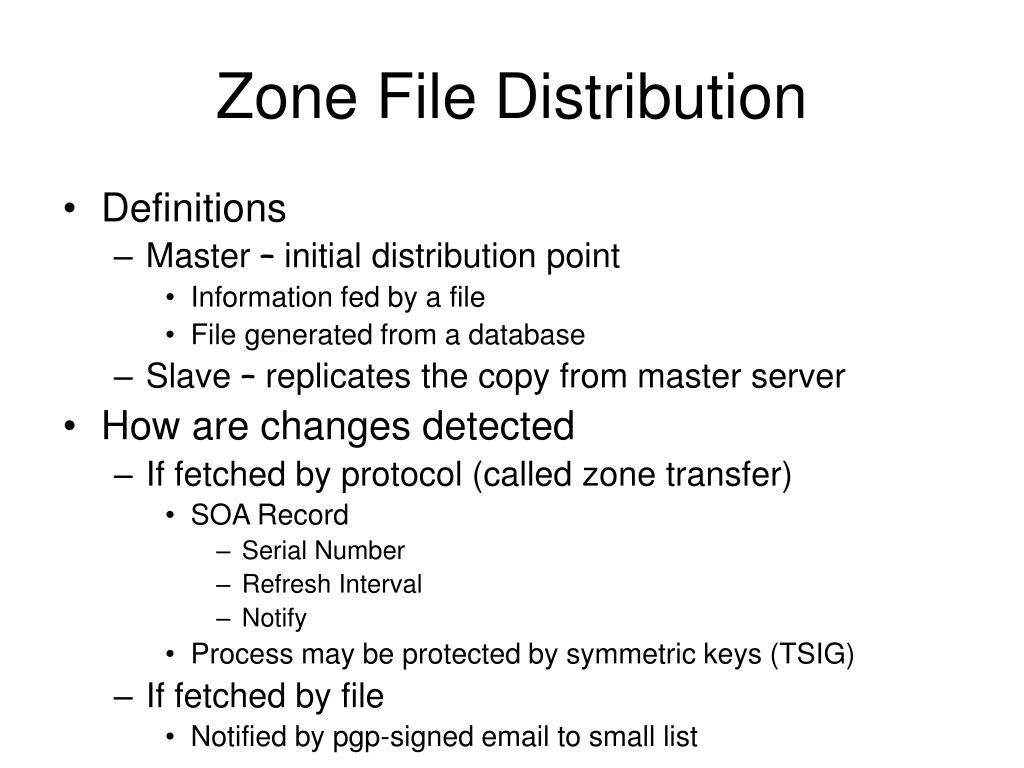

  8. Zone File Distribution • Definitions • Master – initial distribution point • Information fed by a file • File generated from a database • Slave – replicates the copy from master server • How are changes detected • If fetched by protocol (called zone transfer) • SOA Record • Serial Number • Refresh Interval • Notify • Process may be protected by symmetric keys (TSIG) • If fetched by file • Notified by pgp-signed email to small list

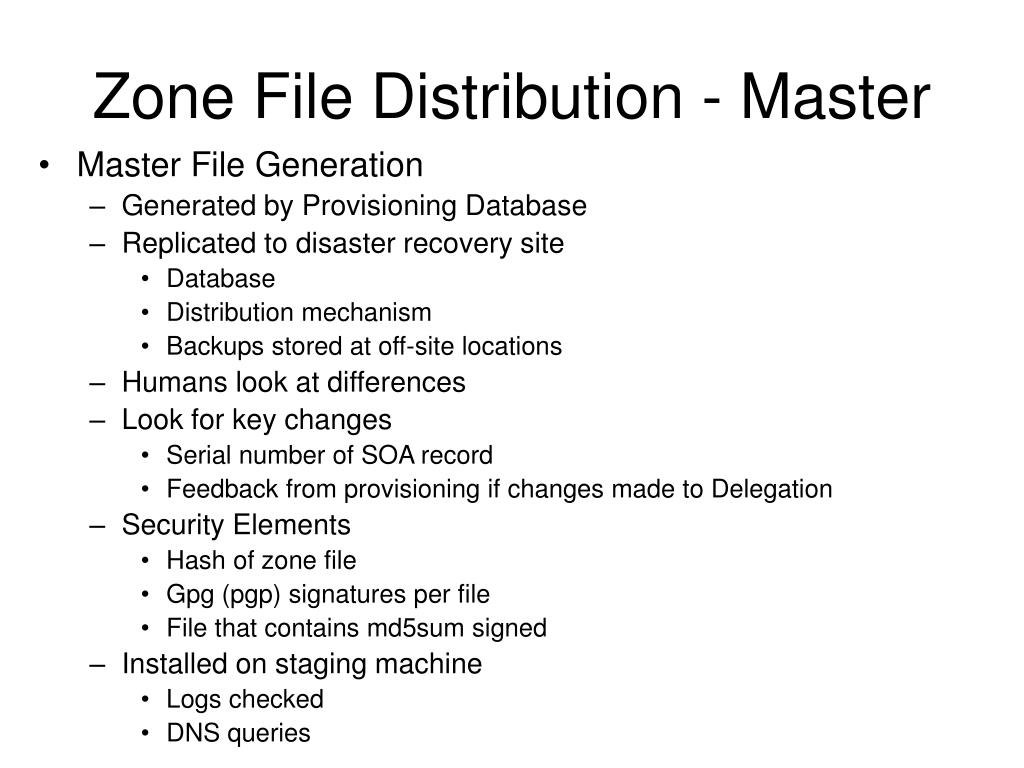

  9. Zone File Distribution - Master • Master File Generation • Generated by Provisioning Database • Replicated to disaster recovery site • Database • Distribution mechanism • Backups stored at off-site locations • Humans look at differences • Look for key changes • Serial number of SOA record • Feedback from provisioning if changes made to Delegation • Security Elements • Hash of zone file • Gpg (pgp) signatures per file • File that contains md5sum signed • Installed on staging machine • Logs checked • DNS queries

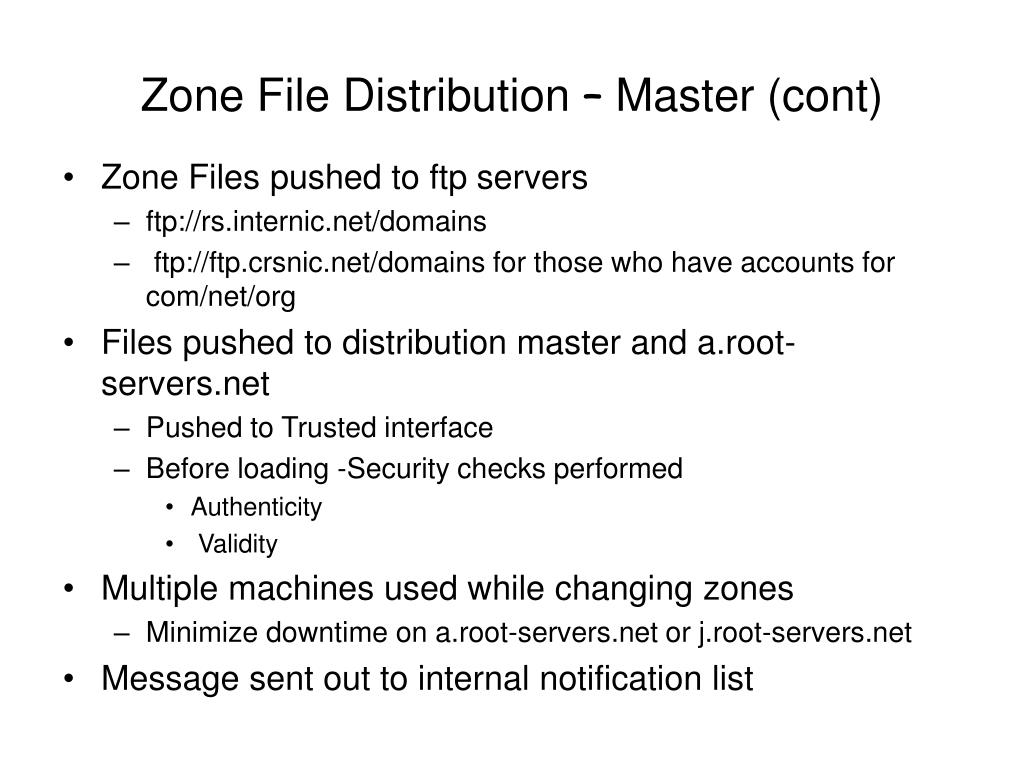

  10. Zone File Distribution – Master (cont) • Zone Files pushed to ftp servers • ftp://rs.internic.net/domains • ftp://ftp.crsnic.net/domains for those who have accounts for com/net/org • Files pushed to distribution master and a.root-servers.net • Pushed to Trusted interface • Before loading -Security checks performed • Authenticity • Validity • Multiple machines used while changing zones • Minimize downtime on a.root-servers.net or j.root-servers.net • Message sent out to internal notification list

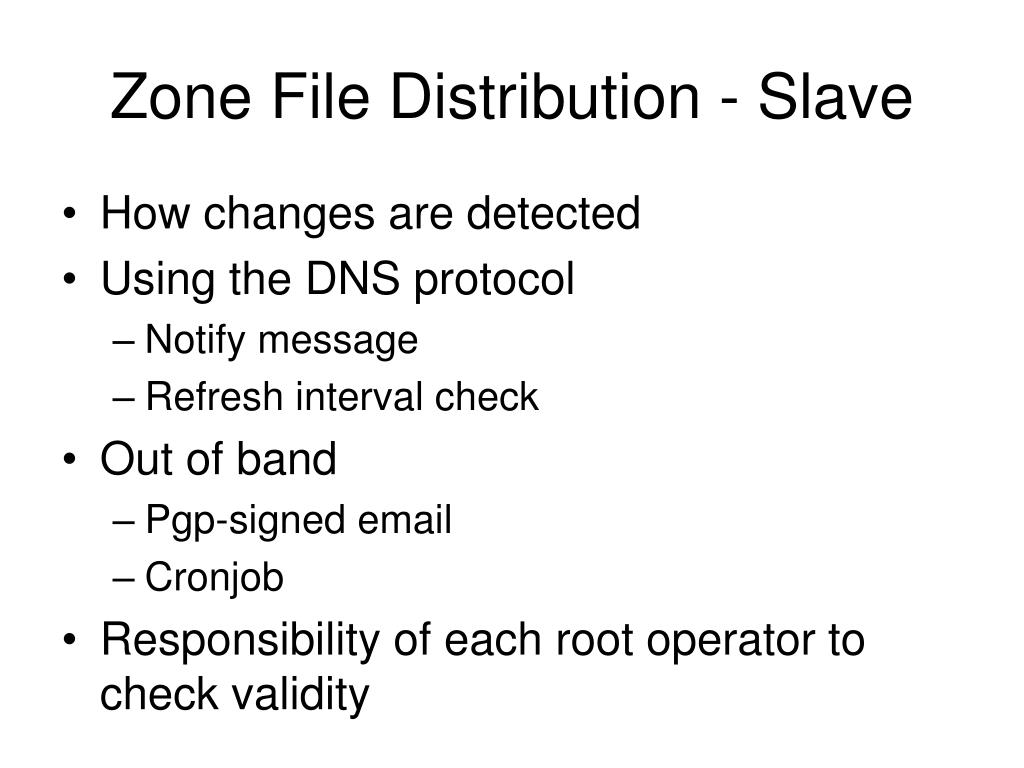

  11. Zone File Distribution - Slave • How changes are detected • Using the DNS protocol • Notify message • Refresh interval check • Out of band • Pgp-signed email • Cronjob • Responsibility of each root operator to check validity

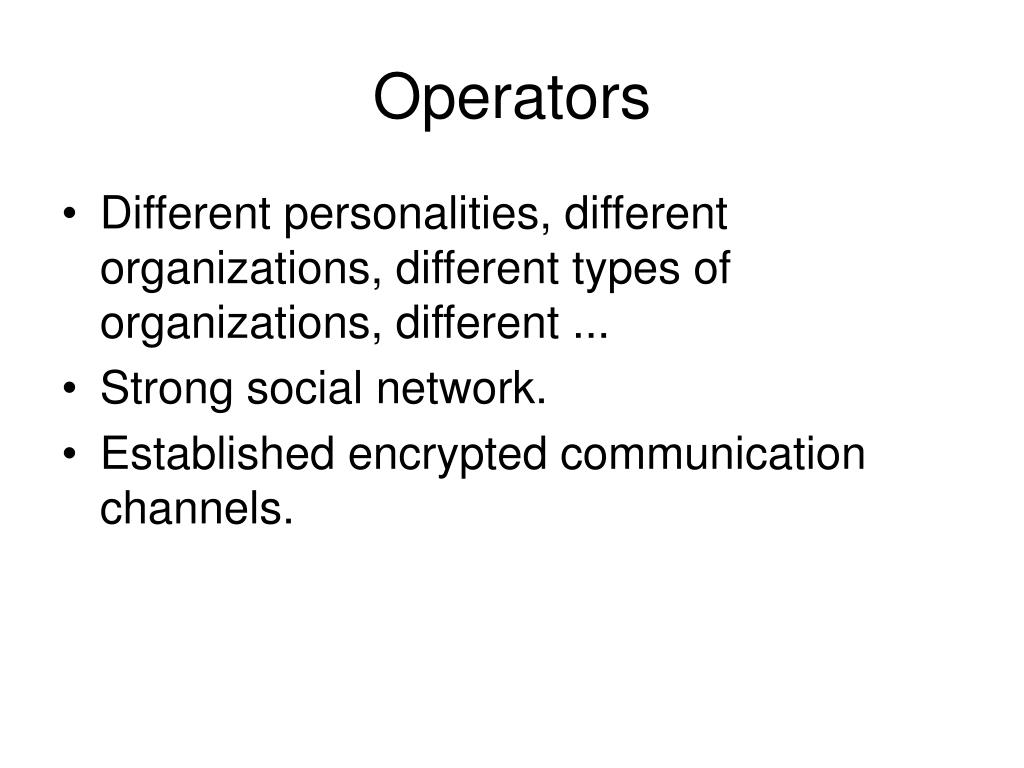

  12. Operators • Different personalities, different organizations, different types of organizations, different ... • Strong social network. • Established encrypted communication channels.

  13. Technical Guidelines • The Internet Engineering Task Force (IETF) has well established procedures for developing technical recommendations. • Domain Name System Operations working group. • Domain Name System Extensions working group. • Root operators use RFC 2870 as guidelines. • "Root Name Server Operational Requirements" • New ideas should go into the next version of that document.

  14. Current Situation • Physical access limitations in place. • Placed reasonably well protected. • Contingency plans.

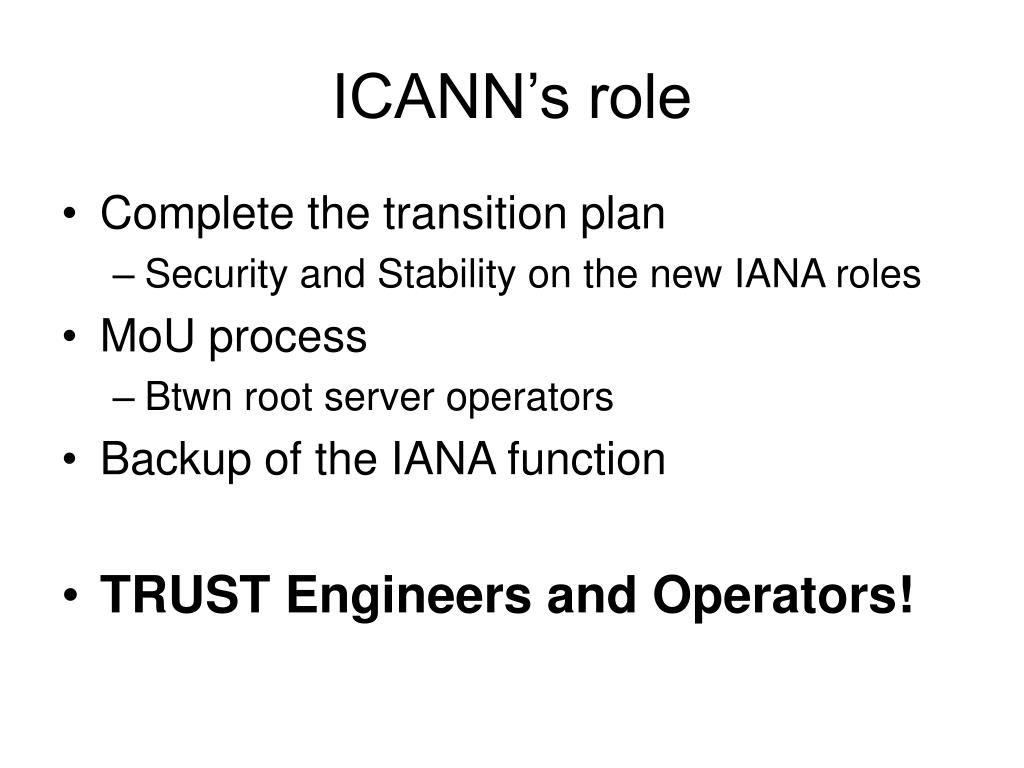

  15. ICANN’s role • Complete the transition plan • Security and Stability on the new IANA roles • MoU process • Btwn root server operators • Backup of the IANA function • TRUST Engineers and Operators!
