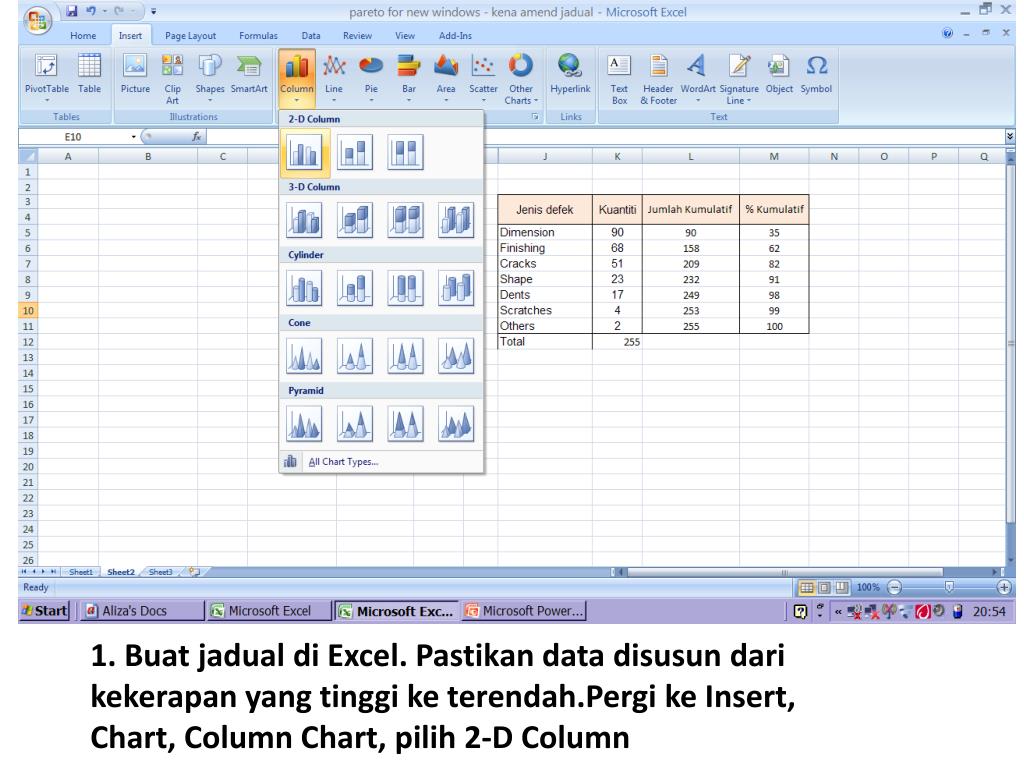

  1. 1. Buatjadualdi Excel. Pastikan data disusundarikekerapan yang tinggiketerendah.Pergike Insert, Chart, Column Chart, pilih 2-D Column

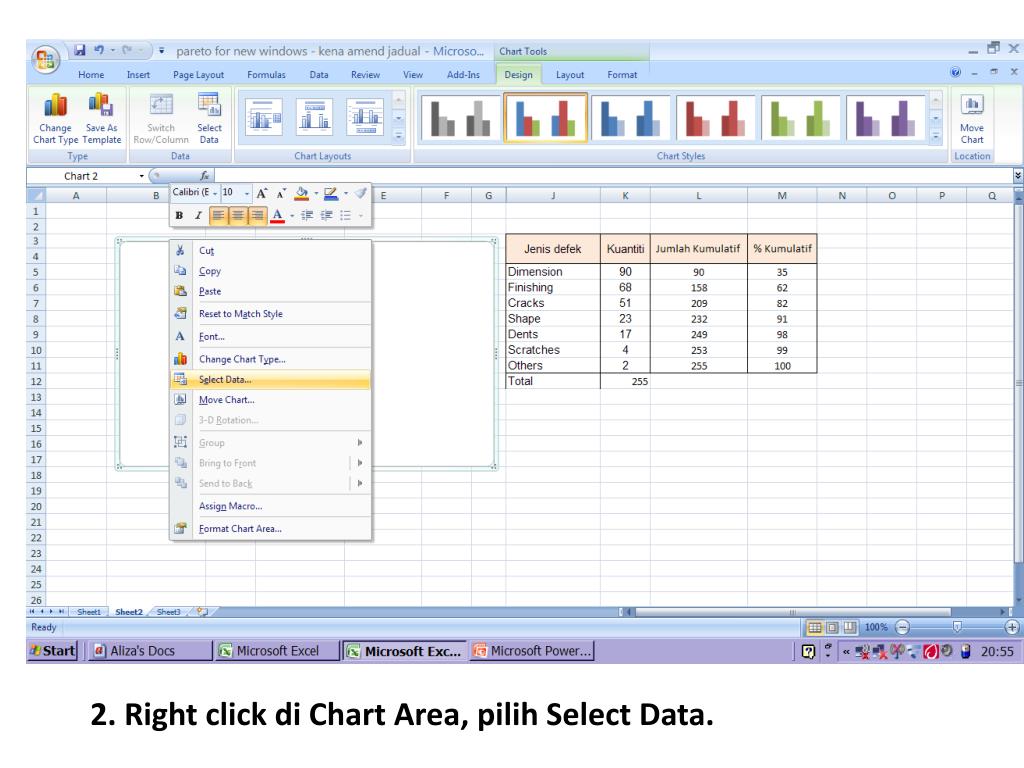

  2. 2. Right click di Chart Area, pilih Select Data.

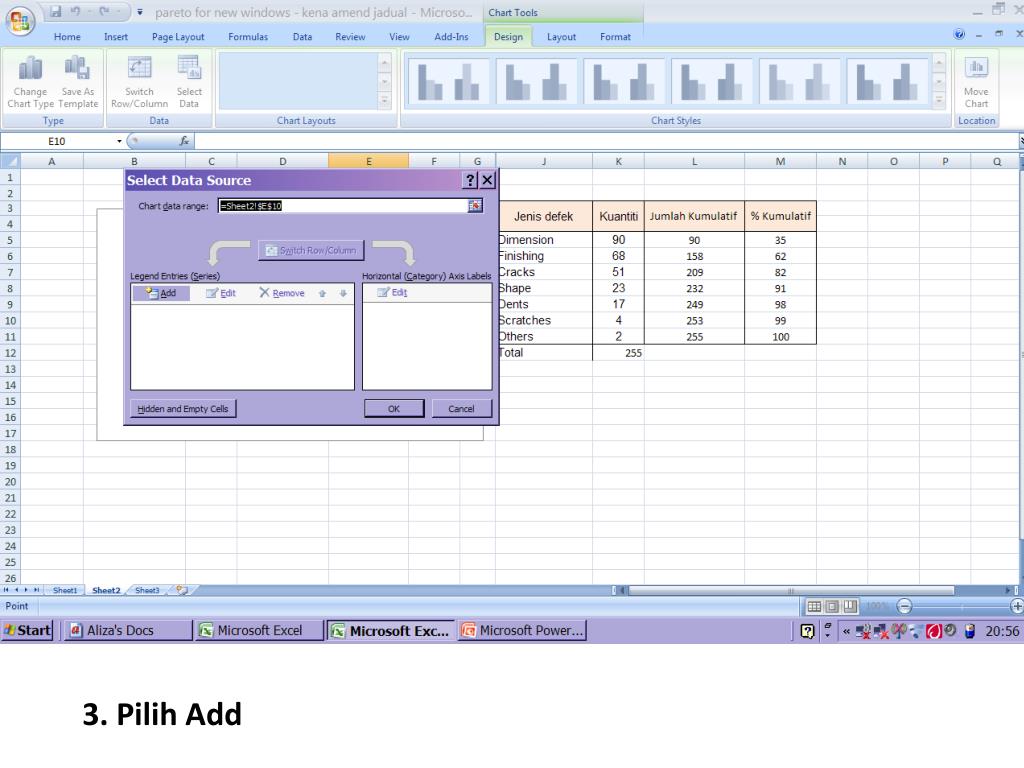

  3. 3. Pilih Add

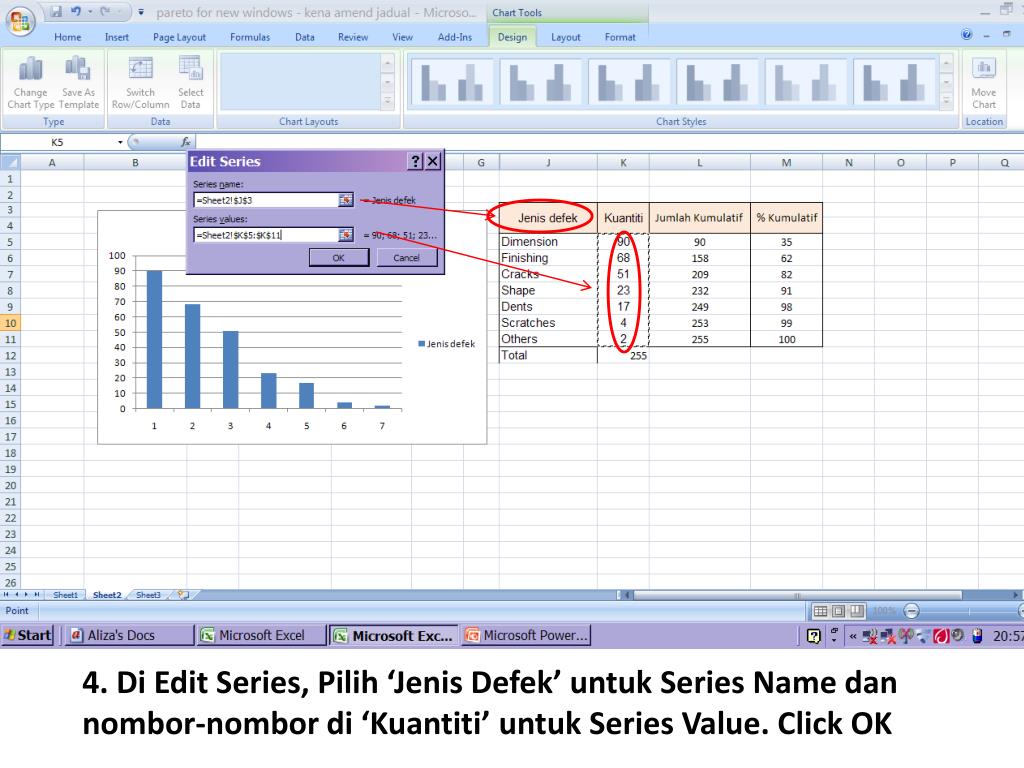

  4. 4. Di Edit Series, Pilih ‘JenisDefek’ untuk Series Name dannombor-nombordi ‘Kuantiti’ untuk Series Value. Click OK

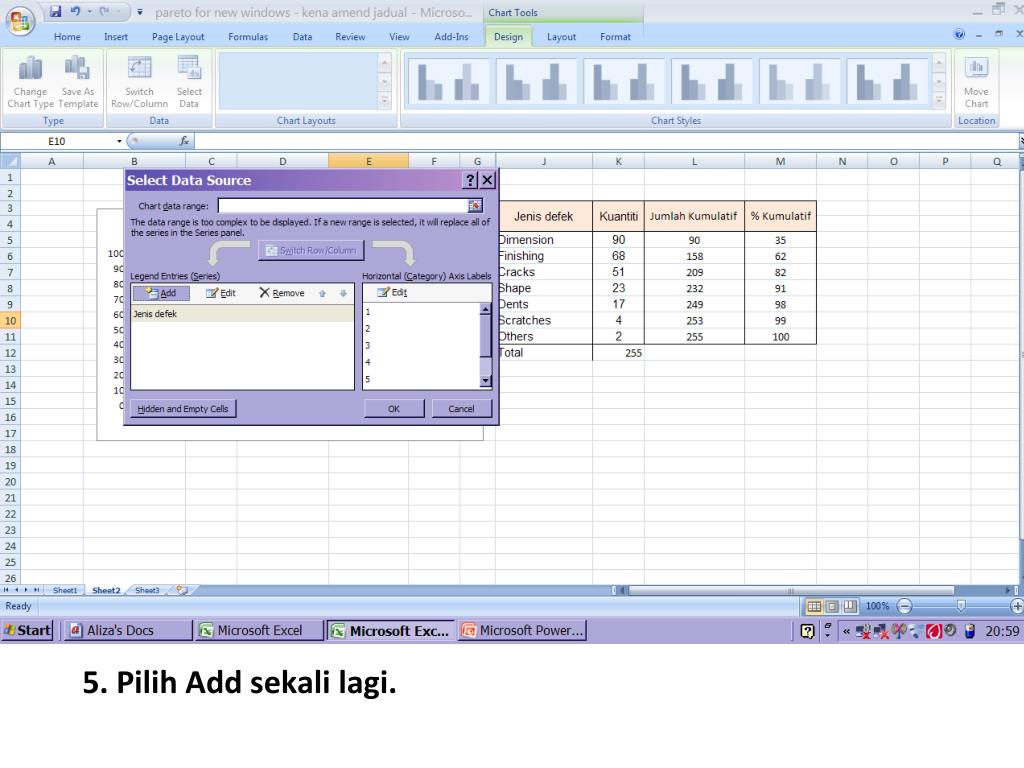

  5. 5. Pilih Add sekalilagi.

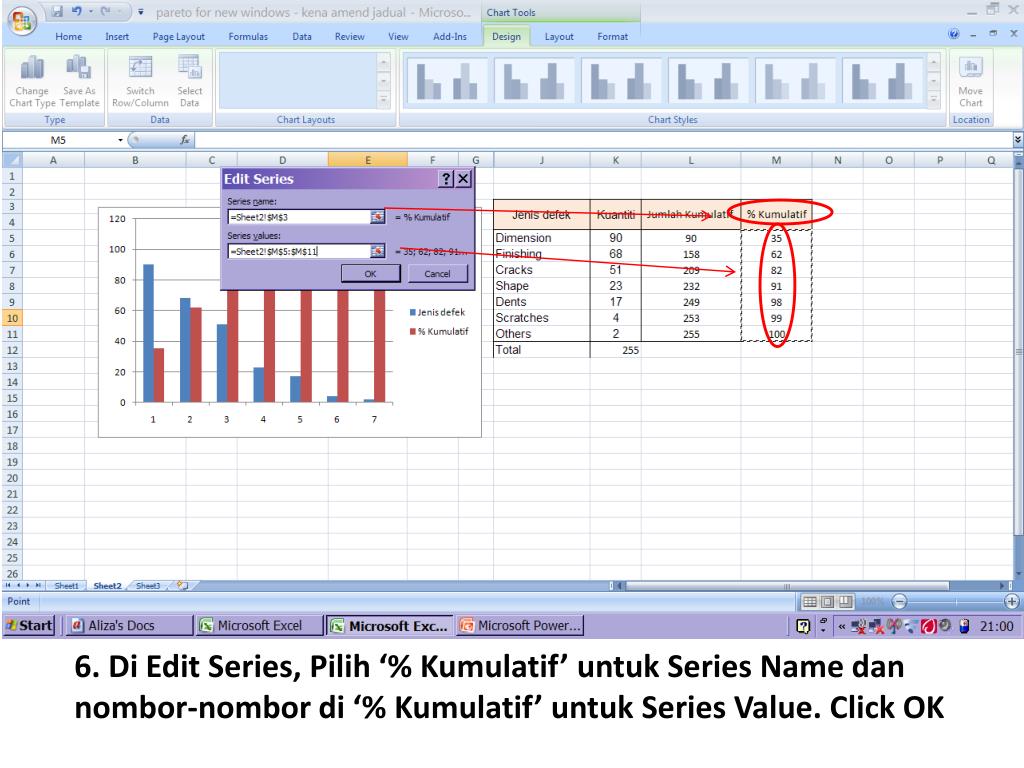

  6. 6. Di Edit Series, Pilih ‘% Kumulatif’ untuk Series Name dannombor-nombordi ‘% Kumulatif’ untuk Series Value. Click OK

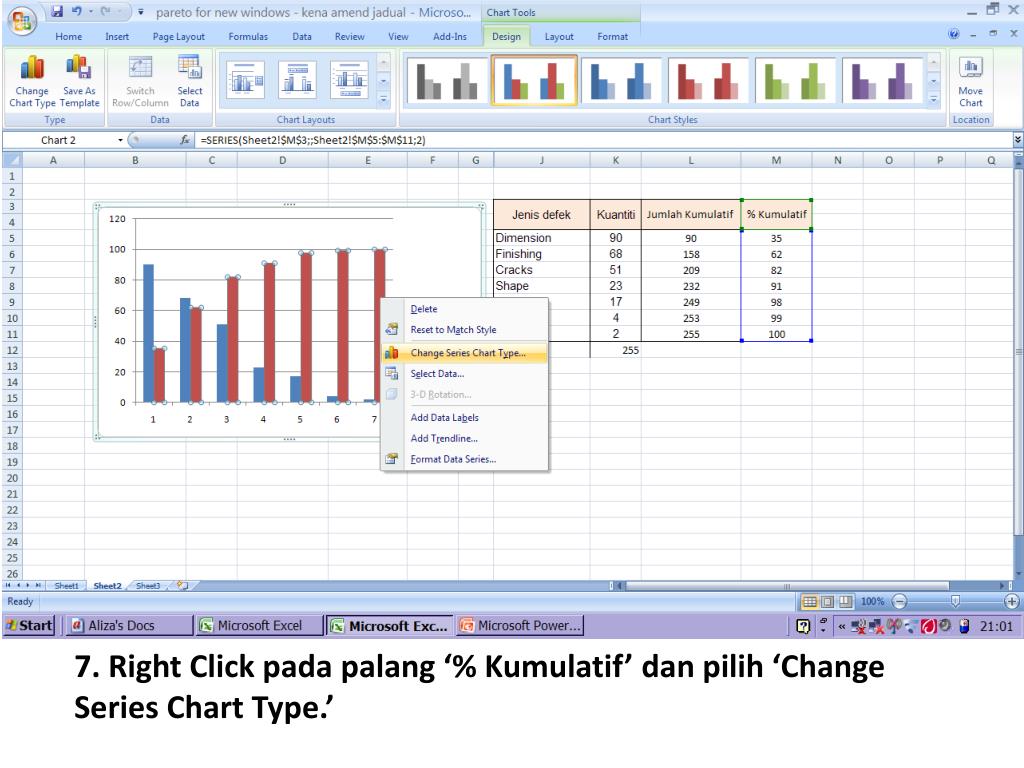

  7. 7. Right Click padapalang ‘% Kumulatif’ danpilih ‘Change Series Chart Type.’

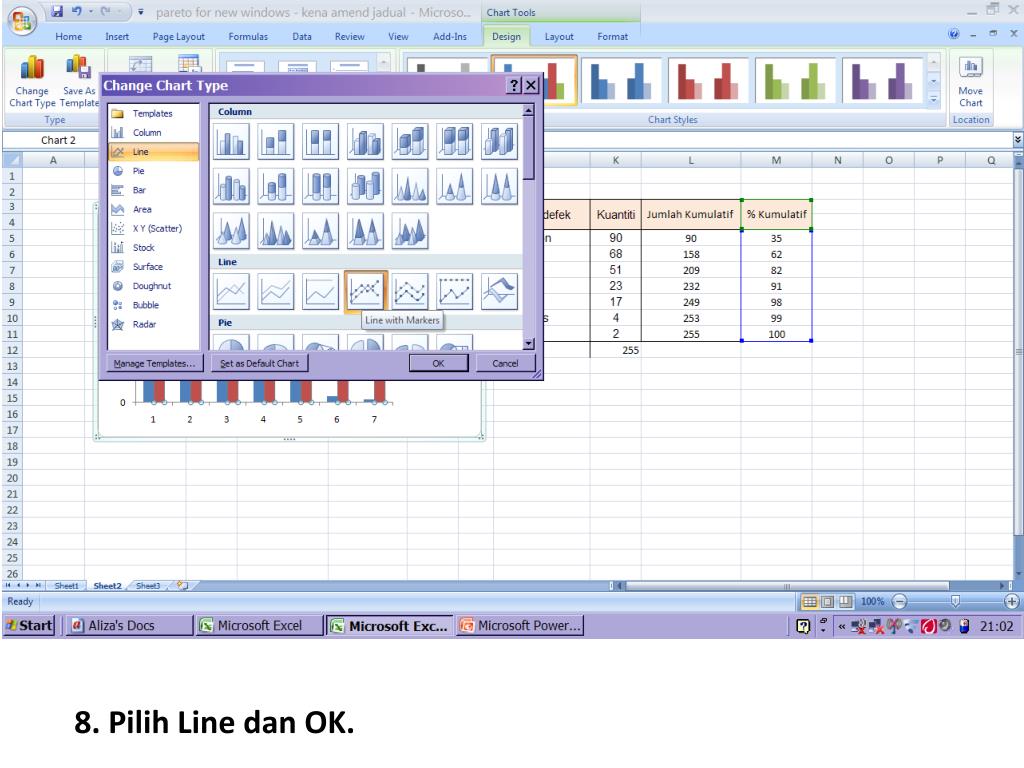

  8. 8. Pilih Line dan OK.

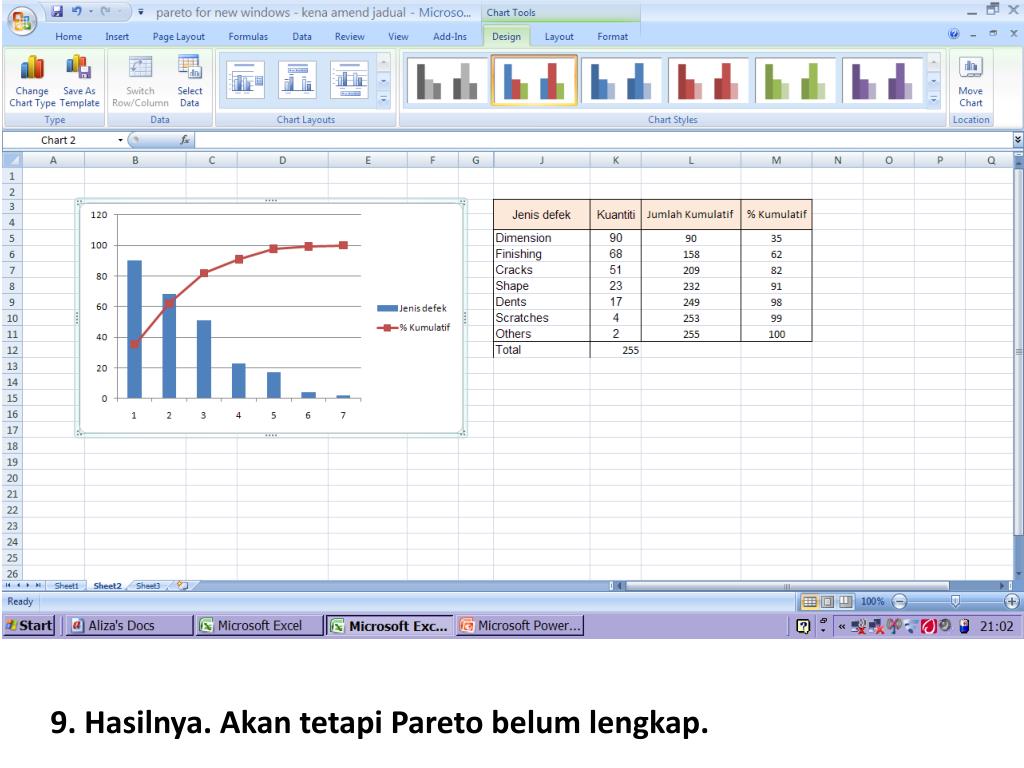

  9. 9. Hasilnya. Akantetapi Pareto belumlengkap.

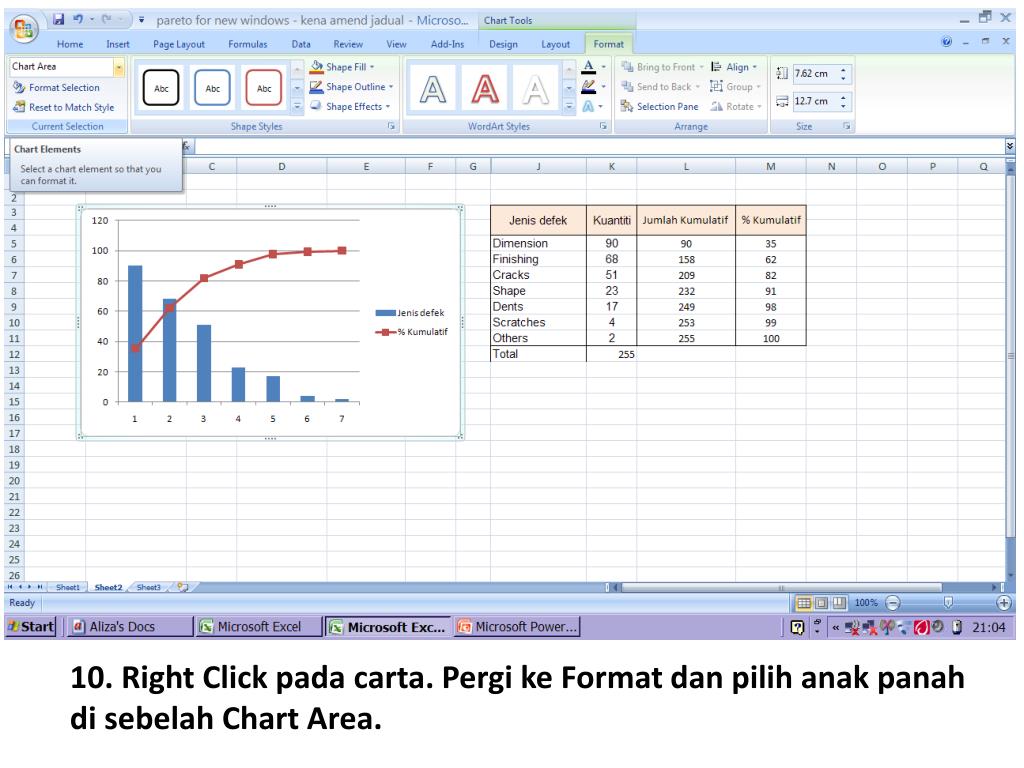

  10. 10. Right Click padacarta. Pergike Format danpilihanakpanahdisebelah Chart Area.

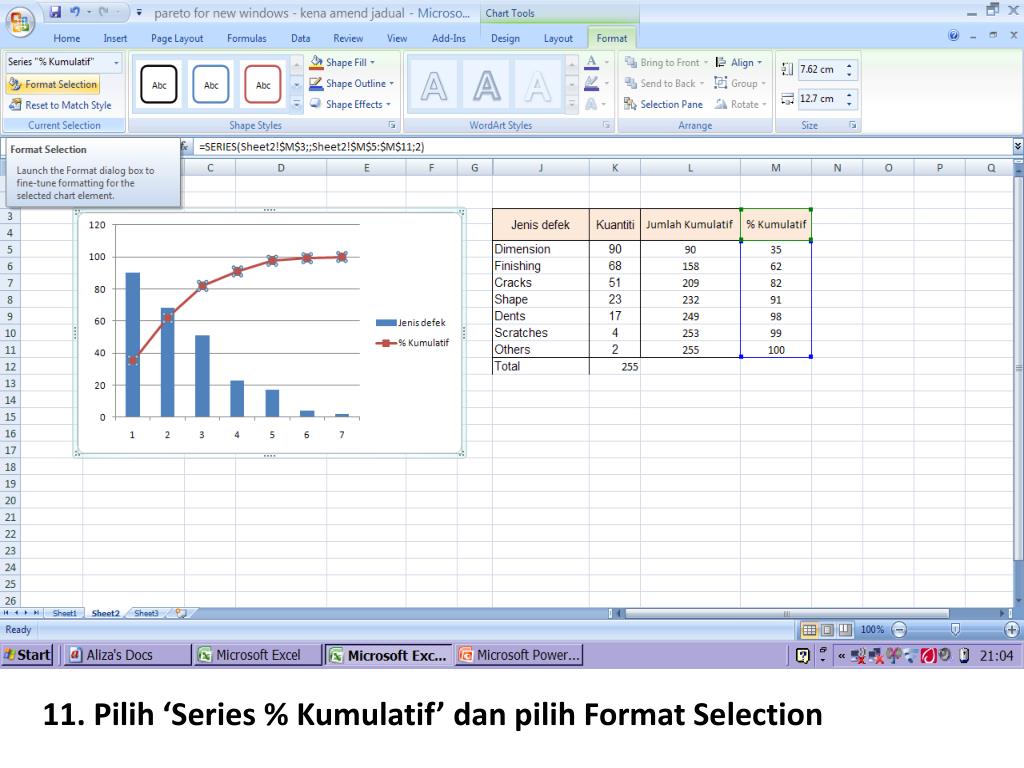

  11. 11. Pilih ‘Series % Kumulatif’ danpilih Format Selection

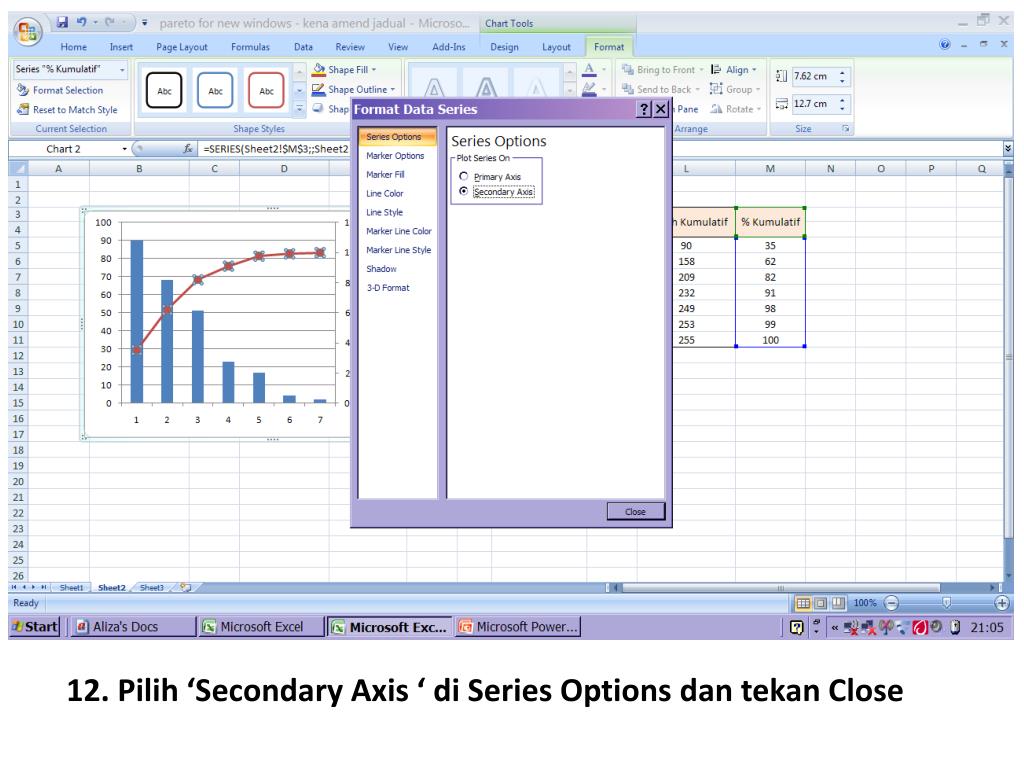

  12. 12. Pilih ‘Secondary Axis ‘ di Series Options dantekan Close

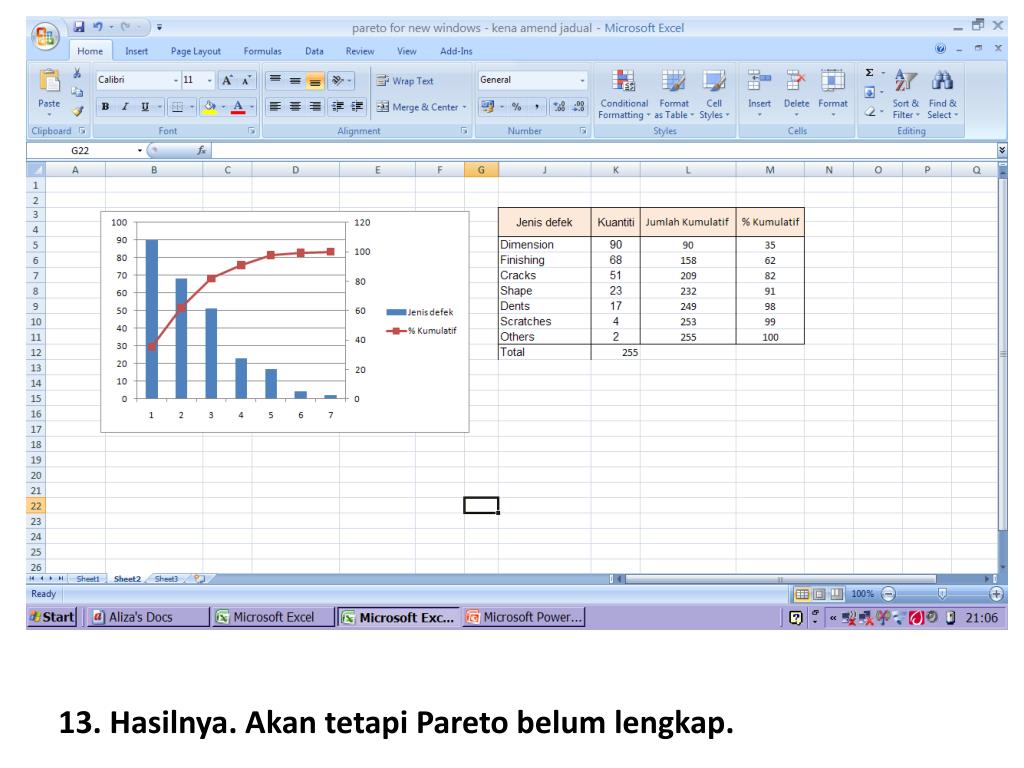

  13. 13. Hasilnya. Akantetapi Pareto belumlengkap.

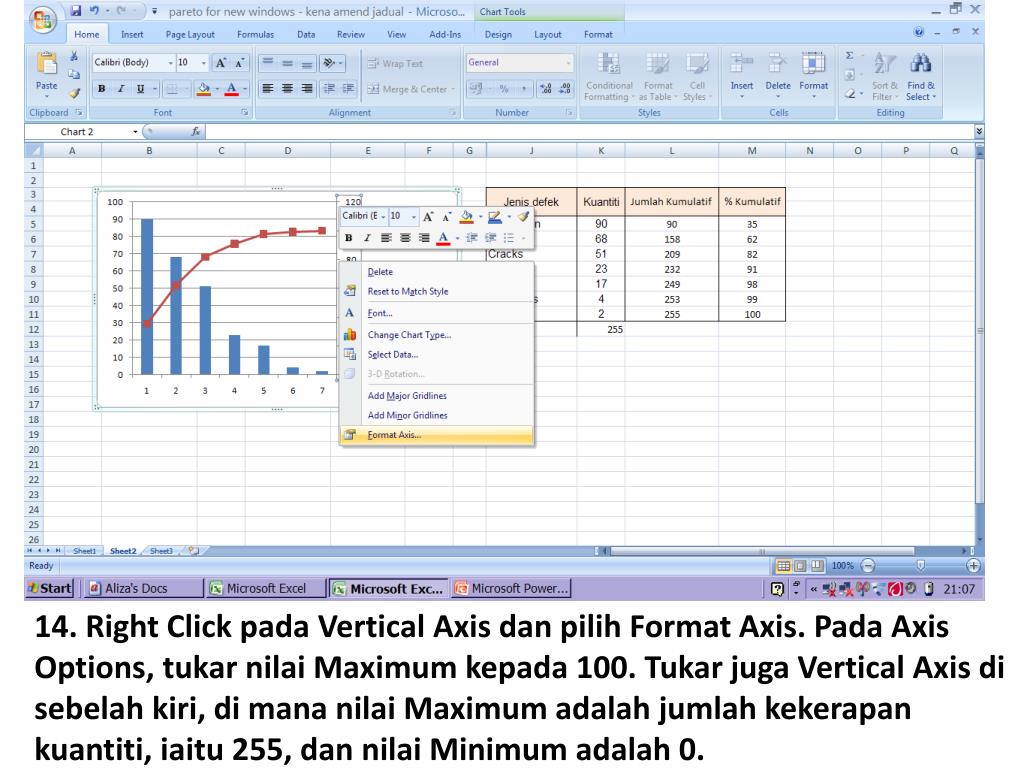

  14. 14. Right Click pada Vertical Axis danpilih Format Axis. Pada Axis Options, tukarnilai Maximum kepada 100. Tukarjuga Vertical Axis disebelahkiri, dimananilai Maximum adalahjumlahkekerapankuantiti, iaitu 255, dannilai Minimum adalah 0.

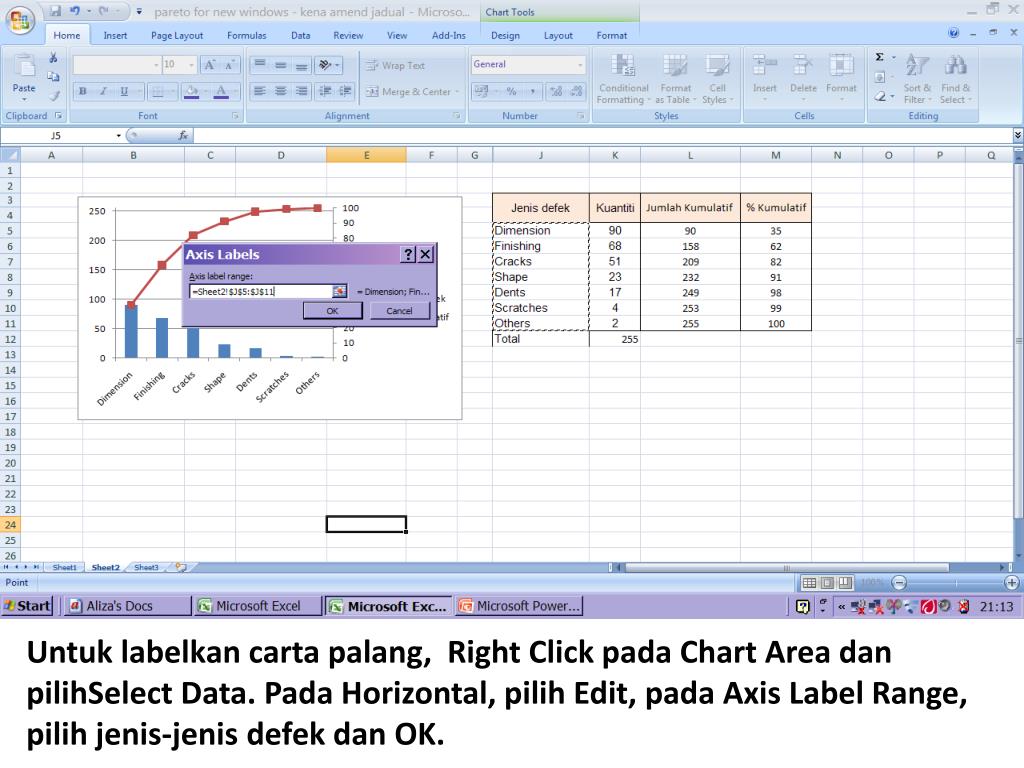

  15. Untuklabelkancartapalang, Right Click pada Chart Area danpilihSelect Data. Pada Horizontal, pilih Edit, pada Axis Label Range, pilihjenis-jenisdefekdan OK.

  16. Maka, jadilah Pareto yang lengkapciri-cirinya. Masukkantajukcarta.

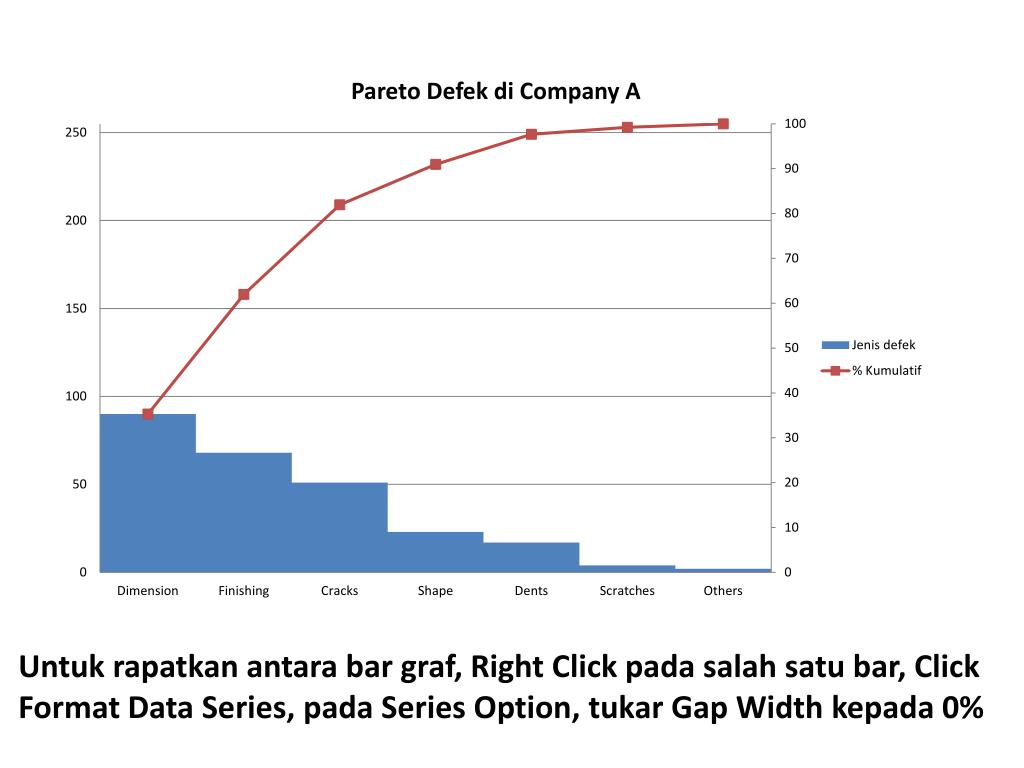

  17. Untukrapatkanantara bar graf, Right Click padasalahsatu bar, Click Format Data Series, pada Series Option, tukar Gap Width kepada 0%
