  1. ATHENA WFI Meeting Garching, January 28, 2014 Markus Plattner

  2. General ESA Project Lifecycle ECSS-M-ST-10C_Rev.1(6March2009)_Space project management - Project planning and implementation

  3. Schedule for this Call for L2 Mission Concepts ATHENA LoIsubmission deadline:17 February 2014 (12:00 noon CET) Briefing meeting (ESTEC) 5 March 2014 (tbc) Proposal submission deadline:15 April 2014 (12:00 noon CET) Proposal evaluation April 2014 - June 2014

  4. Mission Concept – Expected Content • The mission Concept must address the science goals • Top level requirements: • High throughput optics: ≈ 2 m² collecting area) • High angular resolution: 5 arcsec • Wide field of view in the focal plane • Energy resolution: 2.5 eV • Technical Budget Envelopes: • Ariane 5 ECA: < 10 tons mass, 5.4 m diameter, 17 m height • < 75 Mbit/s downlink data rate (for Ka band, LagrangePoint L2) • Contribution from international partners (upon inter-agency agreements) is limited to 20% of the total mission envelope.

  5. Call for Mission Concept – Important Points ESA assessment of mission concept: Feasibility, technology readiness, international collaboration scheme (if applicable) Announcement of Opportunity (early 2015 tbc): Consortium shall be selected. Teams or payload consortia shall not be pre-selected in the mission concept The minimum request is to reach TRL 5/6 at mission adoption (2018/2019): Component and/or Breadboard Critical Function Verification in Relevant Environment  Effective overall time for mission preparation including necessary technology developments: 2014 until 2019.

  6. ATHENA Phase 0 and A Schedule

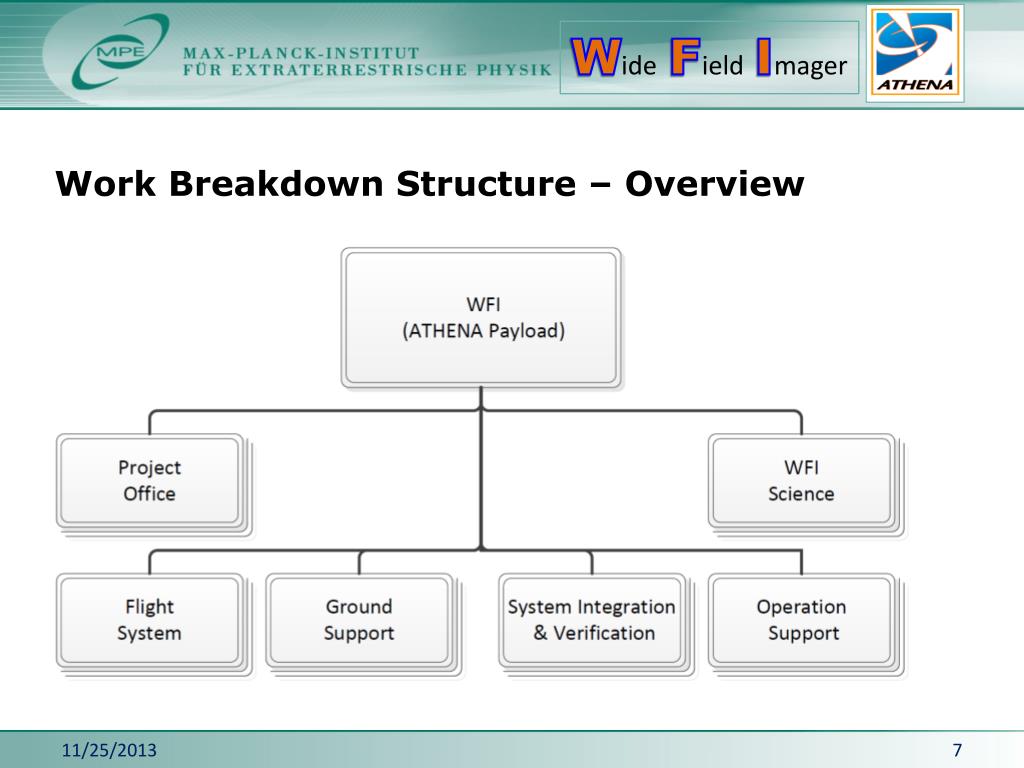

  7. Work Breakdown Structure – Overview

  8. WFI – Flight Hardware Architecture (1st Draft)

  9. WBS Flight System

  10. WBS Ground Support / Integration & Operation

  11. Work Breakdown Structure – Top Level
