  1. Multi-threaded RTOS How Multi-threading can increase on-chip parallelism

  2. Outline • Introduction • Multi-threading models • Architectures of multi-threaded processors • Simultaneous multi-threading and multi-processors • Cache design • Examples of Multi-threaded environments • Conclusions

  3. Introduction • Two forms of parallelism • instruction-level parallelism (ILP) • thread-level parallelism (TLP) • Both identify independent instructions that can execute in parallel • Wide-issue superscalar processors exploit ILP by executing multiple instructions from a single program in a single cycle. • Multiprocessors exploit TLP by executing different threads in parallel on different processors. • The first multi-threaded processor approaches in the 1970s and 1980s applied multi-threading at user-thread-level to solve the memory access latency problem.

  4. Introduction • Motivations for multi-threaded processor architecture development include chip area , cost and complexity. • Simultaneous Multi-threading (SMT), • Single chip multiprocessing (CMP), • SMT VLIW architecture, • Multithreaded Vector (SMV) architecture • DSP applications inherently benefit from the following architectural characteristics: • Parallelization at multiple levels of hierarchy: • - Instruction - separate instruction memory space • - Data – separate date memory space • - Thread- multiple functional units • - Data transfer – multiple wide data buses

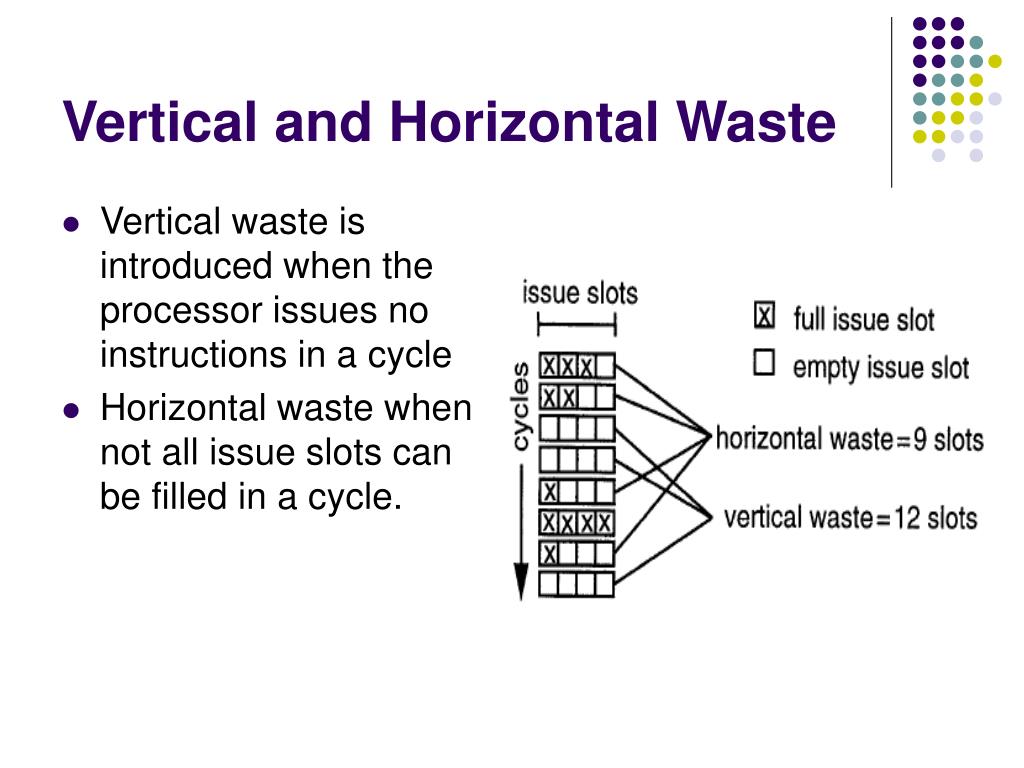

  5. Vertical and Horizontal Waste • Vertical waste is introduced when the processor issues no instructions in a cycle • Horizontal waste when not all issue slots can be filled in a cycle.

  6. Vertical and Horizontal Waste

  7. Multi-threaded Models • Fine-Grain Multithreading • Only one thread issues instructions each cycle, but it can use the entire issue width of the processor. • SM: full Simultaneous Issue • Single • Dual • Four • SM: limited Connection • Hardware context is connected directly one of each type of functional units. • Less dynamic

  8. Performance

  9. SMT VLIW Architecture

  10. Simultaneous Vector Multi-threaded Architecture (SVMT)

  11. SMT vs. Multiprocessing

  12. Cache design

  13. Examples Multi-threaded RTOS • Analog Devices VDK • uClinux • The RTXC Quadros RTOS • RTCX/ss • RTXC/ss • ThreadX

  14. Conclusions • A simultaneous multithreaded architecture is superior in performance to a multiple-issue multiprocessor (multi-issue CMP). • SMT boost utilization by dynamically scheduling functional units among multiple threads. • SMT also increases hardware design flexibility. • Simultaneous multithreading increases the complexity of instruction scheduling. • Increased parallelism offered makes multi-threading ideal for DSP applications where each application can run as a separate thread.
