  1. Binary Data Representation

  2. Objectives • Know the key terms used in data representation • Understand how computers count in binary • Be able convert numbers up to 255 between denary (decimal) and binary

  3. The basics • Computer hardware is made of electronic circuits. • The circuit pathways can have electricity flowing through them. • Electricity has two states: On - 1 Off - 0

  4. A little bit of maths Denary 0 1 2 3 4 5 6 7 8 9 Binary 0 1 • The number system that we use is called denary or base 10 • This means that we have numbers from 0 to 9 • Computers don’t have this because of the two states, so you can only ever have 1 or 0, this is called binary or base 2 • If you have a 1 or a 0 its called a bit which stand for binary digit. Binary Digit Bit

  5. Memory sizes • 0 or 1 = 1 Bit • 4 bits = nibble (This will be important later on!) • 8 bits = Byte • 1024 Bytes = 1 Kilobyte (Kb) • 1024 Kilobytes = 1 Megabyte (Mb) • 1024 Megabytes = 1 Gigabyte (Gb) • 1024 Gigabytes = 1 Terabyte (Tb)

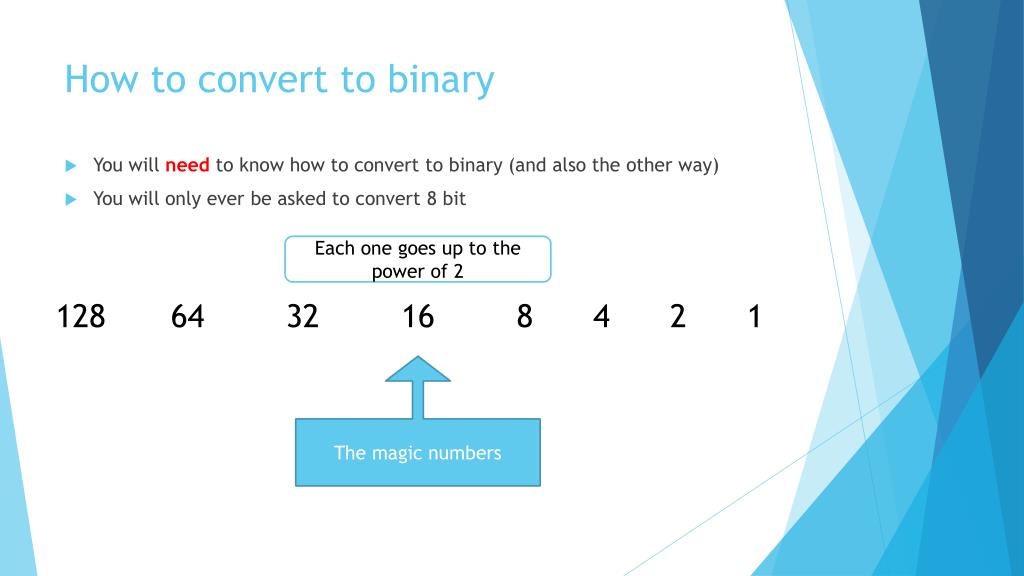

  6. How to convert to binary • You will needto know how to convert to binary (and also the other way) • You will only ever be asked to convert 8 bit Each one goes up to the power of 2 128 64 32 16 8 4 2 1 The magic numbers

  7. Step by step – Converting to Binary 12864 32 16 8 4 2 1 • Layout the magic numbers on your paper • Think greedy, and work from left to right • Go through each number and work out whether it goes into the number you are wishing to convert, if its no then you need to put a 0, if its yes then put a 1 underneath – we are converting 80 12864 32 16 8 4 2 1 Does 128 go into 80 - No 0 Does 64 go into 80 - Yes 0 1 Remainder - 16 Does 32 go into 16 - No 0 1 0 Does 16 go into 16 - Yes 0 1 0 1 We have converted everything just add 0s 0 1 0 1 0 0 0 0
