  1. Analysis of Variance (ANOVA) SPH 247 Statistical Analysis of Laboratory Data SPH 247 Statistical Analysis of Laboratory Data

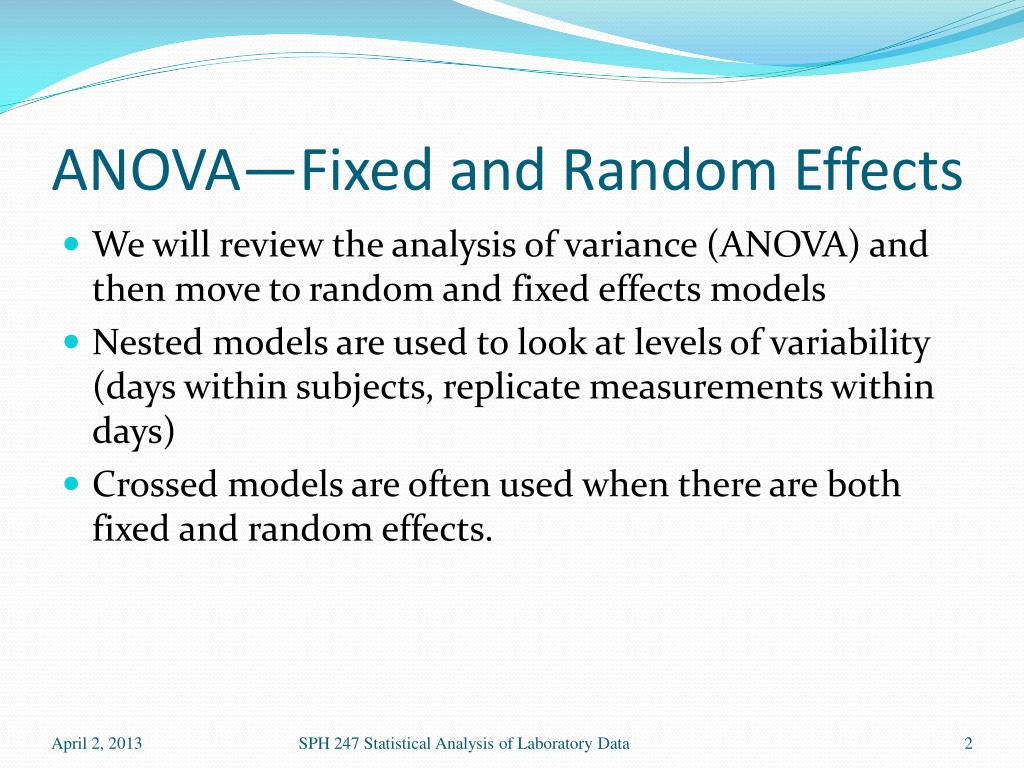

  2. ANOVA—Fixed and Random Effects • We will review the analysis of variance (ANOVA) and then move to random and fixed effects models • Nested models are used to look at levels of variability (days within subjects, replicate measurements within days) • Crossed models are often used when there are both fixed and random effects. SPH 247 Statistical Analysis of Laboratory Data

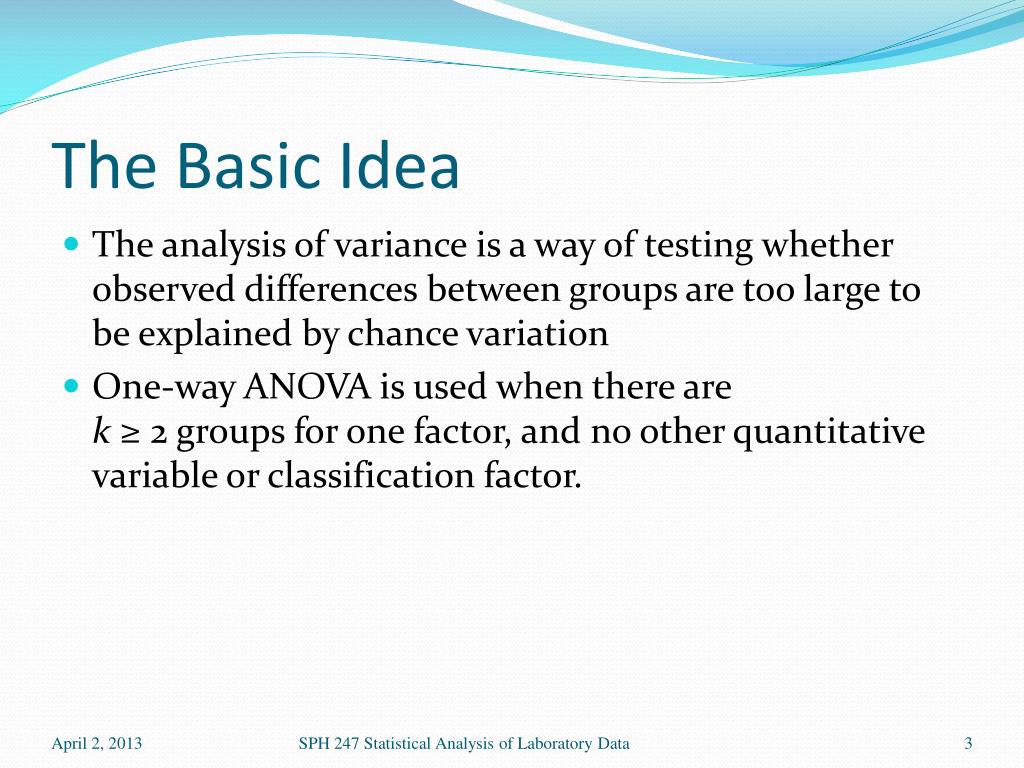

  3. The Basic Idea • The analysis of variance is a way of testing whether observed differences between groups are too large to be explained by chance variation • One-way ANOVA is used when there are k≥ 2 groups for one factor, and no other quantitative variable or classification factor. SPH 247 Statistical Analysis of Laboratory Data

  4. SPH 247 Statistical Analysis of Laboratory Data

  5. Data = Grand Mean + Column Deviations from grand mean + Cell Deviations from column mean Are the column deviations from the grand mean too big to be accounted for by the cell deviations from the column means? SPH 247 Statistical Analysis of Laboratory Data

  6. Data SPH 247 Statistical Analysis of Laboratory Data

  7. Column Means SPH 247 Statistical Analysis of Laboratory Data

  8. Deviations from Column Means SPH 247 Statistical Analysis of Laboratory Data

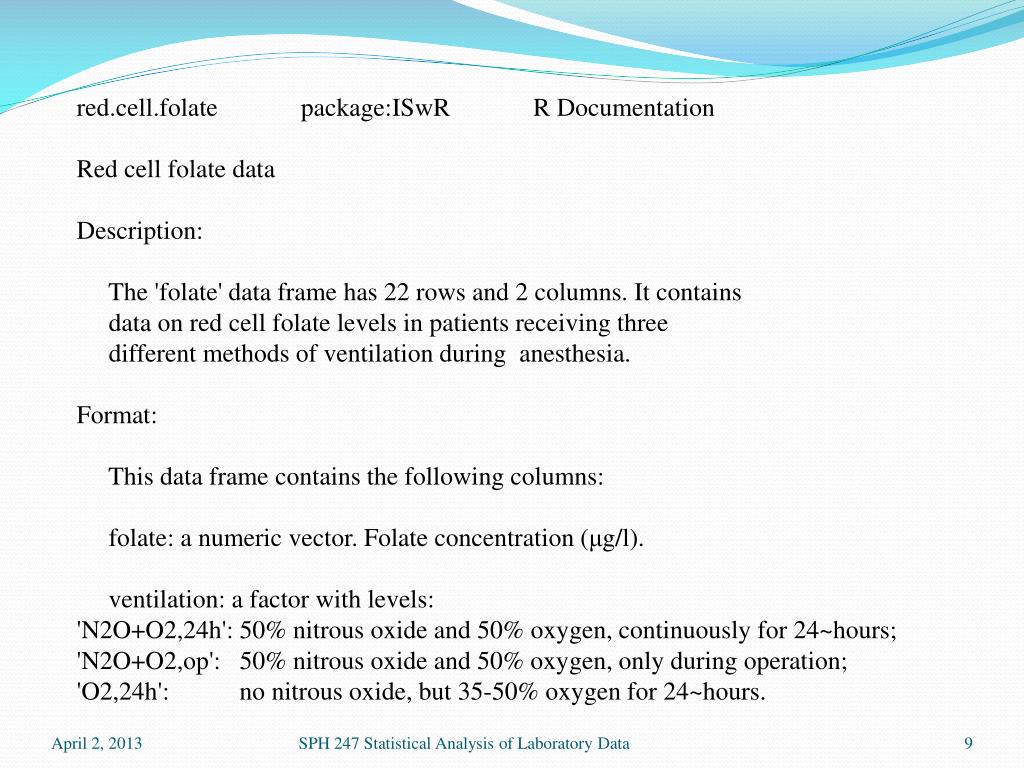

  9. red.cell.folatepackage:ISwR R Documentation Red cell folate data Description: The 'folate' data frame has 22 rows and 2 columns. It contains data on red cell folate levels in patients receiving three different methods of ventilation during anesthesia. Format: This data frame contains the following columns: folate: a numeric vector. Folate concentration (μg/l). ventilation: a factor with levels: 'N2O+O2,24h': 50% nitrous oxide and 50% oxygen, continuously for 24~hours; 'N2O+O2,op': 50% nitrous oxide and 50% oxygen, only during operation; 'O2,24h': no nitrous oxide, but 35-50% oxygen for 24~hours. SPH 247 Statistical Analysis of Laboratory Data

  10. > data(red.cell.folate) > help(red.cell.folate) > summary(red.cell.folate) folate ventilation Min. :206.0 N2O+O2,24h:8 1st Qu.:249.5 N2O+O2,op :9 Median :274.0 O2,24h :5 Mean :283.2 3rd Qu.:305.5 Max. :392.0 > attach(red.cell.folate)> plot(folate ~ ventilation) SPH 247 Statistical Analysis of Laboratory Data

  11. SPH 247 Statistical Analysis of Laboratory Data

  12. > folate.lm <- lm(folate ~ ventilation) > summary(folate.lm) Call: lm(formula = folate ~ ventilation) Residuals: Min 1Q Median 3Q Max -73.625 -35.361 -4.444 35.625 75.375 Coefficients: Estimate Std. Error t value Pr(>|t|) (Intercept) 316.62 16.16 19.588 4.65e-14 *** ventilationN2O+O2,op -60.18 22.22 -2.709 0.0139 * ventilationO2,24h -38.62 26.06 -1.482 0.1548 --- Signif. codes: 0 `***' 0.001 `**' 0.01 `*' 0.05 `.' 0.1 ` ' 1 Residual standard error: 45.72 on 19 degrees of freedom Multiple R-Squared: 0.2809, Adjusted R-squared: 0.2052 F-statistic: 3.711 on 2 and 19 DF, p-value: 0.04359 SPH 247 Statistical Analysis of Laboratory Data

  13. > anova(folate.lm) Analysis of Variance Table Response: folate Df Sum Sq Mean Sq F value Pr(>F) ventilation 2 15516 7758 3.7113 0.04359 * Residuals 19 39716 2090 --- Signif. codes: 0 `***' 0.001 `**' 0.01 `*' 0.05 `.' 0.1 ` ' 1 SPH 247 Statistical Analysis of Laboratory Data

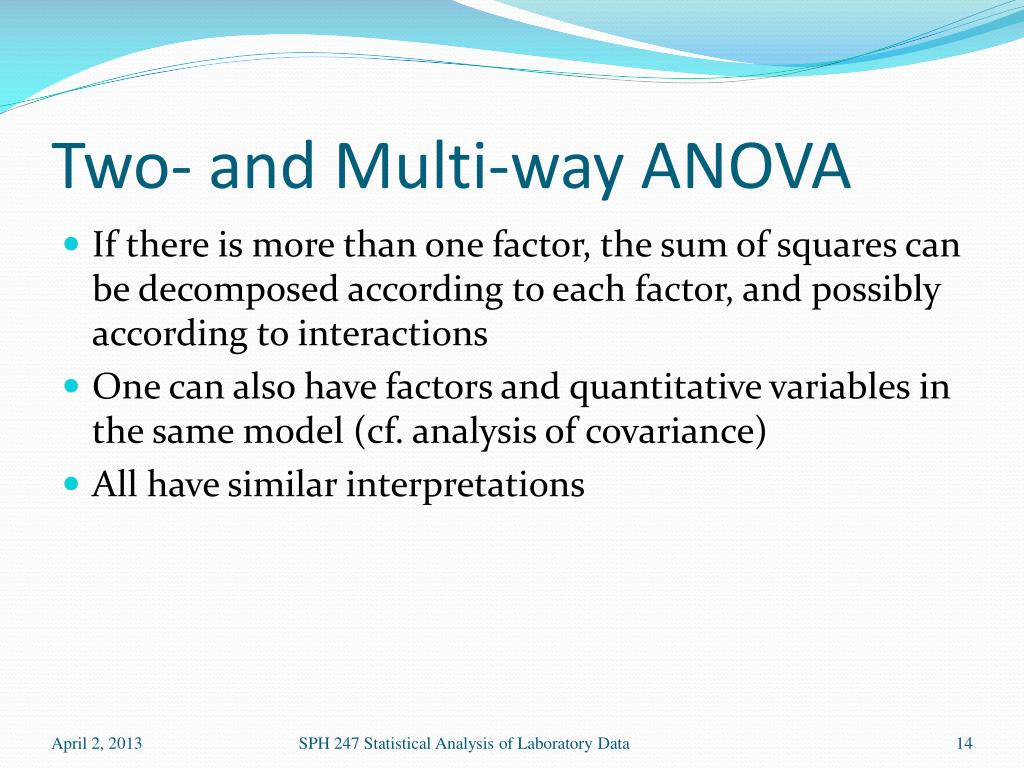

  14. Two- and Multi-way ANOVA • If there is more than one factor, the sum of squares can be decomposed according to each factor, and possibly according to interactions • One can also have factors and quantitative variables in the same model (cf. analysis of covariance) • All have similar interpretations SPH 247 Statistical Analysis of Laboratory Data

  15. Heart rates after enalaprilat (ACE inhibitor) Description: 36 rows and 3 columns. data for nine patients with congestive heart failure before and shortly after administration of enalaprilat, in a balanced two-way layout. Format: hr a numeric vector. Heart rate in beats per minute. subj a factor with levels '1' to '9'. time a factor with levels '0' (before), '30', '60', and '120' (minutes after administration). SPH 247 Statistical Analysis of Laboratory Data

  16. > data(heart.rate) > attach(heart.rate) > heart.rate hrsubj time 1 96 1 0 2 110 2 0 3 89 3 0 4 95 4 0 5 128 5 0 6 100 6 0 7 72 7 0 8 79 8 0 9 100 9 0 10 92 1 30 ...... 18 106 9 30 19 86 1 60 ...... 27 104 9 60 28 92 1 120 ...... 36 102 9 120 SPH 247 Statistical Analysis of Laboratory Data

  17. Note that when the design is orthogonal, the ANOVA results don’t depend on the order of terms. > plot(hr~subj) > plot(hr~time) > hr.lm <- lm(hr~subj+time) > anova(hr.lm) Analysis of Variance Table Response: hr Df Sum Sq Mean Sq F value Pr(>F) subj 8 8966.6 1120.8 90.6391 4.863e-16 *** time 3 151.0 50.3 4.0696 0.01802 * Residuals 24 296.8 12.4 --- Signif. codes: 0 `***' 0.001 `**' 0.01 `*' 0.05 `.' 0.1 ` ' 1 > sres <- resid(lm(hr~subj)) > plot(sres~time) SPH 247 Statistical Analysis of Laboratory Data

  18. SPH 247 Statistical Analysis of Laboratory Data

  19. SPH 247 Statistical Analysis of Laboratory Data

  20. SPH 247 Statistical Analysis of Laboratory Data

  21. Fixed and Random Effects • A fixed effect is a factor that can be duplicated (dosage of a drug) • A random effect is one that cannot be duplicated • Patient/subject • Repeated measurement • There can be important differences in the analysis of data with random effects • The error term is always a random effect SPH 247 Statistical Analysis of Laboratory Data

  22. SPH 247 Statistical Analysis of Laboratory Data

  23. SPH 247 Statistical Analysis of Laboratory Data

  24. Estradiol data from Rosner • 5 subjects from the Nurses’ Health Study • One blood sample each • Each sample assayed twice for estradiol (and three other hormones) • The within variability is strictly technical/assay • Variability within a person over time will be much greater SPH 247 Statistical Analysis of Laboratory Data

  25. SPH 247 Statistical Analysis of Laboratory Data

  26. > anova(lm(Estradiol ~ Subject,data=endocrin)) Analysis of Variance Table Response: Estradiol Df Sum Sq Mean Sq F value Pr(>F) Subject 4 593.31 148.329 24.546 0.001747 ** Residuals 5 30.21 6.043 --- Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1 Replication error variance is 6.043, so the standard deviation of replicates is 2.46 pg/mL This compared to average levels across subjects from 8.05 to 18.80 Estimated variance across subjects is (148.329 − 6.043)/2 = 71.143 Standard deviation across subjects is 8.43 pg/mL If we average the replicates, we get five values, the standard deviation of which is also 71.1 SPH 247 Statistical Analysis of Laboratory Data

  27. Fasting Blood Glucose • Part of a larger study that also examined glucose tolerance during pregnancy • Here we have 53 subjects with 6 tests each at intervals of at least a year • The response is glucose as mg/100mL SPH 247 Statistical Analysis of Laboratory Data

  28. > anova(lm(FG ~ Subject,data=fg2)) Analysis of Variance Table Response: FG Df Sum Sq Mean Sq F value Pr(>F) Subject 52 10936 210.310 2.9235 9.717e-09 *** Residuals 265 19064 71.938 --- Signif. codes: 0 ‘***’ 0.001 ‘**’ 0.01 ‘*’ 0.05 ‘.’ 0.1 ‘ ’ 1 > Estimated within-Subject variance is 71.938, so the standard deviation is 8.48 mg/100mL Estimated between-Subject variance is (210.310 − 71.938)/6 = 23.062, sd = 4.80 mg/100mL The variance of the 53 means is 35.05, which is larger because it includes a component of the within-subject variance SPH 247 Statistical Analysis of Laboratory Data

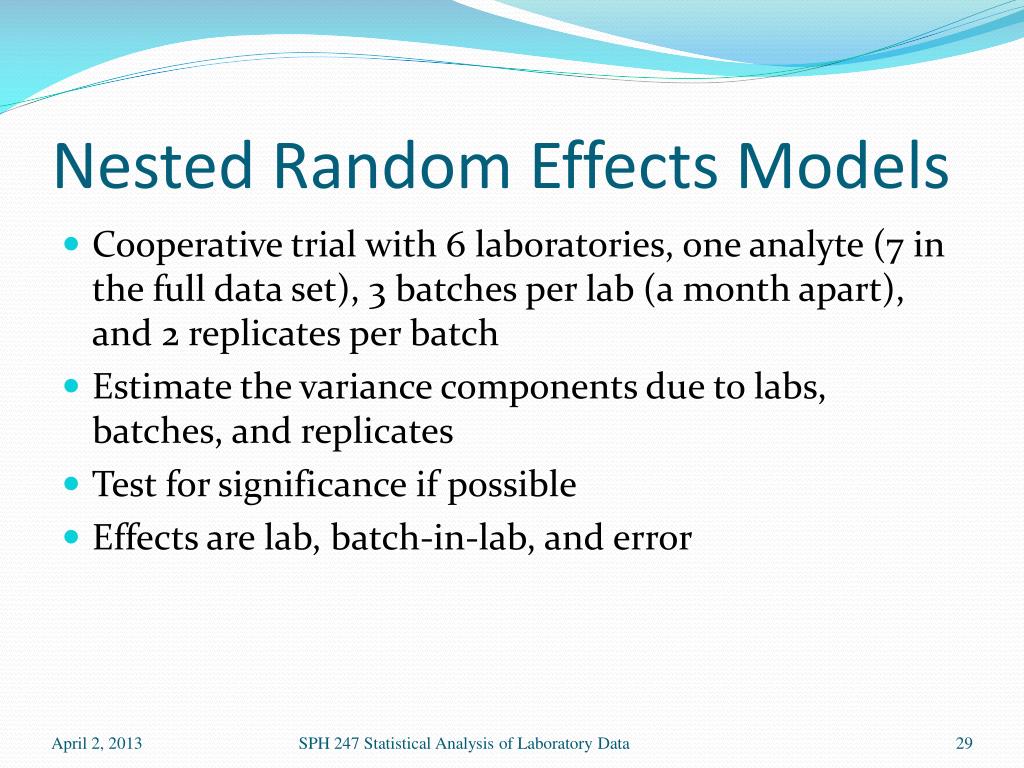

  29. Nested Random Effects Models • Cooperative trial with 6 laboratories, one analyte (7 in the full data set), 3 batches per lab (a month apart), and 2 replicates per batch • Estimate the variance components due to labs, batches, and replicates • Test for significance if possible • Effects are lab, batch-in-lab, and error SPH 247 Statistical Analysis of Laboratory Data

  30. Analysis using lm or aov > anova(lm(Conc ~ Lab + Lab:Bat,data=coop2)) Analysis of Variance Table Response: Conc Df Sum Sq Mean Sq F value Pr(>F) Lab 5 1.89021 0.37804 60.0333 1.354e-10 *** Lab:Bat 12 0.20440 0.01703 2.7049 0.02768 * Residuals 18 0.11335 0.00630 The test for batch-in-lab is correct, but the test for lab is not—the denominator should be The Lab:Bat MS, so F(5,12) = 0.37804/0.01703 = 22.198 so p = 3.47e-4, still significant Residual 0.00630 0.0794 Batch 0.00537 0.0733 Lab 0.01683 0.2453 SPH 247 Statistical Analysis of Laboratory Data

  31. SPH 247 Statistical Analysis of Laboratory Data

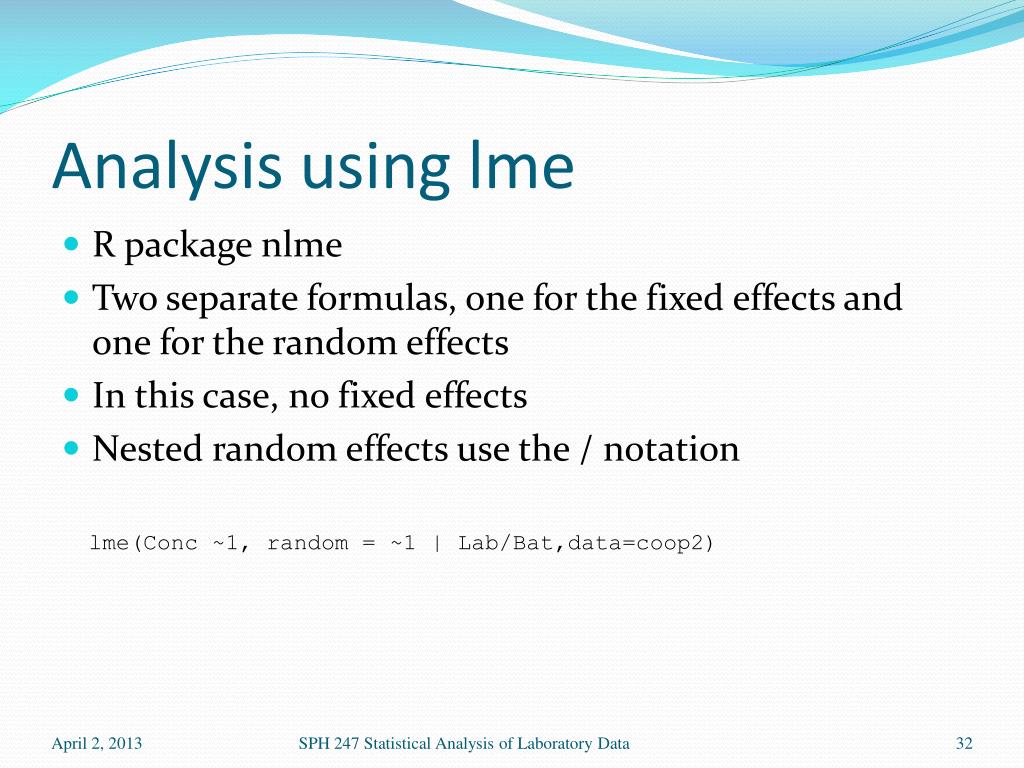

  32. Analysis using lme • R package nlme • Two separate formulas, one for the fixed effects and one for the random effects • In this case, no fixed effects • Nested random effects use the / notation lme(Conc~1, random = ~1 | Lab/Bat,data=coop2) SPH 247 Statistical Analysis of Laboratory Data

  33. lme(Conc ~1, random = ~1 | Lab/Bat,data=coop2) Linear mixed-effects model fit by REML Data: coop2 Log-restricted-likelihood: 21.02158 Fixed: Conc ~ 1 (Intercept) 0.5080556 Random effects: Formula: ~1 | Lab (Intercept) StdDev: 0.2452922 Formula: ~1 | Bat %in% Lab (Intercept) Residual StdDev: 0.07326702 0.07935504 Number of Observations: 36 Number of Groups: Lab Bat %in% Lab 6 18 Average Concentration SD of Labs SD of Batches and Replicates SPH 247 Statistical Analysis of Laboratory Data

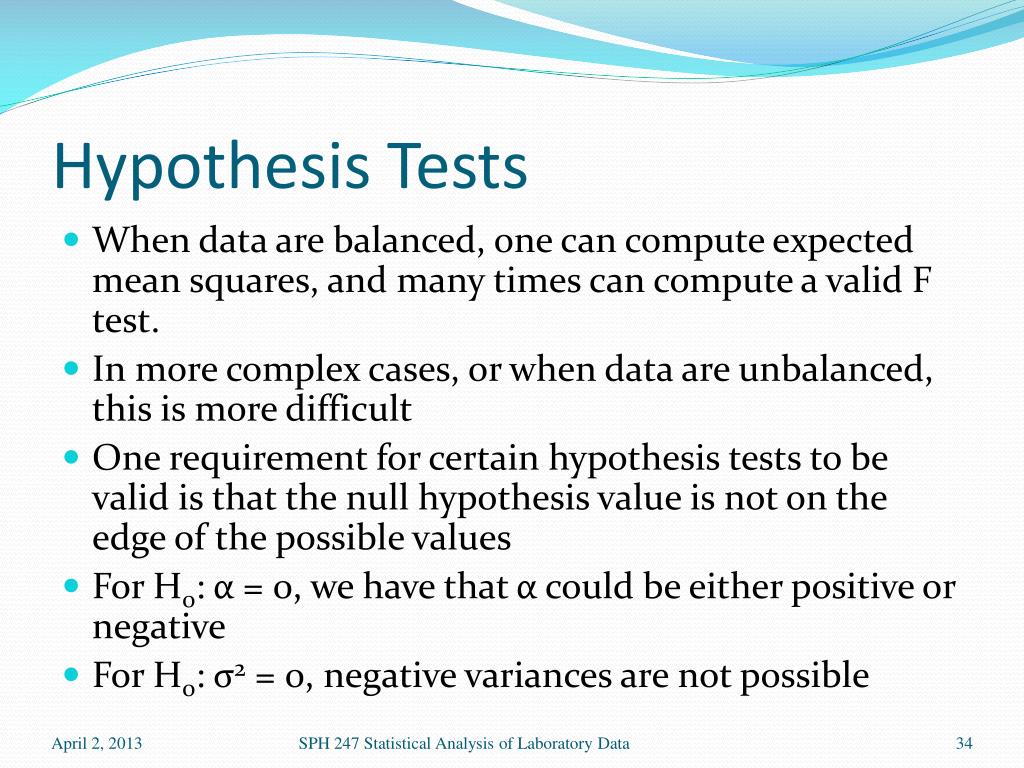

  34. Hypothesis Tests • When data are balanced, one can compute expected mean squares, and many times can compute a valid F test. • In more complex cases, or when data are unbalanced, this is more difficult • One requirement for certain hypothesis tests to be valid is that the null hypothesis value is not on the edge of the possible values • For H0: α = 0, we have that α could be either positive or negative • For H0: σ2= 0, negative variances are not possible SPH 247 Statistical Analysis of Laboratory Data

  35. Effect Variance SD ------------------------------------ Residual 0.00630 0.0794 Batch 0.00537 0.0733 Lab 0.01683 0.2453 • The variance among replicates a month apart (0.00630 + 0.00537 = 0.01167) is about twice that of those on the same day (0.00630), and the standard deviations are 0.1080 and 0.0794. These are CV’s on the average of 21% and 16% respectively • The variance among values from different labs is about 0.0285, with a standard deviation of 0.1688 and a CV of about 33% SPH 247 Statistical Analysis of Laboratory Data

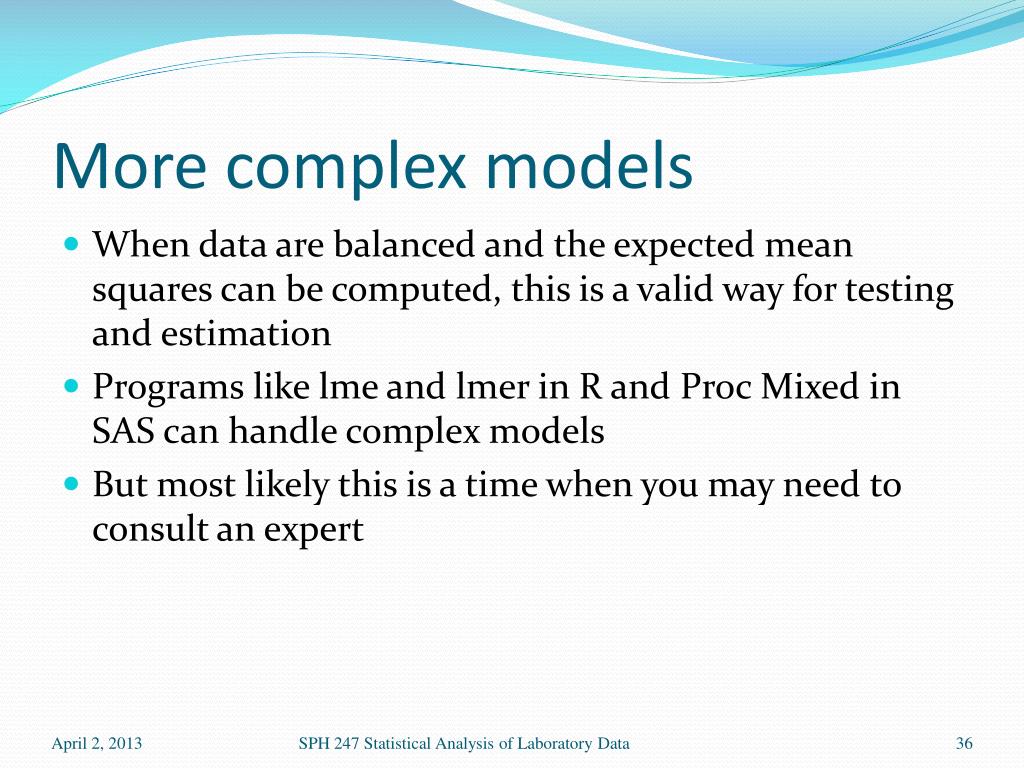

  36. More complex models • When data are balanced and the expected mean squares can be computed, this is a valid way for testing and estimation • Programs like lme and lmer in R and Proc Mixed in SAS can handle complex models • But most likely this is a time when you may need to consult an expert SPH 247 Statistical Analysis of Laboratory Data
