  1. Data value prediction Bas van der Tol

  2. Limits to ILP Instruction Level Parallelism is limited by • Control flow • Data flow: true dependencies

  3. Types of Speculative Execution

  4. Sources of predicatable data • Data redundancy • Error-checking • Program constants • Virtual function calls • Glue code • Call-subgraph identities • Register spill code

  5. Register value locality

  6. Value Prediction Unit

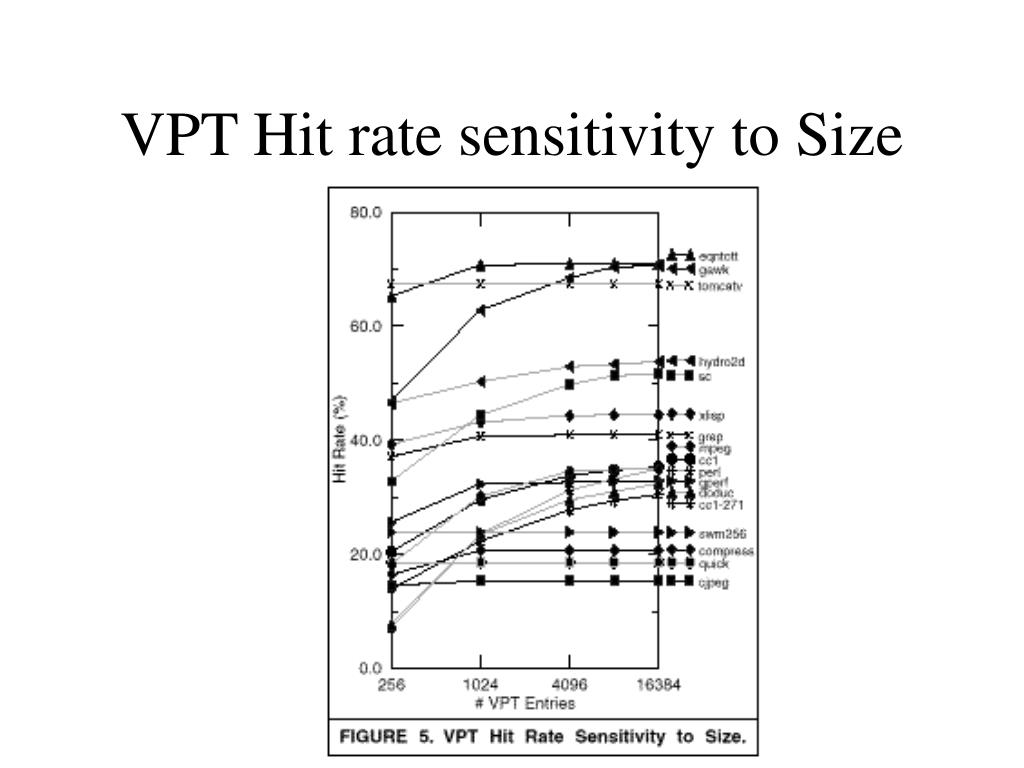

  7. VPT Hit rate sensitivity to Size

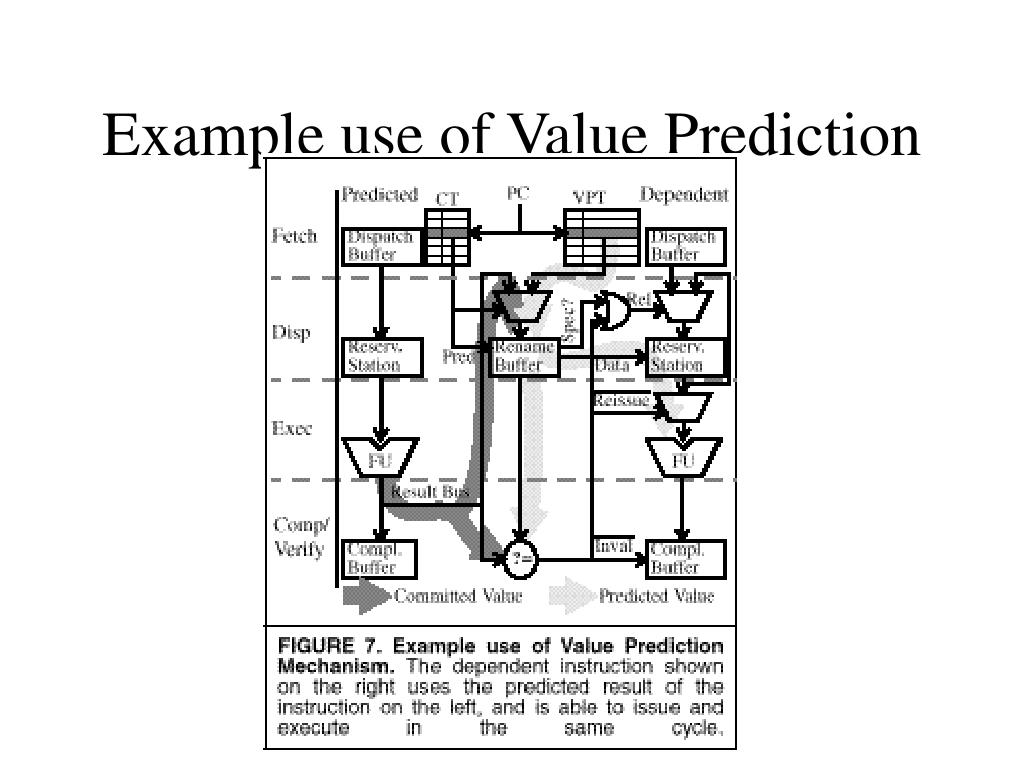

  8. Example use of Value Prediction

  9. Penalties Penalties • Misprediction penalty • Structural hazards, both on correct and mispredictions

  10. Configurations used for experiments

  11. PowerPC 620 Speedup

  12. PowerPC 620+ Speedup

  13. Infinite Machine Model Speedup

  14. Data cache vs. Value Prediction

  15. Improving Prediction Accuracy • Last Value Prediction • Stride Prediction • Finite Context Method Predictors (fcm)

  16. Finite Context Models

  17. Prediction Success

  18. Conclusions • Data value prediction increases performance by 5% on PowerPC 620 • A performance gain of 23% is possible Future Developments • More parallel execution units • Better prediction models
