Exploring Alternative DBMS: Scalability and Versatility in a Post-Transaction World

In the rapidly evolving landscape of database management systems (DBMS), traditional RDBMS face challenges with scalability and high workload demands. Alternative DBMS provide solid formal underpinnings and ensure rapid performance, even in vast application domains. They enable a distributed architecture without the need for a unified schema, allowing applications to access objects efficiently across numerous nodes. Notably, systems like Amazon's Dynamo and Google's Bigtable exemplify this approach, emphasizing decentralized storage, wide-area replication, and flexible querying capabilities, making them ideal for high-volume multimedia data.

levia
Télécharger la présentation

Exploring Alternative DBMS: Scalability and Versatility in a Post-Transaction World

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

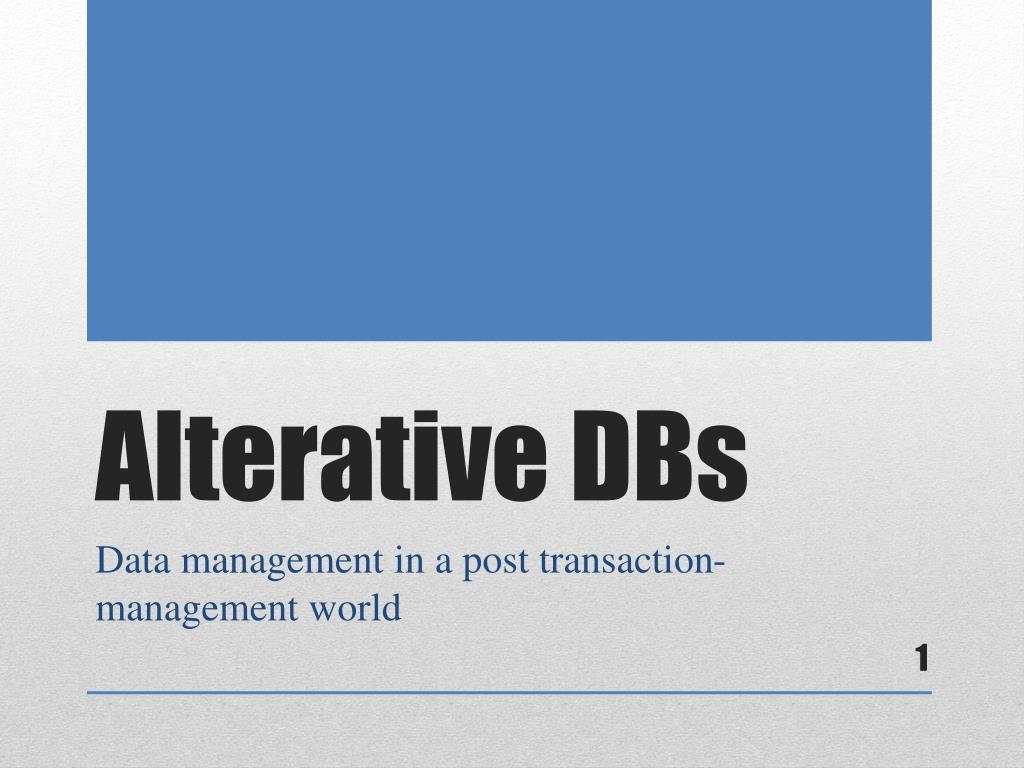

  1. Alterative DBs Data management in a post transaction-management world

  2. Easy to understand and use • Solid formal underpinnings • Fast • Serves a broad class of application domains • Scales in volume What’s good with RDBMs?

  3. Not good for highly varying workload demands – unstable scalability demands • Inability to scale across many nodes • Inability to search for widely dispersed objects in an extremely large volume environment Not so good issues…

  4. Large scale distribution • Scalability across many servers • No need for a global, unified schema • Soft ACID controls • Eventually consistent, soft integrity, durably on at least one node, atomic when necessary • Supports wide area replication General goals for alternative dbms

  5. Move from a small number of nodes all unifying to a single global state to a large set of shared states • Many overlapping states with numerous, varying combinations • Web servers can choose their desired combination • Finding objects quickly from within a huge db is more important than finding sets of related objects Architectural change in requirements

  6. No notion of tables • Objects are accessed via a key map • Widely distributed storage Amazon’s Dynamo

  7. Uses thousands of servers with massive amounts of data • Used for web indexing and Google Earth • Each row has a key, a column key, and a timestamp • Each value in a row is an array of bytes Google’s Bigtable

  8. Row:string, column:string, time:integer value(string) • Example: web page storage • The row name is a reversed URL so that subpages are co-located • The “contents” column contains the contents of the page • Multiple “anchor” columns contain text of anchors that reference the page • The contents column can have 3 time-stamped versions Bigtable…

  9. Decentralized • No centralized schema • Three operations • Insert – (table, key, row) • Get – (table, key, column name) • Delete – (table, key, column name) Cassandra

  10. Focuses on documents • Supports embedded documents (minimal joins) • High performance • Streaming writes that are not acknowledged • Replication for high availability • Data can be automatically partitioned and distributed • No schemas • Query language – create, read, update, delete (CRUD) MongoDB

  11. Multimedia • Extreme volume • Broadly shared • Versioned • Mined, not searched • Limited security needs Future…
