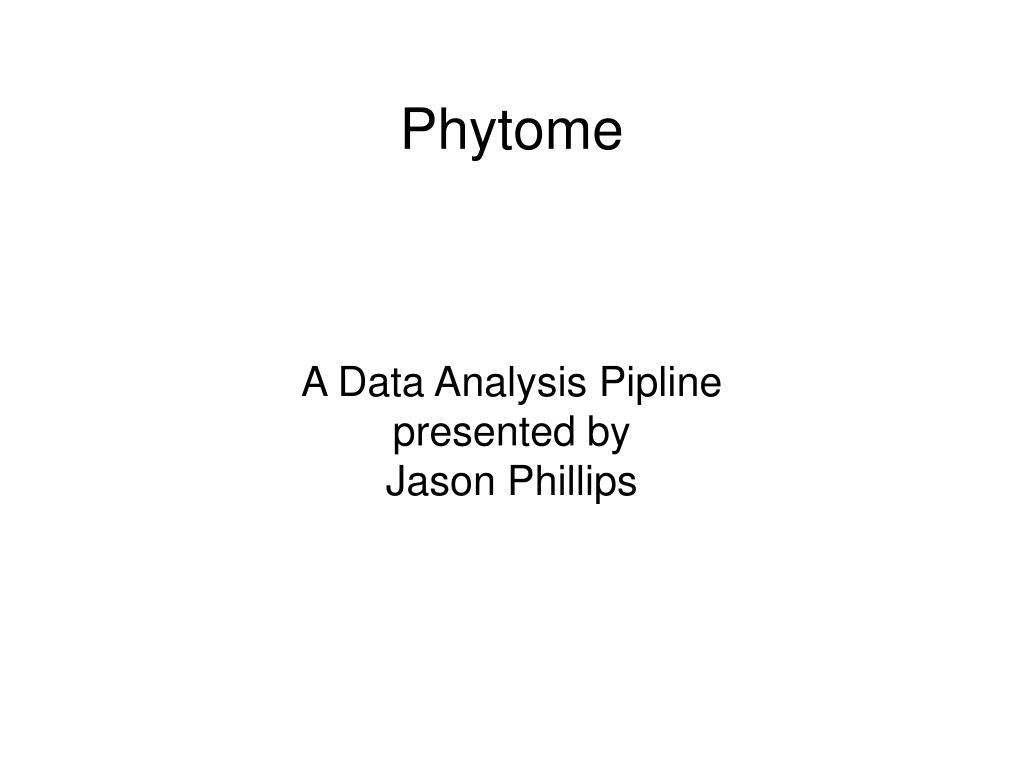

  1. A Data Analysis Pipline presented by Jason Phillips Phytome

  2. High Level Flow Chart Retrieve Unigenes Translate Unigenes Families

  3. Main Outline • Unigenes (Where'd they come from, where'd they go?) • Translation (methods and procedures) • Building Families (the power of together-ness)

  4. phytome» Unigene • What are? • Where from? • Nine Species • Arabidopsis, a special case • Storage

  5. phytome» Unigene » What Are? Combined EST's that overlap

  6. phytome» Unigene » Where From? • TIGR • Other sources?

  7. phytome» Unigene » Nine Species

  8. Highly annotated... Highly sequenced... Highly translated... phytome» Unigene » Arabidopsis

  9. phytome» Unigene » Storage species count ------------------- ghir 24350 mcry 8455 osat 60778 hann 20520 mtru 36976 lesc 31012 ljap 11025 lsat 21960 atha 27170 ------------------- total: 242246

  10. phytome» Translation • Methods • Estwise • Estscan • FrameFinder • Procedure • Numbers

  11. phytome» Translation » methods HOMOLOGIES via BLAST AB INITIO ESTSCAN FRAMEFINDER EST-WISE sprot + trembl

  12. phytome» Translation » procedure • EST-WISE (Mac OSX Cluster) • blast swiss prot: 10.3 hours, 35 nodes (~15 days) • blast trembl: 35.7 hours, 35 nodes (~52 days) • ESTSCAN (Mustard) • FrameFinder (Mustard)

  13. phytome» Translation » numbers 151,830 90,416 242,246 Unigenes ESTWISE 226,988 ESTSCAN 15,258 FRAMEFINDER 242,242 4

  14. phytome» Families • Relationships • Clustering • Numbers

  15. phytome» Families » Relationships Blast everything against everything sequences blastable db of sequences query sbjct e-value ------- -------- ----------- mtru302 ljap4523 1 29 mtru302 lesc25072 1 26 mtru302 hann20270 5 24 osat59606 osat59606 1 157 osat59606 osat4002 1 96 osat59606 atha25166 1 88 ...... ..... . .. ...... ..... . ..

  16. phytome» Families » Relationships But we have 4 set's of sequences! nucleotides estwise estscan framefinder blastp 151,830 tblastx 242,246 blastp 226,988 blastp 242,242 Which method do we trust?

  17. phytome» Families » Relationships 4 data sets...4 family interpretations BLAST OFF! tb ~3 days, 28 nodes (~84 days) ~1/4 day, 21 nodes (~5days) ew es ~1/4 day, 21 nodes (~5 days) ff ~1/4 day, 21 nodes (~5 days)

  18. phytome» Families » Relationships BLAST RESULTS Method size no blast no trans attrition ------ -------- -------- -------- ---------- tb 242246 153 0 153 ew 151830 22 90416 90438 ff 242242 24563 4 24567 es 226988 1345 15258 16603

  19. phytome» Families » Clustering TRIBE MCL gene evalue

  20. phytome» Families » Clustering TRIBE MCL gene evalue

  21. phytome» Families » Clustering query sbjct evalue -------- -------- ------ atha7499 atha8483 6 78 atha7499 atha7503 4 90 osat23081 atha10704 8 78 osat23081 osat36667 8 78 atha1072 atha5059 2 68 atha1072 lsat15421 2 60 atha1072 lsat21190 1 102 atha1072 atha5059 9 54 ...... ...... . .. ...... ...... . .. ...... ...... . .. fam id member ------ ------ .... ....... .... ....... 4035 atha7499 4035 atha7503 4035 atha8483 4036 atha10704 4036 osat23081 4036 osat36667 4037 atha1072 4037 atha5059 4037 lsat15421 4037 lsat21190 .... ....... .... ...... tribe mcl

  22. phytome» Families » Clustering blast results families tb tb ew ew TRIBE MCL es es ff ff

  23. Let's look as some histograms! phytome» Families » Clustering

  24. What should we do next round?
