Automatic Abstraction in Hardware Design: Techniques for Equivalence Checking

This paper explores the challenges of equivalence checking in hardware design, particularly using Verilog and other hardware description languages (HDLs). It discusses the manual difficulties and the potential for spurious counter-examples that arise during the verification process. The authors propose a novel combination of random simulation and static analysis to generate automatic abstractions, identifying functional blocks for accuracy while minimizing manual intervention. Techniques and examples illustrate the benefits of this approach in both hardware and software contexts, leading to promising results in property verification.

lexine
Télécharger la présentation

Automatic Abstraction in Hardware Design: Techniques for Equivalence Checking

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

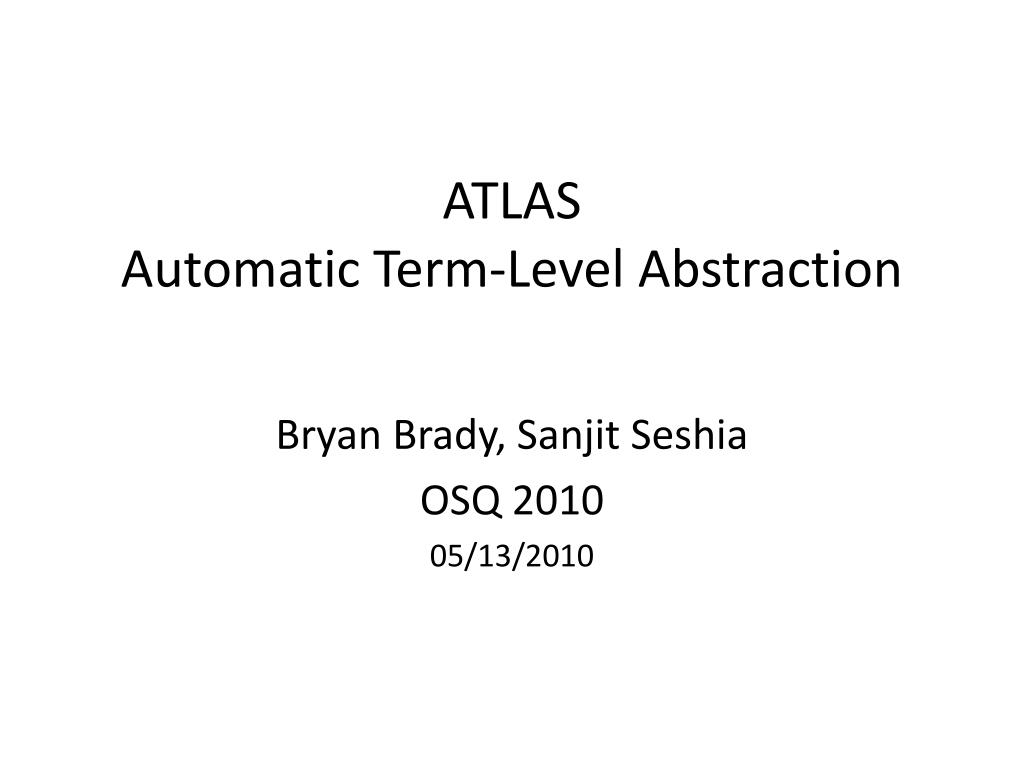

  1. ATLASAutomatic Term-Level Abstraction Bryan Brady, SanjitSeshia OSQ 2010 05/13/2010

  2. HDLs are PLs • Verilog is a programming language • We want to prove certain properties about hardware (software) designs • Are two versions of a circuit (program) equivalent? • Does my circuit (program) satisfy property P?

  3. Equivalence Checking ? = Circuit 1 Circuit 2 i0 i1 in i0 i1 in

  4. Equivalence Checking (Can be hard!) ? * * = i0 i1 in i0 i1 in

  5. Abstraction ? f f * * = i0 i1 in i0 i1 in

  6. Abstraction Challenges • Hard to do manually even for small circuits/programs • Requires knowledge of circuit/program design • Can result in spurious counter-examples • How do we deal with this?

  7. Automatic Abstraction • Combination of random simulation and static analysis • Identify candidate functional blocks for abstraction (modules/functions) using random simulation • For the functional blocks aren’t pruned in the random simulation phase, use static analysis to compute conditions under which it is precise to abstract

  8. Computing Safe Abstractions

  9. Promising Results

  10. Question • Are there any software examples that might benefit from this technique?

  11. Example Interpretation Condition Computation Initial State V16=F = out out 16 16 ALU ALU [19:16] [19:16] out_ok [15:0] [15:0] 16 V8=T 16 V15=T V7=T V6=F V14=F IMem IMem 4 4 20 20 PC PC V5=F V13=F = pc_ok +4 +4 V12=F 16 V4=F 16 = = 1 0 1 0 V3=T V11=T JMP JMP V2=T V10=T V1=F V9=T

  12. Example Interpretation Condition Computation Initial State Update +4 Nodes V16=F = out out 16 16 ALU ALU [19:16] [19:16] out_ok [15:0] [15:0] 16 V8=T 16 V15=T V7=T V6=F V14=F IMem IMem 4 4 20 20 PC PC V5=T V5=F V13=F V13=T = pc_ok +4 +4 V12=F 16 V4=F 16 = = 1 0 1 0 V3=T V11=T JMP JMP V2=T V10=T V1=F V9=T

  13. Example Interpretation Condition Computation Initial State Update +4 Nodes Update PC Latch Nodes V16=F = out out 16 16 ALU ALU [19:16] [19:16] out_ok [15:0] [15:0] 16 V8=T 16 V15=T V7=T V6=F V14=F IMem IMem 4 4 20 20 PC PC V5=T V13=T = pc_ok +4 +4 V12=T V12=F 16 V4=F V4=T 16 = = 1 0 1 0 V3=T V11=T JMP JMP V2=T V10=T V1=F V9=T

  14. Example Interpretation Condition Computation Initial State Update +4 Nodes Update PC Latch Nodes Update ITE Nodes V16=F = out out 16 16 ALU ALU [19:16] [19:16] out_ok [15:0] [15:0] 16 V8=T 16 V15=T V7=T V6=F V14=F IMem IMem 4 4 20 20 PC PC V5=T V13=T = pc_ok +4 +4 V12=T 16 V4=T 16 = = 1 0 1 0 V3=T V11=T JMP JMP V2=T V10=T V1=JMP==instr[19:16] V1=F V9=T

  15. Example Interpretation Condition Computation Initial State Update +4 Nodes Update PC Latch Nodes Update ITE Nodes Update out_ok Node V16=JMP==instr[19:16] V16=F = out out 16 16 ALU ALU [19:16] [19:16] out_ok [15:0] [15:0] 16 V8=T 16 V15=T V7=T V6=F V14=F IMem IMem 4 4 20 20 PC PC V5=T V13=T = pc_ok +4 +4 V12=T 16 V4=T 16 = = 1 0 1 0 V3=T V11=T JMP JMP V2=T V10=T V1=JMP==instr[19:16] V9=T
