Total Design

Total Design. Market Assessment. is a systematic activity: Identification of the market need → sale of product to meet that need. Product, Process, People, Organization, etc. Design Core Market Analysis Specification Concept Design Detailed Design Manufacturing Sales

liam
Télécharger la présentation

Total Design

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

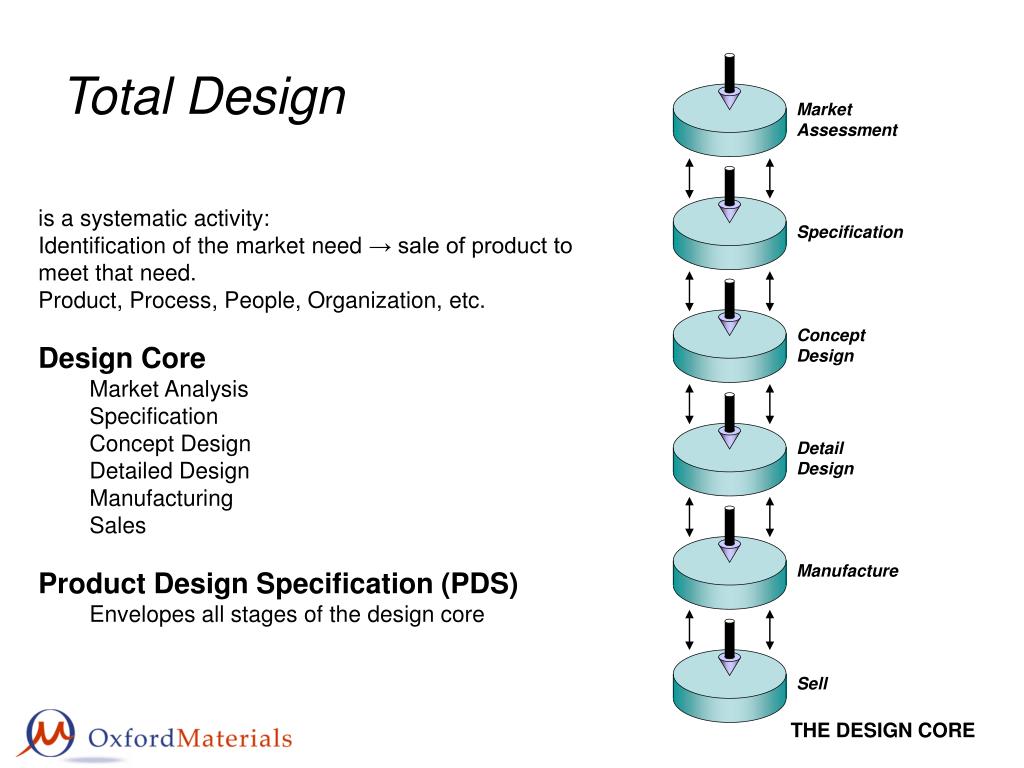

  1. Total Design Market Assessment • is a systematic activity: • Identification of the market need → sale of product to meet that need. • Product, Process, People, Organization, etc. • Design Core • Market Analysis • Specification • Concept Design • Detailed Design • Manufacturing • Sales • Product Design Specification (PDS) • Envelopes all stages of the design core Specification Concept Design Detail Design Manufacture Sell THE DESIGN CORE

  2. The Design Core Market Assessment Specification DETAIL DESIGN A vast subject. We will concentrate on: Materials Selection Process Selection Cost Breakdown Concept Design Detail Design Manufacture Sell

  3. Metals and Alloys Wire-reinforced cement Cermets MMCs Steel-cord tyres Composites Ceramics and Glasses CFRP GFRP Polymers Filled polymers Materials Selection

  4. STRUCTURAL MATERIALS Physical optical magnetic electrical Mechanical tribology fatigue KIC σy UTS E Chemical corrosion oxidation FUNCTIONALMATERIALS MATERIAL Other feel look Thermal α K H Tm TTransition Environmental recycling energy consumption waste Materials Properties

  5. Young’s Modulus, E

  6. Yield Strength (σy) & UTS (σTS)

  7. Density, ρ

  8. Specific Properties

  9. Generic materials selection Problem statement Model Function, Objective, Constraints Selection Examples Oars Mirrors for large telescopes Low cost building materials Flywheels Springs Safe pressure vessels Precision devices Materials Selection without Shape

  10. Generic Materials Selection p: Performance of component; f(F,G,M) F: Functional requirement, e.g. withstanding a force G: Geometry, e.g. diameter, length etc. M: Materials properties, e.g. E, KIC, ρ Separable function if: P = f1(F) · f2(G) · f3(M) TASK: Maximize f3(M) where M is the “performance index”

  11. Procedure for Deriving “M” • Identify the attribute to be maximized or minimized (weight, cost, energy, stiffness, strength, safety, environmental damage, etc.). • Develop an equation for this attribute in terms of the functional requirements, the geometry, and the material properties ( the objective function). • Identify the free (unspecified) variables. • Identify the constraints; rank them in order of importance. • Develop equations for the constraints (no yield, no fracture, no buckling, maximum heat capacity, cost below target, etc.). • Substitute for the free variables from the constraints into the objective function. • Group the variables into three groups: functional requirements, F, geometry, G, and materials properties, M. • Read off the performance index, expressed as a quantity, M, to be maximized. • Note that a full solution is not necessary in order to identify the material property group.

  12. Guidelines for M = Prop2/Prop1 Search Region M = 40 The Materials Selection Map

  13. Search Region M = 100Nm/g f1(F) f2(G) f3(M) So, to minimize mass m, maximise Example I: A light strong tie

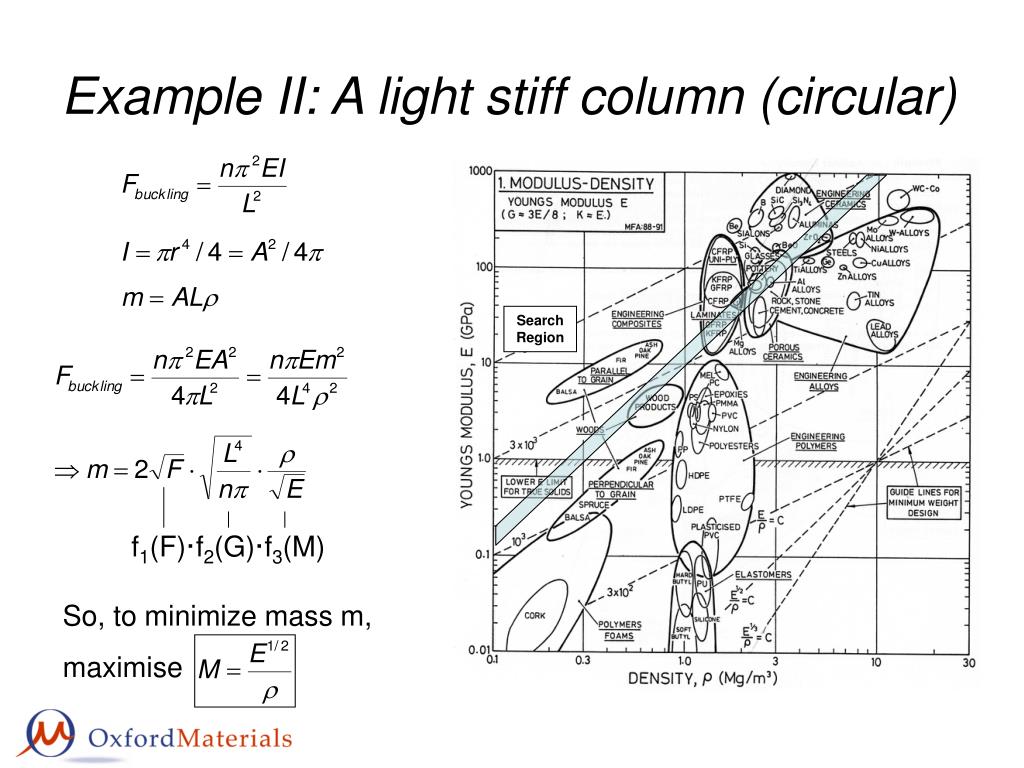

  14. Search Region f1(F)·f2(G)·f3(M) So, to minimize mass m, maximise Example II: A light stiff column (circular)

  15. Light weight cylindrical vessel of fixed radius Search Region f1(F)·f2(G)·f3(M) So, to minimize mass m, maximise Example III: Pressure Vessel

  16. Performance Indices: Elastic Design Note:σf = failure strength; E = Young’s modulus; ρ = density; η= loss coefficient

  17. Performance Indices: Min. Weight Note:σf = failure strength; E = Young’s modulus; G = shear modulus; ρ = density

  18. Performance Indices: Min. Weight Note: KIC = fracture toughness ρ = density

  19. Nomenclature

  20. f1(F)·f2(G)·f3(M) So, to minimize mass m, maximise Materials for Large Telescopes

  21. Search Region M = 2 (GPa)1/3m3/Mg Materials for Large Telescopes

  22. Second moment of area: So, to minimize mass m, maximise Materials for Oars

  23. Search Region M = 6 (GPa)1/2m3/Mg Materials for Oars

  24. F b b y σ=σy Materials for Buildings Floor Beam

  25. Search Region Search Region M1 = 1.6 M2 = 6.8 Materials for Buildings

  26. Yield before break Leak before break Minimum strength Materials for Safe Pressure Vessels

  27. M1 = 0.6 m1/2 M3 = 100 MPa Materials for Safe Pressure Vessels Search Region

  28. Energy Stored σ σf ε σf/E Materials for Springs

  29. Search Region M1 = 6 MJ/m3 Materials for Springs

  30. Search Region M2 = 2 kJ/kg Materials for Springs

  31. Kinetic energy: Polar moment of inertia: Mass: Stress: Materials for Flywheels

  32. Search Region M1 = 100 kJ/kg Maximizing energy/volume Materials for Flywheels Maximizing energy/mass

  33. Materials for Flywheels

  34. Heat flow : Thermal strain :  Materials for Precision Devices

  35. Al Ag Cu Au Be Mo W SiC Si Diamond Search Region M1 = 107 W/m Materials for Precision Devices
