Hand-written character recognition

Hand-written character recognition. Failure rate for test samples. MNIST: a data set of hand-written digits 60,000 training samples 10,000 test samples Each sample consists of 28 x 28 = 784 pixels Various techniques have been tried Linear classifier: 12.0%

liang
Télécharger la présentation

Hand-written character recognition

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

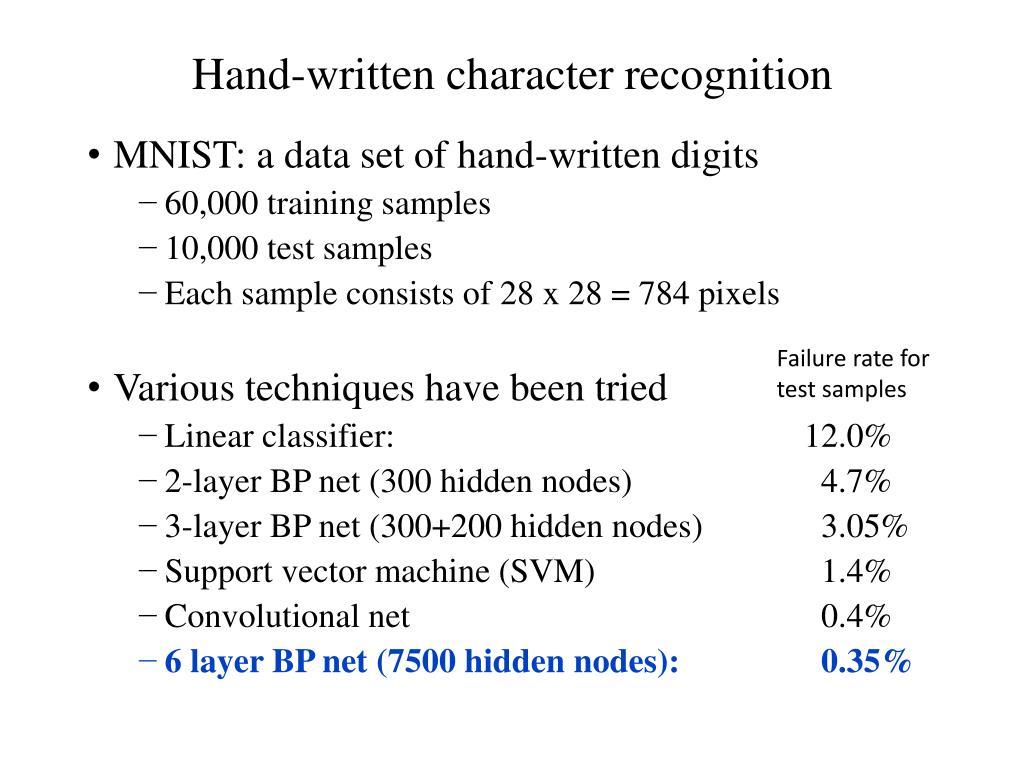

  1. Hand-written character recognition Failure rate for test samples MNIST: a data set of hand-written digits 60,000 training samples 10,000 test samples Each sample consists of 28 x 28 = 784 pixels Various techniques have been tried Linear classifier: 12.0% 2-layer BP net (300 hidden nodes) 4.7% 3-layer BP net (300+200 hidden nodes) 3.05% Support vector machine (SVM) 1.4% Convolutional net 0.4% 6 layer BP net (7500 hidden nodes): 0.35%

  2. Hand-written character recognition Our own experiment: BP learning with 784-300-10 architecture Total # of weights: 784*300+300*10 = 238,200 Total # of Δw computed for each epoch: 1.4*10^10 Ran 1 month before it stopped Test error rate: 5.0%

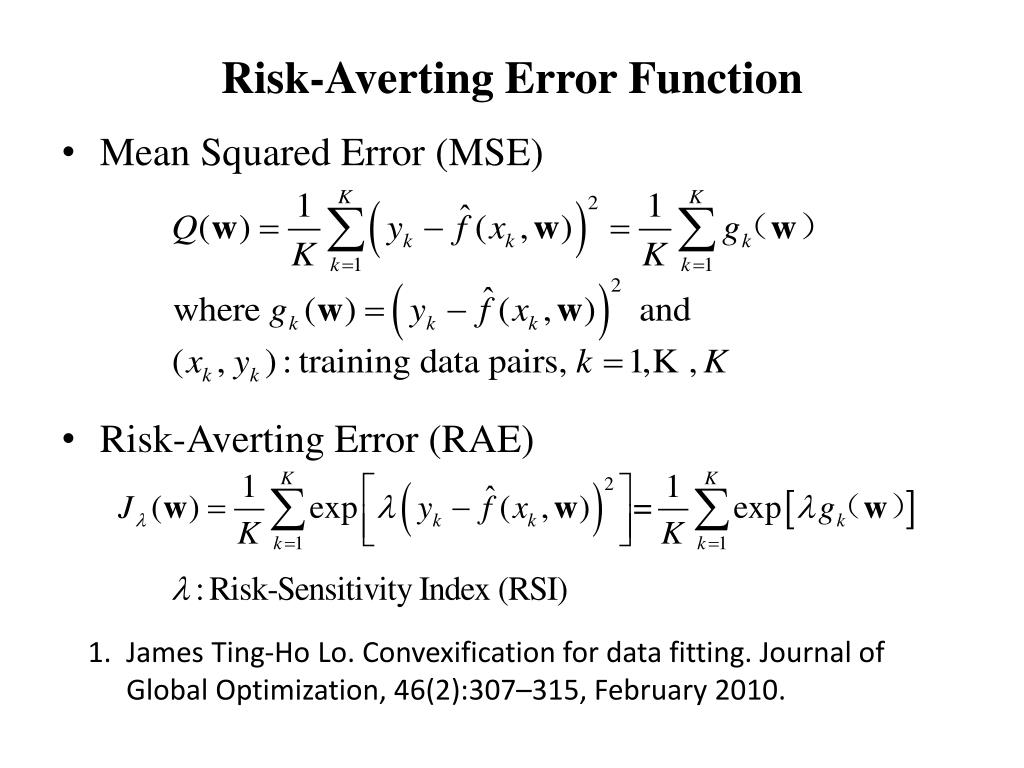

  3. Risk-Averting Error Function • Mean Squared Error (MSE) • Risk-Averting Error (RAE) James Ting-Ho Lo. Convexification for data fitting. Journal of Global Optimization, 46(2):307–315, February 2010.

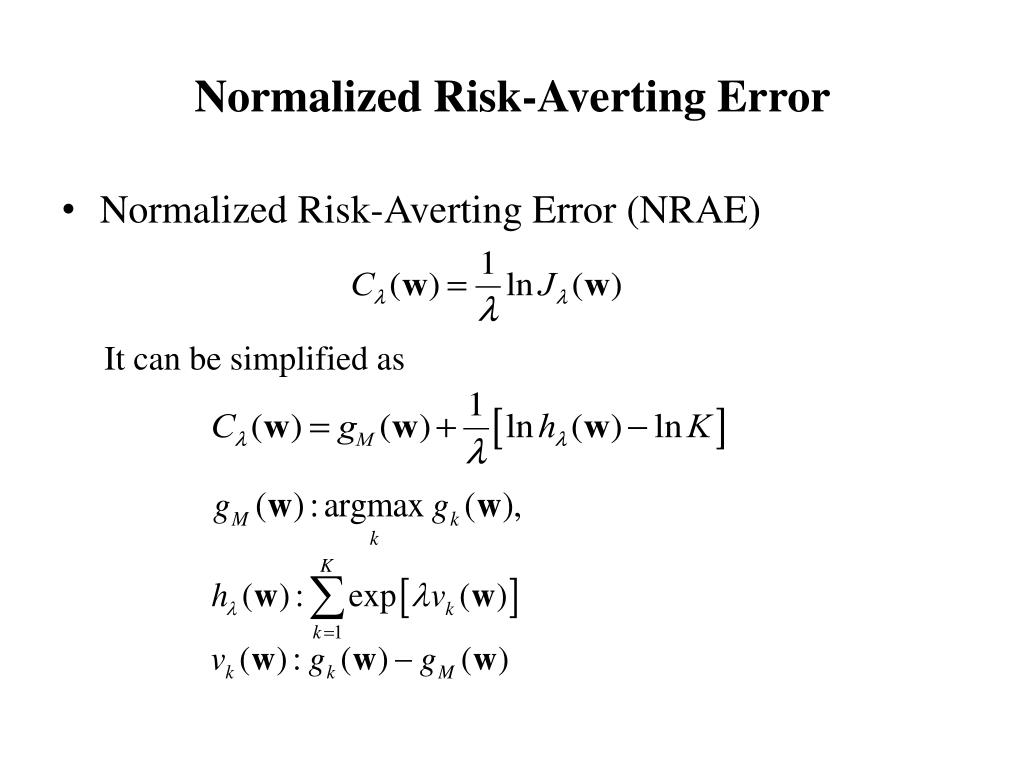

  4. Normalized Risk-Averting Error • Normalized Risk-Averting Error (NRAE) It can be simplified as

  5. The Broyden-Fletcher-Goldfarb-Shanno (BFGS) Method • A quasi-Newton method for solving the nonlinear optimization problems • Using first-order gradient information to generate an approximation to the Hessian (second-order gradient) matrix • Avoiding the calculation of the exact Hessian matrix can significantly save the computational cost during the optimization

  6. The Broyden-Fletcher-Goldfarb-Shanno (BFGS) Method The BFGS Algorithm: • Generate an initial guess and an initial approximate inverse Hessian Matrix . • Obtain a search direction at step k by solving: where is the gradient of the objective function evaluated at . • Perform a line search to find an acceptable stepsize in the direction , then update

  7. The Broyden-Fletcher-Goldfarb-Shanno (BFGS) Method • Set and . • Update the approximate Hessian matrix by • Repeat step 2-5 until converges to the solution. Convergence can be checked by observing the norm of the gradient, .

  8. The Broyden-Fletcher-Goldfarb-Shanno (BFGS) Method Limited-memory BFGS Method: • A variation of the BFGS method • Only using a few vectors to represent the approximation of the Hessian matrix implicitly • Less memory requirement • Well suited for optimization problems with a large number of variables

  9. References • J. T. Lo and D. Bassu. An adaptive method of training multilayer perceptrons. In Proceedings of the 2001 International Joint Conference on Neural Networks, volume 3, pages 2013–2018, July 2001. • James Ting-Ho Lo. Convexification for data fitting. Journal of Global Optimization, 46(2):307–315, February 2010. • BFGS: http://en.wikipedia.org/wiki/BFGS

  10. A Notch Function

  11. MSE vs. RAE

  12. MSE vs. RAE
