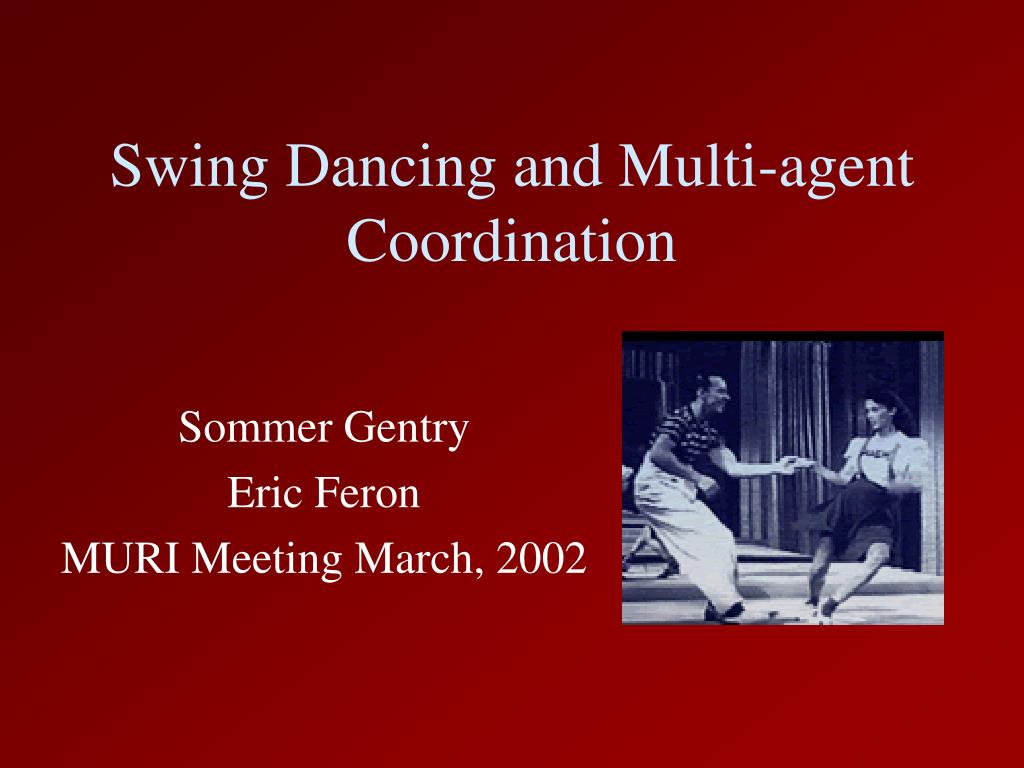

  1. Swing Dancing and Multi-agent Coordination Sommer Gentry Eric Feron MURI Meeting March, 2002

  2. And a 5, 6, a 5-6-7-8 • About swing dancing • High-level cooperative motion planning • Experimental work: Connection force estimates from video via inverse dynamics

  3. Why Swing Dancing? • Sports biomechanics studies abound for gymnastics, swimming, pole vaulting, etc. • Swing dancing is a partnered form of movement necessitating shared momentum • Could be a setting for novel cooperative maneuver studies • unknown environments • constrained resources and communication • leader and follower structure

  4. Lindy Hop (1935)

  5. Connection State determines which actuators on the follower’s motion are available to leader Tuck turn Pullthrough Closed Right hand Sendout Underarm Circle Crosshand Sling Whip

  6. Decentralized Hybrid Controller Connection Automaton Connection state change request κ For fixed κ Leader Desired (xf ,yf ,θf ) P - K (xf ,yf ,θf ) Forces (κ) Follower P K

  7. Decentralized hybrid control • Connection state • {closed, right hand, two hands, crosshand, no hands} • (xl ,yl ,θl ), (xf ,yf ,θf ) are leader’s and follower’s position on floor and facing angle • Leader choreographs dance in real-time • Leader knows desired follower trajectory • Hypothesis: leader imparts force, but can not cause the complete motion of the follower • Follower knows a lexicon of swing dance moves • Hypothesis: follower interprets leader’s force signals to select a sequence of moves

  8. Controlled switching surfaces • Two hands one hand • no restrictions • One hand closed • close enough: (xl - xf)2 + (yl - yf)2 < C • facing each other: 90 < θl - θf < 180 • on the correct side: (cos θl)xl < (cos θl)xf (sin θl)yl > (sin θl) yf

  9. Follower’s problem • Given the lead as an input, decide what movement to do • model imperfect or noisy leads (late leads, over-forceful turns, etc.) • uncover or learn strategies for robust following

  10. Leader’s problem • Given a movement from a shared dance vocabulary, design a lead that • is unambiguous • doesn’t render the movement impossible for either the leader or the follower • minimizes some physical criterion (jerk for example)

  11. Dancers tune their connection • A few quotes from swing dancers • “When I dance with a new partner, I try to feel whether he wants to counterbalance me and try to judge how much he can take.” • “Is she a light or heavy follow? Is she matching my counterbalance or I hers? Is she supporting her own weight? Or as a follow: is he a strong lead or do I need to think about what he's trying to get me to do? Does he pull me too hard on swingouts or is he clear and minimal in his leads?” • “I have seen some footage of late 30s and early 40s L.A. style Lindy and it relies on lots of counter-balance and traveling steps.” • Source: www.delphiforums.com/(socalswing|swingoutdc)

  12. Force / trajectory control • Dancers use counterbalance force • leader and follower holding hands both shift center of gravity back slightly; the resulting static force is connection, or counterbalance • counterbalance enables faster spins and travel • Movement is also initiated by force • How is force that requests increased counterbalance distinguished from force that requests follower to move forward? Preliminary data suggest ‘move forward’ is coded in the first derivative of force

  13. A follower is not a ton of bricks acceleration F / m = a = and if on the expected beat, coded properly in derivative . F = follower motion

  14. Force estimates from video • Acquire estimate of the connection force between dancers in video • Active marker systems (Optotrak) exist, but here I used standard video recording frames • Lindy hop is a historical dance form • uninstrumented video from 1930’s and 1940’s is treasured by dancers and could be studied • Example: sugar push video

  15. Inverse Dynamics • Given inertial properties and a time history of the motion of a system, generate force/torque histories for that system • Tabulate motion history from video frames

  16. Sugar Push

  17. Inertial properties of a human • Yeadon, M.R. "The simulation of aerial movement - II. A mathematical inertia model of the human body." J. Biomechanics 23, pp 67-74 • From lengths and circumferences of body segments, Yeadon’s model gives inertial properties of the segments of the body (M, Ix, Iy, Iz) • Stadia: trunk segments • Truncated cones: arm, leg segments

  18. SD/FAST results • SD/FAST software computed the inverse dynamics given time histories of the joint angles and the follower’s inertial properties

  19. Measured connection force Tek-scan sensor system captured connection forces between leader and follower Thanks to: Dr. Patricia Schmidt of the MIT Manned Vehicle Lab

  20. Sugar push connection force

  21. Conclusions from first stage • Video, via inverse dynamics, might be used to generate estimates of connection force • The pattern of connection force for a particular maneuver is consistent with some noise; that is, a sugar push lead has a certain nominal force pattern with some bounded variation

  22. Sugar pushes versus swingouts

  23. Representing dance leads quantitatively • Push and pull should be distinguished • Some moves involve leads which push and pull while hands move • Right and left hands are not always symmetric • Which foot the follower is on changes the meaning of a lead

  24. Relevant work • Physical interaction between human and a bipedal humanoid robot: Realization of human-follow walking, A. Takanishi et al [1999 IEEE Conf. Robotics and Automation] • Controlling formations of multiple mobile robots, J.P. Desai, J. Ostrowski, V. Kumar [1998 IEEE Conf. Robotics and Automation] • Robust hybrid control for autonomous vehicle motion planning, E. Frazzoli, M. Dahleh, E. Feron [LIDS-P-2468]

  25. Relevant work • Optimal robot motions for physical criteria, J.E. Bobrow et al, Journal of Robotic Systems 18(12), 2001 • “One view of a motion program is as a concatenation of simpler motion primitives. The compiler's role then is to optimize this sequence of motion primitives with respect to some performance criterion. In this sense the motion compiler can be viewed as a choreographer - it pieces and blends a sequence of crude basic motions into a fluid and artistic dance.”

  26. Graceful motion is optimized • Planning of joint trajectories for humanoid robots using B-spline wavelets, A. Ude, C. Atkeson, M. Riley [IEEE Conf. Robotics and Automation 2000] • regularization by minimizing amplitude of acceleration or jerk

  27. Big Picture • What is the perfomance measure being optimized by expert swing dancers? • objectively judge dance performances • Characterize swing dance lead and follow • lead is not just a ‘signal’ but also makes the movement physically possible or impossible • Ultimate goal might be to create a control strategy for a robot that can swing dance • control multi-agent systems with a leader and follower(s) in collision-free coordinated motion

  28. Questions? Ideas?

  29. 5th Place American Showcase 2001
