  1. Physics 223

  2. 31.Faraday’s Law 31.1 Faraday’s Law of Induction 31.2 Motional EMF 31.3 Lenz’s Law 31.4 Induced EMF and Electric Fields 31.5 Generators and motors

  3. B I I N S Magnetism produces current Magnet thrust into the coil

  4. 31.1 Faraday’s Law of Induction Induced emf equals the rate of change of magnetic flux Voltage = change of flux / time ɛ = - dB /dt EZ does it! V = B A / t

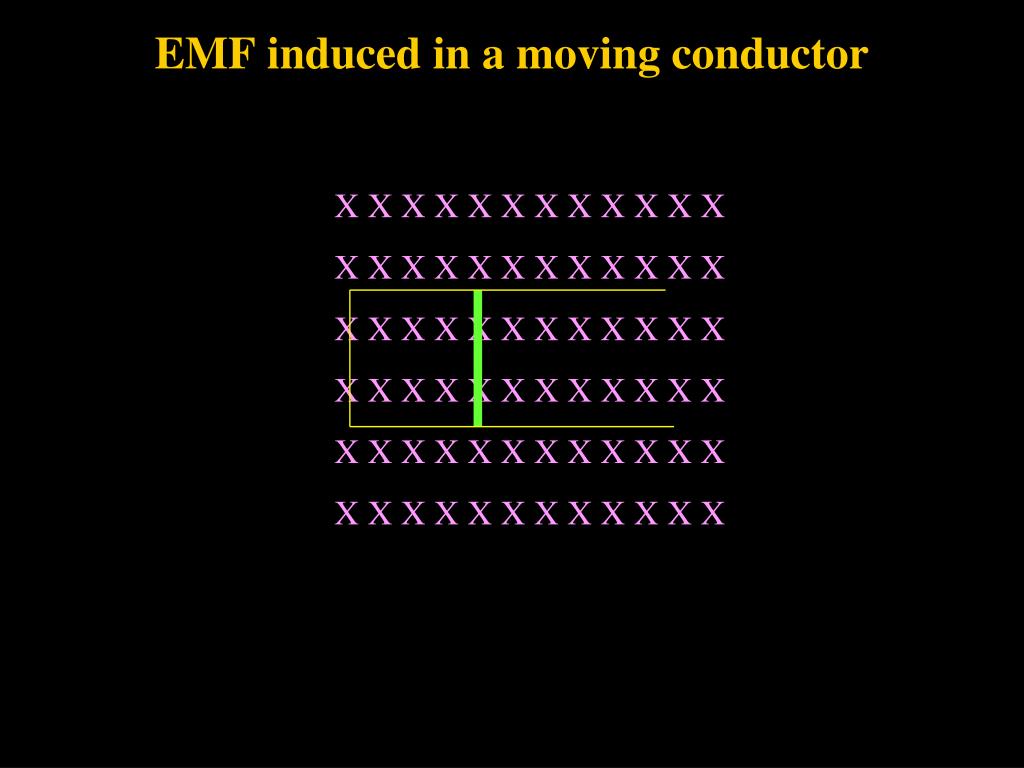

  5. X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X EMF induced in a moving conductor

  6. X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X EMF induced in a moving conductor V = B A / t V = B L d / t V = B L v

  7. What is the voltage across the wing tips of an airplane? wingtips = 70 m apart speed = 1000 km/h and Earth’s B = 5 x 10- 5 T Voltage = B Lv V = 5 x 10- 5 x 280 m/s x 70 V = 1.0 volt

  8. B B I I I I N N S S 31.3 Lenz’s Law The induced current will oppose the original change in flux

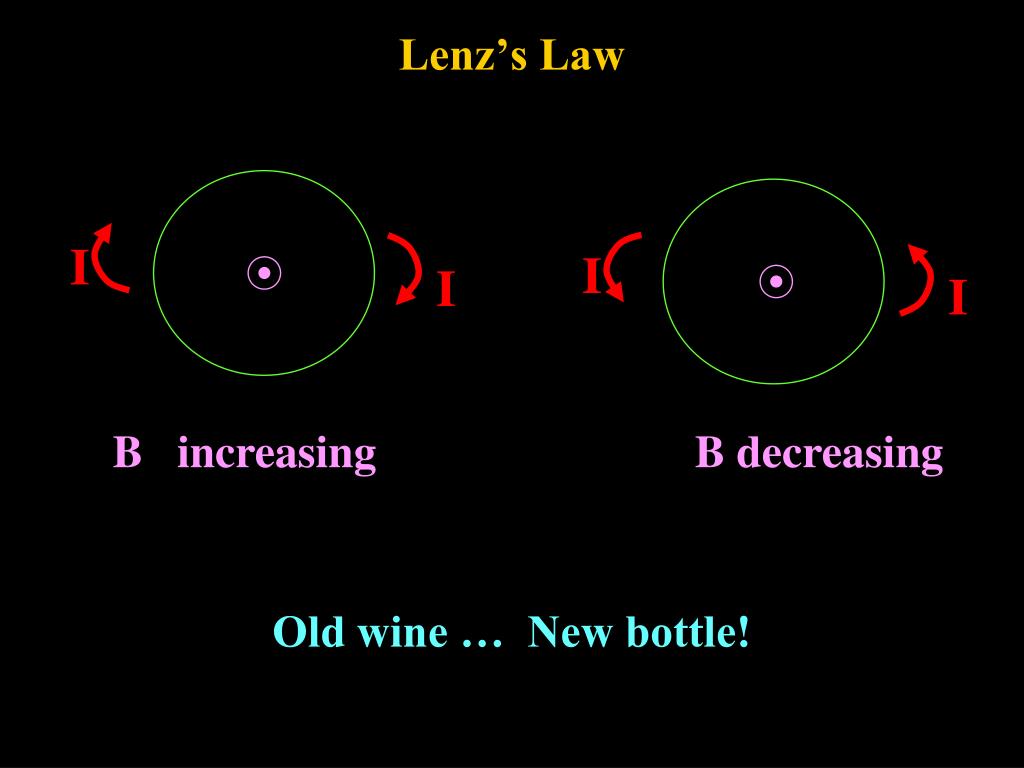

  9. I I I I Lenz’s Law B increasing B decreasing Old wine … New bottle!

  10. X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X X 31.4 Induced EMF and Electric Fields V = B L v E L = B L v E = B v

  11. 31.5 Electric Generator V = B L v sin  V = B L d  sin  V = B A  sin t V = B A N  sin t

  12. Hybrids: Regenerative Braking! When you slam on the brakes, energy is not lost to friction, as in the good old days, but is recouped as the motor acts as a generator and stores the energy in the battery!

  13. B B I I I I Primary Secondary Transformer Vp = Np B A / t Vs = Ns B A / t Vs / Vp = Ns / Np

  14. That’s all folks!
