Android

1. Android development the first app

2. AndoidvsiOSwhich is better? • Short answer: neither • Proponents on both sides • For an iOS side, see this article on TechCrunch (by the developer of the SMS/MMS app Emu: The Fallacy of Andoid First

3. Basics • Apps are composed of activities and layouts • an activity is an instance of the activity class • manages user interaction with a screen of info • subclass it to implement app functionality • may have many activities for a complex app • a layout defines a set of user interface objects and their position on the screen • uses XML • each definition creates an object on the screen

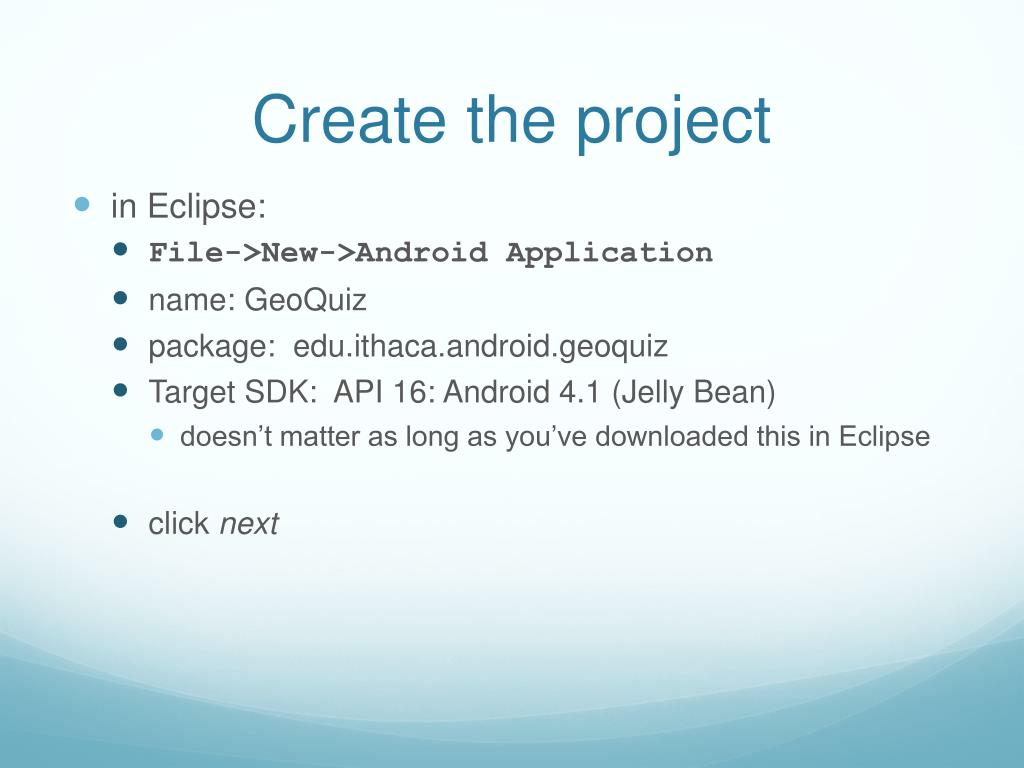

4. Create the project • in Eclipse: • File->New->Android Application • name: GeoQuiz • package: edu.ithaca.android.geoquiz • Target SDK: API 16: Android 4.1 (Jelly Bean) • doesn’t matter as long as you’ve downloaded this in Eclipse • click next

5. Configuring the project • unclick “Create custom launcher icon” • leave “Create activity” checked • uncheck “Mark this project as a library” • check “Create Project in Workspace” • should not have to change location • uncheck “Add project to working sets” • click next

6. Configuring Project • click on “Blank Activity” • click next • Name the activity subclass QuizActivity • convention to end name with “Activity” but not required • layout name will fill in automagically. Provides recommended naming style. • click finish

7. Laying out the user interface • Open the layout file • in the folder res/layout • named activity_quiz.xml • select the “activity_quiz.xml” tab at the bottom of the middle screen of Eclipse. • we will ignore the graphical layout tool for now • we will use this file to create our view. • should have a framelayout • in the folder res/layout • for fragments or partial layouts • named fragment_quiz.xml • we will ignore this file; we’re not going to use fragments

8. Default Layout (part 1)in activity_quiz.xml <FrameLayoutxmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:id="@+id/container" android:layout_width="match_parent" android:layout_height="match_parent" tools:context="edu.ithaca.geoquiz4.QuizActivity" tools:ignore="MergeRootFrame" />

9. Default Layout (part 1)in fragment_quiz.xml <RelativeLayoutxmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:paddingBottom="@dimen/activity_vertical_margin" android:paddingLeft="@dimen/activity_horizontal_margin" android:paddingRight="@dimen/activity_horizontal_margin" android:paddingTop="@dimen/activity_vertical_margin" tools:context="edu.ithaca.geoquiz4.QuizActivity$PlaceholderFragment" > <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="@string/hello_world" /> </RelativeLayout>

10. Default Layout (part 2) <TextView android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="@string/hello_world" /> </RelativeLayout>

11. Layout file • default fragment_quiz.xml file has two widgets • RelativeLayout • TextView • Widgets are the components of a view • every widget is an instance of the View class or one of its subclasses • Click the Graphical Layout tab at bottom to see how the layout looks

12. Layout • QuizActivity requires 5 widgets: • a vertical LinearLayout • a TextView • a horizontal LinearLayout • two Buttons

13. LayoutOverwrite all the text in activity_quiz.xmlwith this <LinearLayoutxmlns:android="http://schemas.android.com/apk/res/android" android:layout_width="match_parent" android:layout_height="match_parent" android:gravity="center" android:orientation="vertical" > <TextView android:text="@string/question_text” android:layout_width="wrap_content" android:layout_height="wrap_content" android:padding="24dp" /> <LinearLayout android:layout_width="wrap_content" android:layout_height="wrap_content" android:orientation="horizontal"> <Button android:id="@+id/true_button" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="@string/true_button" /> <Button android:id="@+id/false_button" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="@string/false_button" /> </LinearLayout> </LinearLayout> There will be errors! + sign means that you are creating the resource not just referencing it

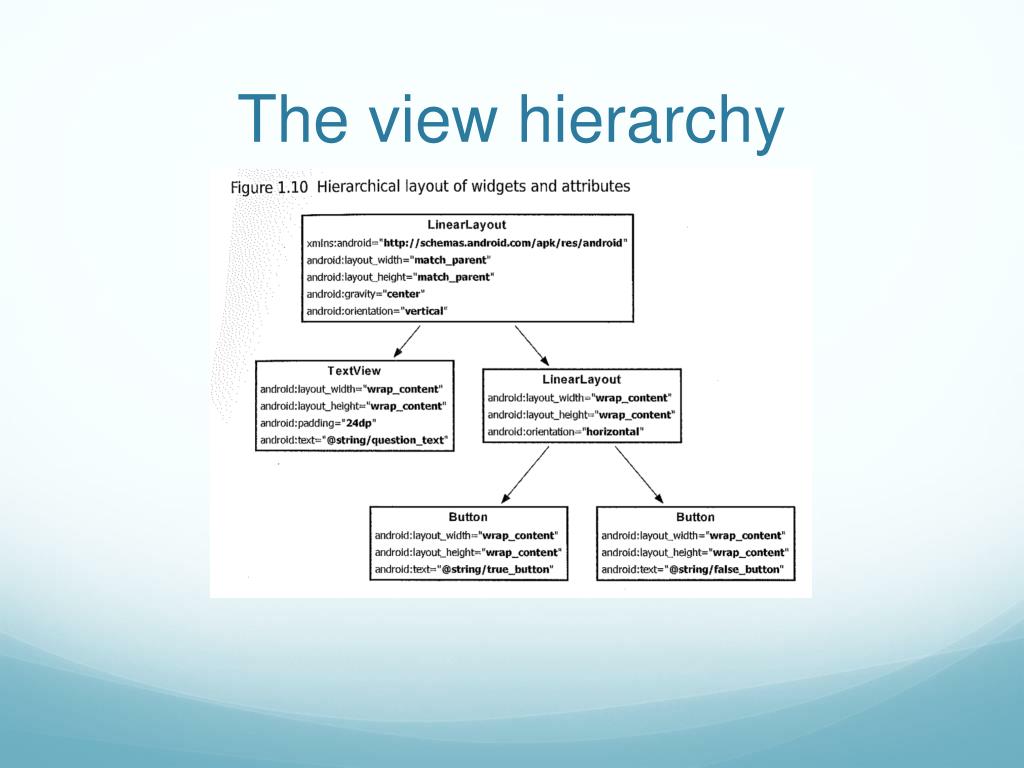

14. The view hierarchy

15. Widget Attributes • android:orientation • determines whether the children appear vertically or horizontally • the order in which children are defined determines the order in which they appear on screen. • in vertical, first child is topmost • in horizontal, first child is leftmost (unless right-to-left language)

16. Widget Attributes • android:text • tells widget what text to display • not literal strings (thought they could be) • instead references to string resources • a string that lives in a separate XML file called the strings file • allows for easy localization

17. String Resources • every project has a default strings file named strings.xml • open the strings.xml file in res/values • click on strings.xml tab at bottom • remove the hello_worldstring, add three new strings <string name="app_name">GeoQuiz</string> <string name="question_text">The Pacific Ocean is larger than the Atlantic Ocean.</string> <string name="true_button">True</string> <string name="false_button">False</string> <string name="correct_toast">Correct!</string> <string name="incorrect_toast">Incorrect!</string> <string name="menu_settings">Settings</string> keep the menu_settings or you’ll get lots of errors!

18. String Resources • whenever you refer to @string/false_buttonin any XML file in the GeoQuiz project, get “False” at runtime. • save strings.xml • errors in fragment_quiz.xml should go away • may get warnings; can ignore. • You can have multiple strings files in your project • must be in res/values • must have a resources root element • must contain child string elements • your strings will be found automagically

19. Creating View Objects • How do XML elements become View objects? • see code on next slide • contains two Activity methods • onCreate(Bundle) • called when an instance of the activity subclass (QuizActivity) is created. • calls method setContentView(intlayoutResID) • this method inflates a layout and puts it on the screen • also asks the fragment manager to add the appropriate fragments • each widget is instantiated as defined by its attributes • you specify which layout by passing the layout’s resource ID (see later) • onCreateOptionsMenu(Menu)

20. Creating View Objects protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_quiz); if (savedInstanceState == null) { getFragmentManager().beginTransaction() .add(R.id.container, new PlaceholderFragment()) .commit(); } } Delete this method; we won’t use fragments!

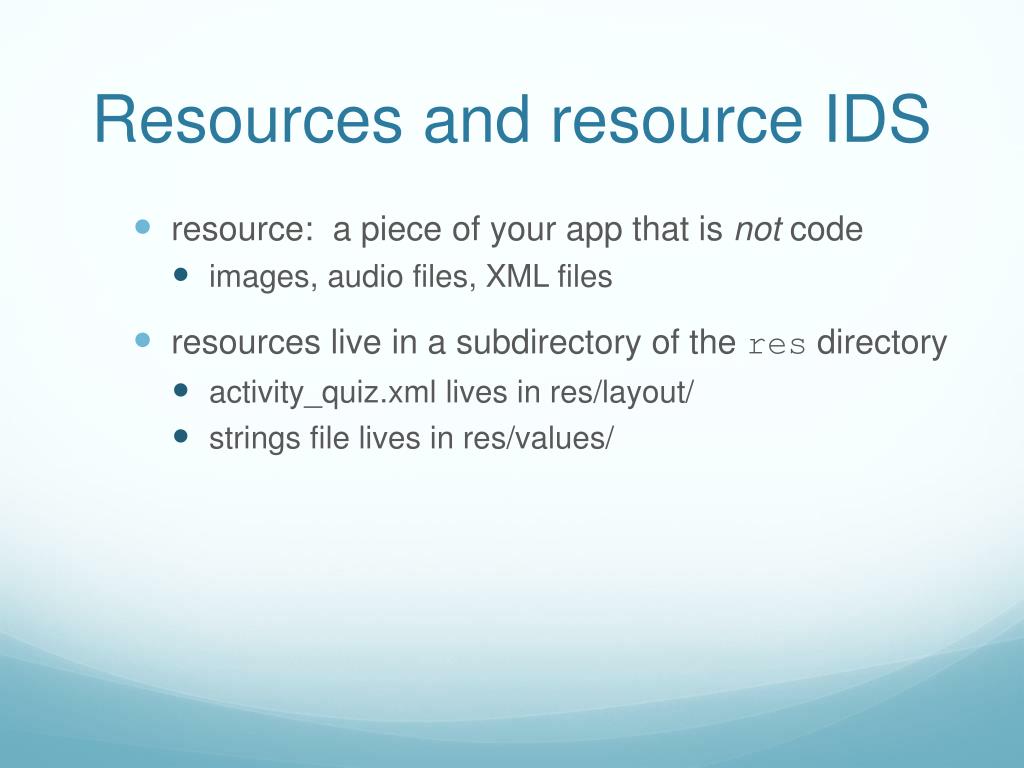

21. Resources and resource IDS • resource: a piece of your app that is not code • images, audio files, XML files • resources live in a subdirectory of the res directory • activity_quiz.xml lives in res/layout/ • strings file lives in res/values/

22. Resources and resource IDS • resource: can see by opening the file R.java • it’s in the gen/edu.ithaca.android.geoquizdirectory • the edu.ithaca.android.geoquiz name depends on what you named your package. • this file is generated by the build process • won’t be there until you build! • you should see a value similar to public static final intactivity_quiz=0x7f030000;

23. Resources • To access a resource in code use its resourceID • resource for our layout is R.layout.activity_quiz • Android generates resource IDs for entire layouts and each string • but not individual widgets • to generate a resourceID for a widget must include an android:id attribute in the widget’s definition • For each button add the attribute: android:id="@+id/true_button” or android:id="@+id/false_button" the + sign means to create the id

24. Wiring up widgets • Can access buttons via their resource IDs • Add the bold lines to QuizActivity: public class QuizActivity extends Activity { private Button mTrueButton; private Button mFalseButton; @Override protected void onCreate(Bundle savedInstanceState) { the m prefix is an android convention these will cause errors: the Button type needs to be imported! see next slide!

25. Wiring up widgets • To fix the import error can organize your imports • To organize press: • Command+Shift+O on mac • Ctrl+Shift+O on windows/linux • this will put in the necessary imports

26. Wiring up widgets • To wire up buttons: • get references to the inflated View objects • set listeners on those objects to respond to user actions

27. Get ref to widgets • Can get a reference to an inflated widget by calling: • public View findViewById(int id) • this method accepts a resource ID of a widget • it returns a View object • Add to QuizActivity.java • see next slide

28. Get ref to widgets protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_quiz); mTrueButton= (Button)findViewById(R.id.true_button); mFalseButton= (Button)findViewById(R.id.false_button); return true; }

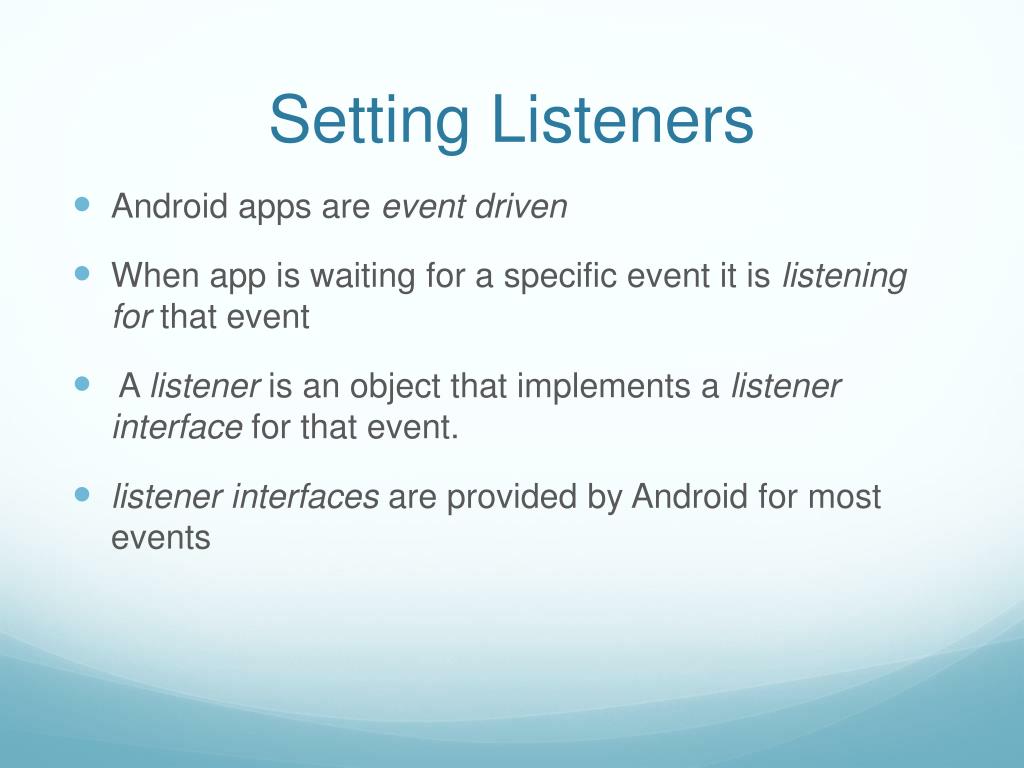

29. Setting Listeners • Android apps are event driven • When app is waiting for a specific event it is listening for that event • A listener is an object that implements a listener interface for that event. • listener interfaces are provided by Android for most events

30. Setting Listeners • Our app: want to listen for a mouse click • Must implement the View.OnClickListener interface

31. Setting Listeners protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_quiz); mTrueButton = (Button)findViewById(R.id.true_button); mTrueButton.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View v) { // TODO Auto-generated method stub } }); mFalseButton = (Button)findViewById(R.id.false_button); return true; } We’ll fill this in shortly!

32. Anonymous Classes • The listener on the last slide is an anonymous inner class • Most listeners in Android use this technique • The anonymous inner class implements the OnClickListener interface. • means it must implement the interface methods • in this case, there is only one: OnClick(View) • Must set a similar class for the false button (next slide)

33. Setting Listeners // mTrueButton code is still here, I just took it out to save room mFalseButton = (Button)findViewById(R.id.false_button); mFalseButton.setOnClickListener(new View.OnClickListener() { @Override public void onClick(View v) { // TODO Auto-generated method stub } }); return true; } We’ll fill this in shortly!

34. Toasts • A pop-up message in Android is called a toast • A toast is a short message that informs the user of something but does not require any input or action. • We’ll make toasts that announce whether the user answered correctly or not.

35. Toasts • To make a toast call the following method from the Toast class: public static toast Toast makeText(Context context, intresId, int duration) • The Context parameter is typically an instance of an Activity class. • The second parameter is the resource ID of the string that the Toast will display • needs the Context to find and use the string’s resource ID • Third parameter is one of two Toast constants that specify how long the toast should be visible

36. Toasts • After you make a Toast, use Toast.show() to get it on the screen. • see next slide

37. Making Toasts for mTrueButton handler: public void onClick(View v) { Toast.makeText(QuizActivity.this, R.string.incorrect_toast, Toast.LENGTH_SHORT).show(); } QuizActivity.this indicates the correct context Cannot just say “this” because we’re inside an anonymous class!

38. Making Toasts for mFalseButton handler: public void onClick(View v) { Toast.makeText(QuizActivity.this, R.string.correct_toast, Toast.LENGTH_SHORT).show(); }

39. Run • right click on name and choose Run As->Android Application • To run on device, • on a Mac just connect device via USB. • on Windows may need to install the abd (Android Debug Bridge). • may have to download from your device manufacturer’s website • must set device up (see next slide).

40. Setting up device Step 1 • Must set up device to accept applications that are not from Google Play • if device is running Android 4.1 or earlier, go to SettingsApplications. Make sure Unknown sources is checked. • if device is running Android 4.2 or later, go to SettingsSecurity. Make sure Unknown sources is checked.

41. Setting up device Step 2 • Must enable USB debugging in the device. • Android 4.0 and earlier: SettingsApplicationsDevelopmentand enable USB debugging • Android 4.1 or later. Must enable developer options. • Go to SettingsAbout Tablet/phone and press Build Number 7 times. • Return to SettingsseeDeveloper Optionsand enableUSB Debugging.

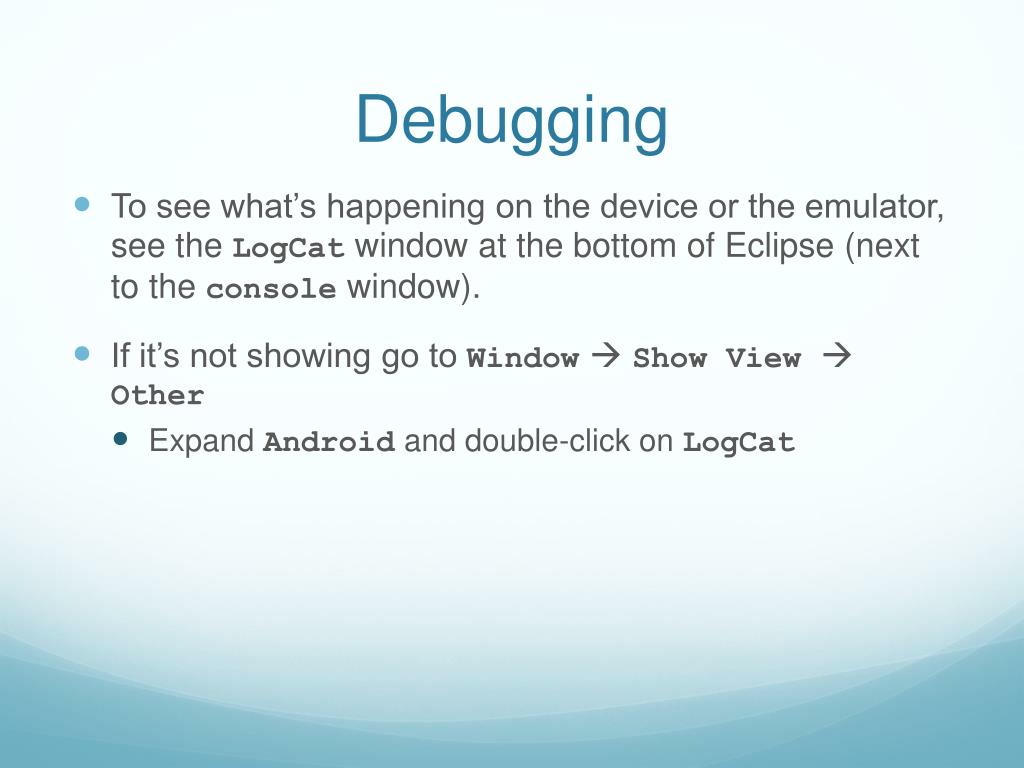

42. Debugging • To see what’s happening on the device or the emulator, see the LogCat window at the bottom of Eclipse (next to the console window). • If it’s not showing go to Window Show View  Other • Expand Android and double-click on LogCat
