Presentation Transcript

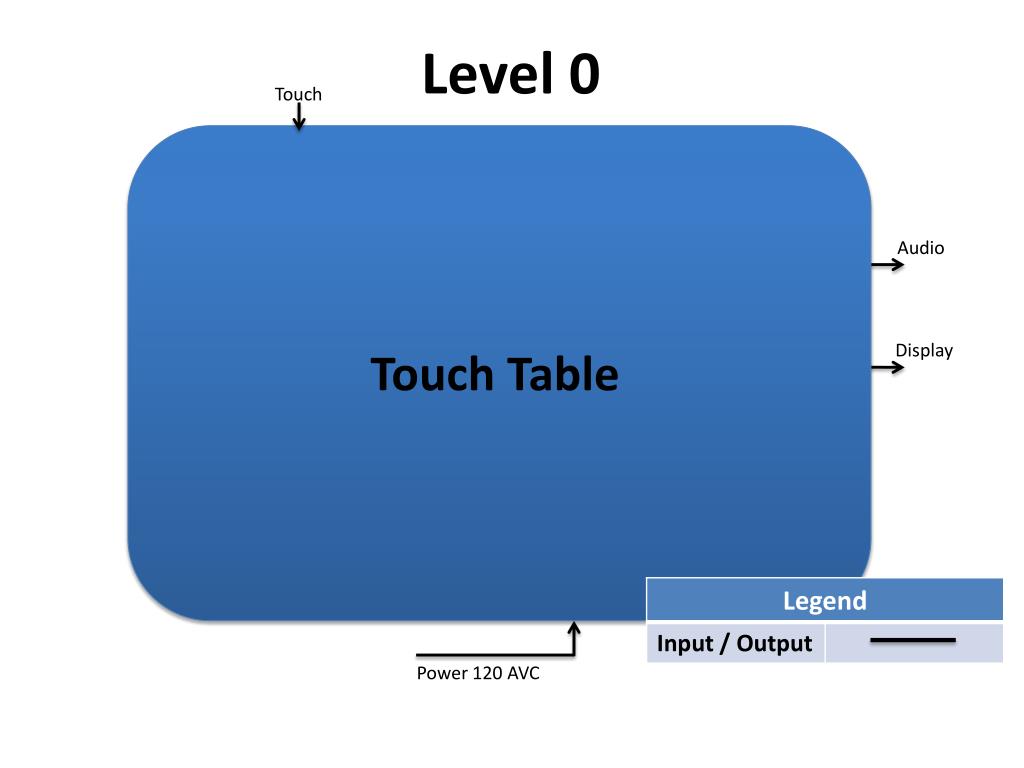

  1. Level 0 Touch Audio Display Touch Table Power 120 AVC

  2. Level 1 Touch Audio Touch Utilization Touch Sensing Display Power Supplies 12 V 12 V Environmental Sensors Power 120 AVC

  3. Level 2 Touch IR LEDs AcrylicSurface Camera Embedded Computer Audio 5V Display Projector Power Supplies 12 V 12 V LEDs Proximity Sensing Power 120 AVC

  4. Level 3 Touch IR LEDs Acrylic Surface Camera FPGA Raspberry Pie Audio 5V Display Projector Power Supplies 12 V 12 V LEDs Proximity Sensing Power 120 AVC

  5. Level 4 Touch IR LEDs Acrylic Surface Camera FPGA Raspberry Pie Audio 5V Display Projector Power Supplies 12 V 12 V Proximity Sensor Proximity LEDs Potentiometer Micro-controller Power 120 AVC
