  1. Math 1536 Chapter 3:Proportion and the Golden Ratio

  2. The Game Of Fim

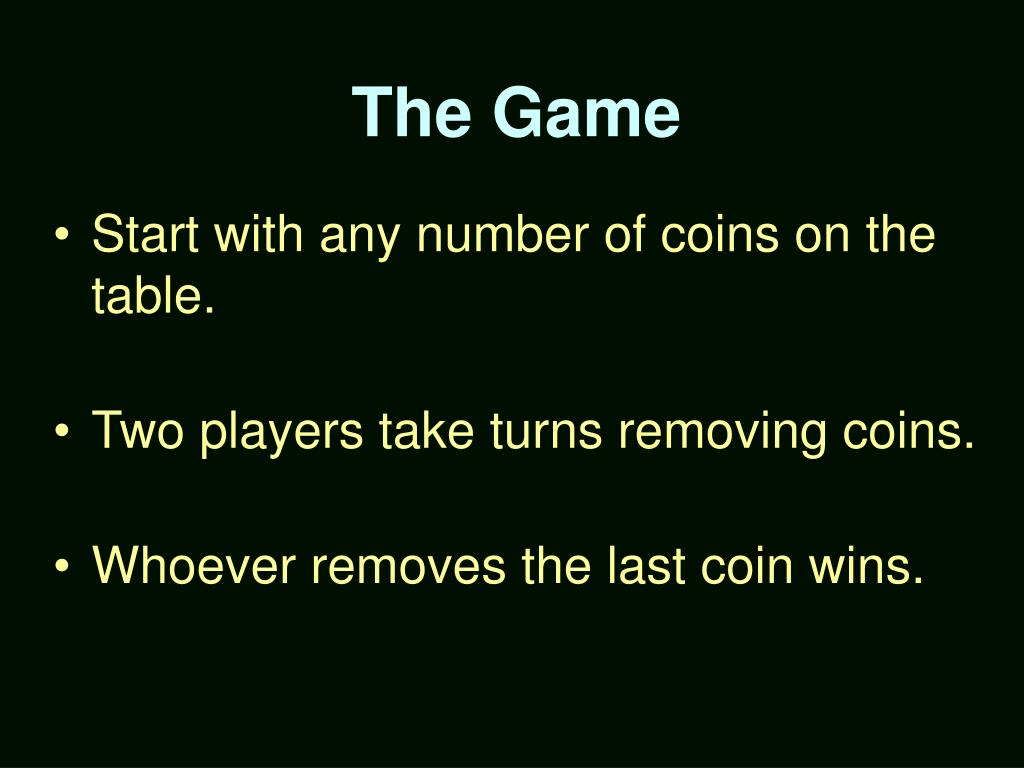

  3. The Game • Start with any number of coins on the table. • Two players take turns removing coins. • Whoever removes the last coin wins.

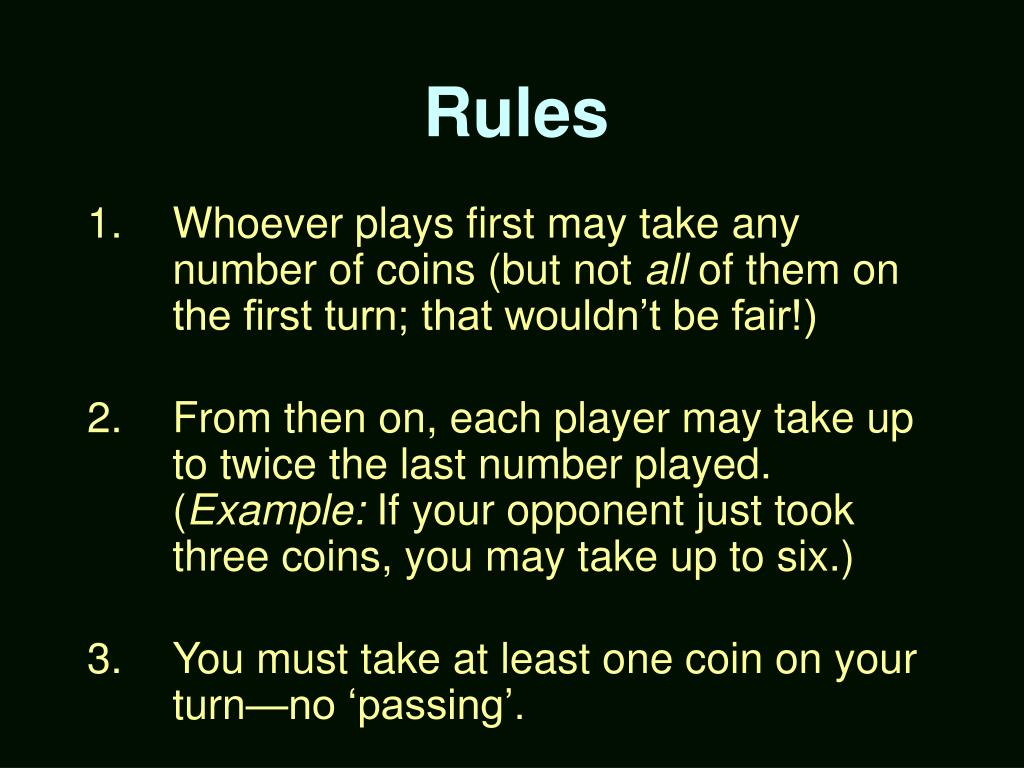

  4. Rules • Whoever plays first may take any number of coins (but not all of them on the first turn; that wouldn’t be fair!) • From then on, each player may take up to twice the last number played. (Example: If your opponent just took three coins, you may take up to six.) • You must take at least one coin on your turn—no ‘passing’.

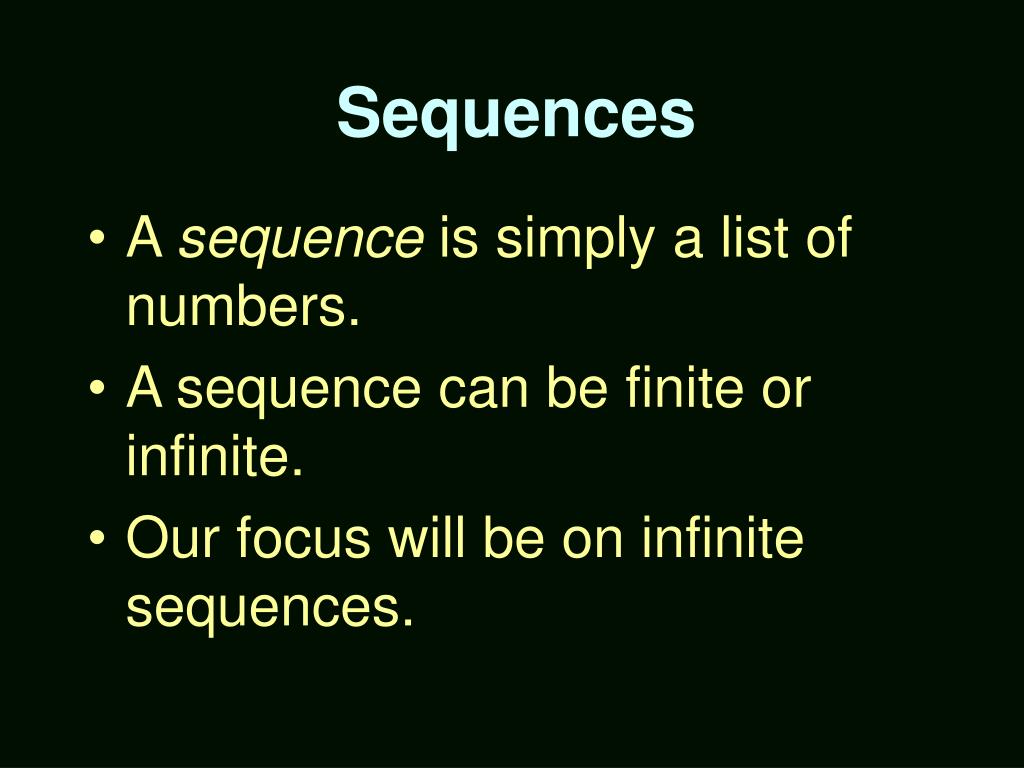

  5. Sequences • A sequence is simply a list of numbers. • A sequence can be finite or infinite. • Our focus will be on infinite sequences.

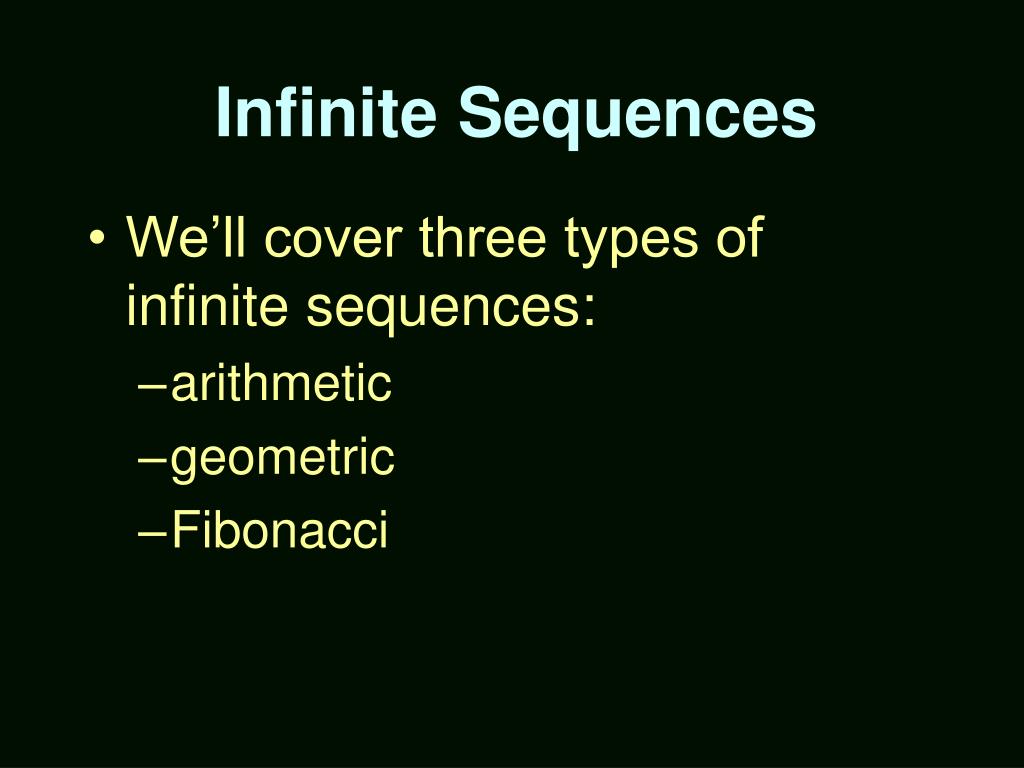

  6. Infinite Sequences • We’ll cover three types of infinite sequences: • arithmetic • geometric • Fibonacci

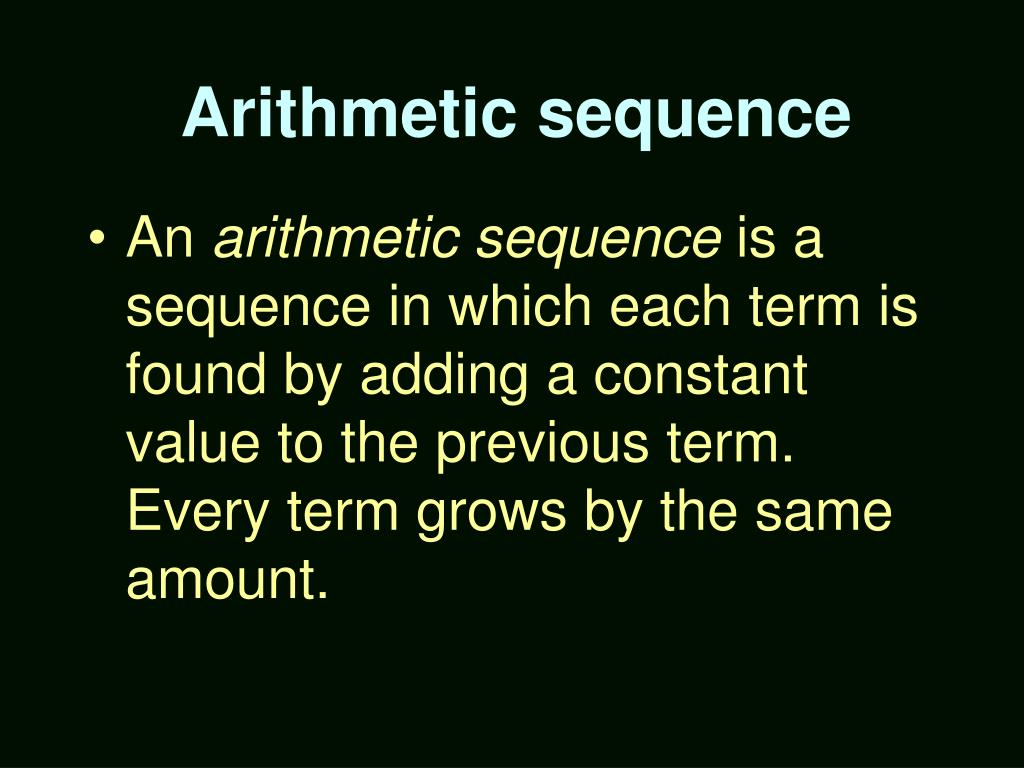

  7. Arithmetic sequence • An arithmetic sequence is a sequence in which each term is found by adding a constant value to the previous term. Every term grows by the same amount.

  8. Example 1 • The following sequence is arithmetic: {5,9,13,17,21,25,29,…} • The starting point is 5, and each term increases by 4.

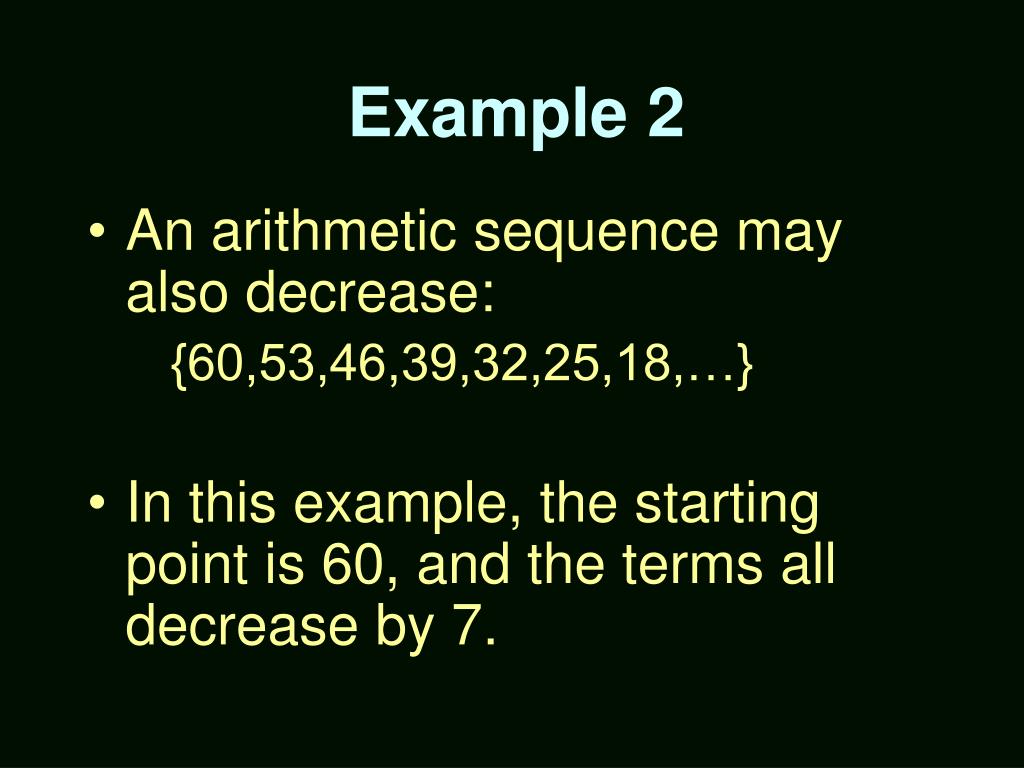

  9. Example 2 • An arithmetic sequence may also decrease: {60,53,46,39,32,25,18,…} • In this example, the starting point is 60, and the terms all decrease by 7.

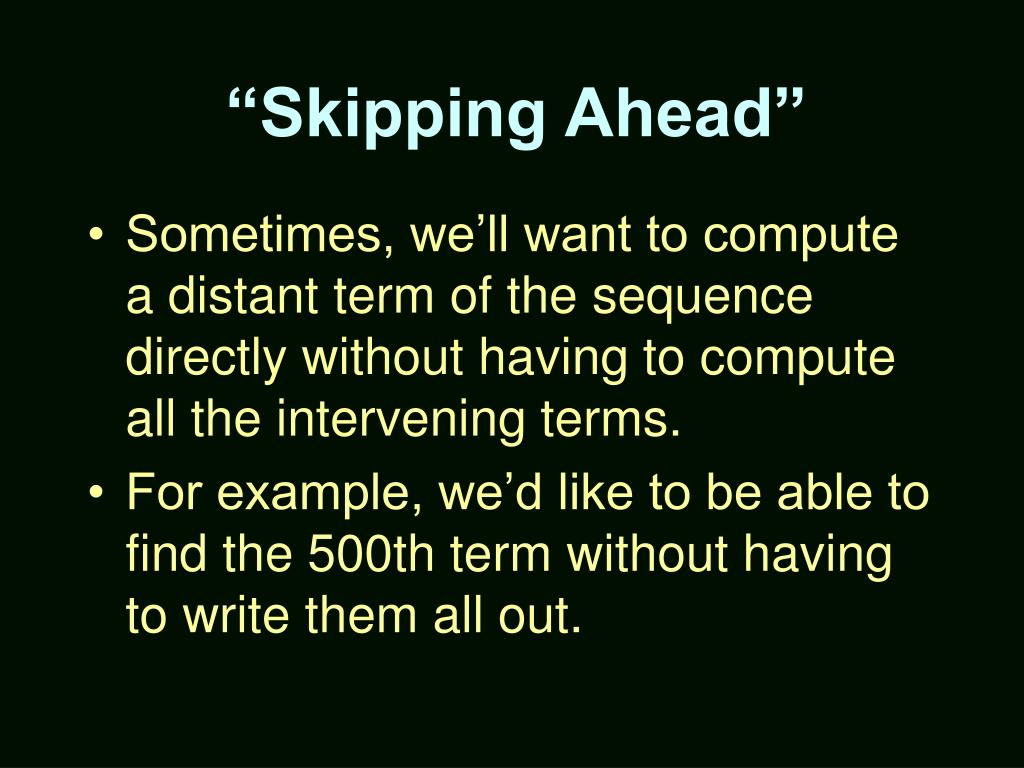

  10. “Skipping Ahead” • Sometimes, we’ll want to compute a distant term of the sequence directly without having to compute all the intervening terms. • For example, we’d like to be able to find the 500th term without having to write them all out.

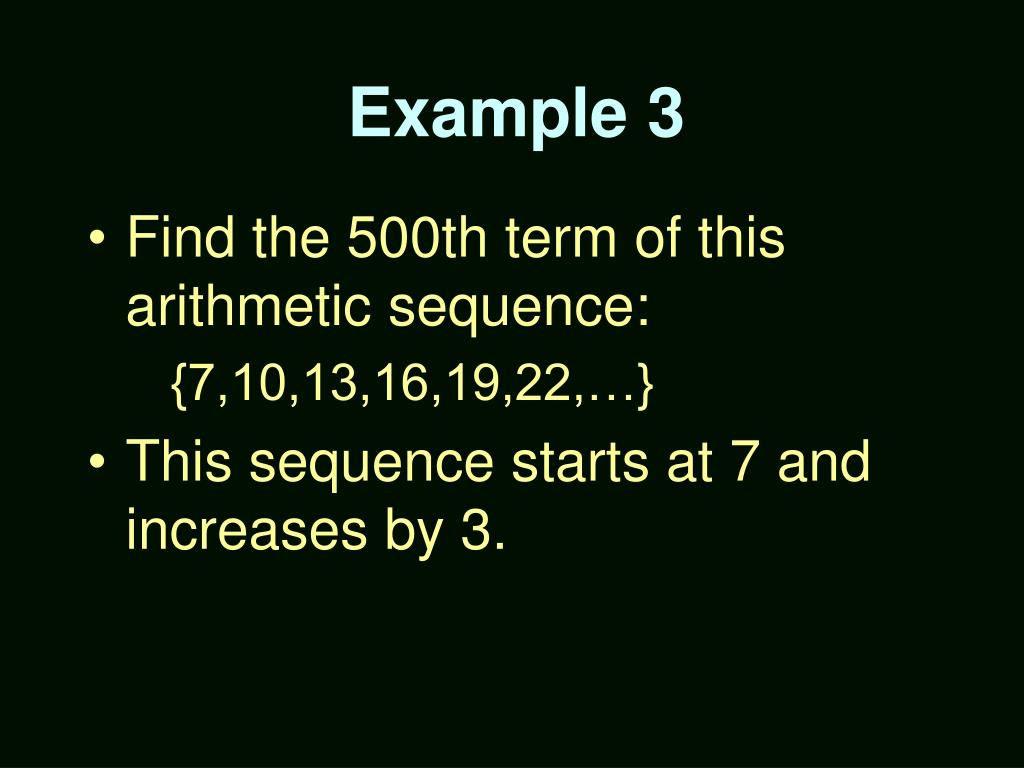

  11. Example 3 • Find the 500th term of this arithmetic sequence: {7,10,13,16,19,22,…} • This sequence starts at 7 and increases by 3.

  12. Example 3 (continued)500th term of {7,10,13,16,19…} • To skip from the first term to the 500th term, we have to skip over 499 terms. Each term added 3, for a total of 499  3 =1497. • Add this to the starting value (7) to get 1504.

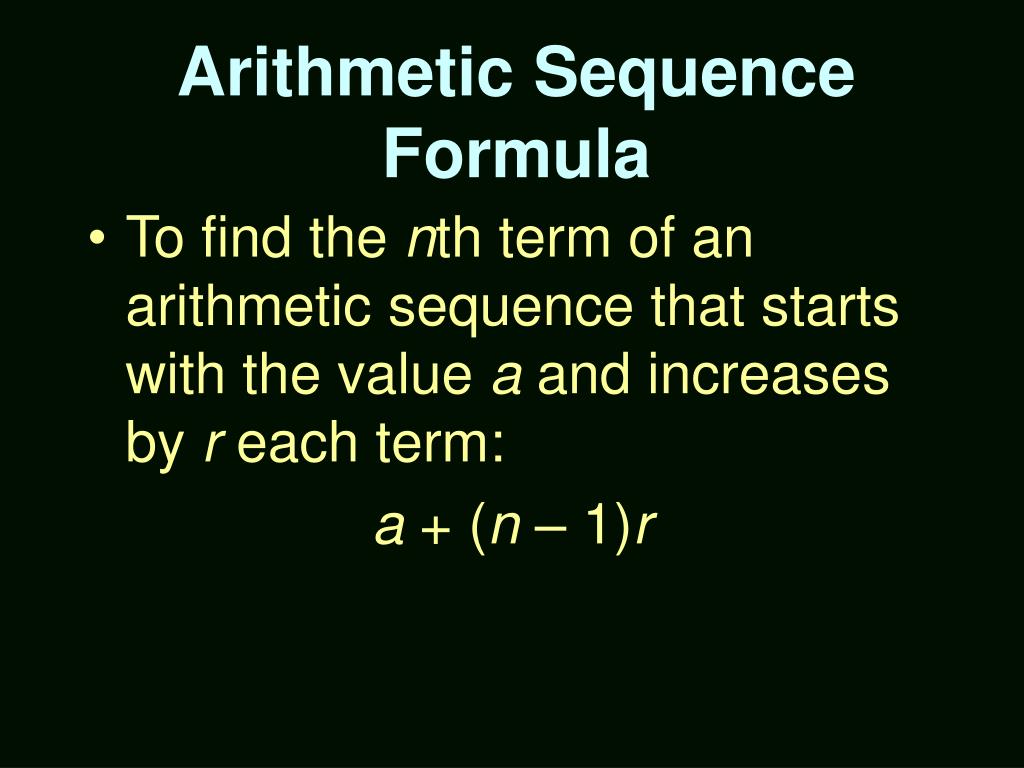

  13. Arithmetic Sequence Formula • To find the nth term of an arithmetic sequence that starts with the value a and increases by r each term: a + (n – 1)r

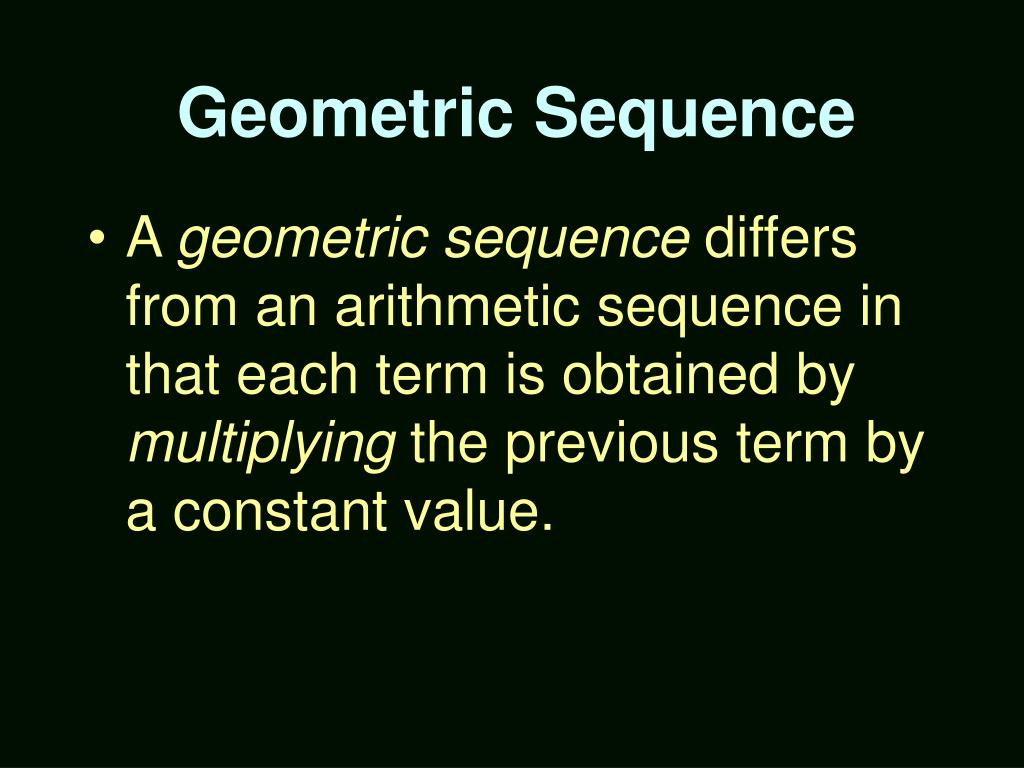

  14. Geometric Sequence • A geometric sequence differs from an arithmetic sequence in that each term is obtained by multiplying the previous term by a constant value.

  15. Example 4 • The following sequence is geometric: {7,35,165,825,4125,20625,…} • The starting point is 7, and each term is found by multiplying by 5. • Geometric sequences can get very big very fast!

  16. Example 5 • However, geometric sequences can also get smaller if the number we’re multiplying is a fraction: {8, 2, 0.5, 0.125, 0.03125, …}

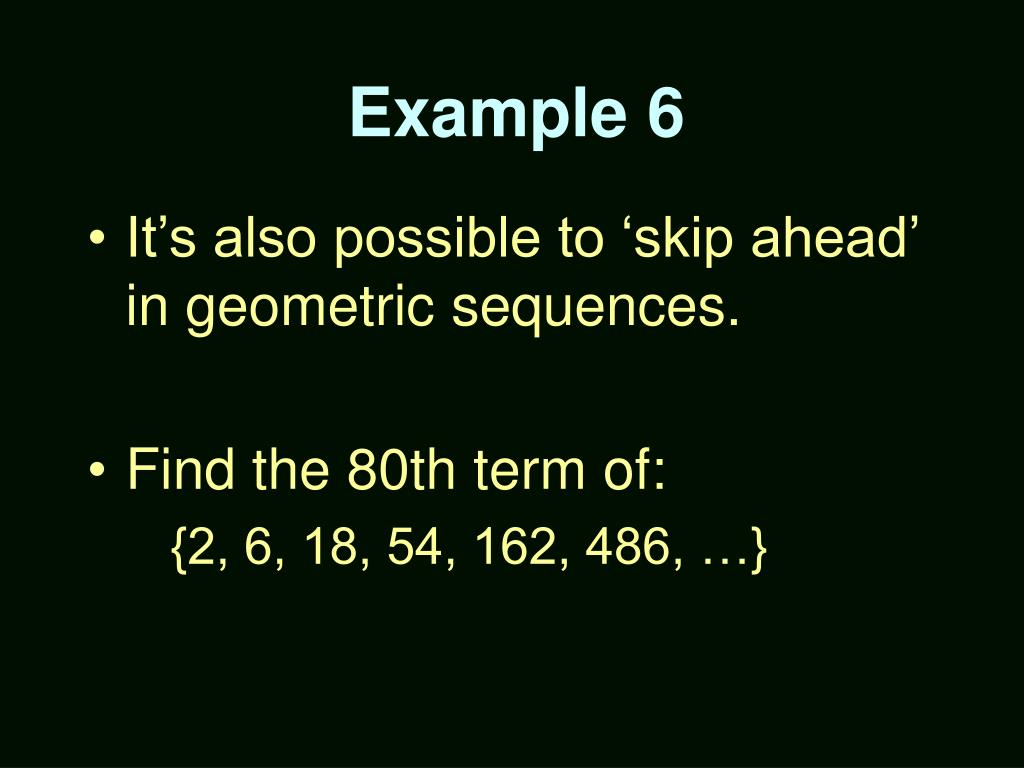

  17. Example 6 • It’s also possible to ‘skip ahead’ in geometric sequences. • Find the 80th term of: {2, 6, 18, 54, 162, 486, …}

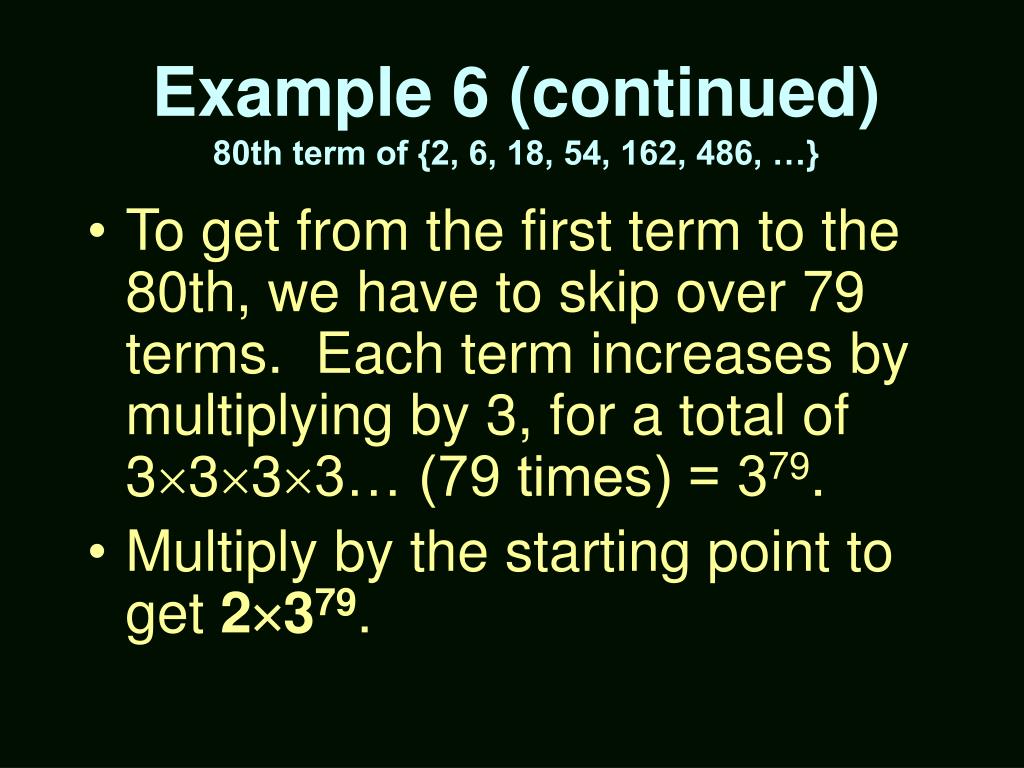

  18. Example 6 (continued)80th term of {2, 6, 18, 54, 162, 486, …} • To get from the first term to the 80th, we have to skip over 79 terms. Each term increases by multiplying by 3, for a total of 3333… (79 times) = 379. • Multiply by the starting point to get 2379.

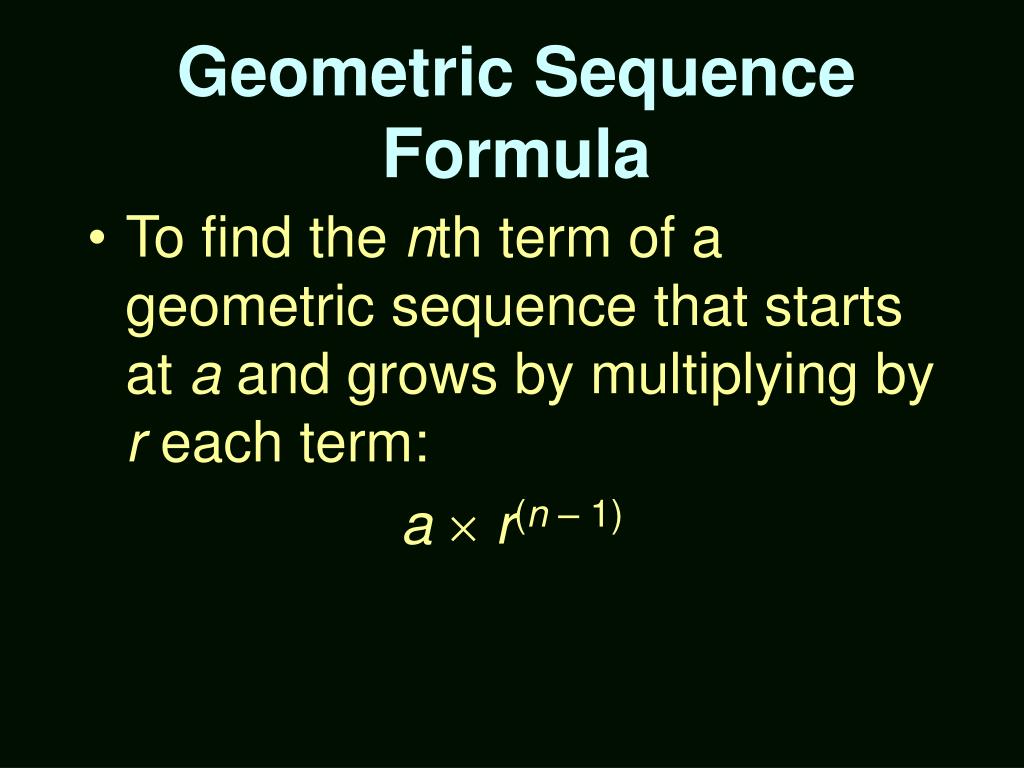

  19. Geometric Sequence Formula • To find the nth term of a geometric sequence that starts at a and grows by multiplying by r each term: a  r(n – 1)

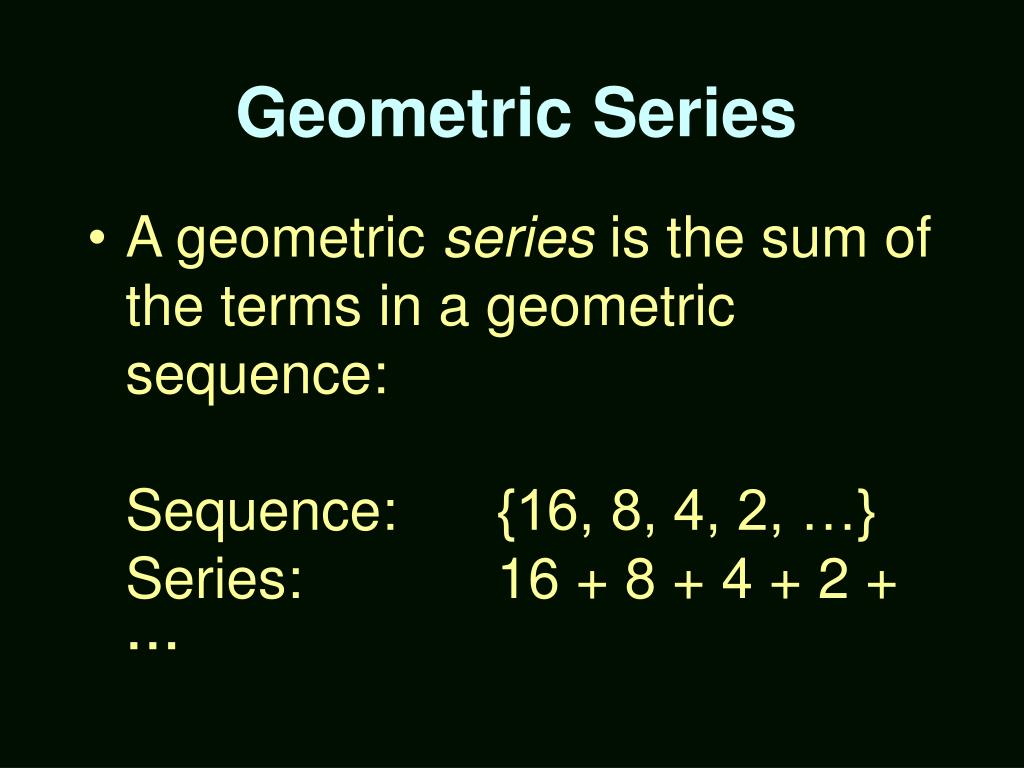

  20. Geometric Series • A geometric series is the sum of the terms in a geometric sequence:Sequence: {16, 8, 4, 2, …} Series: 16 + 8 + 4 + 2 + ···

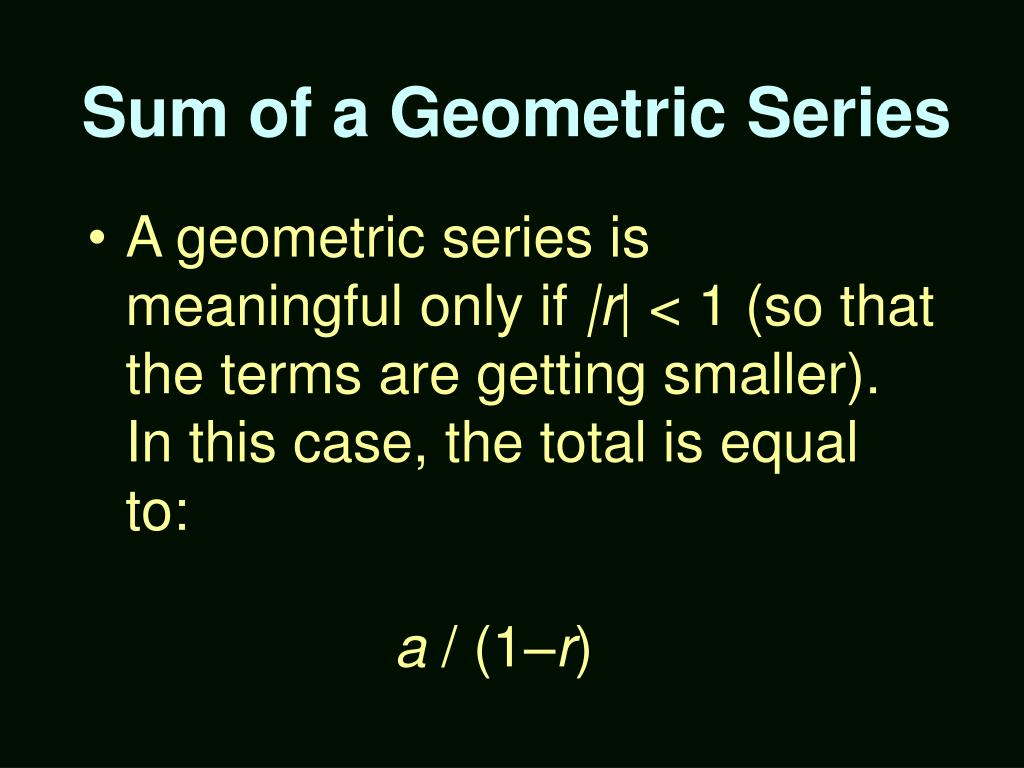

  21. Sum of a Geometric Series • A geometric series is meaningful only if |r| < 1 (so that the terms are getting smaller). In this case, the total is equal to:a / (1–r)

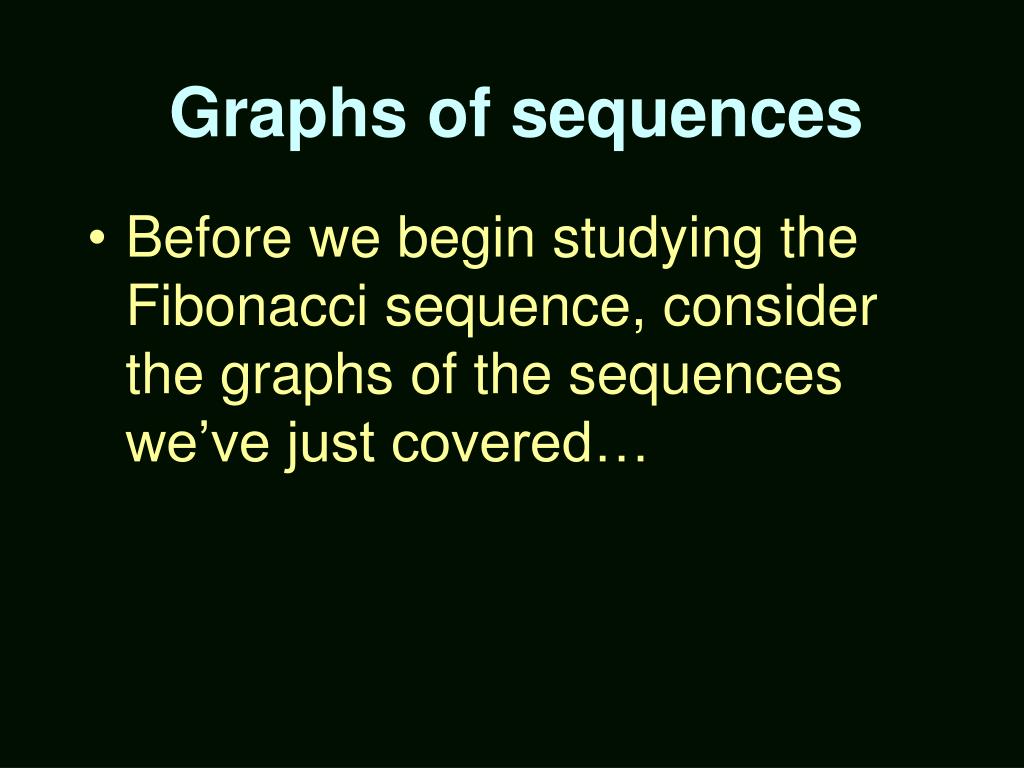

  22. Graphs of sequences • Before we begin studying the Fibonacci sequence, consider the graphs of the sequences we’ve just covered…

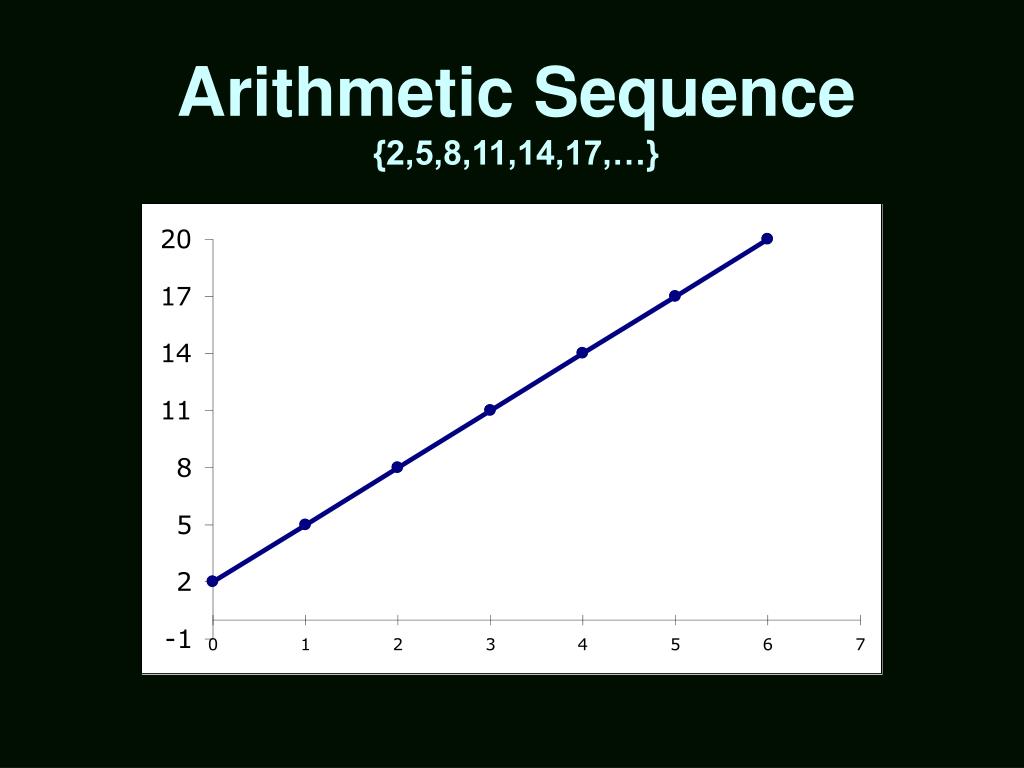

  23. Arithmetic Sequence{2,5,8,11,14,17,…}

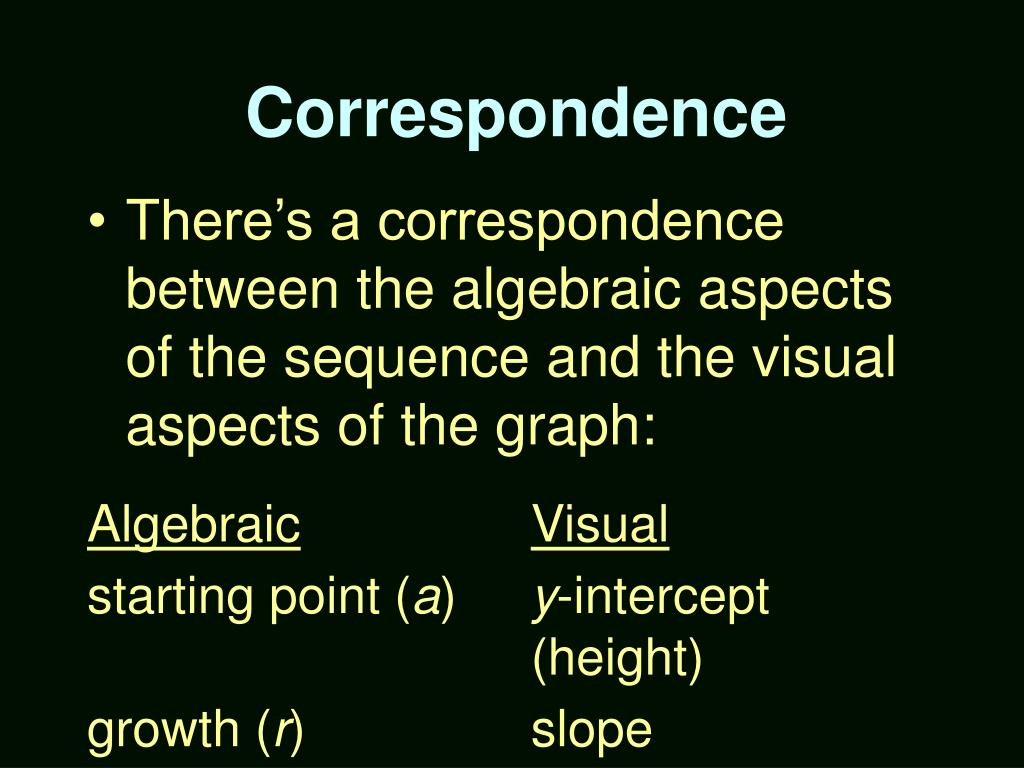

  24. Correspondence • There’s a correspondence between the algebraic aspects of the sequence and the visual aspects of the graph:

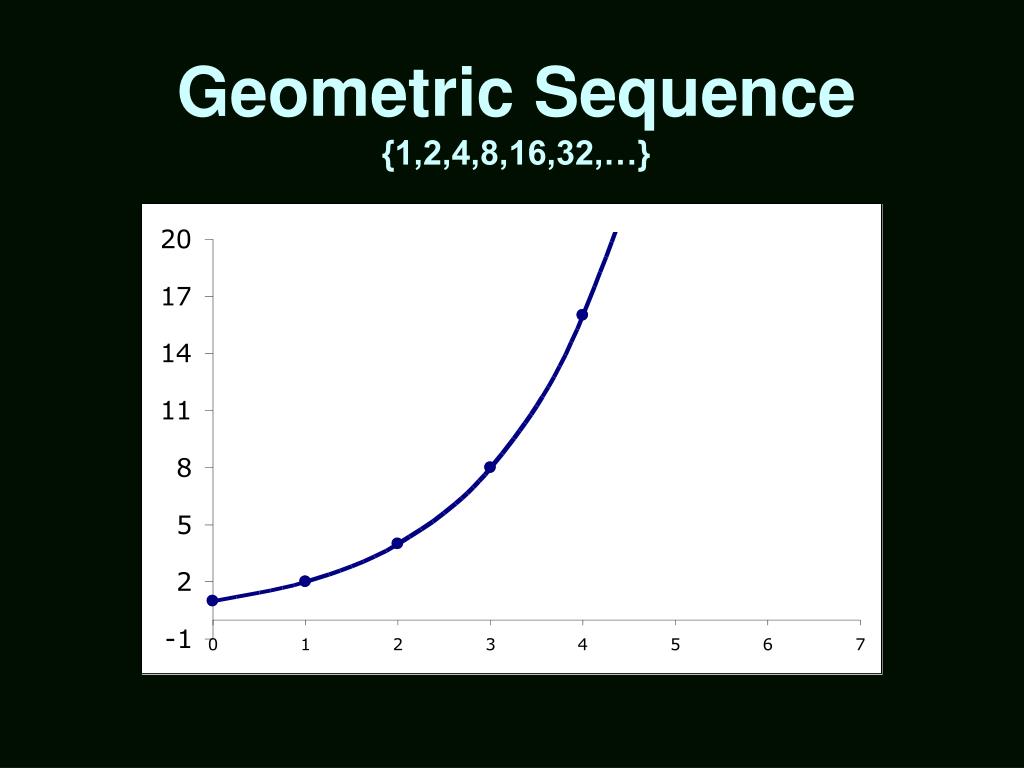

  25. Geometric Sequence{1,2,4,8,16,32,…}

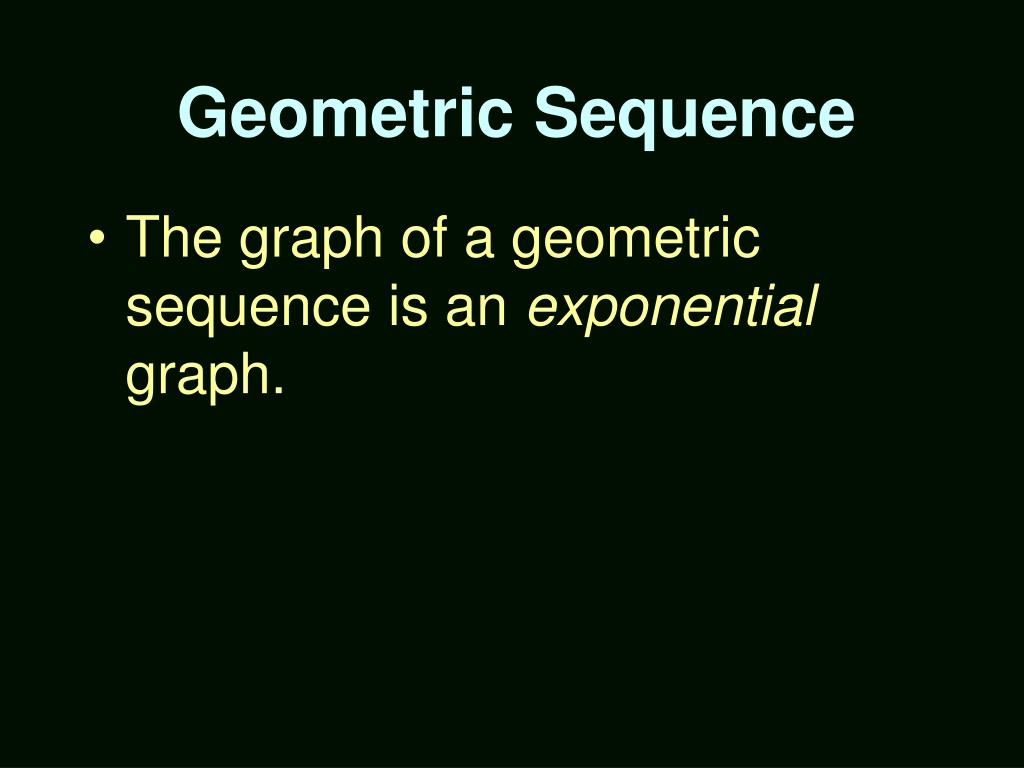

  26. Geometric Sequence • The graph of a geometric sequence is an exponential graph.

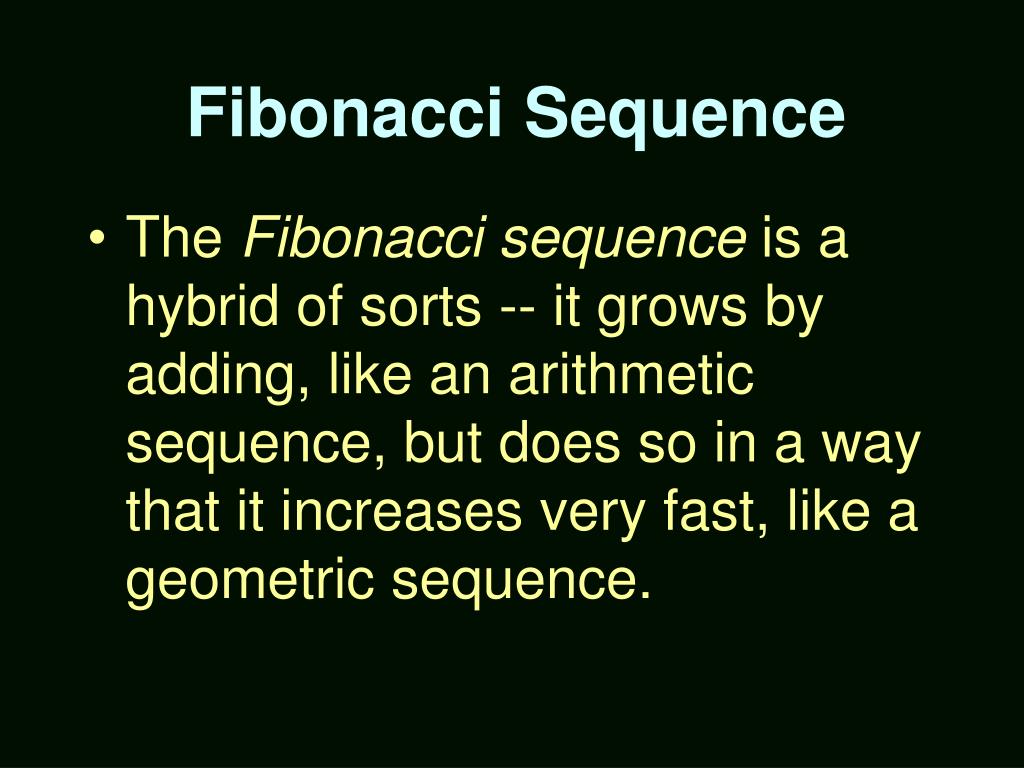

  27. Fibonacci Sequence • The Fibonacci sequence is a hybrid of sorts -- it grows by adding, like an arithmetic sequence, but does so in a way that it increases very fast, like a geometric sequence.

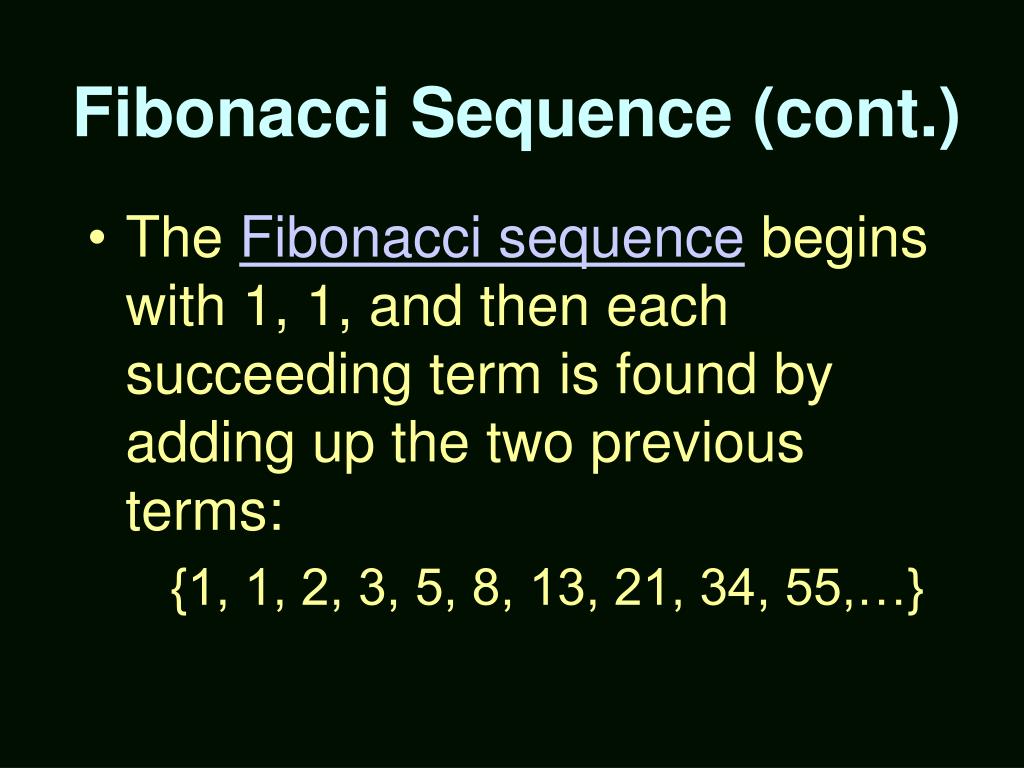

  28. Fibonacci Sequence (cont.) • The Fibonacci sequence begins with 1, 1, and then each succeeding term is found by adding up the two previous terms: {1, 1, 2, 3, 5, 8, 13, 21, 34, 55,…}

  29. Graph of the Fibonacci Sequence

  30. Fibonacci Decomposition • Every positive integer has a decomposition into nonconsecutive Fibonacci numbers.

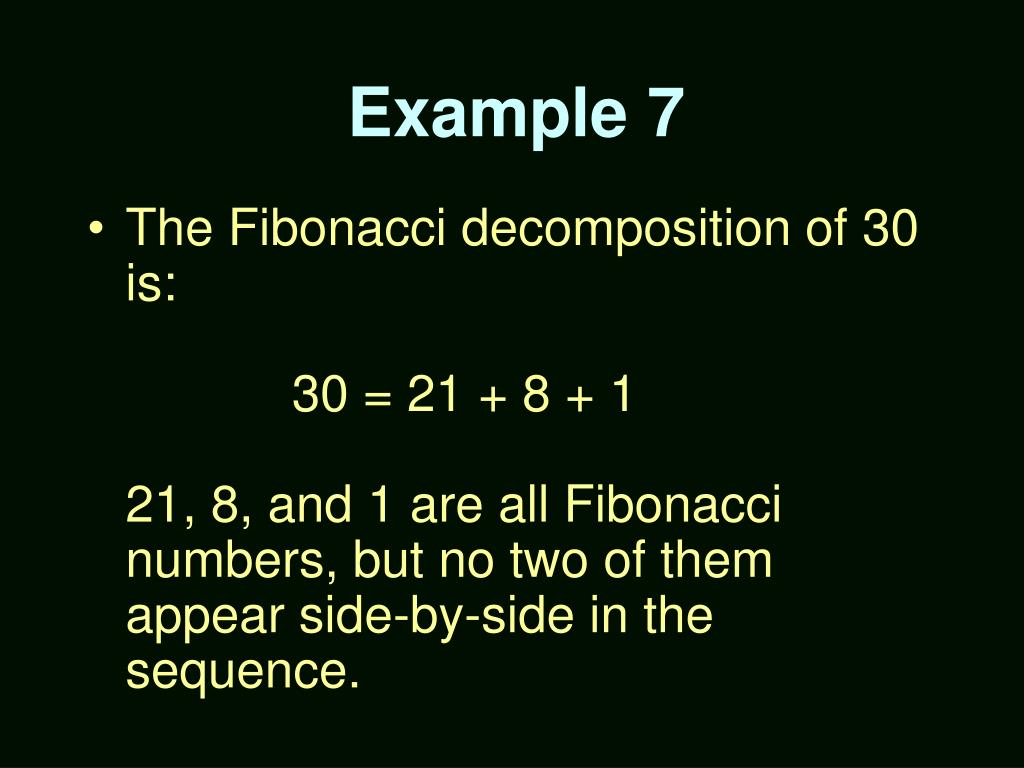

  31. Example 7 • The Fibonacci decomposition of 30 is: 30 = 21 + 8 + 121, 8, and 1 are all Fibonacci numbers, but no two of them appear side-by-side in the sequence.

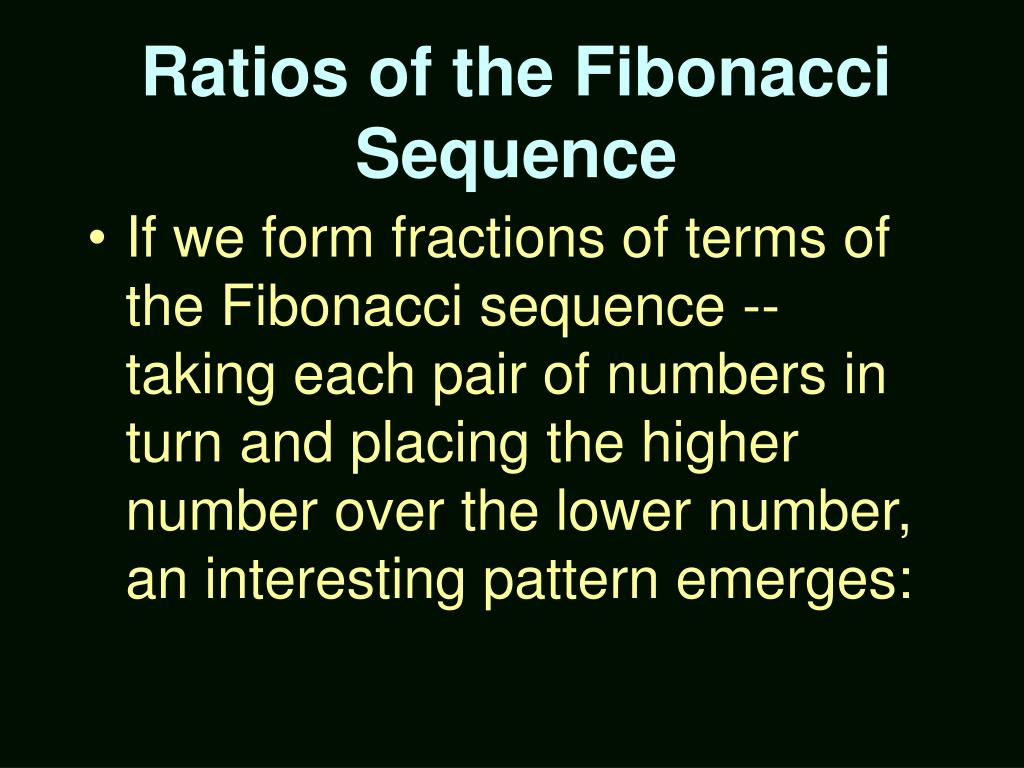

  32. Ratios of the Fibonacci Sequence • If we form fractions of terms of the Fibonacci sequence -- taking each pair of numbers in turn and placing the higher number over the lower number, an interesting pattern emerges:

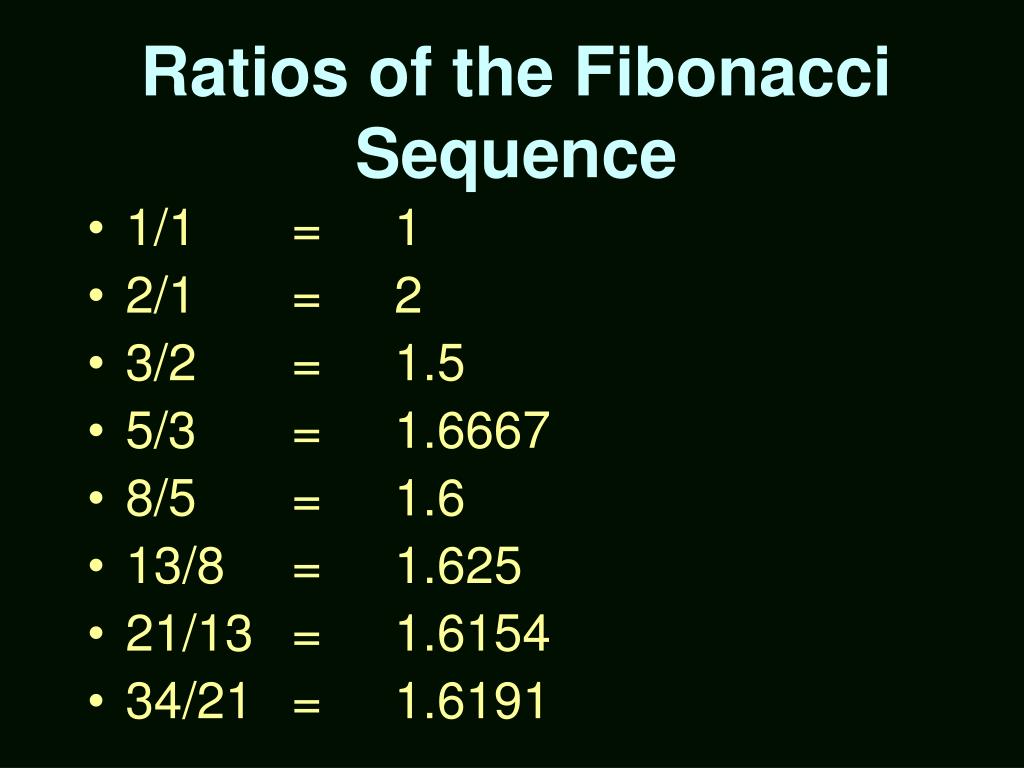

  33. Ratios of the Fibonacci Sequence • 1/1 = 1 • 2/1 = 2 • 3/2 = 1.5 • 5/3 = 1.6667 • 8/5 = 1.6 • 13/8 = 1.625 • 21/13 = 1.6154 • 34/21 = 1.6191

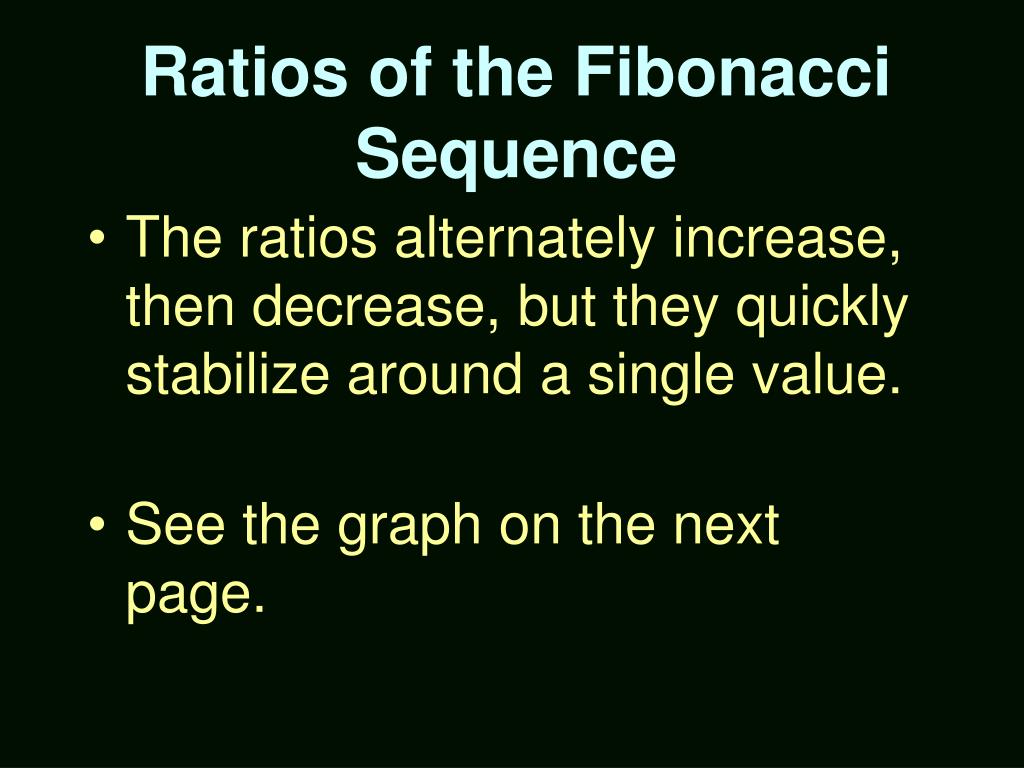

  34. Ratios of the Fibonacci Sequence • The ratios alternately increase, then decrease, but they quickly stabilize around a single value. • See the graph on the next page.

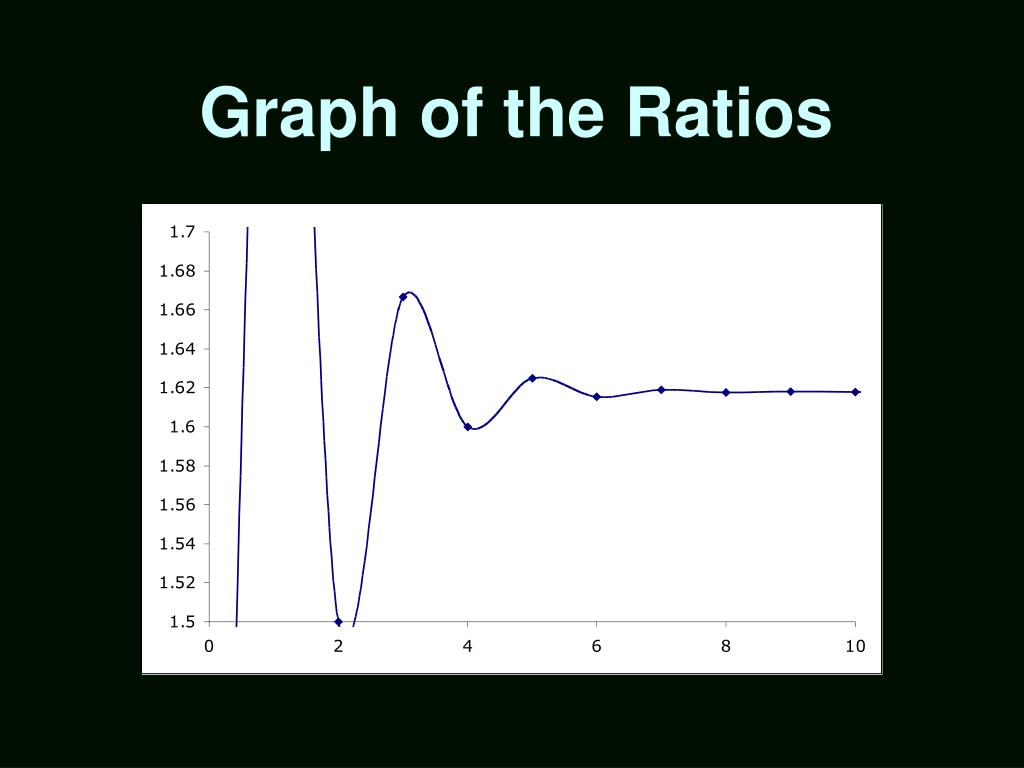

  35. Graph of the Ratios

  36. The Golden Ratio • The value at which they stabilize is (1 + 5)/2, which is approximately 1.618. • This value is known as the golden ratio, and is often abbreviated with the Greek letter  (phi).

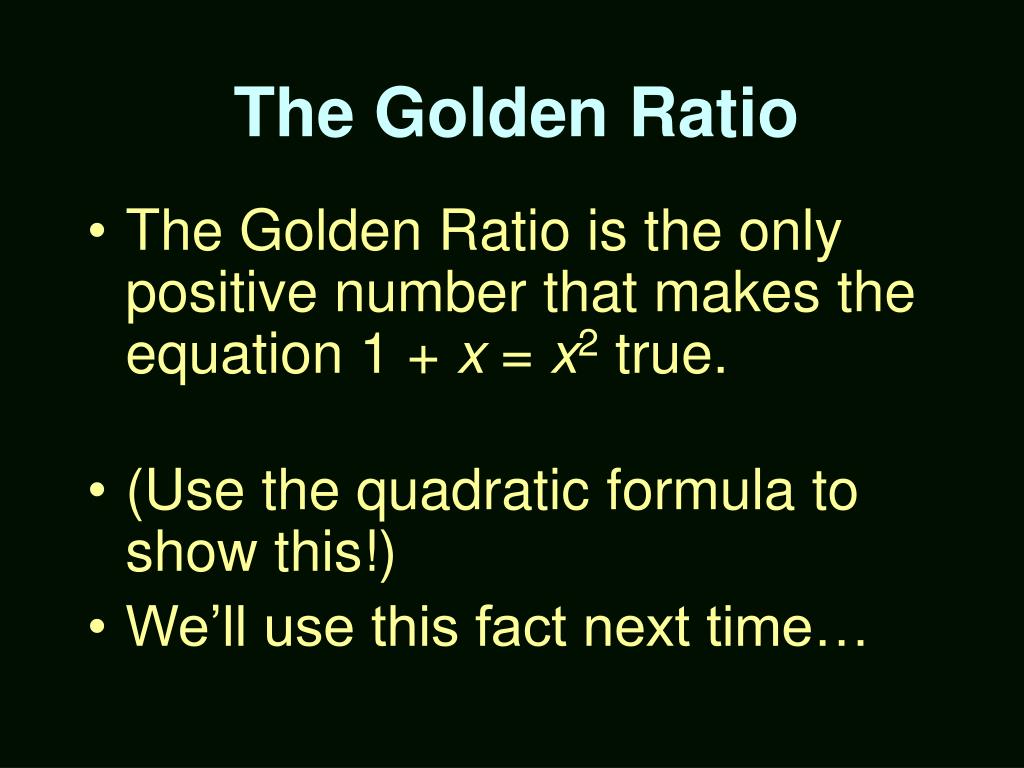

  37. The Golden Ratio • The Golden Ratio is the only positive number that makes the equation 1 + x = x2 true. • (Use the quadratic formula to show this!) • We’ll use this fact next time…
