  1. IST 201 Chapter 7

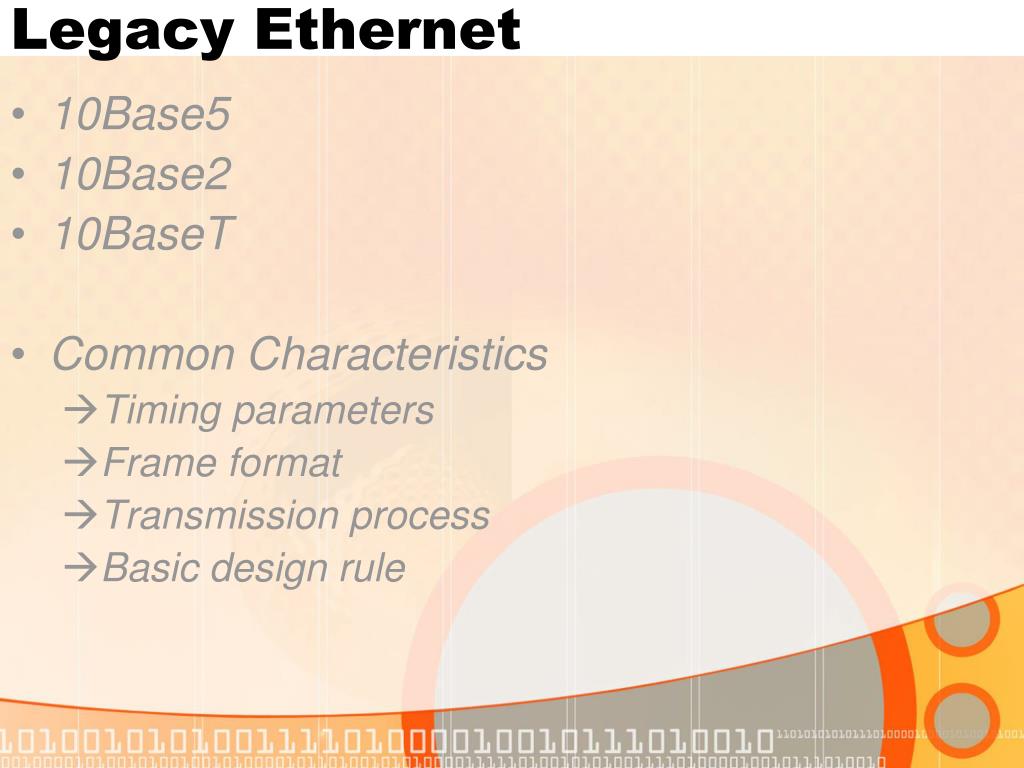

  2. Legacy Ethernet • 10Base5 • 10Base2 • 10BaseT • Common Characteristics • Timing parameters • Frame format • Transmission process • Basic design rule

  3. Parameters • Bit time 100 nanoseconds • Slot time 512 bit-times • Interframe spacing 96 bits • Collision attempt limit 16 • Collision back-off limit 10 • Collision jam size 32 bits • Max. frame size 1518 octets • Min. frame size 512 bits/64 octets

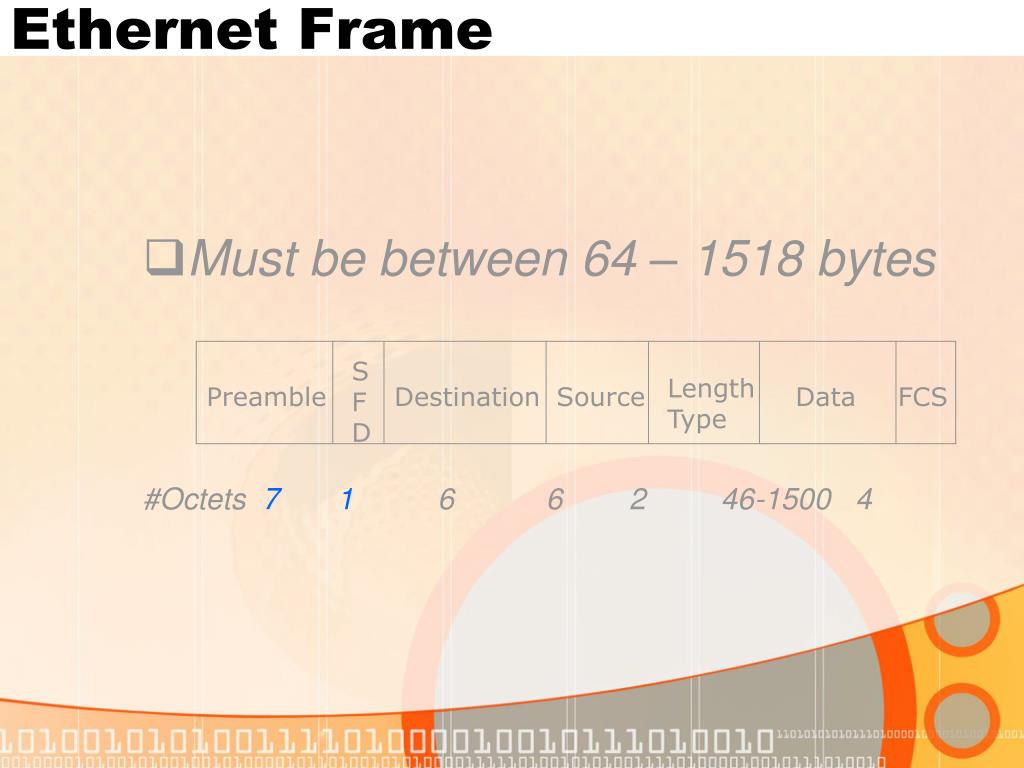

  4. Ethernet Frame • Must be between 64 – 1518 bytes #Octets 7 1 6 6 2 46-1500 4 S F D Length Type Preamble Destination Source Data FCS

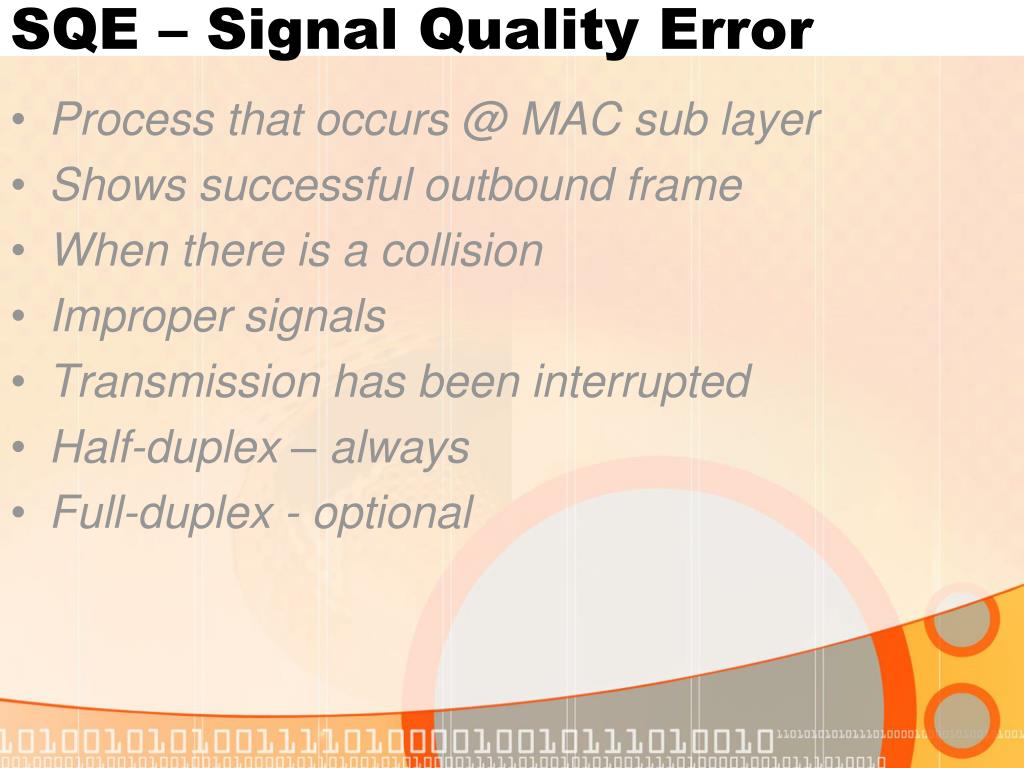

  5. SQE – Signal Quality Error • Process that occurs @ MAC sub layer • Shows successful outbound frame • When there is a collision • Improper signals • Transmission has been interrupted • Half-duplex – always • Full-duplex - optional

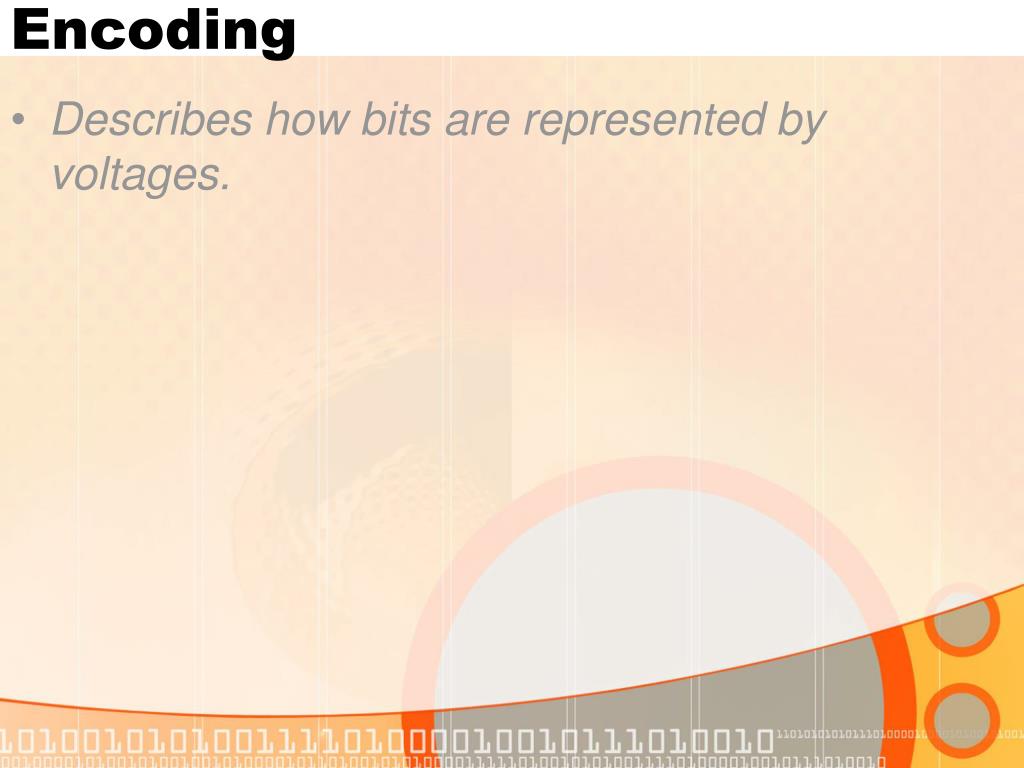

  6. Encoding • Describes how bits are represented by voltages.

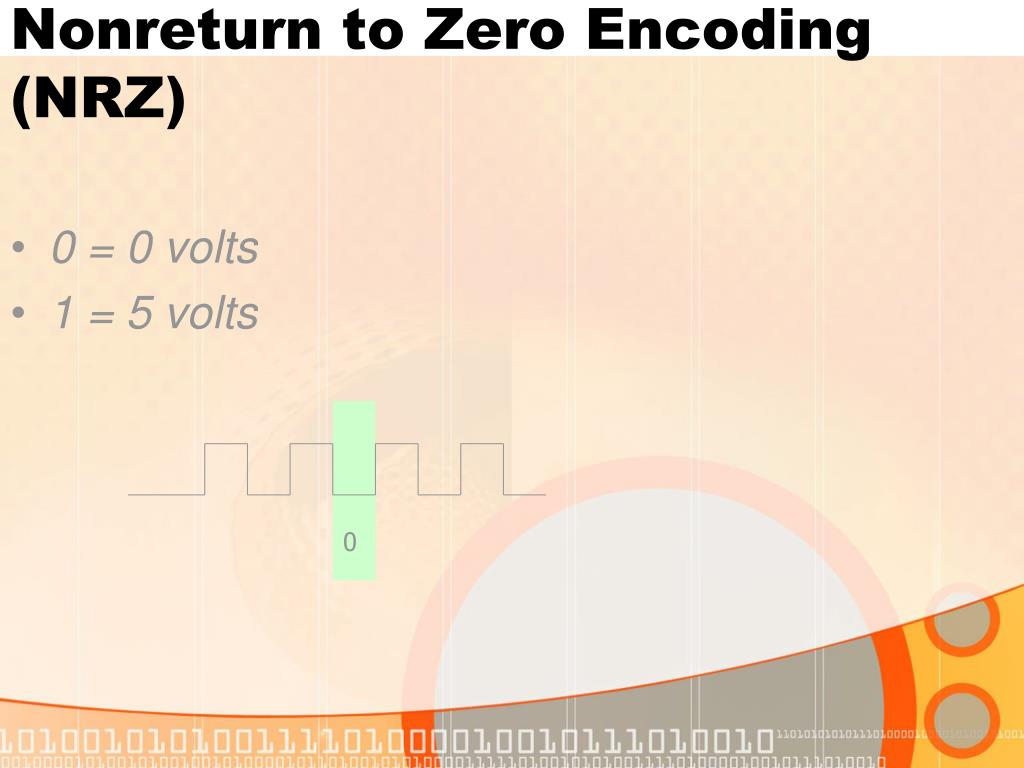

  7. Nonreturn to Zero Encoding (NRZ) • 0 = 0 volts • 1 = 5 volts 0

  8. Manchester Encoding • Used in 10 Mbps Ethernet • Direction of the edge transition indicates whether it is a one or zero. • Low to High transition 01 represents 1 • High to Low transition 10 represents 0 • Self-clocking – each bit is transmitted over a predetermined time period Called Biphase code

  9. Shared Ethernet • Share collision domain • Multiple types of media can co-exist • 10BaseT • 10Base2 • 10Base5

  10. Design Rule = 5-4-3 Rule • No more than 5 segments • Separated by no more than 4 repeaters • Coax – no more than 3 segments can have hosts • This rule prevents a 10 Mbps network from having propagation delay problems.

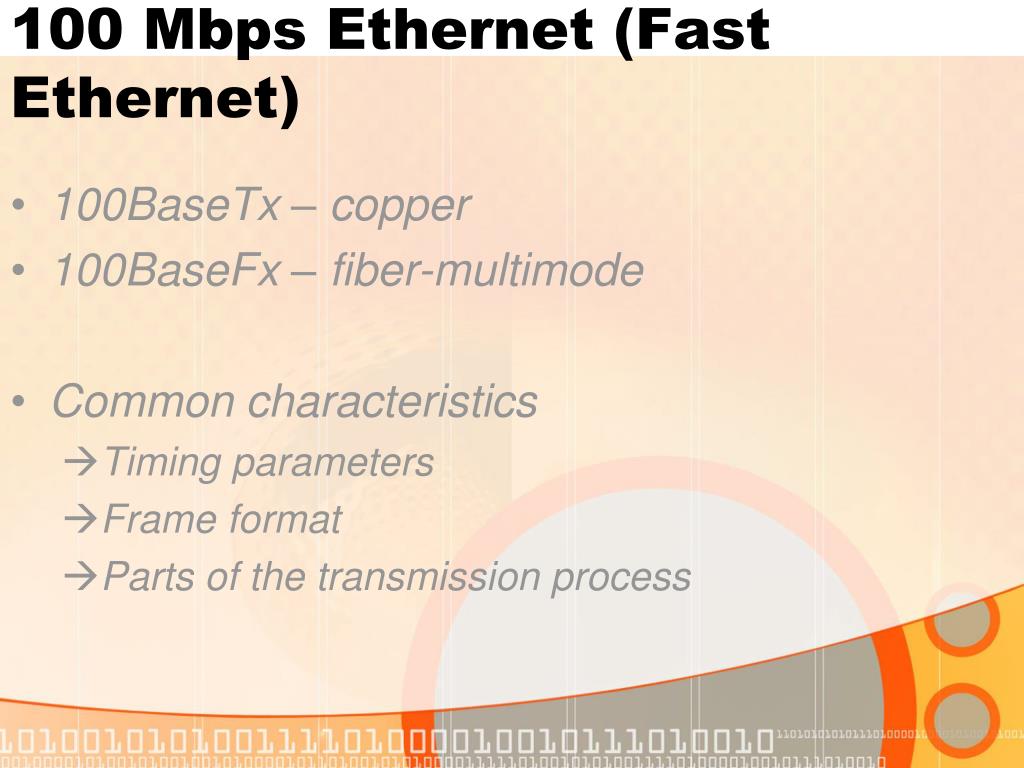

  11. 100 Mbps Ethernet (Fast Ethernet) • 100BaseTx – copper • 100BaseFx – fiber-multimode • Common characteristics • Timing parameters • Frame format • Parts of the transmission process

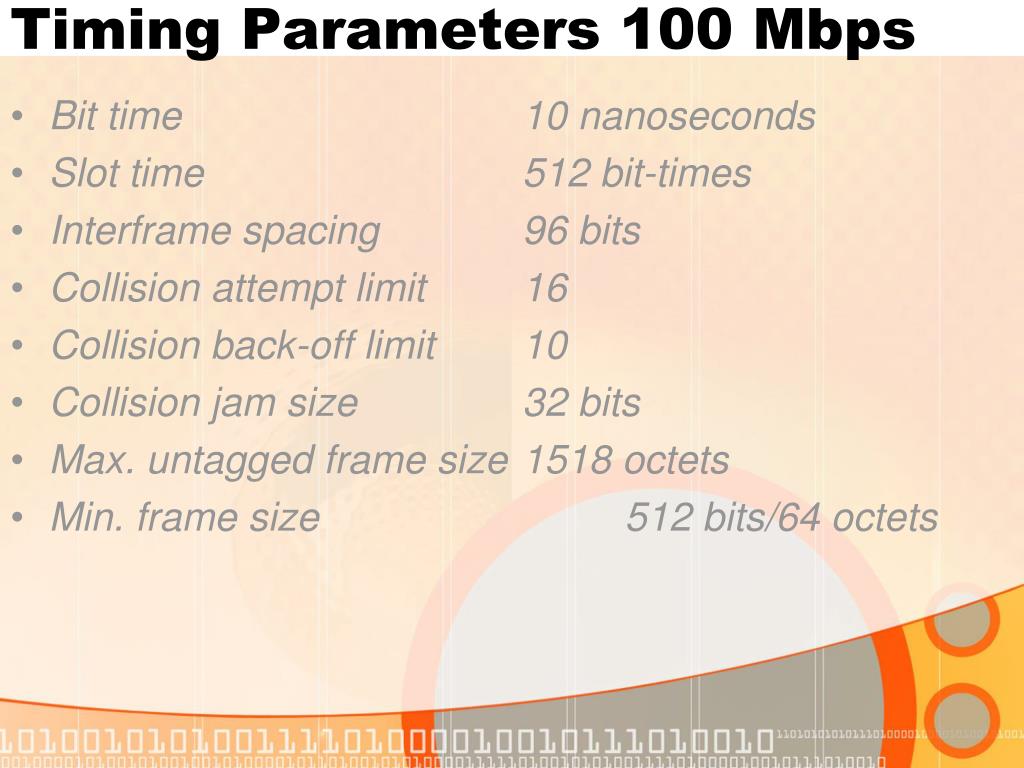

  12. Timing Parameters 100 Mbps • Bit time 10 nanoseconds • Slot time 512 bit-times • Interframe spacing 96 bits • Collision attempt limit 16 • Collision back-off limit 10 • Collision jam size 32 bits • Max. untagged frame size 1518 octets • Min. frame size 512 bits/64 octets

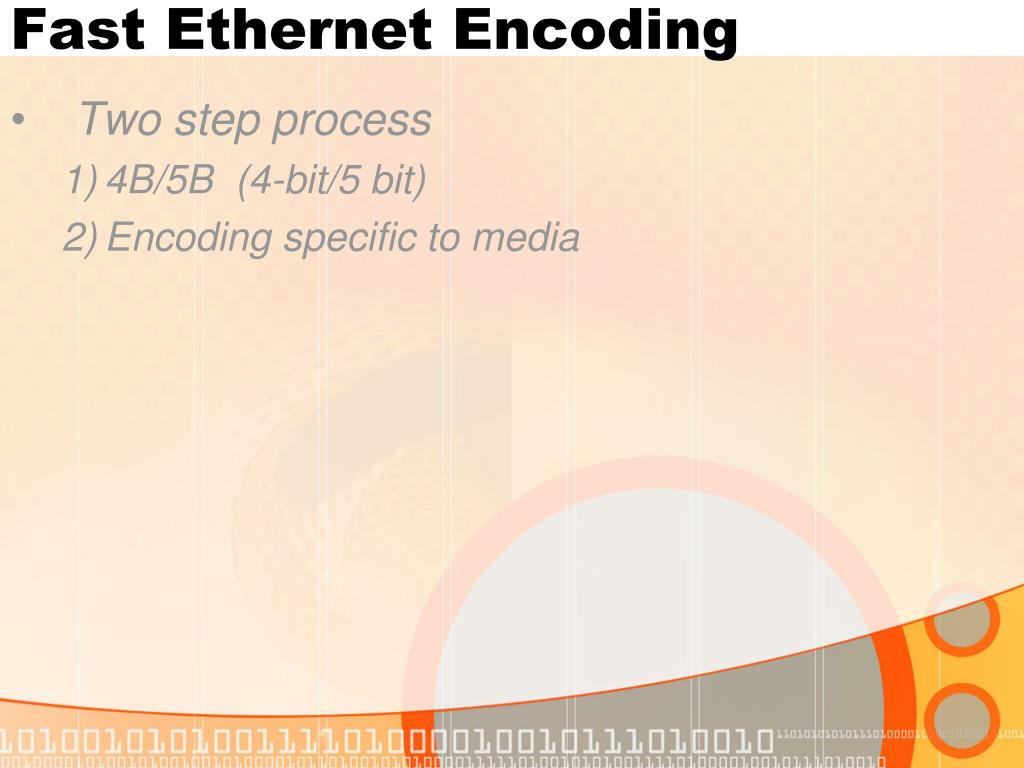

  13. Fast Ethernet Encoding • Two step process • 4B/5B (4-bit/5 bit) • Encoding specific to media

  14. 4B/5B Encoding • Nibbles (4 bit groupings) are converted to 5-bit symbols. • Control symbols (SFD,FCS) • Data symbols • Necessary to get 10x increase in transmission speed.

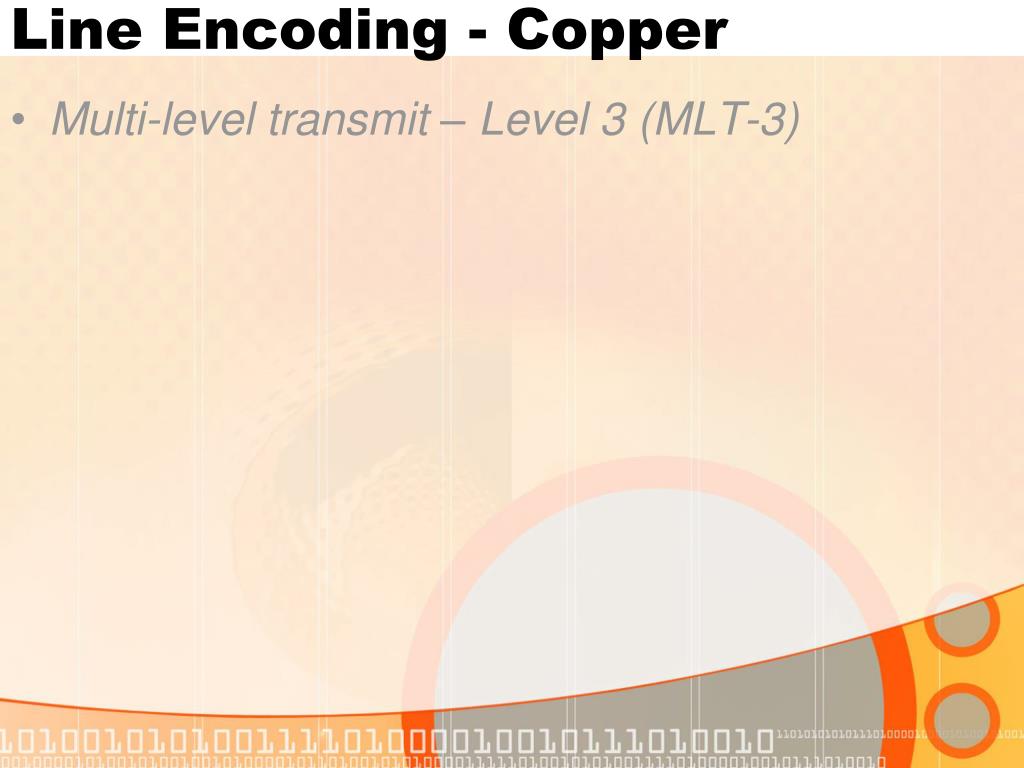

  15. Line Encoding - Copper • Multi-level transmit – Level 3 (MLT-3)
