  1. WEB 312Integrating Applications With UDDI Services Andy Milligan Program Manager UDDI Services, Windows Server Microsoft Corporation

  2. Agenda • UDDI update • Publishing Web services • Registration modeling • Programmatic registration • Consuming Web services • Design/configuration time discovery • Runtime discovery • Discovery for reliability • Customizing the UDDI experience • Next steps and discussion

  3. UDDI update • Universal Description Discovery and Integration • Web services standard • Data model for storing providers and their services • SOAP API for searching and publishing • Integrated into many tools such as Visual Studio .NET, Microsoft Office • Enterprise UDDI Services • Integrated component of Windows Server 2003 • Built in C# on .NET Framework 1.1, Internet Information Server 6.0, and SQL Server 2000 • Active Directory for roles, authentication and server registration

  4. Publishing Web Services • Variety of applications are / will be exposing Web services • ISV server application • In-house deployed applications • In-house wrapped LOB application • Motivations for publishing to UDDI • Predictable, centralized rendezvous point for services and their metadata • Enough to identify, differentiate, and integrate • Publish (advertise) to encourage reuse, limit development duplication, and out-of-band communication • Communicate changes in application deployment

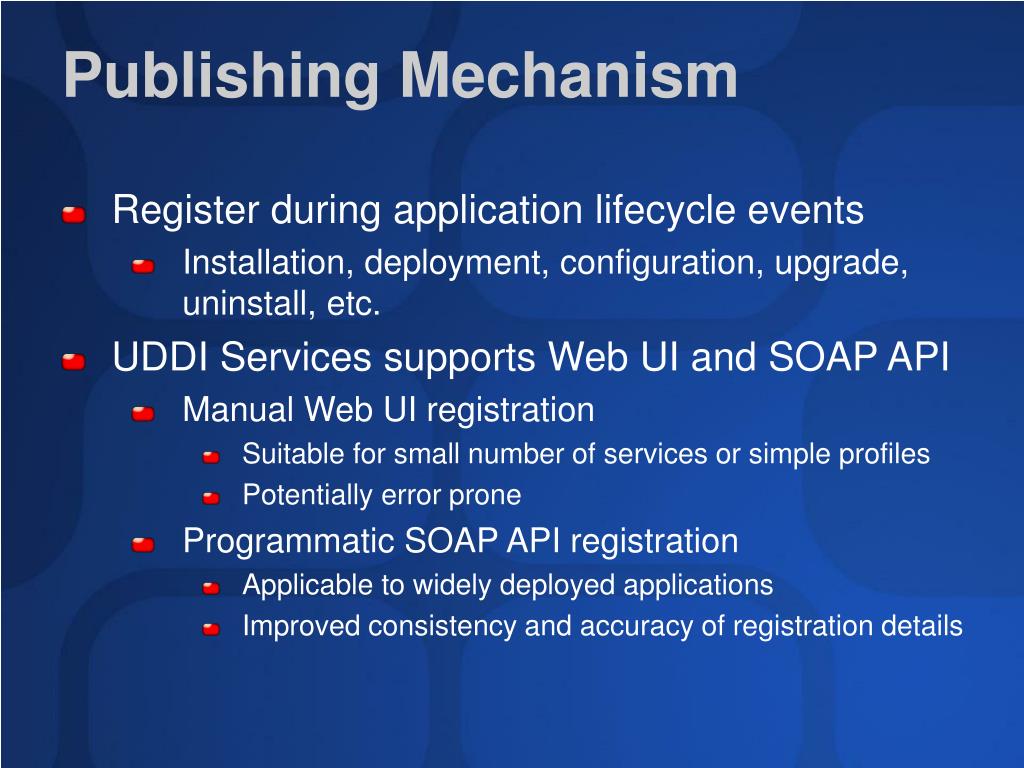

  5. Publishing Mechanism • Register during application lifecycle events • Installation, deployment, configuration, upgrade, uninstall, etc. • UDDI Services supports Web UI and SOAP API • Manual Web UI registration • Suitable for small number of services or simple profiles • Potentially error prone • Programmatic SOAP API registration • Applicable to widely deployed applications • Improved consistency and accuracy of registration details

  6. Registration Profile • Model your service • Establish provider, service, bindings, and interfaces (tModels) • Develop standard approaches • Decide on appropriate categorizations • MapPoint Geographic • Visual Studio .NET • Business Capabilities • Create custom schemes

  7. tModel: Definitions of specifications for services 0…n Service: Descriptive information about a particular family of technical offerings 0…n 0…n Binding: Technical information about a service entry point UDDI Data Model Provider: Information about the entity who offers a service

  8. tModel: Definitions of specifications for services 0…n Service: Descriptive information about a particular family of technical offerings 0…n 0…n Binding: Technical information about a service entry point UDDI Data ModelDescribing WSDL Services Provider: Information about the entity who offers a service Name, description, and categorization of the deployment group Pointer to a WSDL spec Categorization: uddi-org:typesKey Value: wsdlSpec Name, description, and categorization of the service Access point(s) for the service

  9. tModel: Definitions of specifications for services 0…n Service: Descriptive information about a particular family of technical offerings 0…n 0…n Binding: Technical information about a service entry point UDDI Data ModelCOM similarities Provider: Information about the entity who offers a service Name, description, and categorization of the deployment group Pointer to a WSDL spec Interface [ odl, uuid(34194D3F-2B85-41F0-8211-368904FD89B8)] interface _StockQuoteClass : IDispatch { HRESULT GetLastTradePrice( [in, out] BSTR* symbol, [out, retval] double* ); }; Name, description, and categorization of the service Implementation [uuid(C92A5941-D42D-4DA2-B83F-C3299D893A23), version(1.0) ] coclass StockQuoteClass { [default] interface _StockQuoteClass;}; Access point(s) for the service

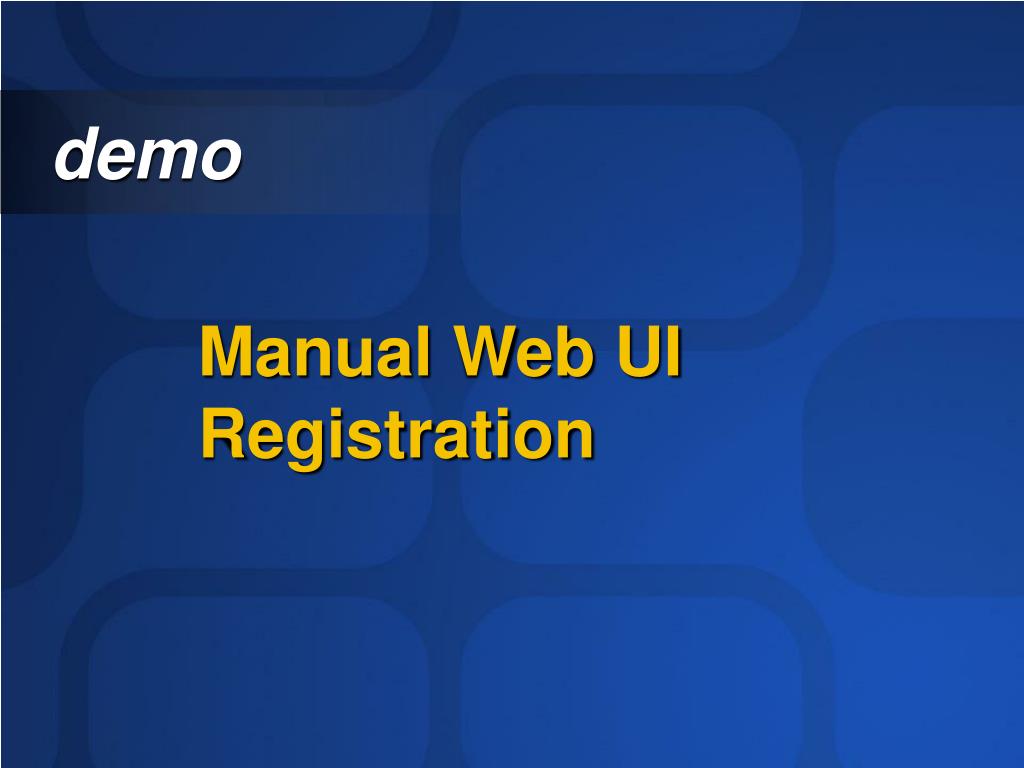

  10. Manual Web UI Registration demo

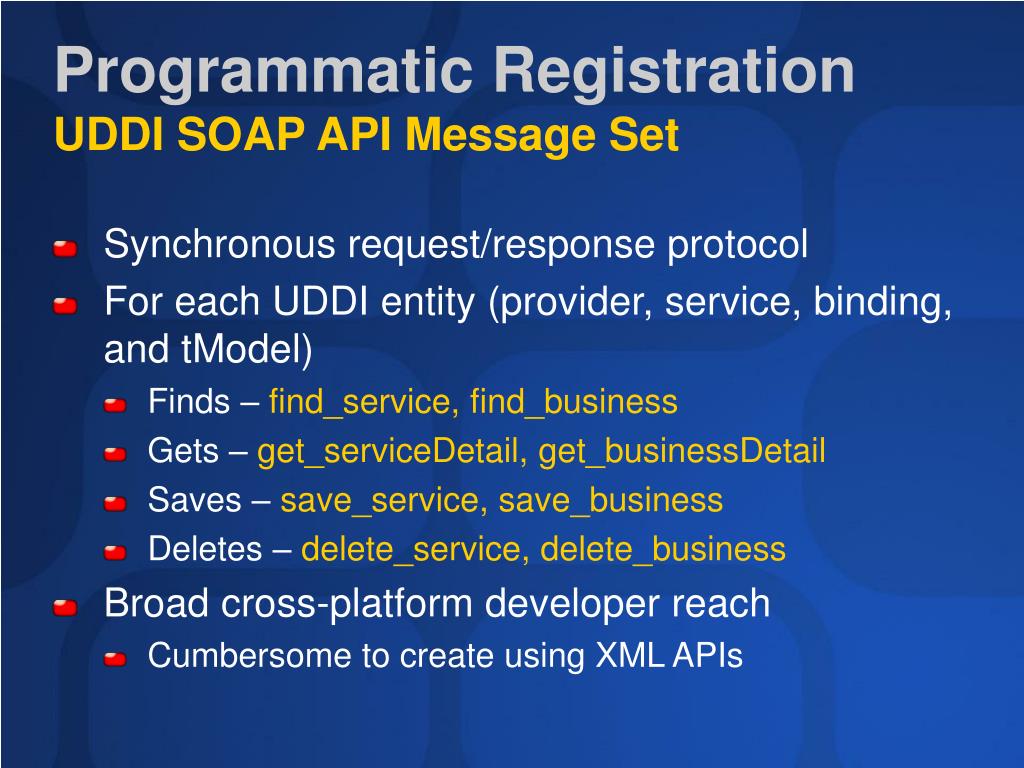

  11. Programmatic RegistrationUDDI SOAP API Message Set • Synchronous request/response protocol • For each UDDI entity (provider, service, binding, and tModel) • Finds – find_service, find_business • Gets – get_serviceDetail, get_businessDetail • Saves – save_service, save_business • Deletes – delete_service, delete_business • Broad cross-platform developer reach • Cumbersome to create using XML APIs

  12. Programmatic RegistrationMicrosoft UDDI SDK 2.0 • .NET assembly providing rich object model

  13. Programmatic RegistrationMicrosoft UDDI SDK 2.0 • Objects serialize to underlying UDDI XML • Applicable to any UDDI server • Superior to WSDL generated proxy classes • Properties, collections, overridden Add methods etc. • Usable from COM / Visual Studio 6.0 • Available in the Microsoft Platform SDK

  14. Programmatic RegistrationBuilding The Registration • Discover the UDDI server • Active Directory registration and UddiSiteDiscovery • Establish a secured connection • Windows Integrated or UDDI Authentication • Create and Send a SaveTModel for the interface definition • Identifying GUID returned • Create • A named and categorized provider and service • A binding specifying the access point and referencing the tModel GUID • Place in a SaveBusiness and Send

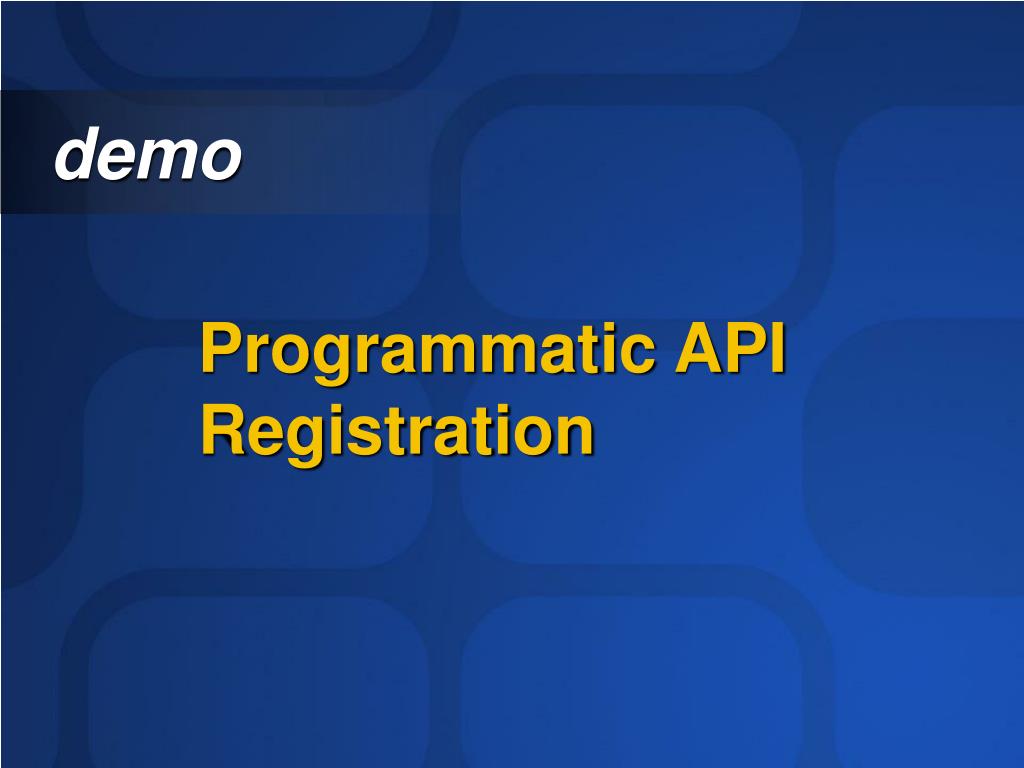

  15. Programmatic API Registration demo

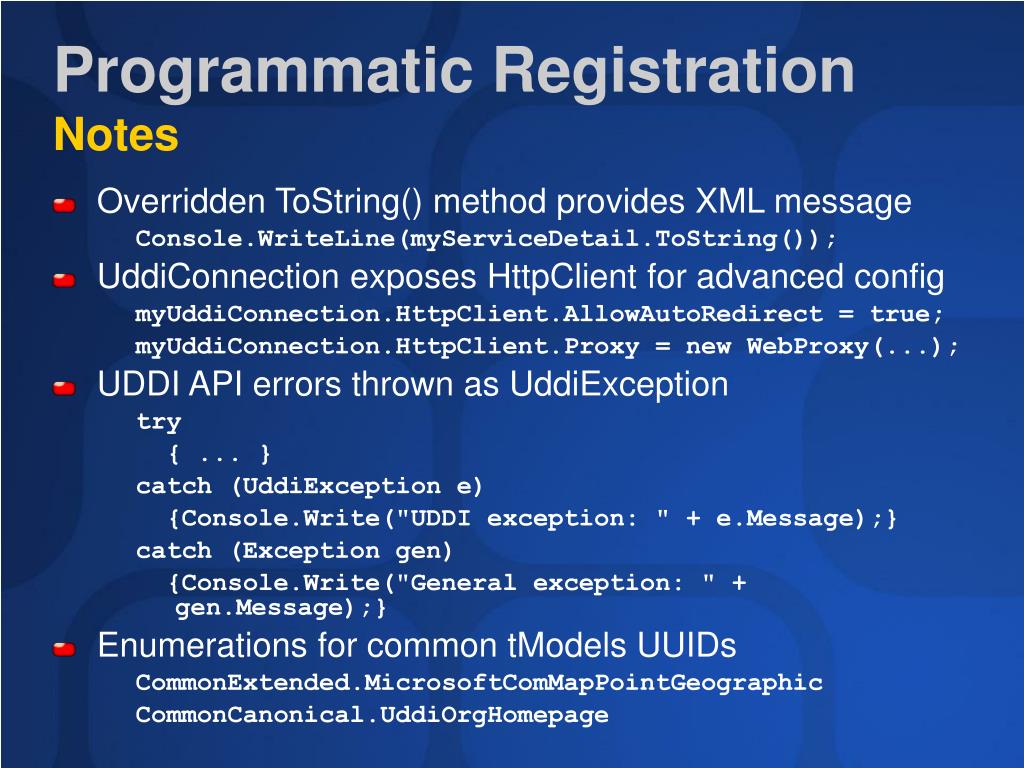

  16. Programmatic RegistrationNotes • Overridden ToString() method provides XML message Console.WriteLine(myServiceDetail.ToString()); • UddiConnection exposes HttpClient for advanced config myUddiConnection.HttpClient.AllowAutoRedirect = true; myUddiConnection.HttpClient.Proxy = new WebProxy(...); • UDDI API errors thrown as UddiException try { ... } catch (UddiException e) {Console.Write("UDDI exception: " + e.Message);} catch (Exception gen) {Console.Write("General exception: " + gen.Message);} • Enumerations for common tModels UUIDs CommonExtended.MicrosoftComMapPointGeographic CommonCanonical.UddiOrgHomepage

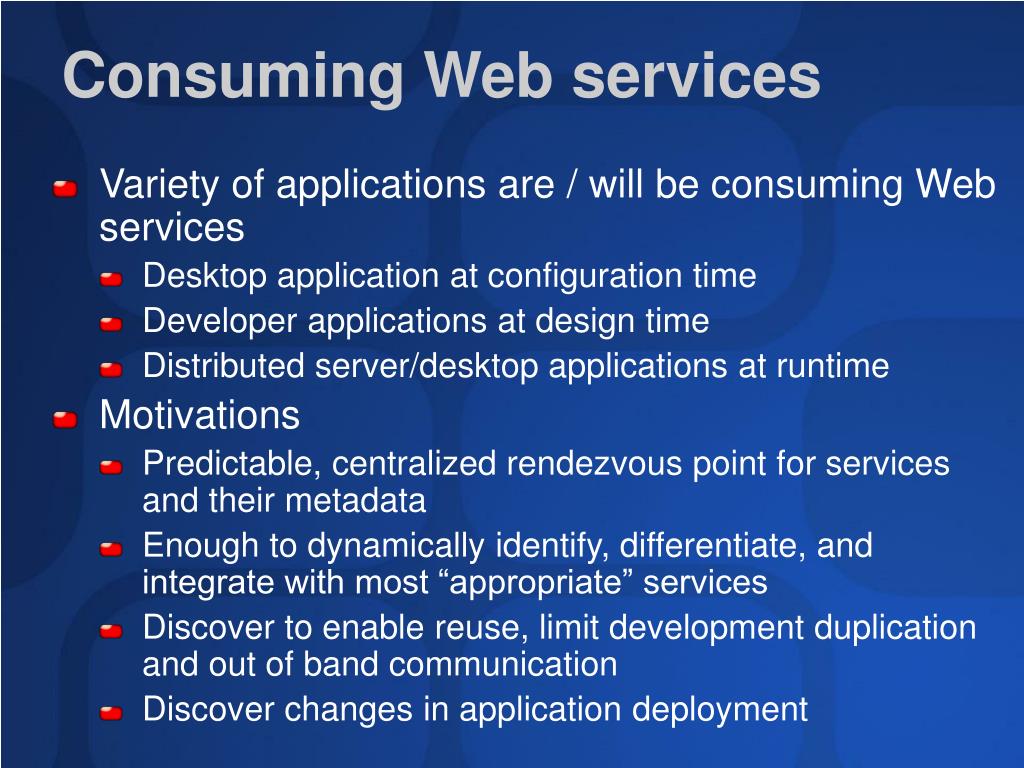

  17. Consuming Web services • Variety of applications are / will be consuming Web services • Desktop application at configuration time • Developer applications at design time • Distributed server/desktop applications at runtime • Motivations • Predictable, centralized rendezvous point for services and their metadata • Enough to dynamically identify, differentiate, and integrate with most “appropriate” services • Discover to enable reuse, limit development duplication and out of band communication • Discover changes in application deployment

  18. Configuration Time Discovery • “Find all services that implement interface X and are categorized with Y” • Use combination of Find APIs to retrieve list and Get APIs to retrieve full details • GetRelatedCategories extended API for category enumeration and drill down

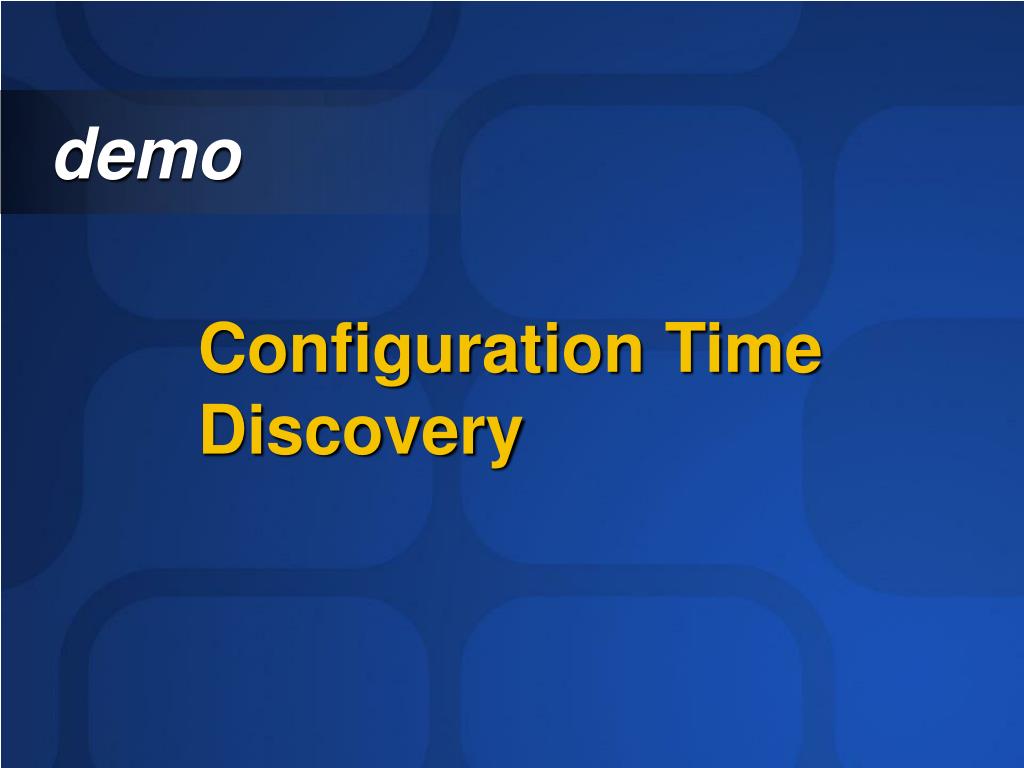

  19. Configuration Time Discovery demo

  20. Design Time Discovery • “Find all WSDL described services” • Used in Office XP, Visual Studio .NET, InfoPath • Use combination of Find APIs to retrieve list and Get APIs to retrieve full details • Reusable DHTML UI: http://<servername>/uddi/AddWebReference

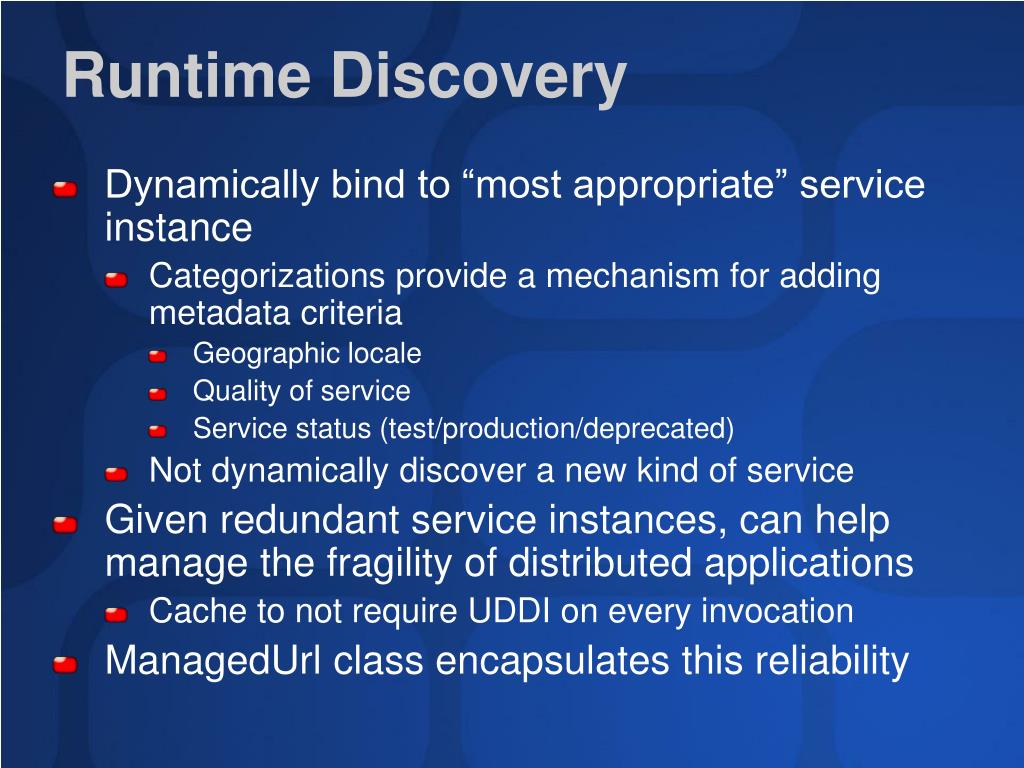

  21. Runtime Discovery • Dynamically bind to “most appropriate” service instance • Categorizations provide a mechanism for adding metadata criteria • Geographic locale • Quality of service • Service status (test/production/deprecated) • Not dynamically discover a new kind of service • Given redundant service instances, can help manage the fragility of distributed applications • Cache to not require UDDI on every invocation • ManagedUrl class encapsulates this reliability

  22. Web Service Instance 1 UDDI Services Managed URL Reliability 1. At application startup retrieve compatible services from UDDI Web service instance N Web service instance 2 2. Application uses ManagedUrl.Value in invocations 3. Simple FailOver to next available service without additional lookup or application interruption • ManagedUrl: • Instance 1 • Instance 2 • … • Instance N • ManagedUrl: • Instance 1 • Instance 2 • … • Instance N ManagedUrl: Consuming application

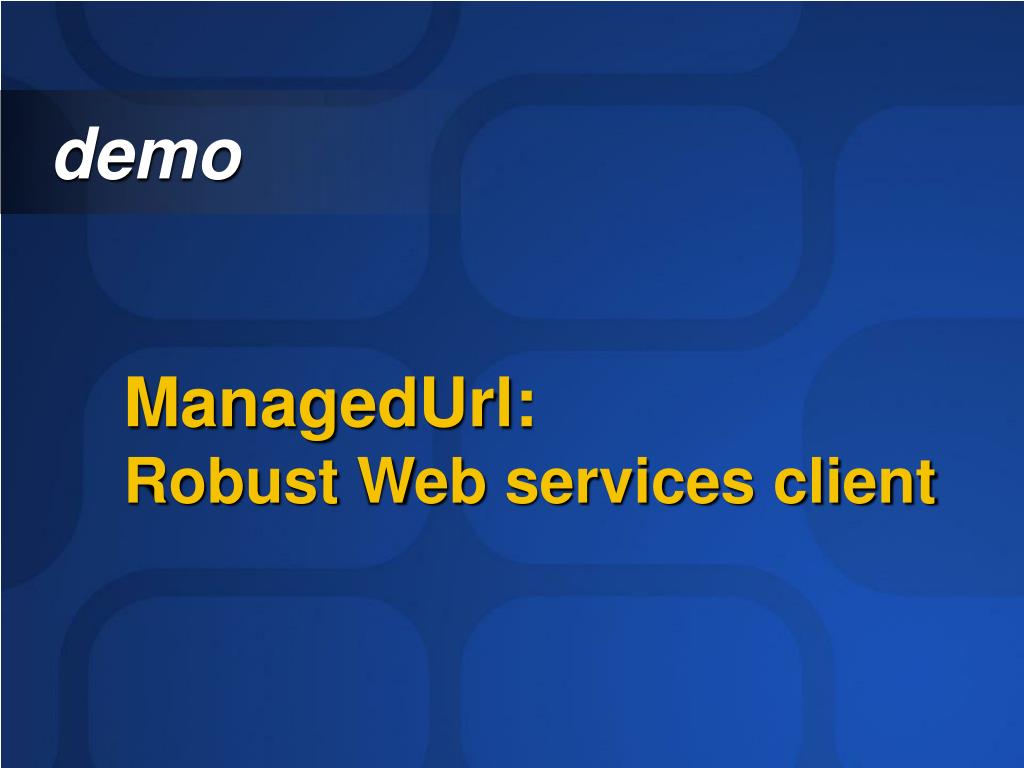

  23. ManagedUrl: Robust Web services client demo

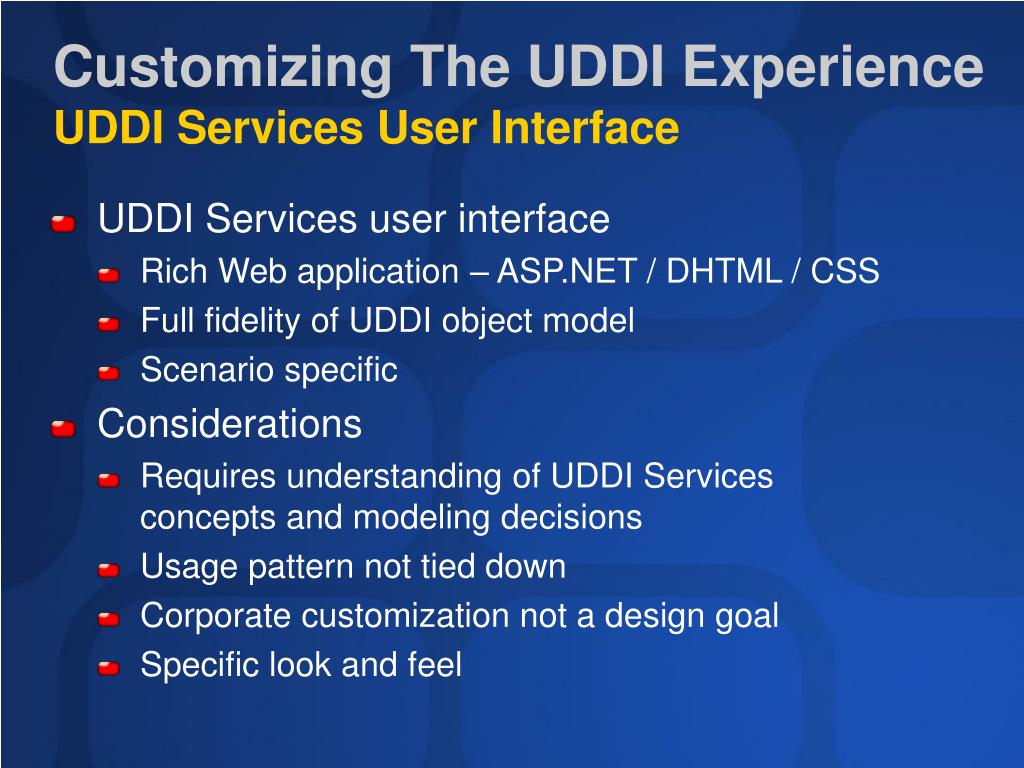

  24. Customizing The UDDI ExperienceUDDI Services User Interface • UDDI Services user interface • Rich Web application – ASP.NET / DHTML / CSS • Full fidelity of UDDI object model • Scenario specific • Considerations • Requires understanding of UDDI Servicesconcepts and modeling decisions • Usage pattern not tied down • Corporate customization not a design goal • Specific look and feel

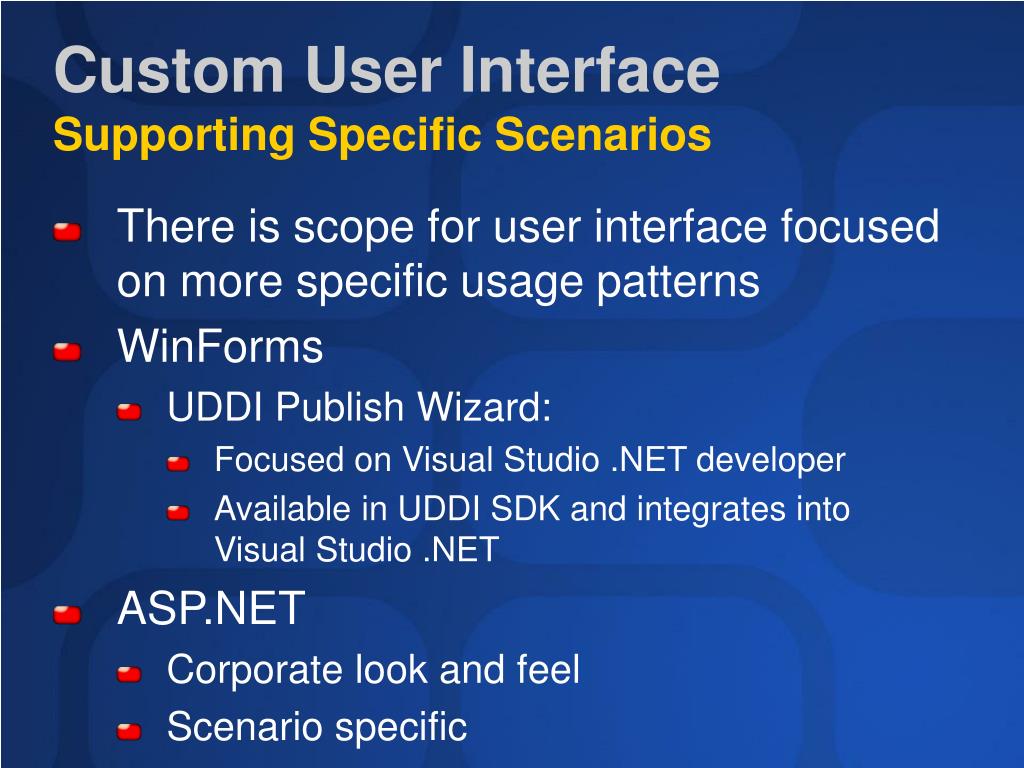

  25. Custom User InterfaceSupporting Specific Scenarios • There is scope for user interface focused on more specific usage patterns • WinForms • UDDI Publish Wizard: • Focused on Visual Studio .NET developer • Available in UDDI SDK and integrates intoVisual Studio .NET • ASP.NET • Corporate look and feel • Scenario specific

  26. ASP.NET Integration • UDDI Services API for integration is the UDDI XML API • No direct managed or COM integration • No direct database access supported • Post XML messages over HTTP to SOAP access point Windows Server 2003 UDDI Services SQL Server / MSDE ASP.NET .NET business logic Web UI Stored procs SOAP API Web client Custom UI

  27. ASP.NET Alternate UI Simple search client Simple publish client demo

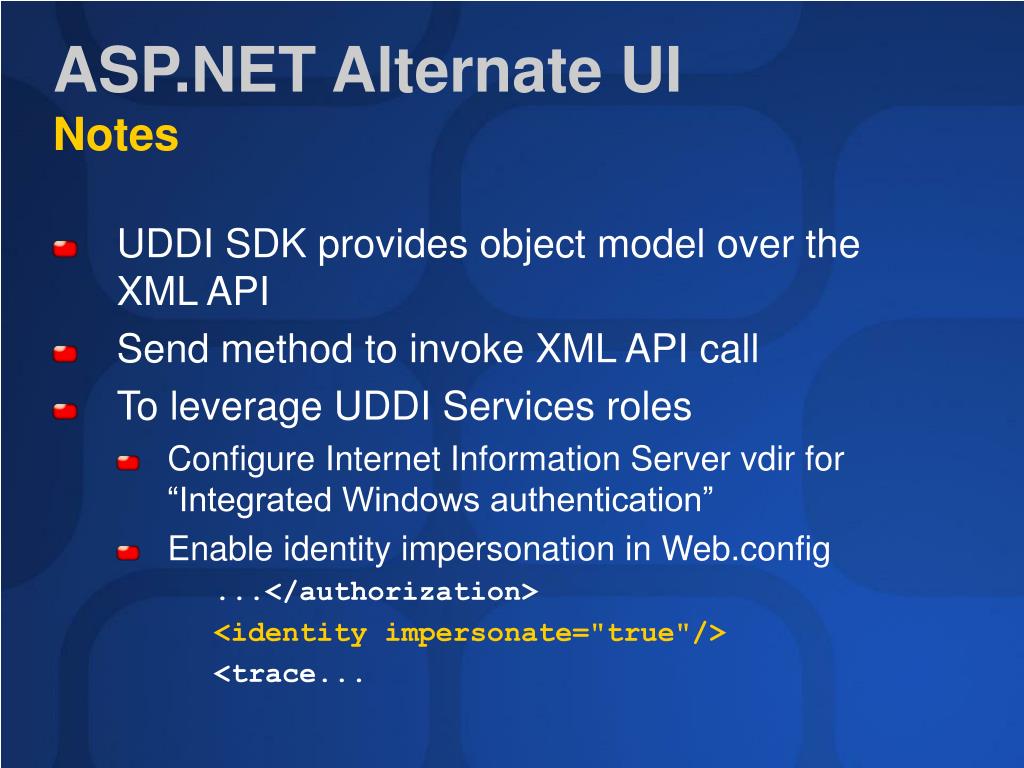

  28. ASP.NET Alternate UINotes • UDDI SDK provides object model over theXML API • Send method to invoke XML API call • To leverage UDDI Services roles • Configure Internet Information Server vdir for “Integrated Windows authentication” • Enable identity impersonation in Web.config ...</authorization> <identity impersonate="true"/> <trace...

  29. Summary • Publishing Web services • Registration modeling • Programmatic registration with the UDDI SDK • Consuming Web services • Design, configuration and runtime discovery • Discovery for reliability with the ManagedUrl • Customizing the UDDI experience • ASP.NET UI for SOAP API

  30. Next steps • Install Windows Server 2003 UDDI Services • Model your application registrations • Discover and integrate with services from UDDI at design, configuration, and runtime

  31. UDDI Resources • Websites • MSDN UDDI Development:msdn.microsoft.com/uddi • UDDI Services:www.microsoft.com/windowsserver2003 • From within UDDI Services: “Additional UDDI resources on the web” • Newsgroups • microsoft.public.uddi.general • microsoft.public.uddi.programming

  32. Community Resources • Community Resources http://www.microsoft.com/communities/default.mspx • Most Valuable Professional (MVP) http://www.mvp.support.microsoft.com/ • Newsgroups Converse online with Microsoft Newsgroups, including Worldwide http://www.microsoft.com/communities/newsgroups/default.mspx • User Groups Meet and learn with your peers http://www.microsoft.com/communities/usergroups/default.mspx

  33. evaluations

  34. © 2003 Microsoft Corporation. All rights reserved. This presentation is for informational purposes only. MICROSOFT MAKES NO WARRANTIES, EXPRESS OR IMPLIED, IN THIS SUMMARY.
