  1. Needs to be described: • Objects • Have multiple states • Consist of other objects, that may have multiple states • May be connected with each other via different bonds • Located in multiple compartments, with two objects within the third can be in three different compartments. • Rules: • Select sets of objects with common properties • Transform sets of objects into another sets of objects, generating reactions • Add kinetic laws to reactions • Representational issues (compatible with SBGN) • Rules application: • Stochastic application • Rules priority, score, confidence • Restrictions on the number of applications

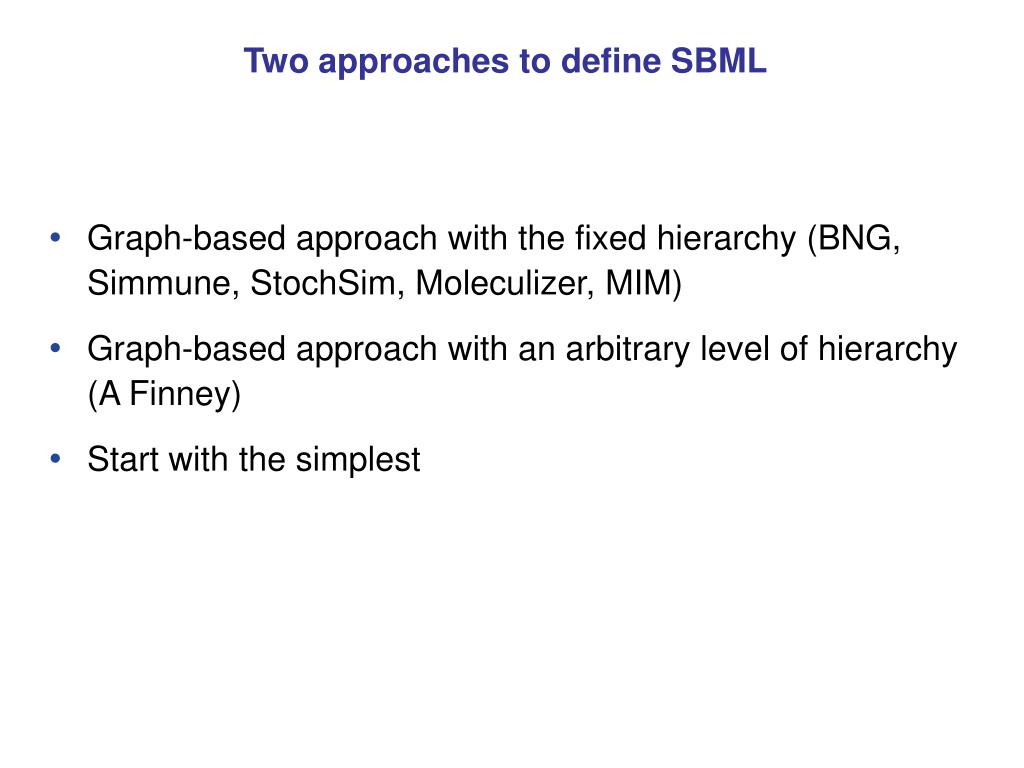

  2. Two approaches to define SBML • Graph-based approach with the fixed hierarchy (BNG, Simmune, StochSim, Moleculizer, MIM) • Graph-based approach with an arbitrary level of hierarchy (A Finney) • Start with the simplest

  3. Main features of the proposal • Species are constructed of molecules, molecules – of components. • Component = binding site = state variable • Attributes, variables, stoichiometry = properties of a component • Species configuration space is defined by rules later on, not during molecules declarations. • Concentrations (all numerics!) are declared separately from species declaration.

  4. Molecular Entities and Chemical Species graphs • A Chemical Species Graph C is a fully defined molecular entity or a set of molecular entities. • Any and all variable attributes taking specific values.

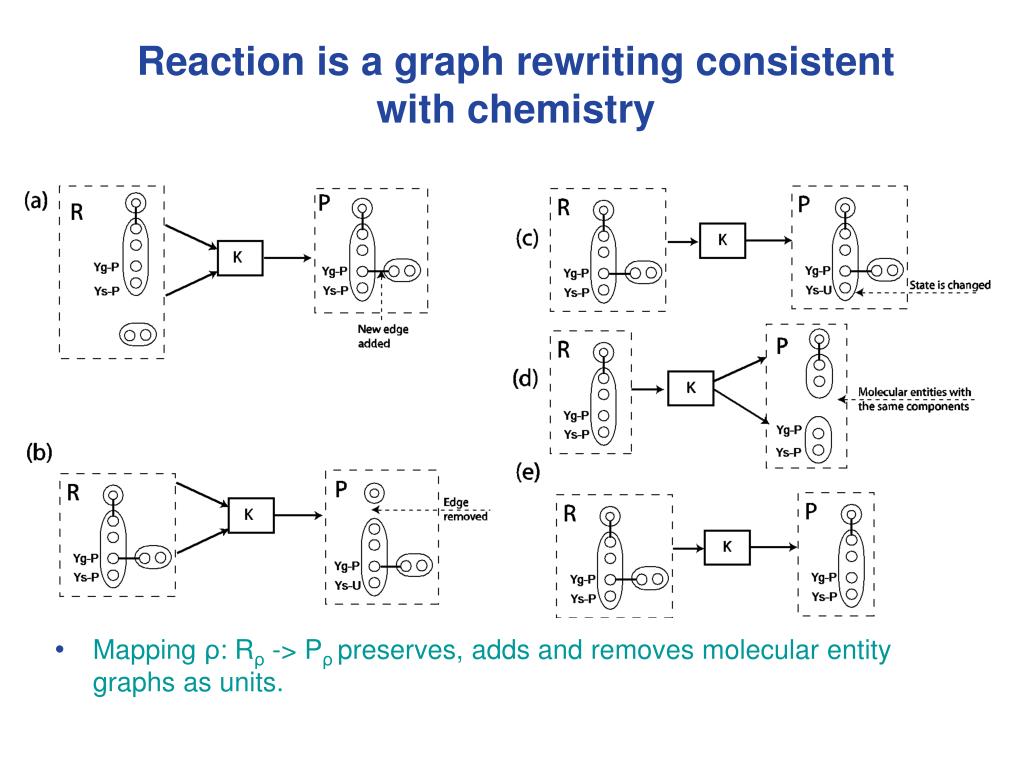

  5. Reaction is a graph rewriting consistent with chemistry • Mapping ρ: Rρ -> Pρpreserves, adds and removes molecular entity graphs as units.

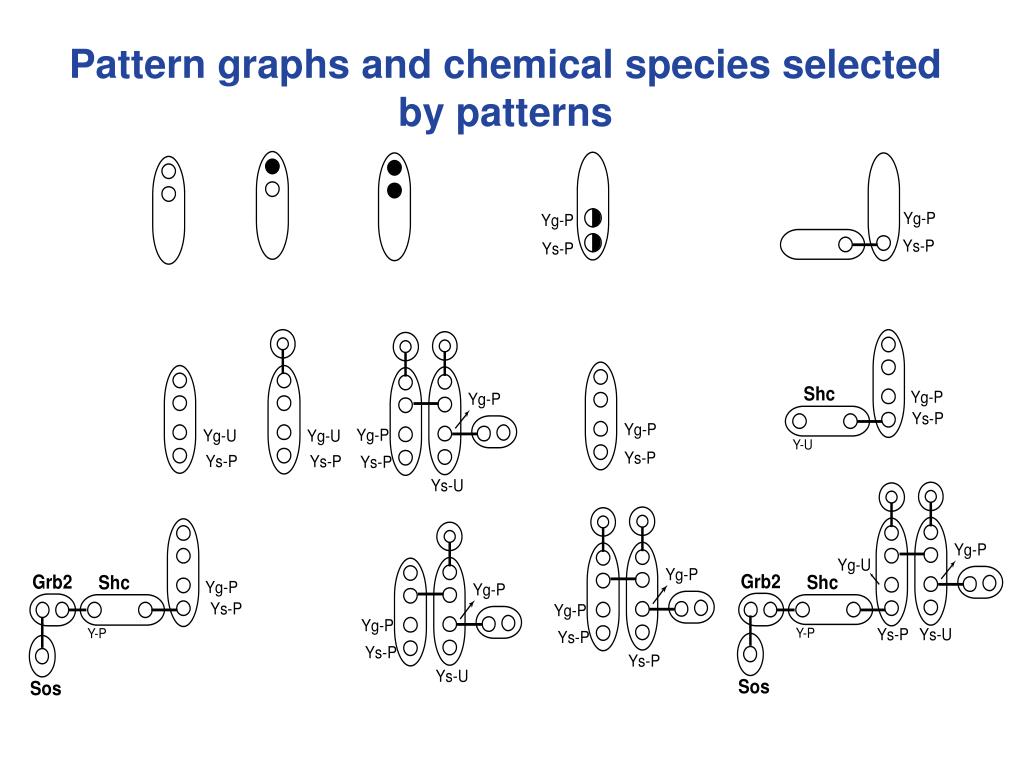

  6. Pattern graphs and chemical species selected by patterns

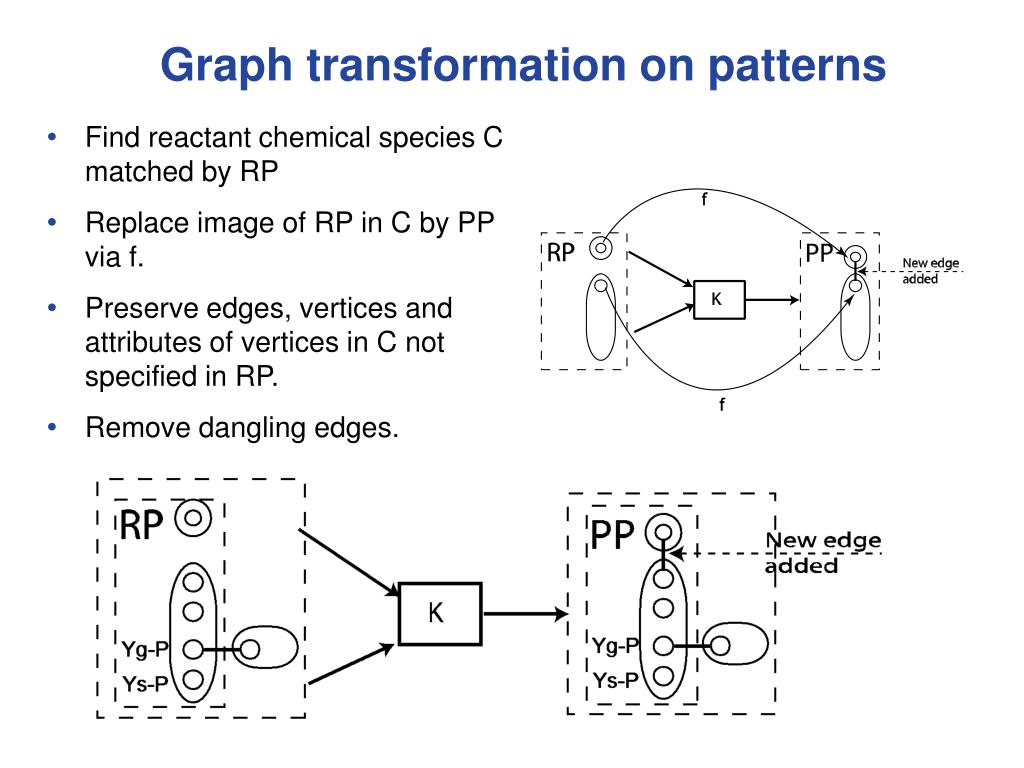

  7. Graph transformation on patterns • Find reactant chemical species C matched by RP • Replace image of RP in C by PP via f. • Preserve edges, vertices and attributes of vertices in C not specified in RP. • Remove dangling edges.

  8. General XML/SBML structure Graph XML Graph Nodes Edges NodeReferences Transformation RHS GraphReference LHS GraphReference Map NodeToNode EgdeToEdge SBML L3-RBM Species + components + physicalEntities + bonds Reactions Reactants + speciesTemplate Products +? speciesTemplate +? ReactionTemplate SBML L1-L2 Units CompartmentsParameters Species Reactions Reactants speciesReference Products speciesReference KineticLaw

  9. Introduction to BioNetGen Language (BNGL) A B b a Y B(a,Y~U~P,location~Cyt~Nuc) A(b) Molecules B_tot B() B_unbound B(a) B_bound B(a!+) B_phospho_all B(Y~P!?) B_phospho_unbound B(Y~P) B_phospho_bound B(Y~P!+) A_B_complex A().B() Patterns A(b) + B(a) -> A(b!1).B(a!1) p B(Y~P) -> B(Y~U) d Reaction rules a bond between two components

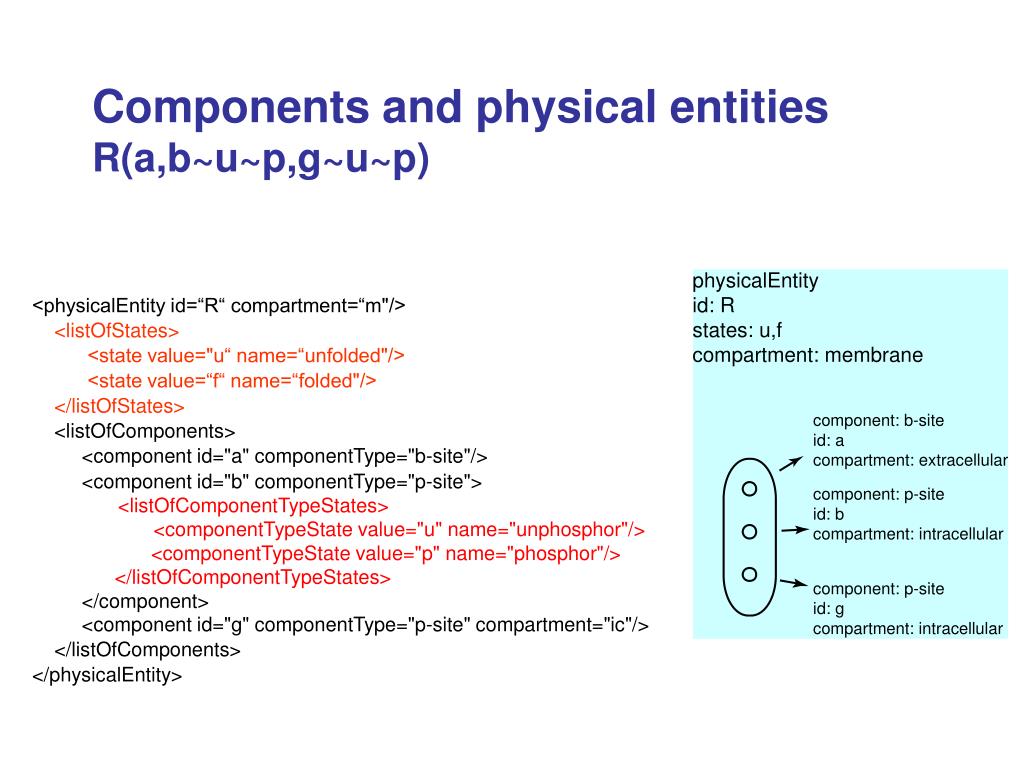

  10. Components and physical entities R(a,b~u~p,g~u~p) <physicalEntity id=“R“ compartment=“m"/> <listOfStates> <state value="u“ name=“unfolded"/> <state value=“f“ name=“folded"/> </listOfStates> <listOfComponents> <component id="a" componentType="b-site"/> <component id="b" componentType="p-site"> <listOfComponentTypeStates> <componentTypeState value="u" name="unphosphor"/> <componentTypeState value="p" name="phosphor"/> </listOfComponentTypeStates> </component> <component id="g" componentType="p-site" compartment="ic"/> </listOfComponents> </physicalEntity>

  11. Species R(a!1,b~p!2,g~u).L(Fc!1,Fc).Lyn(SH2!2) <species id="S_lig_monomer_Lyn "> <listOfPhysicalEntityInstances> <physicalEntityInstance physicalEntity="L" id="iL"> <listOfComponentInstances> <componentInstance id="i1Fc" component="Fc"/> <listOfBondReferences> <bondReference bond="1"/> </listOfBondReferences> </componentInstance> <componentInstance id="i2Fc" component="Fc"/> </listOfComponentInstances> </physicalEntityInstance> ….. </listOfPhysicalEntityInstances> <listOfBonds> <bond id="1" type="external"/> <bond id="2" type="external"/> </listOfBonds> </species>

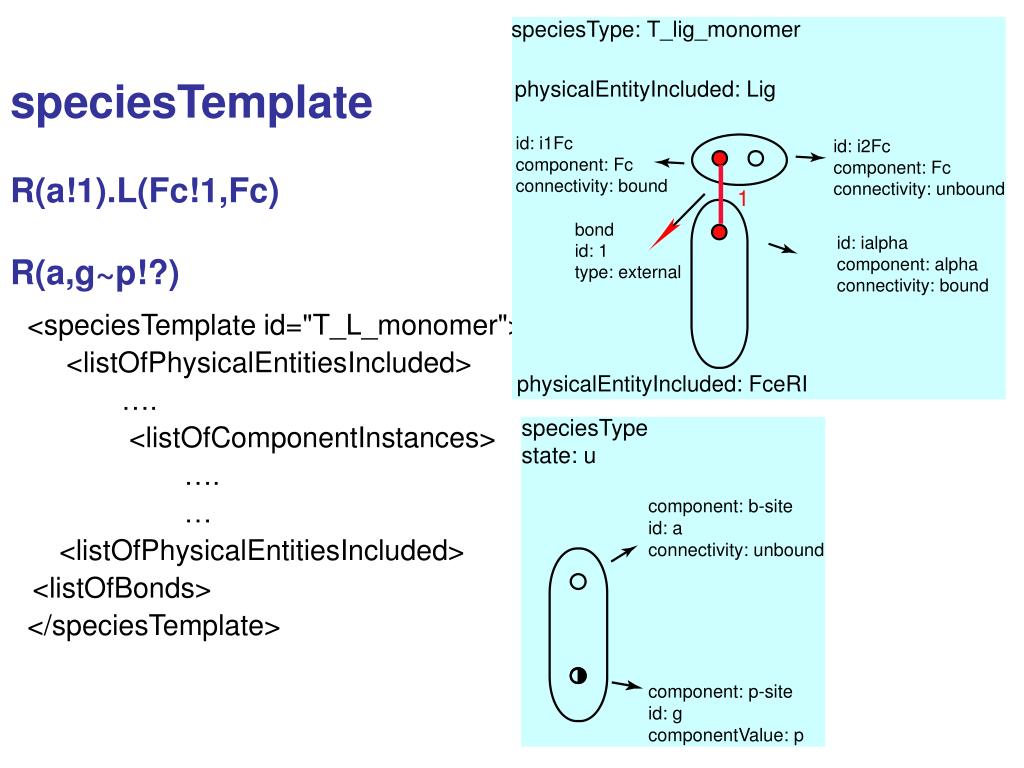

  12. speciesTemplateR(a!1).L(Fc!1,Fc)R(a,g~p!?) <speciesTemplate id="T_L_monomer"> <listOfPhysicalEntitiesIncluded> …. <listOfComponentInstances> …. … <listOfPhysicalEntitiesIncluded> <listOfBonds> </speciesTemplate>

  13. Reactions and reaction rules Option 2: <reactionRule> <listOfReactants> <speciesTemplate id="T_monomer"/> <speciesReference species="T_free_L"/> </listOfReactants> <reactionTemplate> <SpeciesTemplateChange> <bond …> <kineticLaw> …… </kineticLaw> </speciesTemplateChange> </reactionTemplate> </reactionRule> Option 1: <reaction> <listOfReactants> <speciesTemplate id=“R"/> <speciesReference species="L"/> </listOfReactants> <listOfProducts> <speciesTemplate id=“R-L"/> </listOfProrducts> </reactionRule>

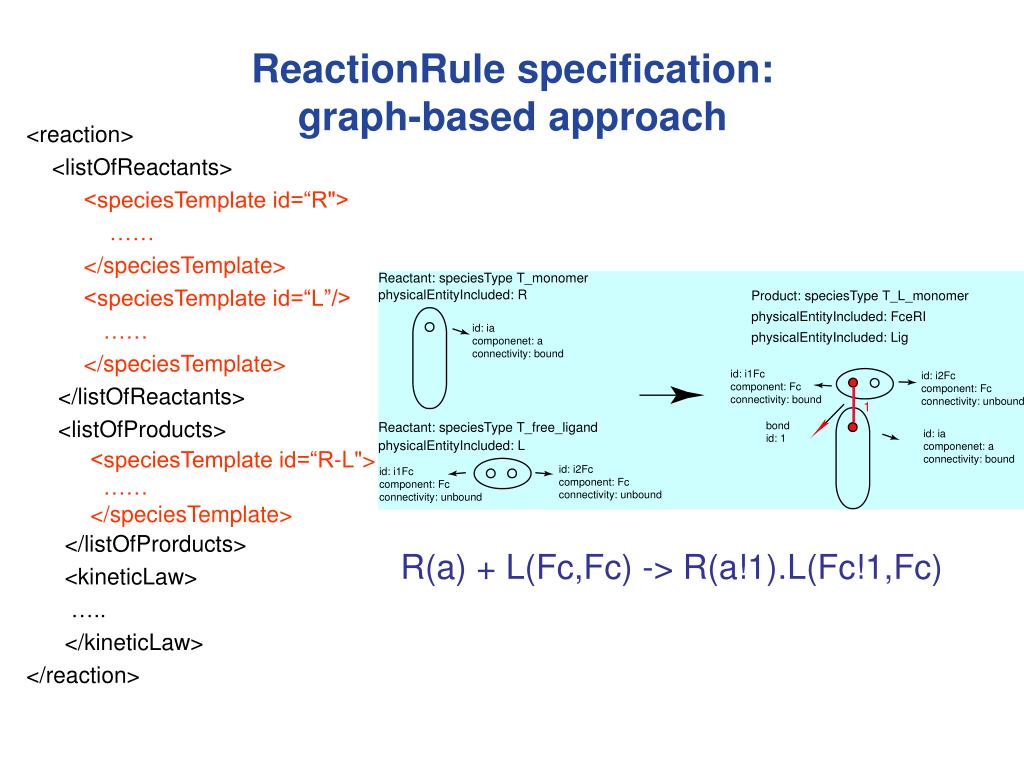

  14. ReactionRule specification: graph-based approach <reaction> <listOfReactants> <speciesTemplate id=“R"> …… </speciesTemplate> <speciesTemplate id=“L”/> …… </speciesTemplate> </listOfReactants> <listOfProducts> <speciesTemplate id=“R-L"> …… </speciesTemplate> </listOfProrducts> <kineticLaw> ….. </kineticLaw> </reaction> R(a) + L(Fc,Fc) -> R(a!1).L(Fc!1,Fc)

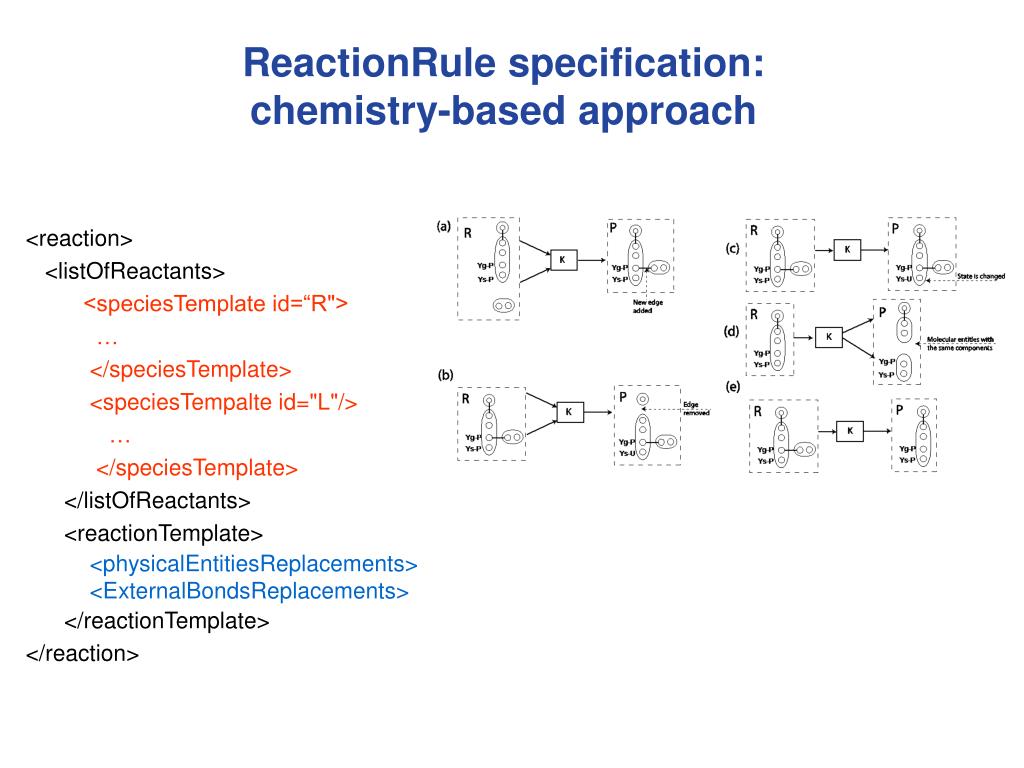

  15. ReactionRule specification: chemistry-based approach <reaction> <listOfReactants> <speciesTemplate id=“R"> … </speciesTemplate> <speciesTempalte id="L"/> … </speciesTemplate> </listOfReactants> <reactionTemplate> <physicalEntitiesReplacements> <ExternalBondsReplacements> </reactionTemplate> </reaction>

  16. a a A B How to select A as reactant and transform into B while preserving states of component a? Easy to do operationally, but harder to define using standard semantics of chemical semantics. Need notion of mapping. Challenge: L3M should encompass.

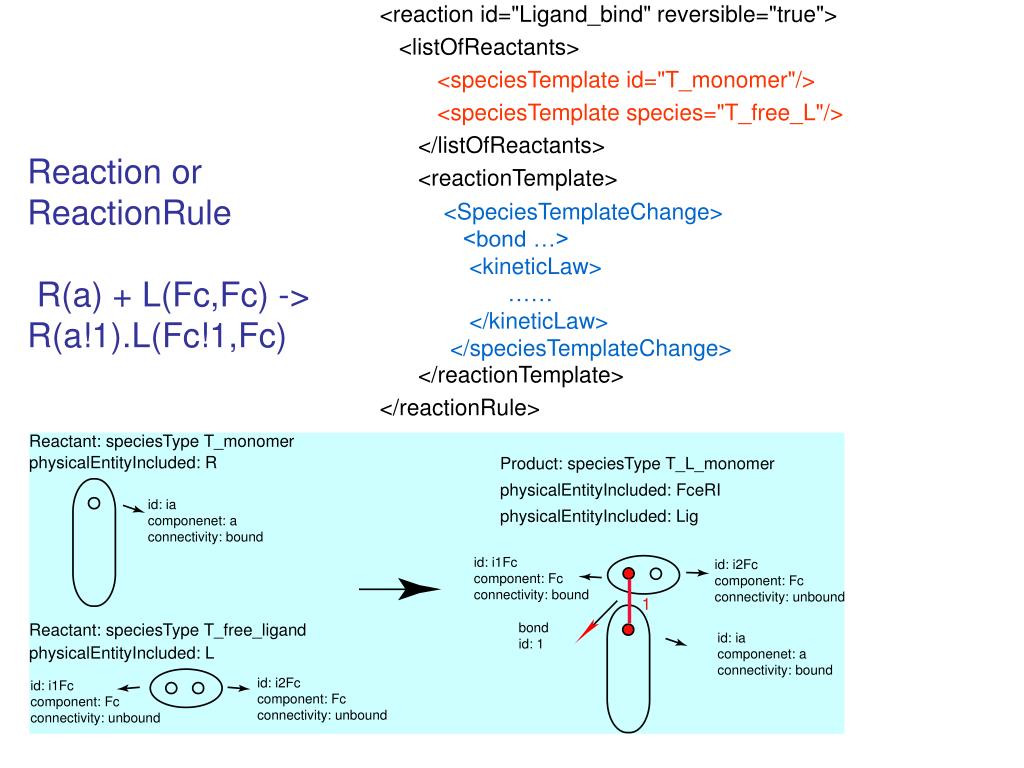

  17. <reaction id="Ligand_bind" reversible="true"> <listOfReactants> <speciesTemplate id="T_monomer"/> <speciesTemplate species="T_free_L"/> </listOfReactants> <reactionTemplate> <SpeciesTemplateChange> <bond …> <kineticLaw> …… </kineticLaw> </speciesTemplateChange> </reactionTemplate> </reactionRule> Reaction or ReactionRule R(a) + L(Fc,Fc) -> R(a!1).L(Fc!1,Fc)

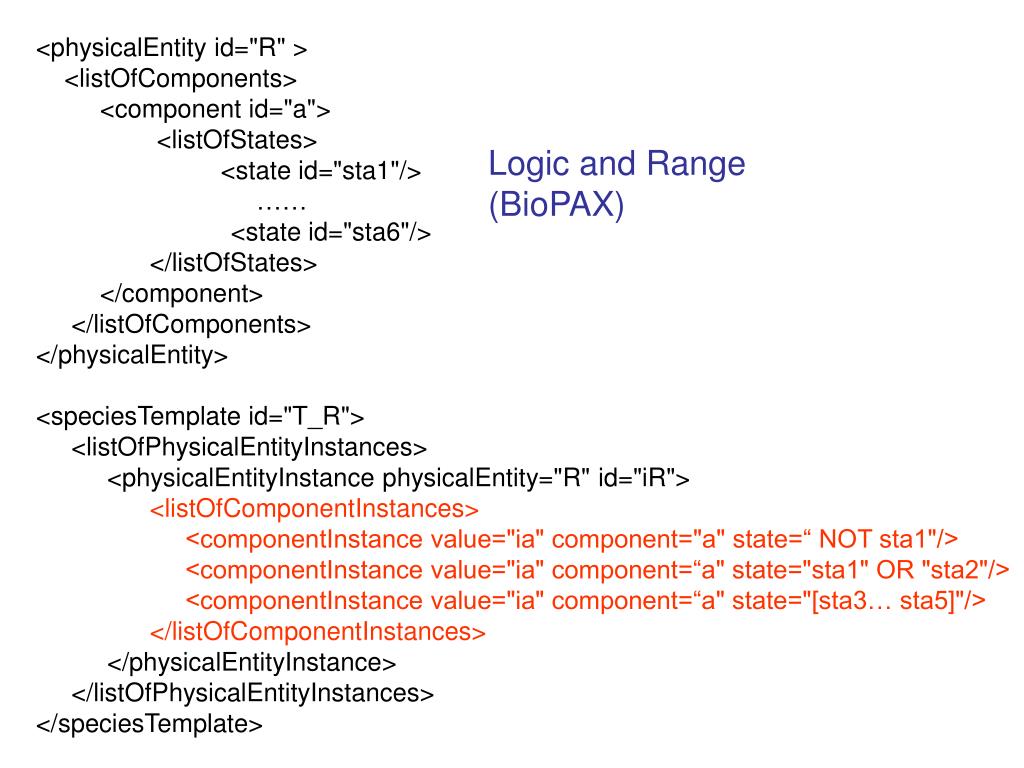

  18. Logic and Range (BioPAX) <physicalEntity id="R" > <listOfComponents> <component id="a"> <listOfStates> <state id="sta1"/> …… <state id="sta6"/> </listOfStates> </component> </listOfComponents> </physicalEntity> <speciesTemplate id="T_R"> <listOfPhysicalEntityInstances> <physicalEntityInstance physicalEntity="R" id="iR"> <listOfComponentInstances> <componentInstance value="ia" component="a" state=“ NOT sta1"/> <componentInstance value="ia" component=“a" state="sta1" OR "sta2"/> <componentInstance value="ia" component=“a" state="[sta3… sta5]"/> </listOfComponentInstances> </physicalEntityInstance> </listOfPhysicalEntityInstances> </speciesTemplate>

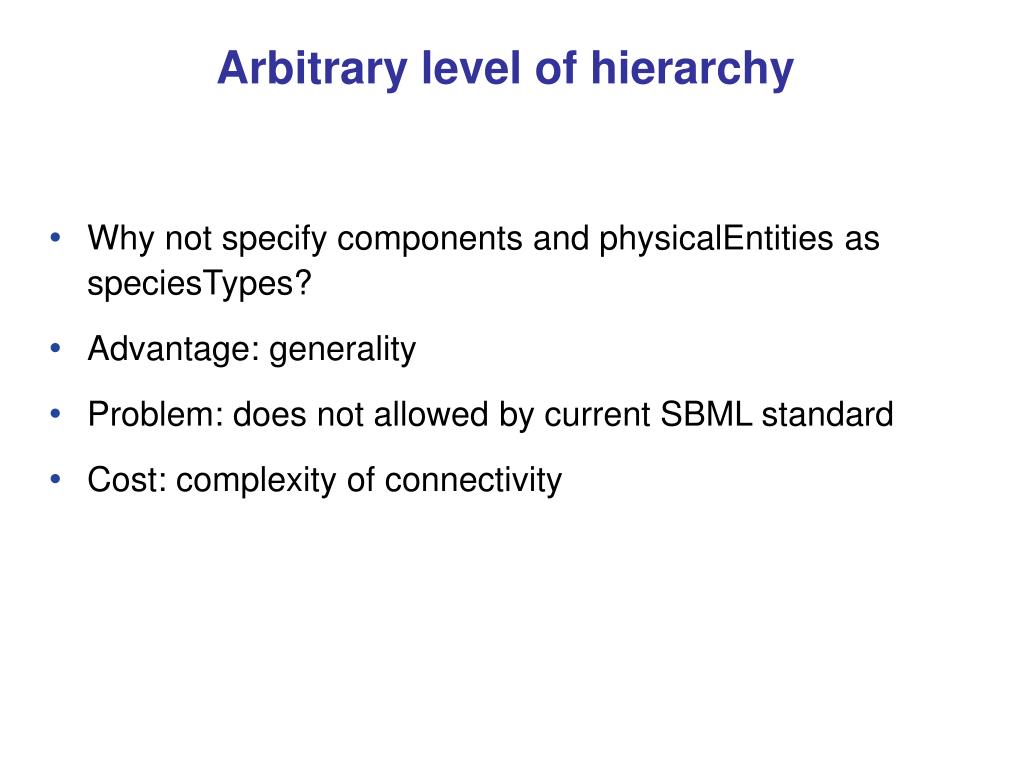

  19. Arbitrary level of hierarchy • Why not specify components and physicalEntities as speciesTypes? • Advantage: generality • Problem: does not allowed by current SBML standard • Cost: complexity of connectivity

  20. speciesTypespeciesTypeIncluded <speciesType id="p-site" defaultStateValue=“u”> <listOfSpeciesTypeStates> <speciesTypeState value="u" name="unphosphorylated"/> <speciesTypeState value="p" name="phosphorylated"/ </listOfSpeciesTypeStates> </speciesType> <speciesType id="Lig"> <listOfSpeciesTypesIncluded> <speciesTypeIncluded id="Fc" speciesType="b-site" multiplicity="2“> </listOfSpeciesTypesIncluded> </speciesType>

  21. speciesType id : SId name : string {use="optional"} class: string {"component", "physicalEntity", …} {use="optional"} speciesTypeState: string [0..*] {use="optional"} speciesTypeIncluded: speciesTypeIncluded[0..*] compartment: Sid {use="optional"} <speciesType id="p-site" class="components" name="site_of_phosphorylation“ defaultStateValue=“u”> <listOfSpeciesTypeStates> <speciesTypeState value="u" name="unphosphorylated"/> <speciesTypeState value="p" name="phosphorylated"/ </listOfSpeciesTypeStates> </speciesType>

  22. speciesTypeIncluded Id: SId name : string {use="optional"} multiplicity: int { minInclusive="0" use="optional" default="1"} maxExternalBonds: int { minInclusive="0" use="optional" default="1"} maxInternalBonds: int { minInclusive="0" use="optional" default="0"} compartment: Sid {use="optional"} <speciesType class="physicalEntity" id="Lig"> <listOfSpeciesTypesIncluded> <speciesTypeIncluded id="Fc" speciesType="b-site" multiplicity="2“> </listOfSpeciesTypesIncluded> </speciesType>

  23. Bonds <speciesType class="physicalEntity" id="R"> <listOfSpeciesTypesIncluded> <speciesTypeIncluded id="a" speciesType="b-site" maxInternalBonds ="1"> <listOfBondReferences> <bondReference bond="1"/> </listOfBondReferences> <speciesTypeIncluded/> <speciesTypeIncluded id="b" speciesType="p-site" maxInternalBonds =“1"> <listOfBondReferences> <bondReference bond="1"/> </listOfBondReferences> <speciesTypeIncluded/> </listOfSpeciesTypesIncluded> <listOfBonds> <bond id="1" bondType="internal"/> </listOfBonds> </speciesType>

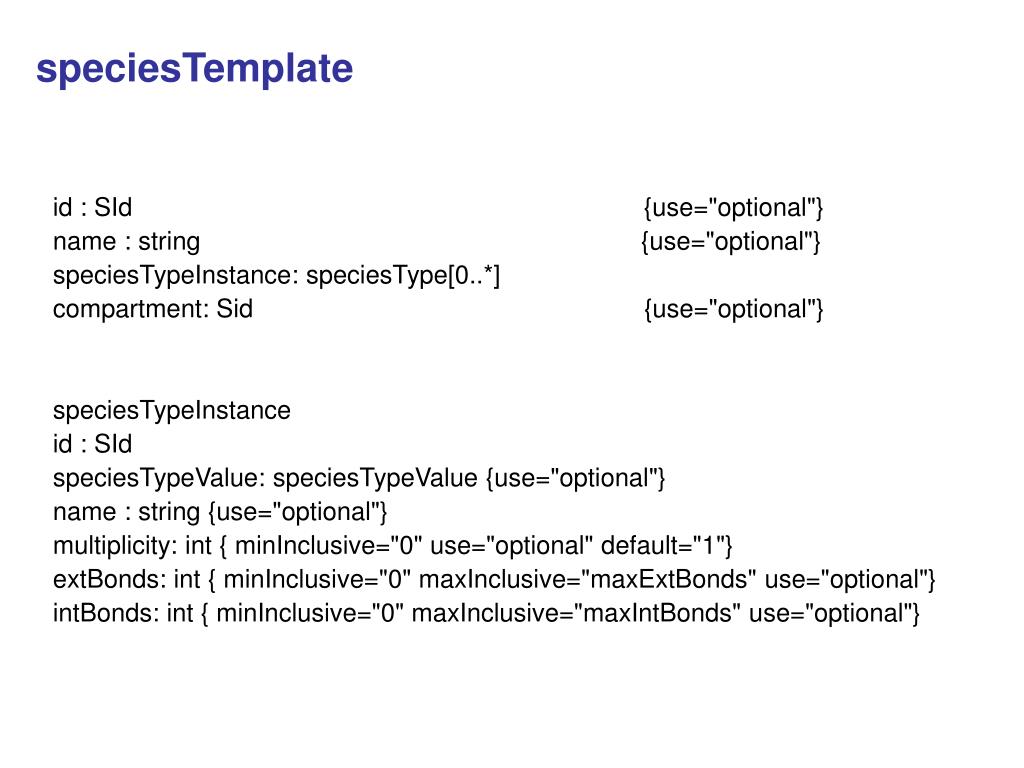

  24. speciesTemplate id : SId {use="optional"} name : string {use="optional"} speciesTypeInstance: speciesType[0..*] compartment: Sid {use="optional"} speciesTypeInstance id : SId speciesTypeValue: speciesTypeValue {use="optional"} name : string {use="optional"} multiplicity: int { minInclusive="0" use="optional" default="1"} extBonds: int { minInclusive="0" maxInclusive="maxExtBonds" use="optional"} intBonds: int { minInclusive="0" maxInclusive="maxIntBonds" use="optional"}
