Peer Review Session and Project Evaluation Overview for CS463 Intrusion Detection

1. CS463.12Intrusion Detection Fall 2005

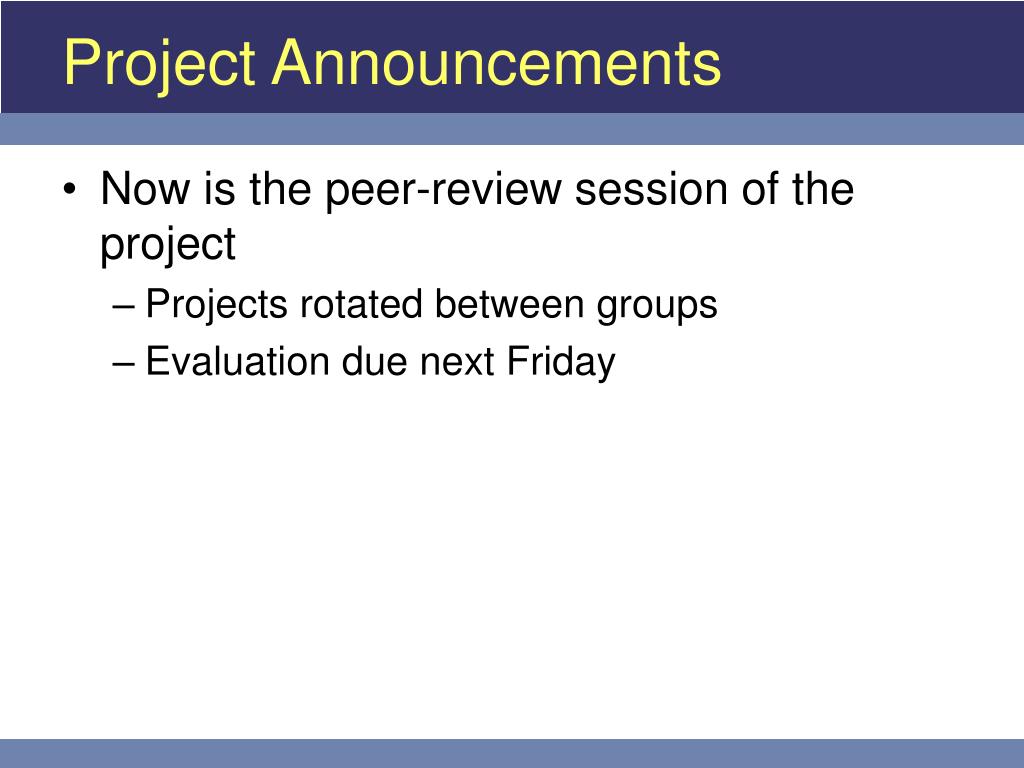

2. Project Announcements • Now is the peer-review session of the project • Projects rotated between groups • Evaluation due next Friday

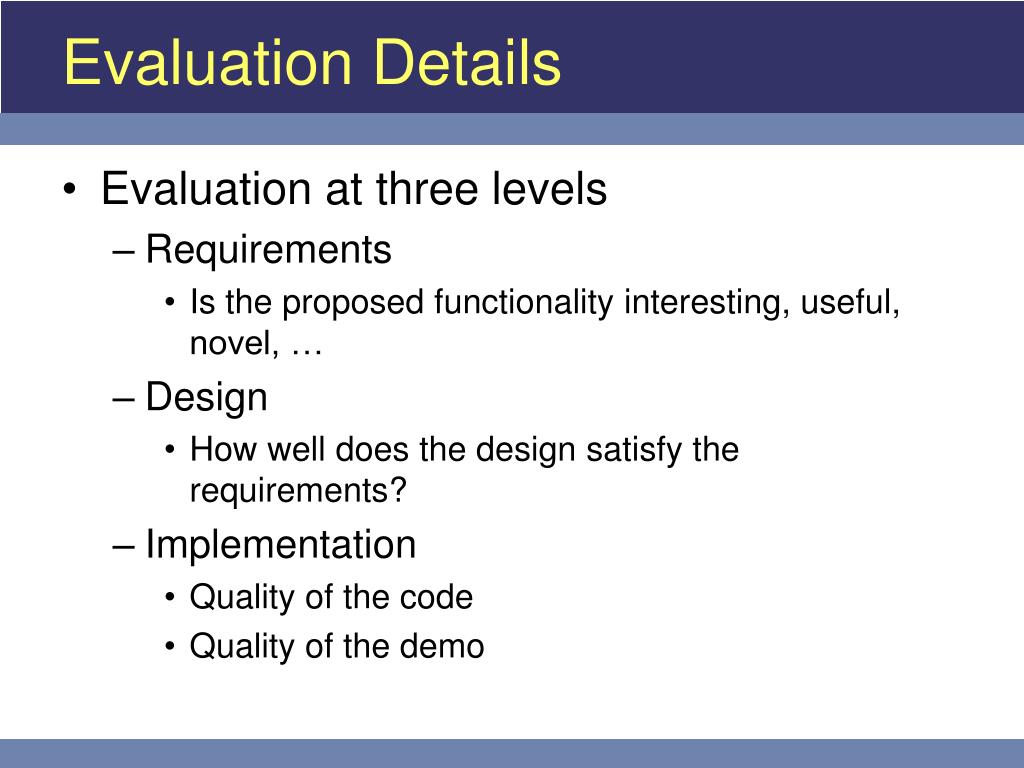

3. Evaluation Details • Evaluation at three levels • Requirements • Is the proposed functionality interesting, useful, novel, … • Design • How well does the design satisfy the requirements? • Implementation • Quality of the code • Quality of the demo

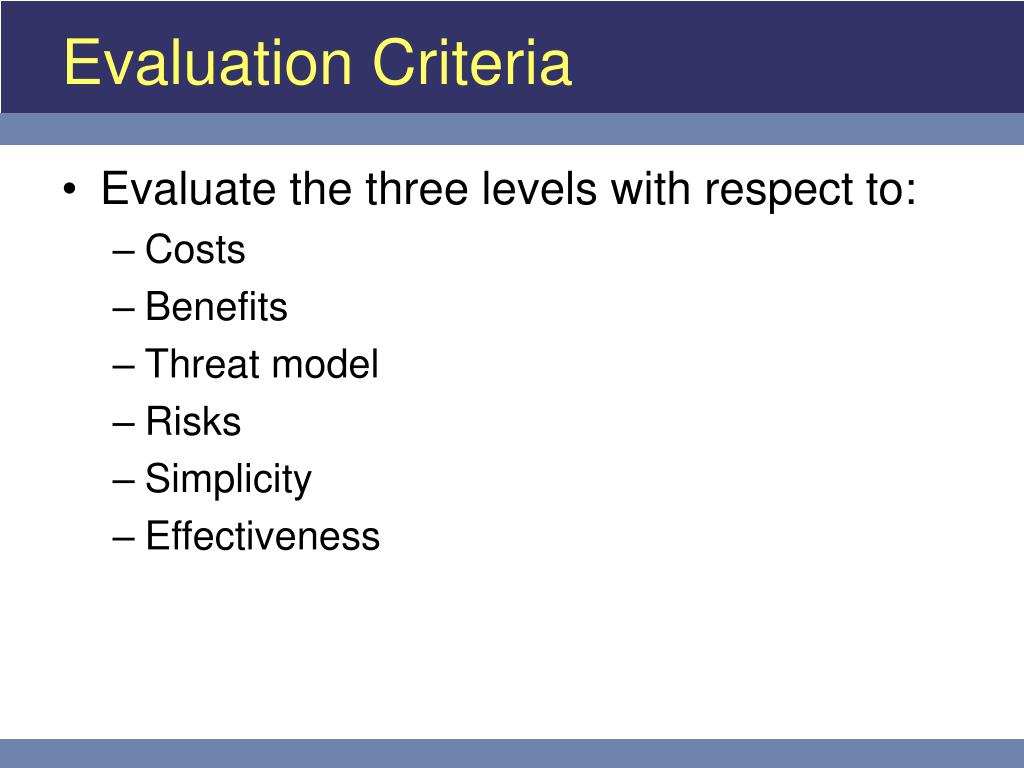

4. Evaluation Criteria • Evaluate the three levels with respect to: • Costs • Benefits • Threat model • Risks • Simplicity • Effectiveness

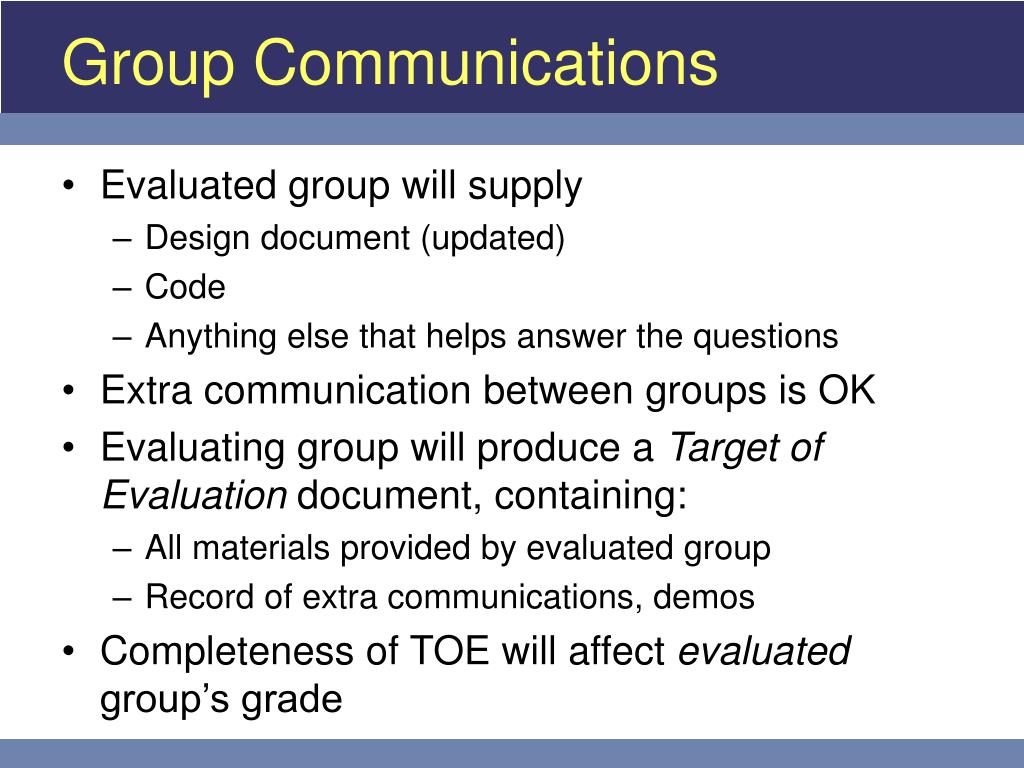

5. Group Communications • Evaluated group will supply • Design document (updated) • Code • Anything else that helps answer the questions • Extra communication between groups is OK • Evaluating group will produce a Target of Evaluation document, containing: • All materials provided by evaluated group • Record of extra communications, demos • Completeness of TOE will affect evaluated group’s grade

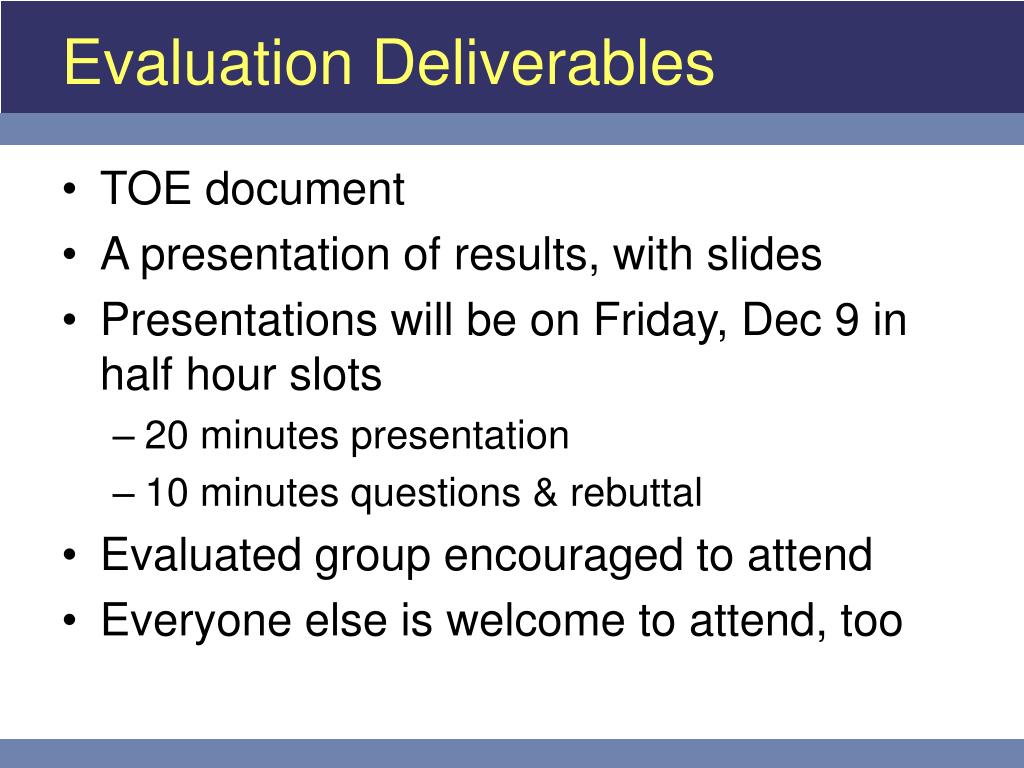

6. Evaluation Deliverables • TOE document • A presentation of results, with slides • Presentations will be on Friday, Dec 9 in half hour slots • 20 minutes presentation • 10 minutes questions & rebuttal • Evaluated group encouraged to attend • Everyone else is welcome to attend, too

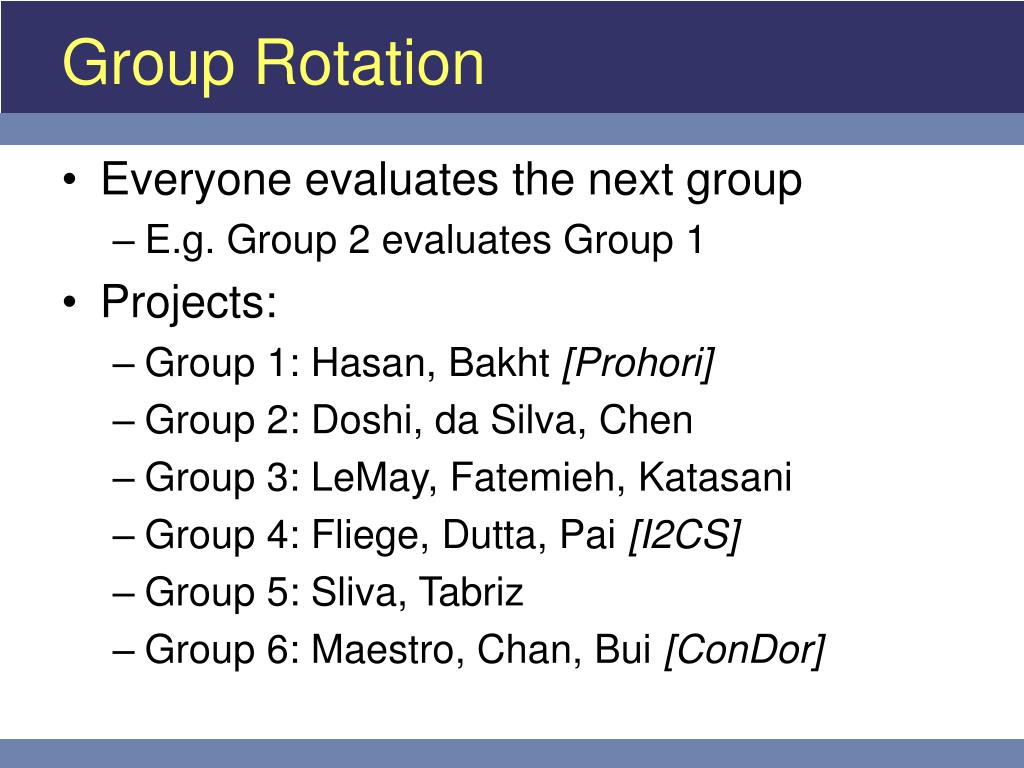

7. Group Rotation • Everyone evaluates the next group • E.g. Group 2 evaluates Group 1 • Projects: • Group 1: Hasan, Bakht [Prohori] • Group 2: Doshi, da Silva, Chen • Group 3: LeMay, Fatemieh, Katasani • Group 4: Fliege, Dutta, Pai [I2CS] • Group 5: Sliva, Tabriz • Group 6: Maestro, Chan, Bui [ConDor]

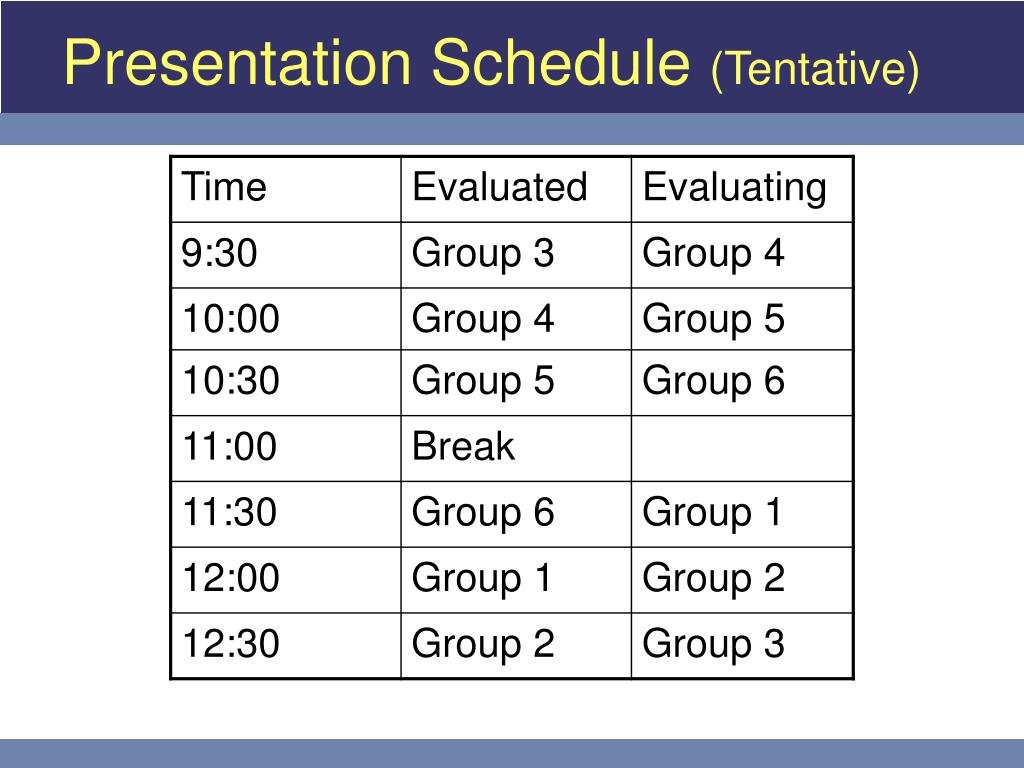

8. Presentation Schedule (Tentative)

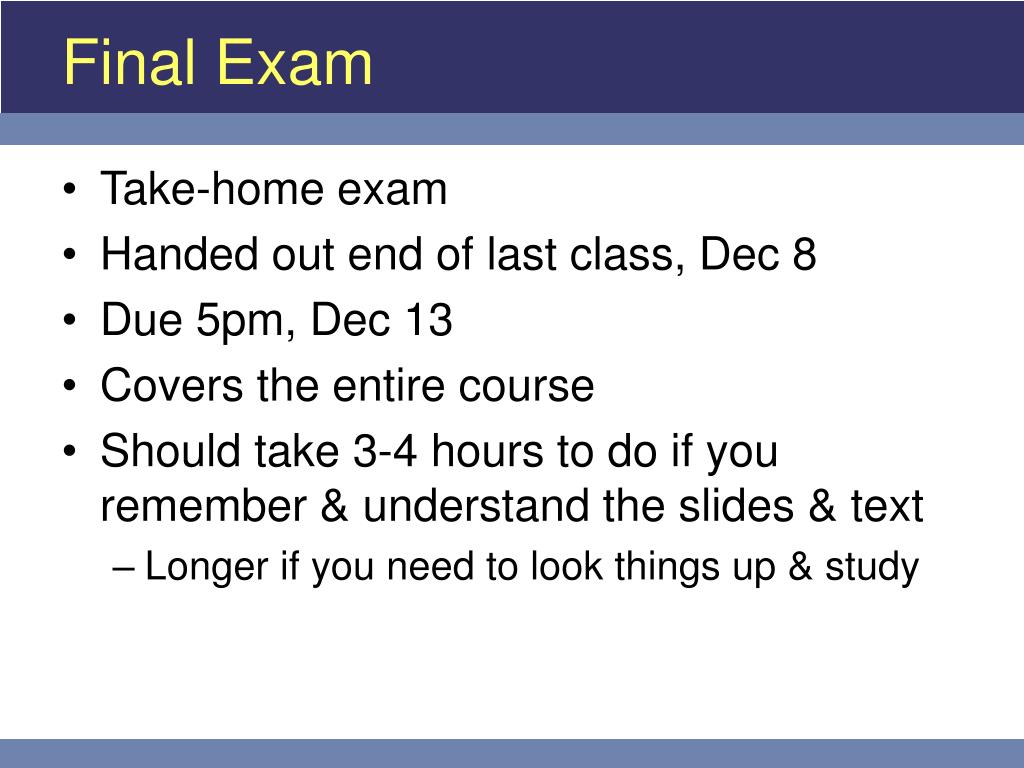

9. Final Exam • Take-home exam • Handed out end of last class, Dec 8 • Due 5pm, Dec 13 • Covers the entire course • Should take 3-4 hours to do if you remember & understand the slides & text • Longer if you need to look things up & study

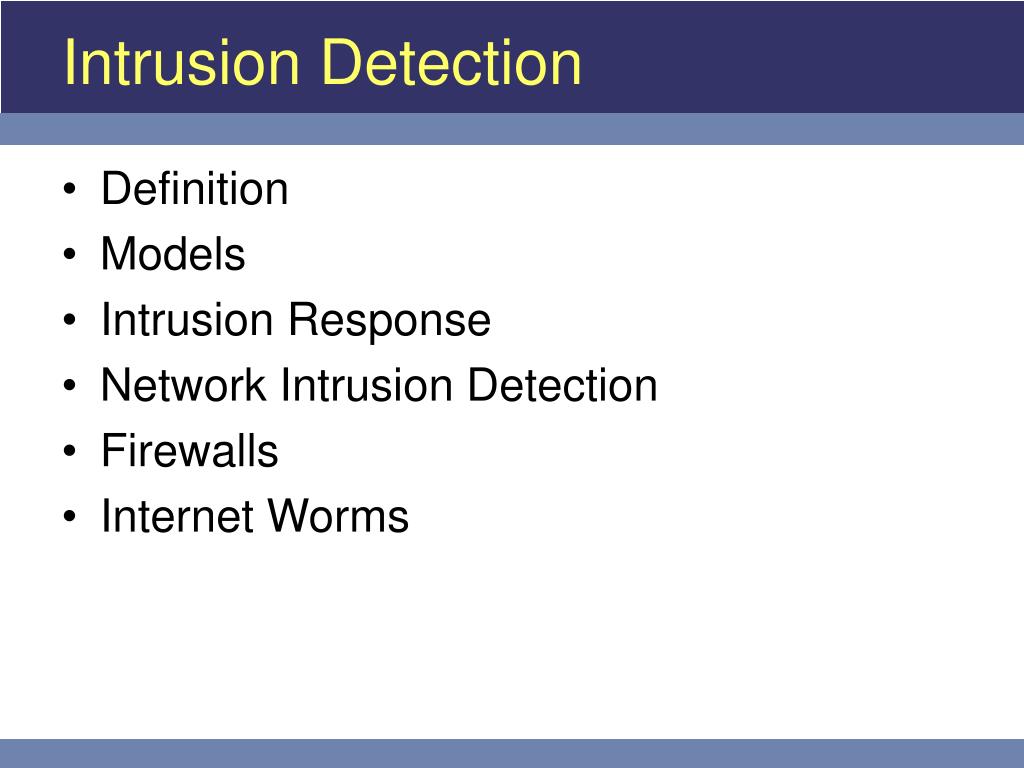

10. Intrusion Detection • Definition • Models • Intrusion Response • Network Intrusion Detection • Firewalls • Internet Worms

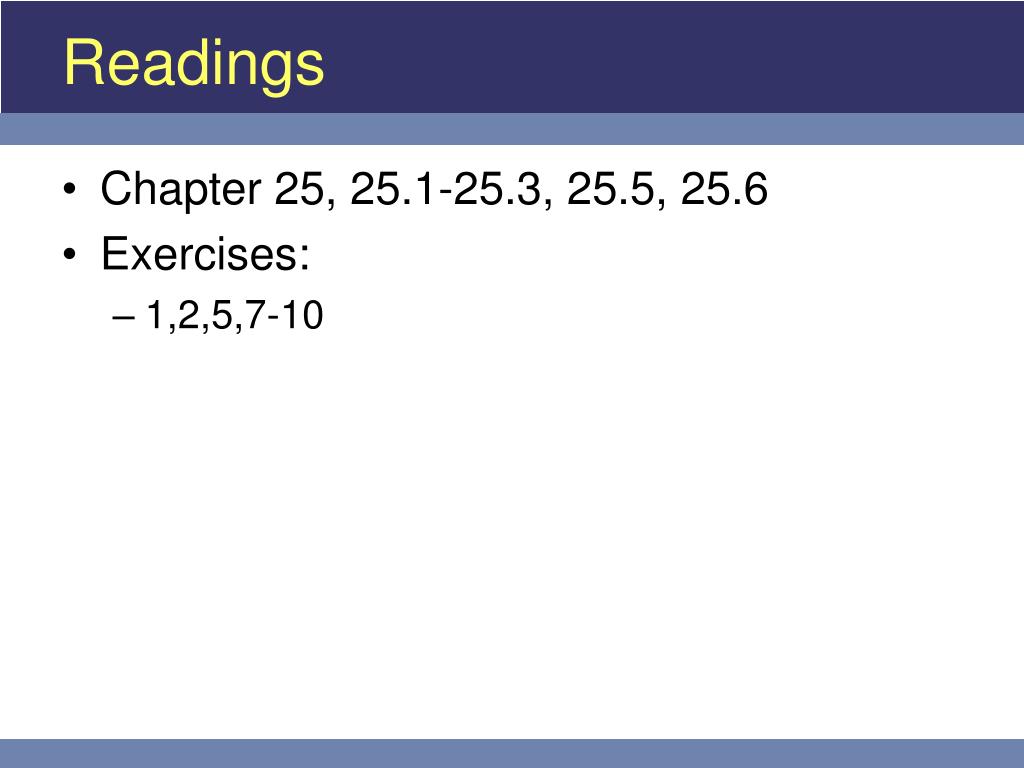

11. Readings • Chapter 25, 25.1-25.3, 25.5, 25.6 • Exercises: • 1,2,5,7-10

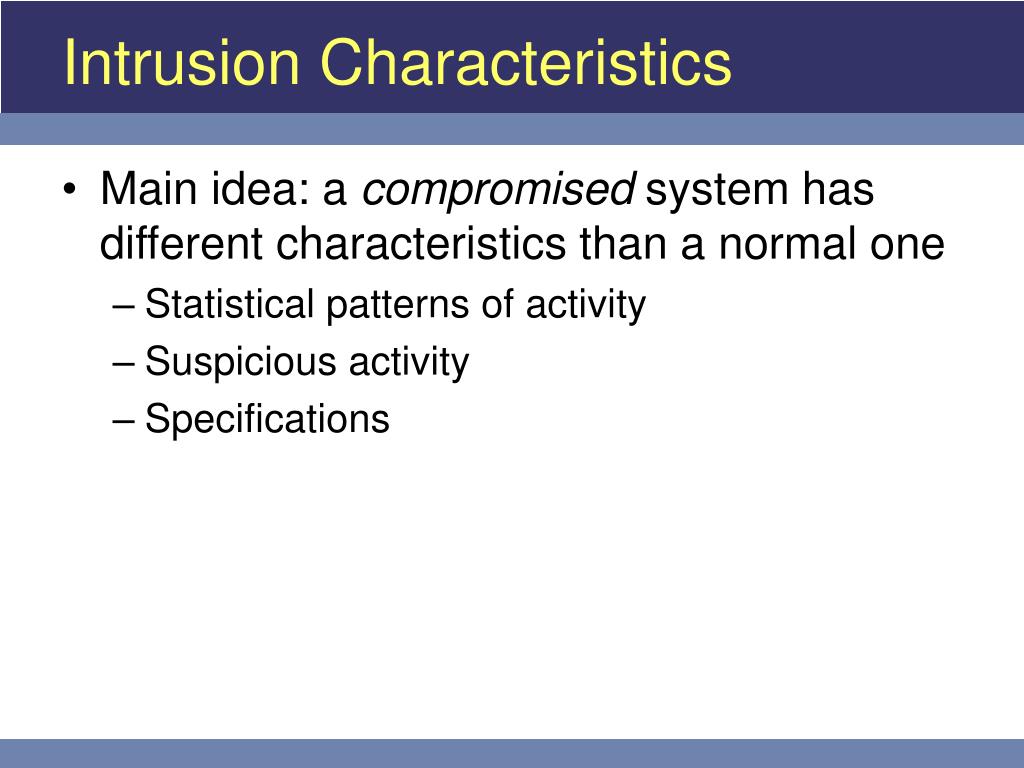

12. Intrusion Characteristics • Main idea: a compromised system has different characteristics than a normal one • Statistical patterns of activity • Suspicious activity • Specifications

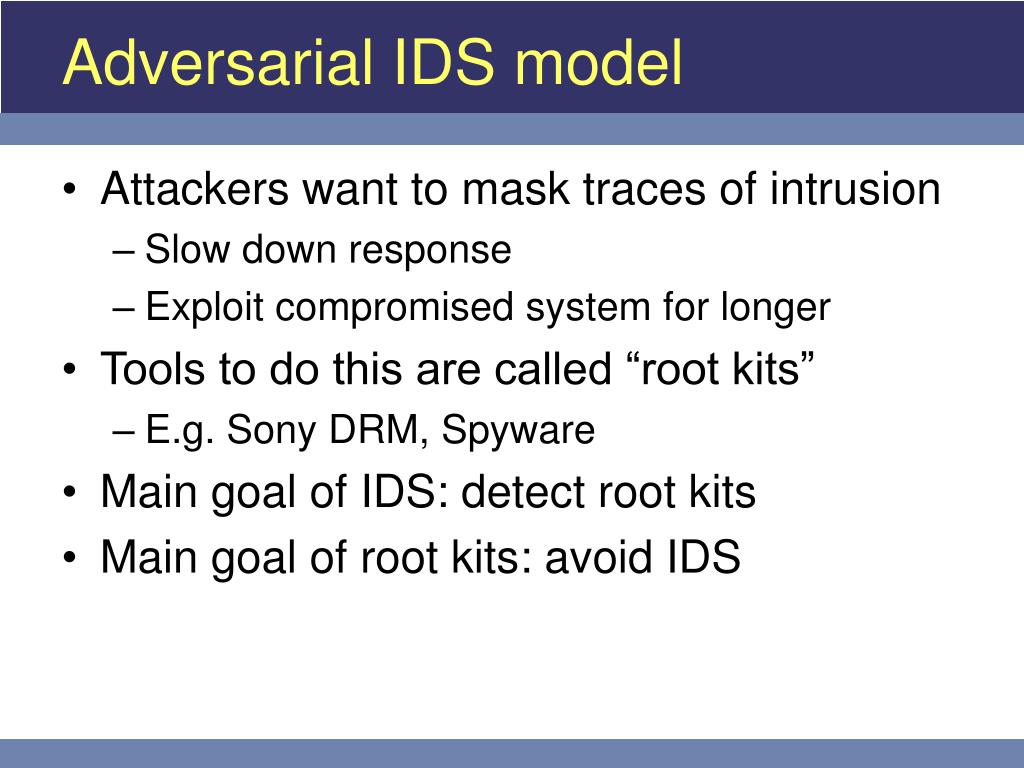

13. Adversarial IDS model • Attackers want to mask traces of intrusion • Slow down response • Exploit compromised system for longer • Tools to do this are called “root kits” • E.g. Sony DRM, Spyware • Main goal of IDS: detect root kits • Main goal of root kits: avoid IDS

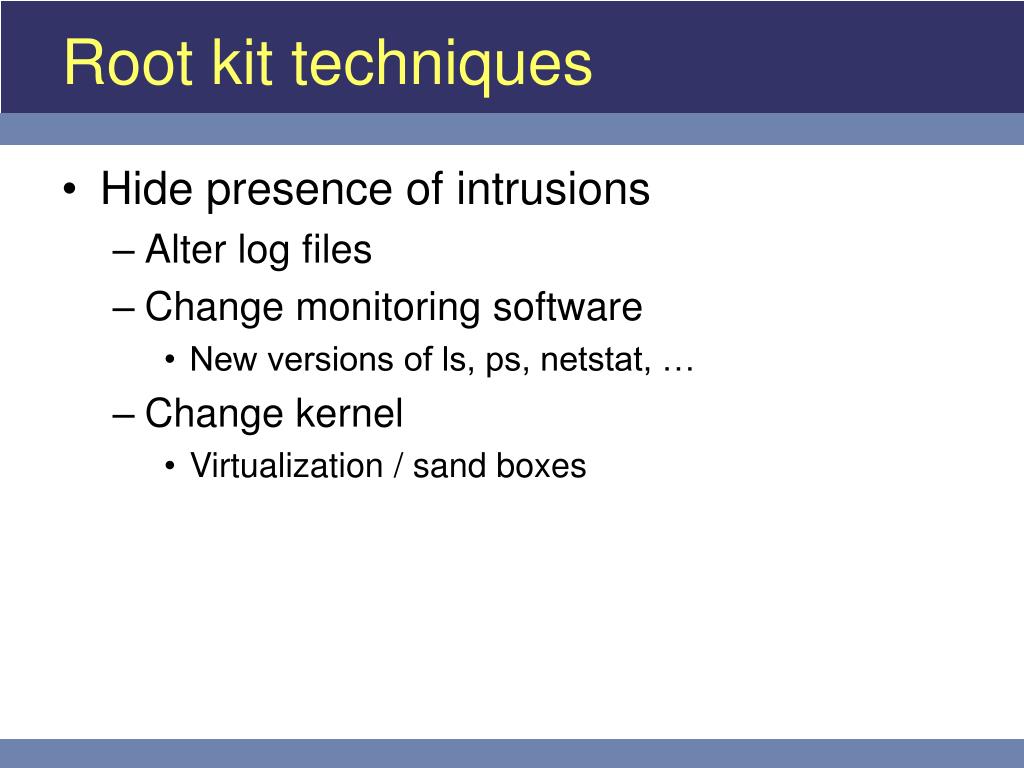

14. Root kit techniques • Hide presence of intrusions • Alter log files • Change monitoring software • New versions of ls, ps, netstat, … • Change kernel • Virtualization / sand boxes

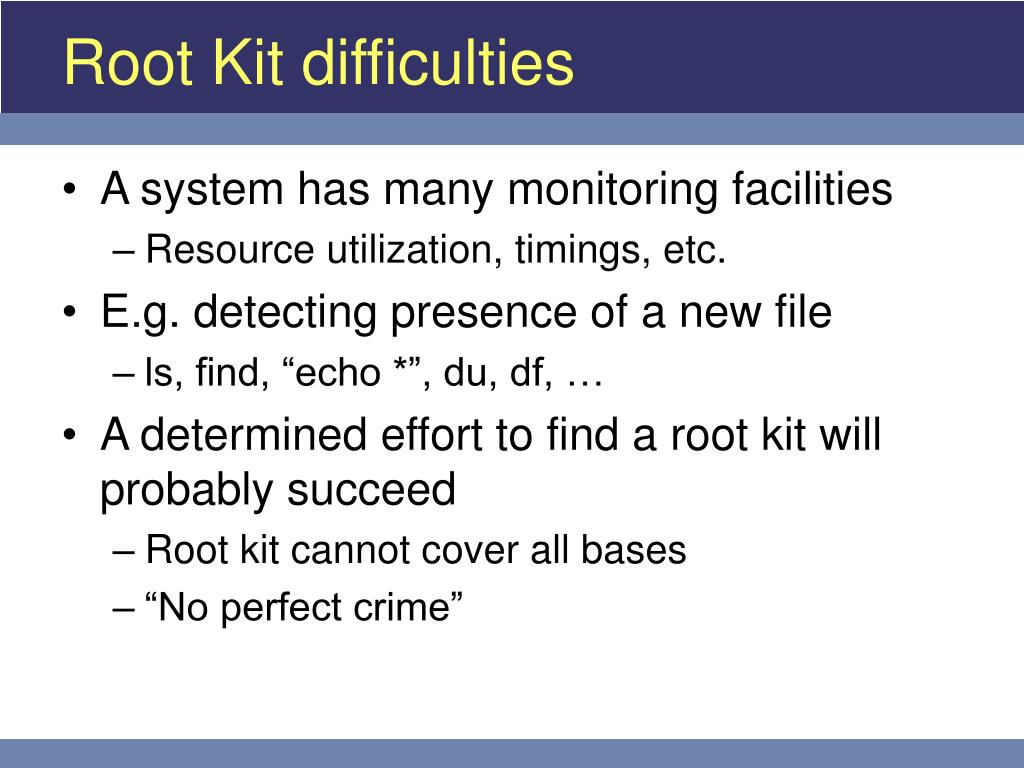

15. Root Kit difficulties • A system has many monitoring facilities • Resource utilization, timings, etc. • E.g. detecting presence of a new file • ls, find, “echo *”, du, df, … • A determined effort to find a root kit will probably succeed • Root kit cannot cover all bases • “No perfect crime”

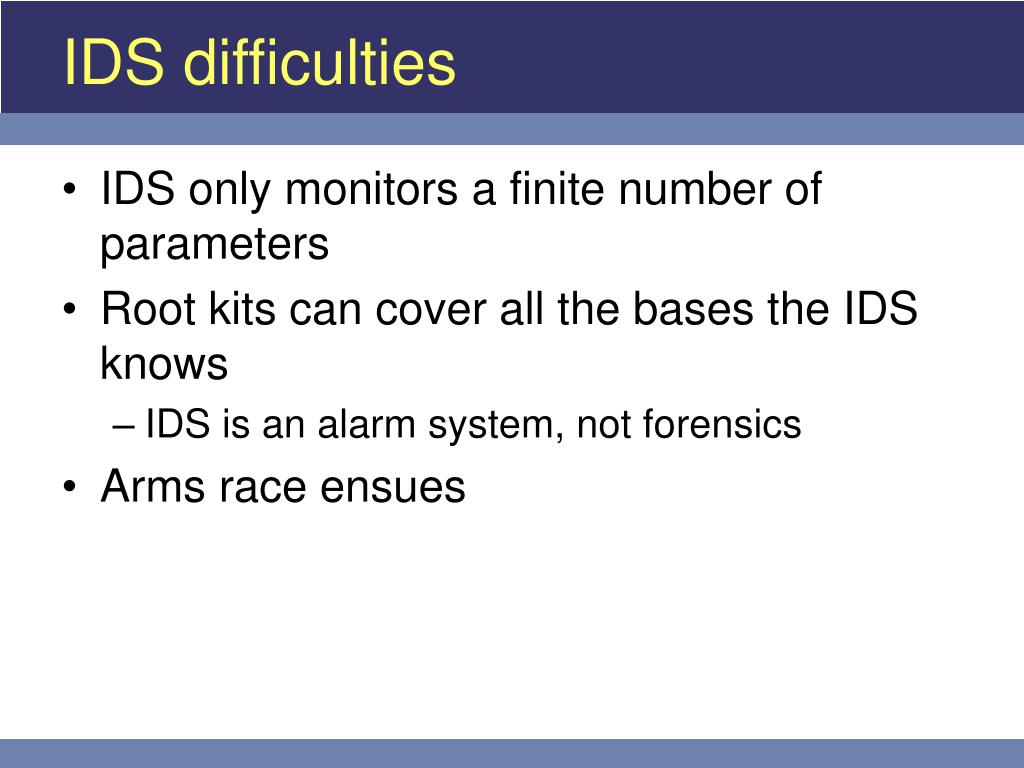

16. IDS difficulties • IDS only monitors a finite number of parameters • Root kits can cover all the bases the IDS knows • IDS is an alarm system, not forensics • Arms race ensues

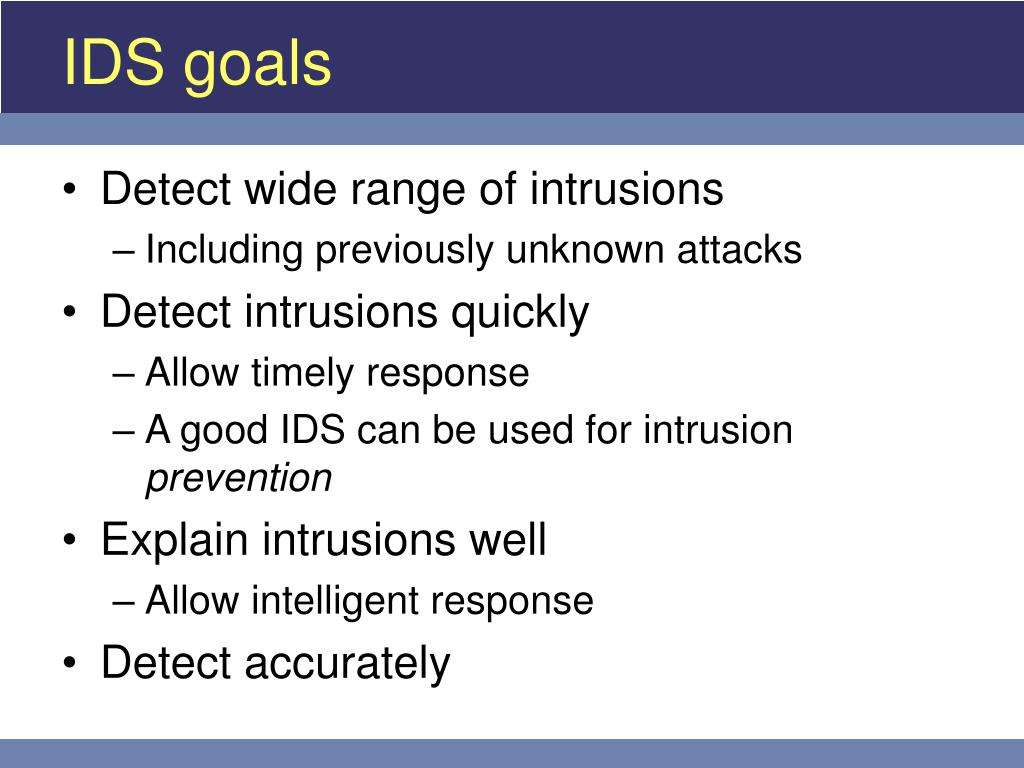

17. IDS goals • Detect wide range of intrusions • Including previously unknown attacks • Detect intrusions quickly • Allow timely response • A good IDS can be used for intrusion prevention • Explain intrusions well • Allow intelligent response • Detect accurately

18. Accuracy • False negatives • Fail to detect an intrusion • False positives • Alert an intrusion when there isn’t one • Most designs allow a trade-off between the two • E.g. 0% false positives is easy to achieve with 100% false negatives

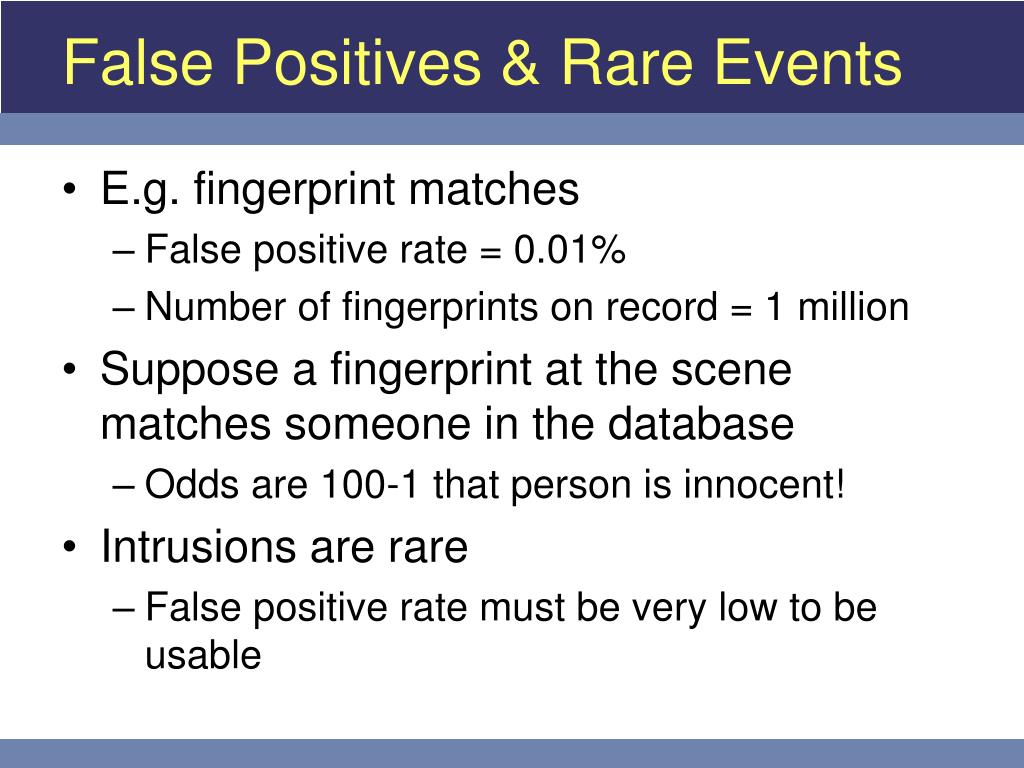

19. False Positives & Rare Events • E.g. fingerprint matches • False positive rate = 0.01% • Number of fingerprints on record = 1 million • Suppose a fingerprint at the scene matches someone in the database • Odds are 100-1 that person is innocent! • Intrusions are rare • False positive rate must be very low to be usable

20. Anomaly Models • Manual models • Describe what behavior is correct or anomalous • Statistical models • Learn what is the normal behavior

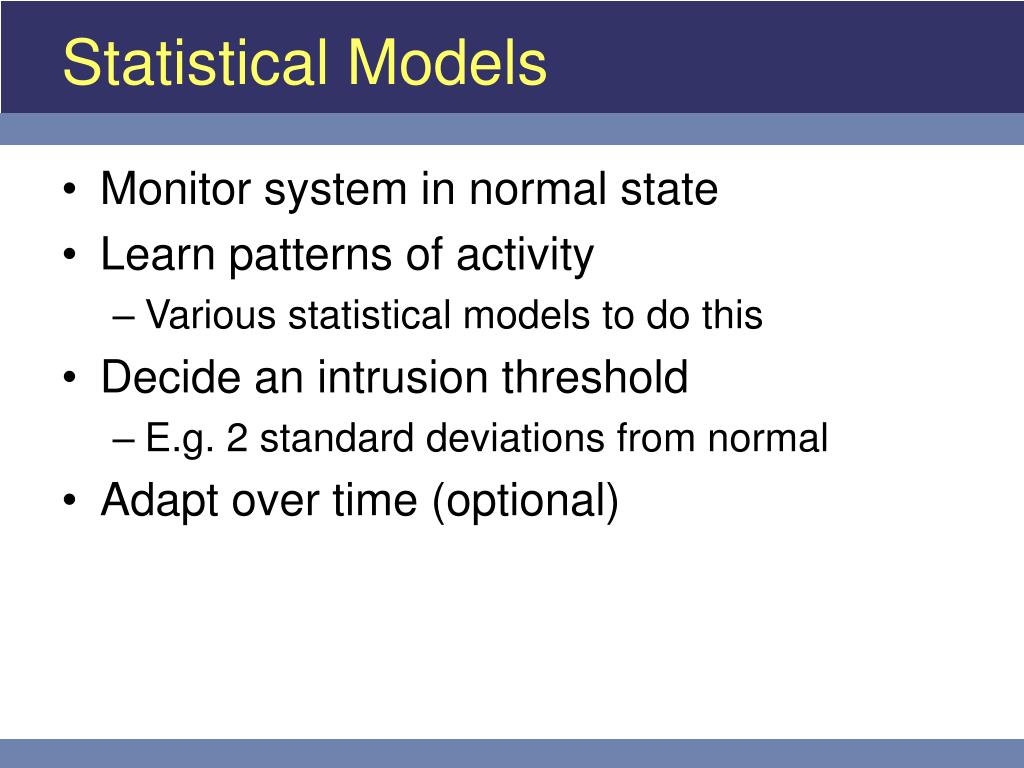

21. Statistical Models • Monitor system in normal state • Learn patterns of activity • Various statistical models to do this • Decide an intrusion threshold • E.g. 2 standard deviations from normal • Adapt over time (optional)

22. Simple Model (Normal) • Measure values of parameters • E.g. network load • Calculate mean & standard deviation • Set a threshold based on a confidence interval • E.g. 2 standard deviatons =~ 95% • 3 standard deviations =~ 99.7% • Alert for values outside the threshold

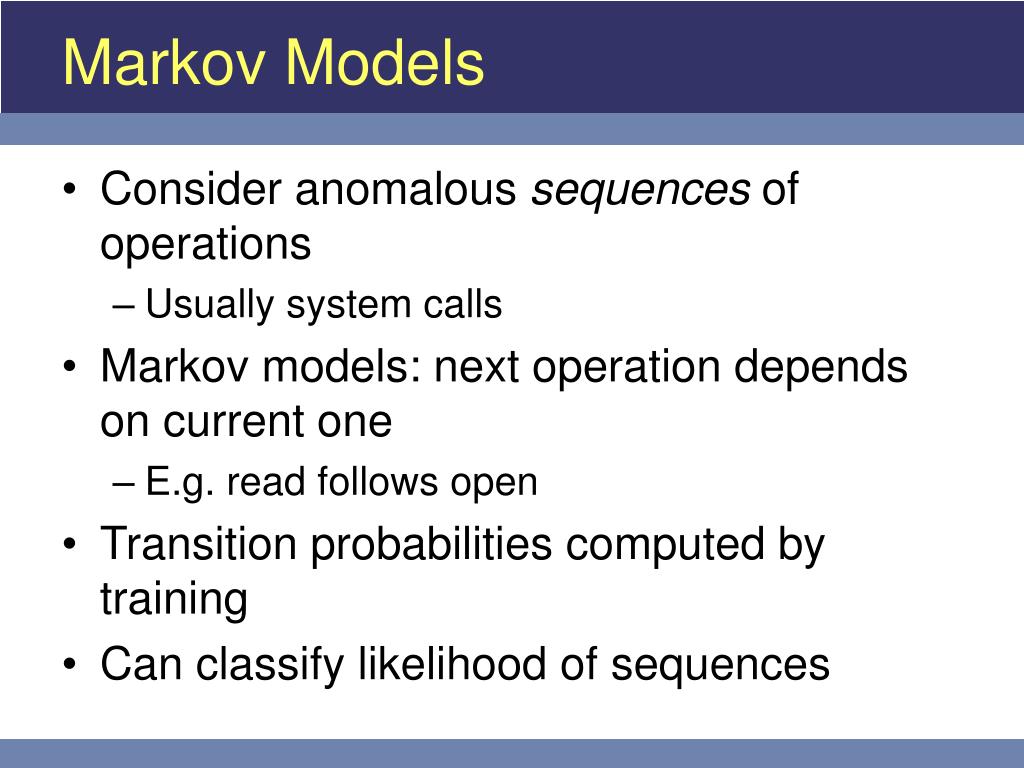

23. Markov Models • Consider anomalous sequences of operations • Usually system calls • Markov models: next operation depends on current one • E.g. read follows open • Transition probabilities computed by training • Can classify likelihood of sequences

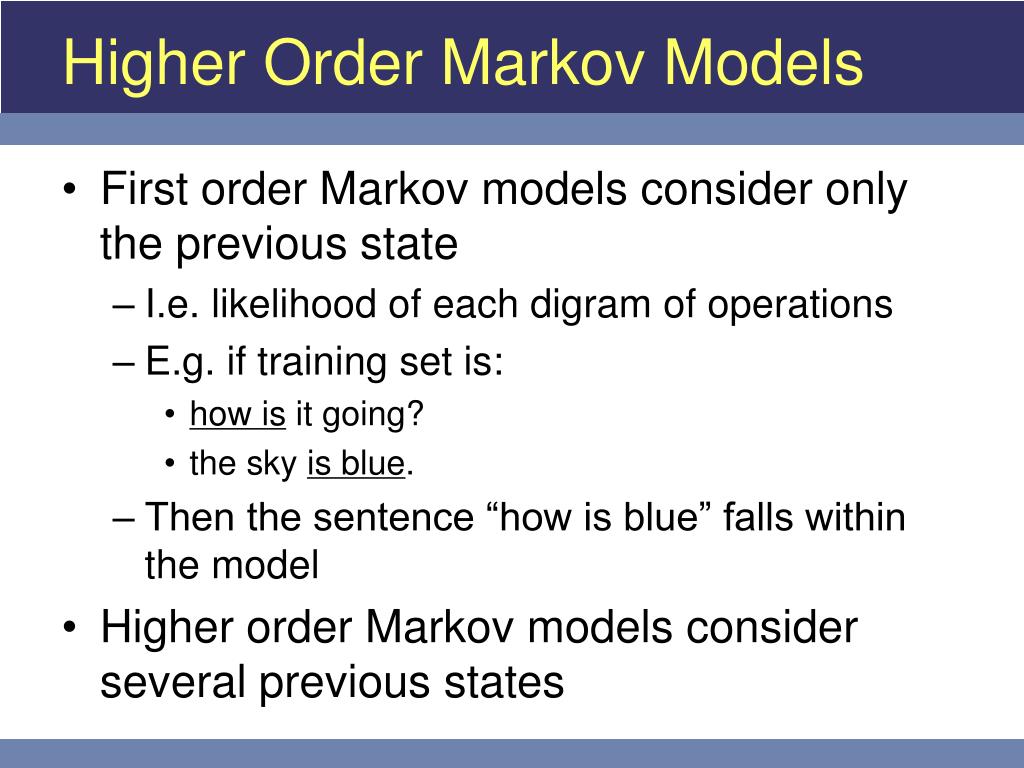

24. Higher Order Markov Models • First order Markov models consider only the previous state • I.e. likelihood of each digram of operations • E.g. if training set is: • how is it going? • the sky is blue. • Then the sentence “how is blue” falls within the model • Higher order Markov models consider several previous states

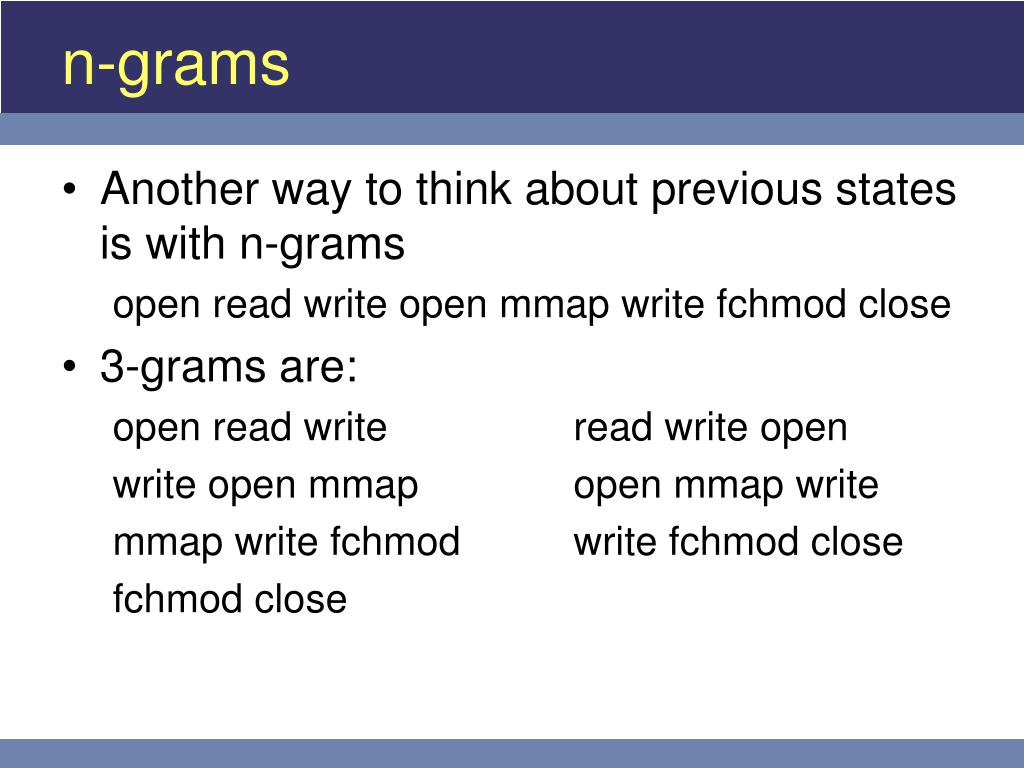

25. n-grams • Another way to think about previous states is with n-grams open read write open mmap write fchmod close • 3-grams are: open read write read write open write open mmap open mmap write mmap write fchmod write fchmod close fchmod close

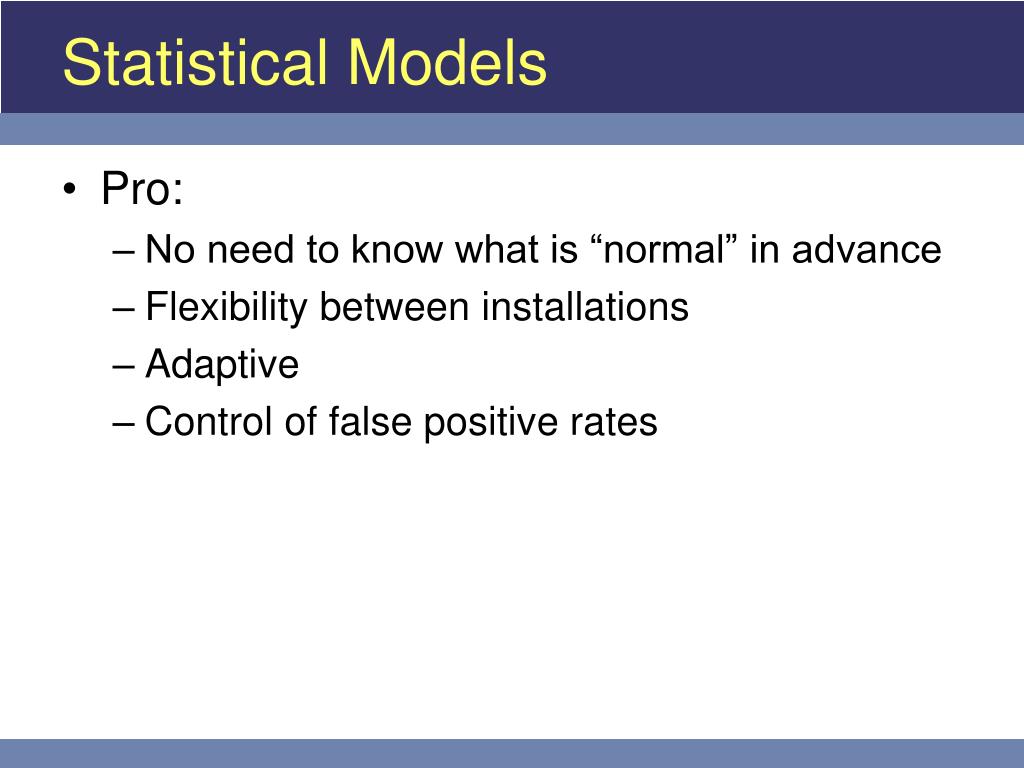

26. Statistical Models • Pro: • No need to know what is “normal” in advance • Flexibility between installations • Adaptive • Control of false positive rates

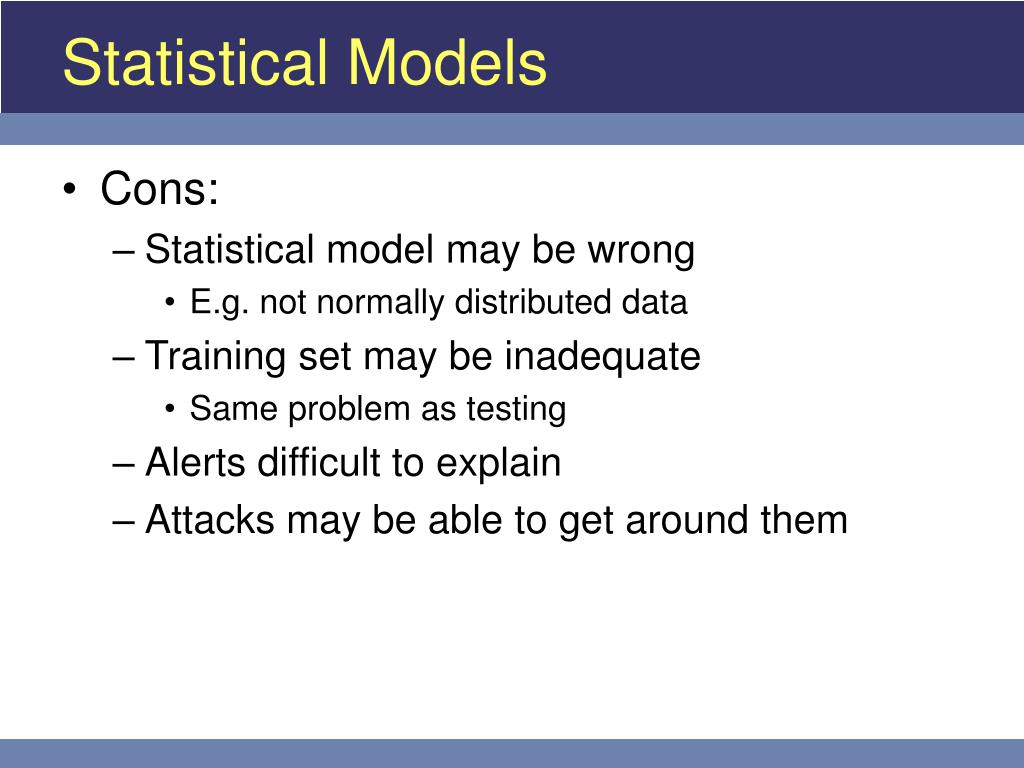

27. Statistical Models • Cons: • Statistical model may be wrong • E.g. not normally distributed data • Training set may be inadequate • Same problem as testing • Alerts difficult to explain • Attacks may be able to get around them

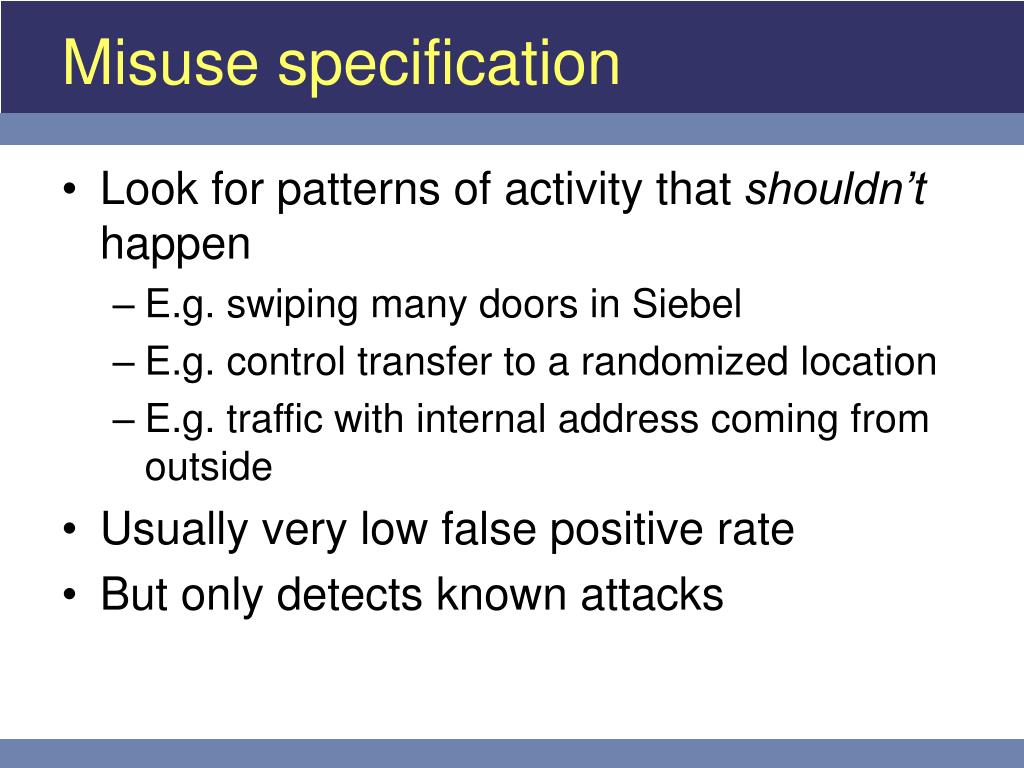

28. Misuse specification • Look for patterns of activity that shouldn’t happen • E.g. swiping many doors in Siebel • E.g. control transfer to a randomized location • E.g. traffic with internal address coming from outside • Usually very low false positive rate • But only detects known attacks

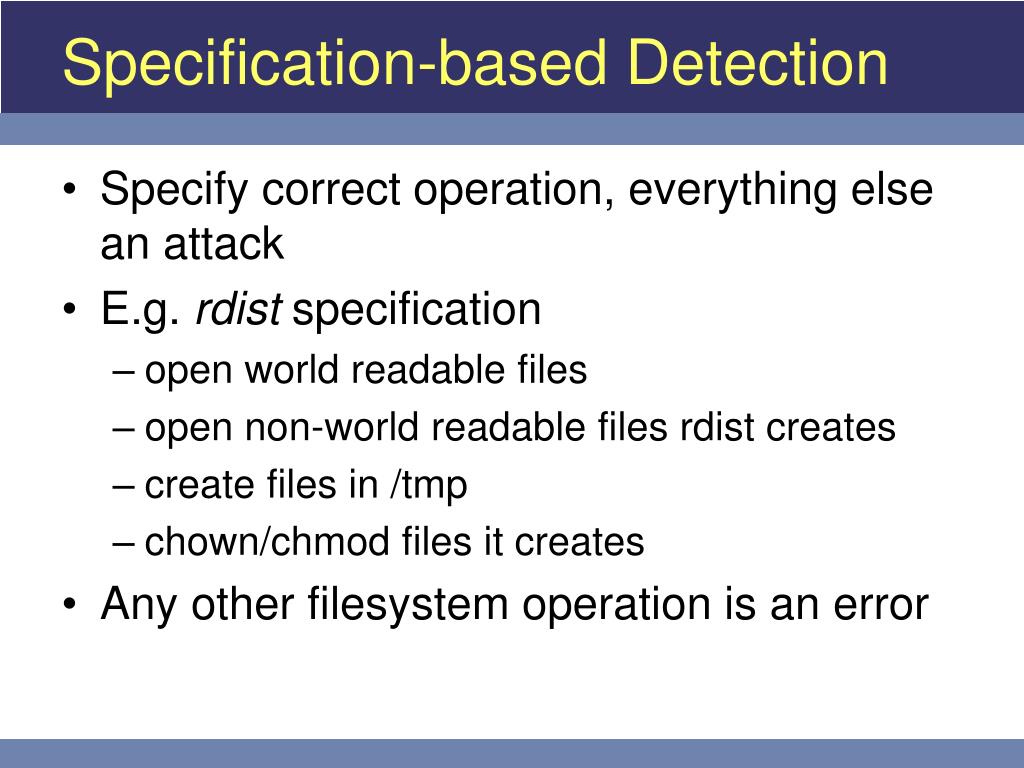

29. Specification-based Detection • Specify correct operation, everything else an attack • E.g. rdist specification • open world readable files • open non-world readable files rdist creates • create files in /tmp • chown/chmod files it creates • Any other filesystem operation is an error

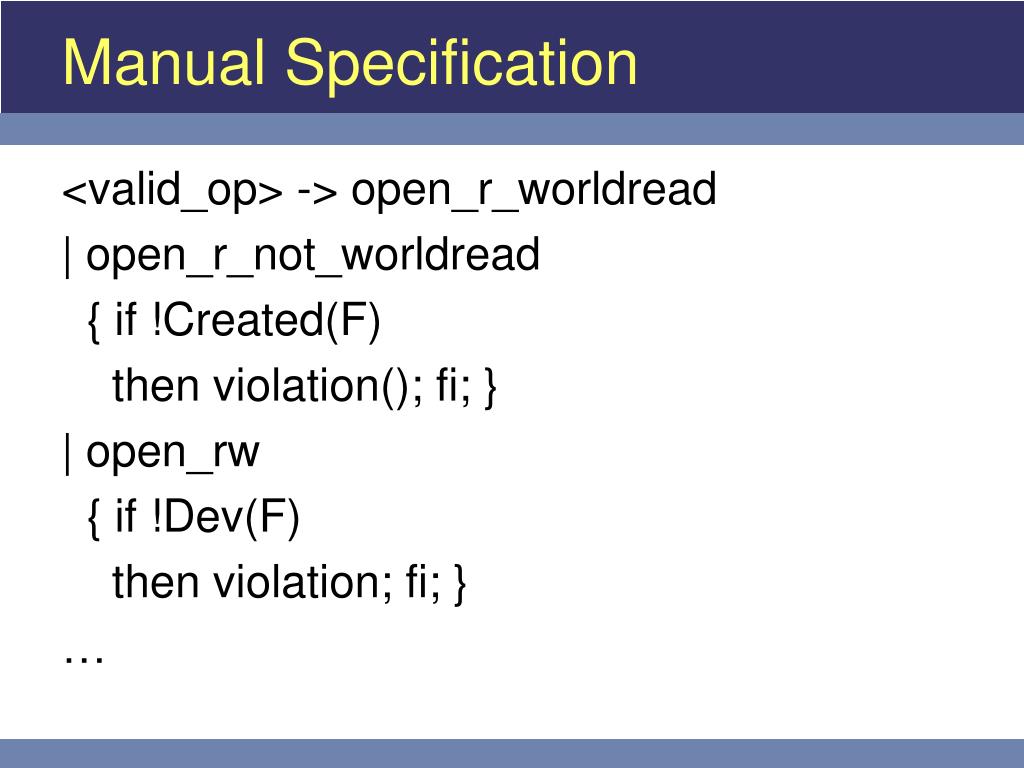

30. Manual Specification <valid_op> -> open_r_worldread | open_r_not_worldread { if !Created(F) then violation(); fi; } | open_rw { if !Dev(F) then violation; fi; } …

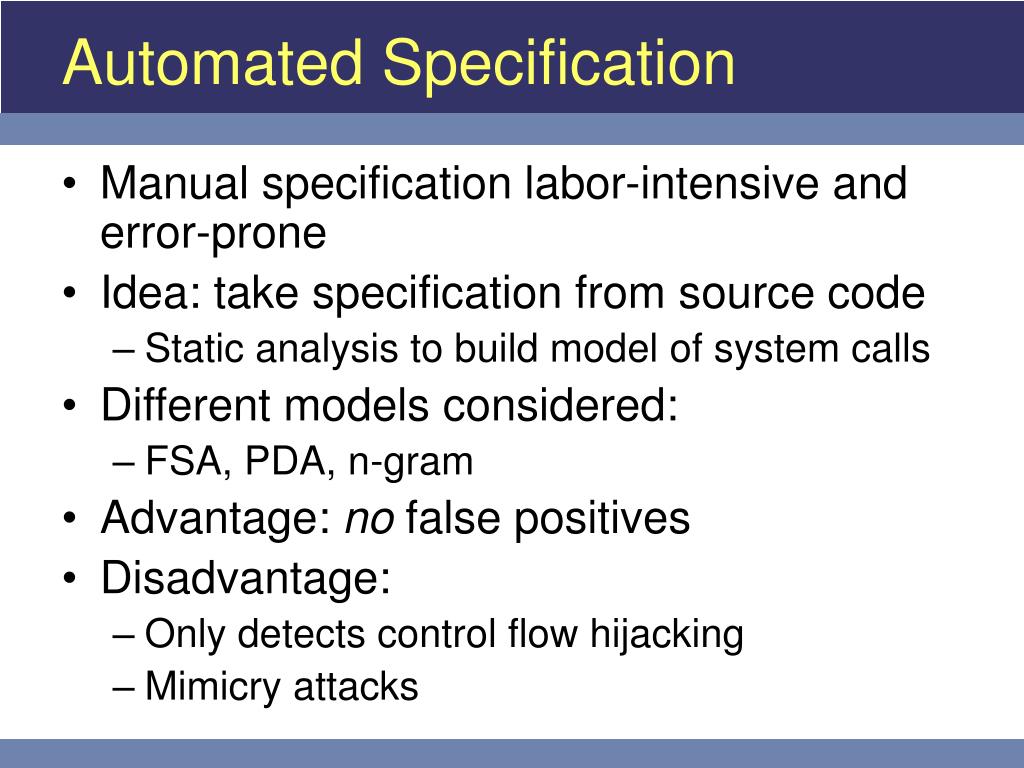

31. Automated Specification • Manual specification labor-intensive and error-prone • Idea: take specification from source code • Static analysis to build model of system calls • Different models considered: • FSA, PDA, n-gram • Advantage: no false positives • Disadvantage: • Only detects control flow hijacking • Mimicry attacks

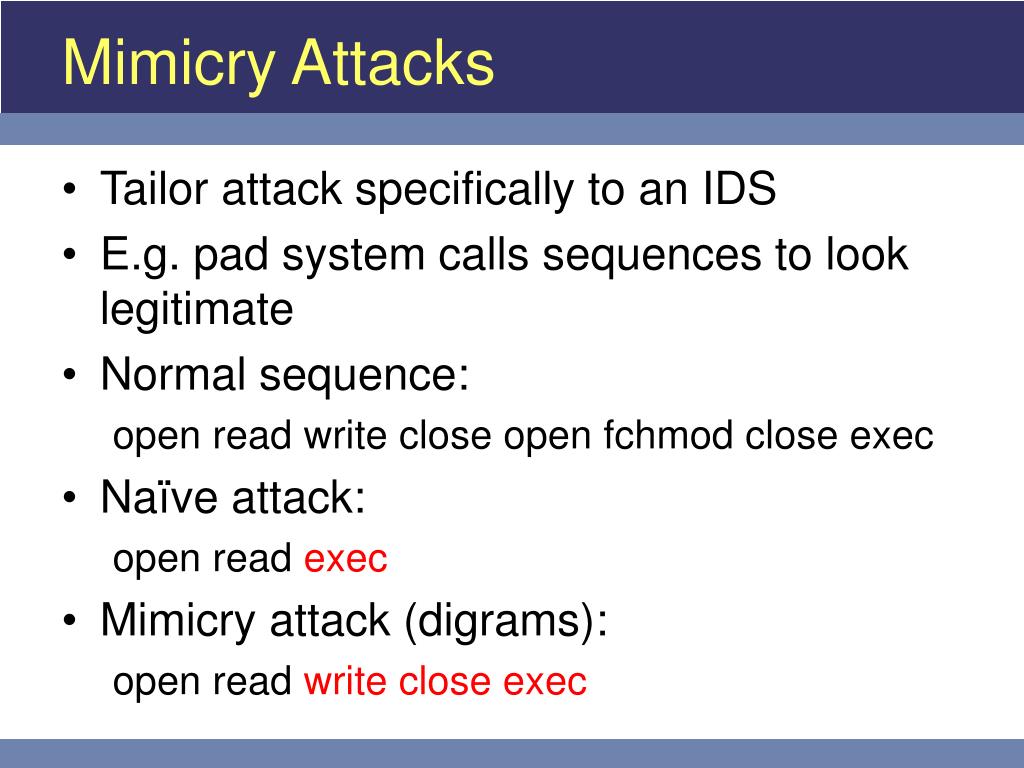

32. Mimicry Attacks • Tailor attack specifically to an IDS • E.g. pad system calls sequences to look legitimate • Normal sequence: open read write close open fchmod close exec • Naïve attack: open read exec • Mimicry attack (digrams): open read write close exec

33. Mimicry Attacks • More precise models better defend against mimicry • Mimicry exploits similarity between attack and detection • Makes attack sequences look non-anomalous • Continues arms race

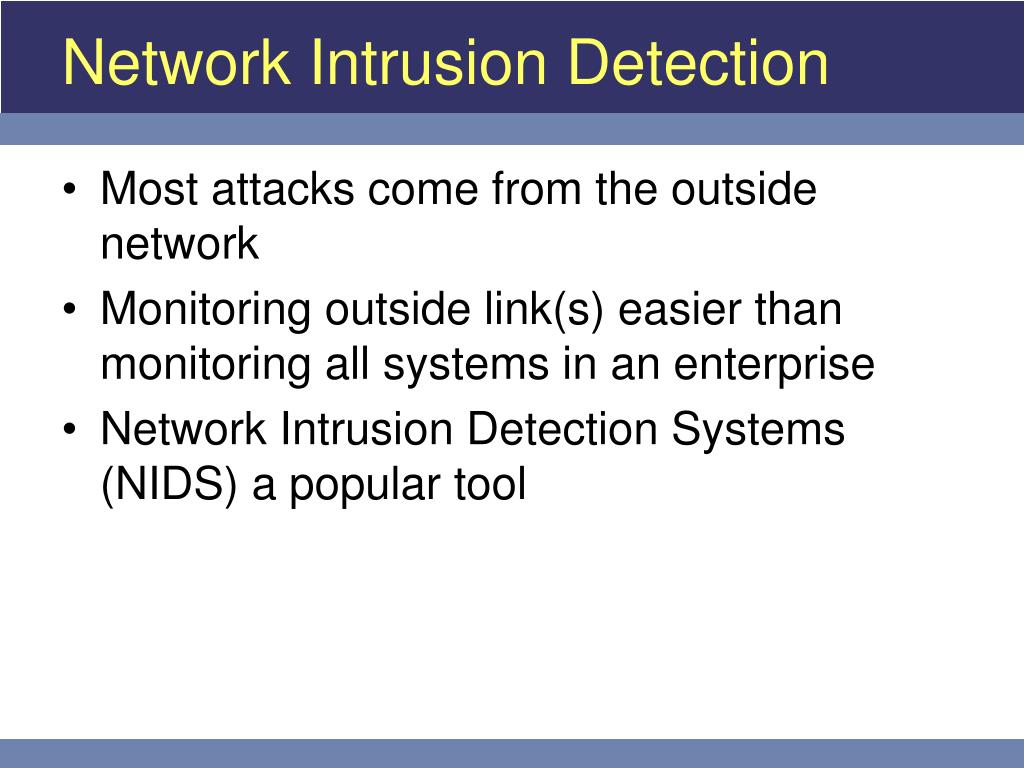

34. Network Intrusion Detection • Most attacks come from the outside network • Monitoring outside link(s) easier than monitoring all systems in an enterprise • Network Intrusion Detection Systems (NIDS) a popular tool

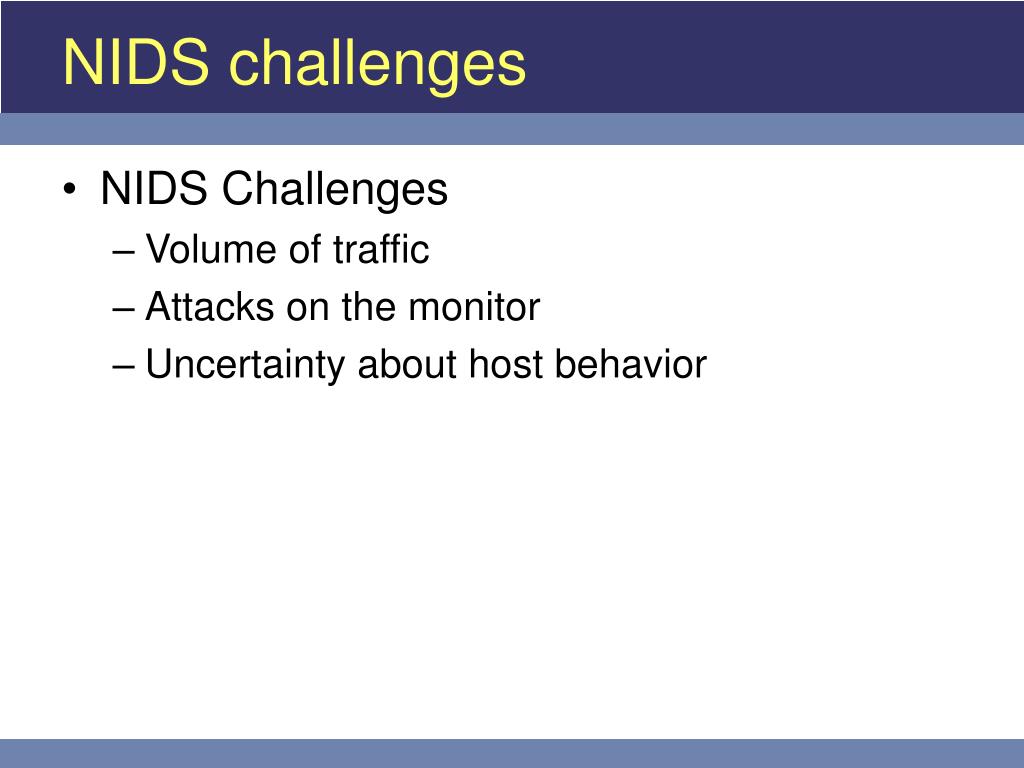

35. NIDS challenges • NIDS Challenges • Volume of traffic • Attacks on the monitor • Uncertainty about host behavior

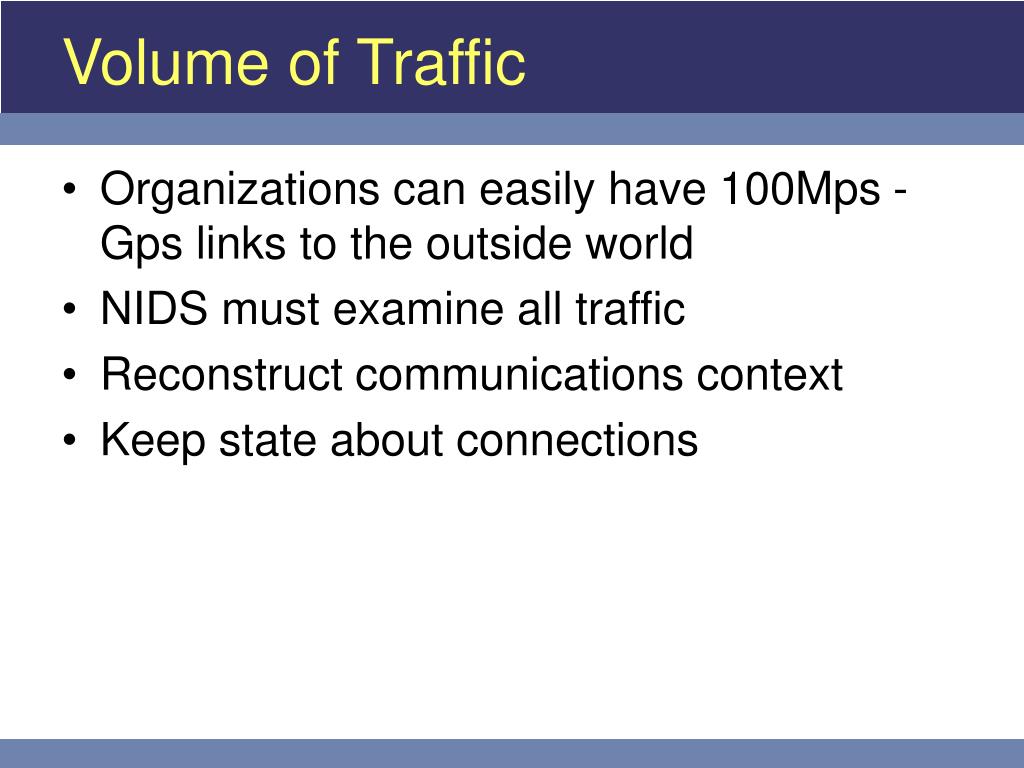

36. Volume of Traffic • Organizations can easily have 100Mps - Gps links to the outside world • NIDS must examine all traffic • Reconstruct communications context • Keep state about connections

37. Attacks on Monitor • Deliberate attacks on monitor can compromise detection • Step 1: • Overload monitor • Cause it to crash • Step 2: • Carry out attack • Performance becomes an adversarial task

38. Speed of Processing • Discard things that aren’t interesting • Packet filters • Fast rules for selecting interesting packets • Flow rules • Ignore flow after it’s deemed safe / uninteresting • E.g. look at first 1000 bytes of connection • Parallelize • Can work to a limited extent

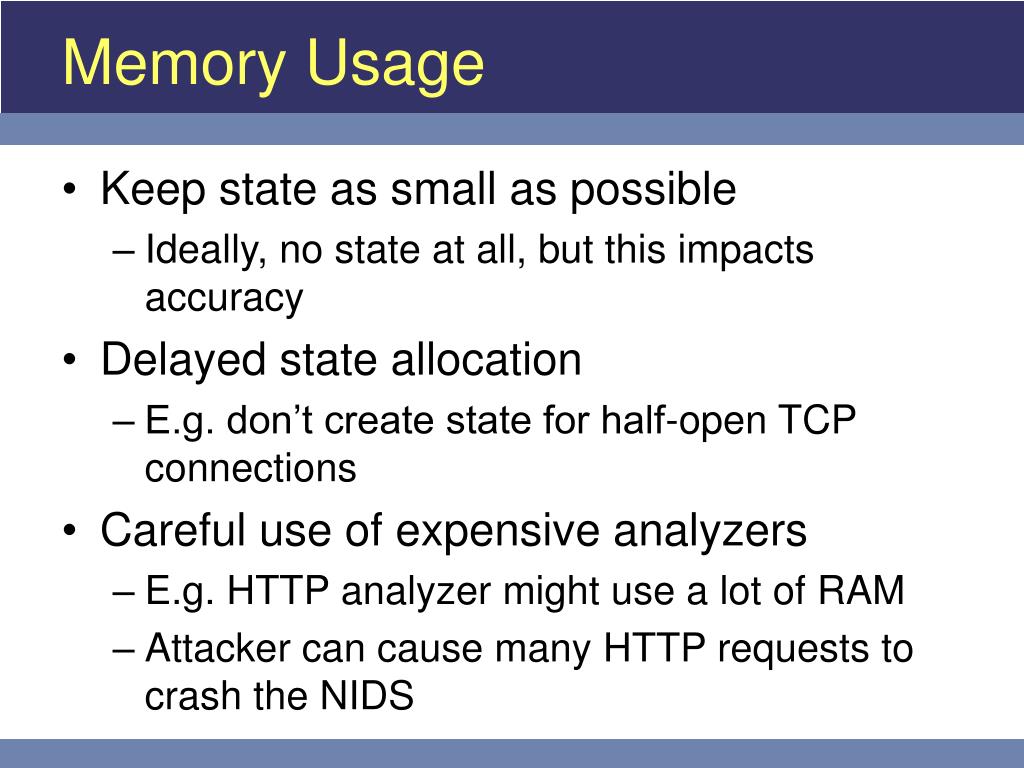

39. Memory Usage • Keep state as small as possible • Ideally, no state at all, but this impacts accuracy • Delayed state allocation • E.g. don’t create state for half-open TCP connections • Careful use of expensive analyzers • E.g. HTTP analyzer might use a lot of RAM • Attacker can cause many HTTP requests to crash the NIDS

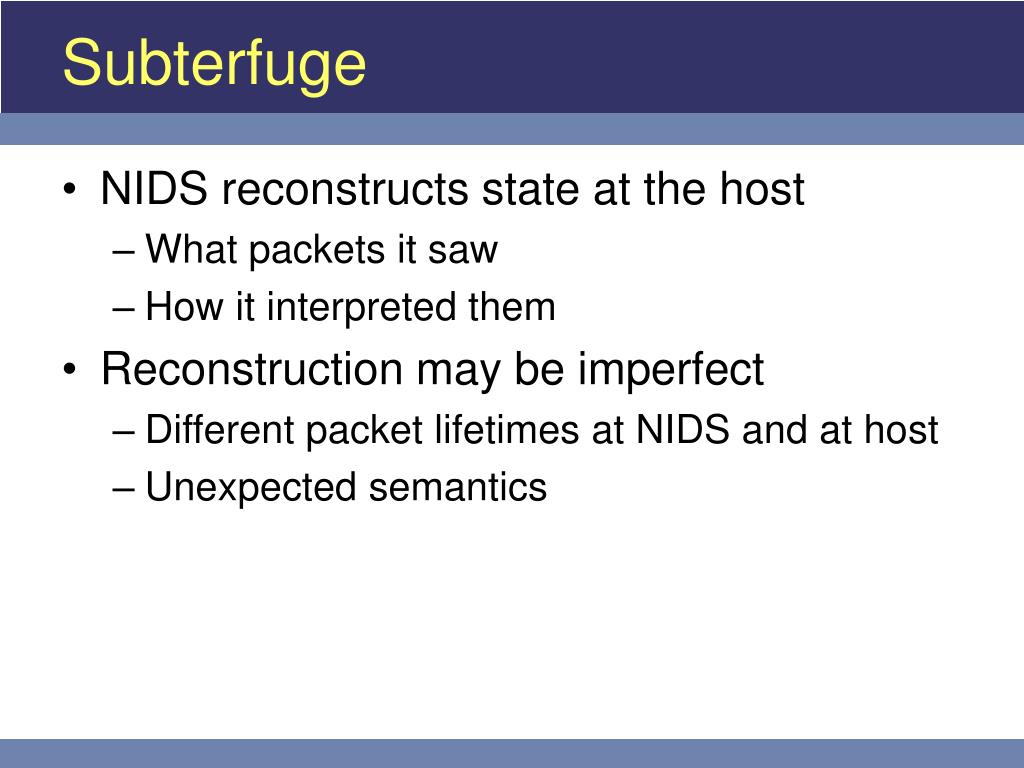

40. Subterfuge • NIDS reconstructs state at the host • What packets it saw • How it interpreted them • Reconstruction may be imperfect • Different packet lifetimes at NIDS and at host • Unexpected semantics

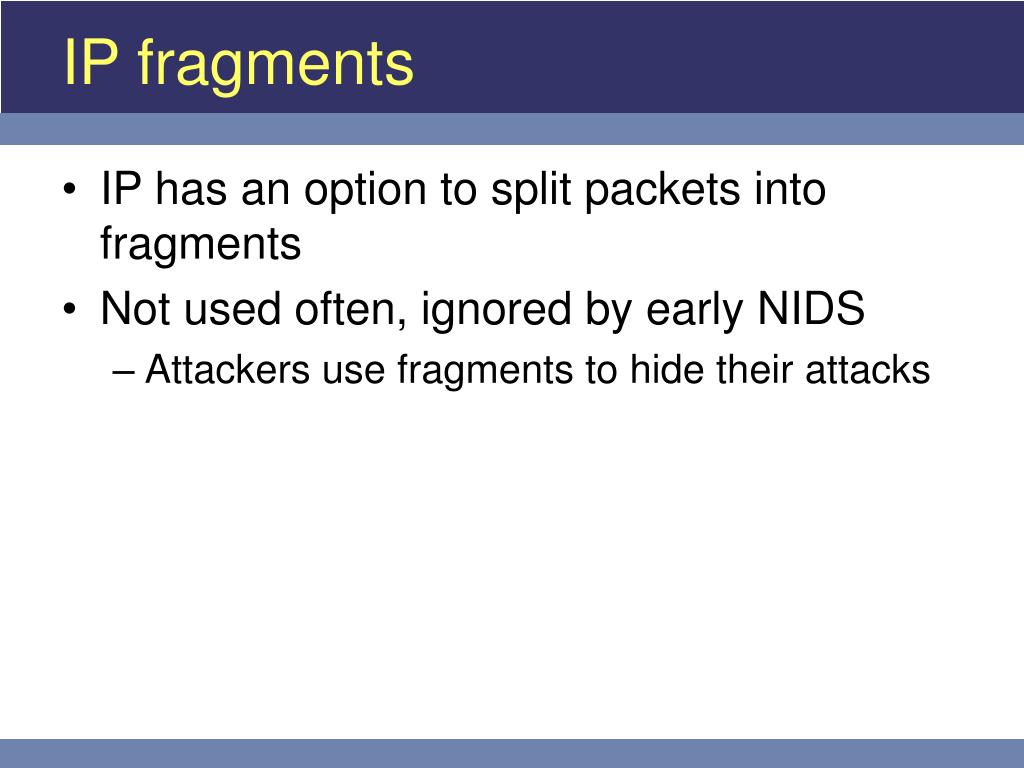

41. IP fragments • IP has an option to split packets into fragments • Not used often, ignored by early NIDS • Attackers use fragments to hide their attacks

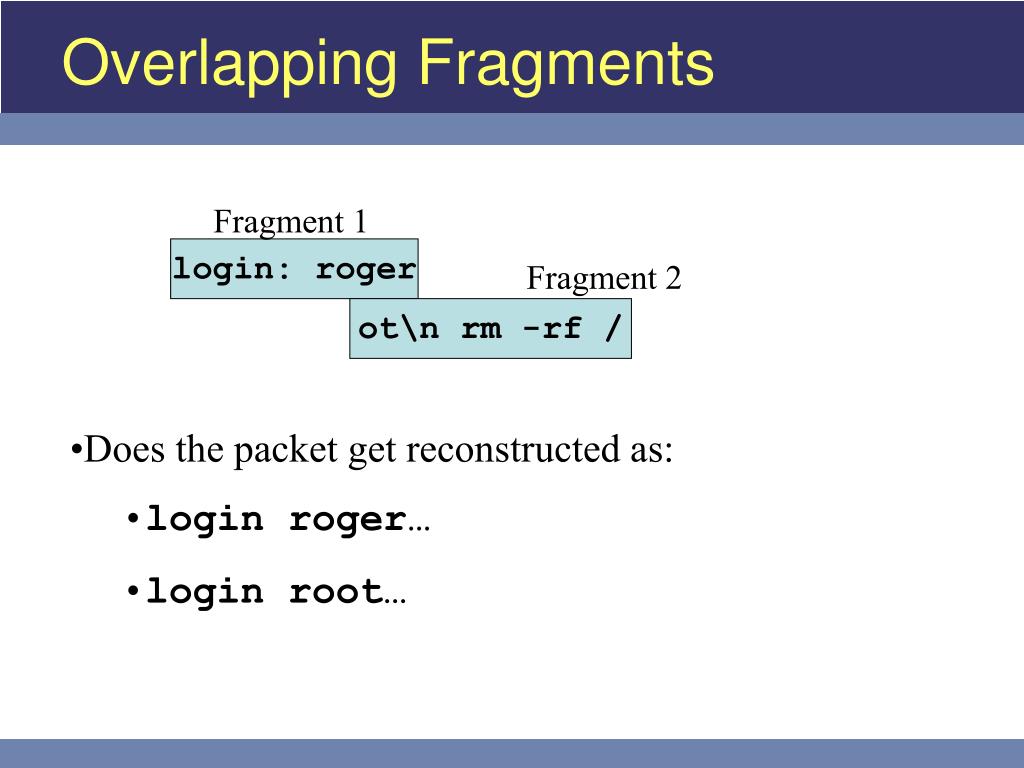

42. Overlapping Fragments Fragment 1 login: roger Fragment 2 ot\n rm -rf / • Does the packet get reconstructed as: • login roger… • login root…

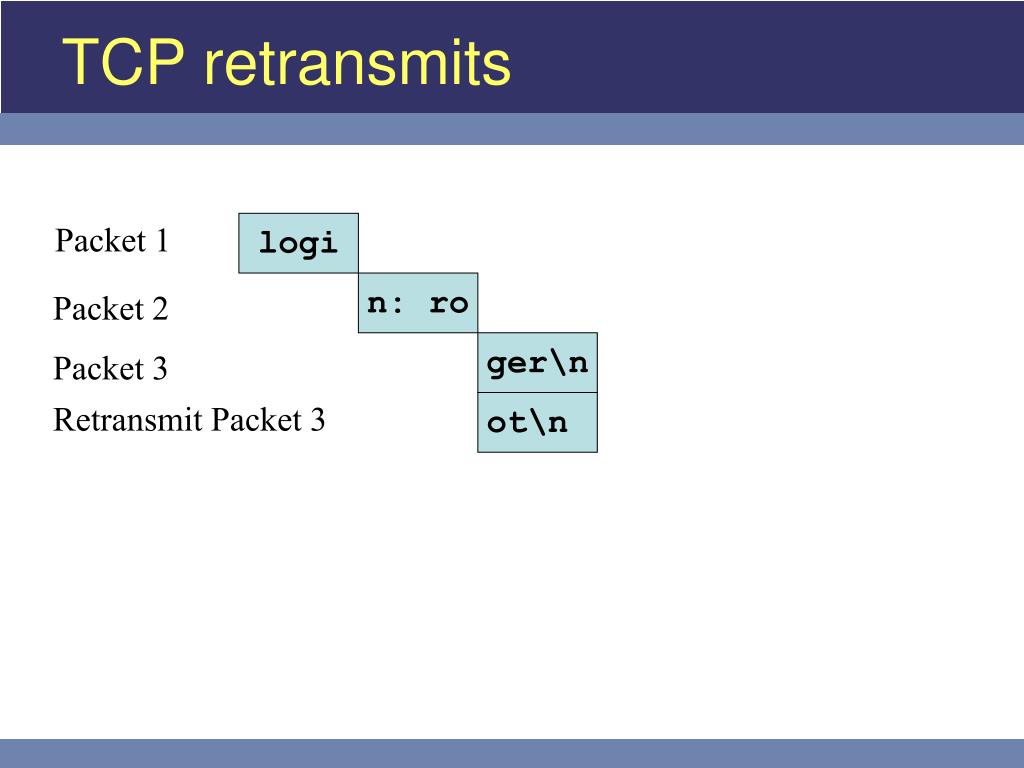

43. TCP retransmits Packet 1 logi n: ro Packet 2 ger\n Packet 3 Retransmit Packet 3 ot\n

44. Network Tricks • Time-to-Live (TTL) field • Set TTL low enough so that NIDS sees the packet, but host doesn’t • NIDS may be able to detect this, but only if it knows distance to all hosts • Don’t Fragment (DF) flag • If a link between the NIDS & the host has small MTU size, DF flag could cause the packet to be dropped • …

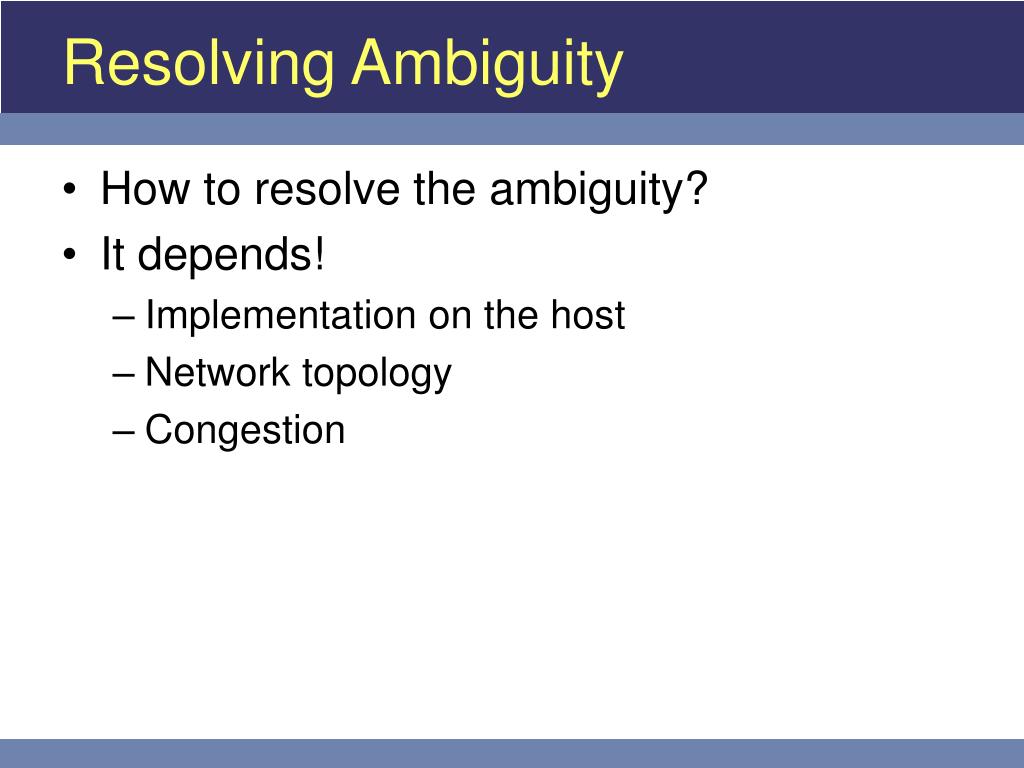

45. Resolving Ambiguity • How to resolve the ambiguity? • It depends! • Implementation on the host • Network topology • Congestion

46. Bifurcation • Solution 1: Split Analysis • Spawn two threads, each making an alternate choice • Watch host response, kill any thread that’s inconsistent with host behavior • Expensive • May be exploited by attackers • Generates false alarms

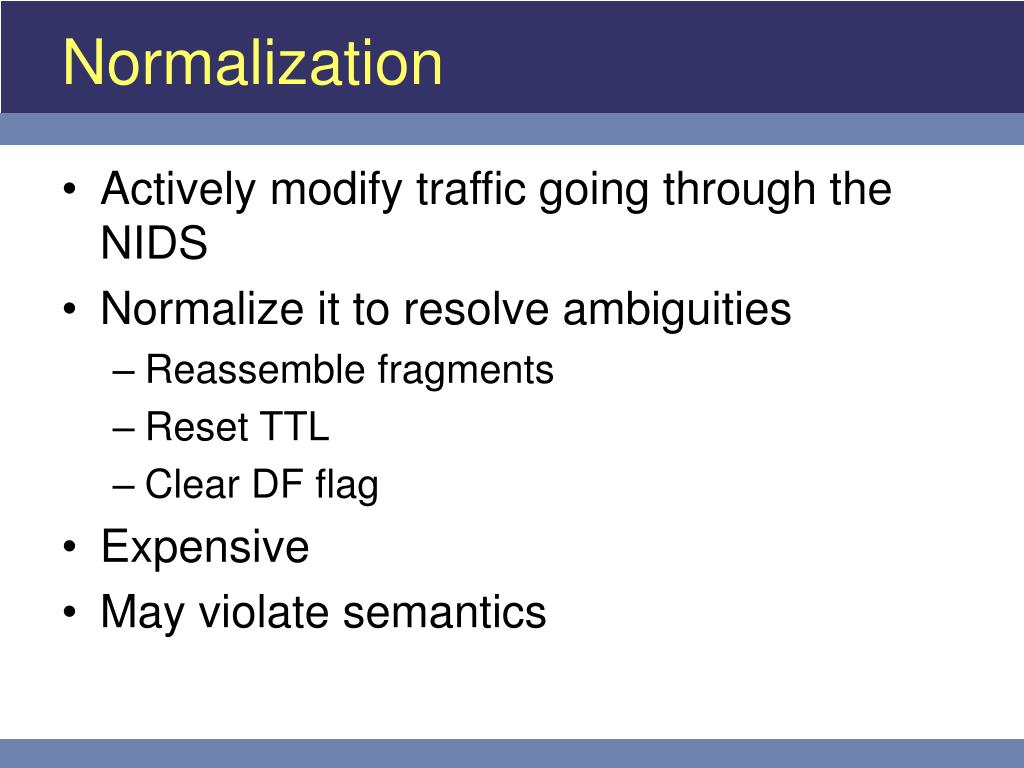

47. Normalization • Actively modify traffic going through the NIDS • Normalize it to resolve ambiguities • Reassemble fragments • Reset TTL • Clear DF flag • Expensive • May violate semantics

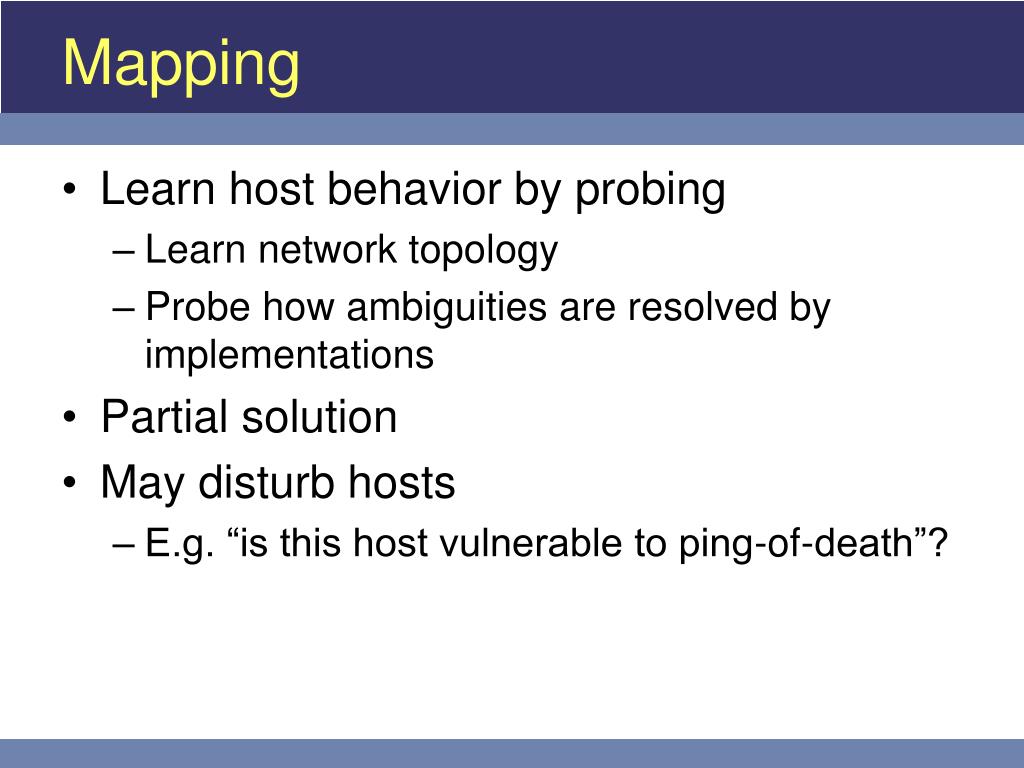

48. Mapping • Learn host behavior by probing • Learn network topology • Probe how ambiguities are resolved by implementations • Partial solution • May disturb hosts • E.g. “is this host vulnerable to ping-of-death”?

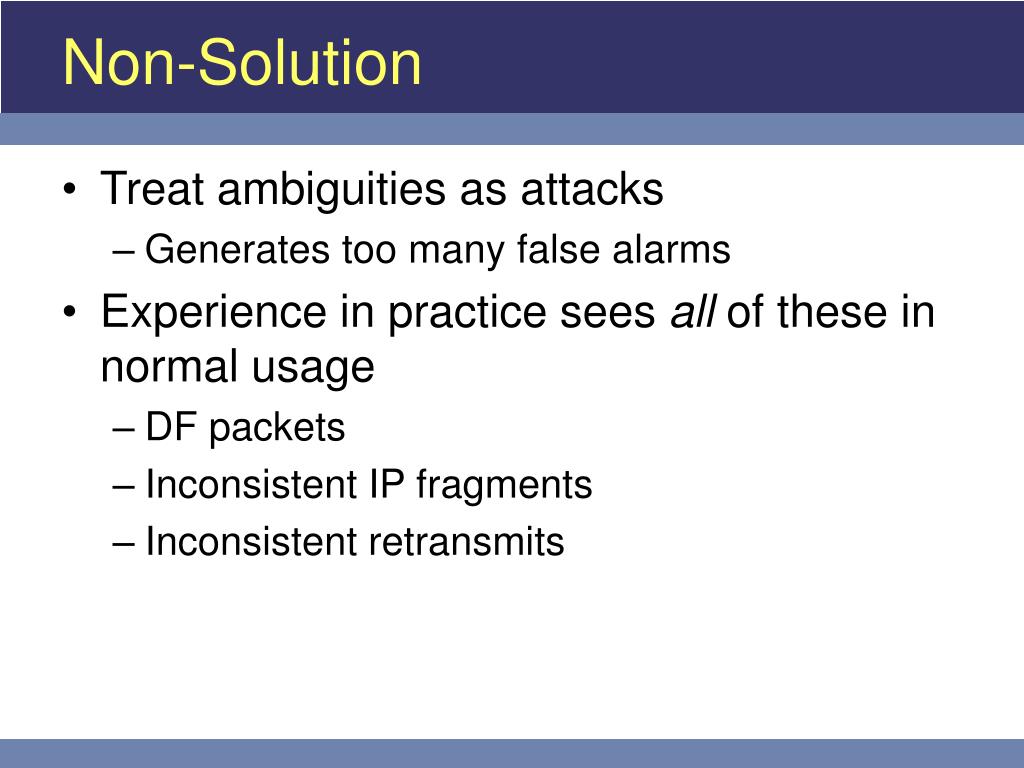

49. Non-Solution • Treat ambiguities as attacks • Generates too many false alarms • Experience in practice sees all of these in normal usage • DF packets • Inconsistent IP fragments • Inconsistent retransmits

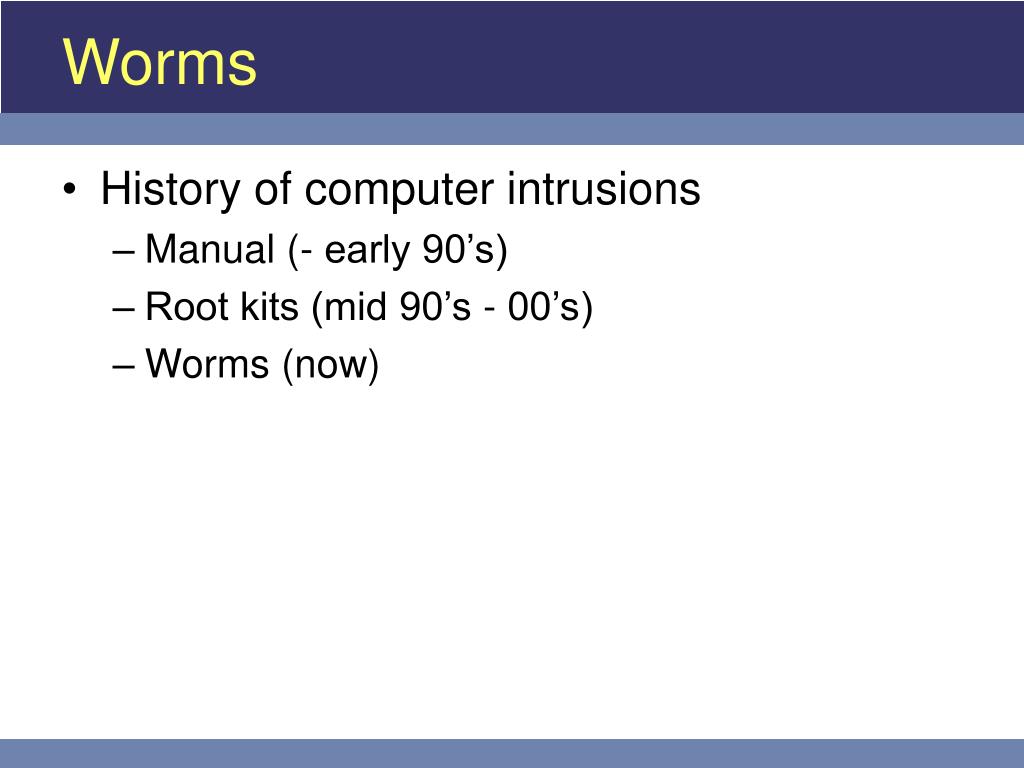

50. Worms • History of computer intrusions • Manual (- early 90’s) • Root kits (mid 90’s - 00’s) • Worms (now)
