Data Structures and Algorithms

1. Data Structures and Algorithms (Linked List) Instructor: Quratulain

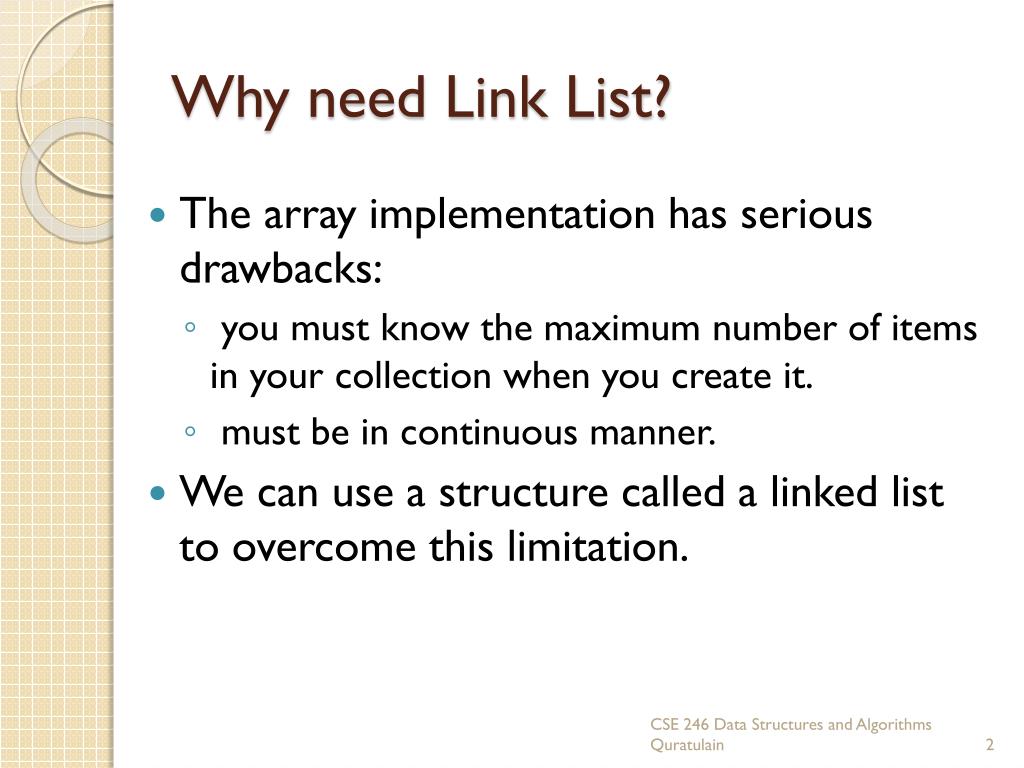

2. Why need Link List? • The array implementation has serious drawbacks: • you must know the maximum number of items in your collection when you create it. • must be in continuous manner. • We can use a structure called a linked list to overcome this limitation. CSE 246 Data Structures and Algorithms Quratulain

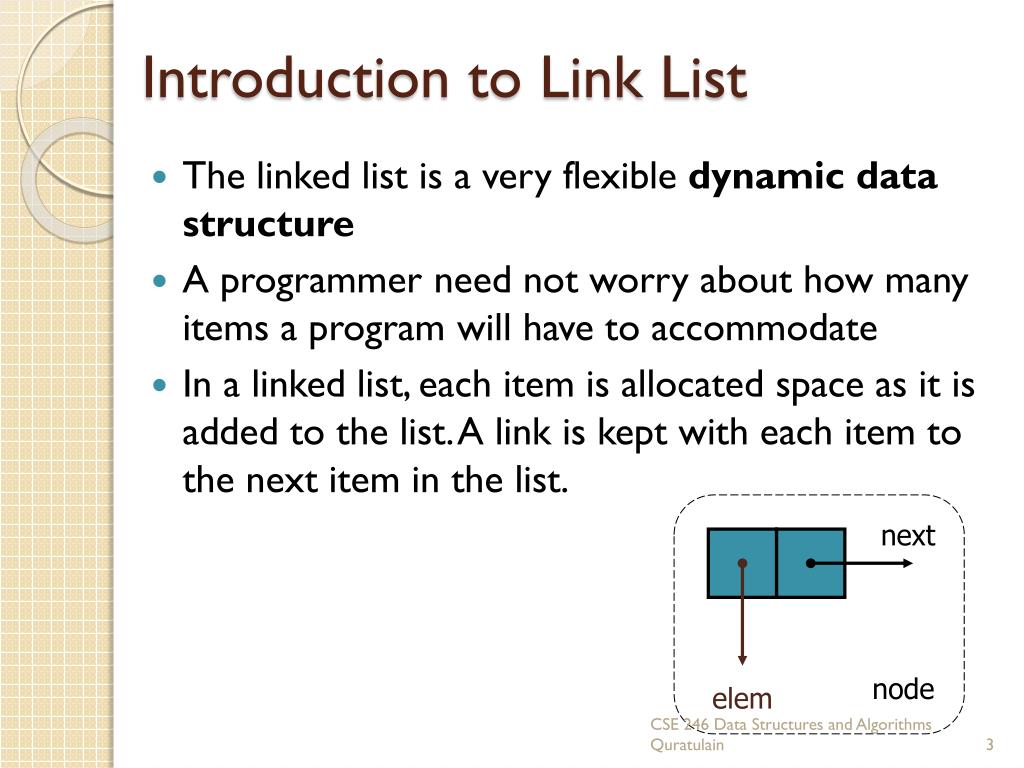

3. Introduction to Link List • The linked list is a very flexible dynamic data structure • A programmer need not worry about how many items a program will have to accommodate • In a linked list, each item is allocated space as it is added to the list. A link is kept with each item to the next item in the list. next node elem CSE 246 Data Structures and Algorithms Quratulain

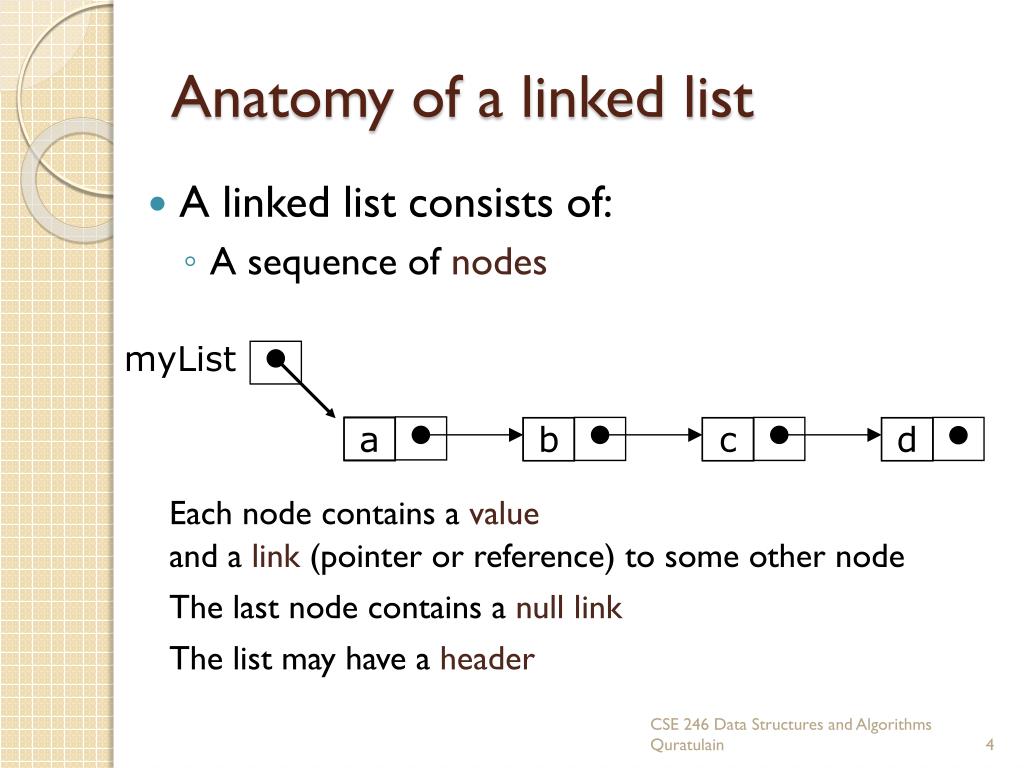

4. myList a b c d Anatomy of a linked list • A linked list consists of: • A sequence of nodes • Each node contains a value and a link (pointer or reference) to some other node The last node contains a null link The list may have a header CSE 246 Data Structures and Algorithms Quratulain

5. More terminology • A node’s successor is the next node in the sequence • The last node has no successor • A node’s predecessor is the previous node in the sequence • The first node has no predecessor • A list’s length is the number of elements in it • A list may be empty (contain no elements) CSE 246 Data Structures and Algorithms Quratulain

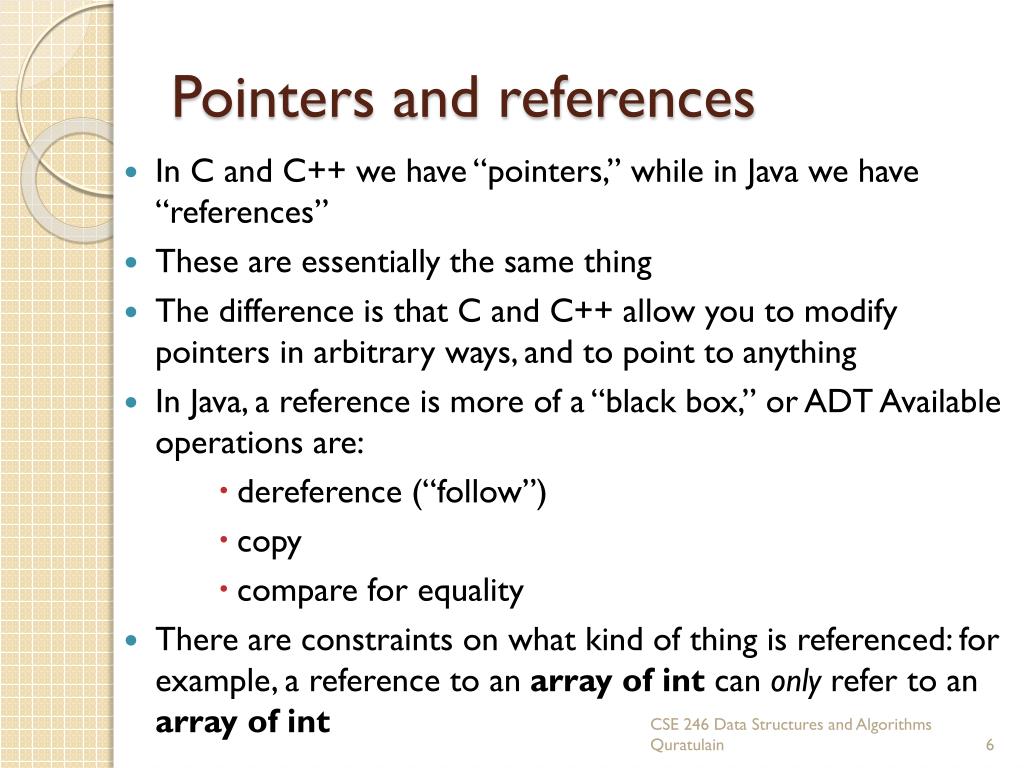

6. Pointers and references • In C and C++ we have “pointers,” while in Java we have “references” • These are essentially the same thing • The difference is that C and C++ allow you to modify pointers in arbitrary ways, and to point to anything • In Java, a reference is more of a “black box,” or ADT Available operations are: • dereference (“follow”) • copy • compare for equality • There are constraints on what kind of thing is referenced: for example, a reference to an array of intcan only refer to an array of int CSE 246 Data Structures and Algorithms Quratulain

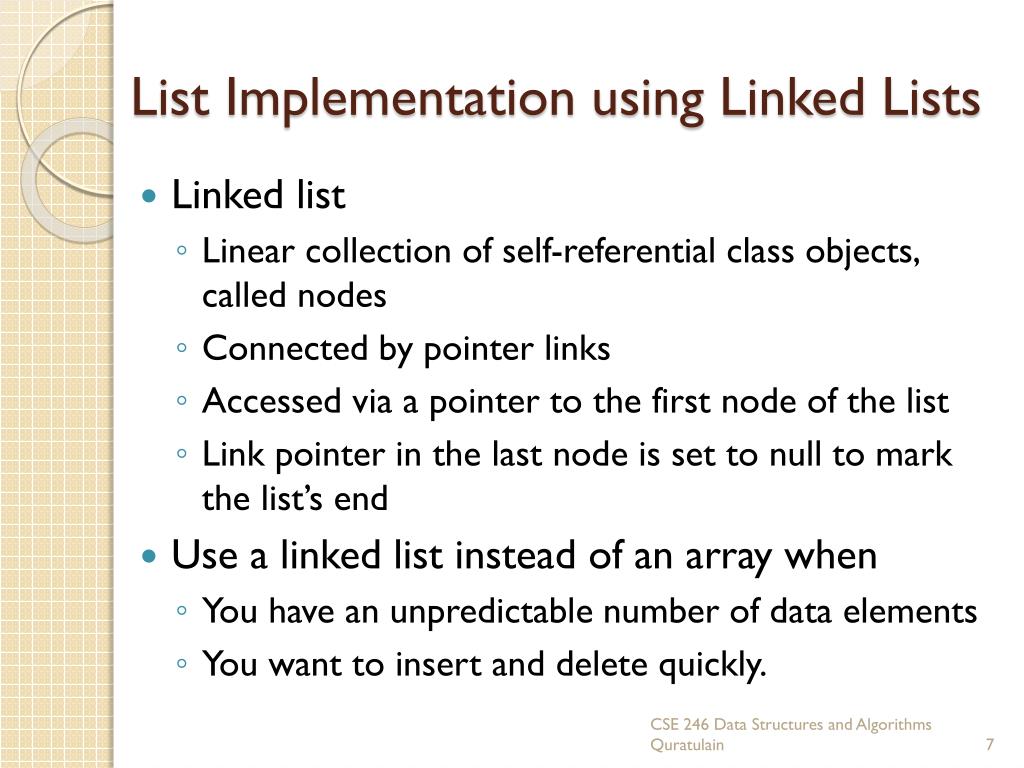

7. List Implementation using Linked Lists • Linked list • Linear collection of self-referential class objects, called nodes • Connected by pointer links • Accessed via a pointer to the first node of the list • Link pointer in the last node is set to null to mark the list’s end • Use a linked list instead of an array when • You have an unpredictable number of data elements • You want to insert and delete quickly. CSE 246 Data Structures and Algorithms Quratulain

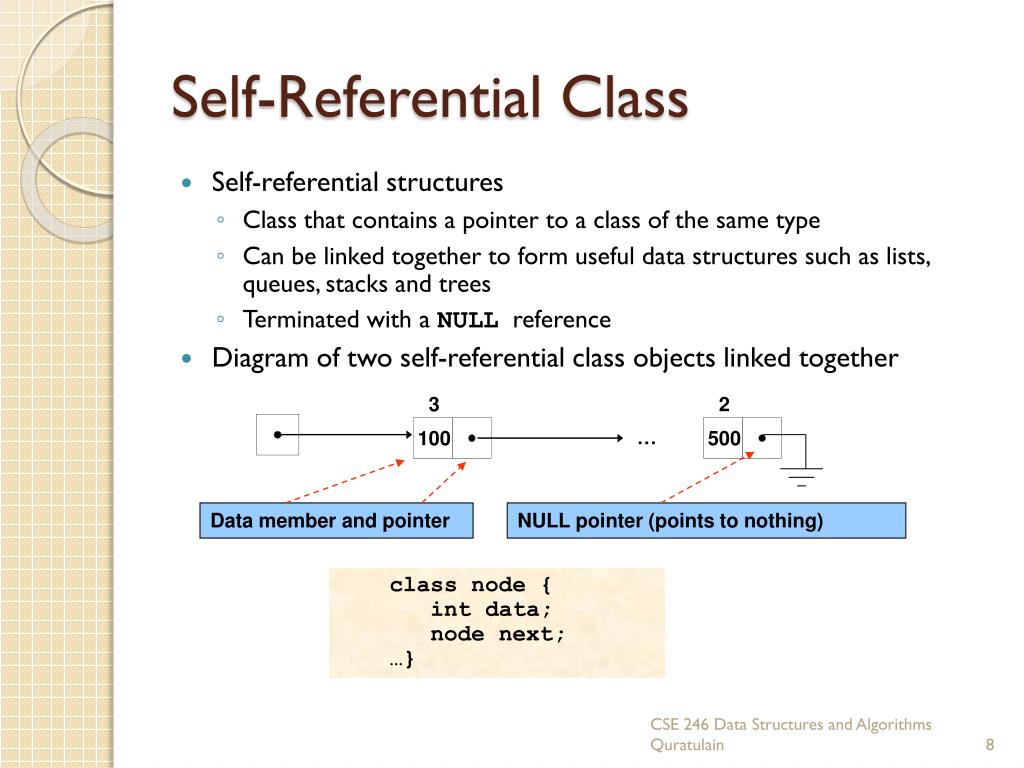

8. 3 2 100 … 500 Data member and pointer NULL pointer (points to nothing) Self-Referential Class • Self-referential structures • Class that contains a pointer to a class of the same type • Can be linked together to form useful data structures such as lists, queues, stacks and trees • Terminated with a NULL reference • Diagram of two self-referential class objects linked together class node { int data; node next;…} CSE 246 Data Structures and Algorithms Quratulain

9. Creating references • The keyword new creates a new object, but also returns a reference to that object • For example, Person p = new Person("John") • new Person("John")creates the object and returns a reference to it • We can assign this reference to p, or use it in other ways CSE 246 Data Structures and Algorithms Quratulain

10. myList: 44 97 23 17 Creating links in Java • class node { int value;node next; • node (int v, node n) { // constructor value = v; next = n;} • } • node temp = new node(17, null); • temp = new node(23, temp); • temp = new node(97, temp); • node myList = new node(44, temp); CSE 246 Data Structures and Algorithms Quratulain

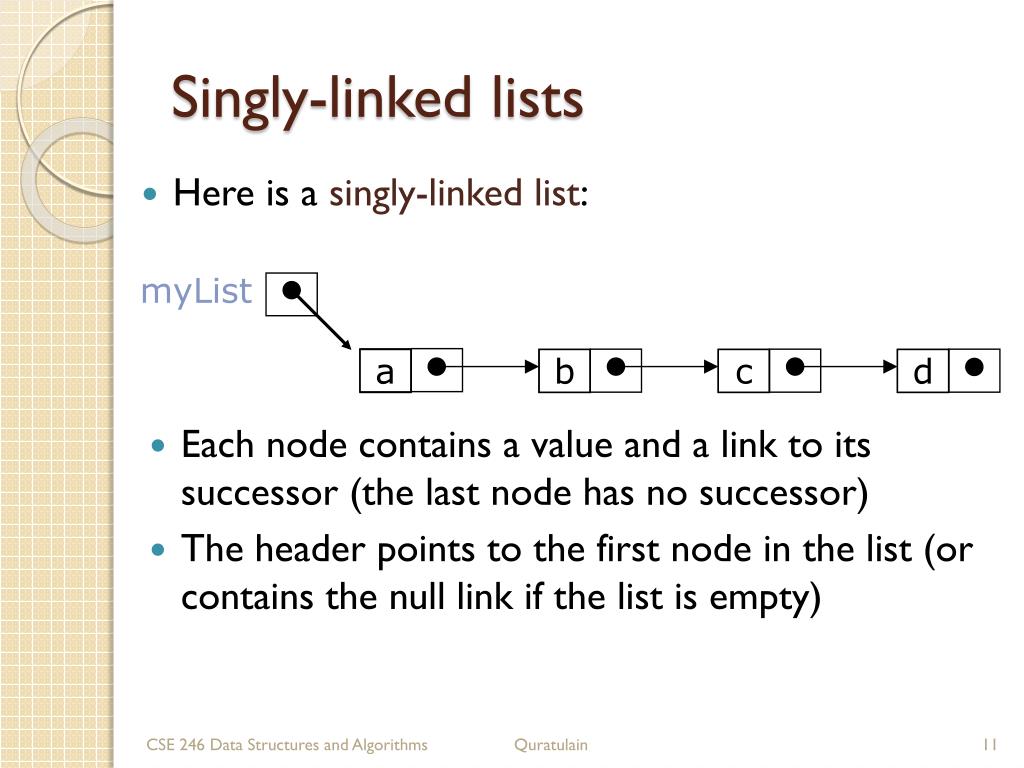

11. Here is a singly-linked list: Each node contains a value and a link to its successor (the last node has no successor) The header points to the first node in the list (or contains the null link if the list is empty) myList a b c d Singly-linked lists CSE 246 Data Structures and Algorithms Quratulain

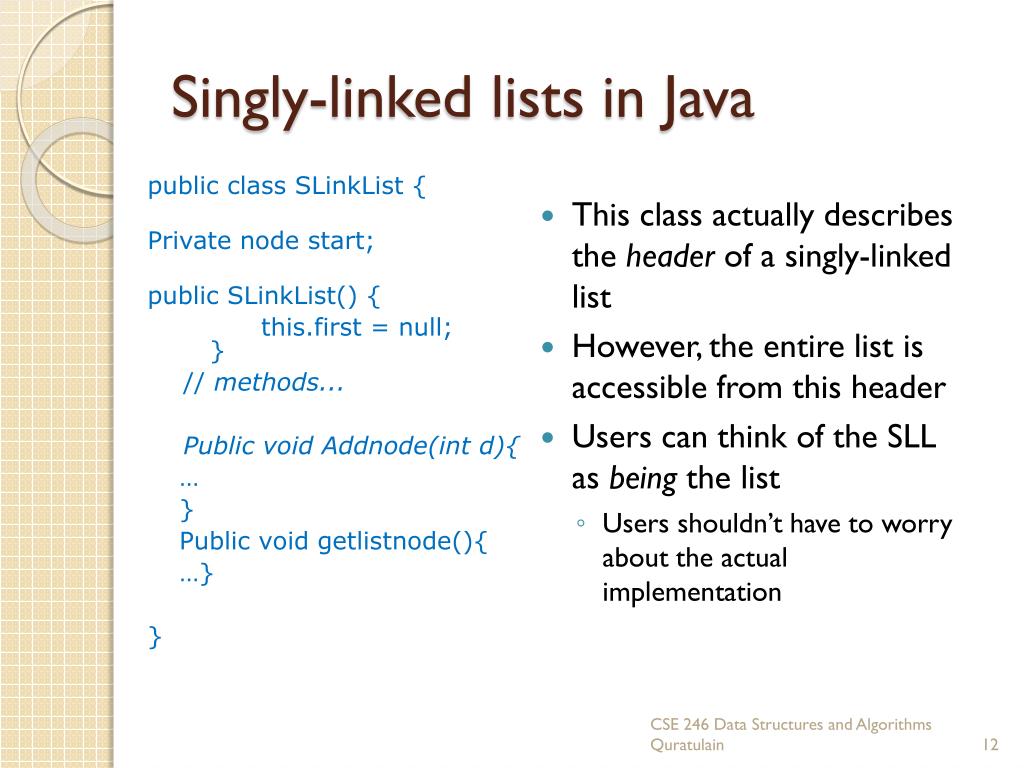

12. public class SLinkList{ Private node start; public SLinkList() { this.first = null;} // methods... Public void Addnode(int d){ … } Public void getlistnode(){ …} } This class actually describes the header of a singly-linked list However, the entire list is accessible from this header Users can think of the SLL as being the list Users shouldn’t have to worry about the actual implementation Singly-linked lists in Java CSE 246 Data Structures and Algorithms Quratulain

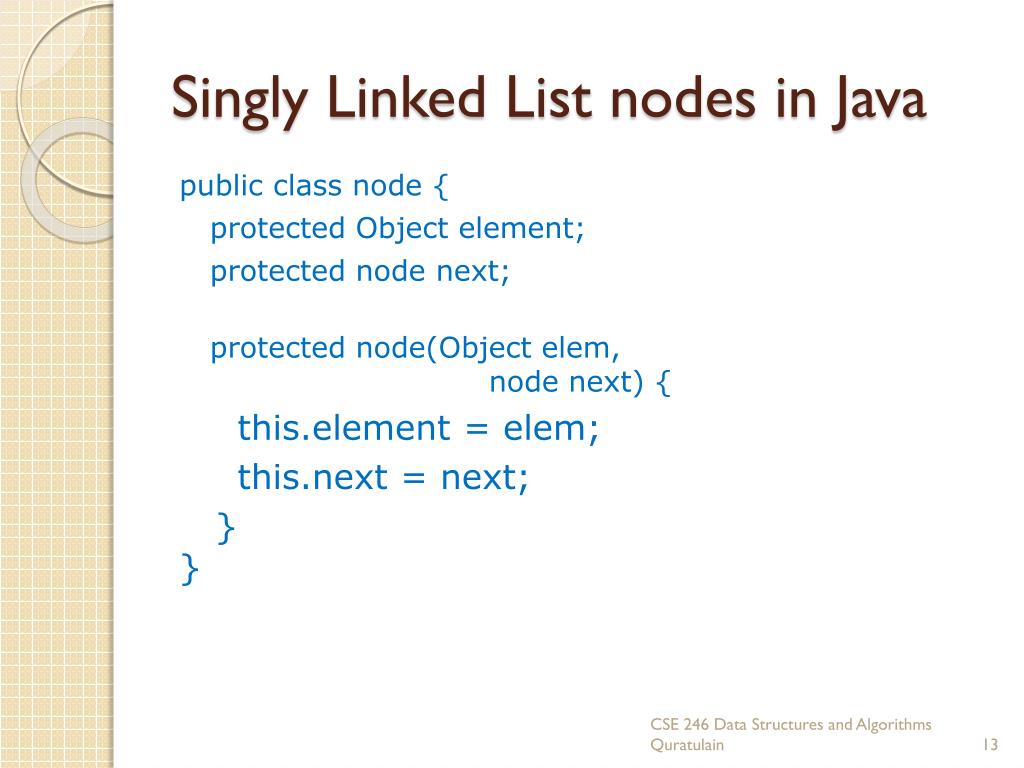

13. Singly Linked List nodes in Java • public class node { • protected Object element; • protected node next; • protected node(Object elem, node next) { • this.element= elem; • this.next= next; • }} CSE 246 Data Structures and Algorithms Quratulain

14. numerals two three one Creating a simple list • To create the list ("one", "two", "three"): • SLinkListnumerals = new SLinkList(); • Numerals.start= new node("one", new node("two", new node("three", null))); CSE 246 Data Structures and Algorithms Quratulain

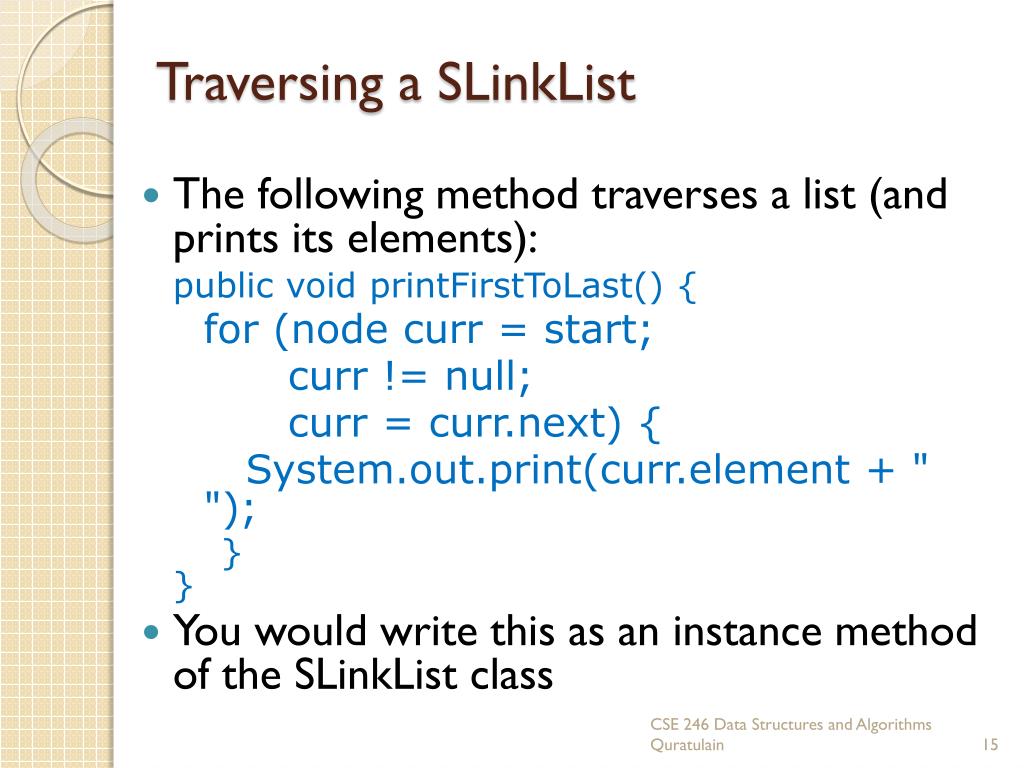

15. Traversing a SLinkList • The following method traverses a list (and prints its elements): • public void printFirstToLast() { • for (node curr = start; • curr != null; • curr = curr.next) { • System.out.print(curr.element + " "); • }} • You would write this as an instance method of the SLinkListclass CSE 246 Data Structures and Algorithms Quratulain

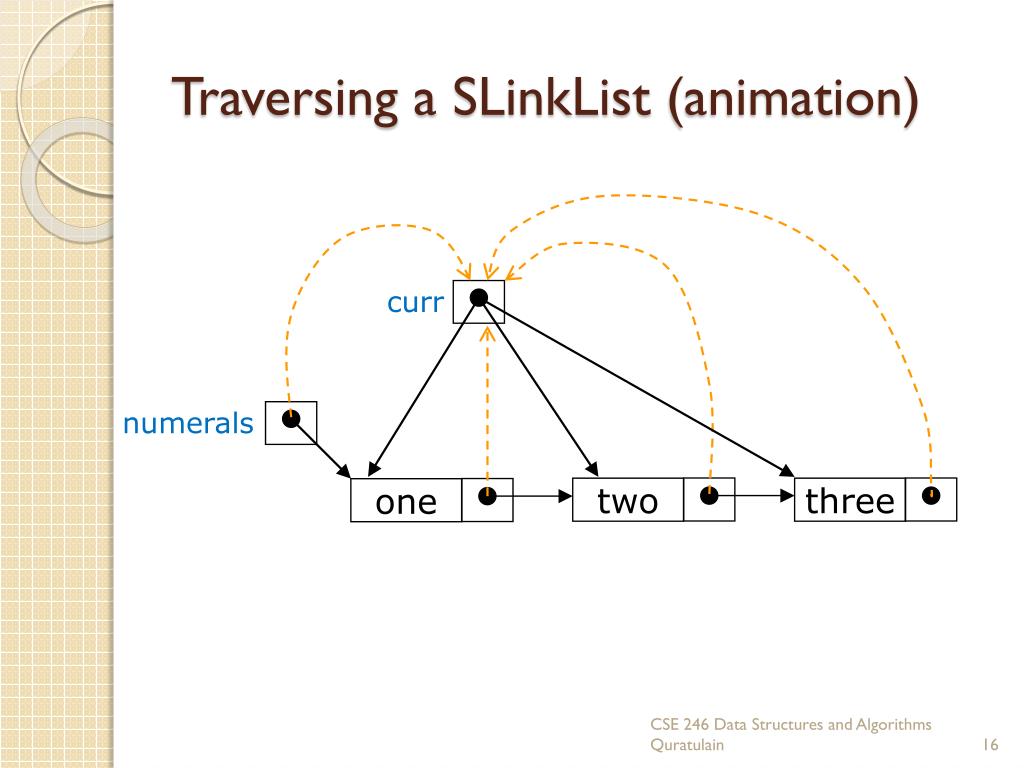

16. curr numerals two three one Traversing a SLinkList(animation) CSE 246 Data Structures and Algorithms Quratulain

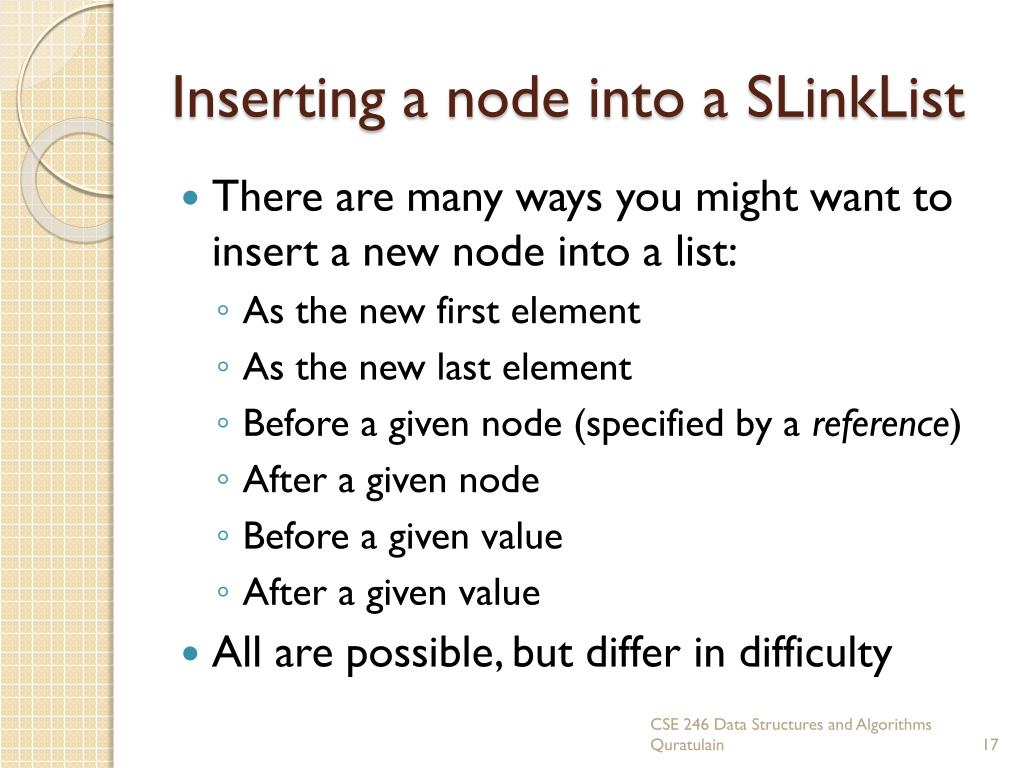

17. Inserting a node into a SLinkList • There are many ways you might want to insert a new node into a list: • As the new first element • As the new last element • Before a given node (specified by a reference) • After a given node • Before a given value • After a given value • All are possible, but differ in difficulty CSE 246 Data Structures and Algorithms Quratulain

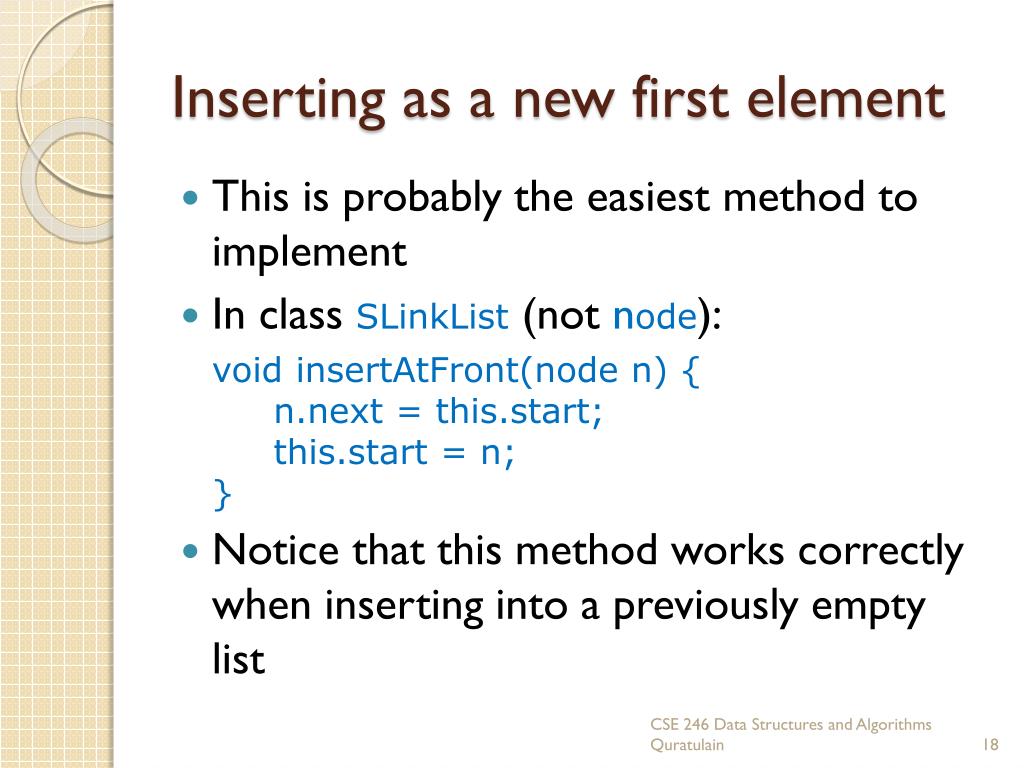

18. Inserting as a new first element • This is probably the easiest method to implement • In class SLinkList(not node): • void insertAtFront(node n) {n.next= this.start;this.start= n;} • Notice that this method works correctly when inserting into a previously empty list CSE 246 Data Structures and Algorithms Quratulain

19. Inserting a node after a given value void insertAfter(Object obj, node n) { for(node here =this.start; here != null;here= here.next) { if (here.element.equals(obj)) { n.next= here. next; here. next = n; return; }// if }// for // Couldn't insert--do something reasonable! } CSE 246 Data Structures and Algorithms Quratulain

20. n 2.5 numerals two three one Inserting after (animation) Find the node you want to insert after First,copy the link from the node that's already in the list Then, change the link in the node that's already in the list CSE 246 Data Structures and Algorithms Quratulain

21. Deleting a node from a SLinkList • In order to delete a node from a SLL, you have to change the link in its predecessor • This is slightly tricky, because you can’t follow a pointer backwards • Deleting the first node in a list is a special case, because the node’s predecessor is the list header CSE 246 Data Structures and Algorithms Quratulain

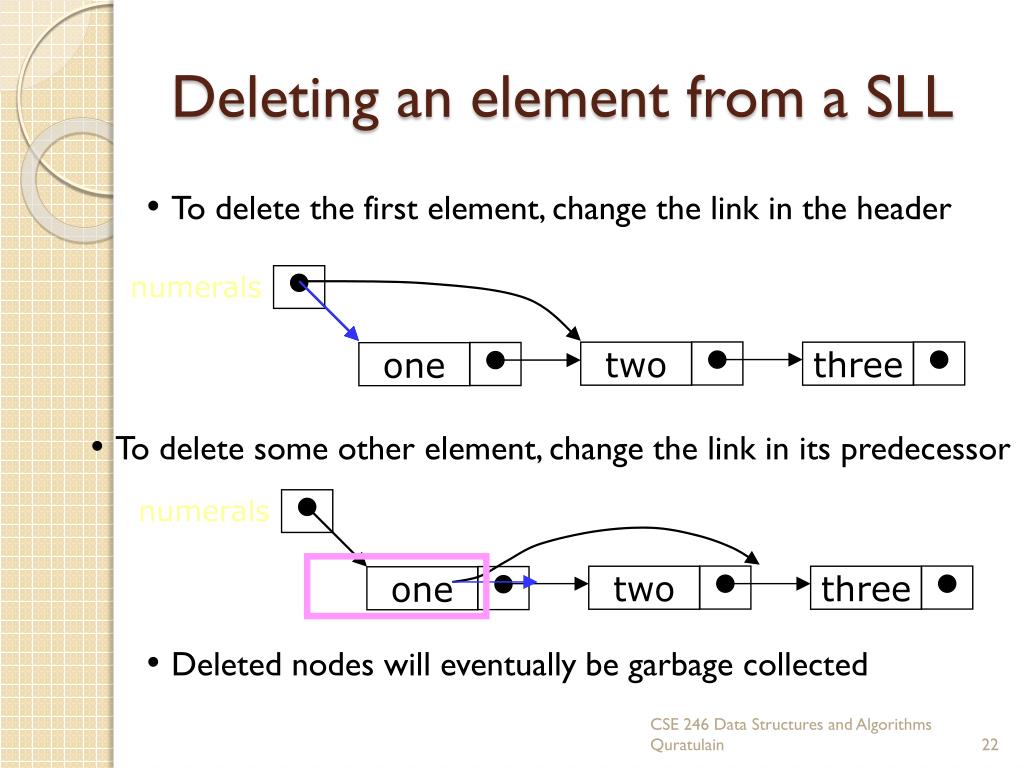

22. numerals two three one numerals two three one Deleting an element from a SLL • To delete the first element, change the link in the header • To delete some other element, change the link in its predecessor • Deleted nodes will eventually be garbage collected CSE 246 Data Structures and Algorithms Quratulain

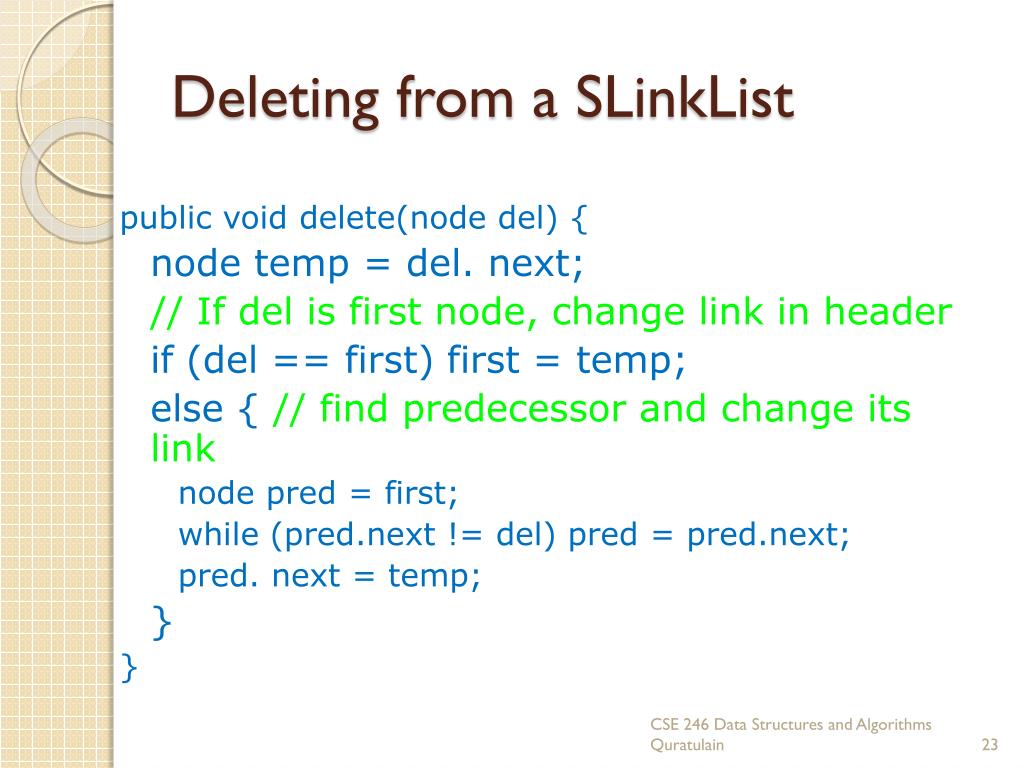

23. Deleting from a SLinkList • public void delete(node del) { • node temp = del. next; • // If del is first node, change link in header • if (del == first) first = temp; • else { // find predecessor and change its link • node pred = first; • while (pred.next!= del) pred = pred.next; • pred. next= temp; • } • } CSE 246 Data Structures and Algorithms Quratulain

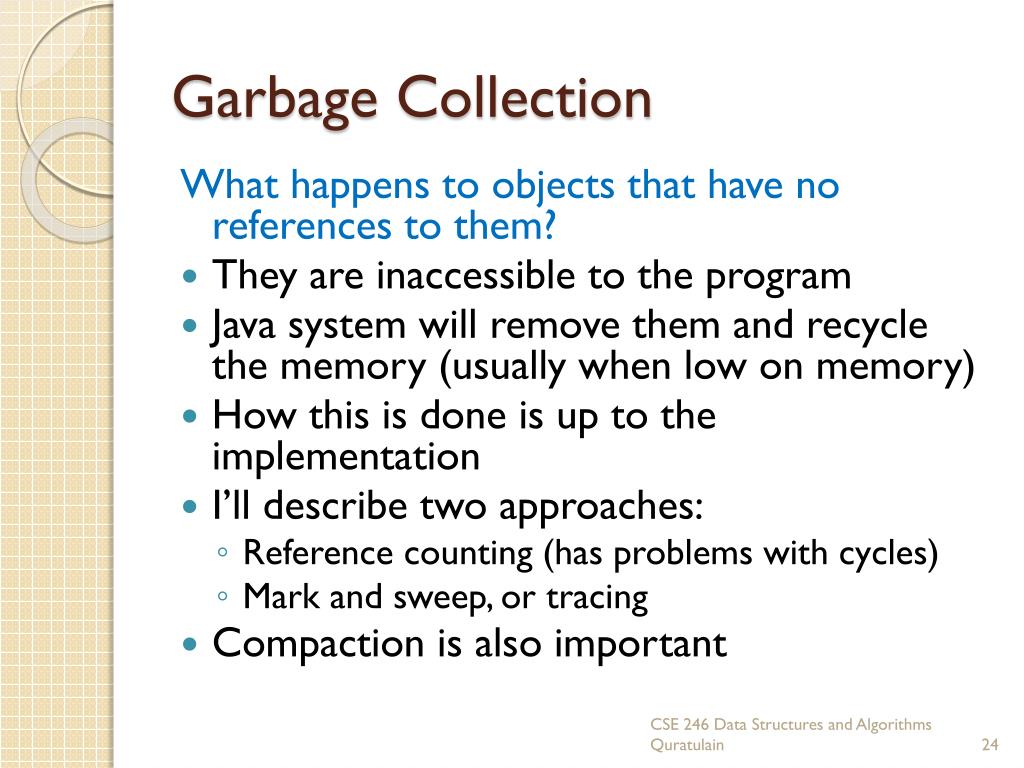

24. Garbage Collection What happens to objects that have no references to them? • They are inaccessible to the program • Java system will remove them and recycle the memory (usually when low on memory) • How this is done is up to the implementation • I’ll describe two approaches: • Reference counting (has problems with cycles) • Mark and sweep, or tracing • Compaction is also important CSE 246 Data Structures and Algorithms Quratulain

25. Here is a doubly-linked list (DLinkList): Each node contains a value, a link to its successor (if any), and a link to its predecessor (if any) The header points to the first node in the list and to the last node in the list (or contains null links if the list is empty) myDLinkList a b c Doubly-linked lists CSE 246 Data Structures and Algorithms Quratulain

26. Advantages: Can be traversed in either direction (may be essential for some programs) Some operations, such as deletion and inserting before a node, become easier Disadvantages: Requires more space List manipulations are slower (because more links must be changed) Greater chance of having bugs (because more links must be manipulated) DLinkListscompared to SLinkLists CSE 246 Data Structures and Algorithms Quratulain

27. public class SLinkList{ private node first; public SLinkList () { this.first = null;} // methods... } public class DLinkList{ private node first; private node last; public DLinkList () { this.first = null; this.last = null;} // methods... } Constructing SLinkListsand DLinkLists CSE 246 Data Structures and Algorithms Quratulain

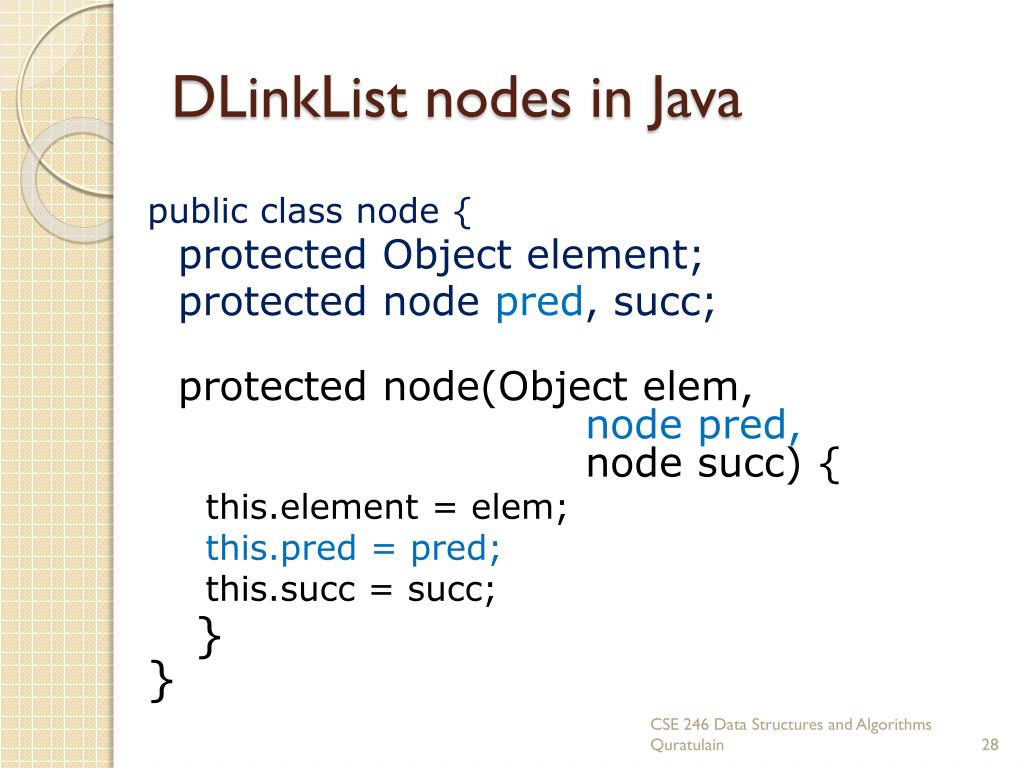

28. DLinkListnodes in Java • public class node { • protected Object element; • protected node pred, succ; • protected node(Object elem,node pred,node succ) { • this.element = elem; • this.pred = pred; • this.succ = succ; • }} CSE 246 Data Structures and Algorithms Quratulain

29. Node deletion from a DLinkListinvolves changing two links Deletion of the first node or the last node is a special case Garbage collection will take care of deleted nodes myDLinkList a b c Deleting a node from a DLinkList CSE 246 Data Structures and Algorithms Quratulain

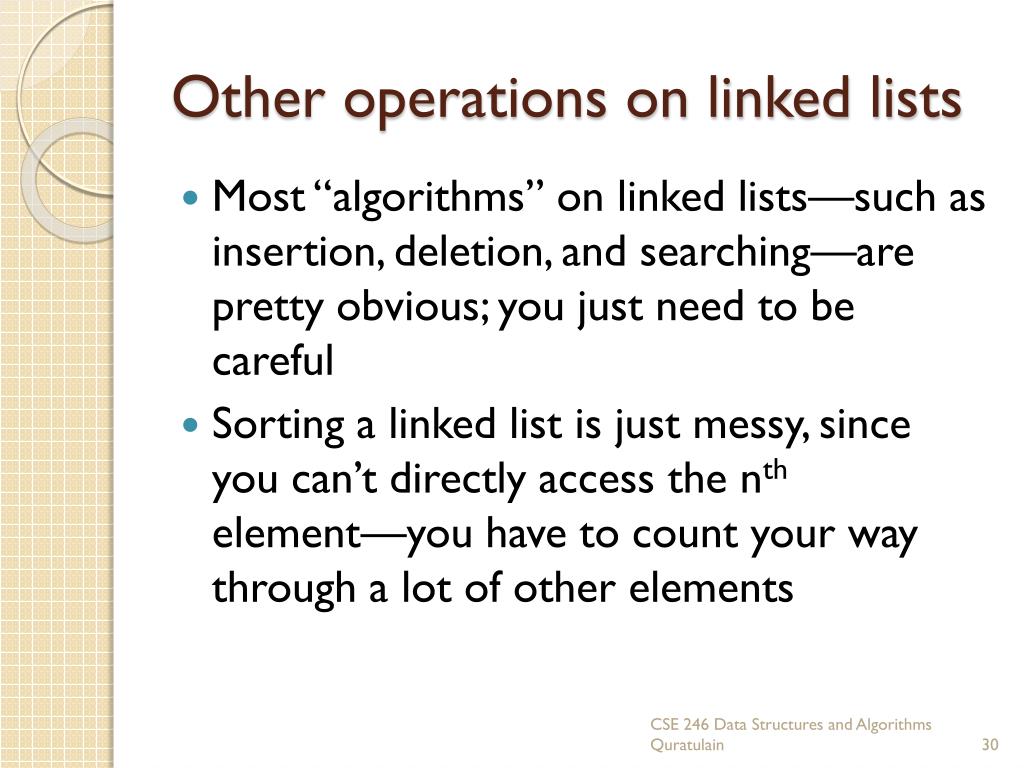

30. Other operations on linked lists • Most “algorithms” on linked lists—such as insertion, deletion, and searching—are pretty obvious; you just need to be careful • Sorting a linked list is just messy, since you can’t directly access the nth element—you have to count your way through a lot of other elements CSE 246 Data Structures and Algorithms Quratulain

31. Analyzing the Singly Linked List Method Time Inserting at the head O(1) Inserting at the tail O(1) Deleting at the head O(1) Deleting at the tail O(n) CSE 246 Data Structures and Algorithms Quratulain

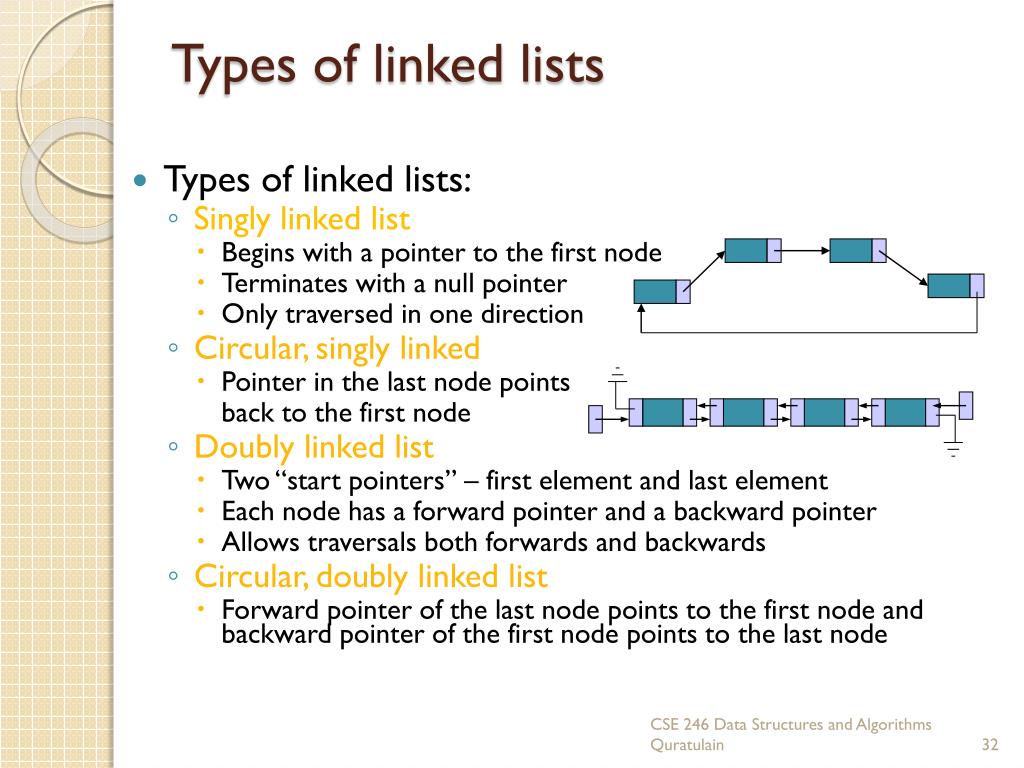

32. Types of linked lists • Types of linked lists: • Singly linked list • Begins with a pointer to the first node • Terminates with a null pointer • Only traversed in one direction • Circular, singly linked • Pointer in the last node points back to the first node • Doubly linked list • Two “start pointers” – first element and last element • Each node has a forward pointer and a backward pointer • Allows traversals both forwards and backwards • Circular, doubly linked list • Forward pointer of the last node points to the first node and backward pointer of the first node points to the last node CSE 246 Data Structures and Algorithms Quratulain

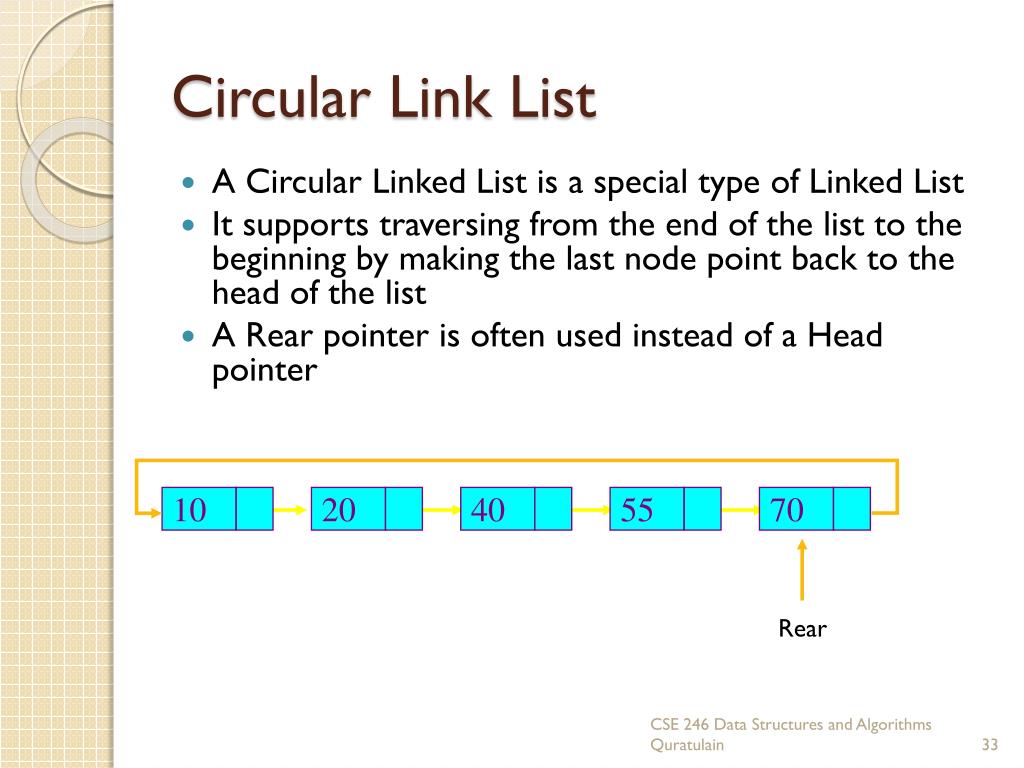

33. 10 20 40 70 55 Circular Link List • A Circular Linked List is a special type of Linked List • It supports traversing from the end of the list to the beginning by making the last node point back to the head of the list • A Rear pointer is often used instead of a Head pointer Rear CSE 246 Data Structures and Algorithms Quratulain

34. Circular linked lists • Circular linked lists are usually sorted • Circular linked lists are useful for playing video and sound files in “looping” mode • They are also a stepping stone to implementing graphs. CSE 246 Data Structures and Algorithms Quratulain

35. Issues with circular list • How do you know when you’re done? • Make sure you save the head reference. • When (cur.next == head) you’ve reached the end • How are insertion and deletion handled? • No special cases! • Predecessor to head node is the last node in the list. CSE 246 Data Structures and Algorithms Quratulain

36. The Josephus Problem • (One of many variations…) The founder of a startup is forced to lay off all but one employee. Not having any better way to decide, he arranges all employees in a circle and has them count off. The 10th employee in the circle is laid off, and the count begins again. The last person is not laid off. • If there are N employees, where should you sit to avoid being laid off? CSE 246 Data Structures and Algorithms Quratulain

37. Solution • Model the circle of employees as a circular linked list • Implement the counting off process, and delete the 10th employee each time • After N-1 people are deleted, there should be only one employee left. • That employee’s original position number is the solution to the problem. CSE 246 Data Structures and Algorithms Quratulain
