Network in game (I)

1. Network in game (I) Oct. 16, 2006 Courtesy of Sugih Jamin at Univ. of Michigan

2. outline • Multiplayer game • Network topology • Client-server • TCP/UDP • Synchronization • Consistency

3. Why multi-player game? • Humans are better at most strategy than current AIs • Humans are less predictable • Can play with people, communicate in natural language • Add social aspect to computer game • Provides larger environments to play in with more characters • Make money as a professional game player

4. Two types of online experience • Head-to-head death-match • Fast-pace, intense interaction/combat • No persistent state • Players from ad-hoc, short-lived sessions • Any client can be a server • Requires matchmaking service • E.g. built-in lobby • Doom, Counter-strike, StarCraft, AoE,… • Persistent world, massively multiplayer onine game (MMOG)

5. MMOG • Most MMOGs are MMORPGs • Servers keep persistent states, players can drop in anytime • Traditionally emphasized social interaction (less combat than the 1st type) • In the beginning: MUD in 1978 • Ultima Online • Everquest • Lineage and Lineage II

6. Networking in Games • Differentiate between in-game networking and backend infrastructure • Backend infrastructure • Lobby where gamers meet • Authentication and CD key checking • Accounting and billing • Ranking and ladder • Reputation and black list • Buddy lists, clans, and tournaments • Mods and patches management • Virtual economy • Beware of DDoS • Issues: scalability, adapting to failure, security

7. Networking in games • In-game networking • Client-server vs. peer-to-peer • Socket programming • Which protocol to use? • Bandwidth limitation • Latency limitation • Consistency • Cheat proofing application Library/kernel

8. Network libraries • Winsock • Directplay • A component of DirectX • Simple, small scale • Adaptive communication environment (ACE) • C++ • a freely available, open-source object-oriented framework that implements many core patterns for concurrent communication software

9. Peer-to-peer • O(N2) unicast connections • Each player is connected to directly to all other players • Each player simulates the whole world • Advantages: reduced latency, no single point of failure • Disadvantages: easier to cheat, not scalable, each client must send and receive N-1 messages • Used in Age of Empire

10. Client-server • Two favors • Ad hoc servers: death match • Dedicated servers: MMORPG • Two types of clients • Clients simulate world; server has authoritative state • Allows for client-side dead reckoning • Clients for I/O; all simulations at server • Useful for thin clients, e,g, cell phones and persistent world MMOG * Dead reckoning: the program only sends updated information about the entity's current state if it is not close enough to the predicted state.

11. Client-server • Advantages: each client sends only to server; server can aggregate and order moves • Advantages( dedicated servers): cheat proofing, server can be better provisioned, persistent states (for MMOG) • Disadvantages: longer delay, server bottleneck, single point of failure, need management

12. MMOG server architecture • The world replicated at each server (shard); each shard contains an independent world; players go to a specific shard. • Most MMORPG Shard: a term for broken pieces of pottery or glass

13. MMOG server architecture 2 • The world replicated at each server (mirror); all the worlds are synchronized; players see everyone across all mirrors Mirrors must be kept consistent

14. MMOG server architecture 3 • The world is split up into regions; each region is hosted by a different server; servers must be kept consistent *example: secondlife

15. Client-server socket programming • What is a socket? • A data structure containing connection information • Connection identifying info • Client IP address (building number) • Client port number (room number) • Source IP address • Source port number

16. Client-server socket programming • Client-server connection • Server creates a socket and listens for connection on a well-known port number • Client creates a socket and connects to the server address at the well-known port number

17. TCP vs. UDP • What TCP gives you • Reliable delivery • Retransmission and reordering • Congestion control • What UDP gives you • Unreliable delivery • No retransmission, packets not ACKnowledged, no reordering • No congestion control

18. What protocol to use? • Game requirements • Late packets may not be useful anymore • Lost info can sometimes be interpolated • But loss statistics may be useful • Use UDP in game • Can prioritize data • Can perform reliability if needed • Can filter out redundant data • Use soft-state • Send absolute values, not differences • If differences are used, send baseline data periodically • Must do congestion control if large data

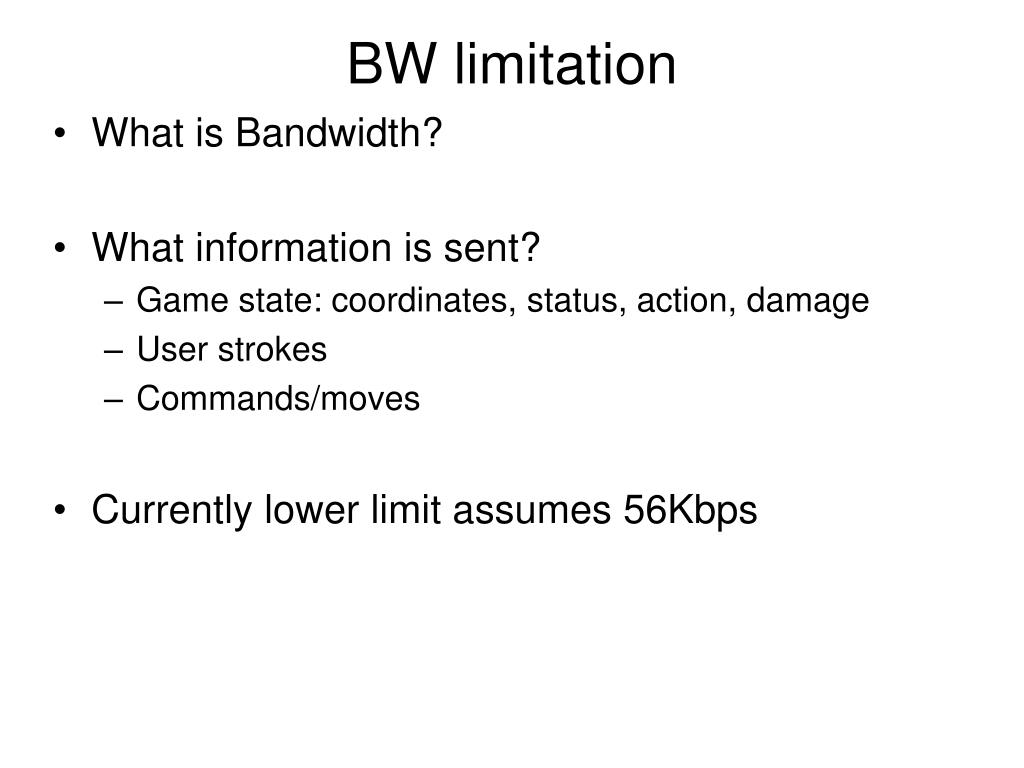

19. BW limitation • What is Bandwidth? • What information is sent? • Game state: coordinates, status, action, damage • User strokes • Commands/moves • Currently lower limit assumes 56Kbps

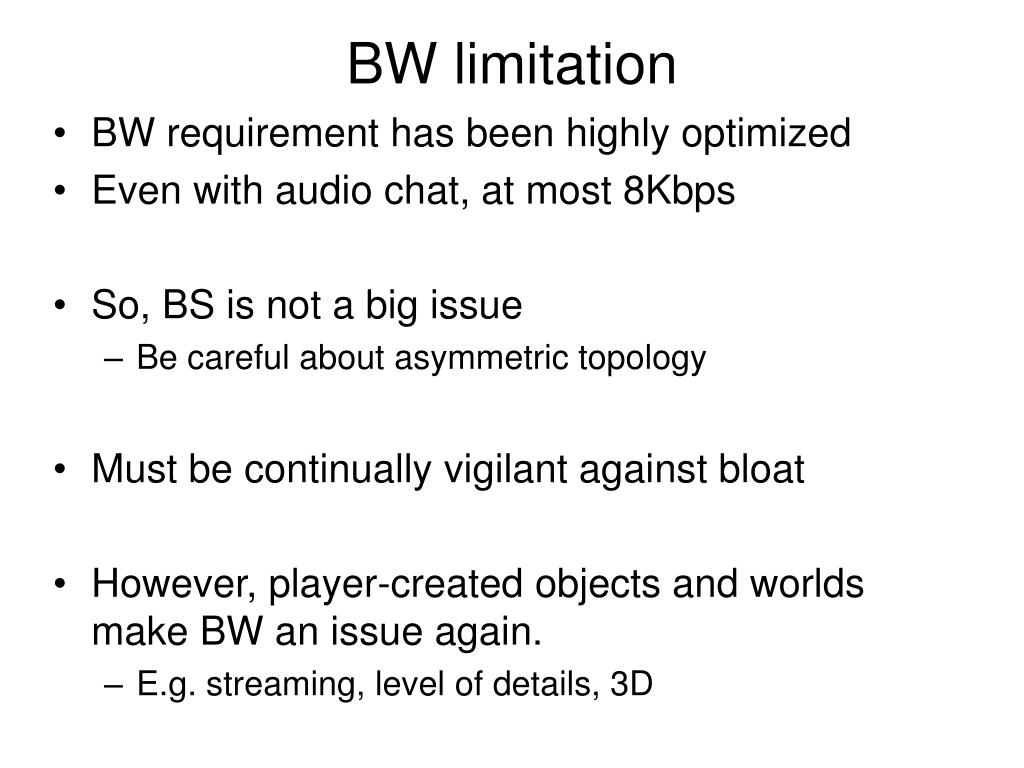

20. BW limitation • BW requirement has been highly optimized • Even with audio chat, at most 8Kbps • So, BS is not a big issue • Be careful about asymmetric topology • Must be continually vigilant against bloat • However, player-created objects and worlds make BW an issue again. • E.g. streaming, level of details, 3D

21. Latency limitation • RTS • < 250ms not noticeable • Btw. 250 and 500 ms playable • > 500ms noticeable • FPS: < 150ms preferred • Car racing • < 100ms preferred • Btw. 100 and 200 ms sluggish • > 200 ms car out of control • Player’s expectation can adapt to latency • Slow but smooth is better than jittery • DirectPlay not good

22. synchronization • Ordering moves by their times of occurrence • Assume globally synchronized clocks • Out-of-synch worlds are inconsistent • Small inconsistencies not corrected can lead to large compounded errors later on (e.g. missing a hit)

23. Lock-step protocol • Each player receives all other players moves before rendering next frame • Problems • Long internet delay • Variable latencies • Speed determined by the slowest player • Missing packet?

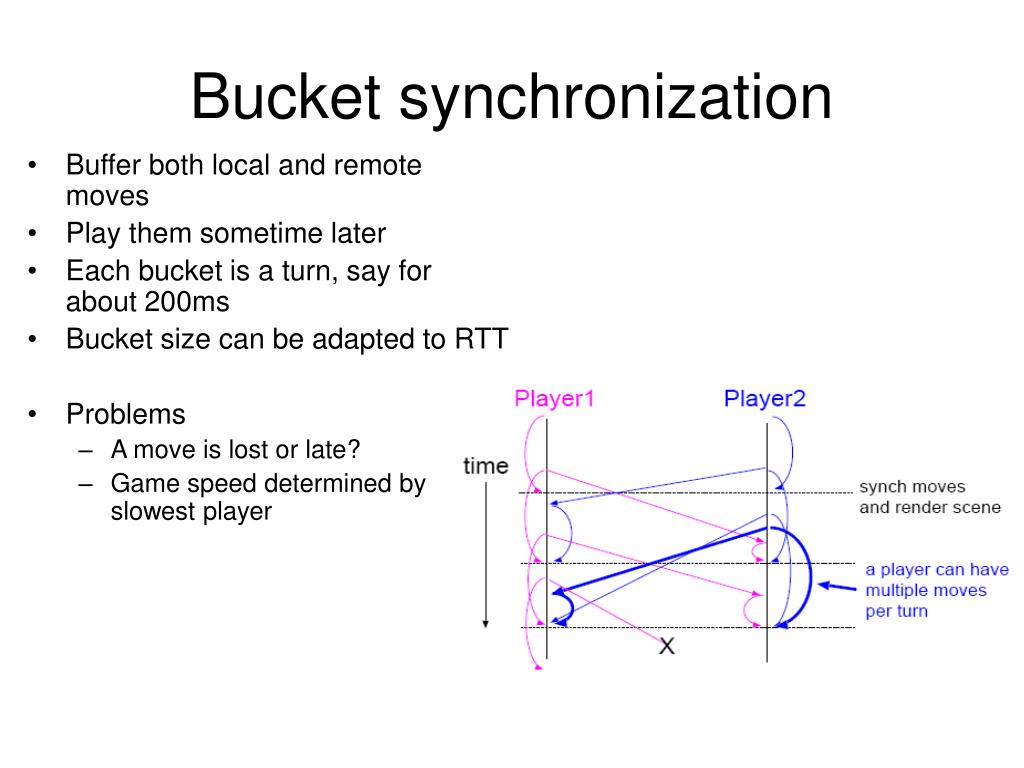

24. Bucket synchronization • Buffer both local and remote moves • Play them sometime later • Each bucket is a turn, say for about 200ms • Bucket size can be adapted to RTT • Problems • A move is lost or late? • Game speed determined by slowest player

25. consistency • For consistency, all user input must pass through the synchronization module • Be careful with random number generators. Isolate the one used for game state updating from other uses • Design for multiplayer from the start.

26. consistency

27. Pessimistic consistency • Every player must see the exact same world • AoE: • Uses bucket synch. • Each player sends moves to all other players • Each player simulates its own copy of the world • All the worlds must be in synch. • A designated host collect measured RR from all players and set future bucket size • Problems • Variable latencies • Speed determined by the slowest player

28. Dead reckoning • A.k.a. client-side prediction • Extrapolate next move based on prior moves • Compute the velocity and the acceleration of objects to dead reckon • Players can help by sending this info along • Obviously, only works if velocity and acceleration and direction haven’t changed
