Go Figure. Valence electrons using electron configuration. ChemCatalyst. Consider the following electron configuration: 1s 2 2s 2 2p 6 3s 2 3p 6 4s 2 3d 10 4p 4 What element do you think is represented by this electron configuration?

linda-bates
Télécharger la présentation

Go Figure

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

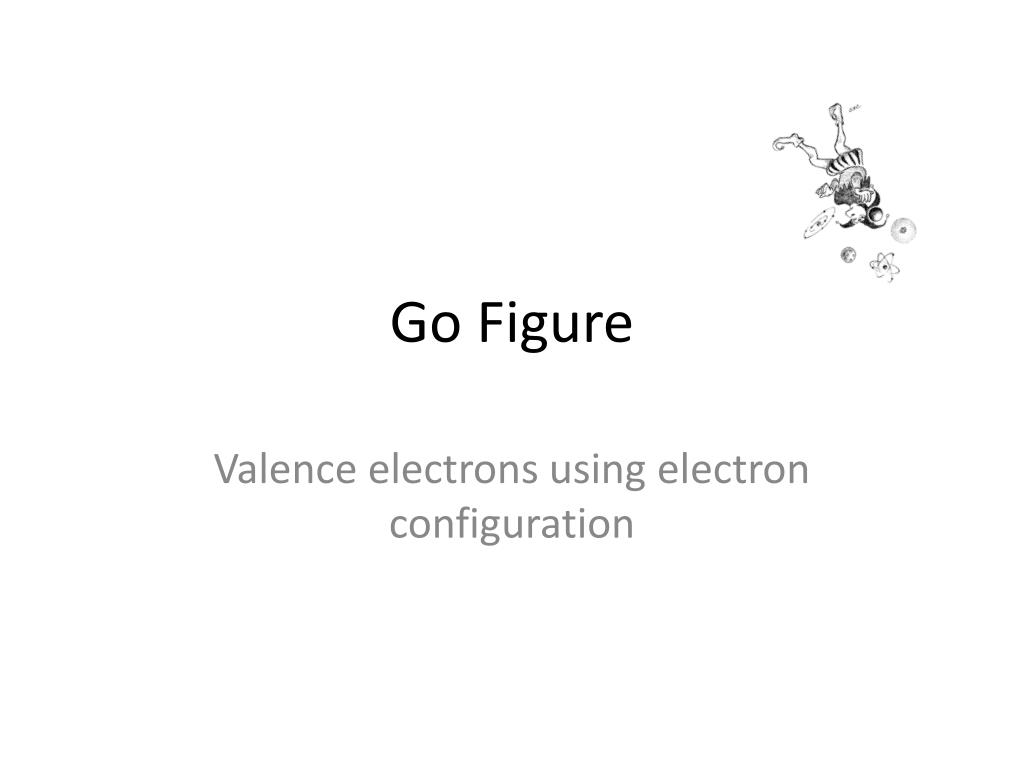

  1. Go Figure Valence electrons using electron configuration

  2. ChemCatalyst Consider the following electron configuration: 1s22s22p63s23p64s23d104p4 What element do you think is represented by this electron configuration? How many valence electrons do you think this element has? Explain your reasoning. Unit 1 • Investigation III

  3. Another way to determine the order that subshells are filled

  4. The Big Question Where are the valence electrons in electron configurations? Unit 1 • Investigation III

  5. You will be able to: Write electron configurations and name valence electrons for an element. Unit 1 • Investigation III

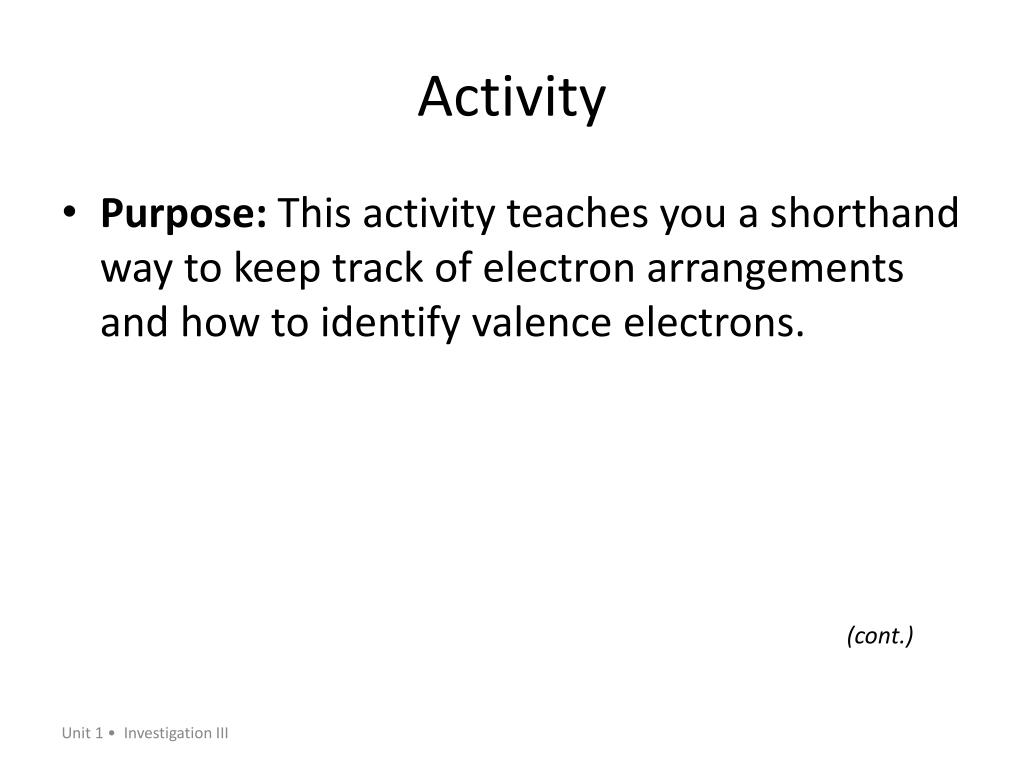

  6. Activity Purpose: This activity teaches you a shorthand way to keep track of electron arrangements and how to identify valence electrons. (cont.) Unit 1 • Investigation III

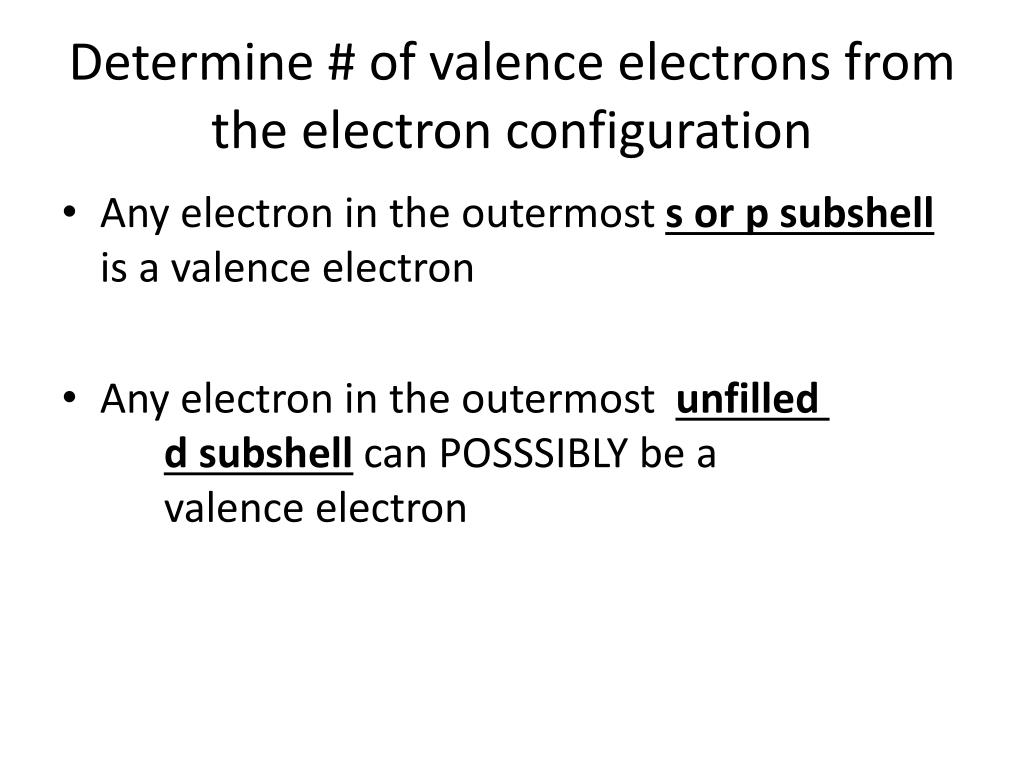

  7. Determine # of valence electrons from the electron configuration • Any electron in the outermost s or p subshell is a valence electron • Any electron in the outermost unfilled d subshell can POSSSIBLY be a valence electron

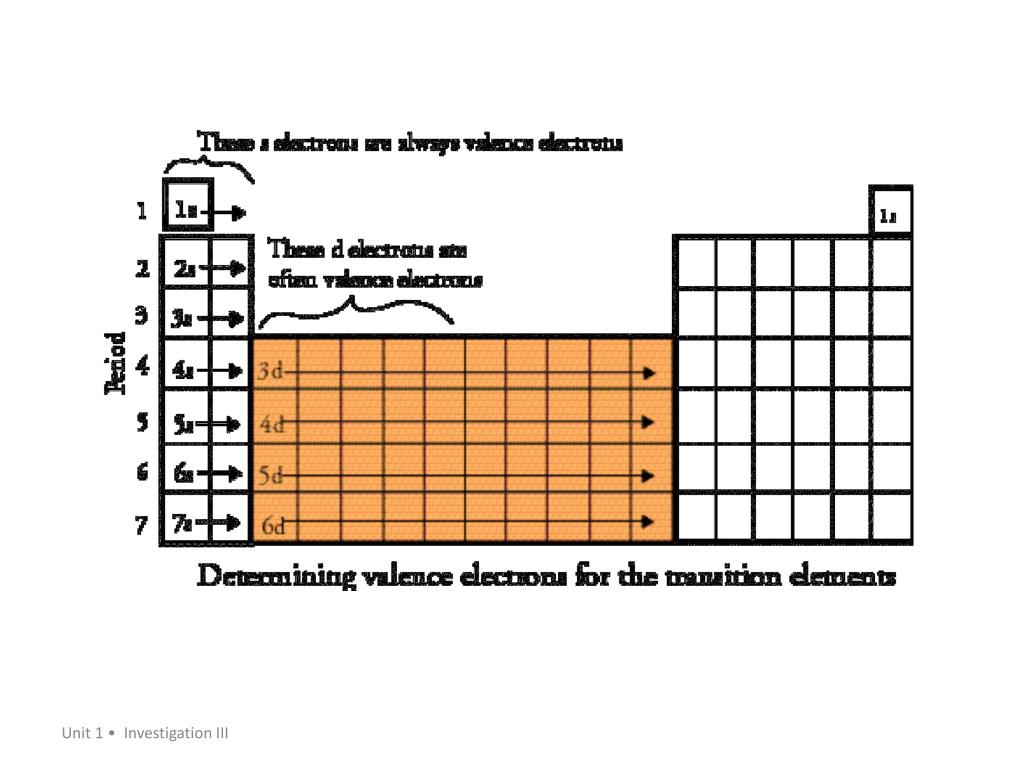

  8. Unit 1 • Investigation III

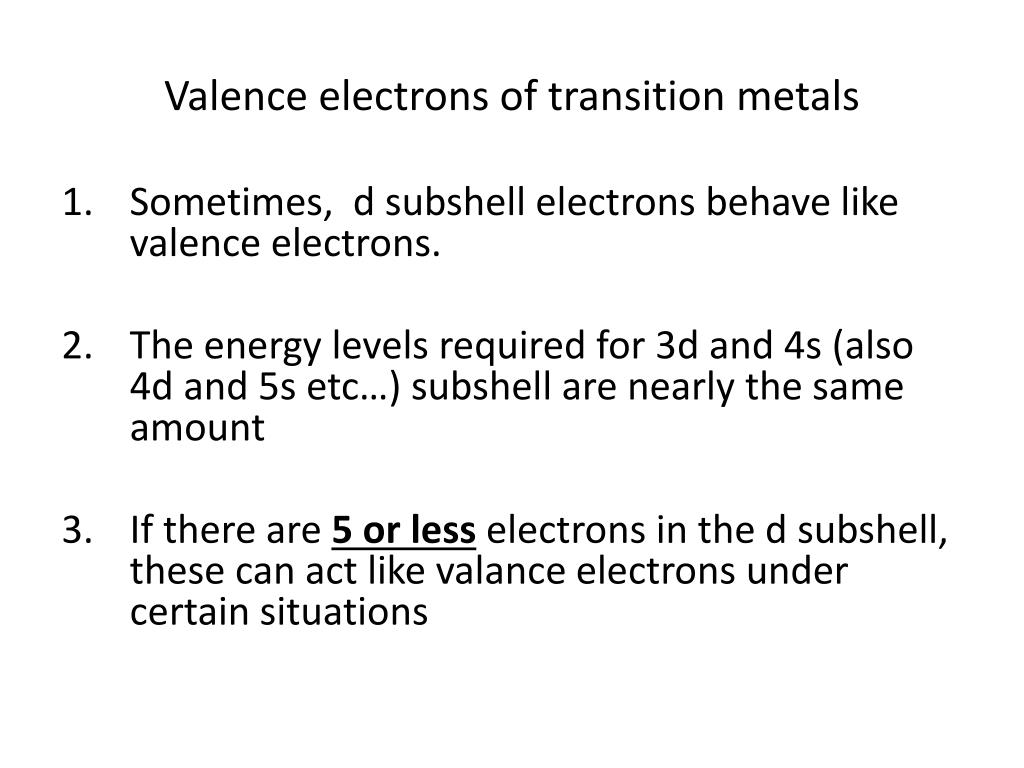

  9. Valence electrons of transition metals • Sometimes, d subshell electrons behave like valence electrons. • The energy levels required for 3d and 4s (also 4d and 5s etc…) subshell are nearly the same amount • If there are 5 or less electrons in the d subshell, these can act like valance electrons under certain situations

  10. Info on transition valence electrons • If there are 6-8 electrons, only 1 d electron may act like a valence electron • If there are 9-10 no d electron acts like a valence electron

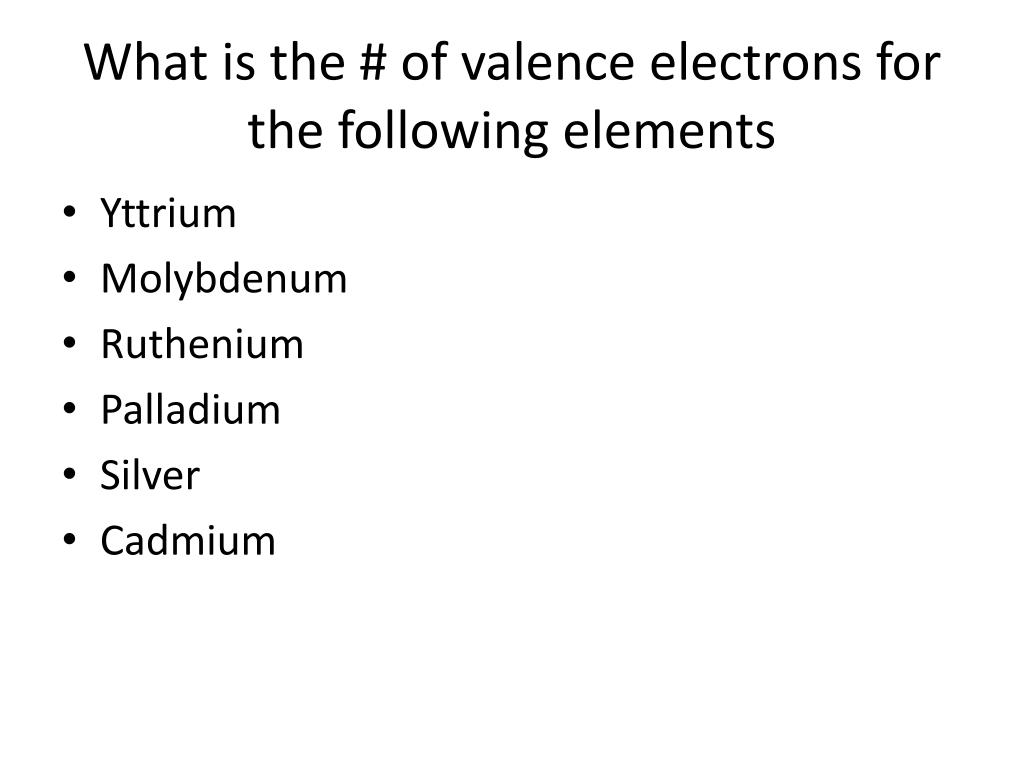

  11. What is the # of valence electrons for the following elements • Yttrium • Molybdenum • Ruthenium • Palladium • Silver • Cadmium

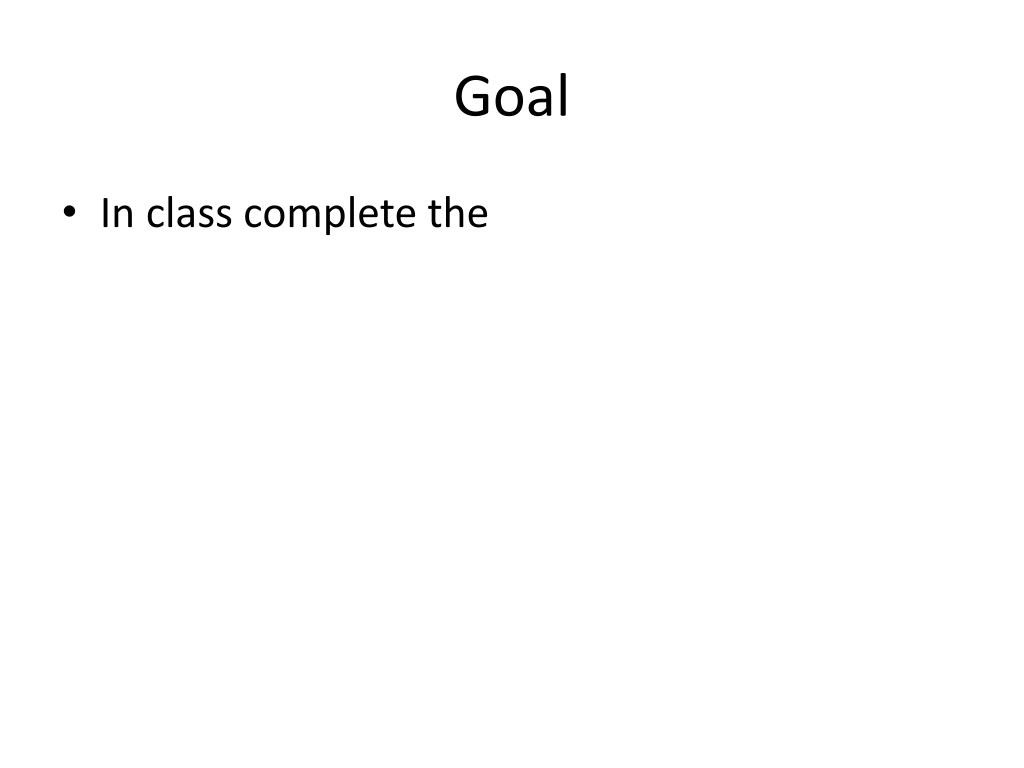

  12. Goal • In class complete the

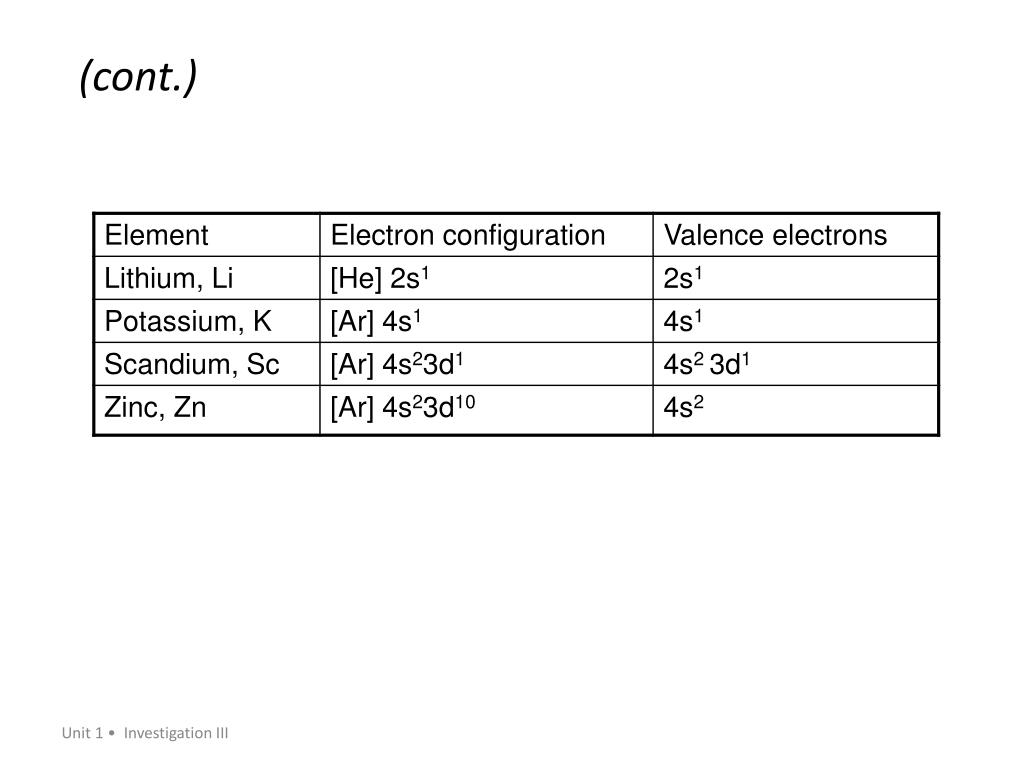

  13. (cont.) (cont.) Unit 1 • Investigation III

  14. (cont.) (cont.) Unit 1 • Investigation III

  15. (cont.) Unit 1 • Investigation III

  16. Making Sense If you know the electron configuration of an element, what other information can you figure out? List at least six things. (cont.) Unit 1 • Investigation III

  17. Check-In Write the electron configuration for bromine, Br. Write the noble gas electron configuration for Br. How many valence electrons does Br have? Explain. Unit 1 • Investigation III

  18. Wrap-Up The noble gases can be used as placeholders in the periodic table when writing electron configurations. In the d-block or transition elements we find the rules determining valence electrons get more complicated. Unit 1 • Investigation III
