Implement Upgrade

2. Implement Upgrade Name Title Company

3. Upgrade Cycle

4. Build SP15 Farm For Database Attach Upgrade Implement Upgrade

5. Scripted Environment Setup • Using PowerShell scripts is recommended way to set up environment • Allows repeatability and ensures consistency • Between test and production environments • Benefits in disaster recovery situations • Works as documentation • Change management is easier if the script always gets updated

6. Account Requirements For Upgrades • Database Upgrades • Active SQL Server login on the computer that runs SQL Server • Login must be member of the DB_Owner database security role on the database being upgraded • Login must be member of the WSS_Admin_WPG database security role on the farm configuration database • Member of Farm Admin group • Service Upgrades • All requirements above for database upgrade for each database that is part of service being upgraded • Some services may require additional access such as local Administrator • Site Collection Upgrades • Member of Site Collection Administrator group • Both primary and secondary Site Collection owners have this automatically • Can also be member of full control web application policy instead • Farm Upgrades • Member of the Administrators local group on each server on which upgrade is run

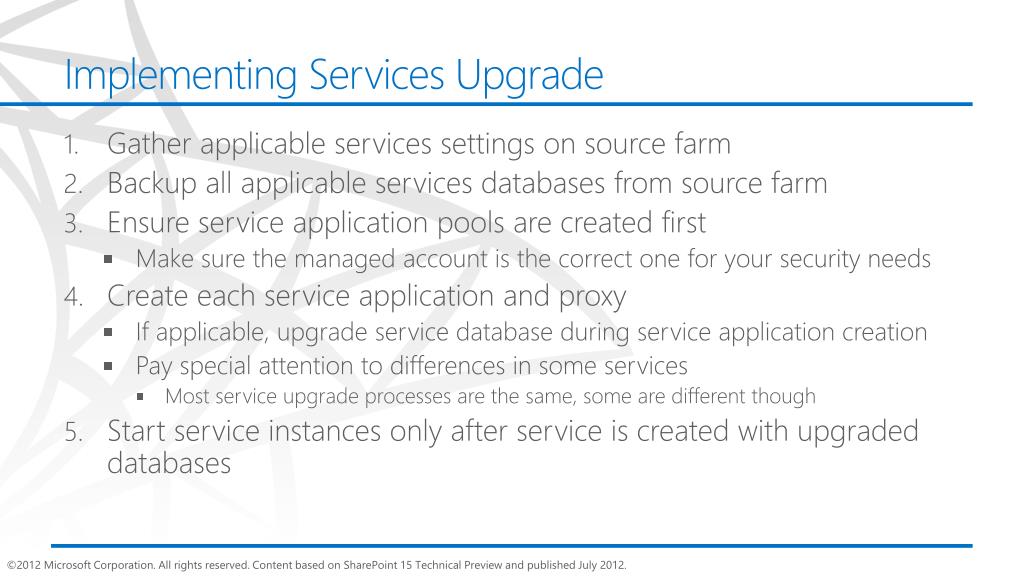

7. Implementing Services Upgrade • Gather applicable services settings on source farm • Backup all applicable services databases from source farm • Ensure service application pools are created first • Make sure the managed account is the correct one for your security needs • Create each service application and proxy • If applicable, upgrade service database during service application creation • Pay special attention to differences in some services • Most service upgrade processes are the same, some are different though • Start service instances only after service is created with upgraded databases

8. Configuring Web Applications • Before attaching content databases • Ensure web applications are setup correctly • Using correct managed account for application pool • Correct managed paths exist • Same AAM zones and URLs are configured • Solutions and other customizations are installed • Ensure service instances are connected to web application • Some content database upgrades attempt to use service instances • Service unavailability should not block upgrade • Service issues during upgrade may require additional work afterwards • To finish the specific service interaction missed during upgrade • Check log to look for issues

9. Handling Managed Paths • Should pre-create managed paths before attaching content databases • Use the same as was used in prior version if possible • Otherwise SharePoint will guess based on your content • SharePoint may create managed paths that don’t work correctly for you • E.g. Creating managed paths that make explicit inclusions into wildcards if two explicit exclusions are at same depth under same root • SharePoint may create different managed paths depending on which database is attached first • E.g. First content database has sites at depth which makes paths that conflict with sites lower in depth in second content database

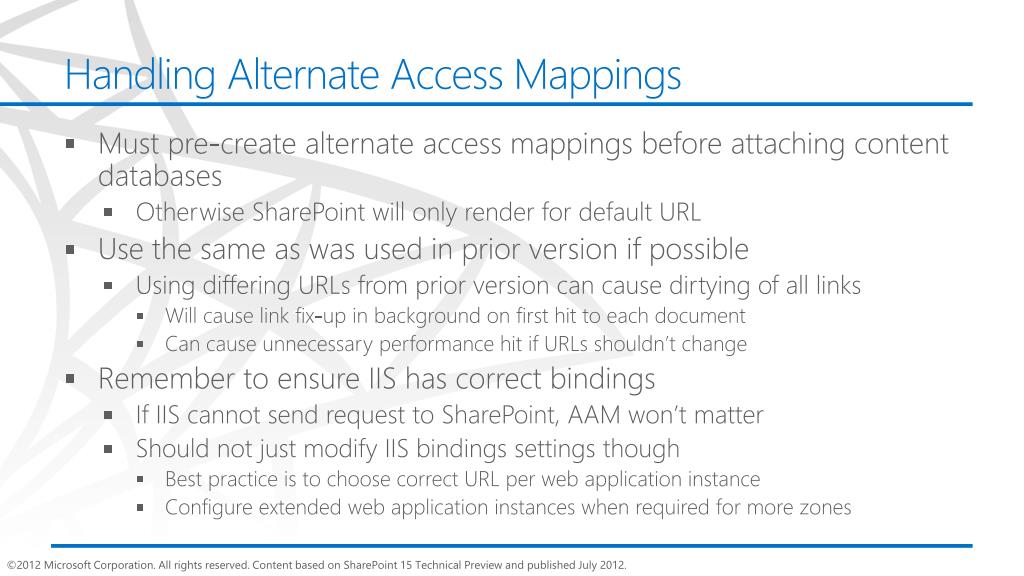

10. Handling Alternate Access Mappings • Must pre-create alternate access mappings before attaching content databases • Otherwise SharePoint will only render for default URL • Use the same as was used in prior version if possible • Using differing URLs from prior version can cause dirtying of all links • Will cause link fix-up in background on first hit to each document • Can cause unnecessary performance hit if URLs shouldn’t change • Remember to ensure IIS has correct bindings • If IIS cannot send request to SharePoint, AAM won’t matter • Should not just modify IIS bindings settings though • Best practice is to choose correct URL per web application instance • Configure extended web application instances when required for more zones

11. Installing Customizations • Install 2010 customizations • Use 2010 solutions when possible (hopefully you have these) • Use XCopy when not solution based • Install SP15 customizations • Recommend using solutions only • In some cases, 2010 customization may be used • May defer this if using DSCU • Make Web.config changes • Trusted code entries • Authentication providers Categories: • Custom authentication providers • Existing custom 2010 site definitions into 14 Site Templates directory • New SP15 site definitions when available, 2010 if not • New upgrade definition files into 15 Upgrade Configdirectory • Existing custom 2010 Features into 14 Features directory • New custom SP15 Features into 15 Features directory • Existing custom 2010 Controls into 14 CustomControlsdirectory • New custom SP15 Controls into 15 CustomControls directory • Existing custom 2010 Themes, JS, CSS and images into 14 directories • New custom SP15 Themes, JS, CSS and images into 15 directories • Existing/new custom resource files into 15 directory • Existing/replacement custom Web services into 15 directories • Existing/new custom Web part or other assemblies into GAC • New custom assembly redirects into 15 directory

12. High Availability Multi Farm V2V Upgrades

13. Core Upgrade Commands Implement Upgrade

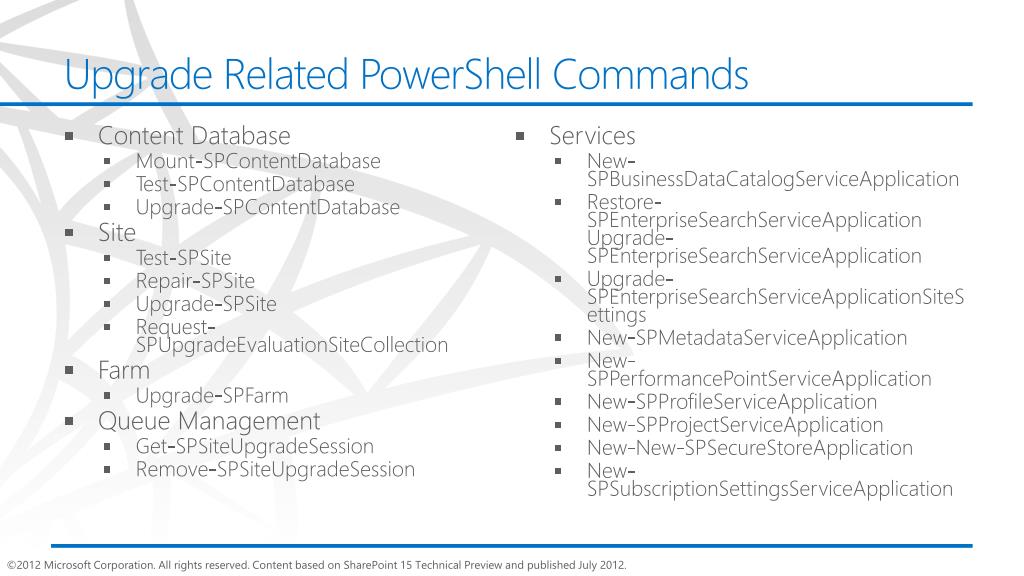

14. Upgrade Related PowerShell Commands • Content Database • Mount-SPContentDatabase • Test-SPContentDatabase • Upgrade-SPContentDatabase • Site • Test-SPSite • Repair-SPSite • Upgrade-SPSite • Request-SPUpgradeEvaluationSiteCollection • Farm • Upgrade-SPFarm • Queue Management • Get-SPSiteUpgradeSession • Remove-SPSiteUpgradeSession • Services • New-SPBusinessDataCatalogServiceApplication • Restore-SPEnterpriseSearchServiceApplicationUpgrade-SPEnterpriseSearchServiceApplication • Upgrade-SPEnterpriseSearchServiceApplicationSiteSettings • New-SPMetadataServiceApplication • New-SPPerformancePointServiceApplication • New-SPProfileServiceApplication • New-SPProjectServiceApplication • New-New-SPSecureStoreApplication • New-SPSubscriptionSettingsServiceApplication

15. Mount-SPContentDatabase • Initiates Content Database upgrade • Runs internal consistency/orphans check • Runs web application compatibility checks • Customization references • Web parts • Features • Site Definitions • Event handlers • Authentication/security migration references • Installed to reference auth provider mismatch

16. Test-SPContentDatabase • Finds issues with content databases when compared to a specific web application • Can test a database not connected to the farm • Can test a database already connected to the farm • List out issues including orphans • Missing referenced server side customizations: • Missing Features • Missing Templates/Site Definitions • Missing Web Parts • Site collections in content database but not in the configuration database site map and vice versa • Use –ShowRowCounts option to find database row sizing metrics

17. Upgrade-SPContentDatabase • Used to upgrade a Content Database • Mainly after applying patches to initiate build to build upgrade • Can also be used to resume failed version upgrade after mounting database • Can be used in parallel with other Content Database upgrades • Defaults to doing build to build upgrade on all child site collections • Does not have option to do version upgrade of all site collections • Can be set to not include child site collections (-NoB2BSiteUpgrade) • Improve B2B database upgrade speed • Allows upgrading site collections later • Has option to use SQL snapshot if available (-UseSnapShot) • Provides read only copy of content via snapshot while upgrading writable copy of database behind the scenes

18. Test-SPSite • Runs the specified or all site collection health checks in test mode • Does not do any changes to content when running • Works for both 14 and 15 mode sites • Results for test run are used to determine whether site collection can be upgraded to not • Errors will prevent upgrade • All others are to help with troubleshooting after upgrade • Option to force rerunning recently performed check (-RunAlways) • Used to bypass result caching if check recently passed • This command is correlated with Repair-SPSitecmdlet • Use Repair-SPSite to try to fix some issues found with Test-SPSite

19. Repair-SPSite • Runs the specified or all site collection health checks in repair mode • Does potentially make changes to content when running • Works for both 14 and 15 mode sites • When run, this will create a site level log of the repair operation • Stored in maintenance library on site • Maintenance library will be created if it doesn’t exist • Option to force rerunning recently performed check (-RunAlways) • Used to bypass result caching if check recently passed • This command is correlated with Test-SPSite cmdlet

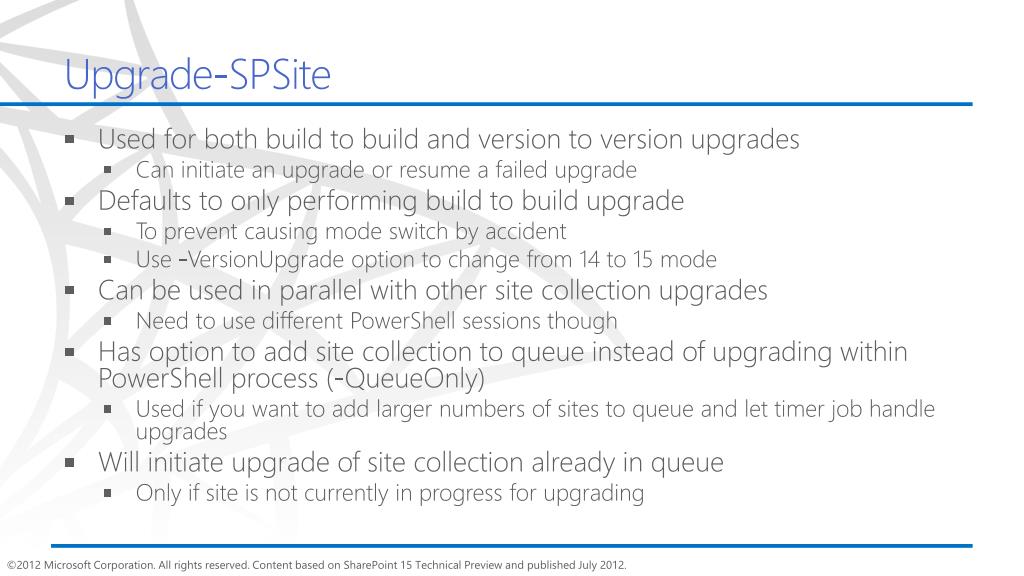

20. Upgrade-SPSite • Used for both build to build and version to version upgrades • Can initiate an upgrade or resume a failed upgrade • Defaults to only performing build to build upgrade • To prevent causing mode switch by accident • Use -VersionUpgrade option to change from 14 to 15 mode • Can be used in parallel with other site collection upgrades • Need to use different PowerShell sessions though • Has option to add site collection to queue instead of upgrading within PowerShell process (-QueueOnly) • Used if you want to add larger numbers of sites to queue and let timer job handle upgrades • Will initiate upgrade of site collection already in queue • Only if site is not currently in progress for upgrading

21. Request-SPUpgradeEvaluationSiteCollection • Adds request to create upgrade evaluation copy of specified site collection • Request is added to per database queue • Timer job will process site: • Snapshot database (Optional) • Copy site data with new URL and Site ID • Perform upgrade (Optional) • Send email (Optional) • Works even for site collections over self-service request limits • Has option to not try to immediately upgrade after creating upgrade evaluation site collection • Used if trying to make edits to copy before upgrade • Can send email to site collection admins when creation is finished

22. Upgrade-SPFarm • Used to initiate full farm upgrade on a server • Intended for initiating build to build upgrades • Can also be used to resume failed upgrades at farm or for all children • Replaces using PSConfig based B2B upgrade command • PSConfig command still works for this, but may be removed in future versions • Initiates upgrade at root of upgrade hierarchy • Will upgrade any child objects that are not yet upgraded • Can take a long time • Depending on number of non upgraded objects in heirarchy • Must be run on each server

23. Services Upgrade Commands Implement Upgrade

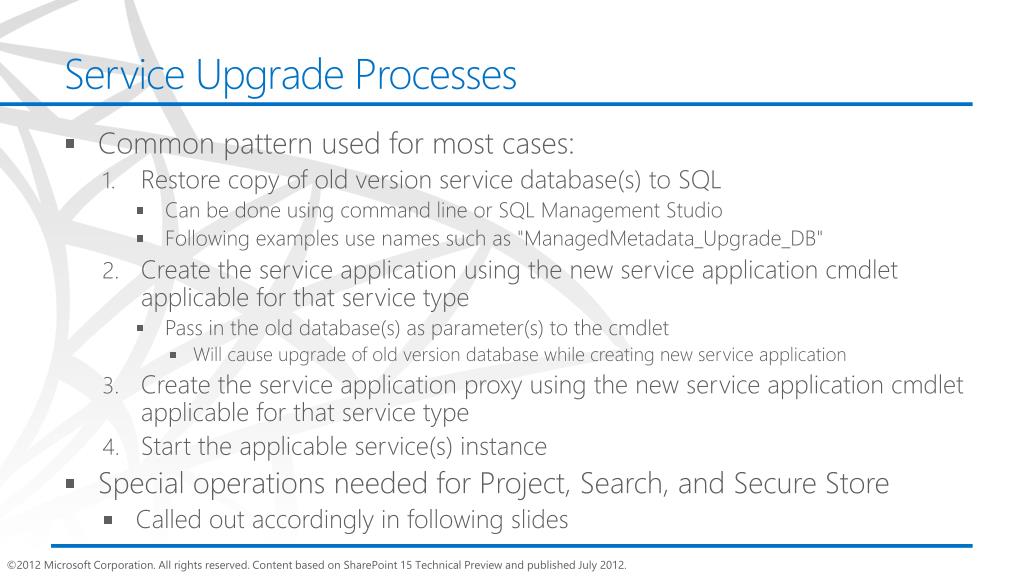

24. Service Upgrade Processes • Common pattern used for most cases: • Restore copy of old version service database(s) to SQL • Can be done using command line or SQL Management Studio • Following examples use names such as "ManagedMetadata_Upgrade_DB" • Create the service application using the new service application cmdlet applicable for that service type • Pass in the old database(s) as parameter(s) to the cmdlet • Will cause upgrade of old version database while creating new service application • Create the service application proxy using the new service application cmdlet applicable for that service type • Start the applicable service(s) instance • Special operations needed for Project, Search, and Secure Store • Called out accordingly in following slides

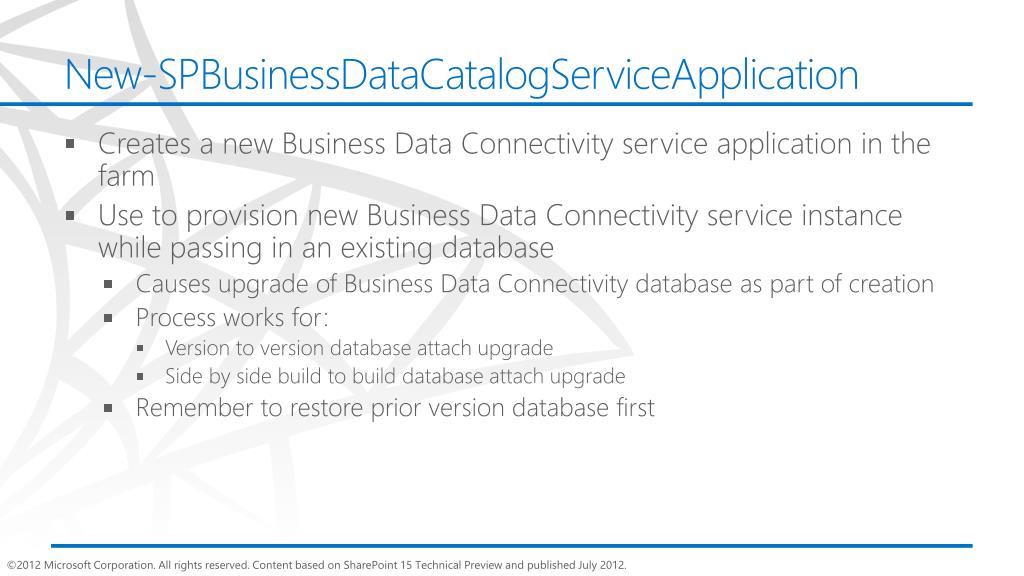

25. New-SPBusinessDataCatalogServiceApplication • Creates a new Business Data Connectivity service application in the farm • Use to provision new Business Data Connectivityservice instance while passing in an existing database • Causes upgrade of Business Data Connectivity database as part of creation • Process works for: • Version to version database attach upgrade • Side by side build to build database attach upgrade • Remember to restore prior version database first

26. Example Business Data Catalog Service B2B/V2V Provisioning $applicationPool= Get-SPServiceApplicationPool -Identity "SharePoint Service Application" # Create Business Data Catalog service and proxy $sa= New-SPBusinessDataCatalogServiceApplication -Name "Business Data Catalog Service Application" -ApplicationPool $applicationPool-DatabaseName “BDC_Upgrade_DB" if ($sa) { New-SPBusinessDataCatalogServiceApplicationProxy -ServiceApplication$sa-Name "Business Data Catalog Service Application Proxy" -DefaultProxyGroup #Start Business Data Catalog service Get-SPServiceInstance| Where-Object {$_.TypeName -Eq "Business Data Connectivity Service"} | Start-SPServiceInstance }

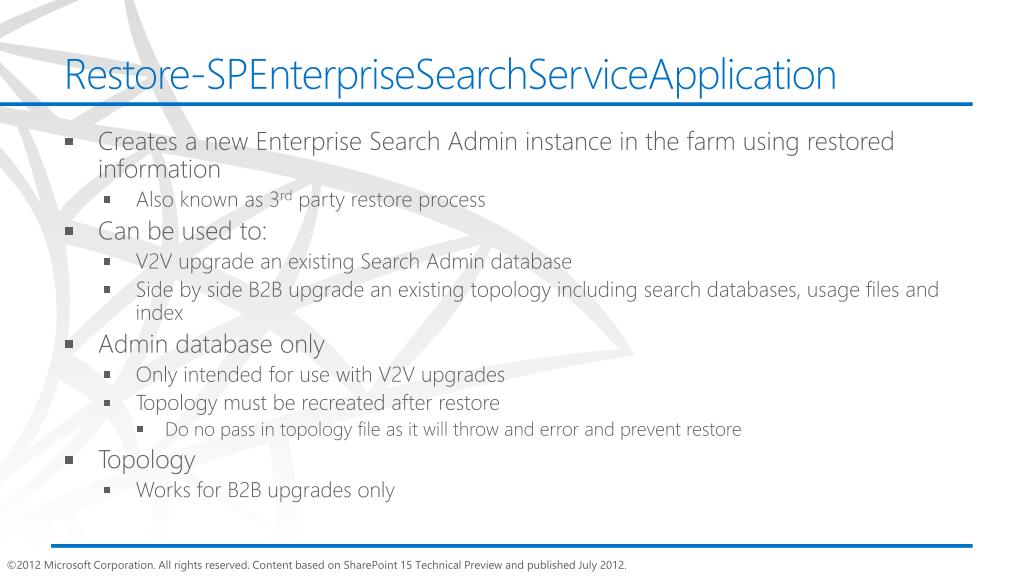

27. Restore-SPEnterpriseSearchServiceApplication • Creates a new Enterprise Search Admin instance in the farm using restored information • Also known as 3rd party restore process • Can be used to: • V2V upgrade an existing Search Admin database • Side by side B2B upgrade an existing topology including search databases, usage files and index • Admin database only • Only intended for use with V2V upgrades • Topology must be recreated after restore • Do no pass in topology file as it will throw and error and prevent restore • Topology • Works for B2B upgrades only

28. Example Enterprise Search Service V2V Provisioning $applicationPool= Get-SPServiceApplicationPool -Identity "SharePoint Service Application" # Restore Enterprise service and create proxy $searchInstance = Get-SPEnterpriseSearchServiceInstance -local $sa= Restore-SPEnterpriseSearchServiceApplication -Name "Search Service Application" -ApplicationPool $applicationPool -AdminSearchServiceInstance$searchInstance-DatabaseName“SearchAdmin_Upgrade_DB" if ($sa) { New-SPEnterpriseSearchServiceApplicationProxy-ServiceApplication$sa-Name “Search Service Application Proxy“ -Uri $sa.Uri.AbsoluteURI #Start Enterprise Search service Get-SPServiceInstance| Where-Object {$_.TypeName -Eq"Search Server Service"} | Start-SPServiceInstance }

29. Export-SPEnterpriseSearchTopology • Exports the existing topology to an XML file • File contains information on service names, locations, and databases • Topology file can be used to restore service instance across same version farms • Must be accompanied by other referenced files and databases though • 2010 topology file cannot be used with 15 • 2010 and 15 topology XML files use different XML Name Spaces • Only Search Admin 2010 database can be upgraded across versions so using the same file is of little value

30. Example Enterprise Search Service B2B Provisioning # On prior farm, get search topology $ssa = Get-SPEnterpriseSearchServiceApplication Export-SPEnterpriseSearchTopology-SearchApplication $ssa -Filename "Topology_File.xml" # On new farm, provision Enterprise Search using topology file $applicationPool = Get-SPServiceApplicationPool -Identity "SharePoint Service Application" # Restore Enterprise Search service and create proxy $sa= Restore-SPEnterpriseSearchServiceApplication-Name "Search Service Application" -ApplicationPool $applicationPool -Topology "Topology_File.xml" if ($sa) { New-SPEnterpriseSearchServiceApplicationProxy-ServiceApplication$sa-Name "Search Service Application Proxy" -Uri $sa.Uri.AbsoluteURI #Start Enterprise Search service Get-SPServiceInstance| Where-Object {$_.TypeName -Eq"SharePoint Server Search"} | Start-SPServiceInstance }

31. Upgrade-SPEnterpriseSearchServiceApplication • Upgrades an existing search service application • Used specifically for build to build upgrades • Use if only search has backwards compatibility breaking change • Most likely after any service pack level change • Could occur at any CU or QFE, check release notes and/or test first to confirm need • Mainly used to avoid doing full farm upgrade immediately after patching • If only search needs upgrade, then this will be much faster

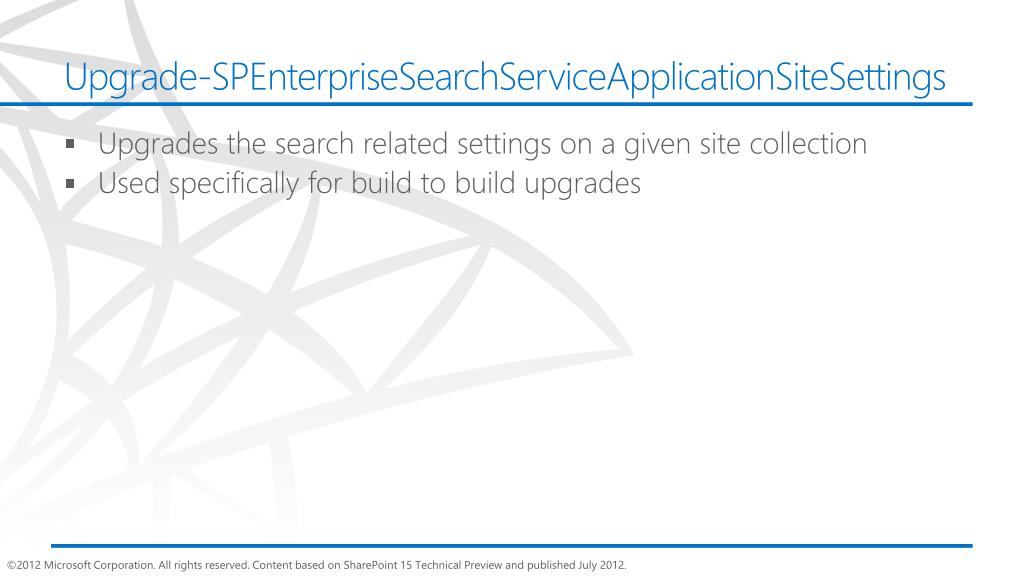

32. Upgrade-SPEnterpriseSearchServiceApplicationSiteSettings • Upgrades the search related settings on a given site collection • Used specifically for build to build upgrades

33. New-SPMetadataServiceApplication • Creates a new Managed Metadata service application in the farm • Use to provision new Managed Metadata service instance while passing in an existing database • Causes upgrade of Managed Metadata database as part of creation • Process works for: • Version to version database attach upgrade • Side by side build to build database attach upgrade • Remember to restore prior version database first

34. Example Of Managed Metadata Service Provisioning $applicationPool= Get-SPServiceApplicationPool -Identity "SharePoint Service Application" # Create Managed Metadata service and proxy $sa = New-SPMetadataServiceApplication -Name "Managed Metadata Service Application" -ApplicationPool $applicationPool -DatabaseName "ManagedMetadata_Upgrade_DB" if ($sa) { New-SPMetadataServiceApplicationProxy-ServiceApplication$sa-Name "Managed Metadata Service Application Proxy" -DefaultProxyGroup #Start Managed Metadataservice Get-SPServiceInstance| Where-Object {$_.TypeName -Eq "Managed Metadata Web Service"} | Start-SPServiceInstance }

35. New-SPPerformancePointServiceApplication • Creates a PerformancePoint service application in the farm • Use to provision new PerformancePoint service instance while passing in an existing database • Causes upgrade of PerformancePoint database as part of creation • Process works for: • Version to version database attach upgrade • Side by side build to build database attach upgrade • Remember to restore prior version database first

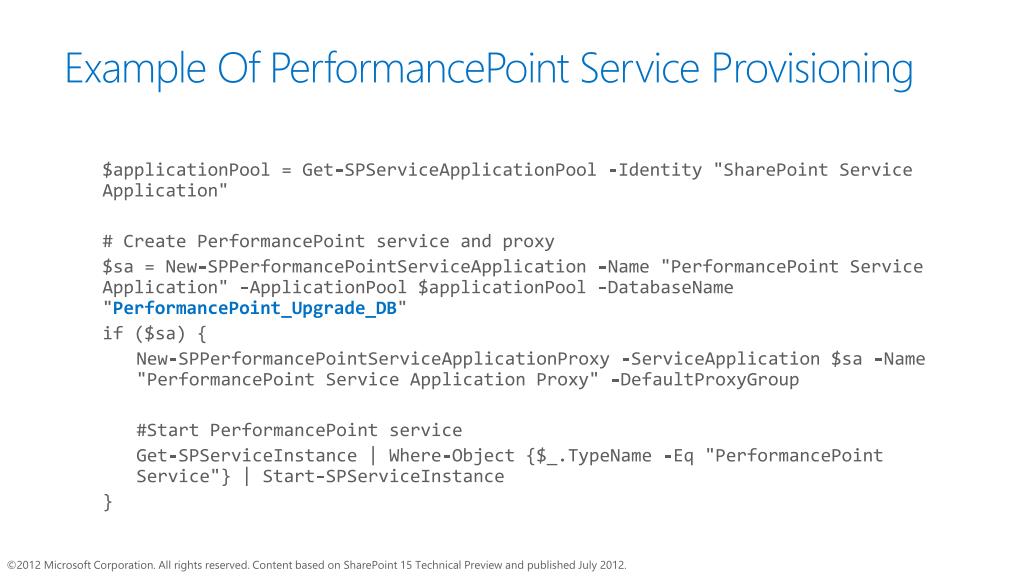

36. Example Of PerformancePoint Service Provisioning $applicationPool= Get-SPServiceApplicationPool -Identity "SharePoint Service Application" # Create PerformancePoint service and proxy $sa= New-SPPerformancePointServiceApplication-Name "PerformancePoint Service Application" -ApplicationPool $applicationPool -DatabaseName "PerformancePoint_Upgrade_DB" if ($sa) { New-SPPerformancePointServiceApplicationProxy -ServiceApplication$sa-Name "PerformancePoint Service Application Proxy" -DefaultProxyGroup #Start PerformancePoint service Get-SPServiceInstance| Where-Object {$_.TypeName -Eq "PerformancePoint Service"} | Start-SPServiceInstance }

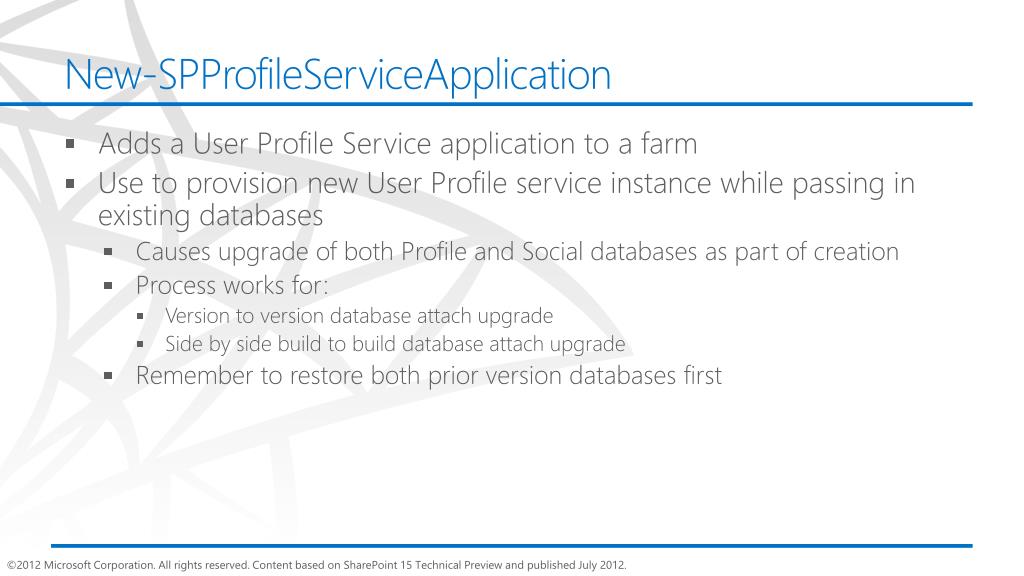

37. New-SPProfileServiceApplication • Adds a User Profile Service application to a farm • Use to provision new User Profile service instance while passing in existing databases • Causes upgrade of both Profile and Social databases as part of creation • Process works for: • Version to version database attach upgrade • Side by side build to build database attach upgrade • Remember to restore both prior version databases first

38. Example Profile Service B2B/V2V Provisioning $applicationPool= Get-SPServiceApplicationPool -Identity "SharePoint Service Application" # Create User Profile service and proxy $sa= New-SPProfileServiceApplication -Name "User Profile Service Application" -ApplicationPool $applicationPool -ProfileDBName"UPA_Profile_Upgrade_DB" -SocialDBName"UPA_Social_Upgrade_DB" if ($sa) { New-SPProfileServiceApplicationProxy-ServiceApplication$sa-Name "User Profile Service Application Proxy" -DefaultProxyGroup #Start User Profile service Get-SPServiceInstance| Where-Object {$_.TypeName -Eq "User Profile Service"} | Start-SPServiceInstance }

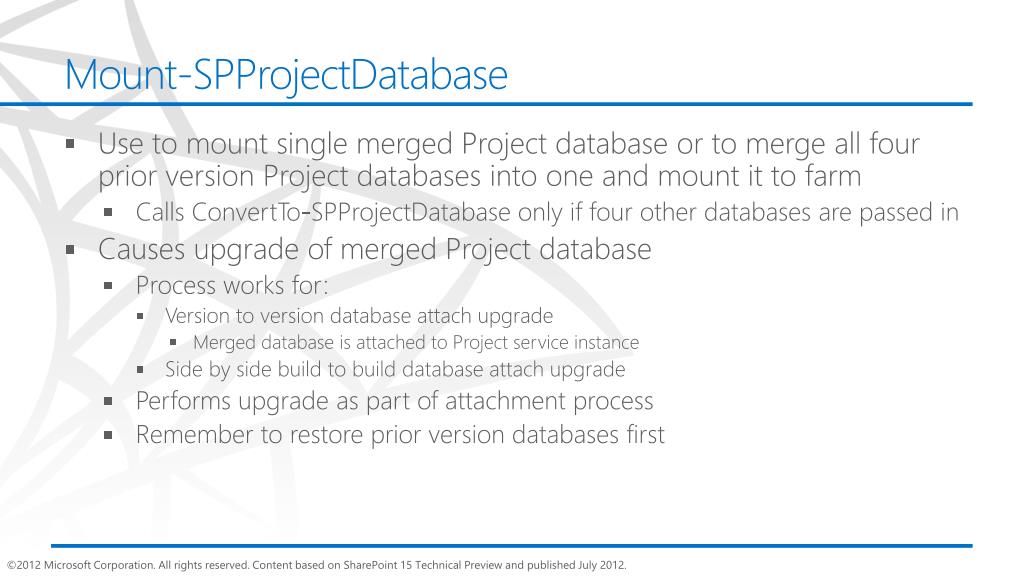

39. Mount-SPProjectDatabase • Use to mount single merged Project database or to merge all four prior version Project databases into one and mount it to farm • Calls ConvertTo-SPProjectDatabase only if four other databases are passed in • Causes upgrade of merged Project database • Process works for: • Version to version database attach upgrade • Merged database is attached to Project service instance • Side by side build to build database attach upgrade • Performs upgrade as part of attachment process • Remember to restore prior version databases first

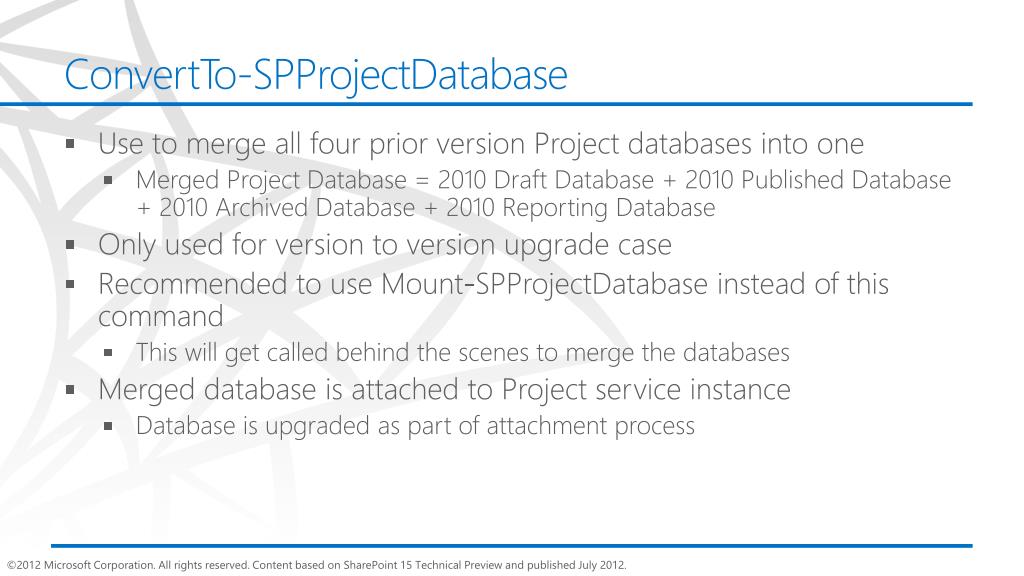

40. ConvertTo-SPProjectDatabase • Use to merge all four prior version Project databases into one • Merged Project Database = 2010 Draft Database + 2010 Published Database + 2010 Archived Database + 2010 Reporting Database • Only used for version to version upgrade case • Recommended to use Mount-SPProjectDatabase instead of this command • This will get called behind the scenes to merge the databases • Merged database is attached to Project service instance • Database is upgraded as part of attachment process

41. Example Project Service V2V Provisioning $applicationPool= Get-SPServiceApplicationPool -Identity "SharePoint Service Application“ # Create Project service and proxy $sa = New-SPProjectServiceApplication -Name "Project Service Application" -ApplicationPool $applicationPool –Proxy $true if ($sa) { # Merge, mount and upgrade existing project databases Mount-SPProjectDatabase -ServiceApplication$sa-ProjectServiceDbname "Merged_Project_DB" -DraftDBName "Project_Draft_DB" -PublishedDBName "Project_Published_DB" -ArchiveDBName "Project_Archived_DB" -ReportingDBName "Project_Reporting_DB" #Start Project service Get-SPServiceInstance | Where-Object {$_.TypeName -Eq "Project Server Application Service"} | Start-SPServiceInstance }

42. Upgrade-SPProjectWebInstance • Upgrades an existing Project Service application in the farm • Used specifically for build to build upgrades • Use if only the project service has backwards compatibility breaking change • Most likely after any service pack level change • Could occur at any CU or QFE, check release notes and/or test first to confirm need • Mainly used to avoid doing full farm upgrade immediately after patching • If only project needs upgrade, then this will be much faster

43. Upgrade-SPProjectDatabase • Upgrades an existing Project database in the farm • Used specifically for build to build upgrades • Use if only project database has backwards compatibility breaking change • Most likely after any service pack level change • Could occur at any CU or QFE, check release notes and/or test first to confirm need • Mainly used to avoid doing full farm upgrade immediately after patching • If only a project database needs upgrade, then this will be much faster

44. New-SPSecureStoreApplication • Creates a new Secure Store Service application in the farm • Use to provision new Secure Store service instance while passing in an existing database • Causes upgrade of Secure Store database as part of creation • Process works for: • Version to version database attach upgrade • Side by side build to build database attach upgrade • Remember to restore prior version database first • Need to set the service passphrase to same as pre-upgrade • Otherwise service will work but application passwords will be lost

45. Example Secure Store Service B2B/V2V Provisioning $applicationPool= Get-SPServiceApplicationPool -Identity "SharePoint Service Application" # Create Secure Store service and proxy $sa= New-SPSecureStoreServiceApplication -Name "SecureStoreService Application" -ApplicationPool $applicationPool-DatabaseName "SecureStore_Upgrade_DB" –AuditingEnabled if ($sa) { $proxy = New-SPSecureStoreServiceApplicationProxy-ServiceApplication$sa-Name "SecureStoreService Application Proxy" –DefaultProxygroup} # Update Secure Store service passphrase to allow use of existing stored passwords if ($proxy) {Update-SPSecureStoreApplicationServerKey-ServiceApplicationProxy $proxy -Passphrase "P@ssphrase"} #Start Secure Store service Get-SPServiceInstance | Where-Object {$_.TypeName -Eq "Secure Store Service"} | Start-SPServiceInstance }

46. New-SPSubscriptionSettingsServiceApplication • Creates a new Subscription Settingsservice applicationin the farm • Use to provision new Subscription Settings service instance while passing in anexisting database • Causes upgrade of Subscription Settings database as part of creation • Process works for: • Version to version database attach upgrade • Side by side build to build database attach upgrade

47. Example Subscription Settings Service B2B/V2V Provisioning $applicationPool= Get-SPServiceApplicationPool -Identity "SharePoint Service Application" # Create Secure Store service and proxy $sa= New-SPSubscriptionSettingsServiceApplication -Name "Subscription Settings Service Application" -ApplicationPool $applicationPool-DatabaseName "SubscriptionsSettings_Upgrade_DB" –AuditingEnabled if ($sa) { $proxy = New-SPSubscriptionSettingsServiceApplicationProxy-ServiceApplication$sa-Name “Subscription Settings Service Application Proxy" –DefaultProxygroup} #Start Secure Store service Get-SPServiceInstance | Where-Object {$_.TypeName -Eq "Subscription Settings Service"} | Start-SPServiceInstance }

48. Managing Upgrade Internals Implement Upgrade

49. Manage Upgrade Queues • All Site Collection upgrades get listed in the queue • Each site collection upgrade, whether queued or not, is listed as an SPSiteUpgradeSession • Add a site to the queue using UI or PowerShell • Upgrade-SPSite $Site -VersionUpgrade -QueueOnly • List the queue contents via PowerShell • Get-SPUpgradeQueue -ContentDatabase $ContentDatabase • Remove a site from the queue using PowerShell • Remove-SPSiteUpgradeSession $Site • Upgrade a site in the queue using UI, PowerShell, or timer job • Upgrade-SPSite$Site -VersionUpgrade • If in queue, will upgrade using PowerShell session instead • Upgrade site collections job (job-upgrade-sites) • Upgrades site collections in a content databases upgrade queue • Runs every 1 minute • Manage Content Database and Web Application level upgrade throttle settings • Remember, upgrade queue is stored per Content Database

50. Get-SPSiteUpgradeSession • Lists upgrade sessions within a content database or the current state of a specific site collection upgrade • Defaults to show waiting/queued upgrades • Defaults to not show in process or completed/failed upgrades • Can be used to examine upgrade queue for specific content database • If the queue gets stuck on a site collection or backed up due to lots of items • You’re monitoring upgrade sessions • You’re just curious about upgrade states
