  1. Formal Methods in Hardware Design Mary Sheeran, Chalmers www.cs.chalmers.se/~ms

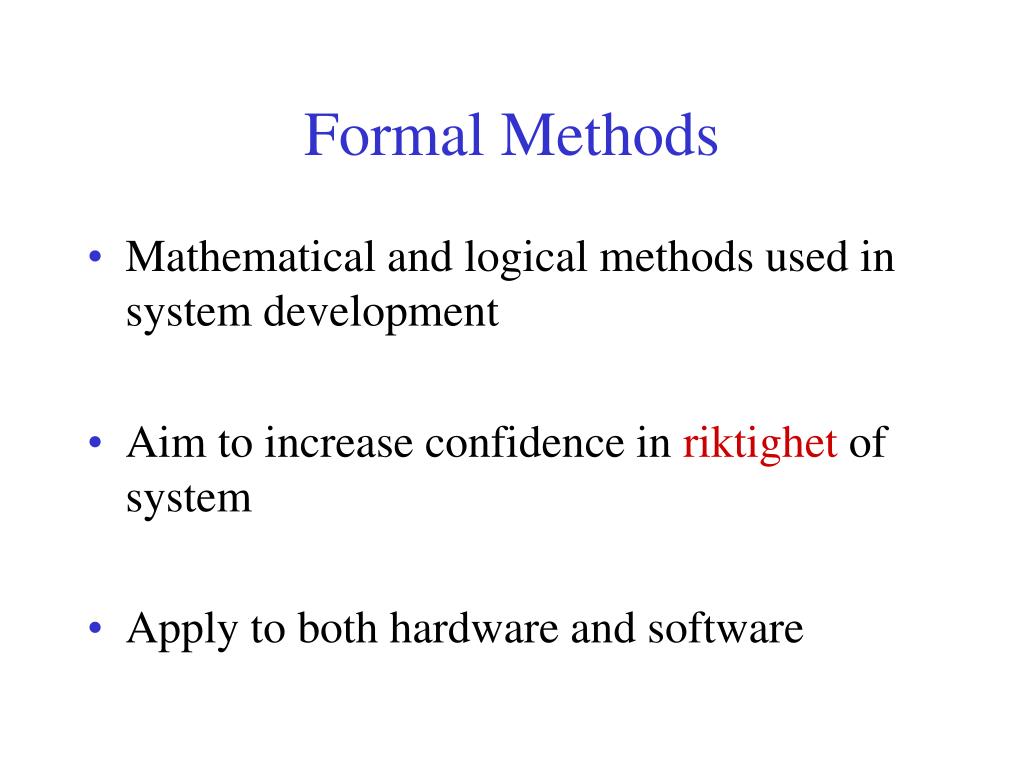

  2. Formal Methods • Mathematical and logical methods used in system development • Aim to increase confidence in riktighet of system • Apply to both hardware and software

  3. Formal methods • Complement other analysis methods • Are good at finding bugs • Reduce development (and test) time • Should ideally be automatic

  4. The main point is NOT • correctness proof of entire systems • replacing test entirely

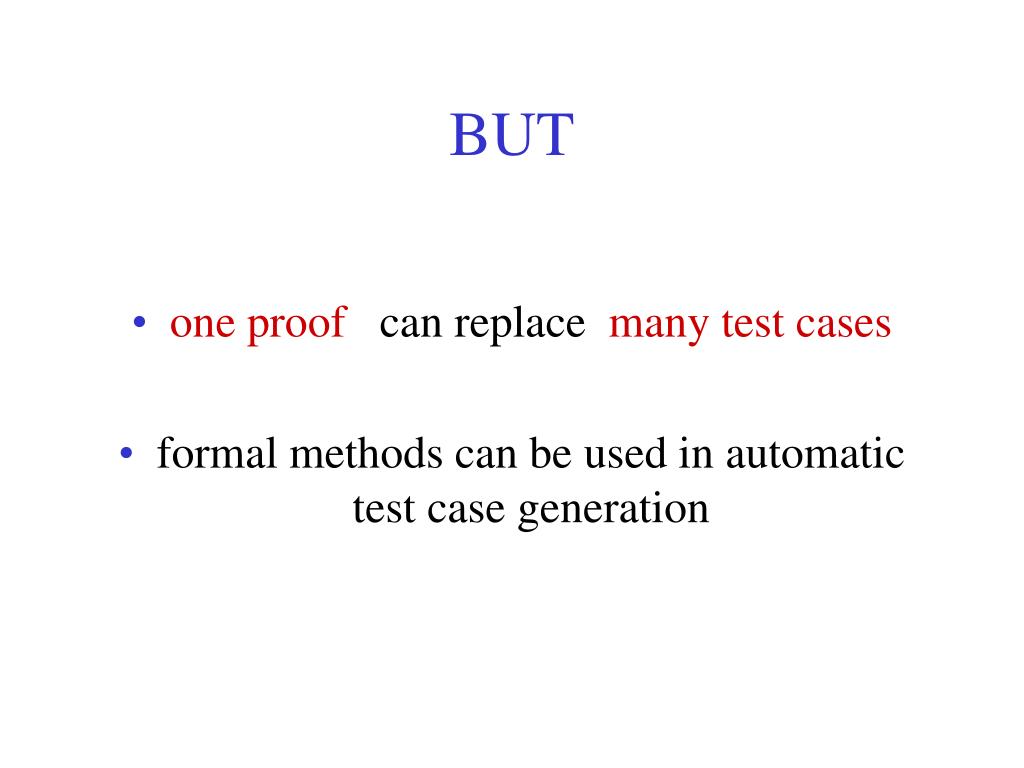

  5. BUT • one proof can replace many test cases • formal methods can be used in automatic test case generation

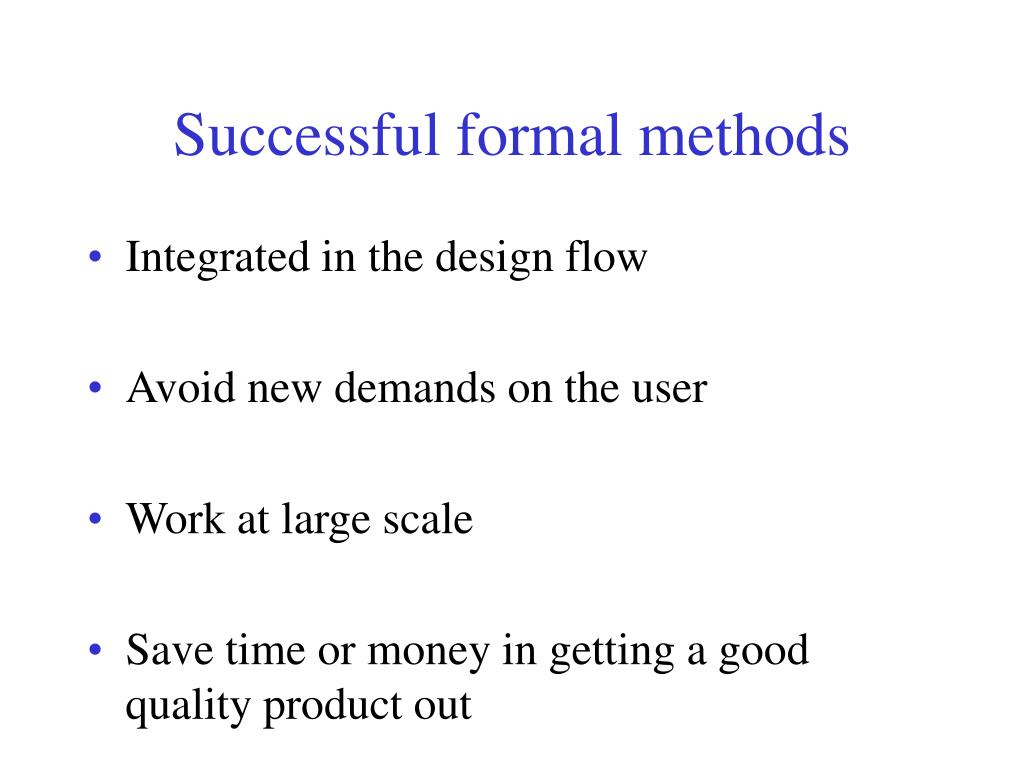

  6. Successful formal methods • Integrated in the design flow • Avoid new demands on the user • Work at large scale • Save time or money in getting a good quality product out

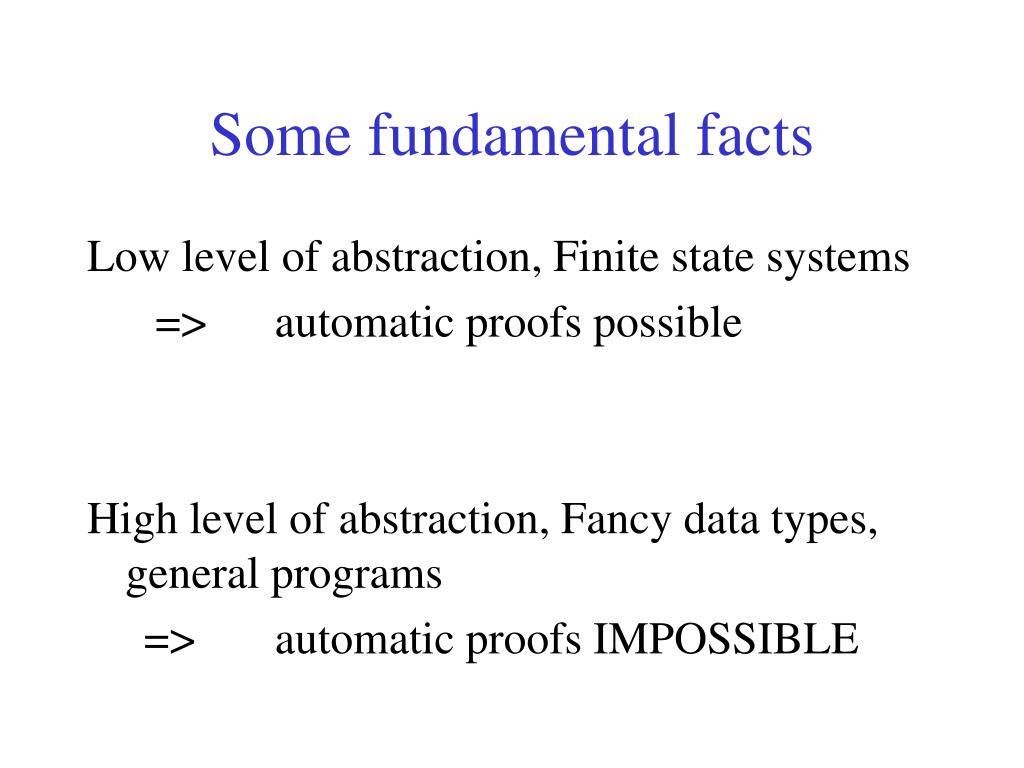

  7. Some fundamental facts Low level of abstraction, Finite state systems => automatic proofs possible High level of abstraction, Fancy data types, general programs => automatic proofs IMPOSSIBLE

  8. Two main approaches • Squeeze the problem down into one that can be handled automatically • industrial success of model checkers • automatic proof-based methods very hot • Use powerful interactive theorem provers and highly trained staff • for example Harrison’s work at Intel on floating point algorithms

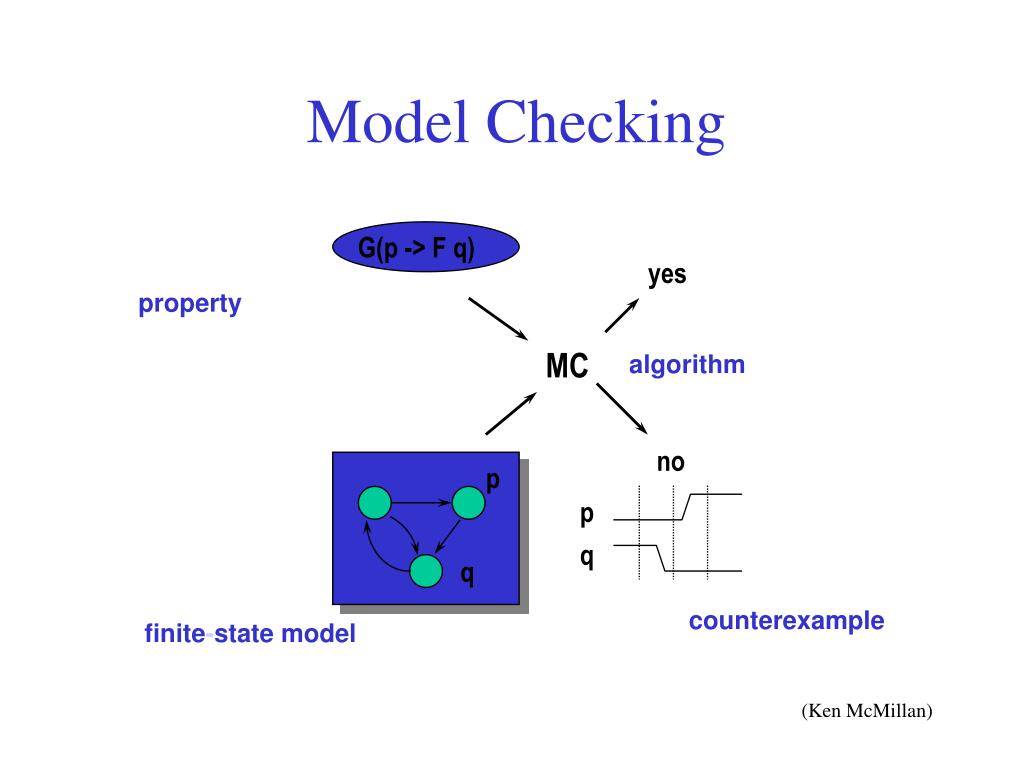

  9. G(p -> F q) yes property MC algorithm no p p q q counterexample finite-statemodel Model Checking (Ken McMillan)

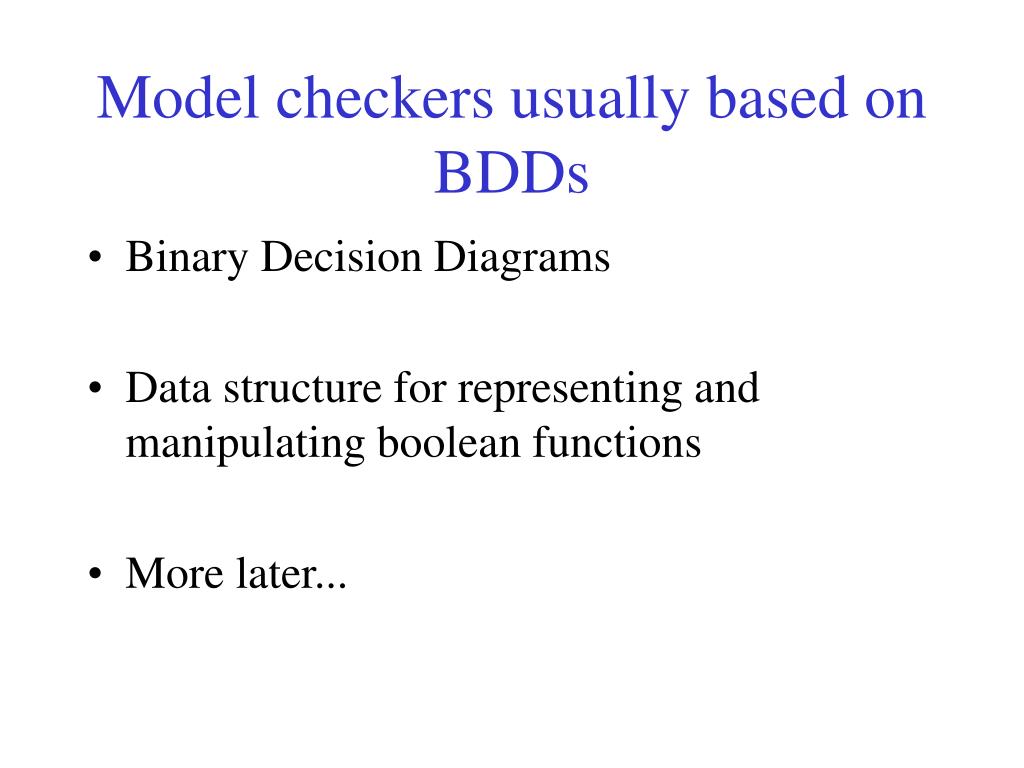

  10. Model checkers usually based on BDDs • Binary Decision Diagrams • Data structure for representing and manipulating boolean functions • More later...

  11. High level requirements High level design Compilation Compilation Proof Logical formula Logical formula Proof-based method

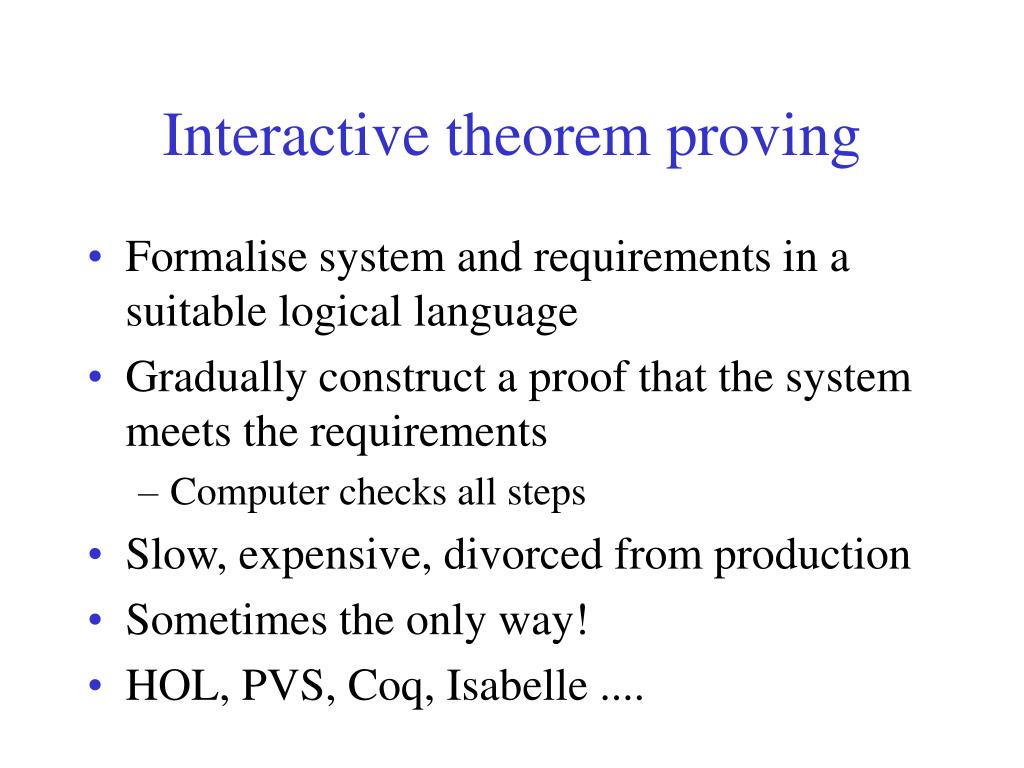

  12. Interactive theorem proving • Formalise system and requirements in a suitable logical language • Gradually construct a proof that the system meets the requirements • Computer checks all steps • Slow, expensive, divorced from production • Sometimes the only way! • HOL, PVS, Coq, Isabelle ....

  13. Refinement • Formal method used during design • Start with abstract specification • Decompose into communicating parts • Refine parts, adding details, and check each step (proofs) • stop at components that are already implemented • B method (Paris Metro driverless train)

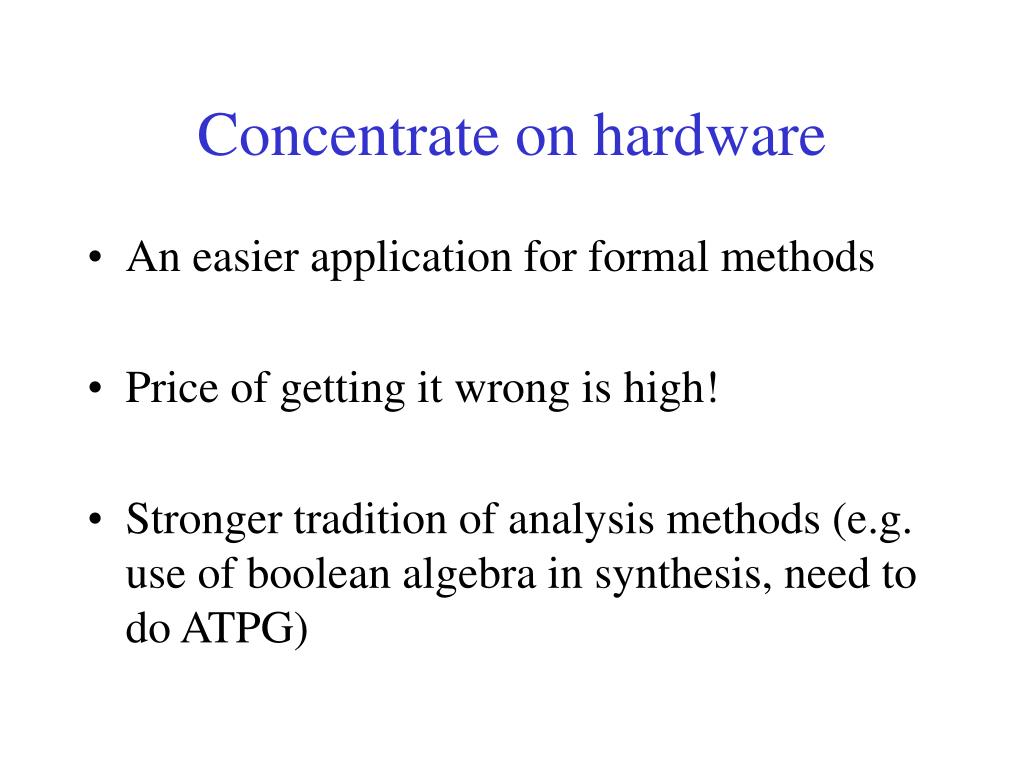

  14. Concentrate on hardware • An easier application for formal methods • Price of getting it wrong is high! • Stronger tradition of analysis methods (e.g. use of boolean algebra in synthesis, need to do ATPG)

  15. Nov. ’94 Intel FPU bug • 824633702441.0 times (1/824633702441.0) = 0.99999999274709702 • Fault in look-up table • COST $475.000.000

  16. $15 per transistor!! • Answer ?? IP blocks and system level design language • ”We are heading for a brick wall” • ”We can’t fill the fabs” • ”A first requirement is a formal semantics”

  17. Interactive methods • Hawk (Haskell in top level design of pipelined superscalar processors, OGI/Intel) • IBM and AMD both do processor verification using the interactive theorem prover ACL2

  18. Automatic methods • Finite state • BDD based verification widespread • emphasison cost saving • not on guaranteed correctness • used in production 50% verification engineers

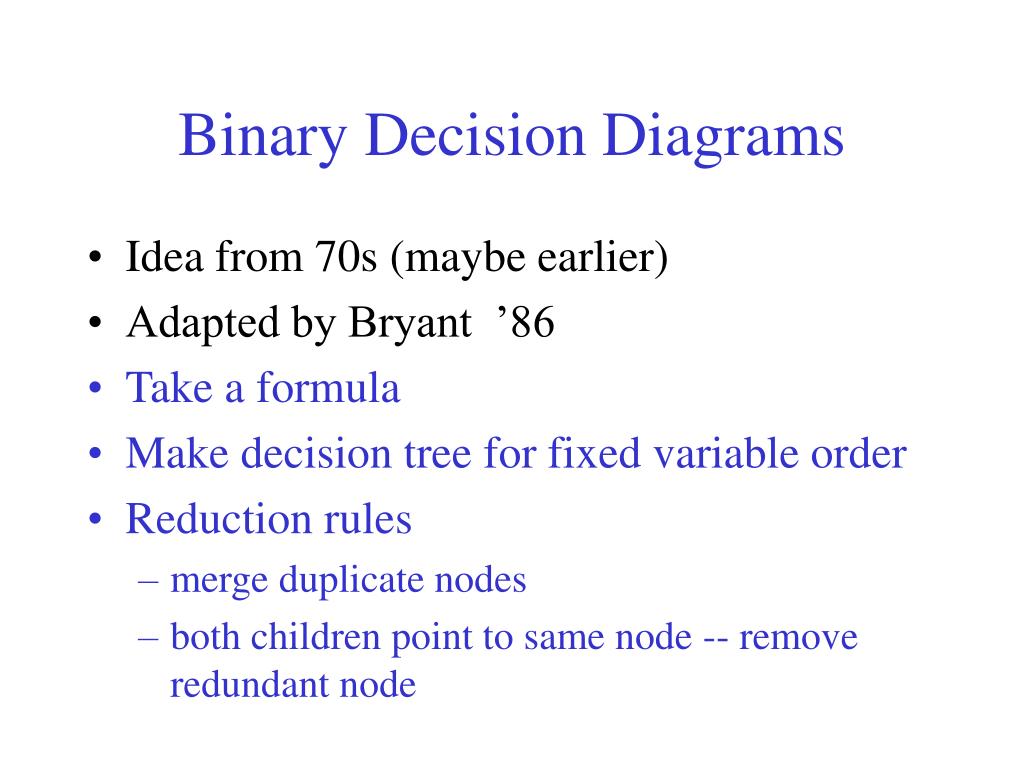

  19. Binary Decision Diagrams • Idea from 70s (maybe earlier) • Adapted by Bryant ’86 • Take a formula • Make decision tree for fixed variable order • Reduction rules • merge duplicate nodes • both children point to same node -- remove redundant node

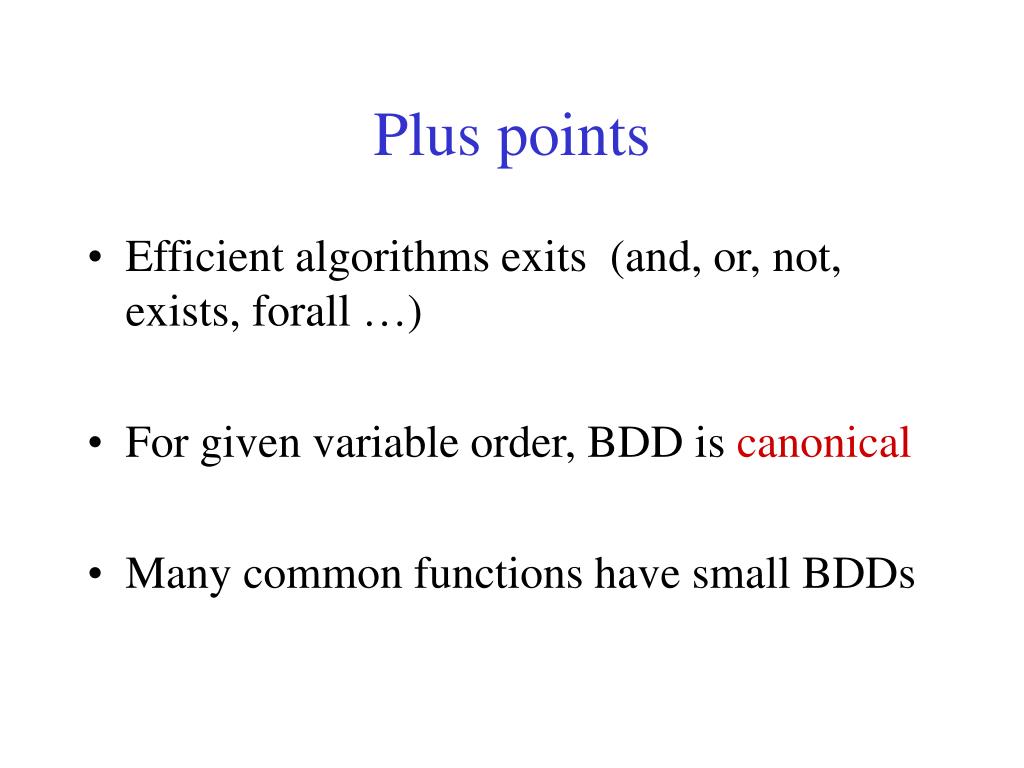

  20. Plus points • Efficient algorithms exits (and, or, not, exists, forall …) • For given variable order, BDD is canonical • Many common functions have small BDDs

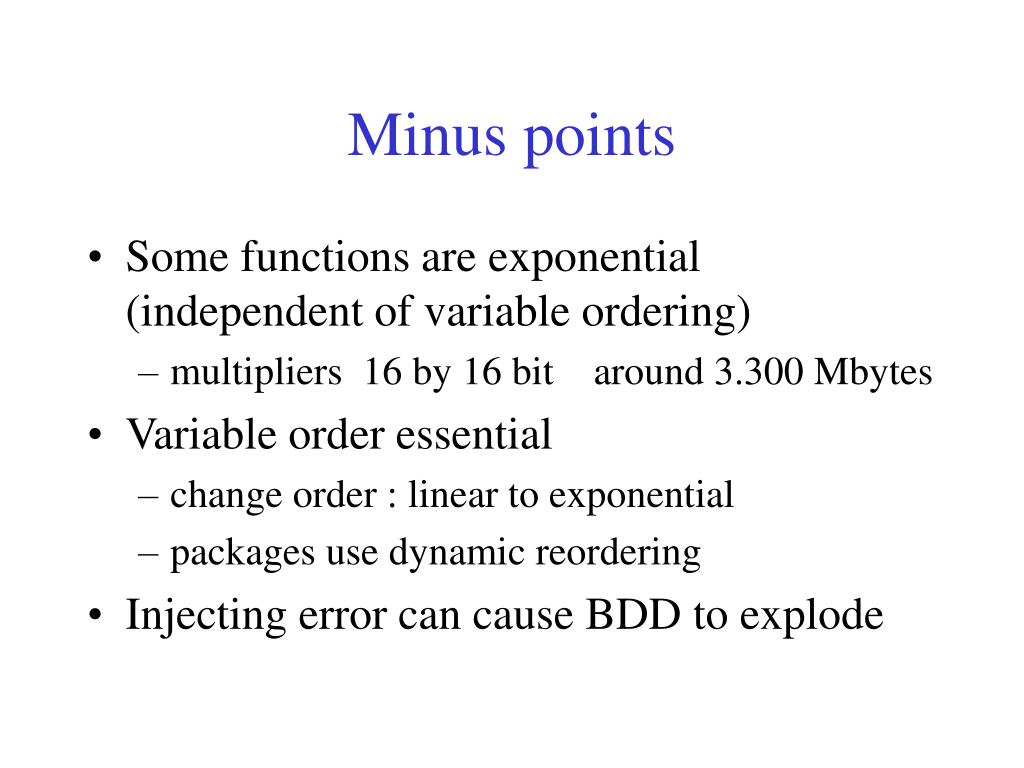

  21. Minus points • Some functions are exponential (independent of variable ordering) • multipliers 16 by 16 bit around 3.300 Mbytes • Variable order essential • change order : linear to exponential • packages use dynamic reordering • Injecting error can cause BDD to explode

  22. Exercise • Make BDD for x xor y xor z

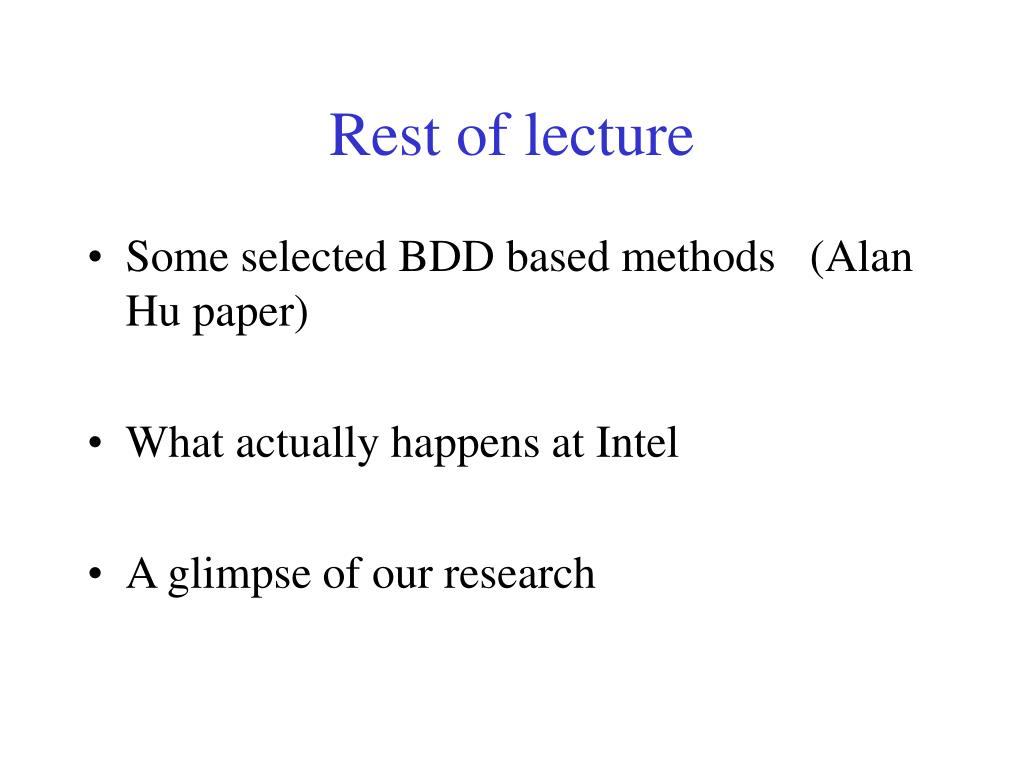

  23. Rest of lecture • Some selected BDD based methods (Alan Hu paper) • What actually happens at Intel • A glimpse of our research

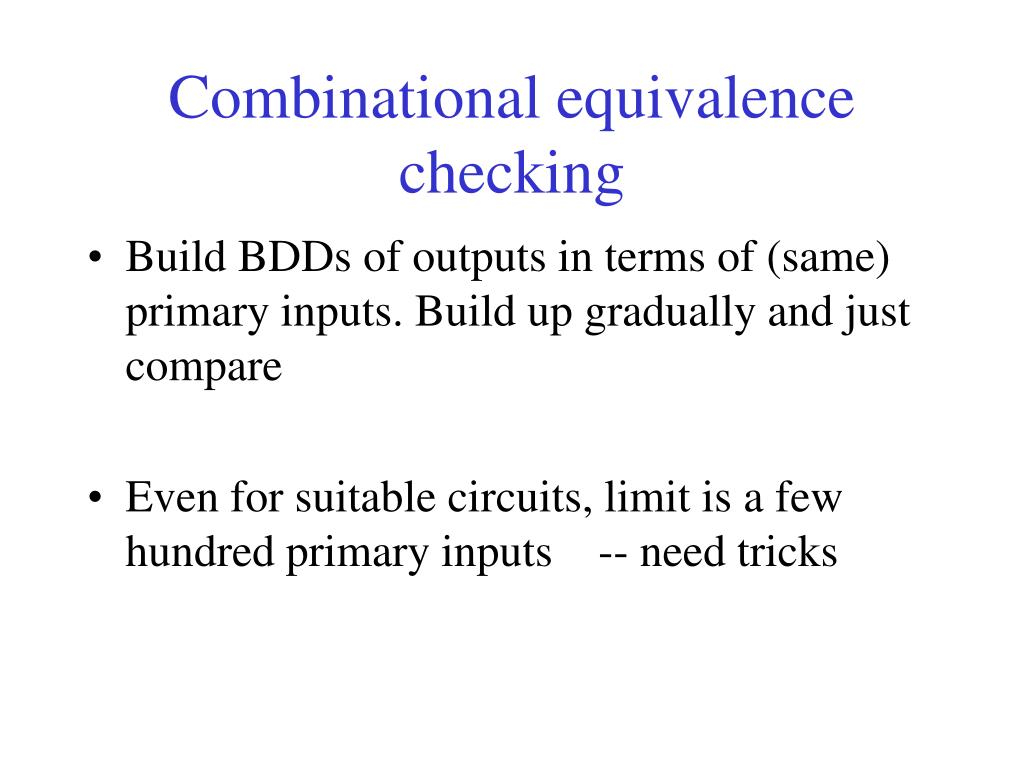

  24. Combinational equivalence checking • Build BDDs of outputs in terms of (same) primary inputs. Build up gradually and just compare • Even for suitable circuits, limit is a few hundred primary inputs -- need tricks

  25. Symbolic simulation • Constants 1 0 • unknown X • symbolic values a,b,c… • Adapt logic simulation to represent values on wires • BDDs represent functions of symbolic values

  26. X halves # simulation runs but loses info. • a halves # runs but makes BDDs bigger • Tradeoff • See also Lava, ACL2 (Rockwell)

  27. = & = Sequential equivalence checking • Compare sequential circuits by symbolic simulation (regard as finite state machines) • Is out always high (safety property) for all reachable states? out

  28. Compute reachable states • Set of states as BDD • ex. 3 bool vars (one per latch) • a + b represents {100,101,110,111,010,011} • T represents all 8 states • Image (applying the transition relation R) • AND (BDDs for present state and R) • Existentially quantify out vars for primary inputs and present state

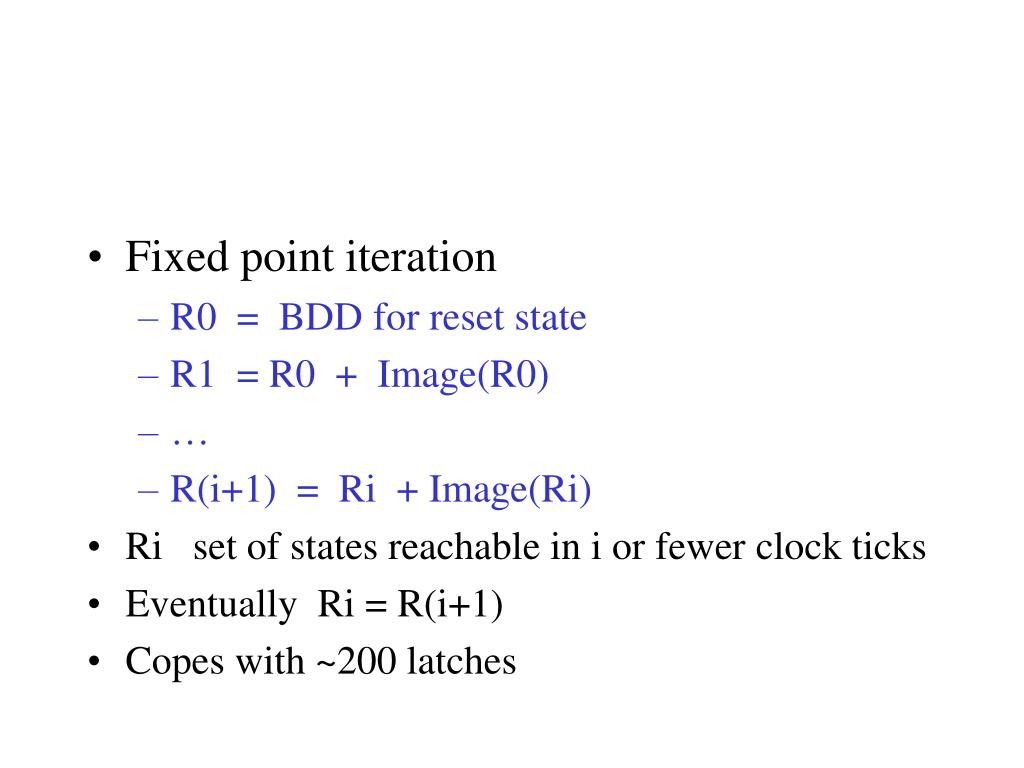

  29. Fixed point iteration • R0 = BDD for reset state • R1 = R0 + Image(R0) • … • R(i+1) = Ri + Image(Ri) • Ri set of states reachable in i or fewer clock ticks • Eventually Ri = R(i+1) • Copes with ~200 latches

  30. Model checking • Clarke/Emerson/Sistla et al ’83 • Express properties in temporal logic • Check if state machine satisfies property • AG EF (reset) • AG (req => AF ack) • Generalisation of reachability analysis • Same limits

  31. Symbolic Trajectory Evaluation • Symbolic simulation + temporal stuff • Limit expressiveness >> automation • Trajectory formula • can specify values of circuit nodes for bounded # of events into the future • no negation or disjunction • Unique symbolic simulation vector captures all behaviours satifying formula >> one run gives verification

  32. Problem is writing down the necessary specifications in this funny language • Too many symbolic variables >> BDD blowup • Can instead use a SAT solver (e.g. Recent work at Compaq by Bjesse from our group)

  33. General problem • BDD blowup • verify subsystems (eg Ericsson) • use abstractions (ie verify a simplified and smaller version) • Still, BDD based verification very successful! • Alternative is SAT based methods (our speciality) or combinations of methods

  34. Large scale hardware verification at Intel • Formal verification methodology for datapath-dominated hardware • Algorithmic developments in basic tools not enough • Need a systematic approach to organising activities in large scale verification

  35. Forte: a formal verification environment • Efficient model checker (STE) • Lightweight theorem prover • Interfaced to and tightly integrated with FL, a general purpose functional programming language • FL is both specification language and scripting language

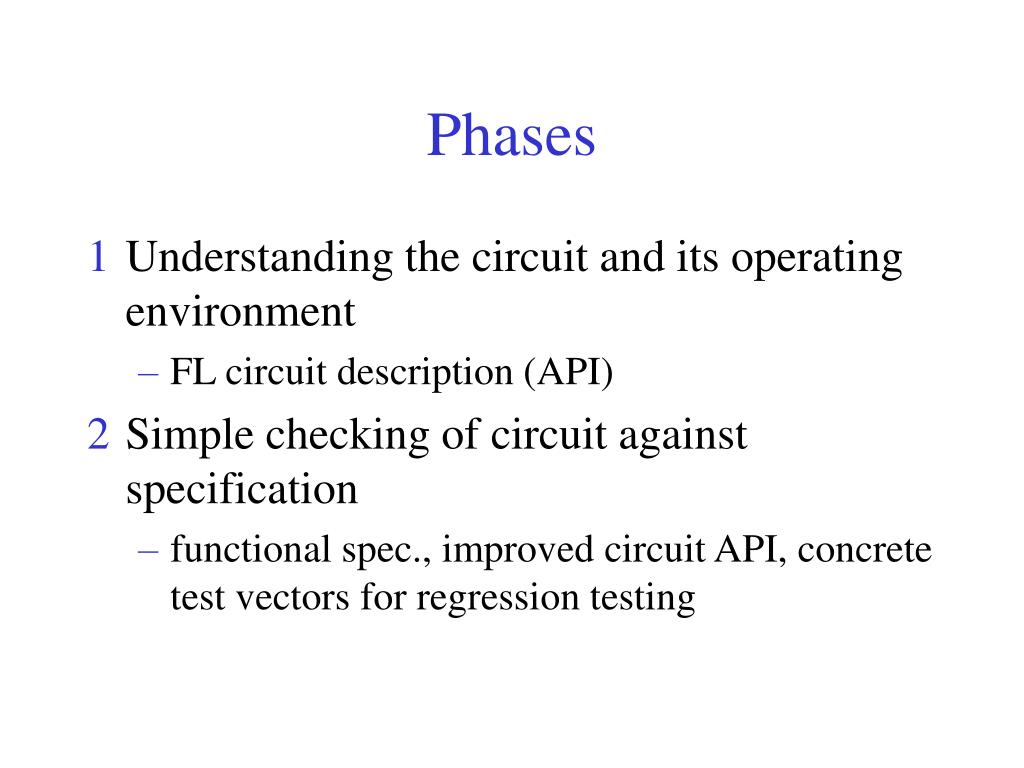

  36. Phases • Understanding the circuit and its operating environment • FL circuit description (API) • Simple checking of circuit against specification • functional spec., improved circuit API, concrete test vectors for regression testing

  37. Phases • STE • improved specification, detailed info. for model checker, characterisation of parts of input space for which MC works • all of the above are FL programs • most bugs found in this phase

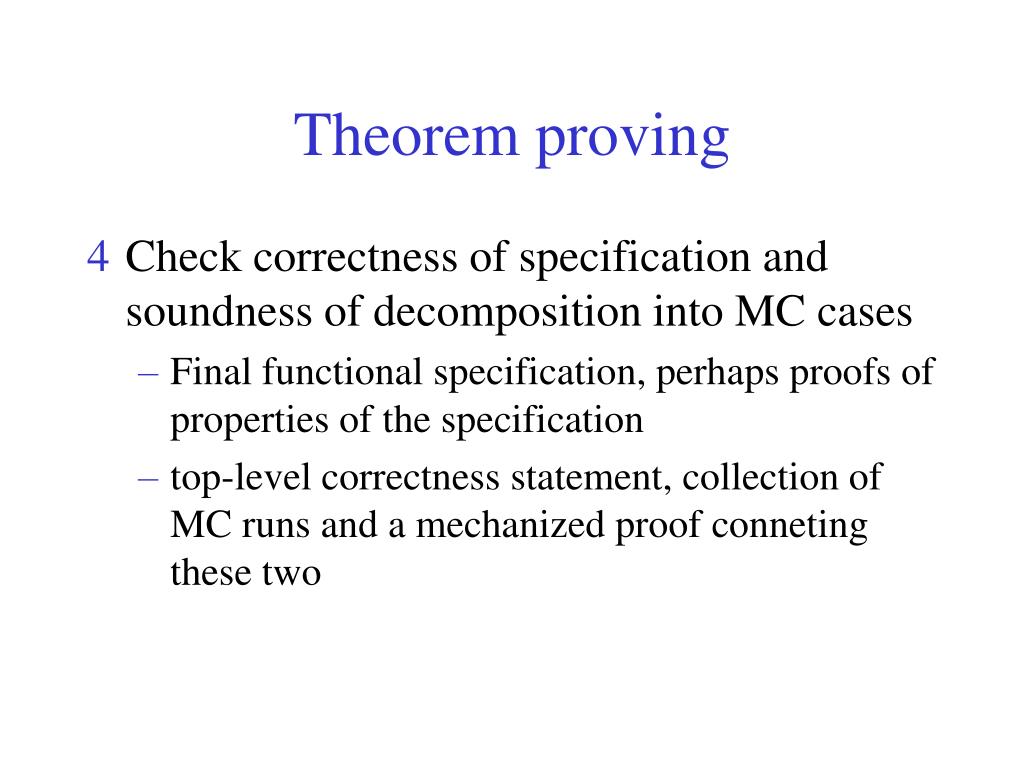

  38. Theorem proving • Check correctness of specification and soundness of decomposition into MC cases • Final functional specification, perhaps proofs of properties of the specification • top-level correctness statement, collection of MC runs and a mechanized proof conneting these two

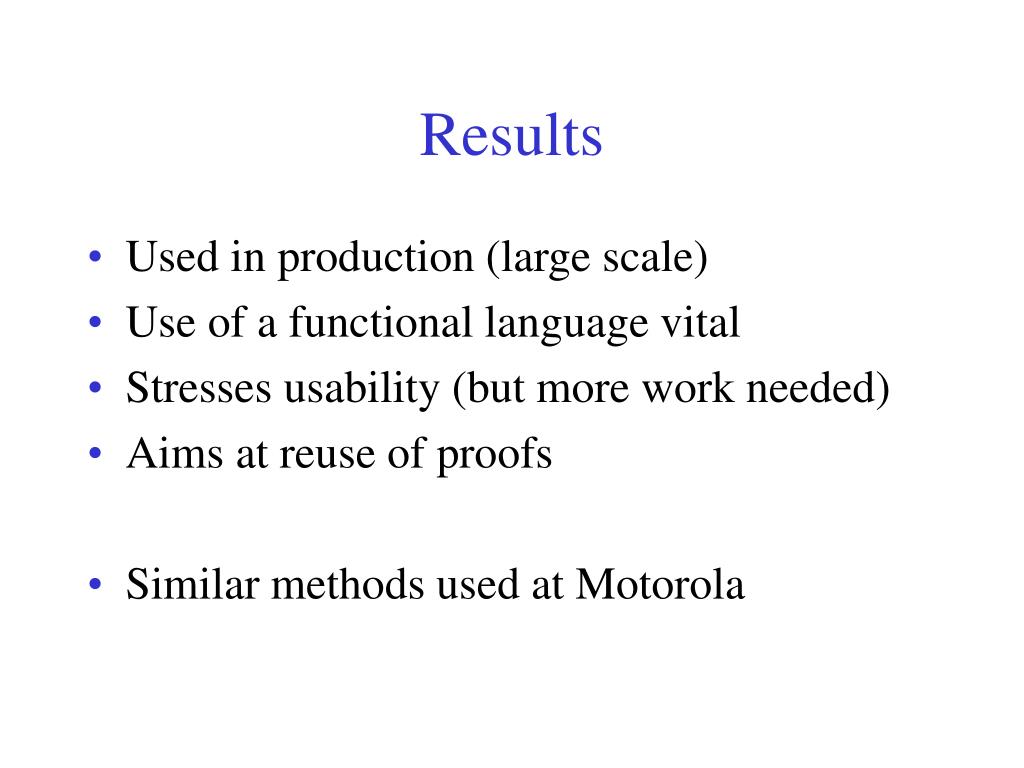

  39. Results • Used in production (large scale) • Use of a functional language vital • Stresses usability (but more work needed) • Aims at reuse of proofs • Similar methods used at Motorola

  40. Formal methods at Chalmers • Lava: an FPGA design system based on the functional progamming language Haskell • state of the art formal verification methods combined with advanced programming language features • Haskell used as scripting language • a version that gives fine control of layout developed and used at Xilinx Inc. • interesting for prototyping on FPGA

  41. Butterfly Layout on an FPGA

  42. Shameless advertising • Course in LP4 • Hardware description and verification • What is a HDL? • VHDL + model checking • Lava (Haskell plus automatic verification)

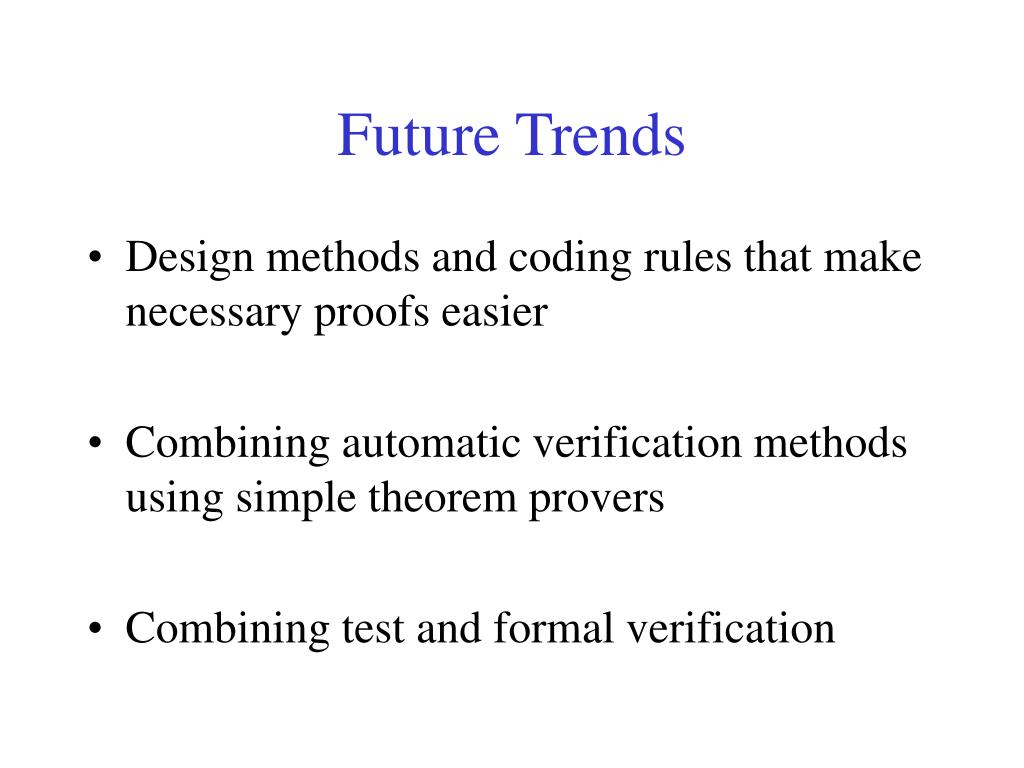

  43. Future Trends • Design methods and coding rules that make necessary proofs easier • Combining automatic verification methods using simple theorem provers • Combining test and formal verification
