  1. Extending Oracle 10g Grid ControlNew Metrics, Targets and Plug-ins Alex Gorbachev The Pythian Group 2006 November http://www.pythian.com/documents/UKOUG06-Extending10gGC.ppt http://www.pythian.com/documents/UKOUG06-Extending10gGC.zip

  2. Who am I? • Senior Oracle DBA at The Pythian Group • Working with Oracle since ‘97 • Pythian is a leading DBA outsourcing provider – remote DBA 24x7 • Offices worldwide – Canada, US, UK, India, Australia • www.pythian.com/blogs

  3. Why Extending Grid Control? • Keep your own proven monitoring • Monitor non-Oracle components • In-house or COTS software • Software and hardware vendors • Cut costs – avoid expensive packs • Write once – use many times

  4. Pythian Real Life Example • Pythian is providing full remote DBA service and has monitoring tool “Avail” • State of art monitoring tool built by DBA’s for themselves • Years of development and contributions of many DBA’s • More than just Oracle monitoring • Two old customers using Avail • They don’t want to loose proven monitoring • Another customer has invested a lot into OEM but want to leverage our tool • Solution – integrate Avail into OEM

  5. Agenda • User Defined Metrics (UDM) • New target types • Example – MySQL • Management Plug-ins • Advanced Topics • Reports

  6. User Defined Metrics • To extend existing targets • Oracle Instance targets • SQL querybased • Host targets • OS scripts based • UDMs - bottom of the target’s home page in the Related Links section

  7. SQL based UDM – 10gR1 • Single column, single row • Numeric value • Thresholds operators – = < <= != etc. • Text value • Threshold operators • CONTAINS, MATCH, = • Avoid NULL values • Use “Test” button • SELECT ROUND (c.open_cursors / p.value * 100) open_cursors • FROM (SELECT sid, COUNT (*) open_cursors • FROM v$open_cursor • GROUP BY sid • ORDER BY 2 DESC) c, • v$parameter p • WHERE p.name = 'open_cursors' AND ROWNUM = 1; • Credentials (username + password) • Thresholds (70,90) • Alert message • Collection interval

  8. SQL based UDM – 10gR2 • Two columns, multiple rows • The key • The value (numeric or text) • Each key-value pair is treated separately SELECT q.owner || '.' || q.NAME queue_name, s.ready FROM v$aq s, dba_queues q WHERE s.qid = q.qid AND q.owner IN ('PYTHIAN') • Key based thresholds “<key1>:<th1>;…” • “QUEUE1:10;QUEUE2:100” • Custom alert message • Queue %Key% contains %value% messages

  9. OS script based UDM • Script/binary returning single value • em_result=<value> + return zero • em_error=<message> + return none-zero • Permissions (!) • %scriptsDir% • $AGENT_HOME/sysman/admin/scripts • %perlBin% • Environment variables

  10. OS script based UDM • Script/binary returning single value status=`/usr/bin/mysqladmin ping 2>&1` if [ "$status" = "mysqld is alive" ] ; then echo "em_result=Up" else mysqld=`ps -e | grep mysqld | grep -v grep | wc -l` if [ "$mysqld" = "0" ] ; then echo "em_result=Down“ else echo "em_error=$status“ ;exit 1 fi fi

  11. UMDs Pros and Cons • Very simple • but… • No new targets • Limited collection mechanisms • No collection on cumulative counters (V$SYSSTAT) • Has to be defined and managed for each instance • Separate credentials • No real-time collection • Requires Database Diagnostic Pack

  12. New Targets – Real Extensibity • Develop new target types • Write once and reuse • Variety of collection mechanisms • Separation of development and operations

  13. OEM Repository Management Servers Grid Control Architecture Agent Agent Agent Agent DBA’s Data collection

  14. New Target Type – Main Steps • Create target type metadata • Validate new target type and metric collection • Define metrics default collection parameters • Distribute metadata and required support files to all hosts • Add instances of new target type

  15. XML DTD’s – Best Reference • $AGENT_HOME/sysman/admin/dtds • Target type metadata • TargetMetadata.dtd • Metrics default collection • TargetCollection.dtd, Schedule.dtd • Target instances (in targets.xml) • TargetInstance.dtd

  16. Target type metadata $AGENT_HOME/sysman/admin/metadata/pythian_mysql.xml <?xml version="1.0" ?> <!DOCTYPE TargetMetadata SYSTEM "../dtds/TargetMetadata.dtd"> <TargetMetadata META_VER="1.0" TYPE="pythian_mysql"> <Display>…</Display> <Metric>…</Metric> <Metric>…</Metric> <InstanceProperties>…</InstanceProperties> </TargetMetadata>

  17. <Display> <Display> <Label NLSID=“pythian_mysql_name">MySQL</Label> </Display>

  18. Target type metadata <?xml version="1.0" ?> <!DOCTYPE TargetMetadata SYSTEM "../dtds/TargetMetadata.dtd"> <TargetMetadata META_VER="1.0" TYPE="pythian_mysql"> <Display>…</Display> <Metric>…</Metric> <Metric>…</Metric> <InstanceProperties>…</InstanceProperties> </TargetMetadata> After (!) Metrics

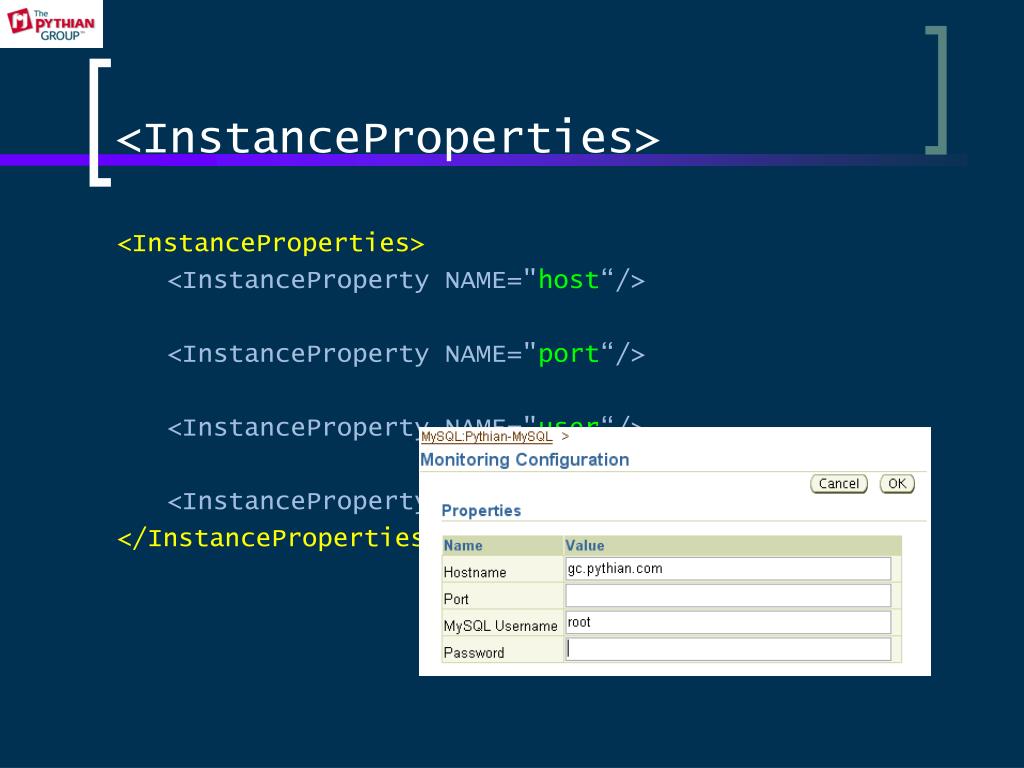

  19. <InstanceProperties> <InstanceProperties> <InstanceProperty>…</InstanceProperty> <InstanceProperty>…</InstanceProperty> <InstanceProperty>…</InstanceProperty> <DynamicProperties>…</DynamicProperties> <DynamicProperties>…</DynamicProperties> </InstanceProperties>

  20. <InstanceProperties> <InstanceProperties> <InstanceProperty NAME="host"> <Display> <Label NLSID=“pythian_mysql_host">Hostname </Label> </Display> </InstanceProperty> </InstanceProperties>

  21. <InstanceProperties> <InstanceProperties> <InstanceProperty NAME="password“ CREDENTIAL="TRUE“ HIDE_ENTRY="TRUE“ NEED_REENTER="TRUE“ OPTIONAL="TRUE“> <Display>…</Display> </InstanceProperty> </InstanceProperties>

  22. <InstanceProperties> <InstanceProperties> <InstanceProperty NAME="host“/> <InstanceProperty NAME="port“/> <InstanceProperty NAME="user“/> <InstanceProperty NAME=“password“/> </InstanceProperties>

  23. Target type metadata <?xml version="1.0" ?> <!DOCTYPE TargetMetadata SYSTEM "../dtds/TargetMetadata.dtd"> <TargetMetadata META_VER="1.0" TYPE=“pythian_mysql"> <Display>…</Display> <Metric>…</Metric> <Metric>…</Metric> <InstanceProperties>…</InstanceProperties> </TargetMetadata>

  24. <Metric> <Metric NAME="Response" TYPE="TABLE"> <Display>…</Display> <TableDescriptor>…</TableDescriptor> <QueryDescriptor>…</QueryDescriptor> </Metric> • TABLE • STRING • NUMBER Fetchlets • OS Command • SQL • SNMP • URL Timing • HTTP Data • URLXML • JDBC

  25. <Metric> <Metric NAME="Response" TYPE="TABLE"> <TableDescriptor> <ColumnDescriptor NAME="Status" TYPE="STRING“/> <ColumnDescriptor NAME="response_time“ TYPE="NUMBER"> <Display FOR_SUMMARY_UI="TRUE"> <Label NLSID="resp_time">Response time (ms) </Label> <ShortName NLSID="resp_s">Response</ShortName> </Display> </ColumnDescriptor> </TableDescriptor> </Metric>

  26. <Metric> <Metric NAME="Response" TYPE="TABLE"> <Display>…</Display> <TableDescriptor>…</TableDescriptor> <QueryDescriptor>…</QueryDescriptor> </Metric>

  27. <QueryDescriptor> <Metric NAME="Response" TYPE="TABLE"> <QueryDescriptor FETCHLET_ID="OSLineToken"> <Property NAME="myhost“ SCOPE="INSTANCE">host</Property> <Property NAME="myport“ SCOPE="INSTANCE“ OPTIONAL="TRUE">port</Property> <Property NAME="myuser" SCOPE="INSTANCE“ OPTIONAL="TRUE">user</Property> <Property NAME="mypwd" SCOPE="INSTANCE“ OPTIONAL="TRUE">password</Property> …… </QueryDescriptor> </Metric>

  28. <QueryDescriptor> <Metric NAME="Response" TYPE="TABLE"> <QueryDescriptor FETCHLET_ID="OSLineToken"> …… <Property NAME="startsWith“ SCOPE="GLOBAL">em_result=</Property> <Property NAME="errStartsWith“ SCOPE="GLOBAL">em_error=</Property> <Property NAME="delimiter“ SCOPE="GLOBAL">|</Property> <Property NAME="command“ SCOPE="GLOBAL"> %scriptsDir%/emx/pythisn_mysql/ pythian_mysql_load.sh %myhost% %myport% %myuser% %mypwd% </Property> </QueryDescriptor> </Metric>

  29. Output– pythian_mysql_load.sh • MySQL server up……………exit 0 em_result=Up|10 • MySQL server down………...exit 0 em_result=Down • Metric collection error………exit 1 em_error=<error message>

  30. Response Metric • Availability monitoring • Must be of type TABLE • Must contain column Status • Must have critical threshold defined in default collection properties

  31. Property Scope • GLOBAL • Target type metadata • SYSTEMGLOBAL • emd.properties • INSTANCE • Instance properties – targets.xml • ENV • Environment variables

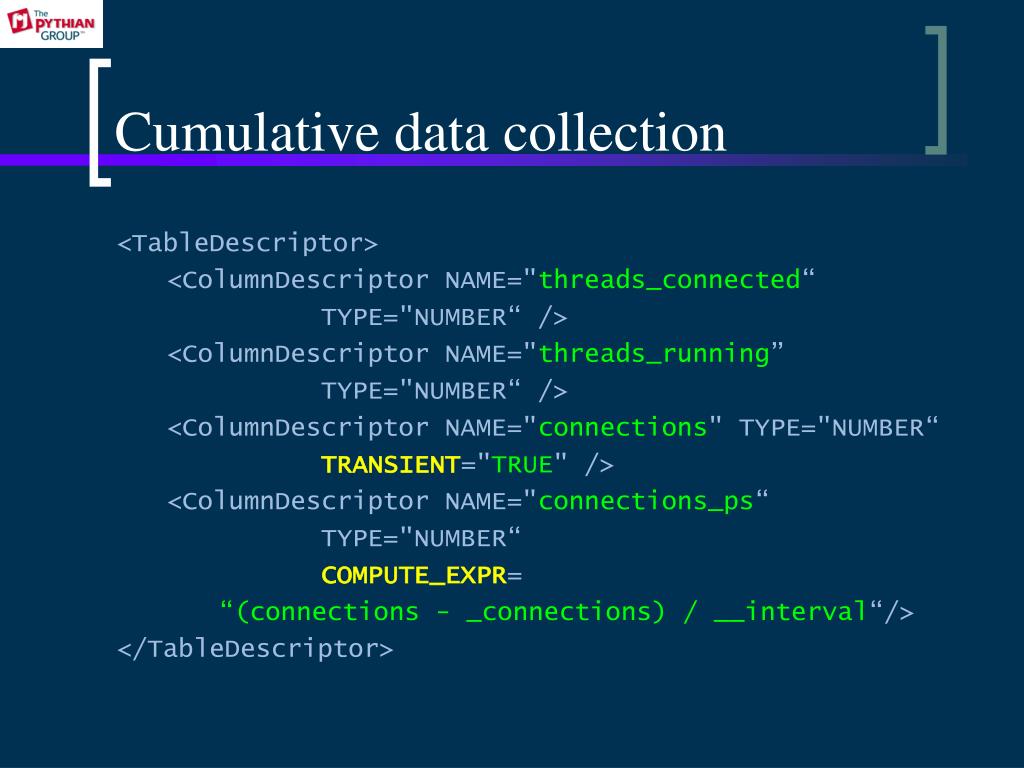

  32. Cumulative data collection <TableDescriptor> <ColumnDescriptor NAME="threads_connected“ TYPE="NUMBER“ /> <ColumnDescriptor NAME="threads_running” TYPE="NUMBER“ /> <ColumnDescriptor NAME="connections" TYPE="NUMBER“ TRANSIENT="TRUE" /> <ColumnDescriptor NAME="connections_ps“ TYPE="NUMBER“ COMPUTE_EXPR= “(connections - _connections) / __interval“/> </TableDescriptor>

  33. Cumulative data collection • Two collection points • em_result=9|3|10498 • em_result=6|4|11265 • Interval – 5 minutes • (11265 - 10498) / 300 = 2.6 /sec

  34. Key columns <TableDescriptor> <ColumnDescriptorNAME="action“TYPE="STRING“ IS_KEY="TRUE“ /> <ColumnDescriptorNAME="proccount“TYPE="NUMBER“ /> </TableDescriptor> +=============+===============================+ |action |proccount | |(Action )|(Number of processes in action)| |type = STRING|type = NUMBER | +=============+===============================+ | Query | 1 | +-------------+-------------------------------+ | Sleep | 2 | +-------------+-------------------------------+

  35. Metadata Validation • ILint • Static validation • Data collection • Metric Browser • Verify data collection in Oracle Agent environment

  36. ILint validation • XML syntax • Conformance to DTD • XML file must contain DOCTYPE line • Additional validation based on heuristical rules

  37. ILint syntax • Help – emctl ilint $ emctl ilint \ -m $AGENT_HOME/sysman/admin/metadata/pythian_mysql.xml $ emctl ilint \ –m $AGENT_HOME/sysman/admin/metadata/pythian_mysql.xml \ -i /opt/oracle/pythian_targets.xml \ -t Pythian-MySQL \ –r Response

  38. ILint collection validation • Sample targets.xml with target instance /opt/oracle/pythian_targets.xml <Targets> <Target TYPE=“pythian-mysql“ NAME=“Pythian-MySQL"> <Property NAME="host" VALUE=“gc.pythian.com"/> <Property NAME="user" VALUE="root"/> </Target> </Targets>

  39. ILint collection validation Validating Target = "Pythian-MySQL" of Type = "pythian_mysql" =============================================================================== Target = "Pythian-MySQL" has the following 2 Properties =============================================================================== Property: host --> Value: gc.pythian.com (INSTANCE) Property: user --> Value: root (INSTANCE) =============================================================================== Executing Metric = "Response" =============================================================================== Number of Rows = 1 +=============+====================+ |Status |response_time | | |(Response time (ms))| |type = STRING|type = NUMBER | +=============+====================+ | Up | 60 | +-------------+--------------------+ METRIC=Response, TARGET=(pythian_mysql,Pythian-MySQL)

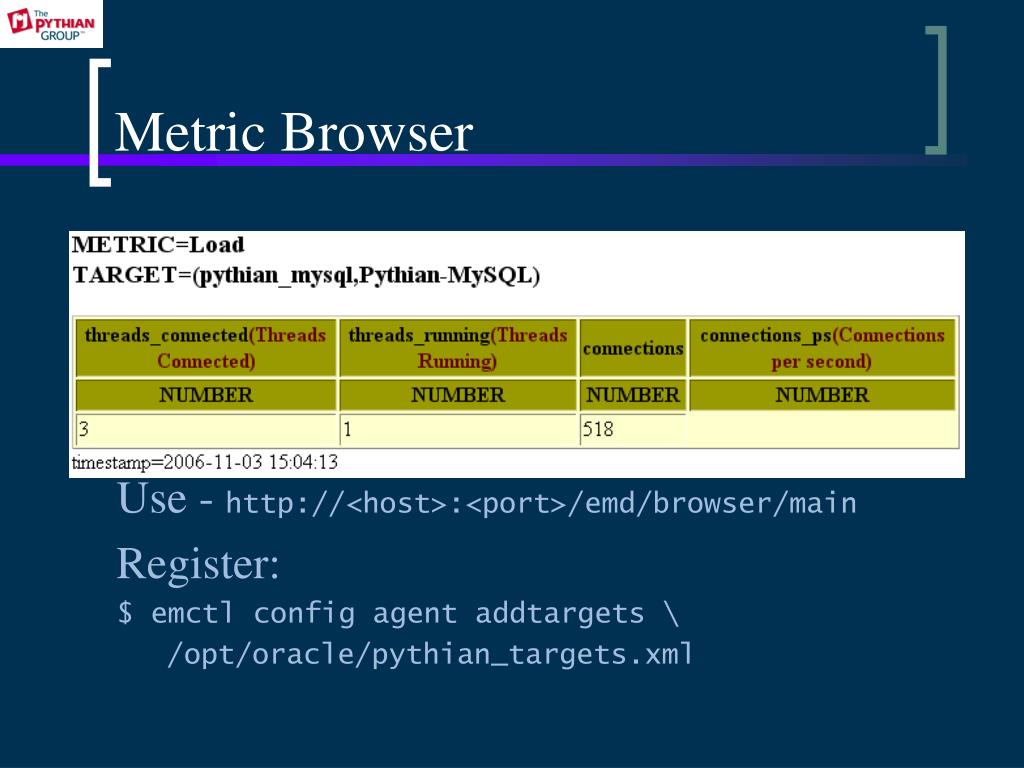

  40. Metric Browser $AGENT_HOME/sysman/config/emd.properties enableMetricBrowser=true $ emctl stop agent $ emctl start agent Find - EMD_URL=http://<host>:<port>/emd/main/ Use - http://<host>:<port>/emd/browser/main Register: $ emctl config agent addtargets \ /opt/oracle/pythian_targets.xml

  41. Default Collection • Default collection intervals • Default warning and critical thresholds • $AGENT_HOME/sysman/admin/default_collection <?xml version="1.0" ?> <!DOCTYPE TargetCollection SYSTEM "../dtds/TargetCollection.dtd"> <TargetCollection TYPE=“pythian_mysql"> <CollectionItem> … </CollectionItem> <CollectionItem> … </CollectionItem> <CollectionItem> … </CollectionItem> </TargetCollection>

  42. Default Collection <CollectionItem NAME="Response“ UPLOAD="YES“ UPLOAD_ON_FETCH="TRUE"> <Schedule> <IntervalSchedule INTERVAL="5" TIME_UNIT="Min“/> </Schedule> <Condition COLUMN_NAME="Status" CRITICAL="Down“ OPERATOR="CONTAINS“ /> <Condition COLUMN_NAME="response_time“ WARNING="100" CRITICAL="300“ OPERATOR="GT" OCCURRENCES="2“ /> </CollectionItem> $ emctl ilint \ –m $AGENT_HOME/sysman/admin/metadata/pythian_mysql.xml \ -c …/admin/default_collection/pythian_mysql.xml

  43. Why Plug-ins? • Central management and deployment • Distribute all required files to agents • Packaging tool for vendors • System reports • Customized home page • Setup and cleanup procedures • Custom storage tables

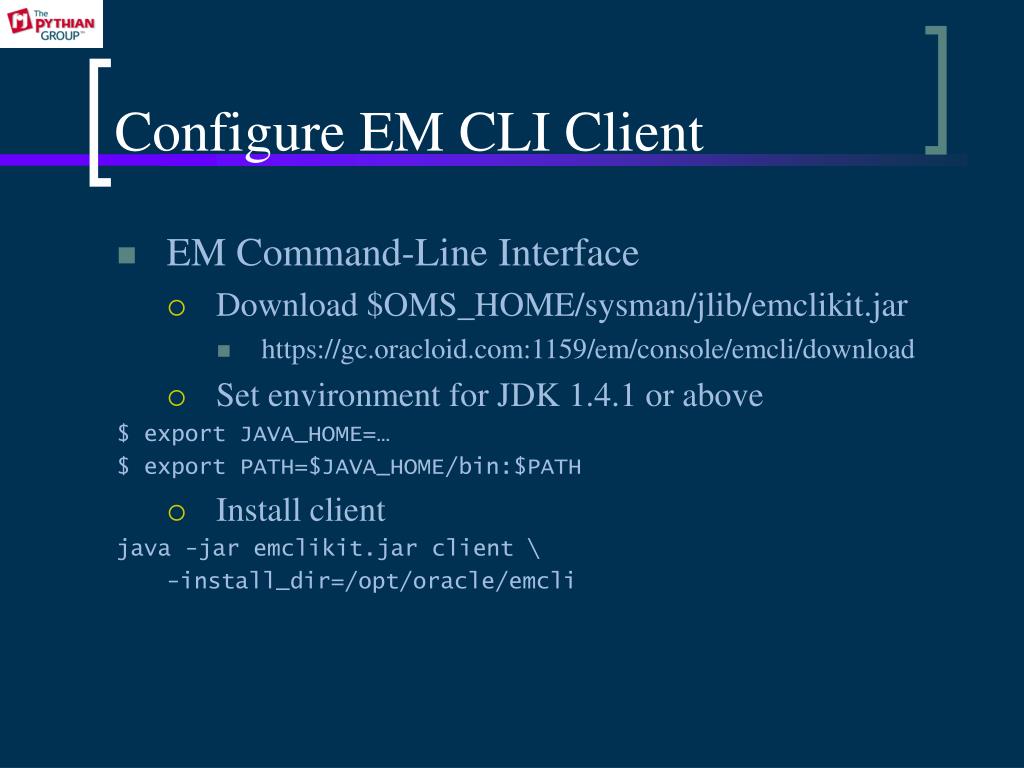

  44. Configure EM CLI Client • EM Command-Line Interface • Download $OMS_HOME/sysman/jlib/emclikit.jar • https://gc.oracloid.com:1159/em/console/emcli/download • Set environment for JDK 1.4.1 or above $ export JAVA_HOME=… $ export PATH=$JAVA_HOME/bin:$PATH • Install client java -jar emclikit.jar client \ -install_dir=/opt/oracle/emcli

  45. Management Plug-in Archive $ export ADM=$AGENT_HOME/sysman/admin $ export EMX=$ADM/scripts/emx $ emcli add_mp_to_mpa \ -mpa="`pwd`/pythian_mysql.jar" \ -mp_version="0.1" \ -ttd="$ADM/metadata/pythian_mysql.xml" \ -dc="$ADM/default_collection/pythian_mysql.xml" \ -file="MONITORING_SCRIPT:$EMX/pythian_mysql_response.sh" \ -file="MONITORING_SCRIPT:$EMX/pythian_mysql_load.sh" \ -file="MONITORING_SCRIPT:$EMX/pythian_mysql_procaggr.sh" \ -func_desc="MySQL Plug-in (The Pythian Group)" \ -req_desc="mysql executable in PATH" \ -oms_version="10.2.0.1"

  46. Deployment - Import • Import MPA using EM web-based GUI • Set Agent’s preferred credentials • Setup->Management Plug-ins->Import • Enter path • Click “List Archive” • Mark plug-in • OK

  47. Reports • MPA allows adding SYSTEM reports • Can’t be deleted • Can be placed on target’s home page

  48. How to Add Reports to MP • Design and develop using GUI • SQL Statements • Appearance • Using Information Publisher API • Report definition file with PL/SQL block • MGMT_IP and MGMT_MP_HOMEPAGE packages • So far no wizard to convert GUI => IP API

  49. Example Report

  50. Report Definition in GUI
