  1. Measurement

  2. Measuring Distance • Distance is the length from one point to another • The tool we use in class to measure distance is the ruler or meter stick. • Meter: basic unit of distance in the metric system • Centimeter: • 100 centimeters make a meter. • A cm is 1/100 of a meter • Kilometer: • 1,000 meters. • Millimeter: • 1000 millimeters make a meter. • 10 millimeters make a cm. • One mm is 1/1000 of a meter.

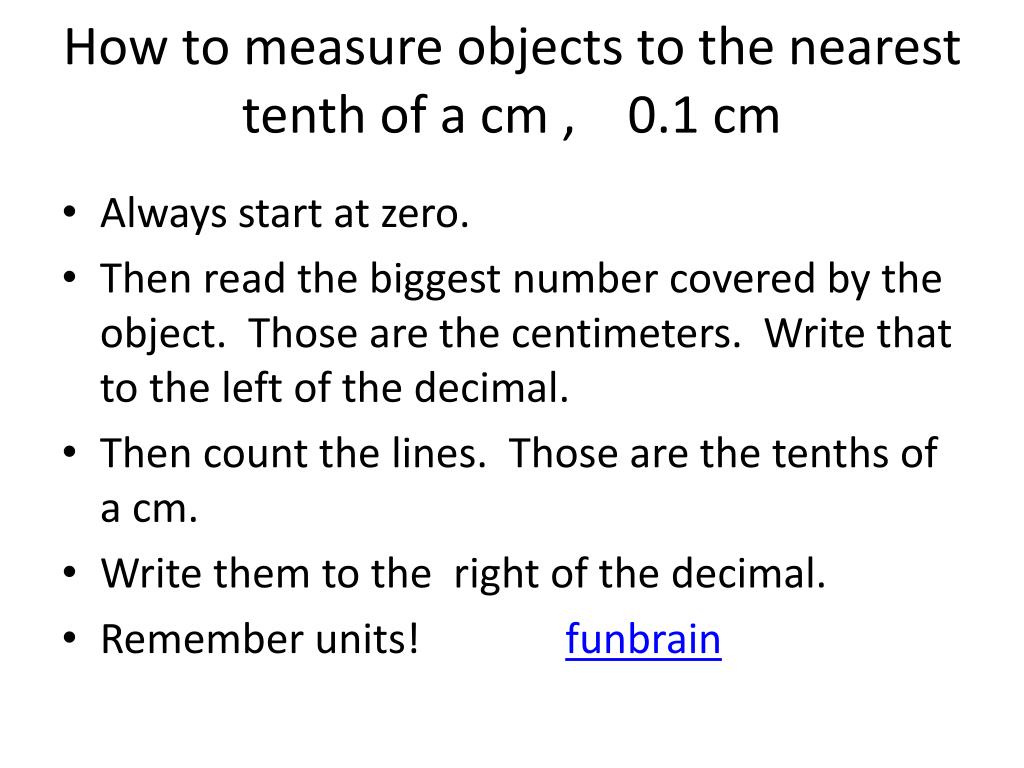

  3. How to measure objects to the nearest tenth of a cm , 0.1 cm • Always start at zero. • Then read the biggest number covered by the object. Those are the centimeters. Write that to the left of the decimal. • Then count the lines. Those are the tenths of a cm. • Write them to the right of the decimal. • Remember units! funbrain

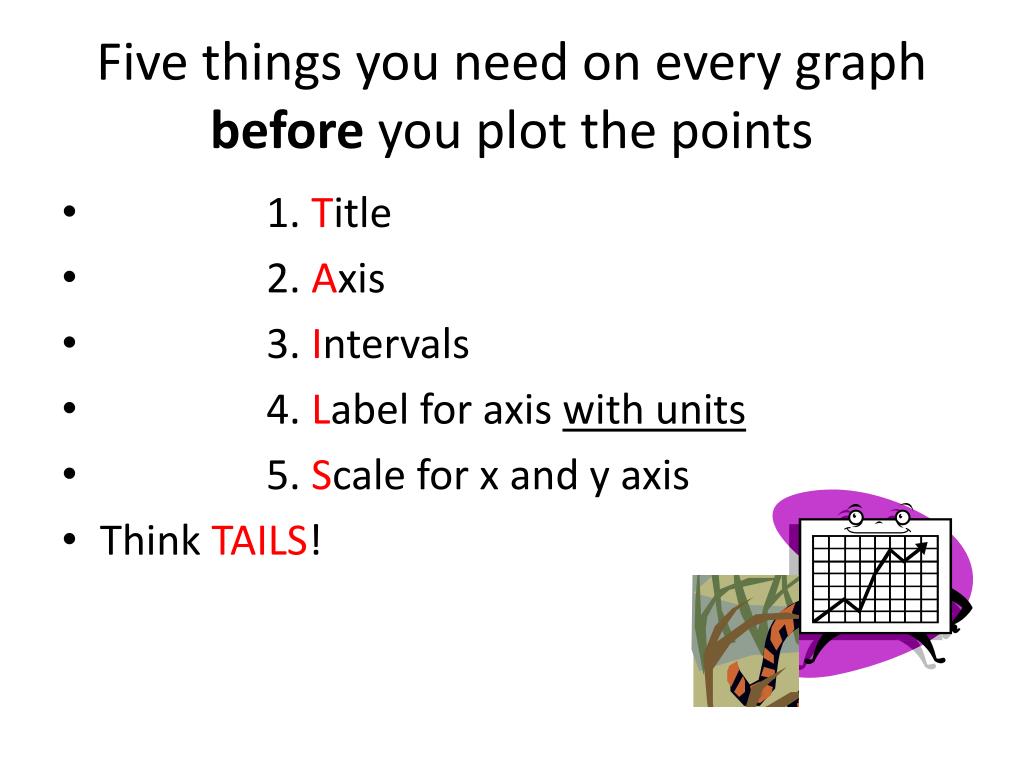

  4. Five things you need on every graph before you plot the points • 1. Title • 2. Axis • 3. Intervals • 4. Label for axis with units • 5. Scale for x and y axis • Think TAILS!

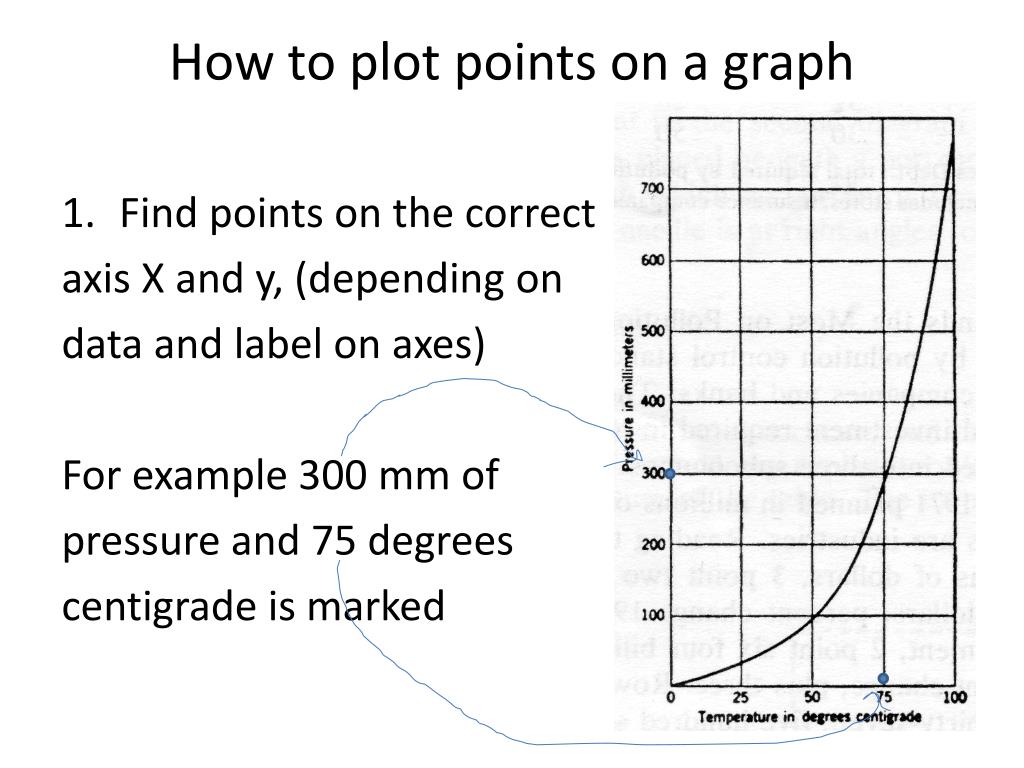

  5. How to plot points on a graph • Find points on the correct axis X and y, (depending on data and label on axes) For example 300 mm of pressure and 75 degrees centigrade is marked

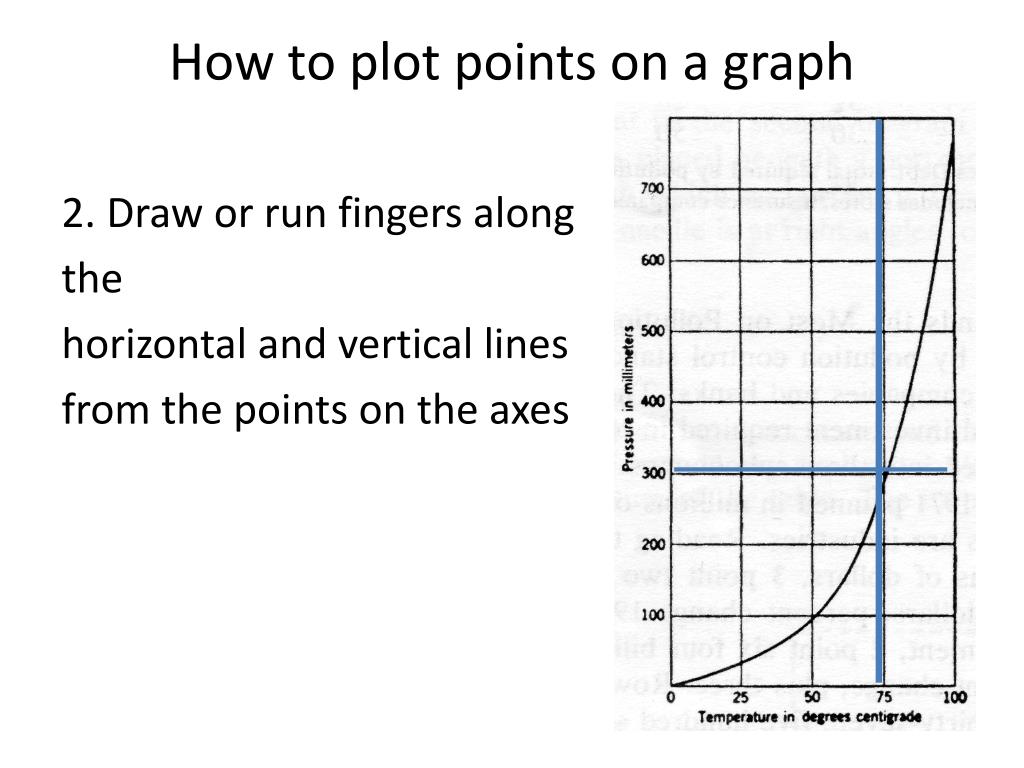

  6. How to plot points on a graph 2. Draw or run fingers along the horizontal and vertical lines from the points on the axes

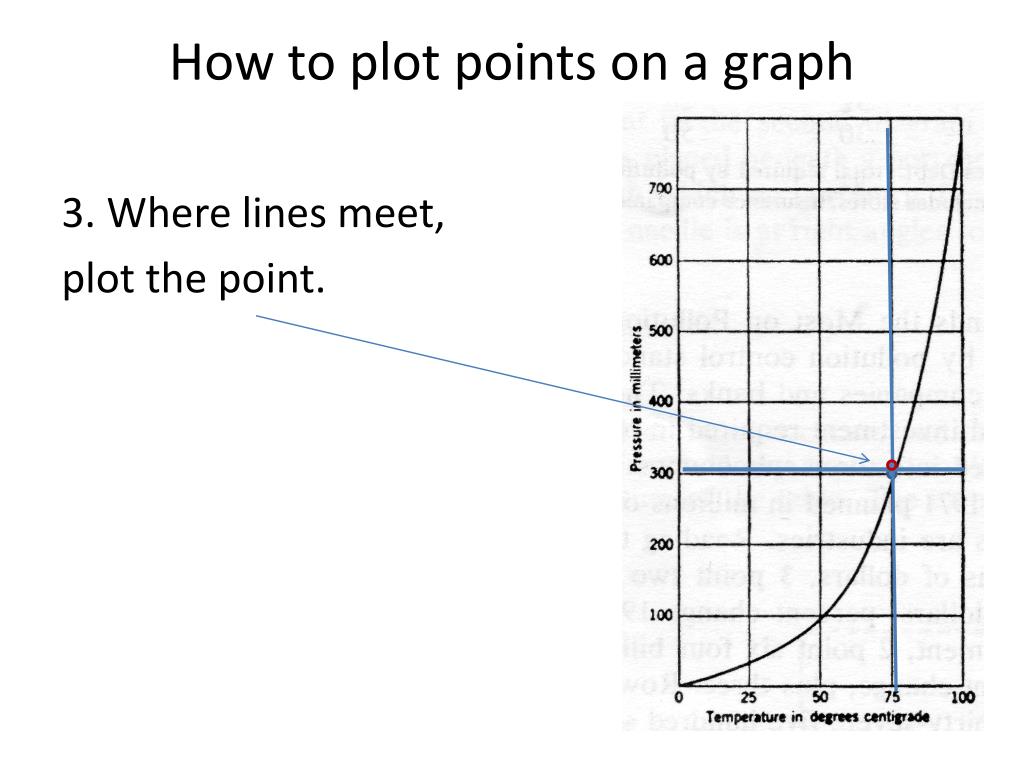

  7. How to plot points on a graph 3. Where lines meet, plot the point.

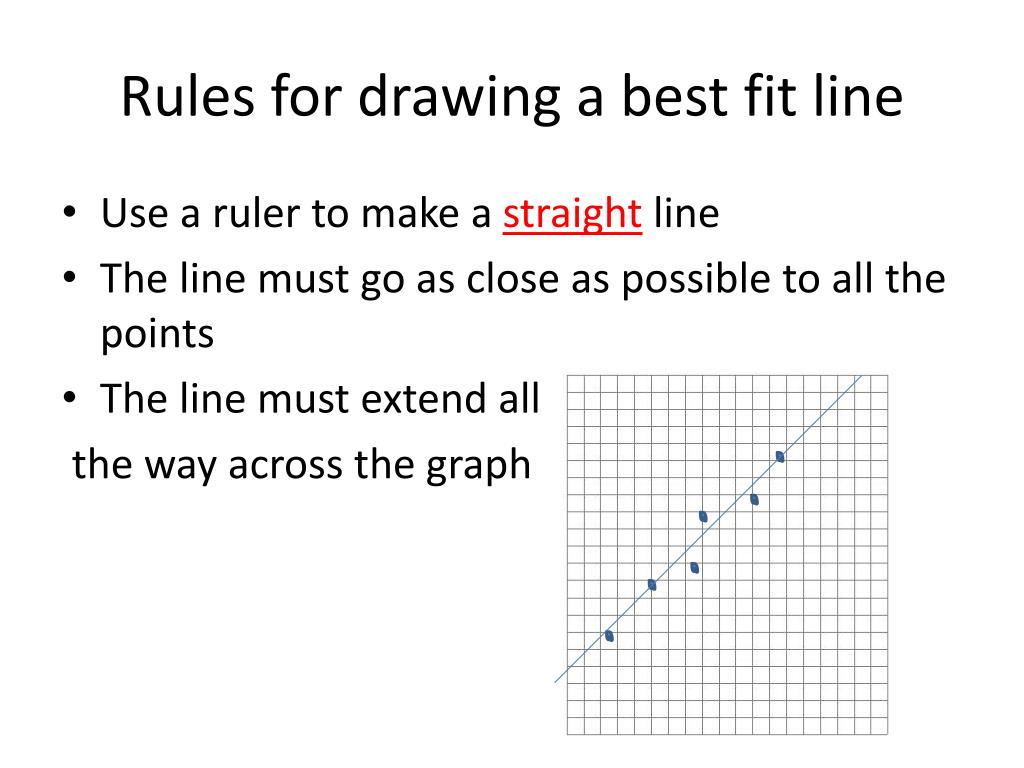

  8. Rules for drawing a best fit line • Use a ruler to make a straight line • The line must go as close as possible to all the points • The line must extend all the way across the graph

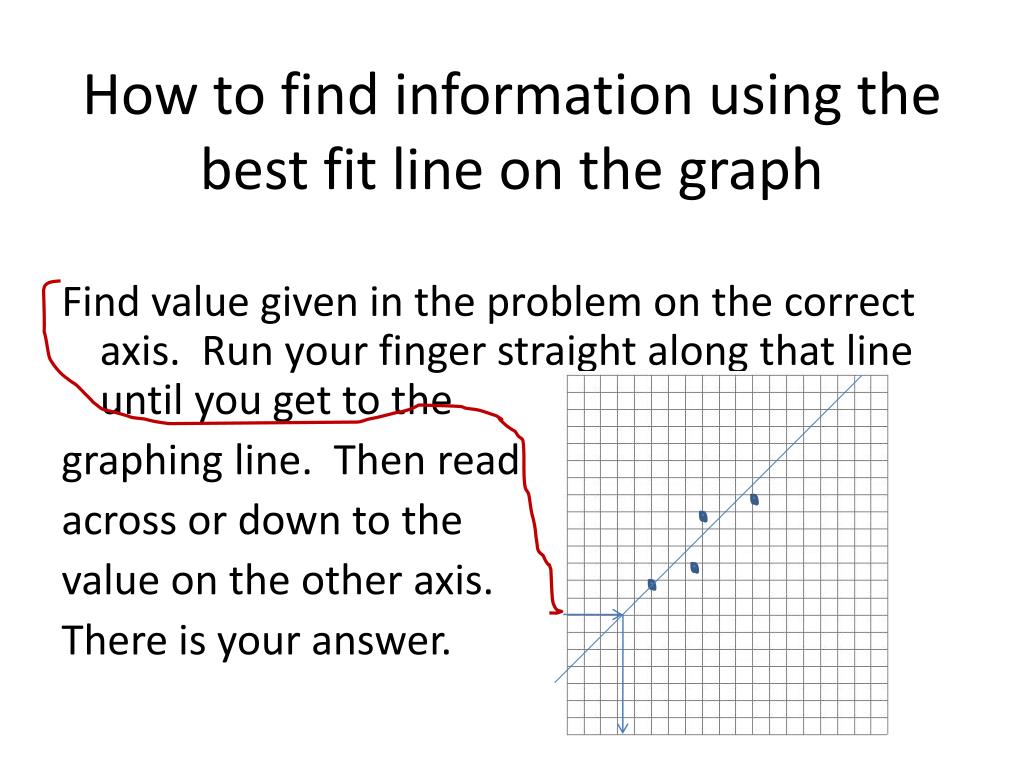

  9. How to find information using the best fit line on the graph Find value given in the problem on the correct axis. Run your finger straight along that line until you get to the graphing line. Then read across or down to the value on the other axis. There is your answer.

  10. Measuring Mass • Mass is the amount of matter in a substance • Like weight – but weight is the pull of gravity on mass. Mass does not change. Weight changes depending on where you are – for example the moon. • The tool we use to measure mass is the triple beam balance. • Basic unit of measure of mass is the KILOGRAM • Grams are abbreviated g • Kilograms = Kg 1 Kg = 1,000 g • milligrams = mg 1000 mg = 1 g • Draw a picture of the difference between mass and weight. • Video of How to Use a Triple Beam Balance

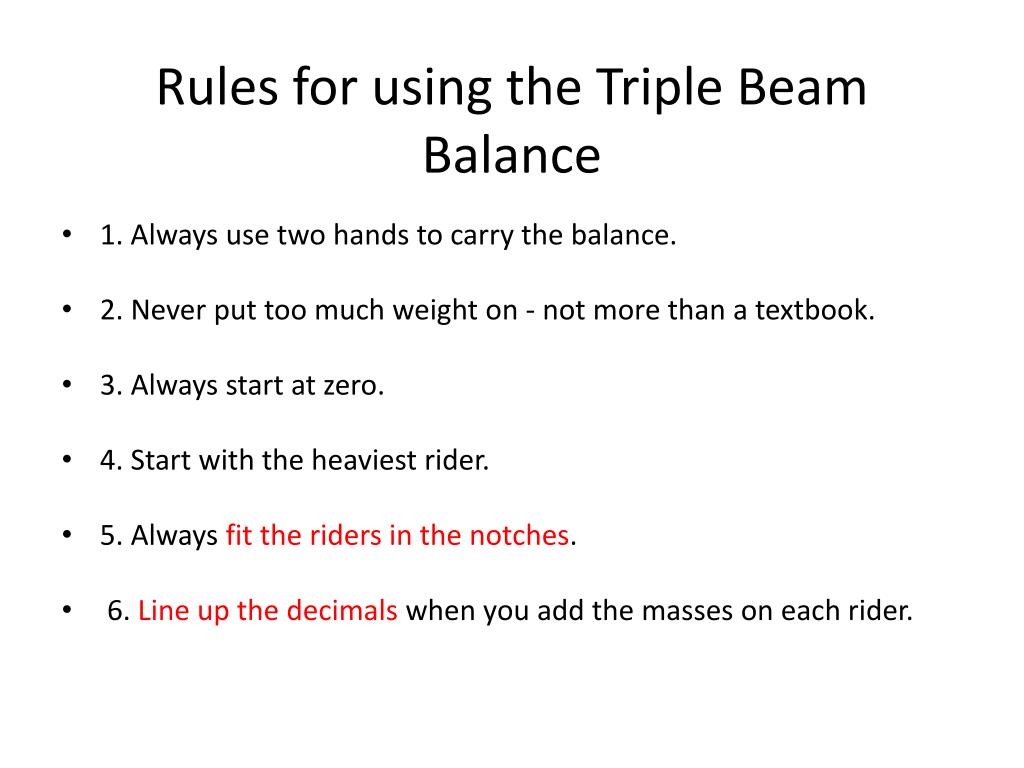

  11. Rules for using the Triple Beam Balance • 1. Always use two hands to carry the balance. • 2. Never put too much weight on - not more than a textbook. • 3. Always start at zero. • 4. Start with the heaviest rider. • 5. Always fit the riders in the notches. • 6. Line up the decimals when you add the masses on each rider.

  12. The mass here is 60+2.5 =62.5G

  13. Volume: The amount of space an object takes up • The basic unit of volume is the liter. • Volume in class is measured in milliliters • Liters are abbreviated l • milliliters are abbreviated ml. • Guess how many milliliters in a liter? • 1000ml = 1 l

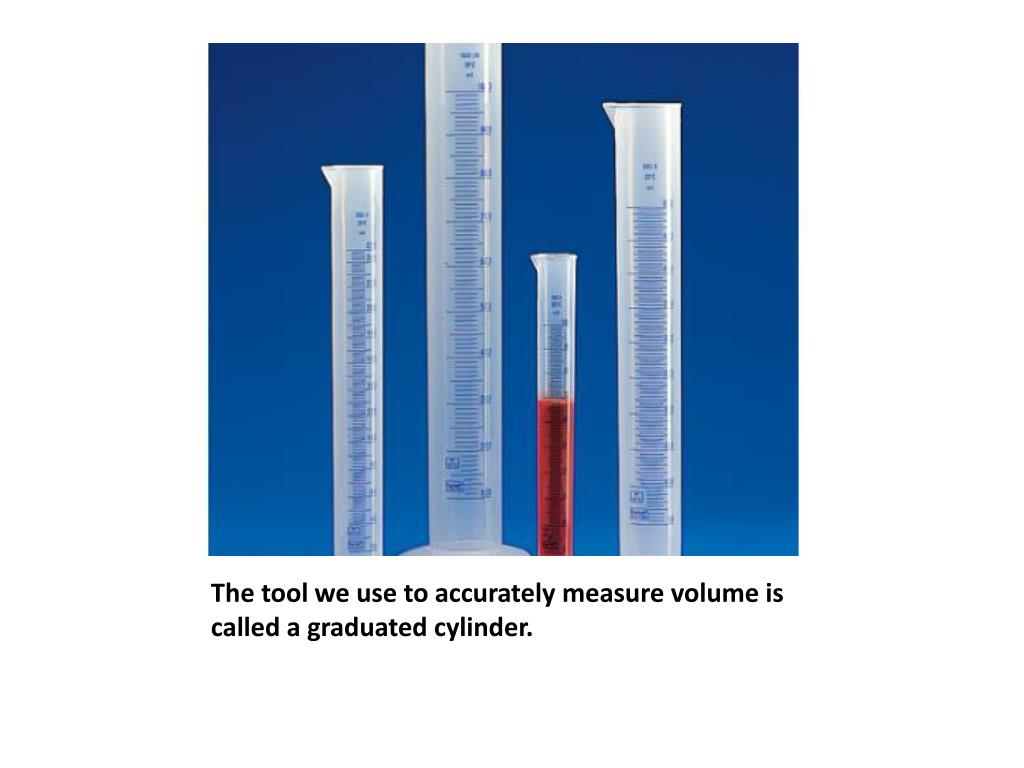

  14. The tool we use to accurately measure volume is called a graduated cylinder.

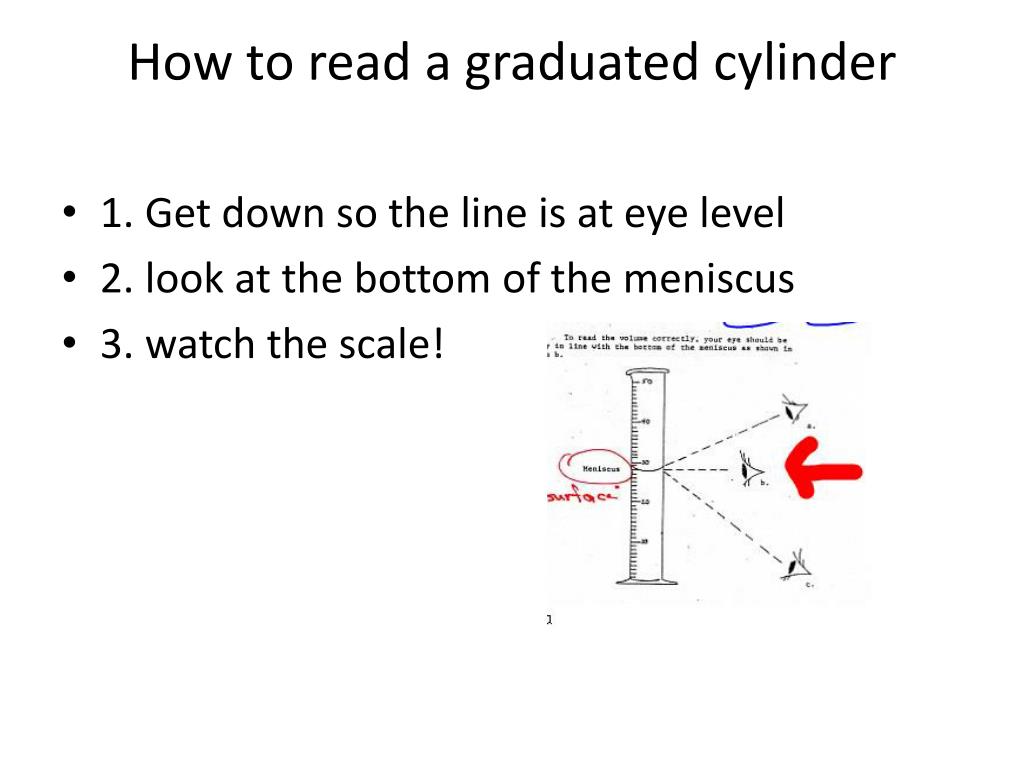

  15. How to read a graduated cylinder • 1. Get down so the line is at eye level • 2. look at the bottom of the meniscus • 3. watch the scale!

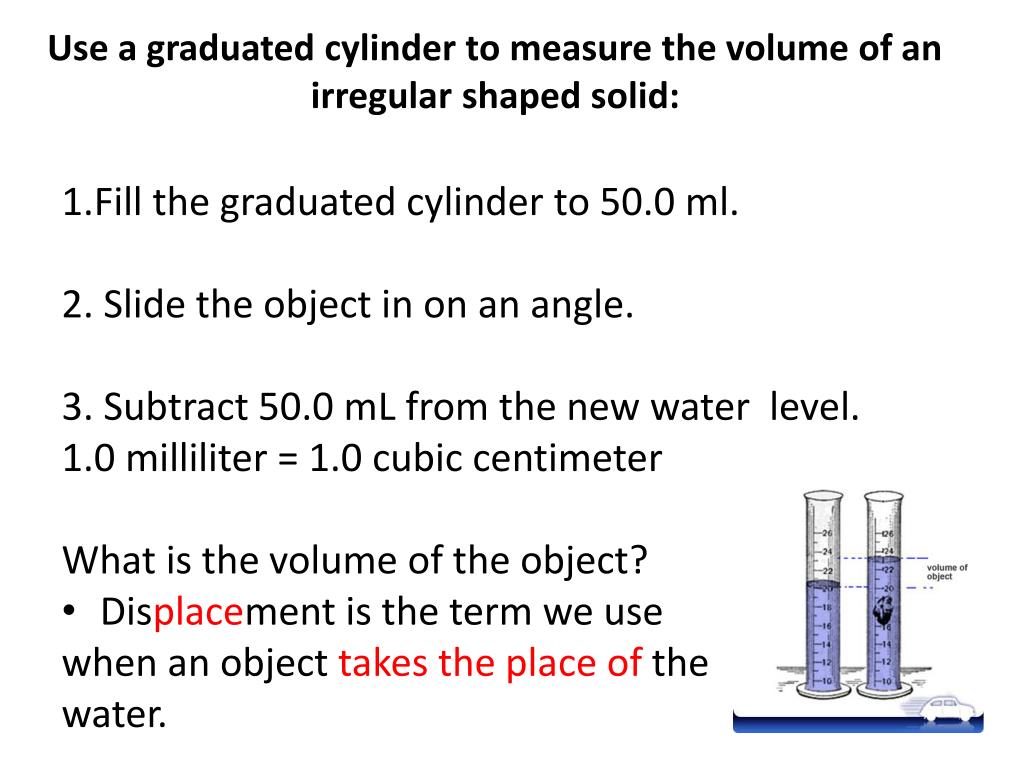

  16. Use a graduated cylinder to measure the volume of an irregular shaped solid: 1.Fill the graduated cylinder to 50.0 ml. 2. Slide the object in on an angle. 3. Subtract 50.0 mL from the new water level. 1.0 milliliter = 1.0 cubic centimeter What is the volume of the object? • Displacement is the term we use when an object takes the place of the water.

  17. Temperature Measure the temperature of water in the beaker. • Is it hot? • Is it cold? If it were that warm inside a refrigerator, or on a ski slope, would it be hot or cold? If it were that warm inside an oven would it be hot or cold?

  18. Measuring Temperature • Temperature: The amount of heat in a substance compared to a common scale. • Temperature is measured in degrees Celsius in the metric system. • The tool we use to measure temperature is called a thermometer. • The unit is degrees Celsius, abbreviated C. • The Celsius scale is based on water: Water freezes at 0 C. Water boils at 100 C
