  1. Increasing integration and connectivity to network the soldier Mighty Mouse Integrated Systems

  2. The Glenair Series 80

  3. Head-to-Head Comparison with D38999 Half the Size and Weight • Higher contact density • Thinner wall construction on connector housing • Elimination of long scoop-proof barrel • Integration of banding platform on connector back-end • Smaller wire gauge (#26) • Weight for 55 pin contact crimp receptacle? 15 grams versus 34.6 grams for the D38999/24

  4. Current Range Contacts and Layouts • 12 Shell Sizes • 52 Insert Arrangements • From 1 to 130 contacts • .076” Contact Spacing • Layouts with #23, #20, #20HD, #16, #12, #8 Cavities • Signal, Quadrax, Twinax, Coax, Pitot, Pure Gas, Fiber Optic, and Power Contacts

  5. Update on New Products • 2 New Shell Sizes 11 and 19 • 11-31(23), 19-16 (16), 19-100(23)and 19-255 (20HD) • 8 AWG Power, Quad, Twin, and Coax insert arrangements. 8-1, 14-2, 15-3, 19-4, 21-5. PC tail design-power • Insert arrangements 1, 2, and 4 to accept 3GHZ coax contact • Cobra Design

  6. 804 Locking Push-Pull • Uses same inserts as 804 Series • EMI spring or serpentine spring • O-Ring on plug side

  7. Mighty Mouse USB

  8. Sr. 811 HD

  9. Sr. 811 HD

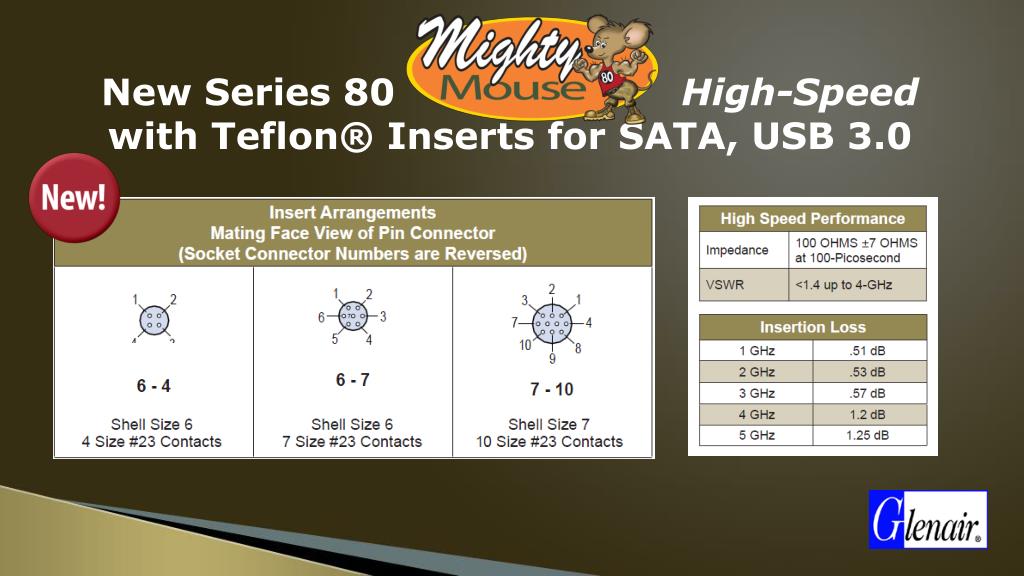

  10. New Series 80 High-Speed with Teflon® Inserts for SATA, USB 3.0

  11. New Series 80 High-Speed with Teflon® Inserts for SATA, USB 3.0

  12. Key Elements of Integration and Network Connectivity Protocols Data Rates and Bandwidth Cable and Connector Availability

  13. Common High Speed Differential Protocols (1) Mil\Aero Data Bus • MIL-STD-1553 • CANBUS • MIL-STD-1760 • ARINC-429 • IEEE-1394 (Firewire) • ARINC-664 (AFDX) (3) Peripherals and Displays • USB 2.0/3.0 • SATA • HDMI • Displayport (2) Ethernet/Networking • 10-BaseT • 100-BaseT • 1000-BaseT • 10G-BaseT

  14. Connector Size and Density Evolution Microminiature Ultraminiature Standard Miniature Subminiature MIL-DTL-5015MIL-DTL-22992MIL-DTL-28840 MIL-DTL-26482MIL-DTL-26500MIL-DTL-83723 Sr. 811 Mighty Mouse HD Sr. 80 Mighty Mouse MIL-DTL-38999 Series I, II, III, IV

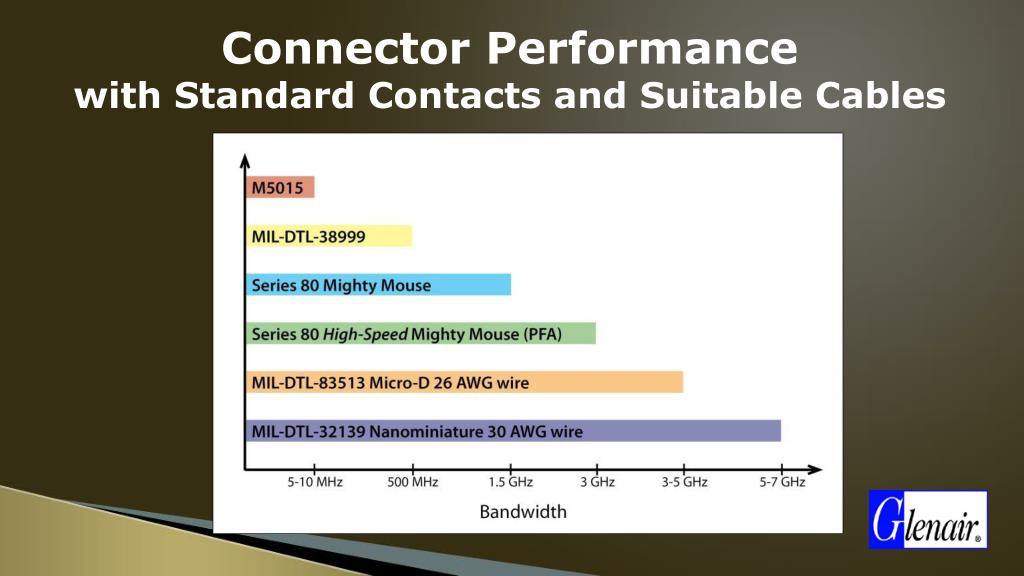

  15. Connector Performance with Standard Contacts and Suitable Cables

  16. Complex Multi-Branch Assemblies

  17. GhostWire™ Equipped Cables

  18. Radio Connectors and NETT Solutions

  19. Radio Connectors and Nett Solutions

  20. is a Complete and Available Solution…
