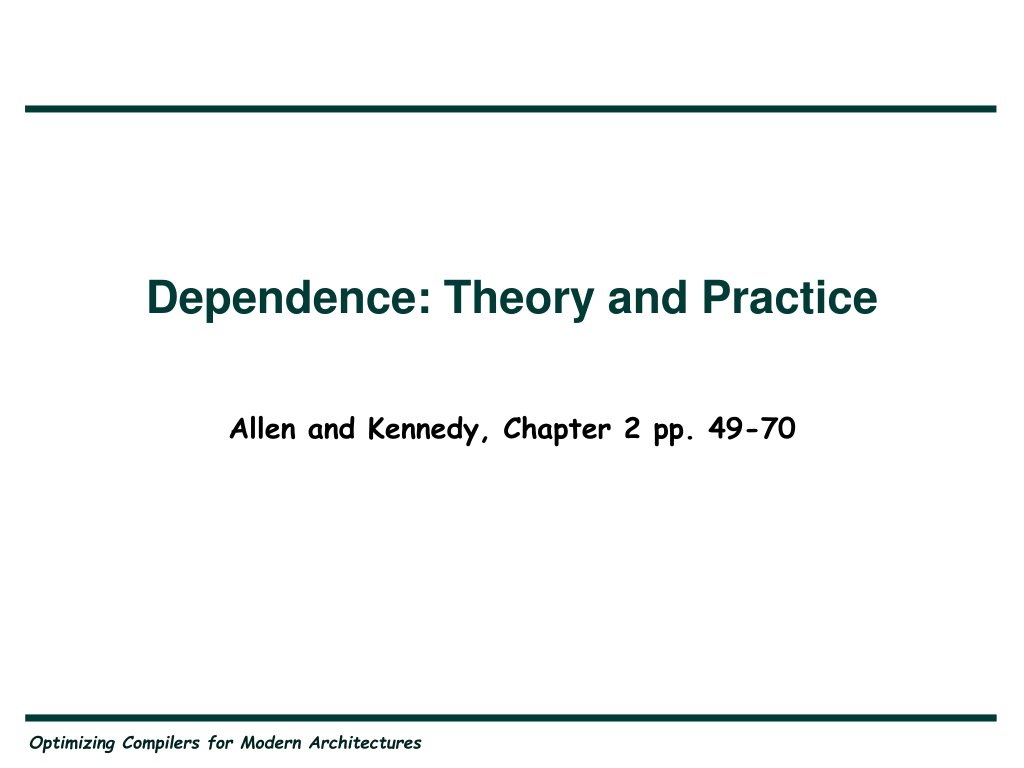

Dependence: Theory and Practice. Allen and Kennedy, Chapter 2 pp. 49-70. Loop-carried and Loop-independent Dependences. If in a loop statement S 2 depends on S 1 , then there are two possible ways of this dependence occurring: 1 . S 1 and S 2 execute on different iterations

lnull
Télécharger la présentation

Dependence: Theory and Practice

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Dependence: Theory and Practice Allen and Kennedy, Chapter 2 pp. 49-70

  2. Loop-carried and Loop-independent Dependences • If in a loop statement S2 depends on S1, then there are two possible ways of this dependence occurring: 1. S1 and S2 execute on different iterations • This is called a loop-carried dependence. 2. S1 and S2 execute on the same iteration • This is called a loop-independent dependence.

  3. Loop-carried dependence • Definition 2.11 • Statement S2 has a loop-carried dependence on statement S1 if and only if S1 references location M on iteration i, S2 references M on iteration j and d(i,j) > 0 (that is, D(i,j) contains a “<” as leftmost non “=” component). Example: DO I = 1, N S1 A(I+1) = F(I) S2 F(I+1) = A(I) ENDDO

  4. Loop-carried dependence • Level of a loop-carried dependence is the index of the leftmost non-“=” of D(i,j) for the dependence. For instance: DO I = 1, 10 DO J = 1, 10 DO K = 1, 10 S1 A(I, J, K+1) = A(I, J, K) ENDDO ENDDO ENDDO • Direction vector for S1 is (=, =, <) • Level of the dependence is 3 • A level-k dependence between S1 and S2 is denoted by S1 k S2

  5. Loop-carried Transformations • Theorem 2.4Any reordering transformation that does not alter the relative order of any loops in the nest and preserves the iteration order of the level-k loop preserves all level-k dependences. • Proof: • D(i, j) has a “<” in the kth position and “=” in positions 1 through k-1  Source and sink of dependence are in the same iteration of loops 1 through k-1  Cannot change the sense of the dependence by a reordering of iterations of those loops • As a result of the theorem, powerful transformations can be applied

  6. Loop-carried Transformations Example: DO I = 1, 10 S1 A(I+1) = F(I) S2 F(I+1) = A(I) ENDDO can be transformed to: DO I = 1, 10 S1 F(I+1) = A(I) S2 A(I+1) = F(I) ENDDO

  7. Loop-independent dependences • Definition 2.14.Statement S2 has a loop-independent dependence on statement S1 if and only if there exist two iteration vectors i and jsuch that: 1) Statement S1 refers to memory location M on iteration i, S2 refers to M on iteration j, and i = j. 2) There is a control flow path from S1 to S2 within the iteration. Example: DO I = 1, 10 S1 A(I) = ... S2 ... = A(I) ENDDO

  8. Loop-independent dependences More complicated example: DO I = 1, 9 S1 A(I) = ... S2 ... = A(10-I) ENDDO • No common loop is necessary. For instance: DO I = 1, 10 S1 A(I) = ... ENDDO DO I = 1, 10 S2 ... = A(20-I) ENDDO

  9. Loop-independent dependences • Theorem 2.5.If there is a loop-independent dependence from S1 to S2, any reordering transformation that does not move statement instances between iterations and preserves the relative order of S1 and S2 in the loop body preserves that dependence. • S2 depends on S1 with a loop independent dependence is denoted by S1 S2 • Note that the direction vector will have entries that are all “=” for loop independent dependences

  10. Loop-carried and Loop-independent Dependences • Loop-independent and loop-carried dependence partition all possible data dependences! • Note that if S1 S2, then S1 executes before S2. This can happen only if: • The difference vector for the dependence is less than 0, or • The difference vector equals 0 and S1 occurs before S2 textually ...precisely the criteria for loop-carried and loop-independent dependences.

  11. Simple Dependence Testing • Theorem 2.7: Let a and b be iteration vectors within the iteration space of the following loop nest: DO i1 = L1, U1, S1 DO i2 = L2, U2, S2 ... DO in = Ln, Un, Sn S1 A(f1(i1,...,in),...,fm(i1,...,in)) = ... S2 ... = A(g1(i1,...,in),...,gm(i1,...,in)) ENDDO ... ENDDO ENDDO

  12. Simple Dependence Testing DO i1 = L1, U1, S1 DO i2 = L2, U2, S2 ... DO in = Ln, Un, Sn S1 A(f1(i1,...,in),...,fm(i1,...,in)) = ... S2 ... = A(g1(i1,...,in),...,gm(i1,...,in)) ENDDO ... ENDDO ENDDO • A dependence exists from S1 to S2 if and only if there exist values of a and b such that (1) a is lexicographically less than or equal to b and (2) the following system of dependence equations is satisfied:fi(a) = gi(b) for all i, 1  i m • Direct application of Loop Dependence Theorem

  13. Simple Dependence Testing: Delta Notation • Notation represents index values at the source and sink Example: DO I = 1, N S A(I + 1) = A(I) + B ENDDO • Iteration at source denoted by: I0 • Iteration at sink denoted by: I0 + I • Forming an equality gets us: I0 + 1 = I0 + I • Solving this gives us: I = 1  Carried dependence with distance vector (1) and directionvector (<)

  14. Simple Dependence Testing: Delta Notation Example: DO I = 1, 100 DO J = 1, 100 DO K = 1, 100 A(I+1,J,K) = A(I,J,K+1) + B ENDDO ENDDO ENDDO • I0 + 1 = I0 + I; J0 = J0 + J; K0 = K0 + K + 1 • Solutions: I = 1; J = 0; K = -1 • Corresponding direction vector: (<, =, >)

  15. Simple Dependence Testing: Delta Notation • If a loop index does not appear, its distance is unconstrained and its direction is “*” Example: DO I = 1, 100 DO J = 1, 100 A(I+1) = A(I) + B(J) ENDDO ENDDO • The direction vector for the dependence is (<, *)

  16. Simple Dependence Testing: Delta Notation • * denotes union of all 3 directions Example: DO J = 1, 100 DO I = 1, 100 A(I+1) = A(I) + B(J) ENDDO ENDDO • (*, <) denotes { (<, <), (=, <), (>, <) } • Note: (>, <) denotes a level 1 antidependence with direction vector (<, >)

  17. Parallelization and Vectorization • Theorem 2.8.It is valid to convert a sequential loop to a parallel loop if the loop carries no dependence. • Want to convert loops like: DO I=1,N X(I) = X(I) + C ENDDO • toX(1:N) = X(1:N) + C(Fortran 77 to Fortran 90) • However: DO I=1,N X(I+1) = X(I) + C ENDDO is not equivalent to X(2:N+1) = X(1:N) + C

  18. Loop Distribution • Can statements in loops which carry dependences be vectorized? D0 I = 1, N S1 A(I+1) = B(I) + C S2 D(I) = A(I) + E ENDDO • Dependence: S1 1S2can be converted to: S1 A(2:N+1) = B(1:N) + C S2 D(1:N) = A(1:N) + E

  19. Loop Distribution DO I = 1, N S1 A(I+1) = B(I) + C S2 D(I) = A(I) + E ENDDO • transformed to: • DO I = 1, N • S1 A(I+1) = B(I) + C • ENDDO • DO I = 1, N • S2 D(I) = A(I) + E • ENDDO • leads to: • S1 A(2:N+1) = B(1:N) + C • S2 D(1:N) = A(1:N) + E

  20. Loop Distribution • Loop distribution fails if there is a cycle of dependences DO I = 1, N S1 A(I+1) = B(I) + C S2 B(I+1) = A(I) + E ENDDO S11 S2 and S21 S1 • What about: DO I = 1, N S1 B(I) = A(I) + E S2 A(I+1) = B(I) + C ENDDO

  21. Simple Vectorization Algorithm procedurevectorize (L, D) // L is the maximal loop nest containing the statement. // D is the dependence graph for statements in L. find the set {S1, S2, ... , Sm} of maximal strongly-connected regions in the dependence graph D restricted to L (Tarjan); construct Lp from L by reducing each Si to a single node and compute Dp, the dependence graph naturally induced on Lp by D; let {p1, p2, ... ,pm} be the m nodes of Lp numbered in an order consistent with Dp (use topological sort); fori = 1 tomdo begin if pi is a dependence cycle then generate a DO-loop around the statements in pi; else directly rewrite pi in Fortran 90, vectorizing it with respect to every loop containing it; end end vectorize

  22. Problems With Simple Vectorization DO I = 1, N DO J = 1, M S1 A(I+1,J) = A(I,J) + B ENDDO ENDDO • Dependence from S1 to itself with d(i, j) = (1,0) • Key observation: Since dependence is at level 1, we can manipulate the other loop! • Can be converted to: DO I = 1, N S1 A(I+1,1:M) = A(I,1:M) + B ENDDO • The simple algorithm does not capitalize on such opportunities

  23. Advanced Vectorization Algorithm procedurecodegen(R, k, D); // R is the region for which we must generate code. // k is the minimum nesting level of possible parallel loops. // D is the dependence graph among statements in R.. find the set {S1, S2, ... , Sm} of maximal strongly-connectedregions in the dependence graph D restricted to R; construct Rp from R by reducing each Si to a single node andcompute Dp, the dependence graph naturally induced on Rp by D; let {p1, p2, ... , pm} be the m nodes of Rp numbered in an orderconsistent with Dp (use topological sort to do the numbering); fori = 1 to m do begin if pi is cyclic then begin generate a level-k DO statement; let Di be the dependence graph consisting of all dependence edges in D that are at level k+1 or greater and are internal to pi; codegen (pi, k+1, Di); generate the level-k ENDDO statement; end else generate a vector statement for pi in r(pi)-k+1 dimensions, where r (pi) is the number of loops containing pi; end

  24. Advanced Vectorization Algorithm DO I = 1, 100 S1 X(I) = Y(I) + 10 DO J = 1, 100 S2 B(J) = A(J,N) DO K = 1, 100 S3 A(J+1,K)=B(J)+C(J,K) ENDDO S4 Y(I+J) = A(J+1, N) ENDDO ENDDO

  25. Advanced Vectorization Algorithm DO I = 1, 100 S1X(I) = Y(I) + 10 DO J = 1, 100 S2 B(J) = A(J,N) DO K = 1, 100 S3 A(J+1,K)=B(J)+C(J,K) ENDDO S4Y(I+J) = A(J+1, N) ENDDO ENDDO Simple dependence testing procedure: True dependence from S4 to S1I0 + J = I0 + I I = JAs J is always positive Direction is “<”

  26. Advanced Vectorization Algorithm DO I = 1, 100 S1X(I) = Y(I) + 10 DO J = 1, 100 S2B(J) = A(J,N) DO K = 1, 100 S3A(J+1,K)=B(J)+C(J,K) ENDDO S4Y(I+J) = A(J+1, N) ENDDO ENDDO S2 and S3: dependence via B(J)I does not occur in either subscript (D.V = *)We get:J0 = J0 + J J = 0 Direction vectors = (*, =)

  27. Advanced Vectorization Algorithm • codegen called at the outermost level • S1 will be vectorized • DO I = 1, 100 • S1 X(I) = Y(I) + 10 • DO J = 1, 100 • S2 B(J) = A(J,N) • DO K = 1, 100 • S3 A(J+1,K)=B(J)+C(J,K) • ENDDO • S4 Y(I+J) = A(J+1, N) • ENDDO • ENDDO DO I = 1, 100 codegen({S2, S3, S4}, 2}) ENDDO X(1:100) = Y(1:100) + 10

  28. Advanced Vectorization Algorithm • codegen ({S2, S3, S4}, 2}) • level-1 dependences are stripped off DO I = 1, 100 DO J = 1, 100codegen({S2, S3}, 3}) ENDDO S4 Y(I+1:I+100) = A(2:101,N) ENDDO X(1:100) = Y(1:100) + 10

  29. Advanced Vectorization Algorithm • DO I = 1, 100 • S1 X(I) = Y(I) + 10 • DO J = 1, 100 • S2 B(J) = A(J,N) • DO K = 1, 100 • S3 A(J+1,K)=B(J)+C(J,K) • ENDDO • S4 Y(I+J) = A(J+1, N) • ENDDO • ENDDO • codegen ({S2, S3}, 3}) • level-2 dependences are stripped off DO I = 1, 100 DO J = 1, 100 B(J) = A(J,N) A(J+1,1:100)=B(J)+C(J,1:100) ENDDO Y(I+1:I+100) = A(2:101,N) ENDDO X(1:100) = Y(1:100) + 10
