  1. LHC@ATLAS Status and Recent Results Ljiljana Simic Institute of Physics, Belgrade Gravity: New ideas for unsolved problems Divcibare, 2011 In honour of 67th birthday of Milutin Blagojevic 1

  2. LHC From the civil engineering, to the manufacturing of the various magnet types, each building block of this extraordinary machine required ambitious   leaps in innovation… …There were many challenges - scientific, technological, managerial that had to be met during the various phases of R&D, industrialization, construction, installation and commissioning. L. Evans (LHC Project Leader, 1994-2008). “Thanks to the superb performance of the LHC, we have recorded a huge amount of new data over the last month.This has allowed us to make great strides in our understanding of the Standard Model and in the search for the Higgs bosonand new physics.” ATLAS spokesperson Fabiola Gianotti, Geneva, 26 August 2011 “It’s great that the LHC’s fantastic performance this year has brought us this close to a region of possible discovery. Whatever the final verdict on Higgs, we’re now living in very exciting times for all involved in the quest for new physics.” CMS spokesperson Guido Tonelli, Geneva, 26 August 2011 2

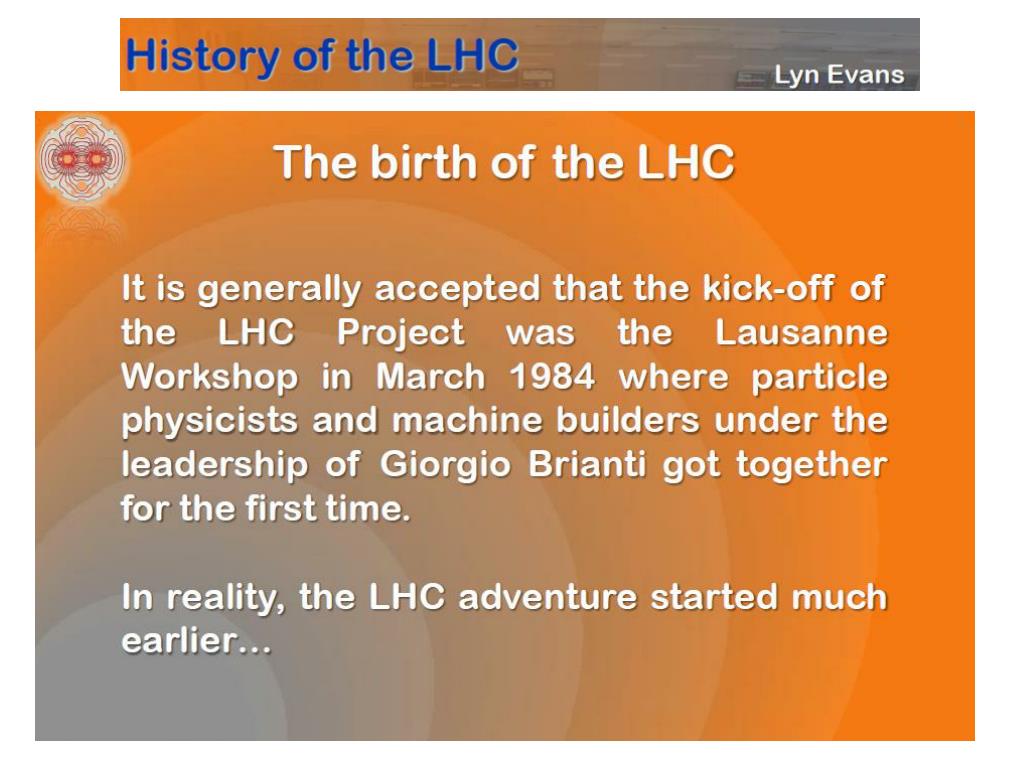

  3. 3

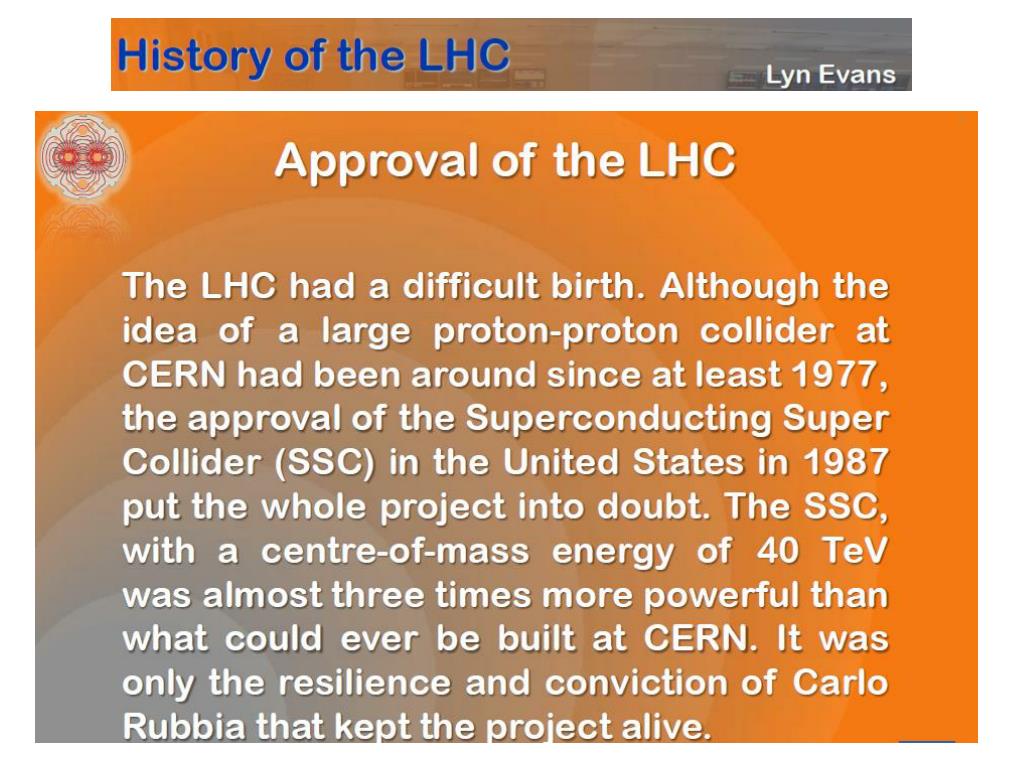

  4. 4

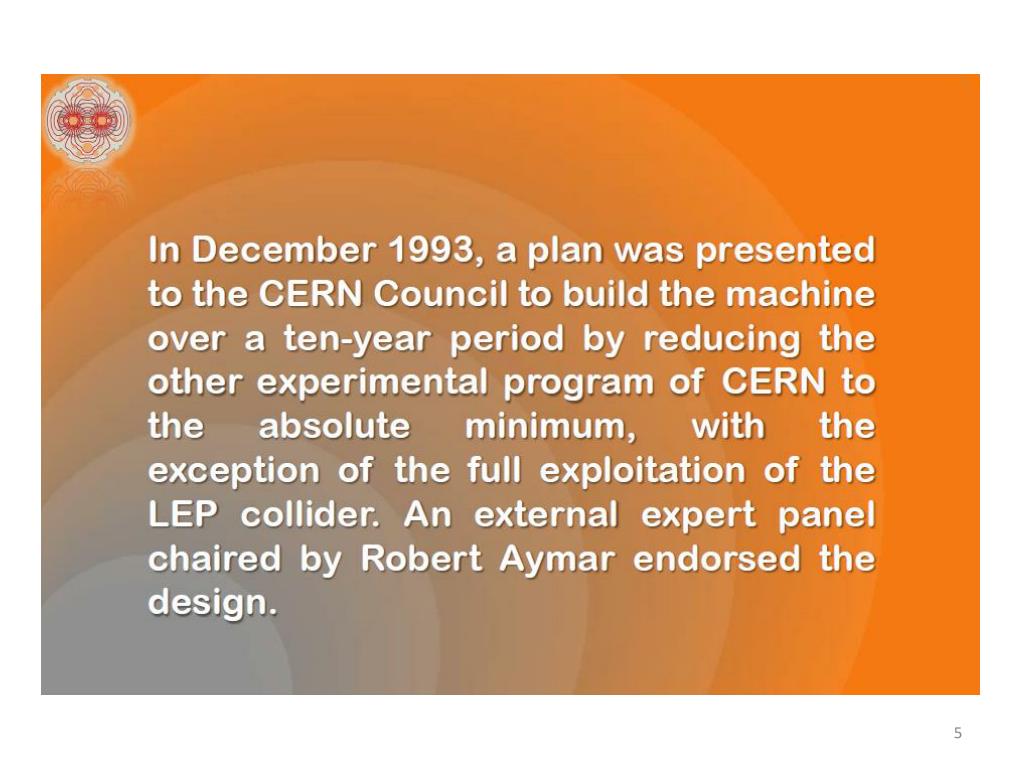

  5. 5

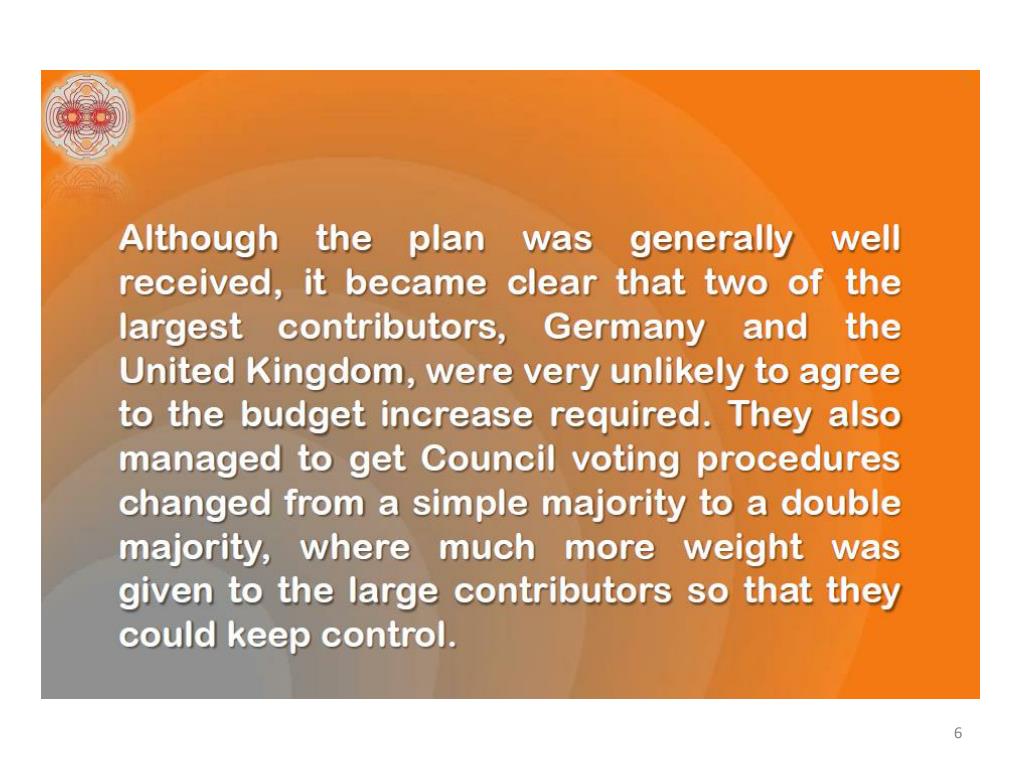

  6. 6

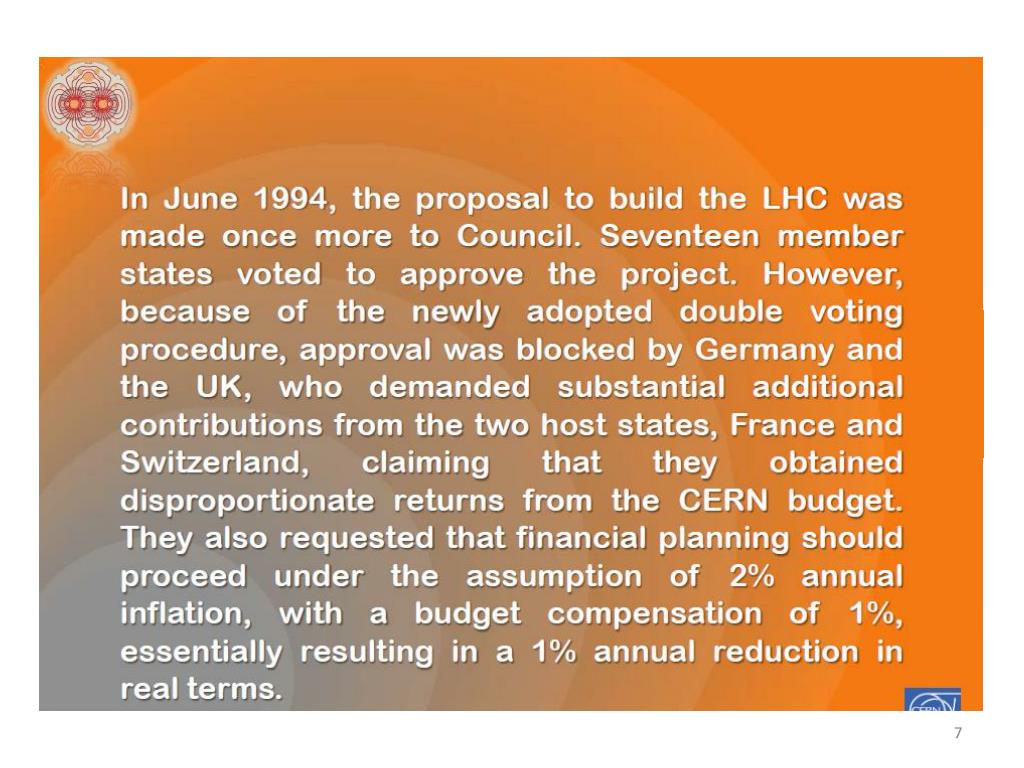

  7. 7

  8. 8

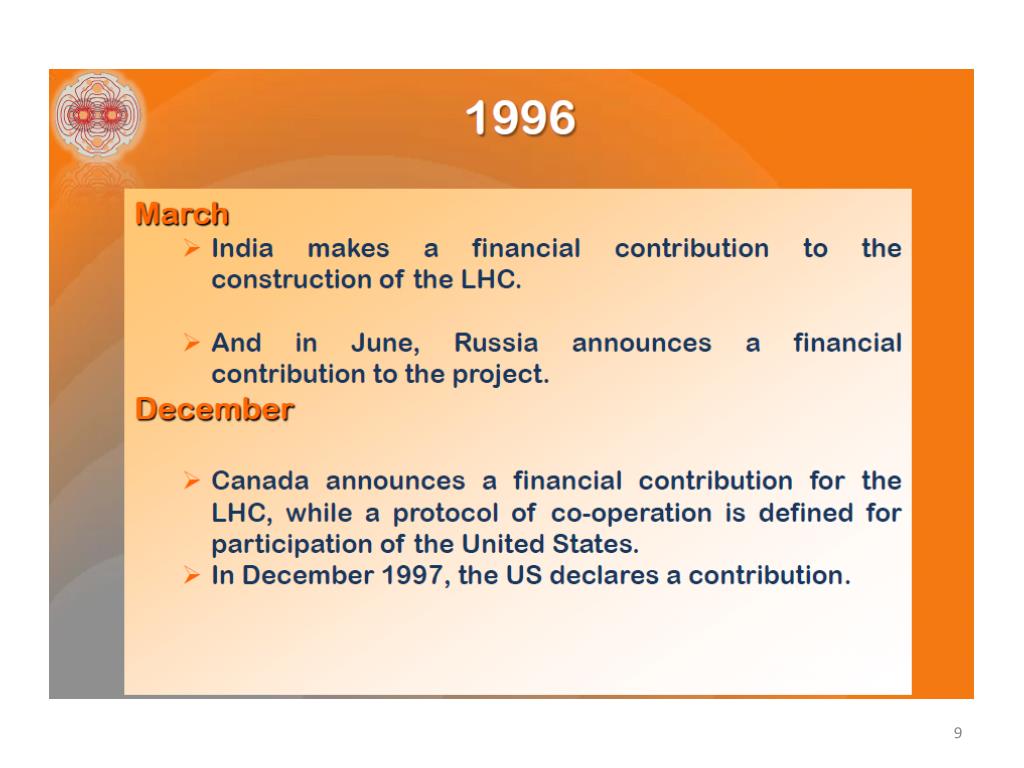

  9. 9

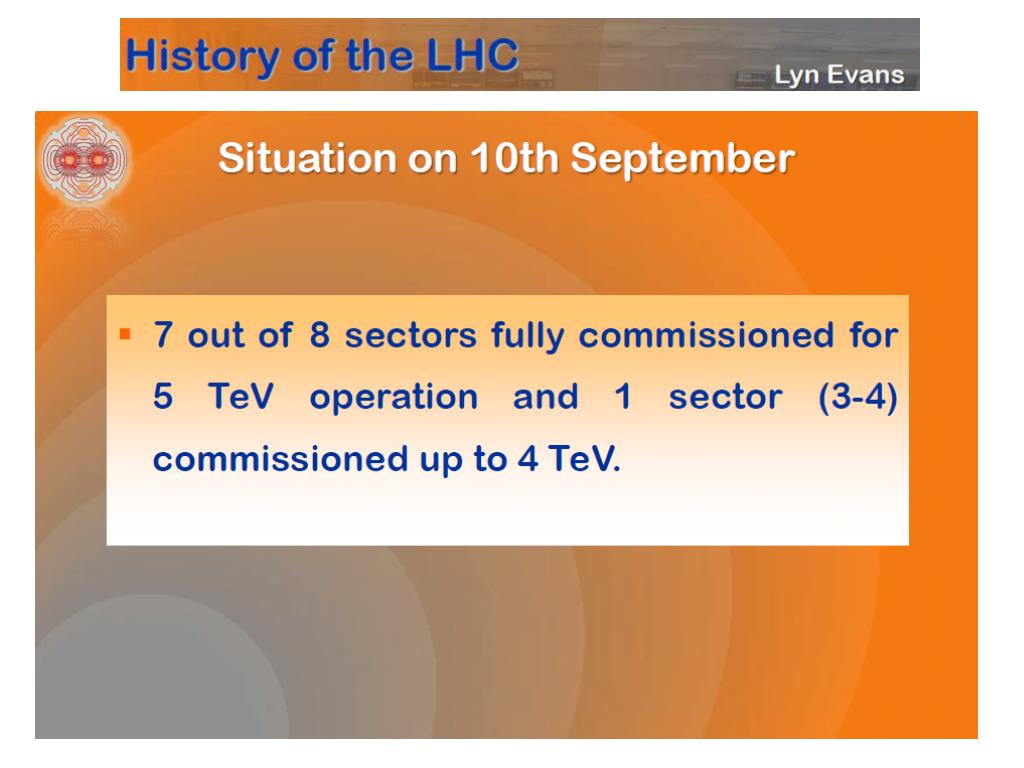

  10. 10

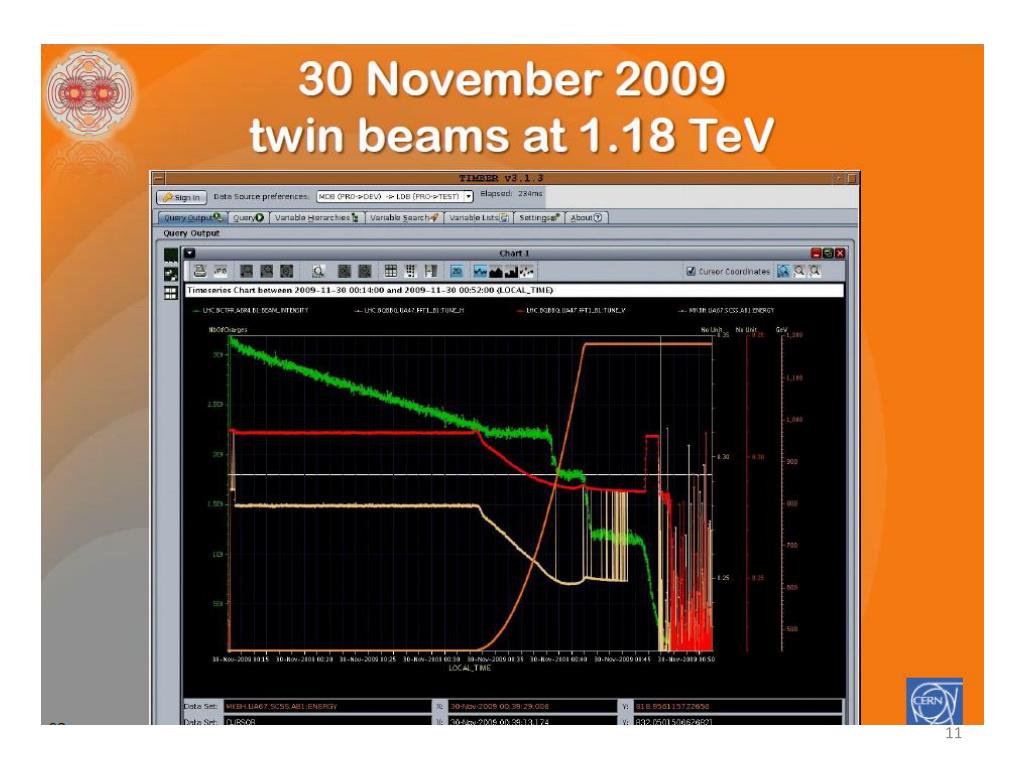

  11. 11

  12. 30 March, 2010, First 7 TeV collisions First 7 TeV collisions on March 30th

  13. What do experiments want? High energy High luminosity N = bunch population nb = number of bunches frev = revolution frequency σx,y = colliding beam sizes F = geometric factor B = bending field ρ = bending radius p = momentum e = charge Determined by the maximum field of bending dipoles, B Depends on machine parameters: charge per bunch (N), num. of bunches (nb) and transverse beam sizes (σ) “

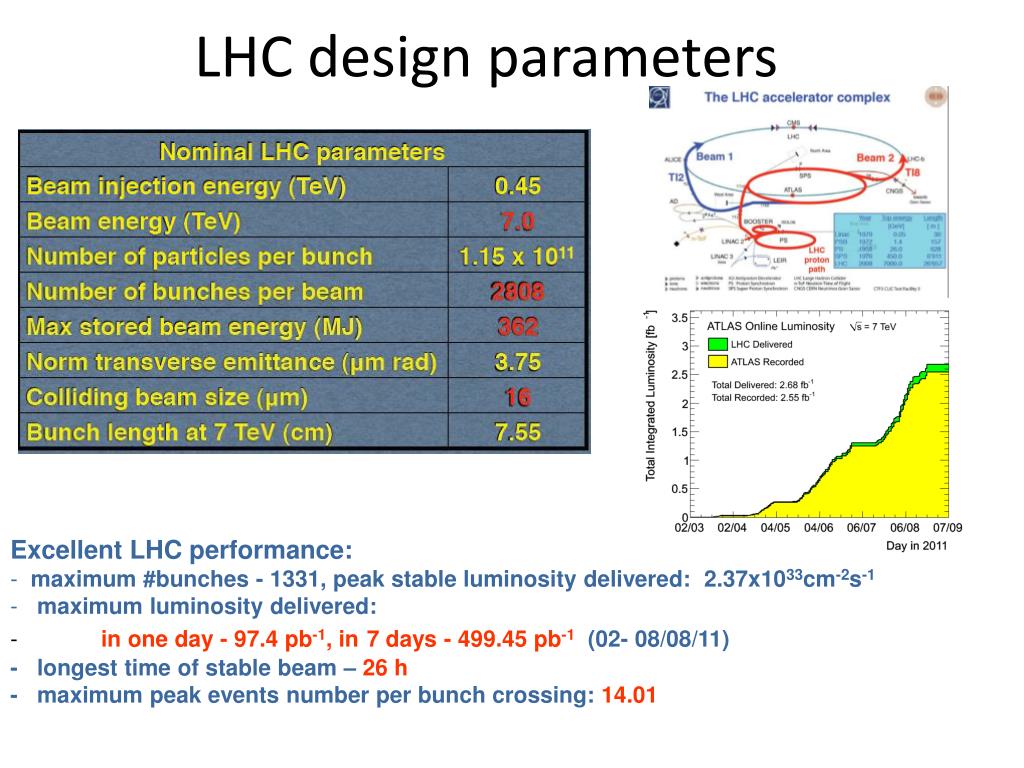

  14. LHC design parameters • Excellent LHC performance: • maximum #bunches - 1331, peak stable luminosity delivered: 2.37x1033cm-2s-1 • maximum luminosity delivered: • in one day - 97.4pb-1, in7 days - 499.45 pb-1(02- 08/08/11) • - longest time of stable beam – 26 h • - maximum peak events number per bunch crossing:14.01

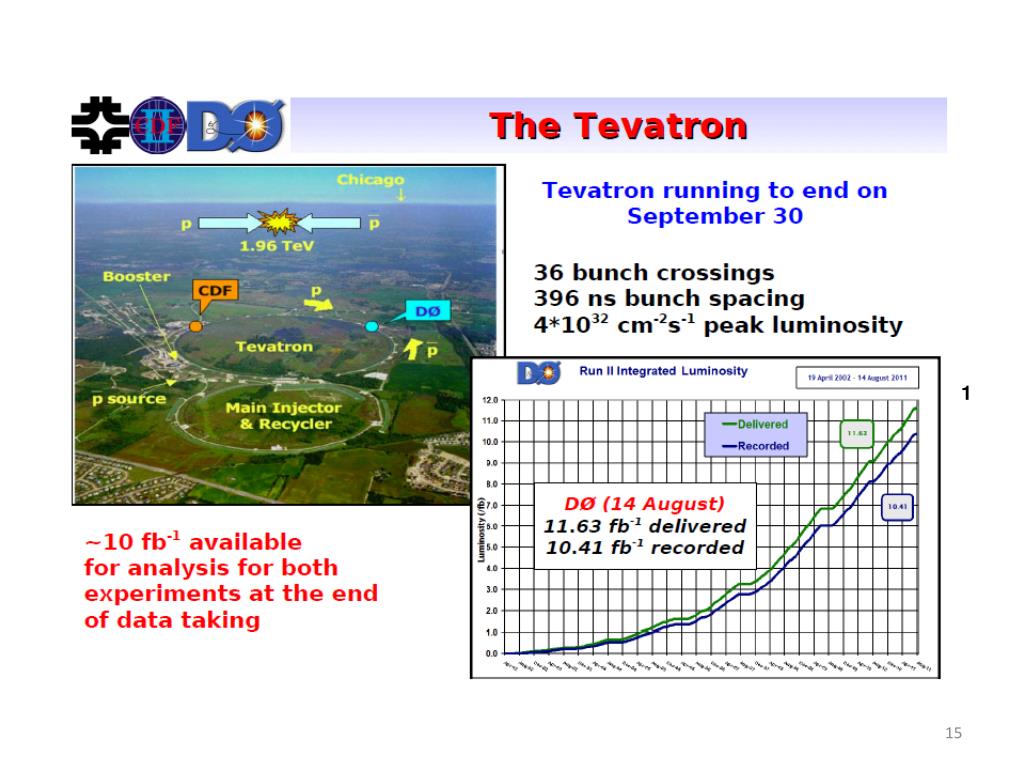

  15. Total Integrated Luminosity in 2011 15

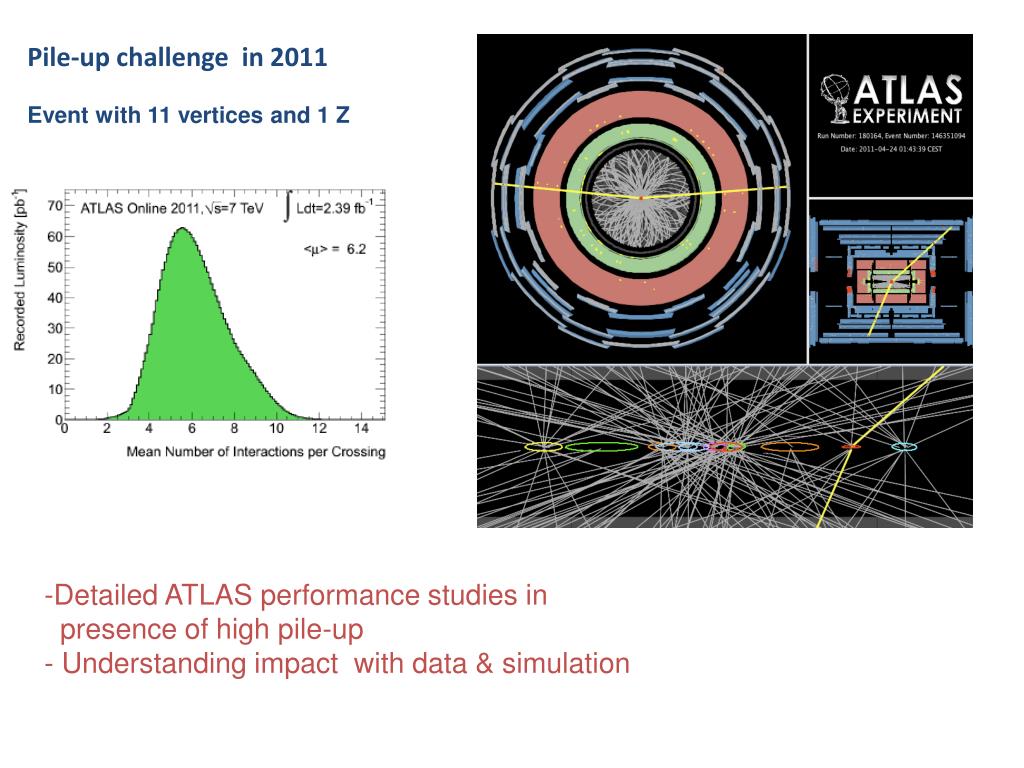

  16. Pile-up challenge in 2011 Event with 11 vertices and 1 Z • Detailed ATLAS performance studies in • presence of high pile-up • - Understanding impact with data & simulation

  17. ATLAS: running smoothly with>95%data taking efficiency, 2.55 fb-1 of 2011 data recorded by 8 September! 17

  18. ATLAS Operation Status Relative fraction of good quality data delivered by the various ATLAS Subsystemsbetween 90 and 100%. Subdetector#ChannelsApprox. Operational Fraction Pixels 80 M 96.9% SCT Silicon Strips 6.3 M 99.1% TRT Transition Radiation Tracker 350 k 97.5% LAr EM Calorimeter 170 k 99.5% Tile calorimeter 9800 97.9% Hadronic endcap LAr calorimeter 5600 99.6% Forward LAr calorimeter 3500 99.8% LVL1 Calo trigger 7160 99.9% LVL1 Muon RPC trigger 370 k 99.5% LVL1 Muon TGC trigger 320 k 100% MDT Muon Drift Tubes 350 k 99.8% CSC Cathode Strip Chambers 31 k 98.5% RPC Barrel Muon Chambers 370 k 97.0% TGC Endcap Muon Chambers 320 k 98.4%

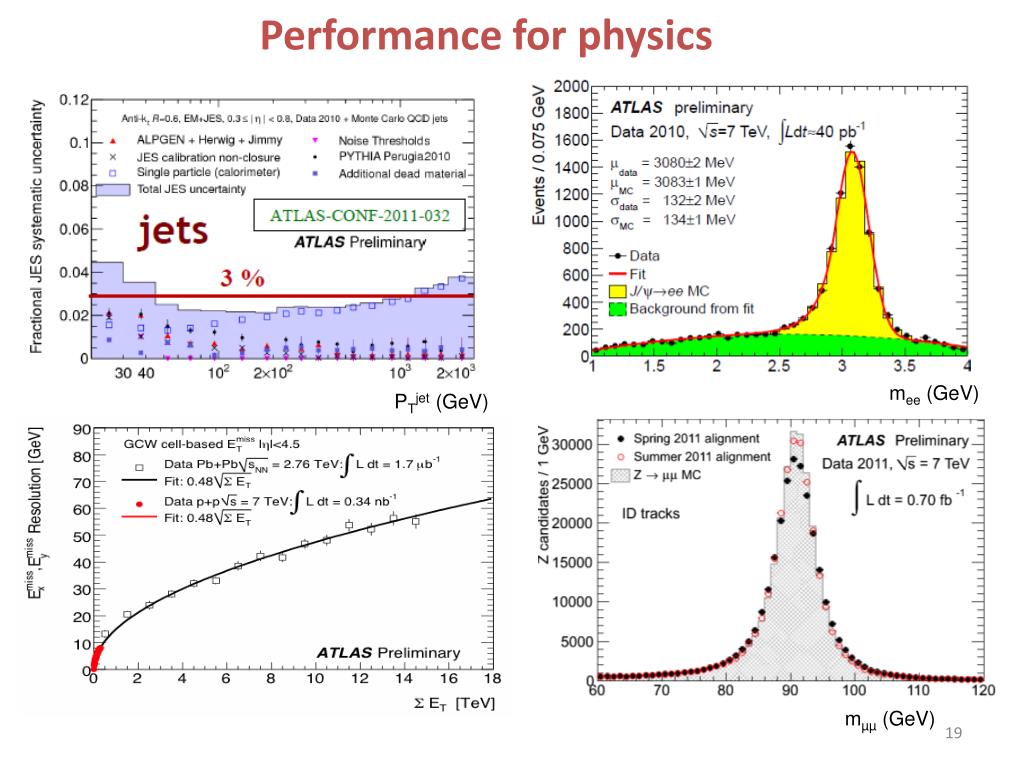

  19. Performance for physics mee (GeV) PTjet (GeV) mµµ (GeV) 19

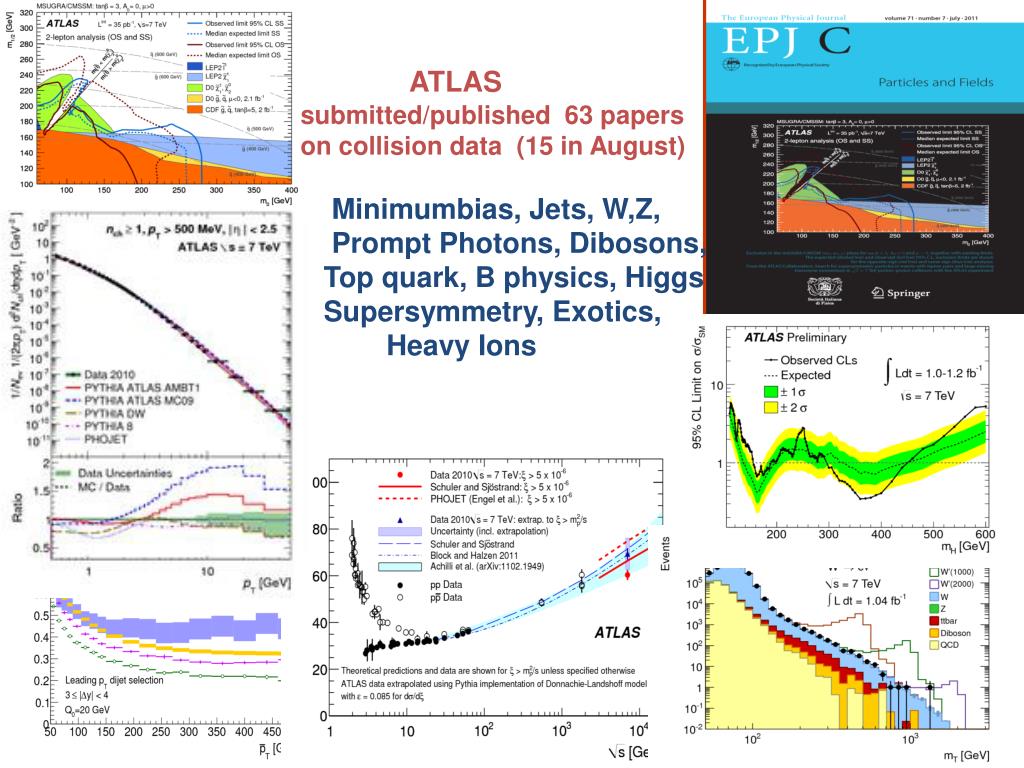

  20. ATLAS submitted/published 63 papers on collision data (15 in August) Minimumbias, Jets, W,Z, Prompt Photons, Dibosons, Top quark, B physics, Higgs Supersymmetry, Exotics, Heavy Ions

  21. Soft-QCDin a new high energy and high multiplicity frontier arXiv: 1003.3124 ; arXiv:1012.5104 Phys. Lett. B 688,1,21; New J. Phys. 13,053033 (2011) Fully inclusive-inelastic distributions in data with no model dependent corrections are compared to different MC models, and significant differences were observed. We have to use the soft QCD distributions to test the phenomenological models and “tune” the Monte-Carlo event generators to give the best description of the data 21 Pre-LHC models seen not to agree with most of the “soft”-QCD distributions

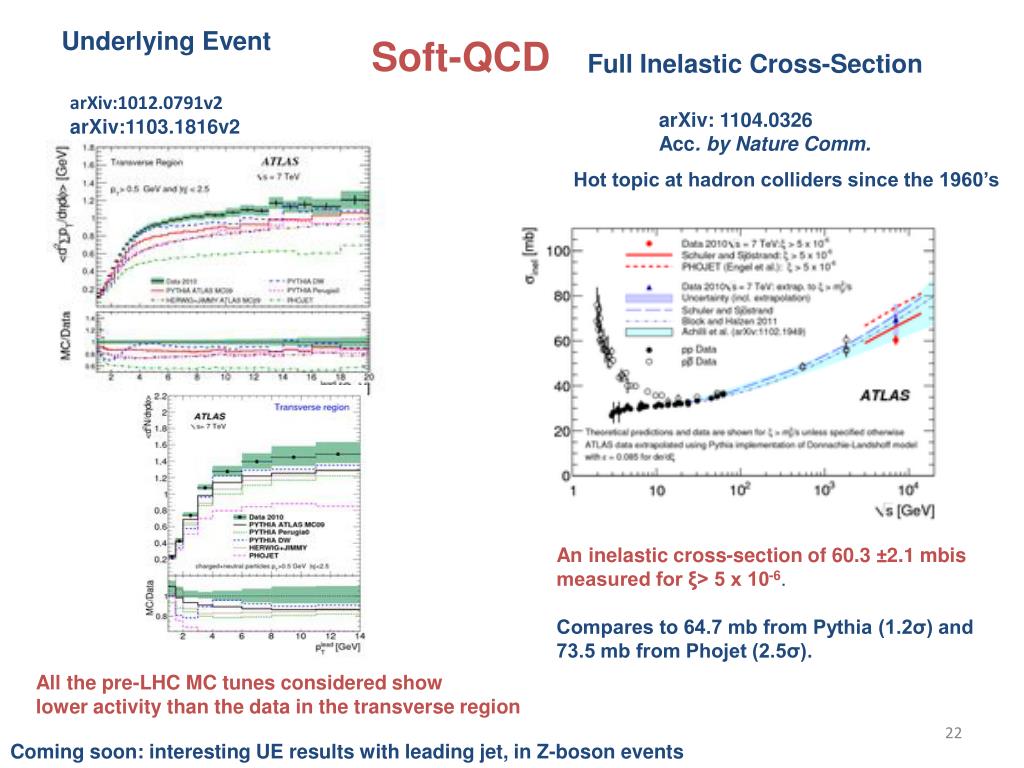

  22. Soft-QCD Underlying Event Full Inelastic Cross-Section arXiv:1012.0791v2 arXiv:1103.1816v2 arXiv: 1104.0326 Acc. by Nature Comm. Hot topic at hadron colliders since the 1960’s An inelastic cross-section of 60.3 ±2.1 mbis measured for ξ> 5 x 10-6. Compares to 64.7 mb from Pythia (1.2σ) and 73.5 mb from Phojet (2.5σ). All the pre-LHC MC tunes considered show lower activity than the data in the transverse region 22 Coming soon: interesting UE results with leading jet, in Z-boson events

  23. Jets: Impresiv agreement between data and theory Inclusive jet cross section Dijet cross section Multijet cross section • Jet production is the dominant high-pT process in p-p collisions. • Provides a stringent test of QCD at the TeV scale. • Inclusive and dijet cross sections are presented covering a phasespace among the widest currently accessed in collider physics. • Measurements in which specific dijet and multijet configurations are selected to enhance sensitivity to higher order effects, allowing the study of QCD radiation at large rapidity intervals. • Measurements of heavy flavours in jets, the internal structure of jets, • and of single-jet mass which carry information about soft physics and the QCD cascade.. 23

  24. ATLAS W, Z and Top Cross Sections Summary ATLAS-CONF-2011-010 ATLAS-CONF-2011-041 ATLAS-CONF-2011-042 ATLAS-CONF-2011-060 ATLAS-CONF-2011-099 ATLAS-CONF-2011-107 ATLAS-CONF-2011-110 All measurements agree with SM expectation (so far) Probing cross sections of ~10 pb 24

  25. 25

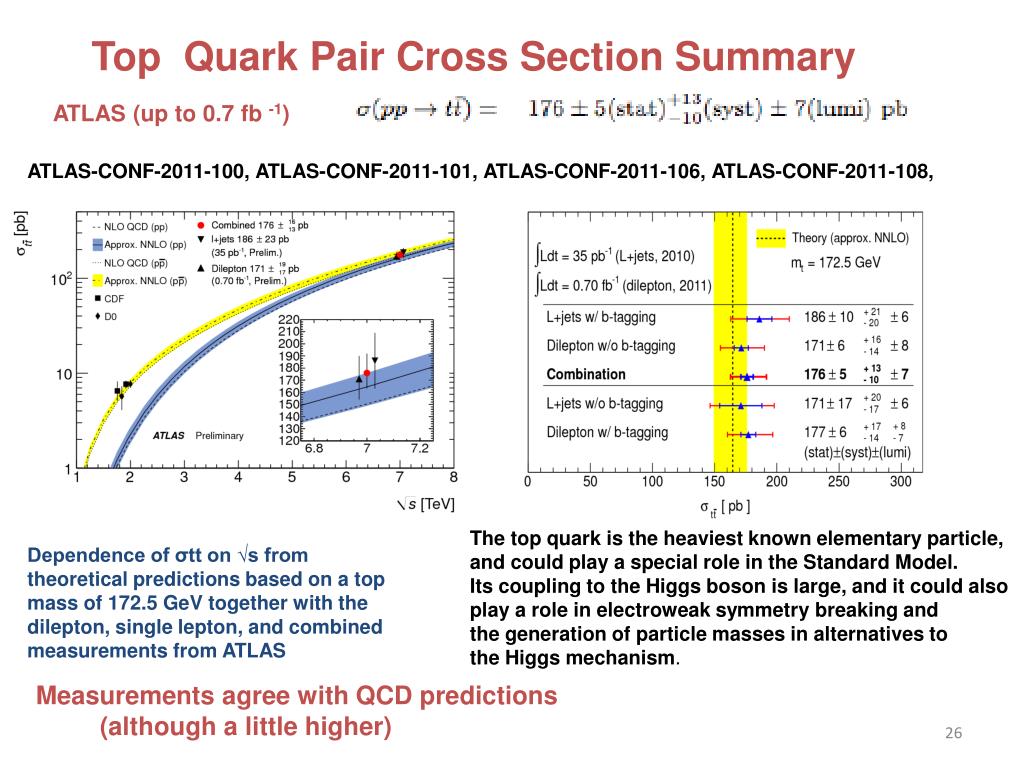

  26. Top Quark Pair Cross Section Summary ATLAS (up to 0.7 fb -1) ATLAS-CONF-2011-100,ATLAS-CONF-2011-101,ATLAS-CONF-2011-106,ATLAS-CONF-2011-108, The top quark is the heaviest known elementary particle, and could play a special role in the Standard Model. Its coupling to the Higgs boson is large, and it could also play a role in electroweak symmetry breaking and the generation of particle masses in alternatives to the Higgs mechanism. Dependence of σtt on √s from theoretical predictions based on a top mass of 172.5 GeV together with the dilepton, single lepton, and combined measurements from ATLAS Measurements agree with QCD predictions (although a little higher) 26

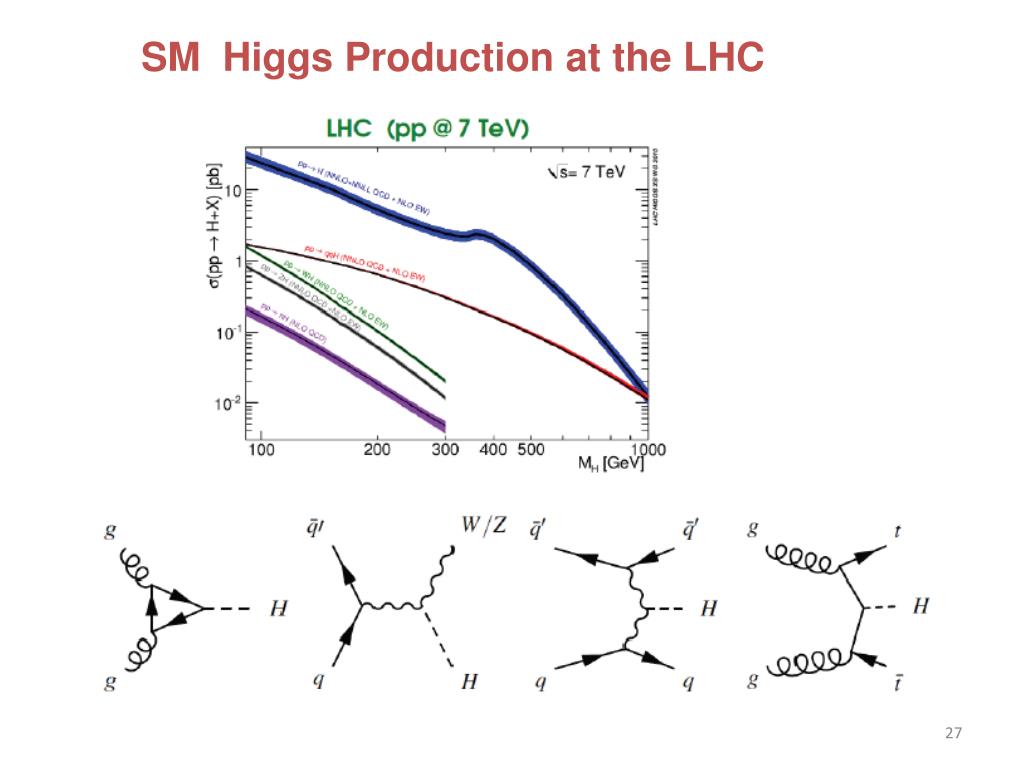

  27. SM Higgs Production at the LHC 27

  28. SM Higgs Decay Modes 28

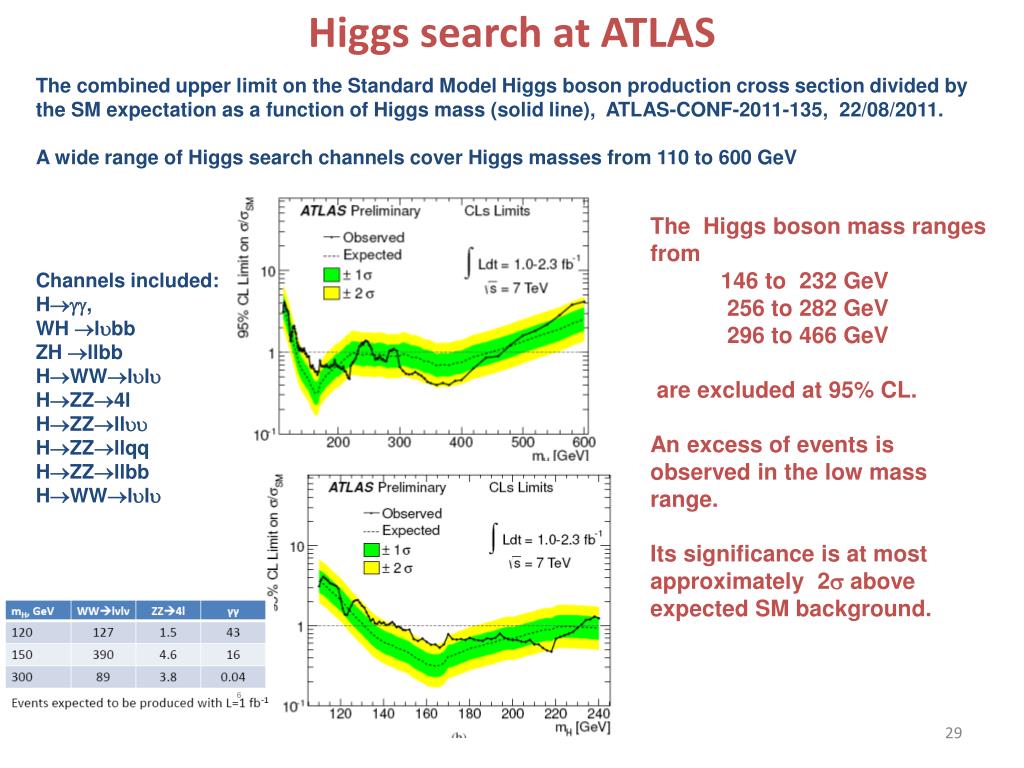

  29. Higgs search at ATLAS The combined upper limit on the Standard Model Higgs boson production cross section divided by the SM expectation as a function of Higgs mass (solid line), ATLAS-CONF-2011-135, 22/08/2011. A wide range of Higgs search channels cover Higgs masses from 110 to 600 GeV The Higgs boson mass ranges from 146 to 232 GeV 256 to 282 GeV 296 to 466 GeV are excluded at 95% CL. An excess of events is observed in the low mass range. Its significance is at most approximately 2 above expected SM background. Channels included: H, WH lbb ZH llbb HWWll HZZ4l HZZll HZZllqq HZZllbb HWWll 29

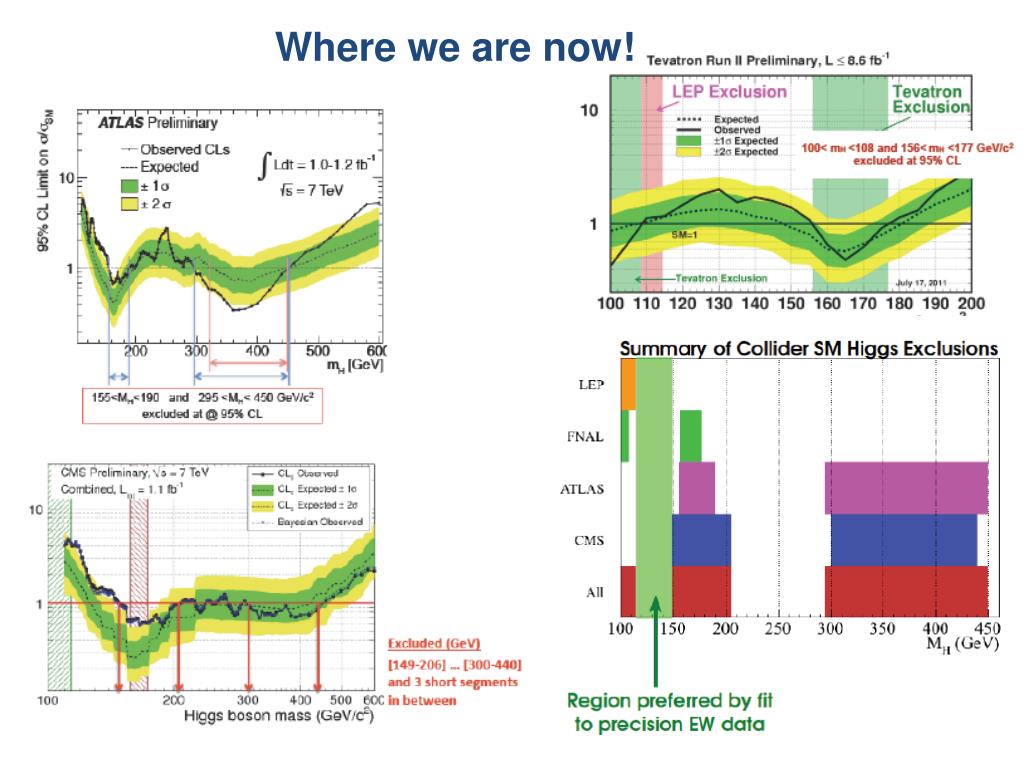

  30. Where we are now! 30

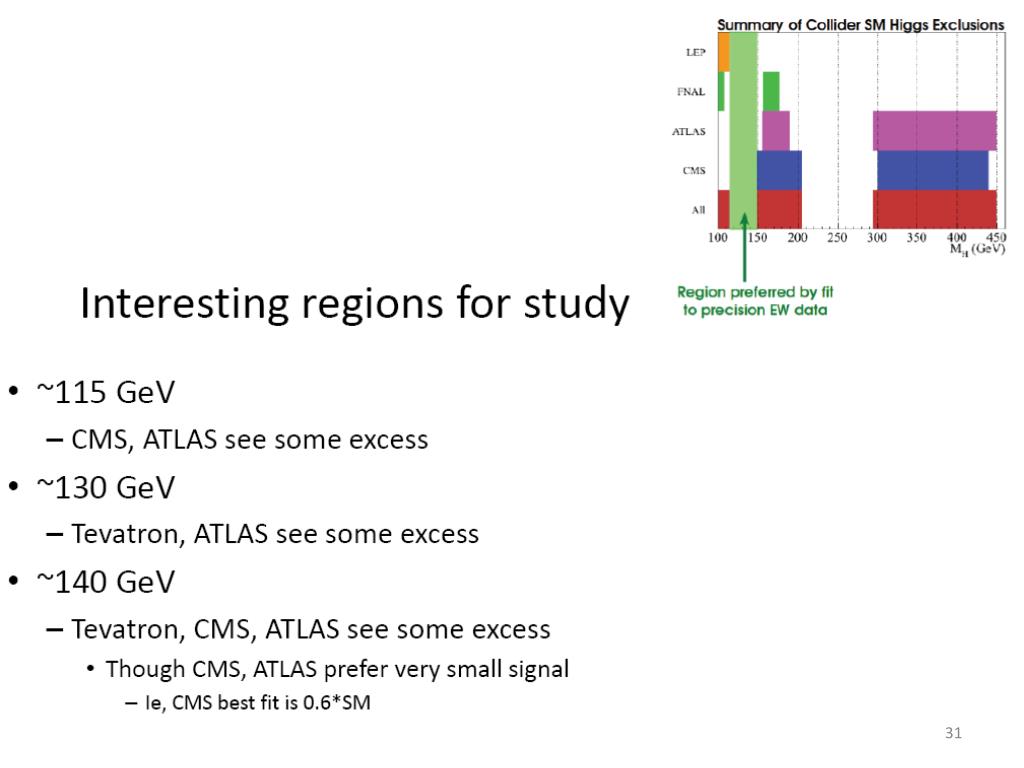

  31. 31

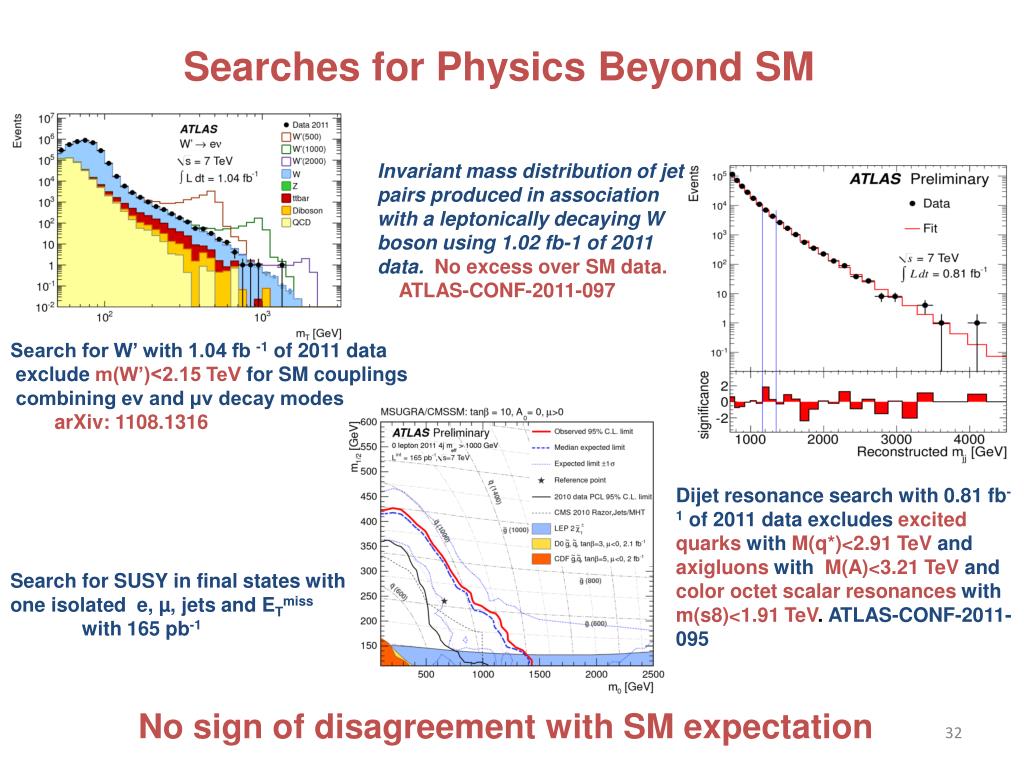

  32. Searches for Physics Beyond SM Invariant mass distribution of jet pairs produced in association with a leptonically decaying W boson using 1.02 fb-1 of 2011 data.No excess over SM data. ATLAS-CONF-2011-097 Search for W’ with 1.04 fb -1 of 2011 data exclude m(W’)<2.15 TeV for SM couplings combining eν and μν decay modes arXiv: 1108.1316 Dijet resonance search with 0.81 fb-1 of 2011 data excludes excited quarks with M(q*)<2.91 TeV and axigluons with M(A)<3.21 TeV and color octetscalar resonances with m(s8)<1.91 TeV. ATLAS-CONF-2011-095 Search for SUSY in final states with one isolated e, µ, jets and ETmiss with 165 pb-1 No sign of disagreement with SM expectation 32

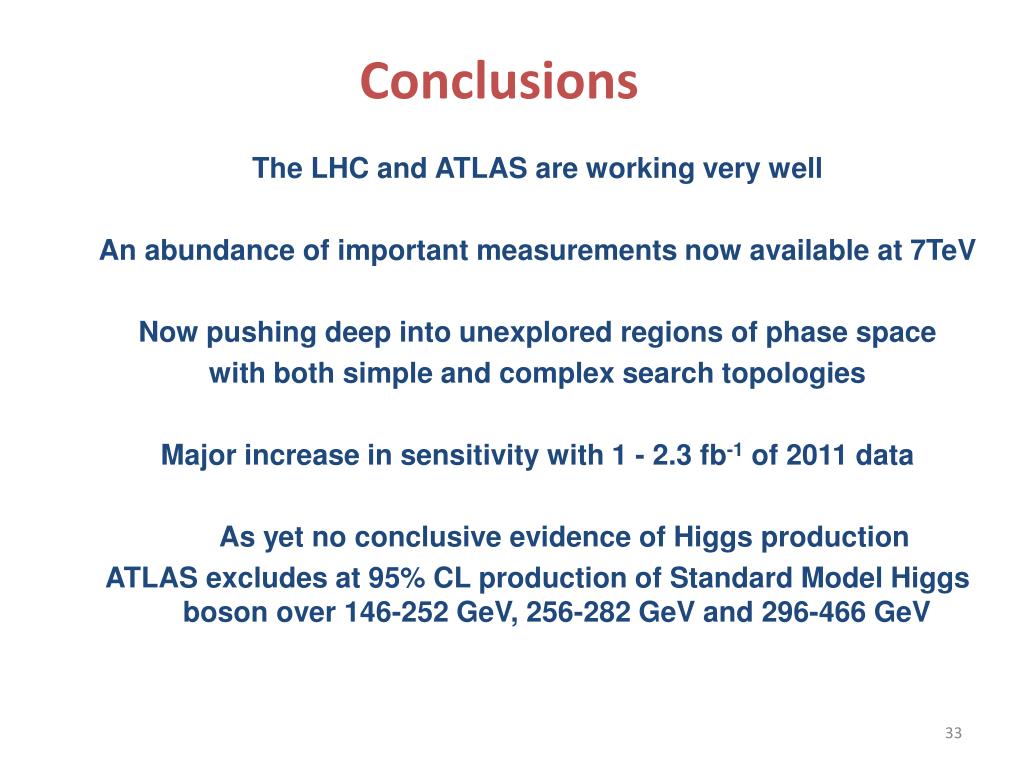

  33. Conclusions The LHC and ATLAS are working very well An abundance of important measurements now available at 7TeV Now pushing deep into unexplored regions of phase space with both simple and complex search topologies Major increase in sensitivity with 1 - 2.3 fb-1 of 2011 data As yet no conclusive evidence of Higgs production ATLAS excludes at 95% CL production of Standard Model Higgs boson over 146-252 GeV, 256-282 GeV and 296-466 GeV 33
