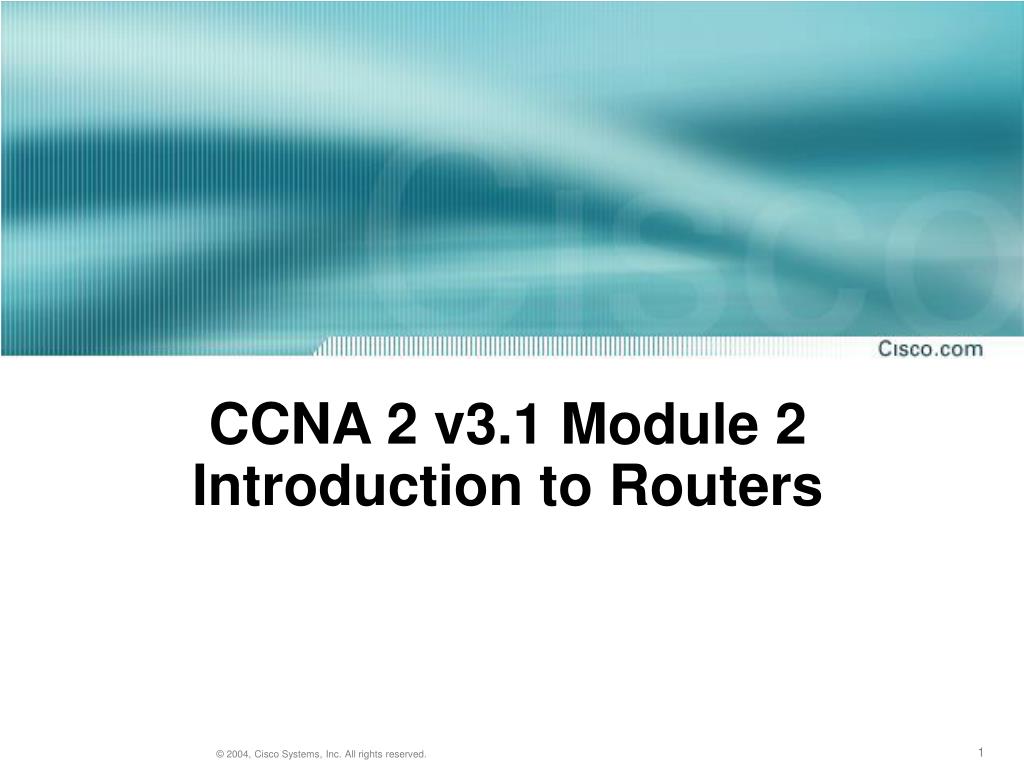

  1. CCNA 2 v3.1 Module 2 Introduction to Routers

  2. The Purpose of Cisco IOS Software • Basic routing and switching functions • Reliable and secure access to networked resources • Network scalability

  3. Router User Interface

  4. Router User Interface Modes

  5. Cisco IOS Naming Conventions

  6. Operating Cisco IOS Software

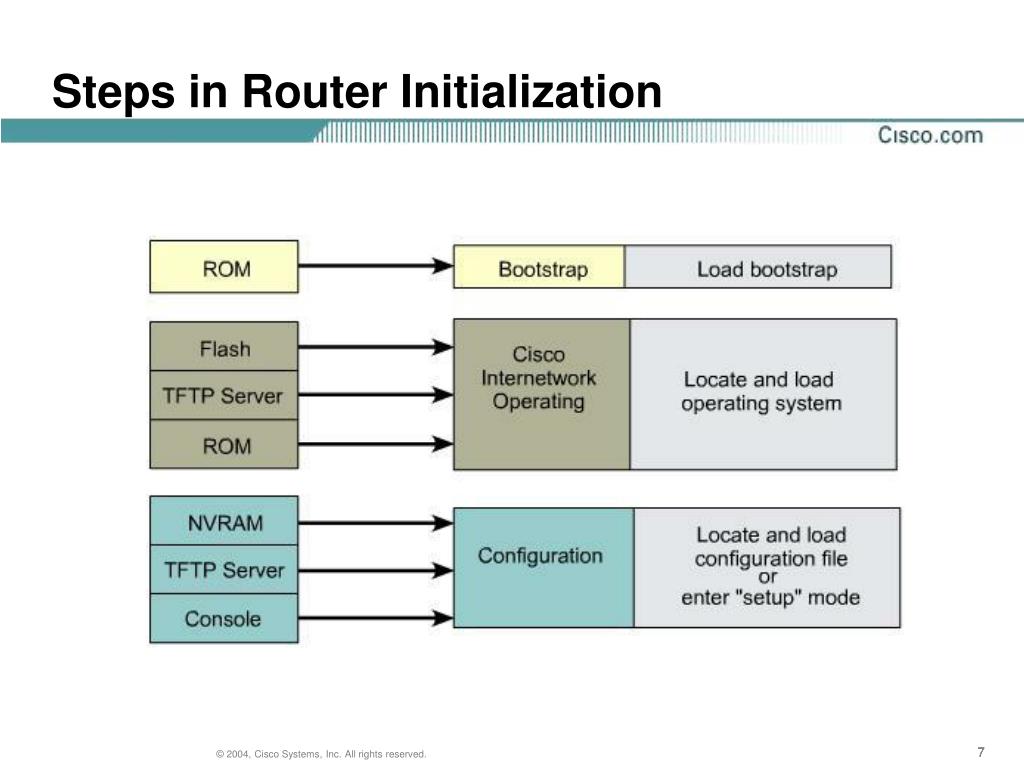

  7. Steps in Router Initialization

  8. Setup Mode

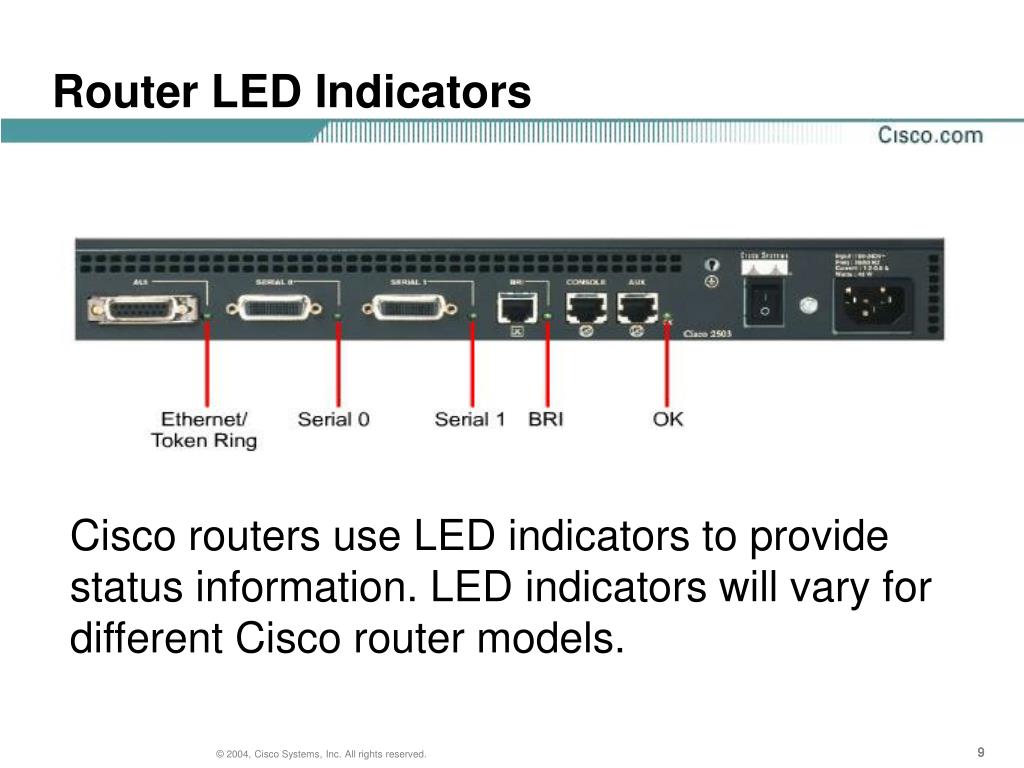

  9. Router LED Indicators Cisco routers use LED indicators to provide status information. LED indicators will vary for different Cisco router models.

  10. The Initial Router Bootup

  11. Examining the Initial Bootup Output

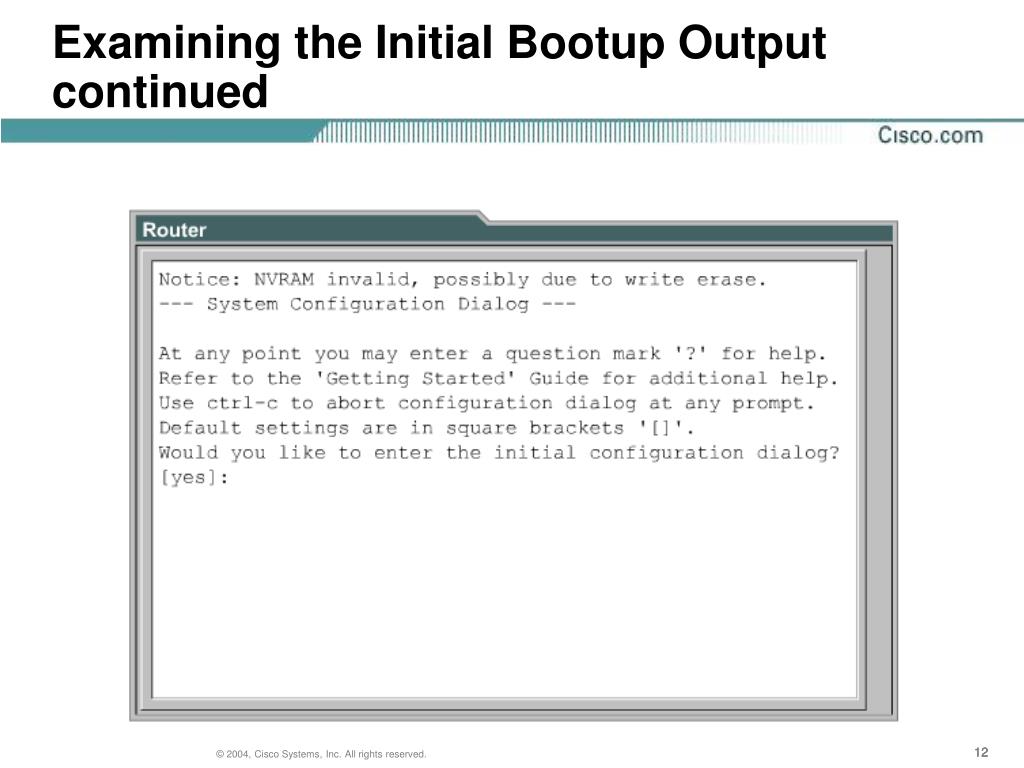

  12. Examining the Initial Bootup Output continued

  13. Establish a Console Session • All Cisco routers include an EIA/TIA-232 asynchronous serial console port. The console port is an RJ-45. • Use an RJ-45 to RJ45 rollover cable with a female RJ-45 to DB-9 adapter to connect a PC to the console port

  14. Router Modes

  15. User Mode Commands

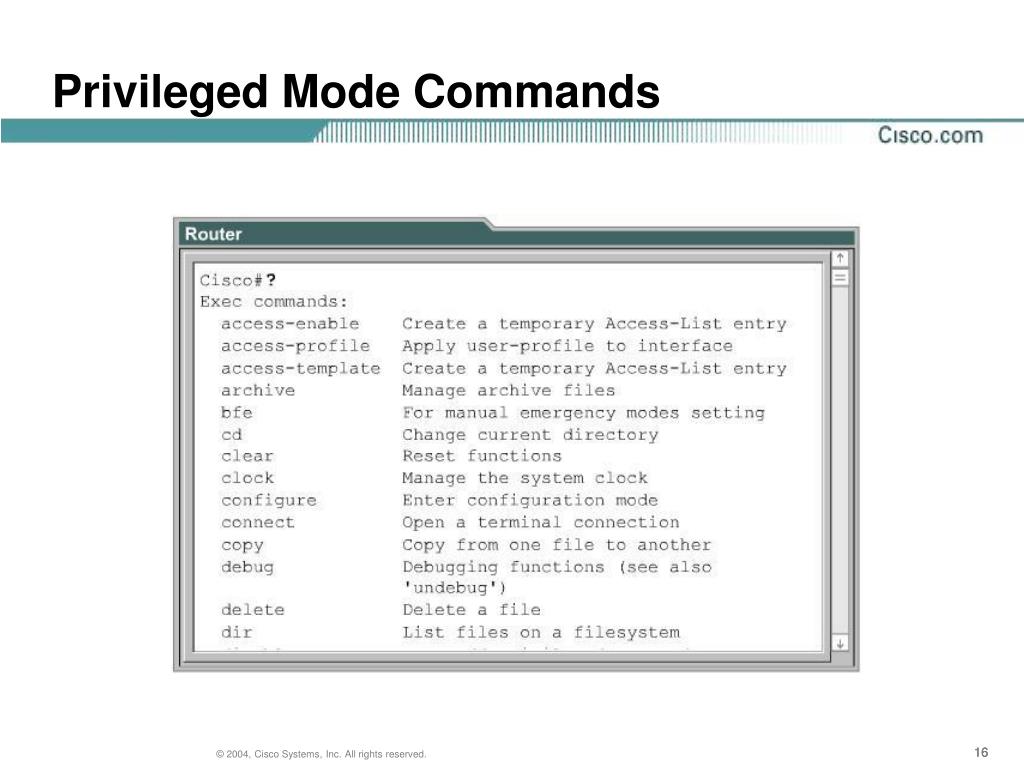

  16. Privileged Mode Commands

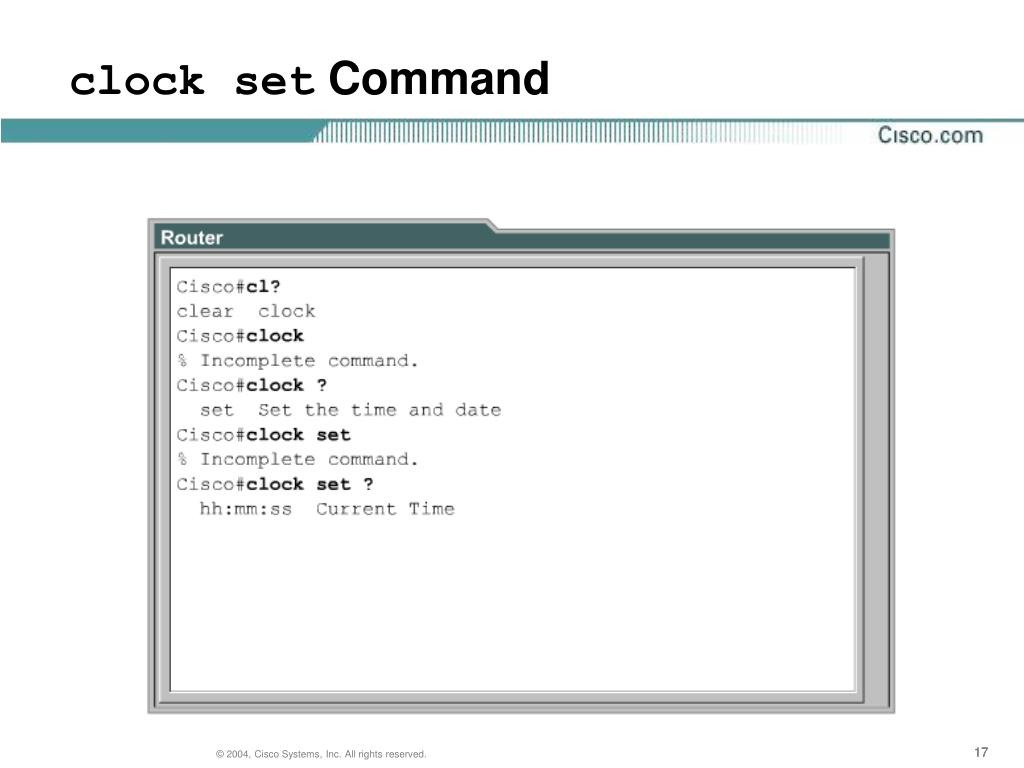

  17. clock set Command

  18. Using IOS Command history

  19. The User Interface Error Indicator

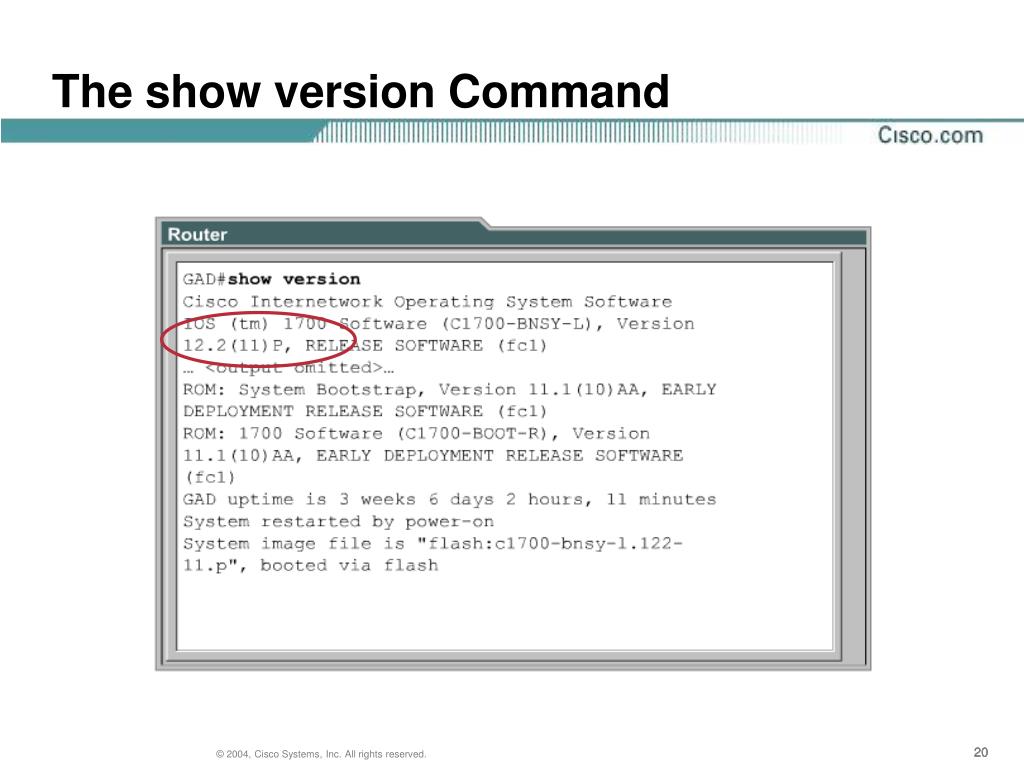

  20. The show version Command

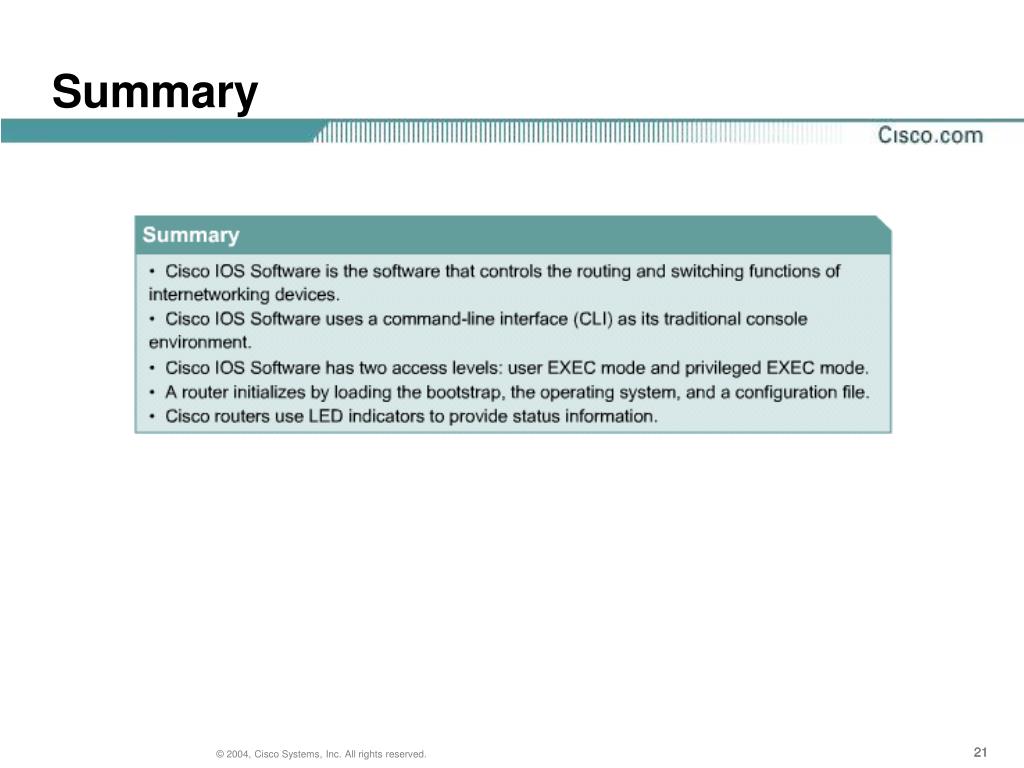

  21. Summary
