  1. Setup of NCF CJ1W-NCF71

  2. Introduction to the NCF

  3. NCF Overview

  4. NCF Overview

  5. System Configuration

  6. Position Control

  7. Torque Control

  8. Speed Control

  9. Absolute Encoder and Data Transfer

  10. Linear Interpolation

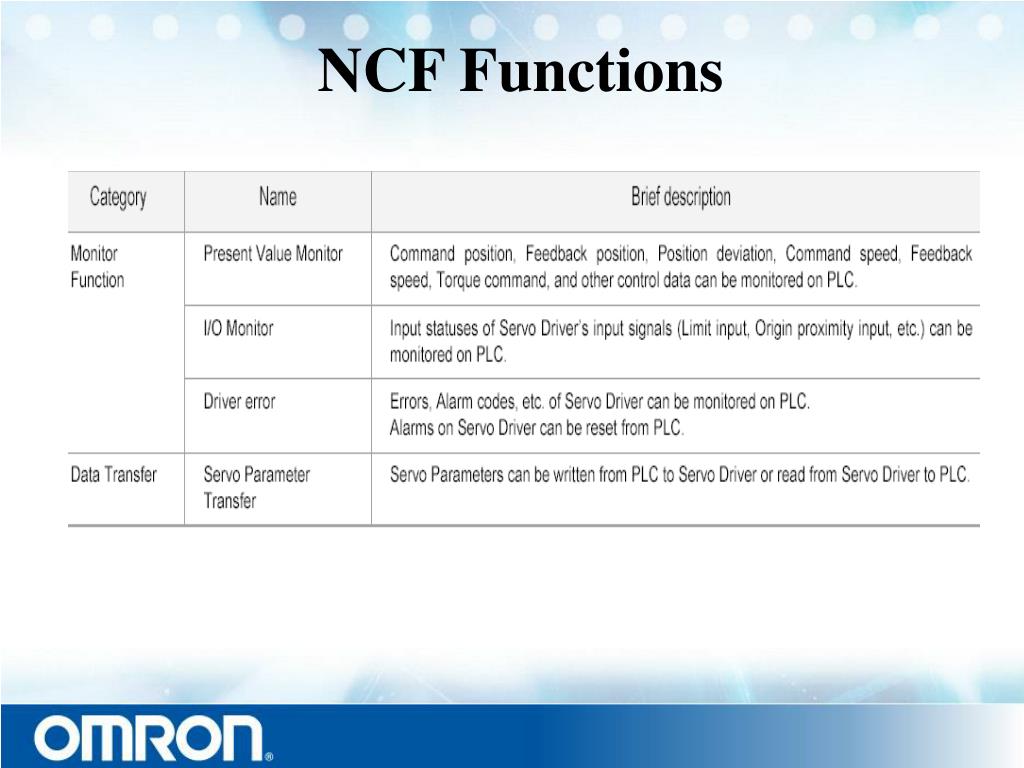

  11. NCF Functions

  12. NCF Functions

  13. What software do we use to communicate to the NCF? • CX Motion NCF

  14. Common Operating Memory Area CJ1W-NCF71 uses 25 words depending on the unit # of the card This card uses 1500 - 1524

  15. Common Operating Memory Area Details CIO 1501.00 Connect Bit to Start Mechatrollink II Communications CIO 1522 Shows which axis are communicating

  16. Using the I/O Table from CX Programmer Right Mouse Click

  17. CX Motion NCF

  18. NCF Axis Map Double Click to bring up the Axis Map

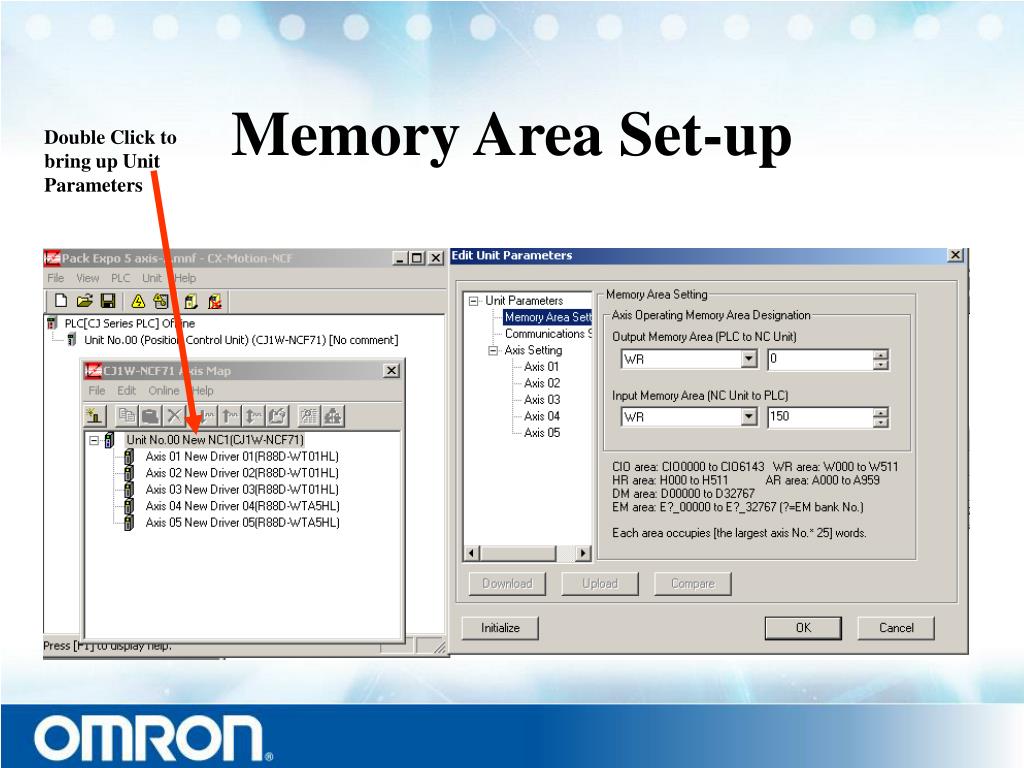

  19. Memory Area Set-up Double Click to bring up Unit Parameters

  20. Memory Area Set-up Output Memory Area takes up 25 words per Axis Input Memory Area takes up 25 words per Axis Take into account initially how many axis your system will have

  21. If the Axis Operating Output Memory Area is set to WR 0 then Axis 1 will use WR0.00-W24.00 WR0.03 used to set Absolute Movement of the NCF

  22. Axis Operating Output Memory Area Allocation WR0.09 Jog Command (need to Speed Command Set)

  23. Axis Operating Output Memory Area Allocation Initially you need to do a Servo Lock WR1.00

  24. Axis Operating Output Memory Area Allocation Positioning Command WR2,WR3

  25. If the Axis Operating Input Memory Area is set to WR 150 then Axis 1 will use WR150.00-W174.00 WR150.12 Error Flag

  26. Axis Operating Input Memory Area WR154 Axis Error Code – Go to Section 12-4 for more info

  27. NCF Diagnostics Select Unit Monitor

  28. Present Position

  29. Axis Monitor up to 4 Axis You can change the selected axis to monitor

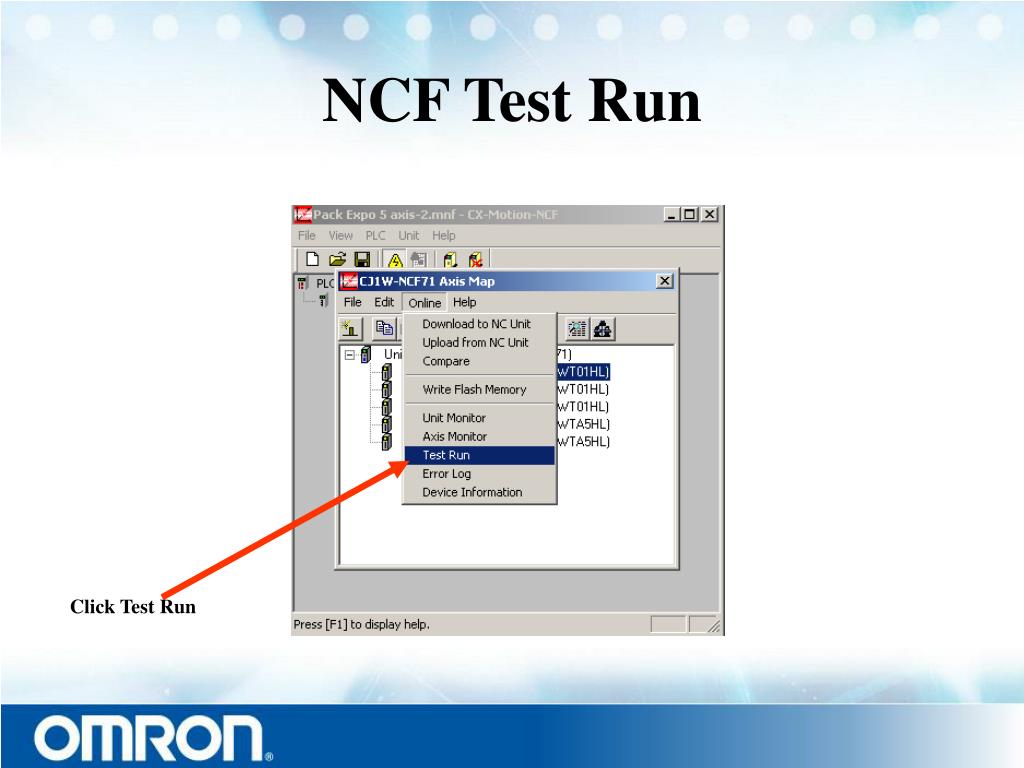

  30. NCF Test Run Click Test Run

  31. Test Run Disclaimer Click OK

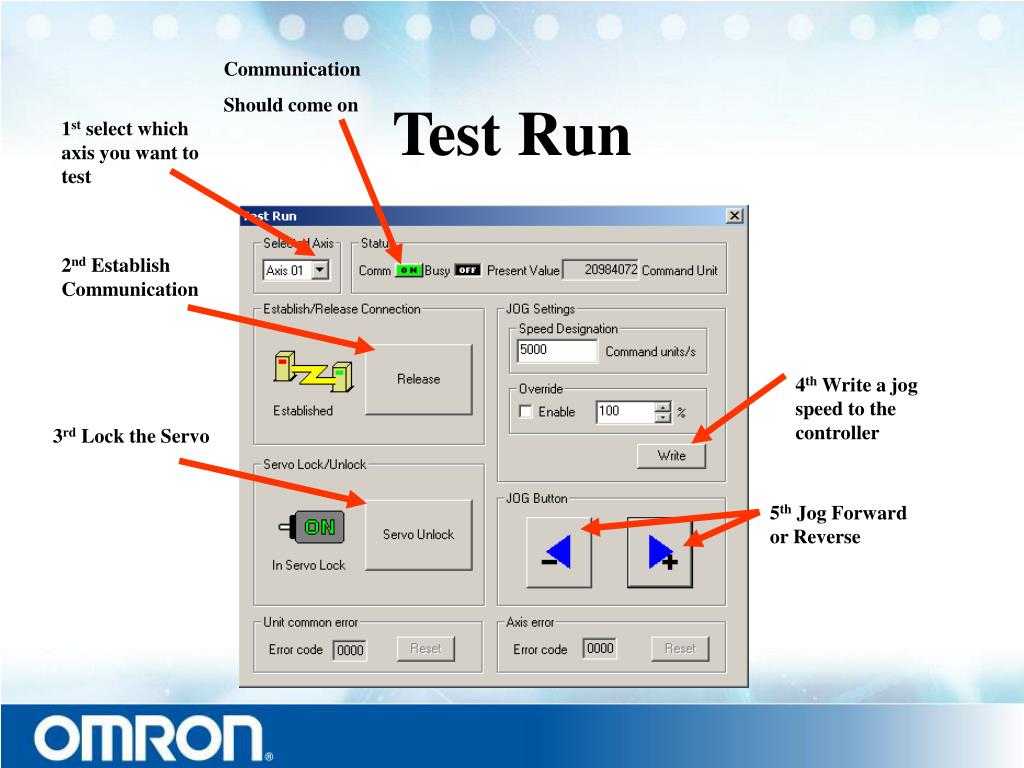

  32. Communication Should come on Test Run 1st select which axis you want to test 2nd Establish Communication 4th Write a jog speed to the controller 3rd Lock the Servo 5th Jog Forward or Reverse

  33. Error Log Click Error Log

  34. Device Information

  35. Let’s go online with the NCF and do a Test Run

  36. Quiz • One CJ1W-NCF71 can control up to ____ Servo Drives • MECHATROLINK II communicates at _______ Mbs • The NCF can be used in Position mode, Speed mode and Torque mode? _____ True ______ False • Linear Interpolation can be performed with 2 groups up to ___ Axis together at once. • What software is used to communicate to the NCF?_____________

  37. Quiz • One CJ1W-NCF71 can control up to 16 Servo Drives • MECHATROLINK II communicates at 10 Mbs • The NCF can be used in Position mode, Speed mode and Torque mode? True • Linear Interpolation can be performed with 2 groups up to 4 Axis together at once. • What software is used to communicate to the NCF? CX Motion NCF
