Introduction to cloud computing

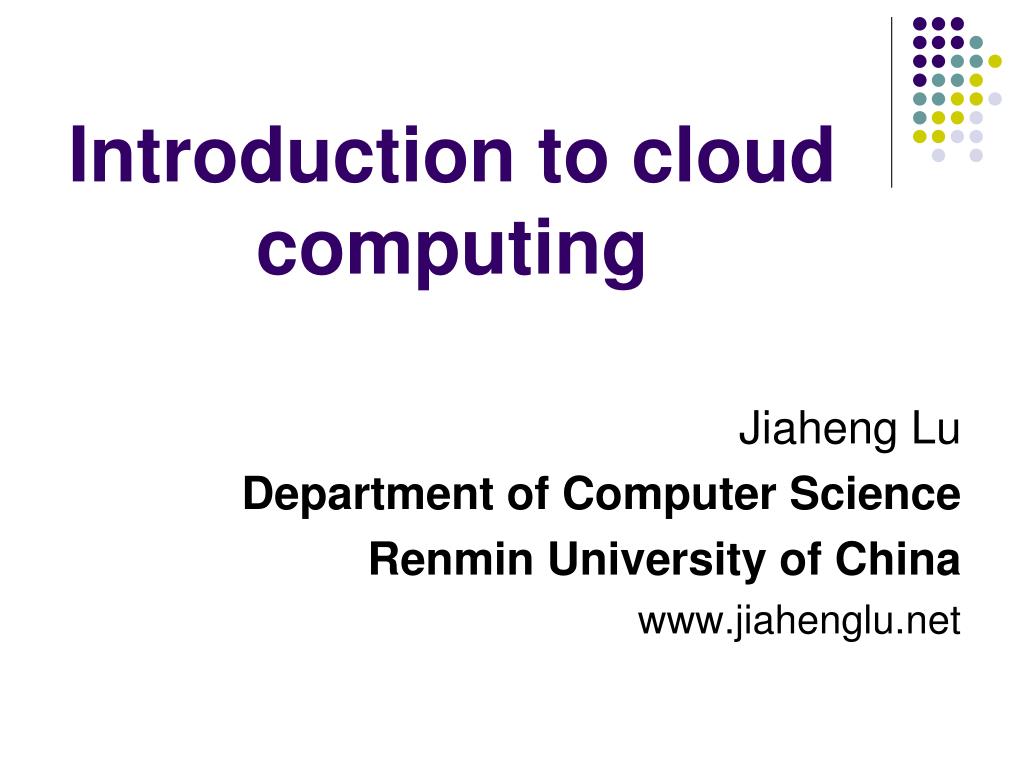

1. Introduction to cloud computing Jiaheng Lu Department of Computer Science Renmin University of China www.jiahenglu.net

2. Cloud computing

4. Google Cloud computing techniques

5. The Google File System

6. The Google File System (GFS) • A scalable distributed file system for large distributed data intensive applications • Multiple GFS clusters are currently deployed. • The largest ones have: • 1000+ storage nodes • 300+ TeraBytes of disk storage • heavily accessed by hundreds of clients on distinct machines

7. Introduction • Shares many same goals as previous distributed file systems • performance, scalability, reliability, etc • GFS design has been driven by four key observation of Google application workloads and technological environment

8. Intro: Observations 1 • 1. Component failures are the norm • constant monitoring, error detection, fault tolerance and automatic recovery are integral to the system • 2. Huge files (by traditional standards) • Multi GB files are common • I/O operations and blocks sizes must be revisited

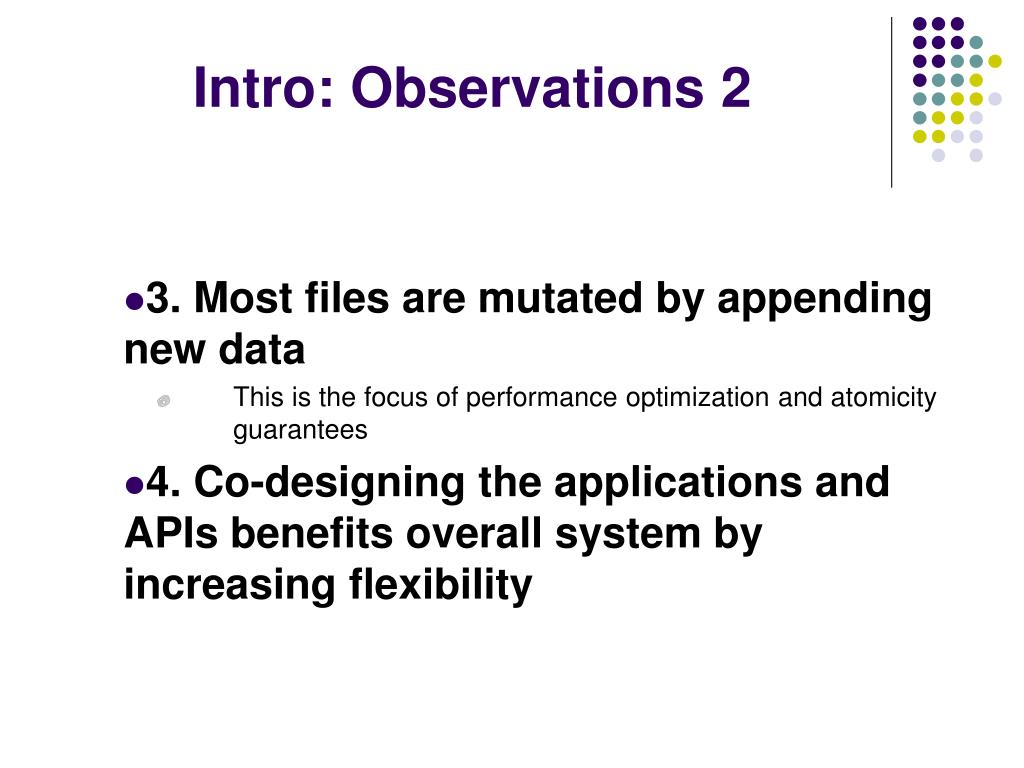

9. Intro: Observations 2 • 3. Most files are mutated by appending new data • This is the focus of performance optimization and atomicity guarantees • 4. Co-designing the applications and APIs benefits overall system by increasing flexibility

10. The Design • Cluster consists of a single master and multiple chunkservers and is accessed by multiple clients

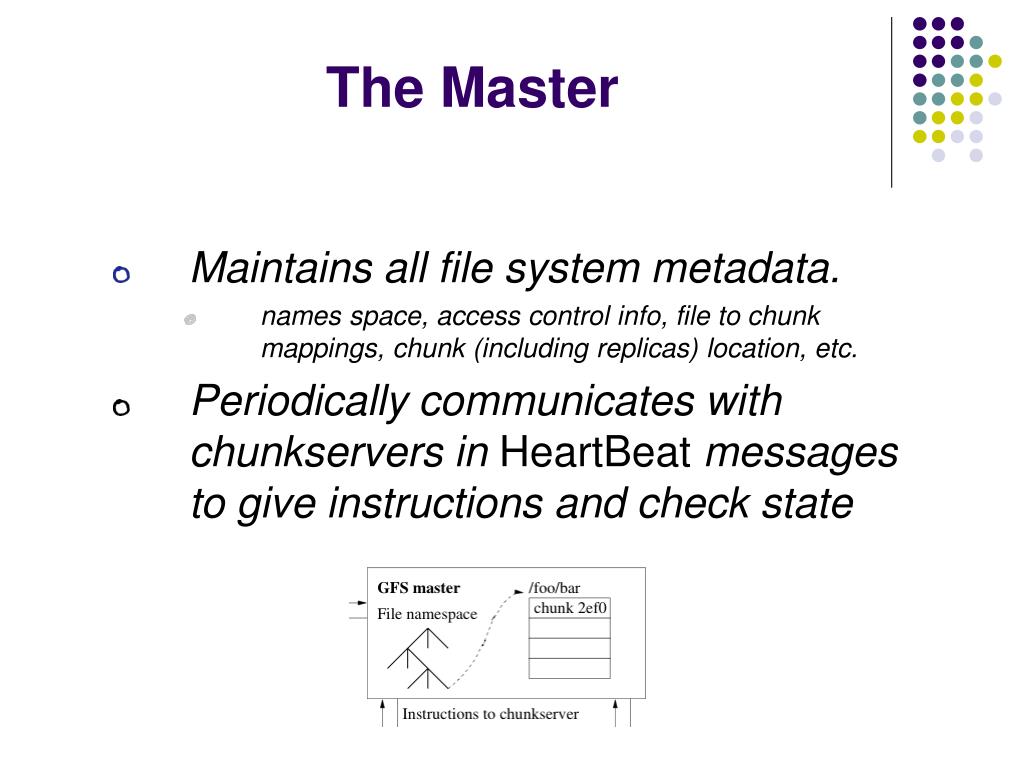

11. The Master • Maintains all file system metadata. • names space, access control info, file to chunk mappings, chunk (including replicas) location, etc. • Periodically communicates with chunkservers in HeartBeat messages to give instructions and check state

12. The Master • Helps make sophisticated chunk placement and replication decision, using global knowledge • For reading and writing, client contacts Master to get chunk locations, then deals directly with chunkservers • Master is not a bottleneck for reads/writes

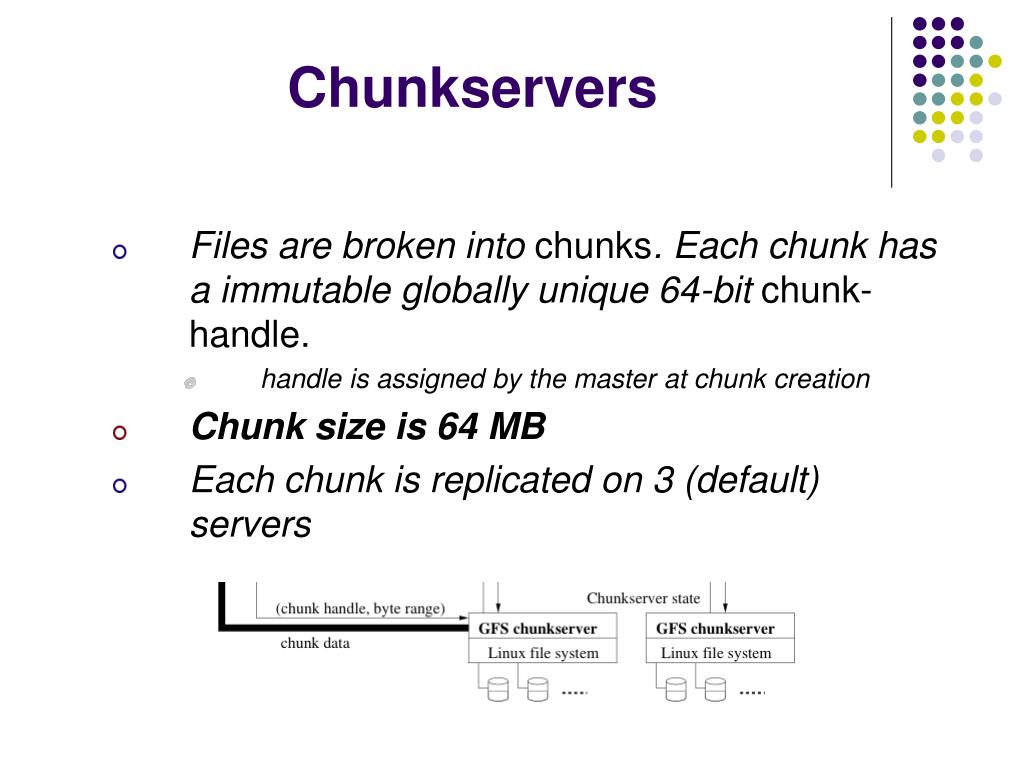

13. Chunkservers • Files are broken into chunks. Each chunk has a immutable globally unique 64-bit chunk-handle. • handle is assigned by the master at chunk creation • Chunk size is 64 MB • Each chunk is replicated on 3 (default) servers

14. Clients • Linked to apps using the file system API. • Communicates with master and chunkservers for reading and writing • Master interactions only for metadata • Chunkserver interactions for data • Only caches metadata information • Data is too large to cache.

15. Chunk Locations • Master does not keep a persistent record of locations of chunks and replicas. • Polls chunkservers at startup, and when new chunkservers join/leave for this. • Stays up to date by controlling placement of new chunks and through HeartBeat messages (when monitoring chunkservers)

16. Operation Log • Record of all critical metadata changes • Stored on Master and replicated on other machines • Defines order of concurrent operations • Changes not visible to clients until they propigate to all chunk replicas • Also used to recover the file system state

17. System Interactions: Leases and Mutation Order • Leases maintain a mutation order across all chunk replicas • Master grants a lease to a replica, called the primary • The primary choses the serial mutation order, and all replicas follow this order • Minimizes management overhead for the Master

18. System Interactions: Leases and Mutation Order

19. Atomic Record Append • Client specifies the data to write; GFS chooses and returns the offset it writes to and appends the data to each replica at least once • Heavily used by Google’s Distributed applications. • No need for a distributed lock manager • GFS choses the offset, not the client

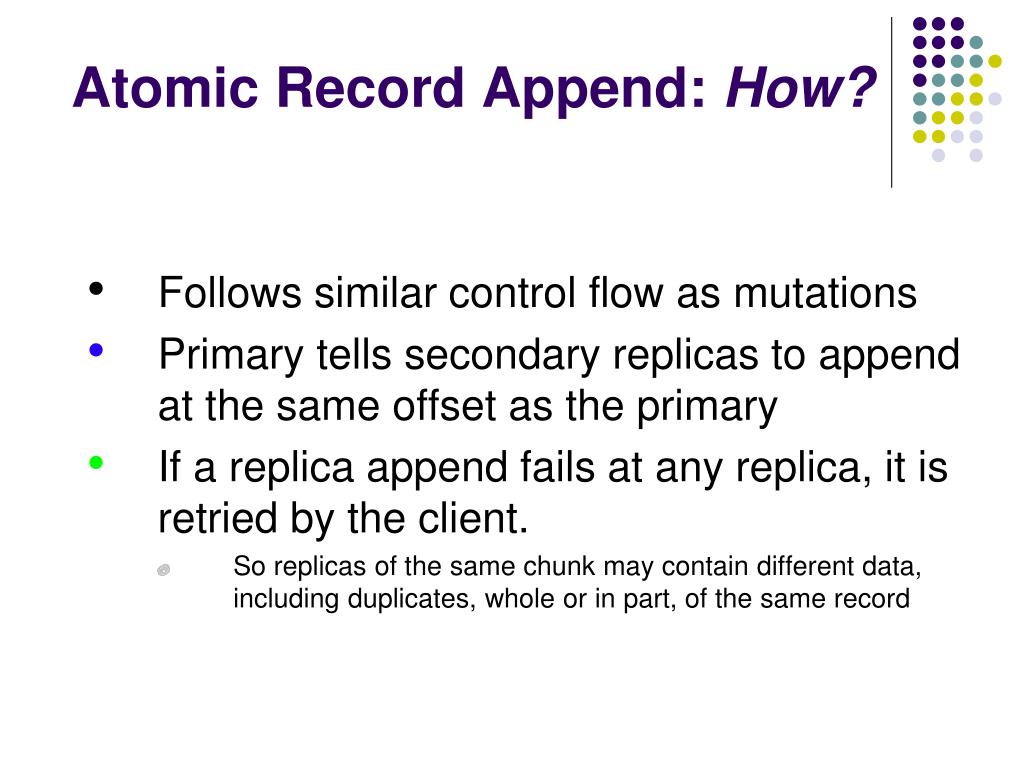

20. Atomic Record Append: How? • Follows similar control flow as mutations • Primary tells secondary replicas to append at the same offset as the primary • If a replica append fails at any replica, it is retried by the client. • So replicas of the same chunk may contain different data, including duplicates, whole or in part, of the same record

21. Atomic Record Append: How? • GFS does not guarantee that all replicas are bitwise identical. • Only guarantees that data is written at least once in an atomic unit. • Data must be written at the same offset for all chunk replicas for success to be reported.

22. Replica Placement • Placement policy maximizes data reliability and network bandwidth • Spread replicas not only across machines, but also across racks • Guards against machine failures, and racks getting damaged or going offline • Reads for a chunk exploit aggregate bandwidth of multiple racks • Writes have to flow through multiple racks • tradeoff made willingly

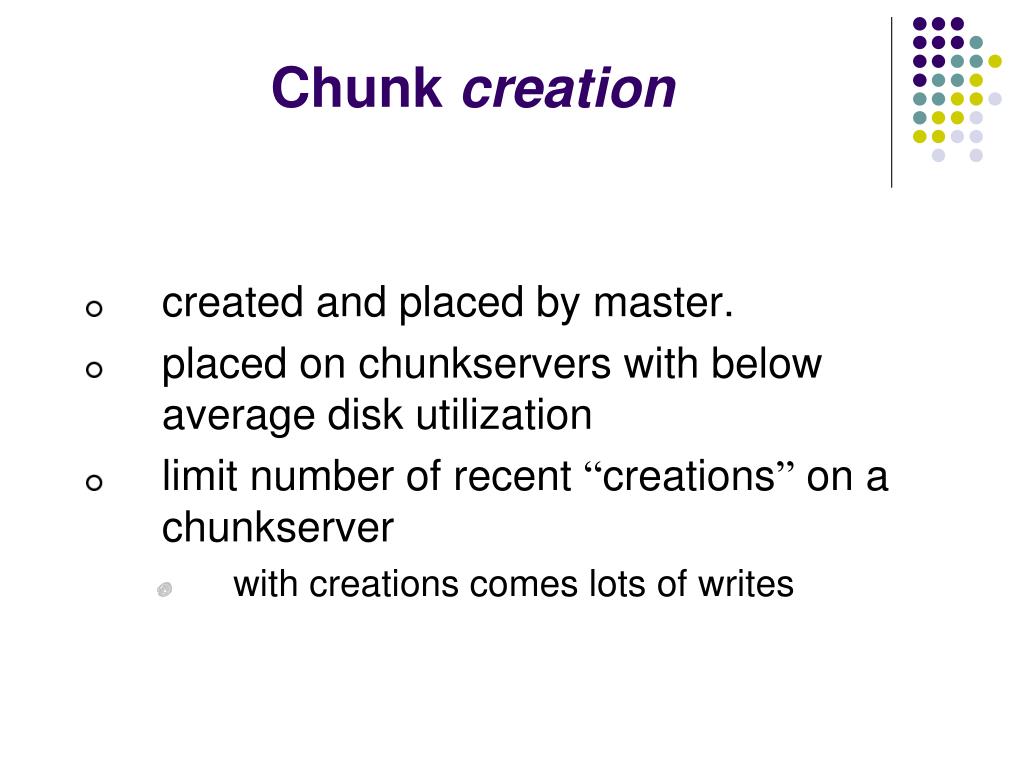

23. Chunk creation • created and placed by master. • placed on chunkservers with below average disk utilization • limit number of recent “creations” on a chunkserver • with creations comes lots of writes

24. Detecting Stale Replicas • Master has a chunk version number to distinguish up to date and stale replicas • Increase version when granting a lease • If a replica is not available, its version is not increased • master detects stale replicas when a chunkservers report chunks and versions • Remove stale replicas during garbage collection

25. Garbage collection • When a client deletes a file, master logs it like other changes and changes filename to a hidden file. • Master removes files hidden for longer than 3 days when scanning file system name space • metadata is also erased • During HeartBeat messages, the chunkservers send the master a subset of its chunks, and the master tells it which files have no metadata. • Chunkserver removes these files on its own

26. Fault Tolerance:High Availability • Fast recovery • Master and chunkservers can restart in seconds • Chunk Replication • Master Replication • “shadow” masters provide read-only access when primary master is down • mutations not done until recorded on all master replicas

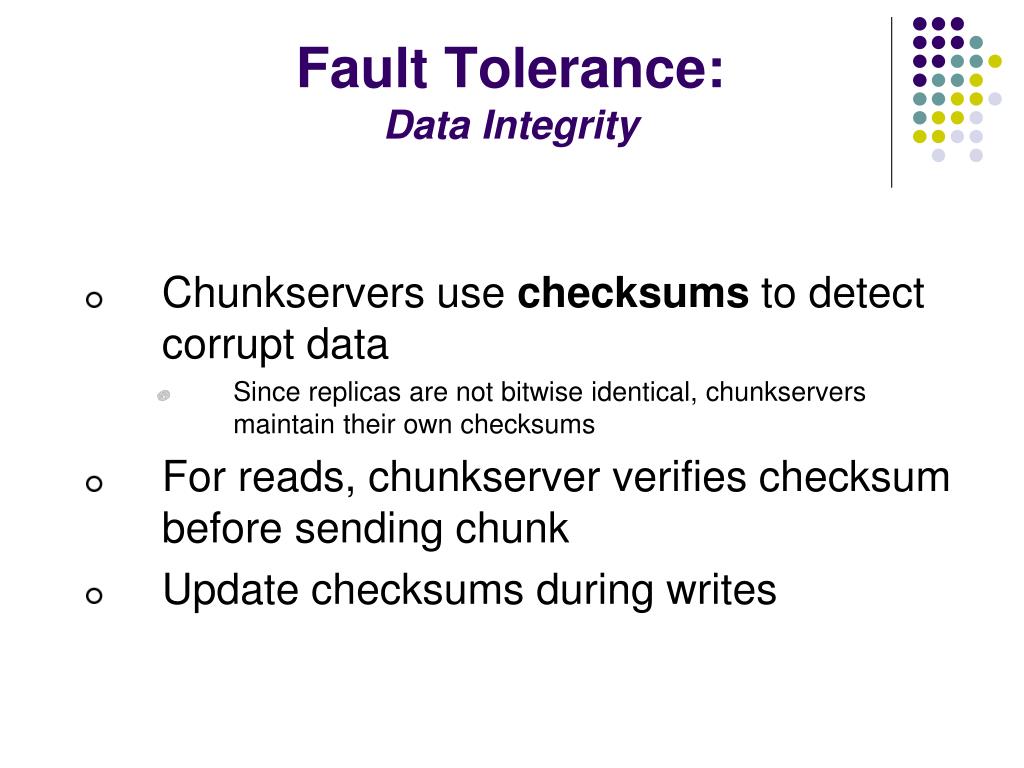

27. Fault Tolerance:Data Integrity • Chunkservers use checksums to detect corrupt data • Since replicas are not bitwise identical, chunkservers maintain their own checksums • For reads, chunkserver verifies checksum before sending chunk • Update checksums during writes

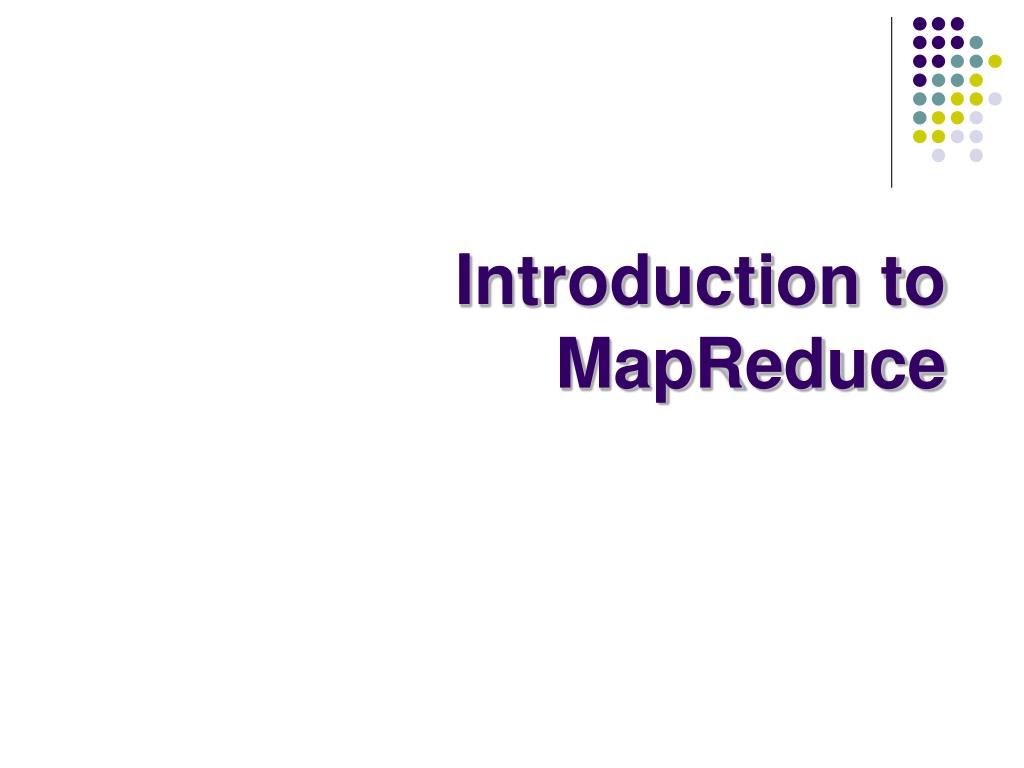

28. Introduction to MapReduce

29. MapReduce: Insight ”Consider the problem of counting the number of occurrences of each word in a large collection of documents” How would you do it in parallel ?

30. MapReduce Programming Model • Inspired from map and reduce operations commonly used in functional programming languages like Lisp. • Users implement interface of two primary methods: • 1. Map: (key1, val1) → (key2, val2) • 2. Reduce: (key2, [val2]) → [val3]

31. Map operation • Map, a pure function, written by the user, takes an input key/value pair and produces a set of intermediate key/value pairs. • e.g. (doc—id, doc-content) • Draw an analogy to SQL, map can be visualized as group-by clause of an aggregate query.

32. Reduce operation On completion of map phase, all the intermediate values for a given output key are combined together into a list and given to a reducer. Can be visualized as aggregate function (e.g., average) that is computed over all the rows with the same group-by attribute.

33. Pseudo-code map(String input_key, String input_value): // input_key: document name // input_value: document contents for each word w in input_value: EmitIntermediate(w, "1"); reduce(String output_key, Iterator intermediate_values): // output_key: a word // output_values: a list of counts int result = 0; for each v in intermediate_values: result += ParseInt(v); Emit(AsString(result));

34. MapReduce: Execution overview

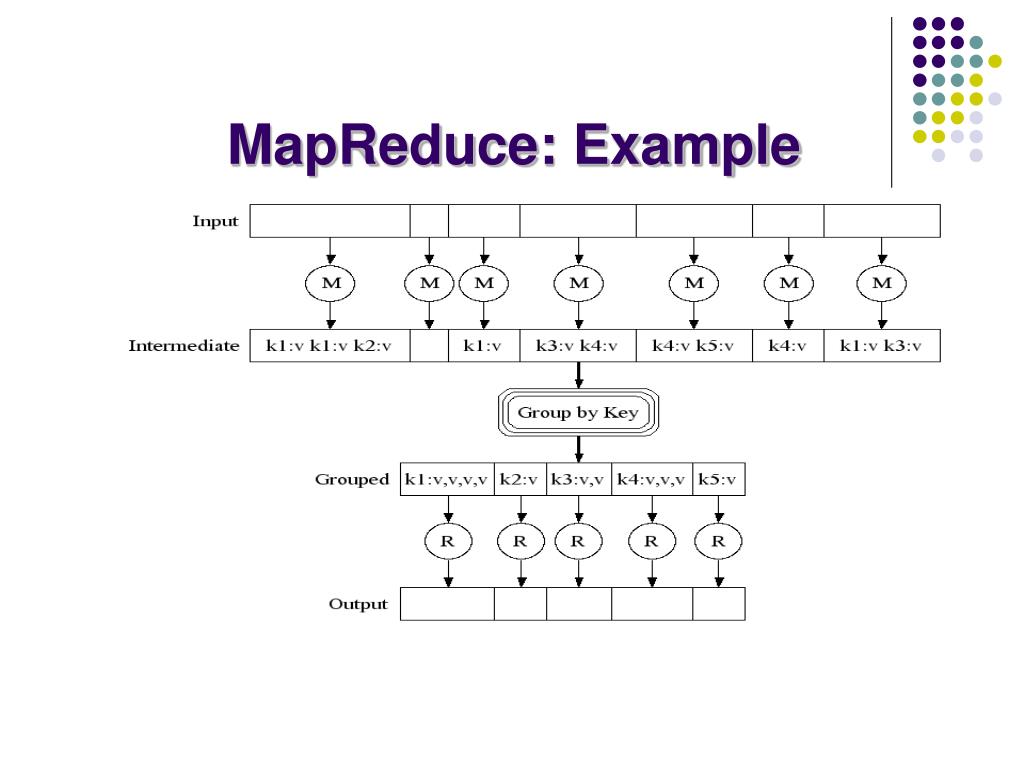

35. MapReduce: Example

36. MapReduce in Parallel: Example

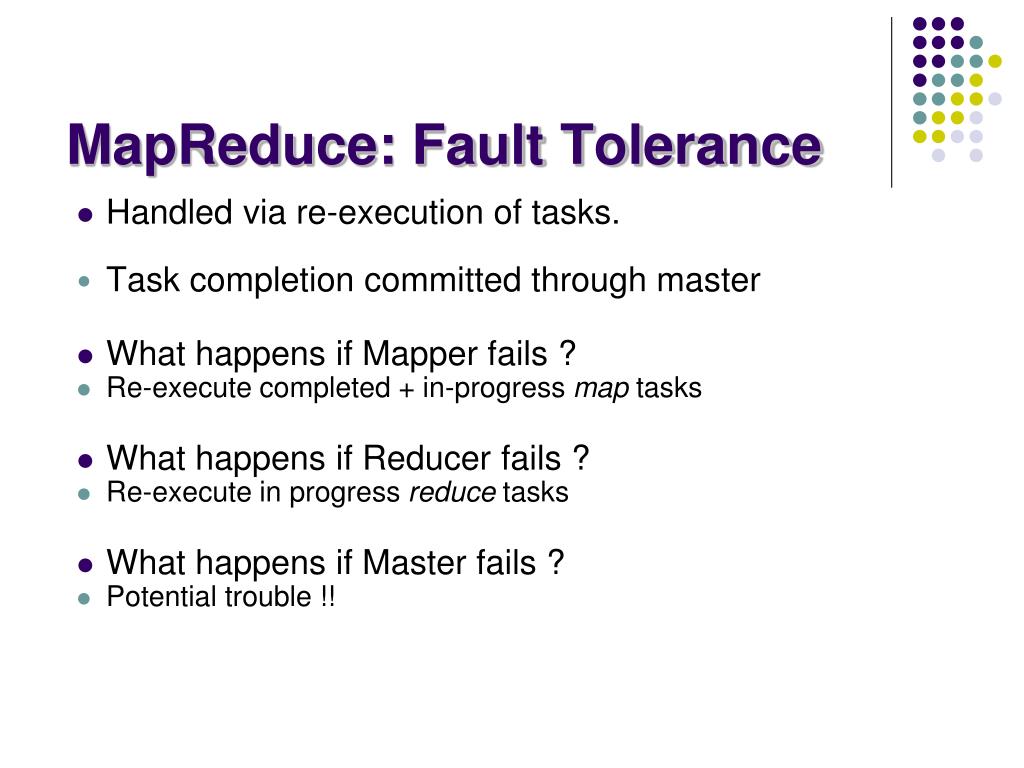

37. MapReduce: Fault Tolerance • Handled via re-execution of tasks. • Task completion committed through master • What happens if Mapper fails ? • Re-execute completed + in-progress map tasks • What happens if Reducer fails ? • Re-execute in progress reduce tasks • What happens if Master fails ? • Potential trouble !!

38. MapReduce: Walk through of One more Application

40. MapReduce : PageRank • PageRank models the behavior of a “random surfer”. • C(t) is the out-degree of t, and (1-d) is a damping factor (random jump) • The “random surfer” keeps clicking on successive links at random not taking content into consideration. • Distributes its pages rank equally among all pages it links to. • The dampening factor takes the surfer “getting bored” and typing arbitrary URL.

41. PageRank : Key Insights • Effects at each iteration is local. i+1th iteration depends only on ith iteration • At iteration i, PageRank for individual nodes can be computed independently

42. PageRank using MapReduce Use Sparse matrix representation (M) Map each row of M to a list of PageRank “credit” to assign to out link neighbours. These prestige scores are reduced to a single PageRank value for a page by aggregating over them.

43. PageRank using MapReduce Map: distribute PageRank “credit” to link targets Reduce: gather up PageRank “credit” from multiple sources to compute new PageRank value Iterate until convergence Source of Image: Lin 2008

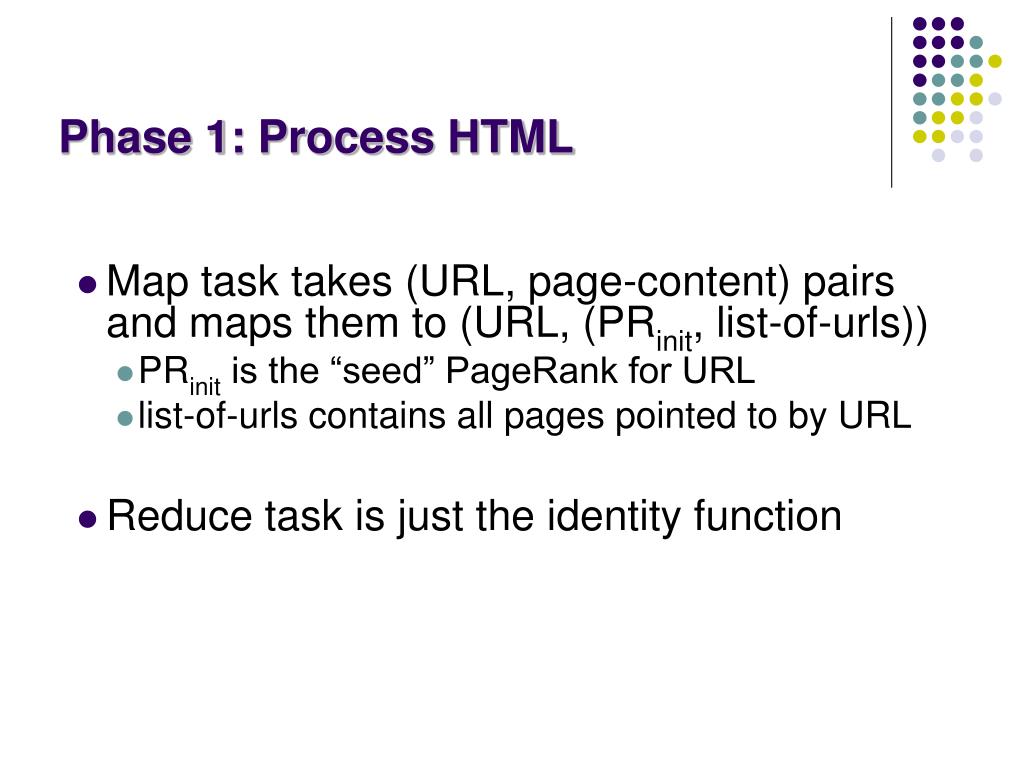

44. Phase 1: Process HTML • Map task takes (URL, page-content) pairs and maps them to (URL, (PRinit, list-of-urls)) • PRinit is the “seed” PageRank for URL • list-of-urls contains all pages pointed to by URL • Reduce task is just the identity function

45. Phase 2: PageRank Distribution • Reduce task gets (URL, url_list) and many (URL, val) values • Sum vals and fix up with d to get new PR • Emit (URL, (new_rank, url_list)) • Check for convergence using non parallel component

46. MapReduce: Some More Apps MapReduce Programs In Google Source Tree Distributed Grep. Count of URL Access Frequency. Clustering (K-means) Graph Algorithms. Indexing Systems

47. MapReduce: Extensions and similar apps PIG (Yahoo) Hadoop (Apache) DryadLinq (Microsoft)

48. Large Scale Systems Architecture using MapReduce

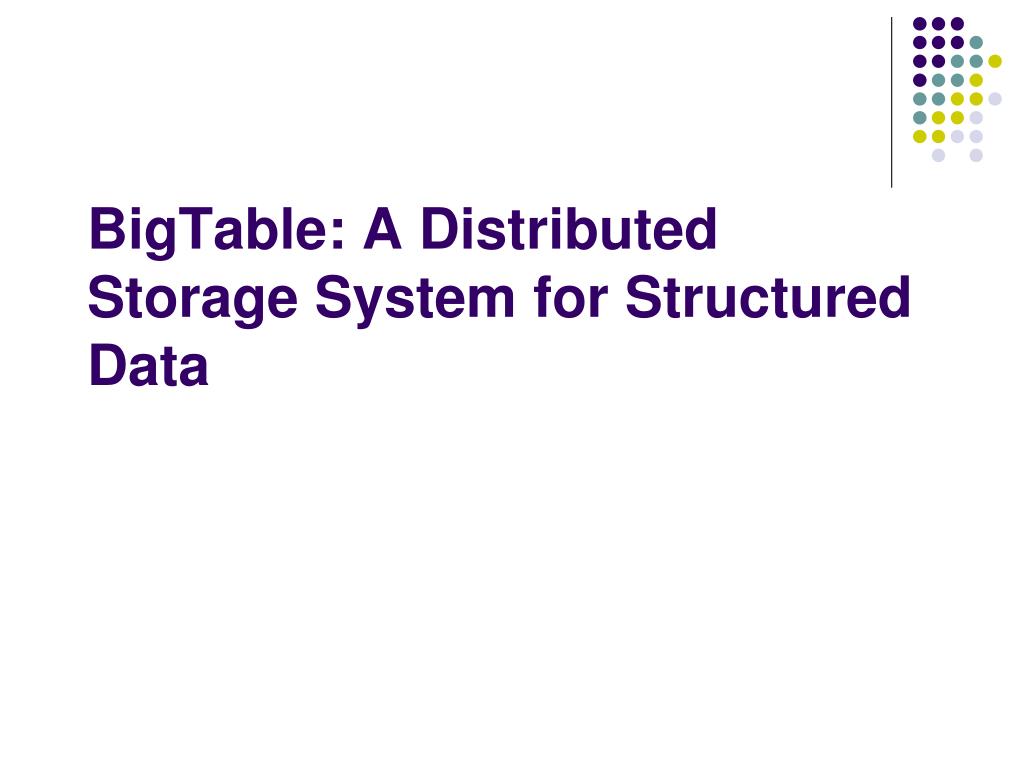

49. BigTable: A Distributed Storage System for Structured Data

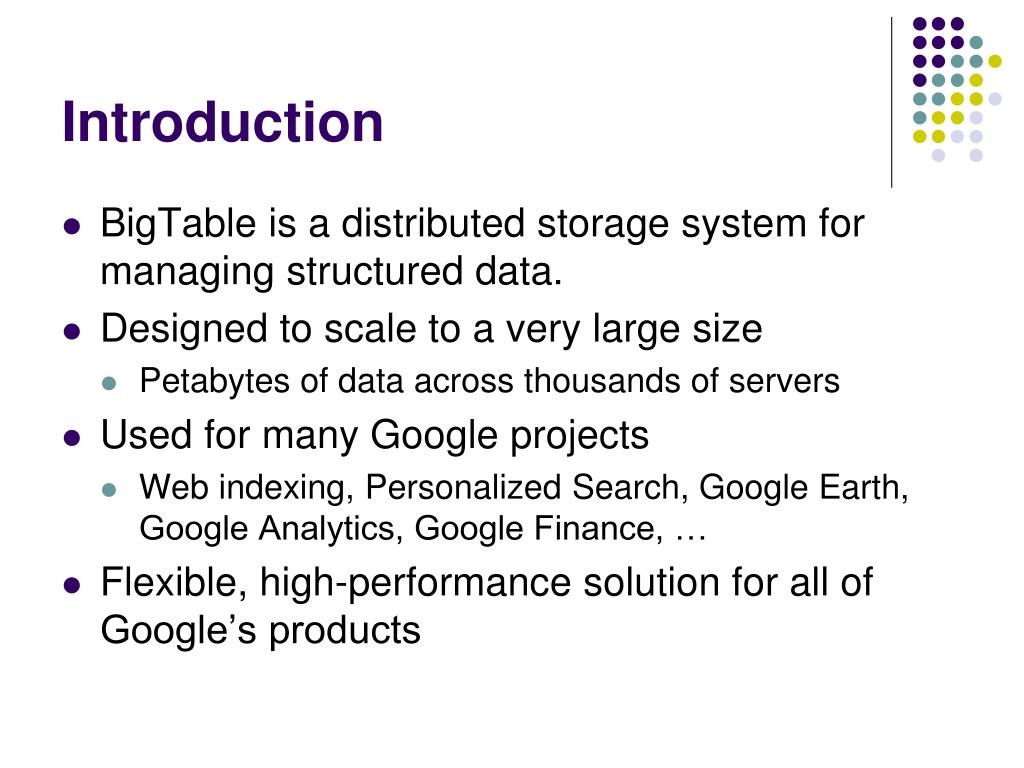

50. Introduction BigTable is a distributed storage system for managing structured data. Designed to scale to a very large size Petabytes of data across thousands of servers Used for many Google projects Web indexing, Personalized Search, Google Earth, Google Analytics, Google Finance, … Flexible, high-performance solution for all of Google’s products
