  1. Macromolecular Visualizationor…Where to go when ChemDraw just isn’t enough Martin Case Chem258 2009

  2. Macromolecular viewing software • Over 150 visualization programs exist http://molvis.sdsc.edu/visres/index.html • 100 of these are free to academic users • Many are supported across all common platforms: • Mac OS X • Windows • Linux/Unix • This introduction to visualization uses PyMol

  3. PyMol • Reads files from in Protein Data Bank format (PDB) • You can convert to PDB from any other file format using a program called Babel • Renders objects as lines, sticks, CPK, ribbons, surface etc • Objects are easily manipulated (spin, translate) with the mouse • Includes a toolkit for local protein building, energy minimization etc.

  4. PyMol screenshots

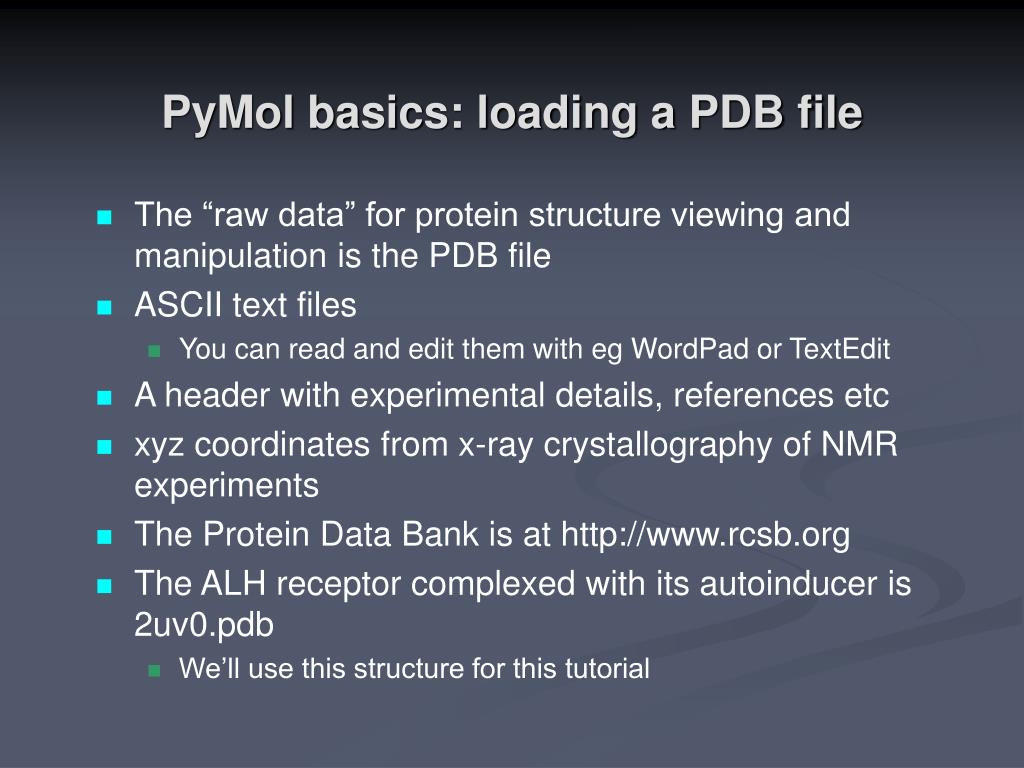

  5. PyMol basics: loading a PDB file • The “raw data” for protein structure viewing and manipulation is the PDB file • ASCII text files • You can read and edit them with eg WordPad or TextEdit • A header with experimental details, references etc • xyz coordinates from x-ray crystallography of NMR experiments • The Protein Data Bank is at http://www.rcsb.org • The ALH receptor complexed with its autoinducer is 2uv0.pdb • We’ll use this structure for this tutorial

  6. Download the biological unit • You might need to unzip/unstuff the file • And you might need to change the .pdb1 to .pdb

  7. PDB headers HEADER TRANSCRIPTION 08-MAR-07 XXXX TITLE STRUCTURE OF THE P. AERUGINOSA LASR LIGAND-BINDING DOMAIN TITLE 2 BOUND TO ITS AUTOINDUCER COMPND TRANSCRIPTIONAL ACTIVATOR PROTEIN LASR KEYWDS TRANSCRIPTION, ACYL-HOMOSERINE LACTONE RECEPTOR, QUORUM KEYWDS 2 SENSING, TRANSCRIPTION REGULATION, ALPHA-BETA-ALPHA KEYWDS 3 SANDWICH, TRANSCRIPTIONAL REGULATOR, ACTIVATOR, DNA-BINDING EXPDTA X-RAY DIFFRACTION AUTHOR M.J.BOTTOMLEY, E.MURAGLIA, R.BAZZO, A.CARFI JRNL AUTH M.J.BOTTOMLEY, E.MURAGLIA, R.BAZZO, A.CARFI JRNL TITL MOLECULAR INSIGHTS INTO QUORUM SENSING IN THE JRNL TITL 2 HUMAN PATHOGEN PSEUDOMONAS AERUGINOSA FROM THE JRNL TITL 3 STRUCTURE OF THE VIRULENCE REGULATOR LASR BOUND TO JRNL TITL 4 ITS AUTOINDUCER. JRNL REF J.BIOL.CHEM. V. 282 13592 2007 JRNL REFN ASTM JBCHA3 US ISSN 0021-9258 JRNL PMID 17363368 JRNL DOI 10.1074/JBC.M700556200 SEQRES 1 E 175 GLY ALA MSE ALA LEU VAL ASP GLY PHE LEU GLU LEU GLU SEQRES 2 E 175 ARG SER SER GLY LYS LEU GLU TRP SER ALA ILE LEU GLN SEQRES 3 E 175 LYS MSE ALA SER ASP LEU GLY PHE SER LYS ILE LEU PHE SEQRES 4 E 175 GLY LEU LEU PRO LYS ASP SER GLN ASP TYR GLU ASN ALA SEQRES 5 E 175 PHE ILE VAL GLY ASN TYR PRO ALA ALA TRP ARG GLU HIS

  8. PDB coordinates (protein) ATOM 1 N GLY E 6 29.335 -0.940 63.260 1.00 17.84 N ATOM 2 CA GLY E 6 29.407 0.297 62.504 1.00 17.95 C ATOM 3 C GLY E 6 28.906 1.490 63.294 1.00 17.84 C ATOM 4 O GLY E 6 27.701 1.663 63.477 1.00 18.09 O ATOM 5 N PHE E 7 29.835 2.315 63.764 1.00 17.68 N ATOM 6 CA PHE E 7 30.323 3.445 62.983 1.00 17.46 C ATOM 7 C PHE E 7 29.628 3.519 61.627 1.00 17.40 C ATOM 8 O PHE E 7 28.718 4.324 61.428 1.00 17.42 O ATOM 9 CB PHE E 7 31.838 3.350 62.792 1.00 17.57 C ATOM 10 CG PHE E 7 32.478 4.642 62.369 1.00 17.61 C ATOM 11 CD1 PHE E 7 33.386 4.670 61.324 1.00 17.36 C ATOM 12 CD2 PHE E 7 32.170 5.827 63.015 1.00 17.59 C ATOM 13 CE1 PHE E 7 33.976 5.857 60.932 1.00 17.50 C ATOM 14 CE2 PHE E 7 32.757 7.017 62.627 1.00 17.62 C ATOM 15 CZ PHE E 7 33.661 7.032 61.584 1.00 17.40 C ATOM 16 N LEU E 8 30.039 2.631 60.727 1.00 17.17 N ATOM 17 CA LEU E 8 29.697 2.728 59.315 1.00 17.22 C ATOM 18 C LEU E 8 28.192 2.768 59.079 1.00 17.06 C ATOM 19 O LEU E 8 27.722 3.478 58.191 1.00 17.28 O ATOM 20 CB LEU E 8 30.322 1.572 58.532 1.00 17.34 C ATOM 21 CG LEU E 8 30.213 0.185 59.167 1.00 17.70 C ATOM 22 CD1 LEU E 8 29.138 -0.640 58.477 1.00 17.98 C ATOM 23 CD2 LEU E 8 31.553 -0.533 59.126 1.00 17.59 C

  9. PDB coordinates (non-protein) HETATM 2627 C21 OHN E1169 28.316 19.063 77.652 1.00 7.59 C HETATM 2628 C20 OHN E1169 27.312 19.933 76.888 1.00 6.96 C HETATM 2629 C19 OHN E1169 26.399 19.052 76.036 1.00 6.87 C HETATM 2630 C18 OHN E1169 25.305 19.850 75.325 1.00 7.62 C HETATM 2631 C17 OHN E1169 24.113 20.065 76.244 1.00 6.73 C HETATM 2632 C16 OHN E1169 23.381 18.755 76.511 1.00 6.04 C HETATM 2633 C15 OHN E1169 22.384 18.934 77.643 1.00 4.71 C HETATM 2634 C14 OHN E1169 21.910 17.570 78.135 1.00 2.14 C HETATM 2635 C13 OHN E1169 23.043 16.837 78.847 1.00 2.00 C HETATM 2636 C11 OHN E1169 22.528 15.724 79.762 1.00 2.00 C HETATM 2637 O12 OHN E1169 21.330 15.448 79.830 1.00 2.00 O HETATM 2638 C10 OHN E1169 23.563 14.956 80.595 1.00 2.00 C HETATM 2639 C8 OHN E1169 22.908 13.701 81.181 1.00 2.00 C HETATM 2640 O9 OHN E1169 22.782 12.678 80.517 1.00 2.00 O HETATM 2641 N7 OHN E1169 22.500 13.817 82.437 1.00 2.00 N HETATM 2642 C1 OHN E1169 21.856 12.720 83.157 1.00 2.00 C HETATM 2643 C5 OHN E1169 22.417 12.612 84.569 1.00 2.00 C HETATM 2644 C4 OHN E1169 21.209 12.035 85.304 1.00 2.00 C HETATM 2645 C2 OHN E1169 20.403 13.049 83.438 1.00 2.00 C HETATM 2646 O6 OHN E1169 19.679 13.688 82.679 1.00 2.00 O HETATM 2647 OAP OHN E1169 20.010 12.548 84.638 1.00 2.00 O

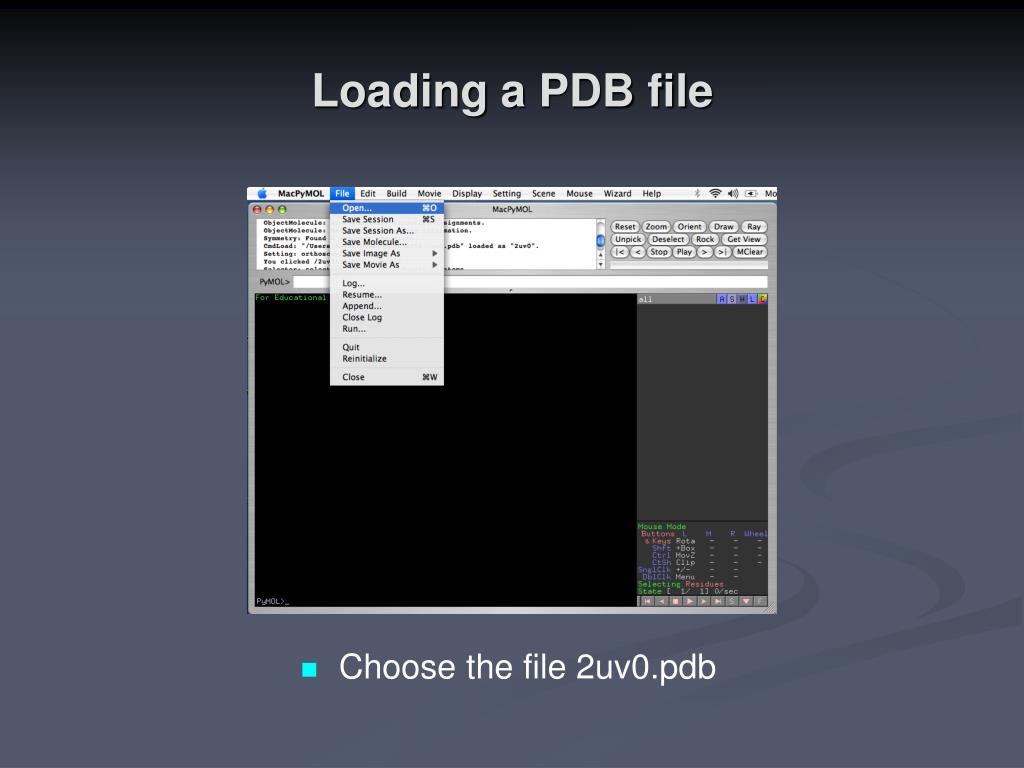

  10. Loading a PDB file • Choose the file 2uv0.pdb

  11. It should look something like this… • Water molecules are shown as red crosses • C green, N blue, O red, S yellow • Default rendering is “line” • Notice there are 2 molecules in the asymmetric unit • Not identical: pseudo C2

  12. Impressive, but not very helpful • We’d like to know some simple things, eg • How many polypeptide chains per protein? • Where is the autoinducer? • What contacts does the protein make with the autoinducer?

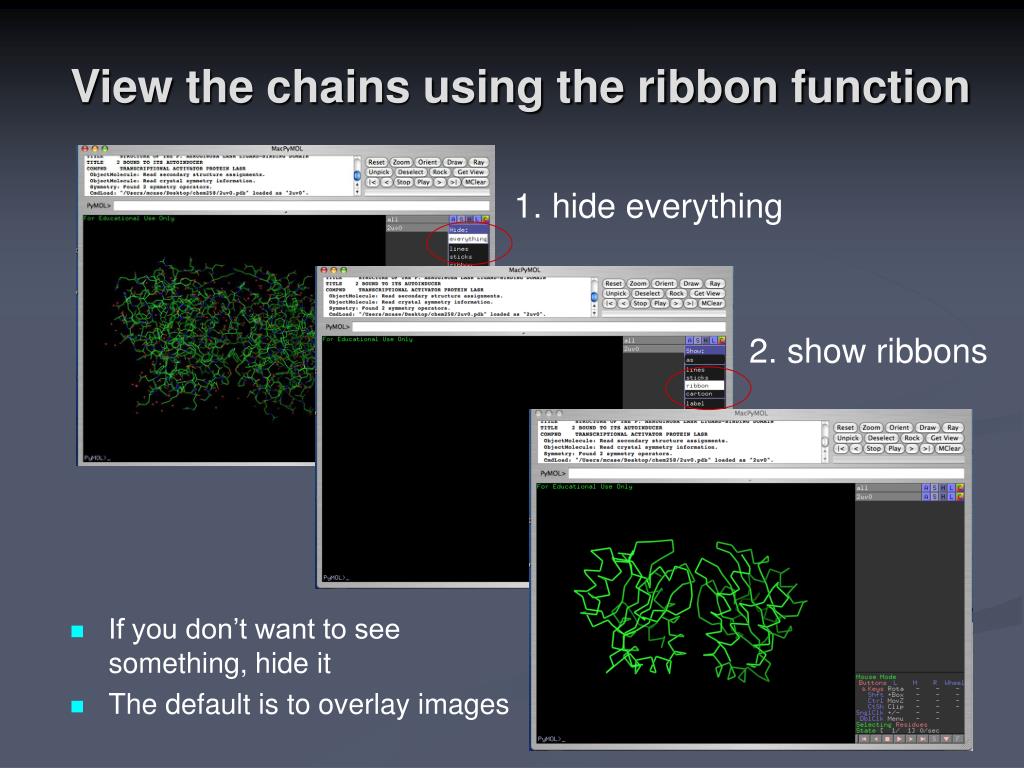

  13. View the chains using the ribbon function 1. hide everything 2. show ribbons • If you don’t want to see something, hide it • The default is to overlay images

  14. Removing one copy of the protein • Define chain G as a selection • Type at the prompt (bottom left) • PyMOL> select junk, chain G • PyMOL> remove junk • PyMOL> delete junk • Recenter:

  15. Showing the autoinducer as sticks

  16. Turn on the helices and sheets • Hide ribbon • Show cartoon • Play with the colors • Run the ray-tracer (Ray)
