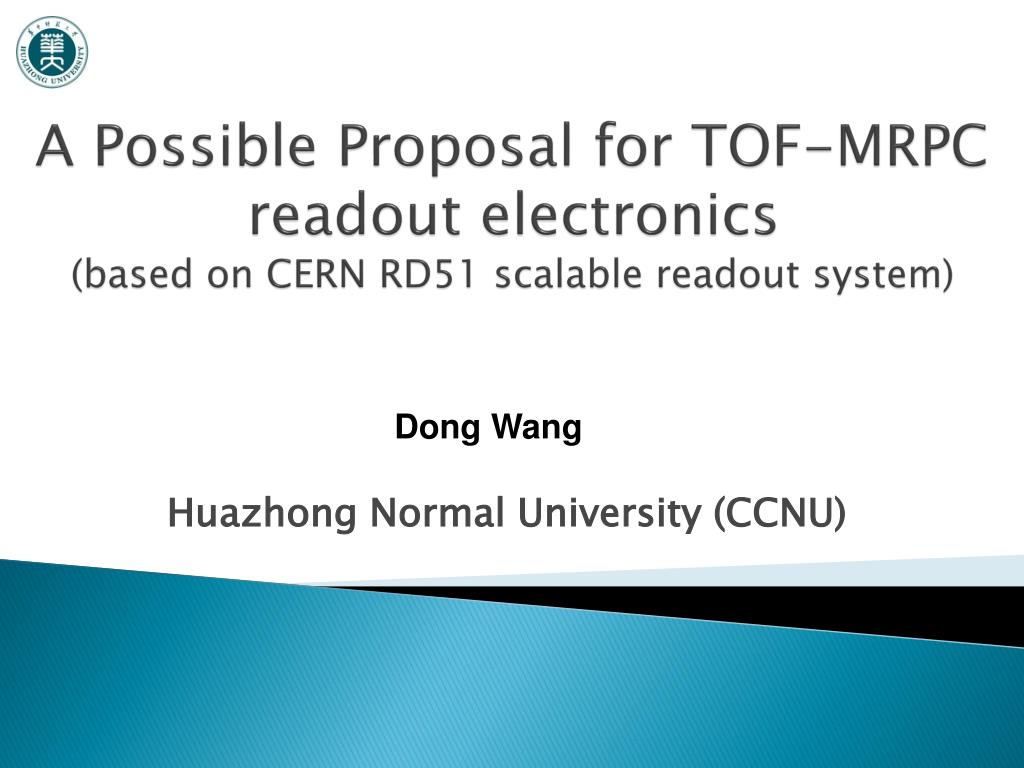

  1. A Possible Proposal for TOF-MRPC readout electronics (based on CERN RD51 scalable readout system) Dong Wang Huazhong Normal University (CCNU)

  2. Outline • Introduction to the Scalable Readout System • MRPC Readout Specification • Application of the SRS to CMB-MRPC • Summary

  3. ---Introduction to the Scalable Readout System Scalable Readout System from: https://espace.cern.ch/rd51-wg5/default.aspx

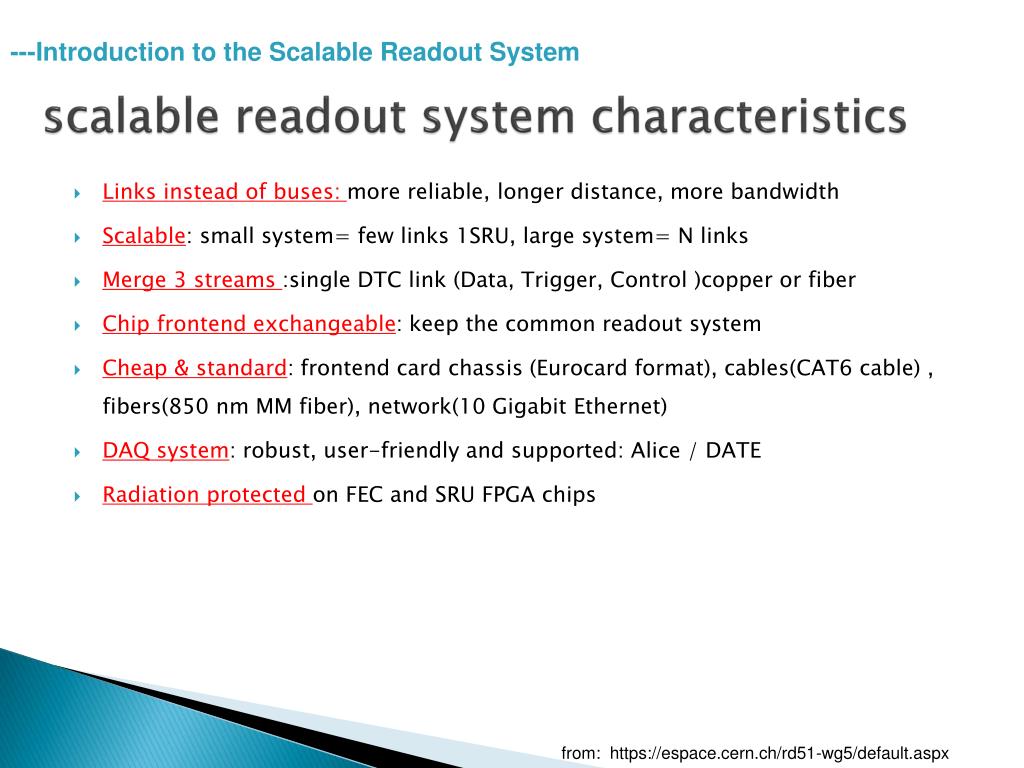

  4. ---Introduction to the Scalable Readout System scalable readout system characteristics • Links instead of buses: more reliable, longer distance, more bandwidth • Scalable: small system= few links 1SRU, large system= N links • Merge 3 streams :single DTC link (Data, Trigger, Control )copper or fiber • Chip frontend exchangeable: keep the common readout system • Cheap & standard: frontend card chassis (Eurocard format), cables(CAT6 cable) , fibers(850 nm MM fiber), network(10 Gigabit Ethernet) • DAQ system: robust, user-friendly and supported: Alice / DATE • Radiation protected on FEC and SRU FPGA chips from: https://espace.cern.ch/rd51-wg5/default.aspx

  5. ---Introduction to the Scalable Readout System from: https://espace.cern.ch/rd51-wg5/default.aspx

  6. ---MRPC Readout Specification The CBM-TOF wall Design requirements • Overall time resolution σT = 80 ps. • Occupancy < 5 % for Au-Au central collisions at E=25 GeV/A. • Space resolution ≤ 5 mm x 5 mm. • Efficiency > 95 %. • Pile-up < 5%. • Rate capability > 20 kHz/cm2. • Multi-hit capability (low cross-talk). • Compact and low consuming electronics (~65.000 electronic channels). The TOF wall of the CBM experiment at FAIR 15-03-2007 D. Gonzalez-Diaz (GSI-Darmstadt)

  7. ---MRPC Readout Specification Fast read out Data rate • One SRU can handle 2304 channels 1 SRU = 36 FEE = 36*8 TDC = 36 * 8*8 channel = 2304 channel • ~65000 CBM/TOF channels = ~30 SRU needed • One SRU-DROC link can support 6Gb/s data rate maximum • One FEC-SRU link can support 200Mb/s data rate via cat6 connection

  8. Architecture of the readout Chain from: https://espace.cern.ch/rd51-wg5/default.aspx

  9. ---Application of the SRS to CMB-MRPC SRU architecture TTC fiber (LHC) Power +3.3V, +4.2V, -12V JTAG FLASH Molex 87831-1420 TTCrx XCF32P-VOG48 DCS mezzanine MIC29301 MIC29301 Clock outputs +2.5V +3.3V RJ45 70 pin connector 70 pin connectors Con13 CON14 LT1175 RJ45 TPS74401 Ethernet-DCS DCS ethernet cable - 5V +1V AD7417 54 LVTTL bus signals ( 32 data 16 addr. 3 cntr. 1 Rst ) 8 TTC signals (4 Broadcast, 2 strobes, 2x clock ) 5 other (2 x ADC, 1 ext. Inp, 2 RxTx ) LDO area 67 I/O signals Gigabit Ethernet T+V monitoring PHYSICAL VIRTEX5 LXT NIM input 2x RJ45M 88E 1111 1000 BASE- T ( 1 GB copper) 35 I/O signals 4 I/O signals 2 Rocket I/O Optical SFP 10 GBASE-S (10 GB* optical) LVDS coax 4x bidir 4 x SN65LVDS100 25 MHz 125 MHz ICS844021 I-01 clock s 4 diff LVDS ( 8 I/O) 40 MHz 128 x differential LVDS (256 I/O) 128 x SN65LVDS100 . . . 32 x RJ45 . . . 32 x Serial quad LVDS links (CAT6) from: https://espace.cern.ch/rd51-wg5/default.aspx

  10. ---Application of the SRS to CMB-MRPC SRU board Prototype • First version of SRU board layout finalized. • First success with porting of DATE software to Gigabit Ethernet . from: https://espace.cern.ch/rd51-wg5/default.aspx

  11. from: https://espace.cern.ch/rd51-wg5/default.aspx

  12. ---Application of the SRS to CMB-MRPC MRPC electronic chain concept from ALICE/TOF

  13. ---Application of the SRS to CMB-MRPC Front-adapter card options A,B-cards C-cards A, B card: ~100x89 mm2 C-card: ~ 128x233 mm2 A cards : custom chip adapter, ADC’s etc B cards: options, Extensions (LEDs, HV bias etc.) C-cards: larger, more complex extensions Note: A,B and C cards can be mixed in single Eurocrate

  14. ---Application of the SRS to CMB-MRPC FEC card • A-card • 4 HPTDC chips FEC card • To be defined: • Connectors on A card to FEA • Power for FEA card • might also use larger C-card The analog electronic Part can be designed based on GSI/CBM group collaborate, ALICE/TOF NINO/HPTDC tecnology, or collaborate with other groups.

  15. Summary • CCNU is RD51 member • Adapter card design and firmware of FEC will be designed by CCNU • FEC card and DATE Readout will supported by RD51 • Connectivity to FEA to be studied • Existing ALICE readout system: DATE being ported to GBE • First version of SRU has finished design at CERN • Upgrade version of SRU is under development at CCNU
