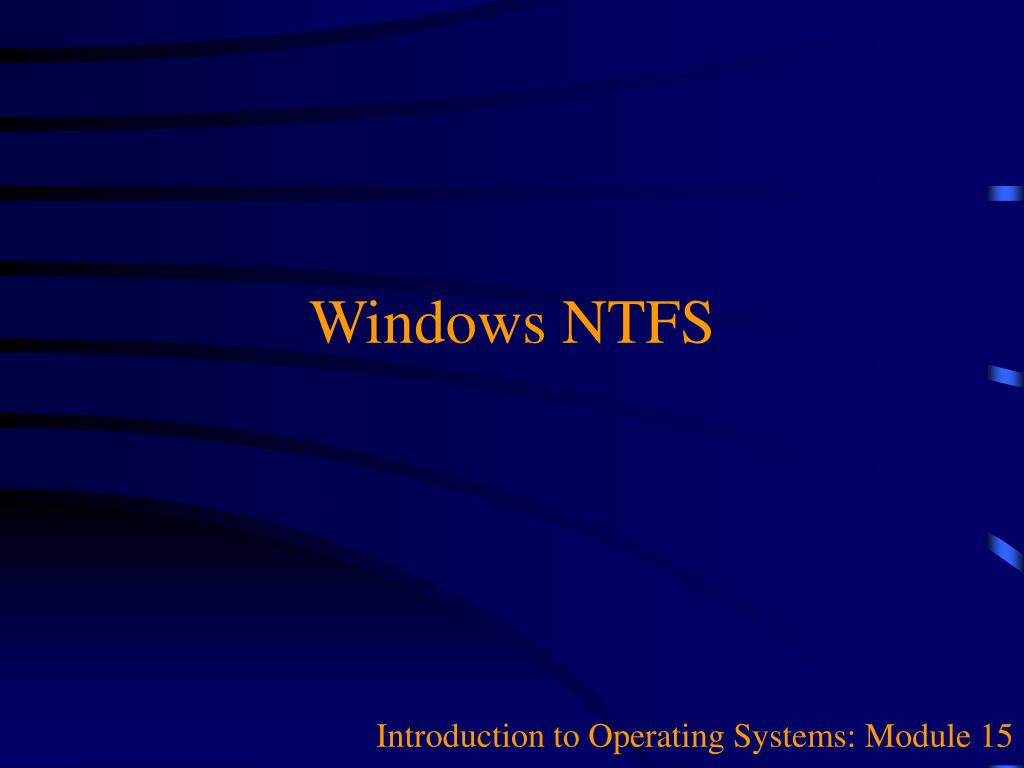

  1. Introduction to Operating Systems: Module 15 Windows NTFS

  2. Introduction • FAT family of file systems • FAT12, FAT16, FAT32 • Insufficient for networked and corporate environment • NTFS goals • Flexible, secure, and highly reliable • NTFS was not entirely new • Based on another file system : HPFS

  3. Architecture and structures • How information is stored in an NTFS partition • Virtually every structure is, itself, a file except the partition boot sector • Metadata files : set of special files where control information about the partition is stored that are created when an NTFS partition is first created • Every file in an NTFS partition is a collection of attributes, including the data that the file contains • View files as being objects with various characteristics; new attribute if needed in the future can be added • All files are stored using a cluster (extent) system

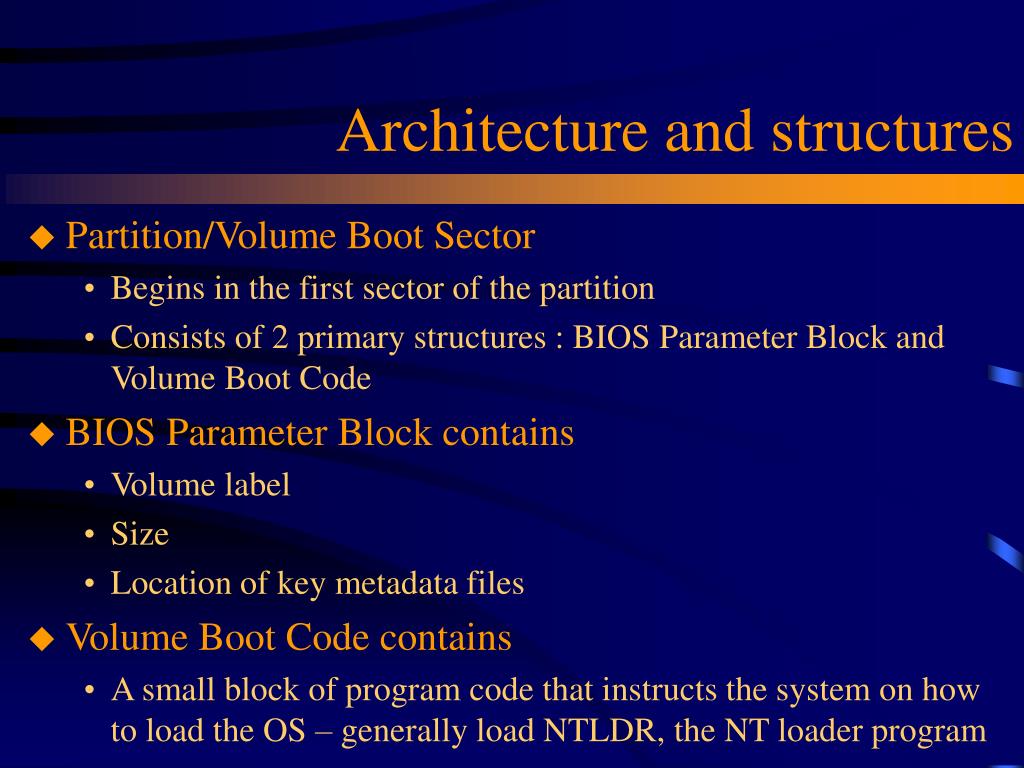

  4. Architecture and structures • Partition/Volume Boot Sector • Begins in the first sector of the partition • Consists of 2 primary structures : BIOS Parameter Block and Volume Boot Code • BIOS Parameter Block contains • Volume label • Size • Location of key metadata files • Volume Boot Code contains • A small block of program code that instructs the system on how to load the OS – generally load NTLDR, the NT loader program

  5. Example hard disk layout

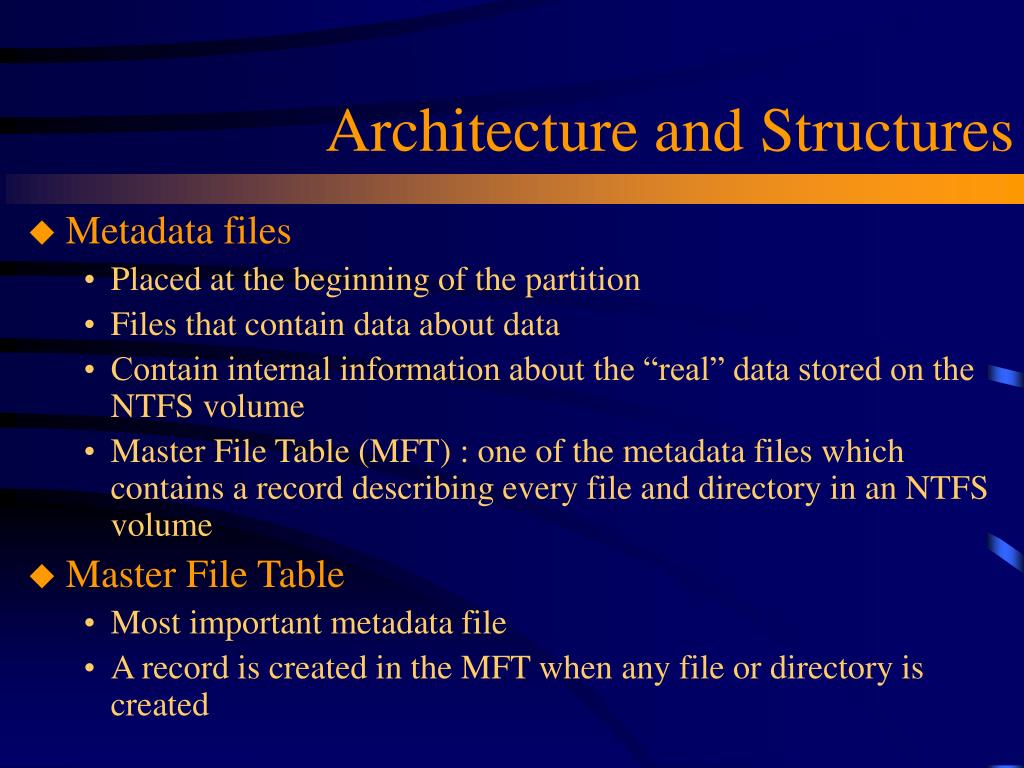

  6. Architecture and Structures • Metadata files • Placed at the beginning of the partition • Files that contain data about data • Contain internal information about the “real” data stored on the NTFS volume • Master File Table (MFT) : one of the metadata files which contains a record describing every file and directory in an NTFS volume • Master File Table • Most important metadata file • A record is created in the MFT when any file or directory is created

  7. Architecture and Structures • File attributes are stored in MFT record as • Resident attributes • Non-resident attributes • Resident attributes • Stored within the MFT record • Non-resident attributes • Stored either in additional MFT records or in extents that lie outside the MFT • When all file attributes stored within MFT record • No additional storage or separate access to disk required

  8. NTFS Files and Data Storage • Some attributes associated with a file • Header • Standard Information (SI) Attribute –time-stamps, read-only, hidden, and other attributes inherited from FAT • File Name (FN) Attribute – name associated with the file • Data Attribute – actual contents of the file • Security Descriptor (SD) Attribute – security information controlling access to the file (beyond the primitive read-only, hidden, etc. attributes from FAT

  9. How data is stored in files • Store entire file in MFT entry if possible • If not fit, data attribute is made non-resident • Entry for data attribute in MFT contain pointers to data runs (extents) • Data runs – blocks of data stored in contiguous section of the volume, outside MFT • No room for list of pointers in the data attribute • List of data attributes pointers is itself made non-resident • No data attribute in the main MFT; a pointer is placed in the main MFT record to a second MFT record • Multiple non-resident MFT records can be created for very large files – more complex

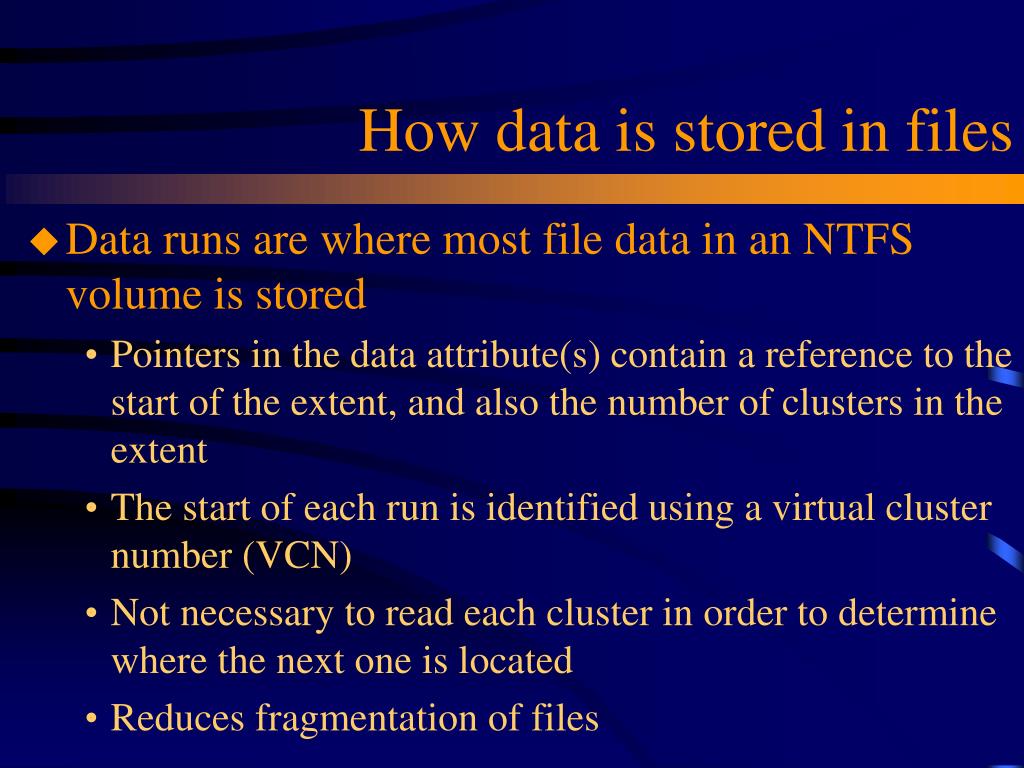

  10. How data is stored in files • Data runs are where most file data in an NTFS volume is stored • Pointers in the data attribute(s) contain a reference to the start of the extent, and also the number of clusters in the extent • The start of each run is identified using a virtual cluster number (VCN) • Not necessary to read each cluster in order to determine where the next one is located • Reduces fragmentation of files

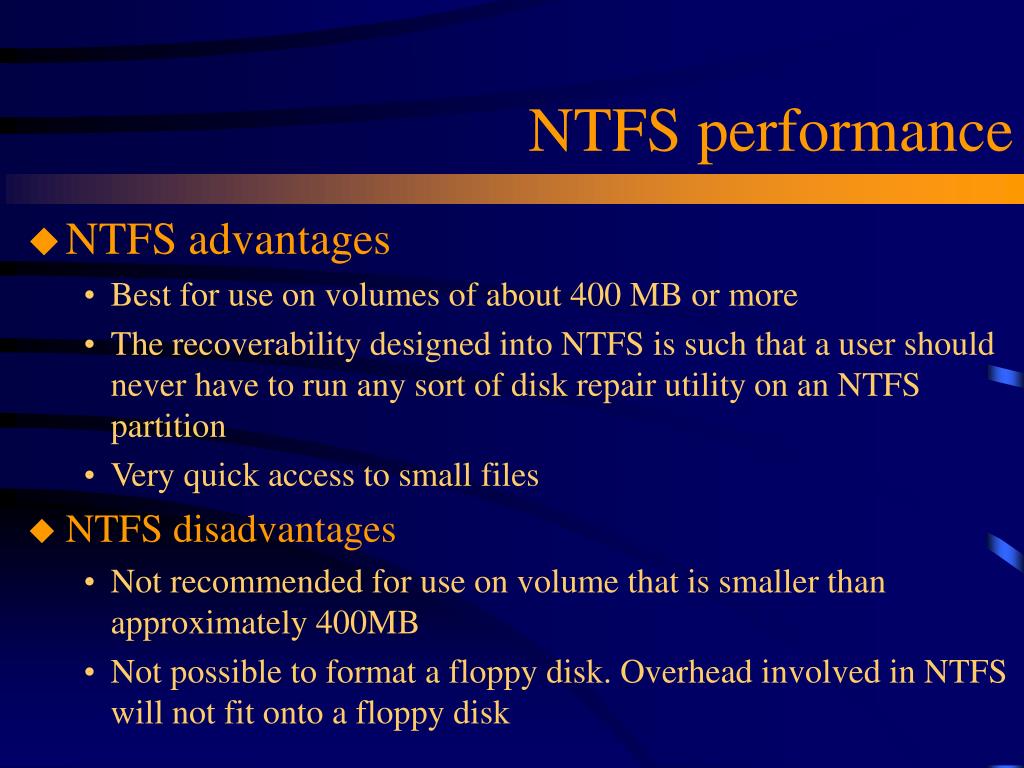

  11. NTFS performance • NTFS advantages • Best for use on volumes of about 400 MB or more • The recoverability designed into NTFS is such that a user should never have to run any sort of disk repair utility on an NTFS partition • Very quick access to small files • NTFS disadvantages • Not recommended for use on volume that is smaller than approximately 400MB • Not possible to format a floppy disk. Overhead involved in NTFS will not fit onto a floppy disk
