Vacuum oven (Pizza) temperature profile Anil U. Mane, Tony Fracaro and Jeffrey W. Elam 9-15-13
Photo and Thermocouple schematic. Pressure gauge N2 flow set to 1 torr LHS TC5TC6 TC7 RHSTC1 TC2 TC3 Loading port TC7 TC8 TC9 To scroll pump (base pressure 30mtorr)

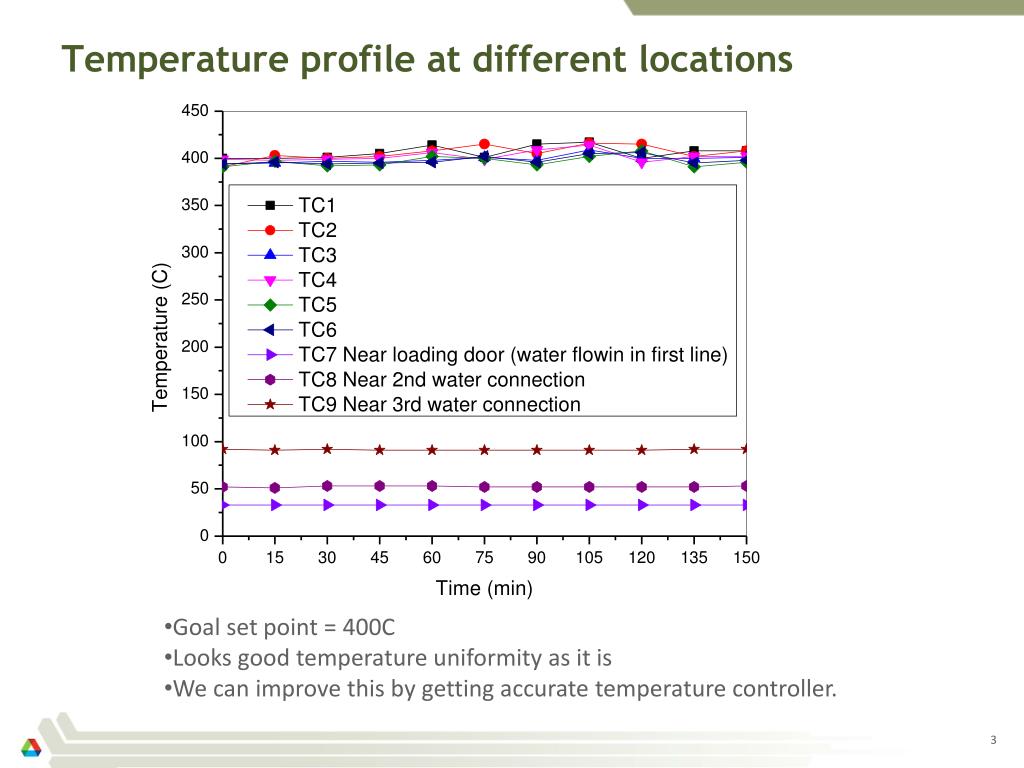

Temperature profile at different locations • Goal set point = 400C • Looks good temperature uniformity as it is • We can improve this by getting accurate temperature controller.
