  1. SIMATIC Software S7-GRAPH V5.2 Enhancement and new Functions

  2. S7-GRAPH V5.2 • The consistency check of STEP 7 may be used for S7-GRAPH blocks now:After you have modified the program, it is now possible in the SIMATIC Manager to check the consistancy of S7-GRAPH blocks via the „Check Block Consistancy“ function.Still existing inconsitencies will be controlled and may eliminated via the function „Block (s) compile“. • reduces the engineering for modification of blocks and interfaces • this allows you to gain control over effects at other blocks that result of interface modifications as well as modifications in the symbol table and to quickly eliminate errors • Consistency check

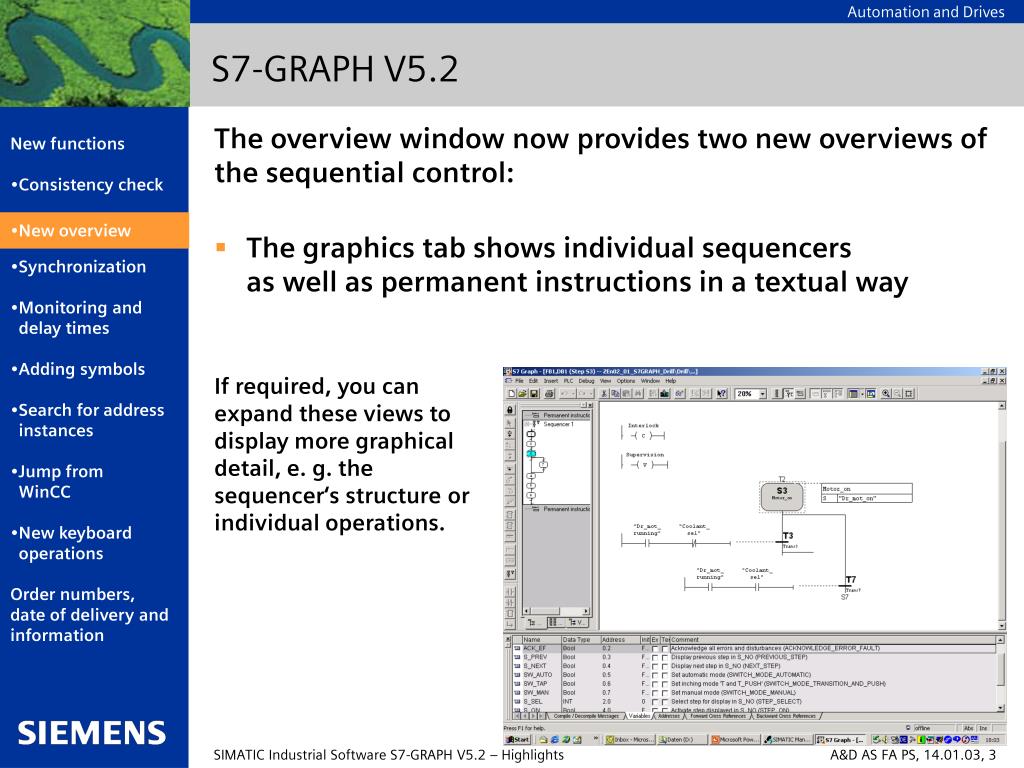

  3. S7-GRAPH V5.2 • The overview window now provides two new overviews of the sequential control: • The graphics tab shows individual sequencers as well as permanent instructions in a textual way • If required, you canexpand these views todisplay more graphicaldetail, e. g. thesequencer‘s structure orindividual operations. • New overview

  4. S7-GRAPH V5.2 • The sequencer tab shows all sequencers well arranged side by side. • New overview • This presentation is especially useful for the status display.

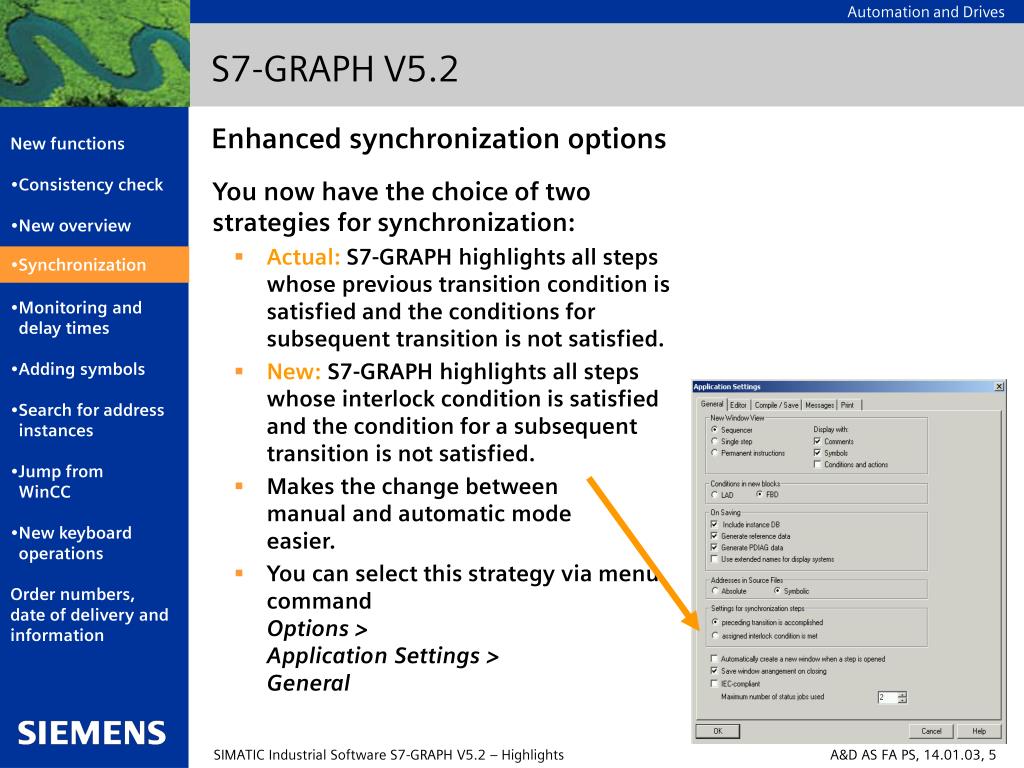

  5. S7-GRAPH V5.2 Enhanced synchronization options • You now have the choice of two strategies for synchronization: • Actual: S7-GRAPH highlights all steps whose previous transition condition is satisfied and the conditions for subsequent transition is not satisfied. • New: S7-GRAPH highlights all steps whose interlock condition is satisfied and the condition for a subsequent transition is not satisfied. • Makes the change between manual and automatic mode easier. • You can select this strategy via menucommandOptions > Application Settings > General • Synchronization

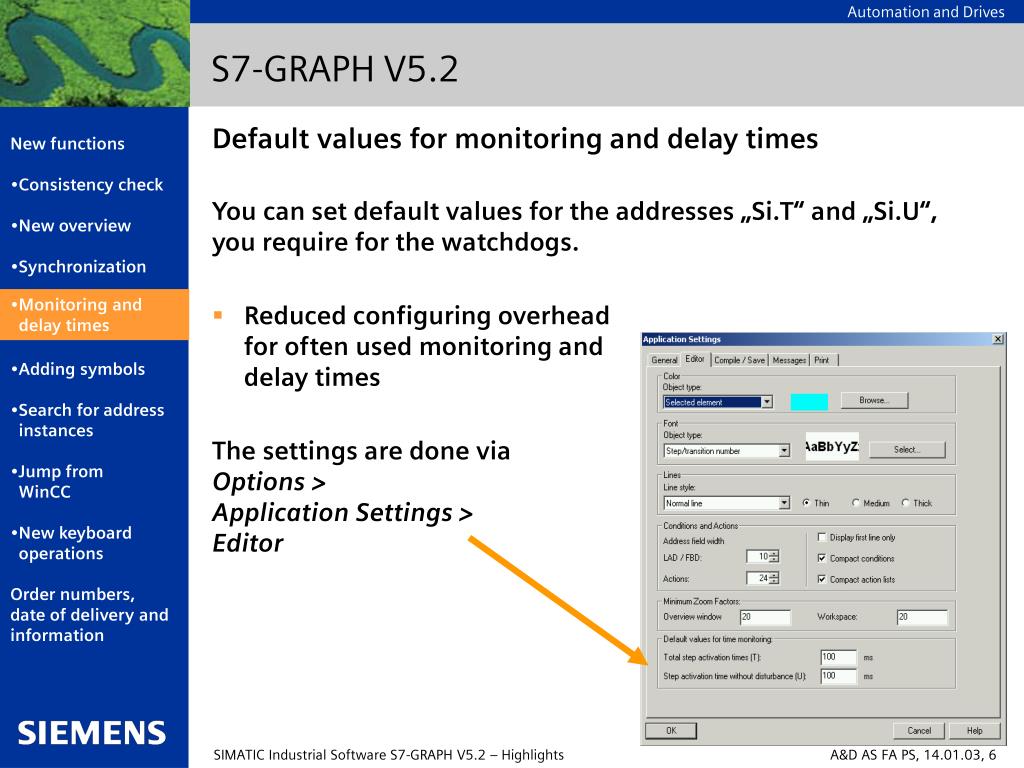

  6. S7-GRAPH V5.2 • Default values for monitoring and delay times • You can set default values for the addresses „Si.T“ and „Si.U“, you require for the watchdogs. • Reduced configuring overhead for often used monitoring and delay times • The settings are done viaOptions > Application Settings > Editor • Monitoring and delay times

  7. S7-GRAPH V5.2 • Enhanced functions for adding symbols • Depending on the position of the mouse cursor, you can now open a context-sensitive menu command for assigning symbols to several adresses. • Menu command: Edit Symbols • Adding symbols

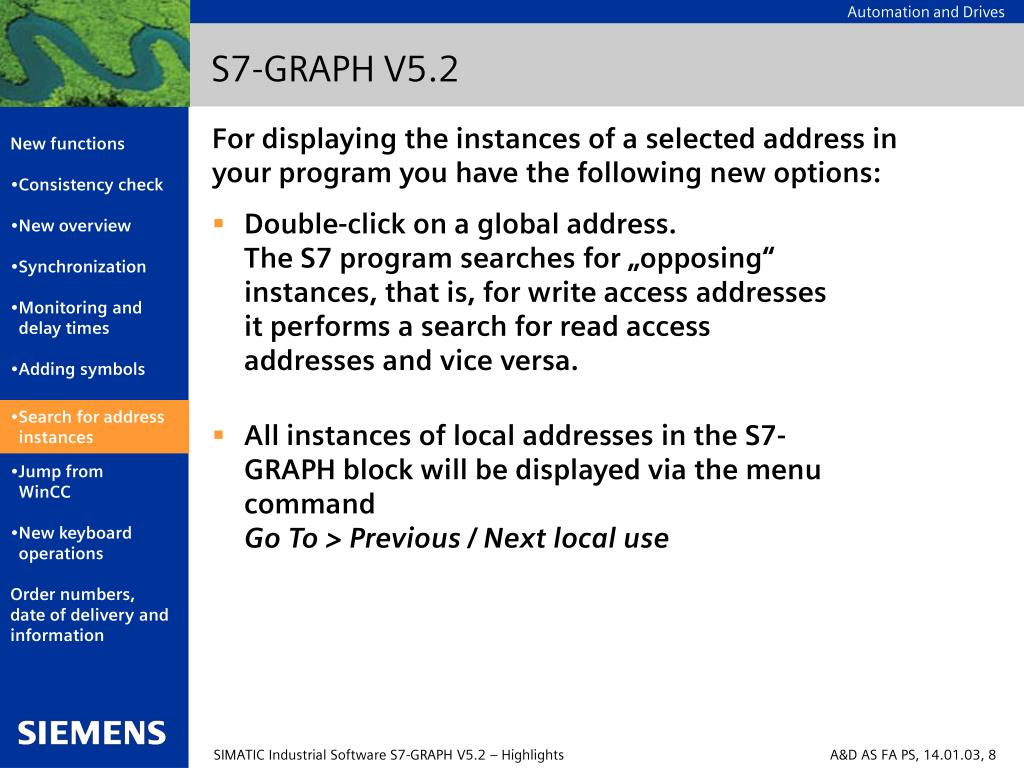

  8. S7-GRAPH V5.2 • For displaying the instances of a selected address in your program you have the following new options: • Double-click on a global address.The S7 program searches for „opposing“ instances, that is, for write access addresses it performs a search for read access addresses and vice versa. • All instances of local addresses in the S7-GRAPH block will be displayed via the menu commandGo To > Previous / Next local use • Search for address instances

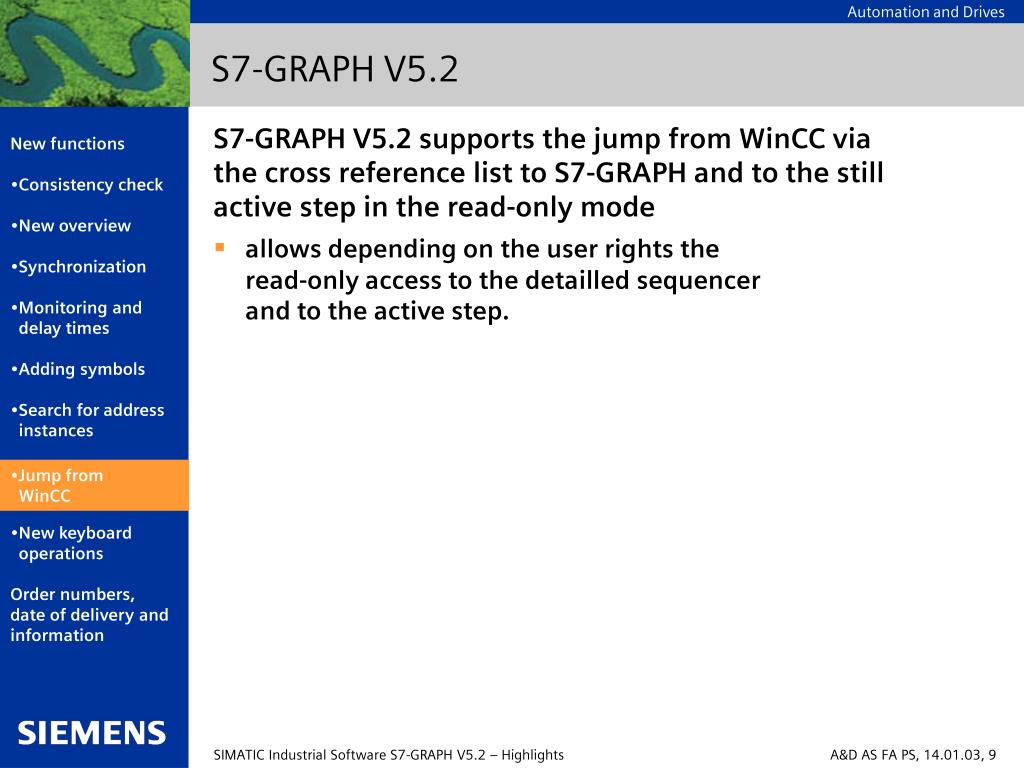

  9. S7-GRAPH V5.2 • S7-GRAPH V5.2 supports the jump from WinCC via the cross reference list to S7-GRAPH and to the still active step in the read-only mode • allows depending on the user rights the read-only access to the detailled sequencer and to the active step. • Jump from WinCC

  10. S7-GRAPH V5.2 • New keyboard operations for navigationin the sequencer: Function Keys To the start of the sequencer POS 1 To the end of the sequencer END To the start of the jump SHIFT+POS 1 To the end of the jump SHIFT+END • New keyboard operations

  11. S7-GRAPH V5.2 • Order numbers: • 6ES7 811-0CC05-0YX0 Single License • 6ES7 811-0CC05-0YX4 Upgrade to V5.2 • 6ES7 811-0CA01-0YX2 Software Update Service • Date of delivery: • End of 12/2002 • as a separate product and • as a component of STEP 7 Professional Edition 12/2002 • Additional information to: • IEC 61131-3, • PLCopen and • S7-GRAPH Base Level certification • You will find in the Internet: http://www.plcopen.org/ Order numbers,date of delivery and information
