  1. Adept Update www.adept.com Cell: 339-221-2483 reedwwr@msn.com Bill Reed

  2. Today’s Agenda • Introductions • Adept Technology Today • - Company Profile • - 2005 Business Update • - Markets we serve • New Product Introduction • Viper - Six Axis Articulated Robots Python - Quick-ship Linear Modules Cobra 600 - World’s Fastest SCARAs Cobra 350 - small SCARA Controls - Choices in software platforms AnyFeeder - Flexible feeder Vision - Guidance / Inspection • Questions / Customer Feedback • Adjourn

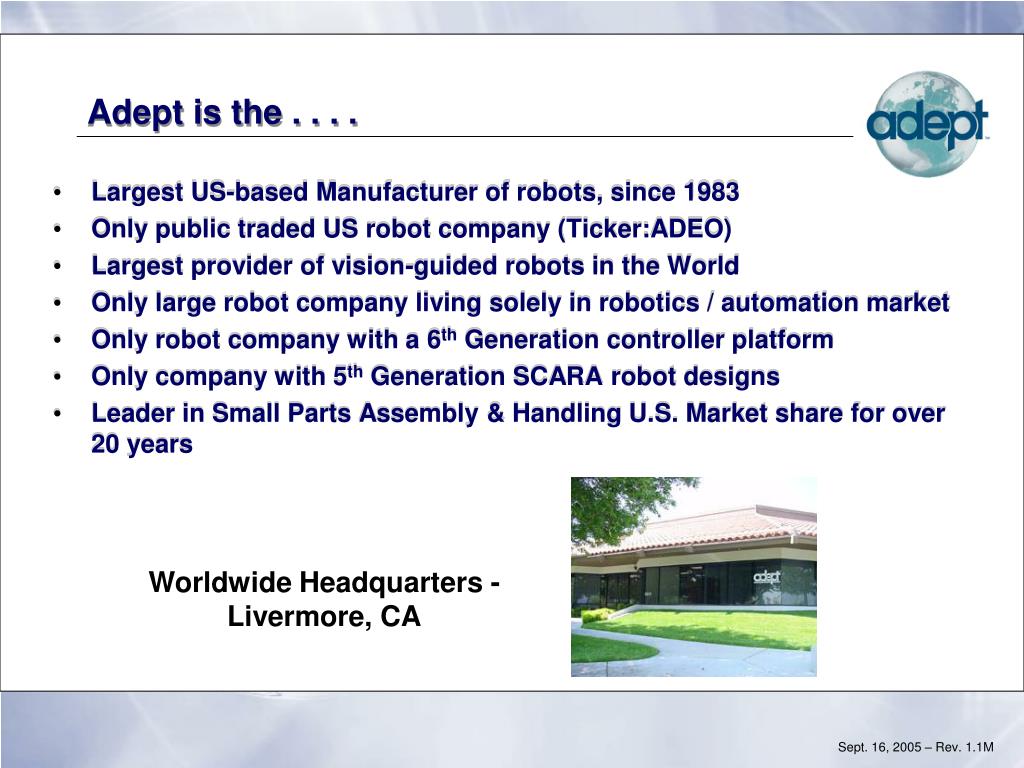

  3. Adept is the . . . . • Largest US-based Manufacturer of robots, since 1983 • Only public traded US robot company (Ticker:ADEO) • Largest provider of vision-guided robots in the World • Only large robot company living solely in robotics / automation market • Only robot company with a 6th Generation controller platform • Only company with 5th Generation SCARA robot designs • Leader in Small Parts Assembly & Handling U.S. Market share for over 20 years Worldwide Headquarters - Livermore, CA

  4. Adept’s Current Business Business Composition - $50M Strengths • Fortune 500 Customers • 22,000+ unit installed base • Smart Servo, Motion and Vision Automation knowledge • Precision Robotic platforms • Adept V+ & Micro V+ brand • Direct sales & service 2005 Highlights Application Revenue FY2005 • Profitable - 6 consecutive quarters • Launched new Six Axis robot family • Record 1000+ robot unit deliveries • 50% US SCARA AMH market share (25% EU)

  5. Food & Consumer Products Medical & Life Sciences Automotive & Industrial Electronics & Telecommunications Semiconductor Adept’s Markets and Customers

  6. Adept Global Installations Over 22,000 Robots & 30,000 Controllers Installed Worldwide! 7900 10650 3450 World Headquarters Development Lab Automotive PAK/ MED / Industrial Worldwide Europe Headquarters Service Depot Electronics OEM

  7. Robot prices continue to fall iCobra 600 w/iSight Vision $25,830 list iCobra 600 $19,980 list Robots & vision are affordable!

  8. Adept Viper s650 / s850 • Six axis articulated robots • Upside-down mountable • Environmental – IP54, IP65 optional • Viper s650 • Reach - 653 mm • Payload • 2.5 Kg rated, 5 Kg maximum • Fast – 8,200 mm/sec max composite speed • Accurate - +/- .020 mm • Viper s850 • Reach - 854 mm • Payload • 2.5 Kg rated, 5 Kg maximum • Fast – 7,600 mm/sec max composite speed • Accurate - +/- .030 mm • Smartcontroller / MB40 control platform World’s Fastest Six Axis Robot! New! List Price: $30,928 (s650)

  9. Adept Python Linear Modules • 3 Modules Sizes • L08 - 85 mm wide, 20 Kg • L12 - 125 mm wide, 40 Kg • L18 - 185 mm wide, 80 Kg • Dual rail, four bearing design • 1463 mm / sec • High-res. absolute encoders • 65,000 counts/rev. • Lifetime Lubrication • Improved Extrusions • 10% to 100% stiffer L08 L12 New! • More Lengths • L08 – 100 mm to 800 mm • L12 – 200 mm to 1500 mm • L18 – 300 mm to 1600 mm L18 List Price: $6,000 to 8,000 / Axis (average)

  10. More Configurations • Pre-assembled at our factory • Fully tested as a system • Reduces your set-up time • New MB-10 onboard amp • With built-in diagnostic display • Same footprint as SmartModules . . . Up to 20% lower cost on larger systems!

  11. L12 w/ brake Adept Python Linear Modules • Many options - “Have it your way” • Brakes • Side-mount motors • Various ballscrew pitches • Mounting pads or toe clamps • Any option available for any module • With 4 to 6 week leadtime L18 left side mount Various ballscrews Toe Clamp

  12. Adept Python Linear Modules • Accessible from www.adept.com • On-screen 3D solid model • Zoom & rotate feature • CAD models (2D & 3D) • Download In every imaginable format • “Request Quote” button • Online Configuration Tool for Customers

  13. Cobra i600, i800 • Integrated Controls – no external box • World’s only robot with built-in controls • Reduces implementation costs • No need for control panels or wireways • Easy to use • All new AdeptDesktop • PC-based user environment • Simple microV+ programming language • Multi-tasking for error recovery, I/O control World’s only robot with built-in controller! List Price: $19,990 (i600)

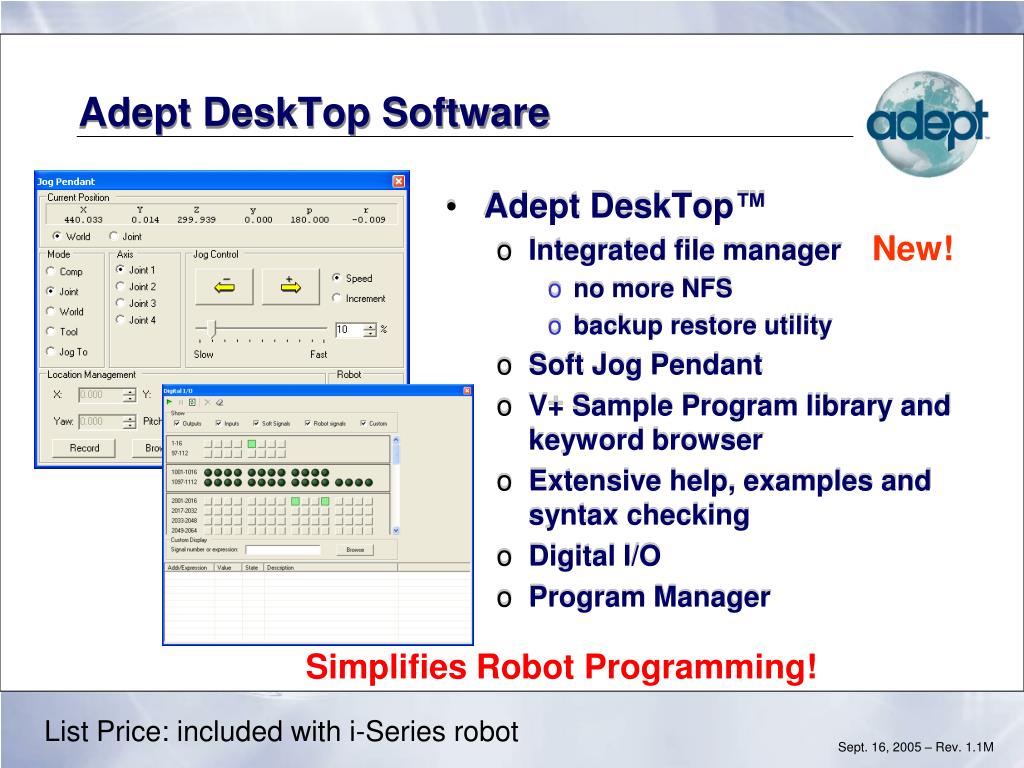

  14. Adept DeskTop Software • Adept DeskTop™ • Integrated file manager • no more NFS • backup restore utility • Soft Jog Pendant • V+ Sample Program library and keyword browser • Extensive help, examples and syntax checking • Digital I/O • Program Manager New! Simplifies Robot Programming! List Price: included with i-Series robot

  15. Cobra s600, s800 • Next Generation Table-top Robots • Includes Smart Controller CX • The best integrated vision in the industry • Specifications • 600 mm or 800 mm Reach • Payload 5.5 Kg • IP65 & Class 10 • Fastest SCARA in the World • 0.33 sec Adept Cycle • 8Khz Servo Loop for super-fast settling • Optimized Work Envelope • Excellent Floor Space Utilization • Exceptional Reliability • Design Life 60 Million Cycles Cobra s600 system World’s Fastest SCARA! List Price: $27,750 (s600)

  16. Cobra s350 • Reach – 350 mm • Repeatibility - +/- .015 mm (XY) • Payload – 5 Kg maximum • Small footprint – only 150mm square • Smartcontroller / MB40 control platform • Options – • Cleanroom / ESD New! Cobra s350 system Cobra s350 Cleanroom / ESD List Price: $23,750

  17. Flexible Feeding • Successful Flexible Feeding (FF) requires • tight vision-to-robot integration – Adept sAVI • Integrated feeder / robot software control – AIM FF software • Experience to determine best approach • Two types of Flexible Feeders • Non-circulating impulse feeder • Adept Anyfeed SX • Circulating belt feeder • FlexomationFlexFeeder 250 • Bring us your challenging parts. Adept will . . • Recommend a feeder and robot type • Determine cycle time Adept AnyFeed SX Coming soon!

  18. Controls and Software • Three platforms for Adept Robots • S – Series V+, AIM • Most capable robot control software in the World • Proven reliability • Runs on SmartController • PLC Interface RSLogix Ladder Logic • Ladder logic programming for robots • Very easy to learn and master • Allen-Bradley compatible • ControlLogix, SLC, Flex, micro • Runs on PLC Server • i – Series MicroV+ • Uses Adept Desktop point-and-click GUI • Simplified command set • Embedded into mechanism – eliminates external controller SmartController CX PLC Server I-Series List Price: included with robot

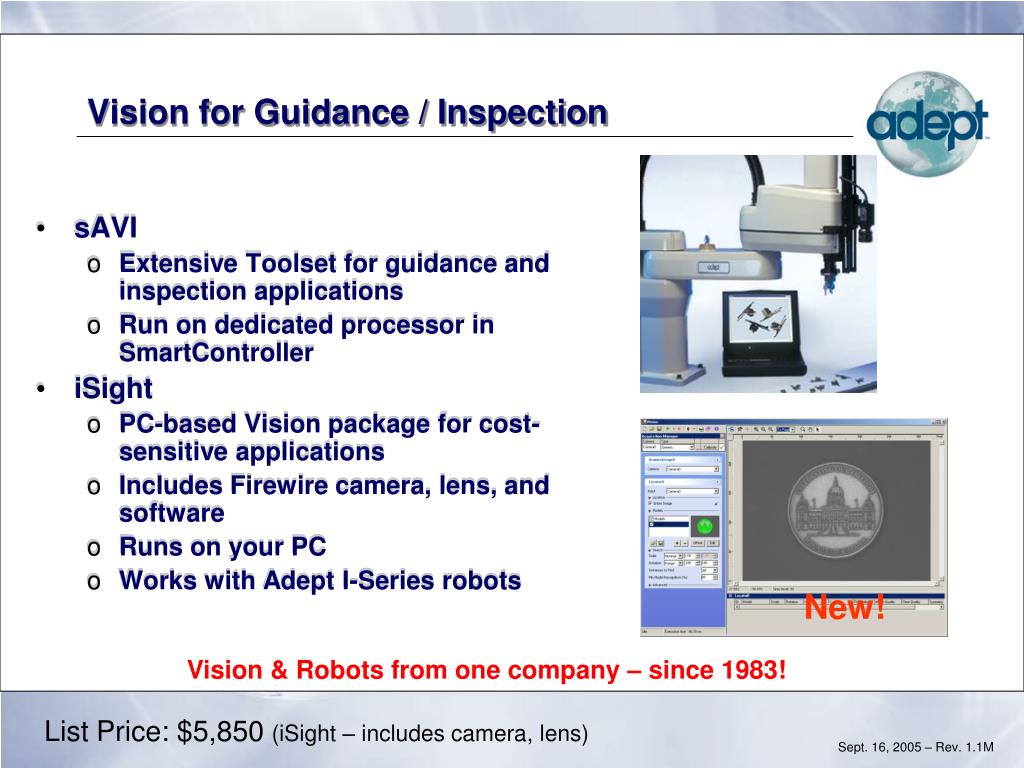

  19. Vision for Guidance / Inspection • sAVI • Extensive Toolset for guidance and inspection applications • Run on dedicated processor in SmartController • iSight • PC-based Vision package for cost-sensitive applications • Includes Firewire camera, lens, and software • Runs on your PC • Works with Adept I-Series robots New! Vision & Robots from one company – since 1983! List Price: $5,850 (iSight – includes camera, lens)

  20. Options • sMI6 – 6 Axis Motion Control • High performance • for 3rd party drives & devices • Adept Servo Kits • Plug-in Distributed motion • Absolute Encoders • Power ranges from 100W to 750W List Price: $2,500 (100W) List Price: $3,000 T1 Pendant IO Blox - Distributed I/O Module 8 inputs 8 outputs List Price: $2,595 List Price: $325

  21. Remanufactured Robots • Factory remanufactured, tested & certified • Your robot, or we will supply one • Adept 24 month support warranty on parts with 12 months on labor and travel • Latest software updates • Free 24/7 technical support • Worldwide field service available List Price: Starting at $16,500 (customer supplied robot)

  22. The Best Online Support in the Industry • Data sheets • 3-D CAD Drawings • Case Studies • Quote Requests www.adept.com • Software User’s Group • Complete manuals • Software Downloads List Price: Free!

  23. Adept Headquarters Service Centers World Wide Customer Support • 24/7 Technical Support • Regional Field Service • Direct Sales • Applications Engineering • Engineering Services • Onsite Training • Online Documentation • www.adept.com • Regional Technical Centers • California, Ohio, Connecticut • Germany, France, Italy, Japan, Singapore, Korea, Taiwan • Coming soon - North Carolina and Texas

  24. Thank you! www.adept.com 1-925-245-3400 Bill Reed Cell: 339-221-2483 reedwwr@msn.com

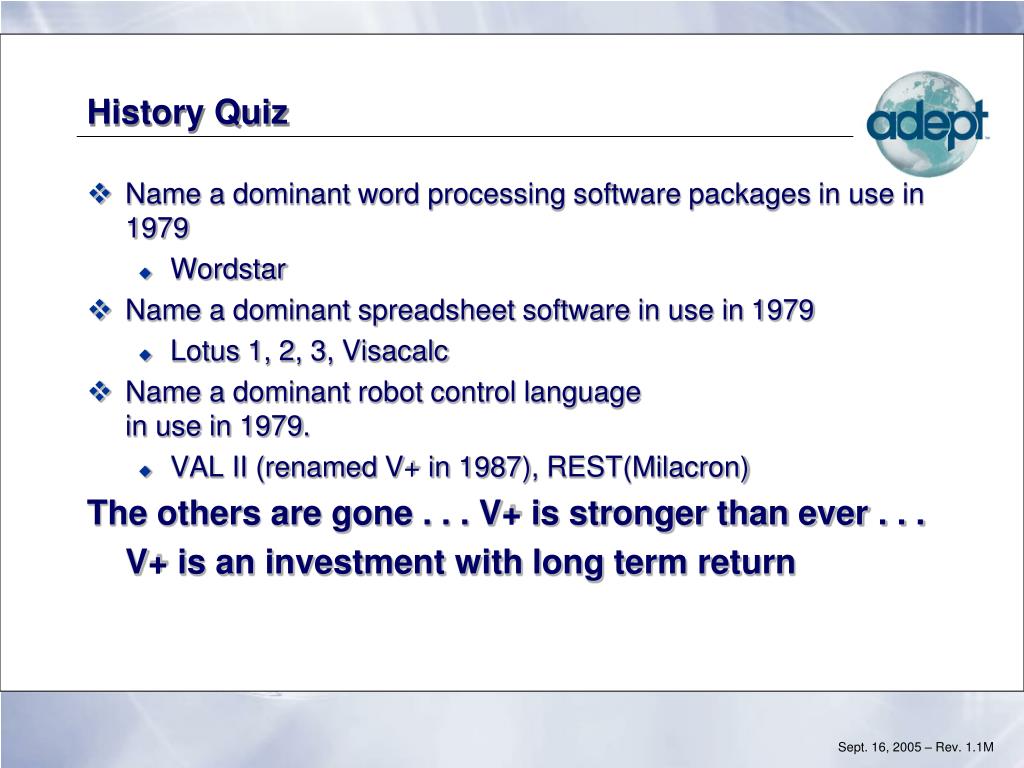

  25. History Quiz • Name a dominant word processing software packages in use in 1979 • Wordstar • Name a dominant spreadsheet software in use in 1979 • Lotus 1, 2, 3, Visacalc • Name a dominant robot control language in use in 1979. • VAL II (renamed V+ in 1987), REST(Milacron) The others are gone . . . V+ is stronger than ever . . . V+ is an investment with long term return

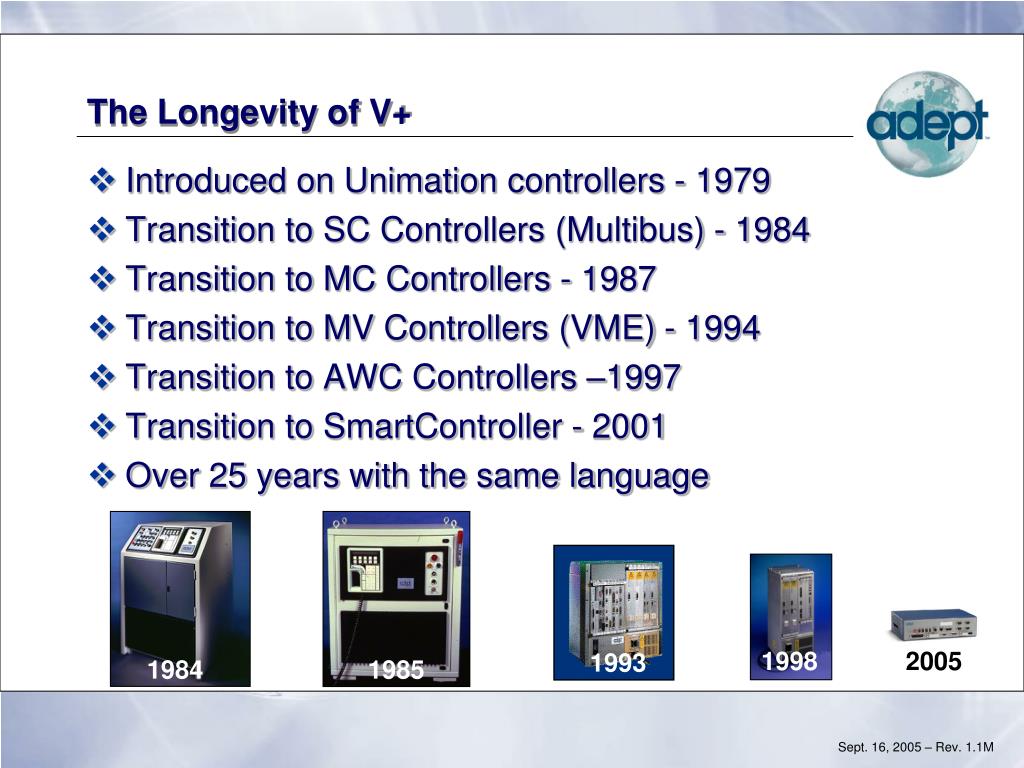

  26. 1993 1984 1985 The Longevity of V+ • Introduced on Unimation controllers - 1979 • Transition to SC Controllers (Multibus) - 1984 • Transition to MC Controllers - 1987 • Transition to MV Controllers (VME) - 1994 • Transition to AWC Controllers –1997 • Transition to SmartController - 2001 • Over 25 years with the same language 1998 2005

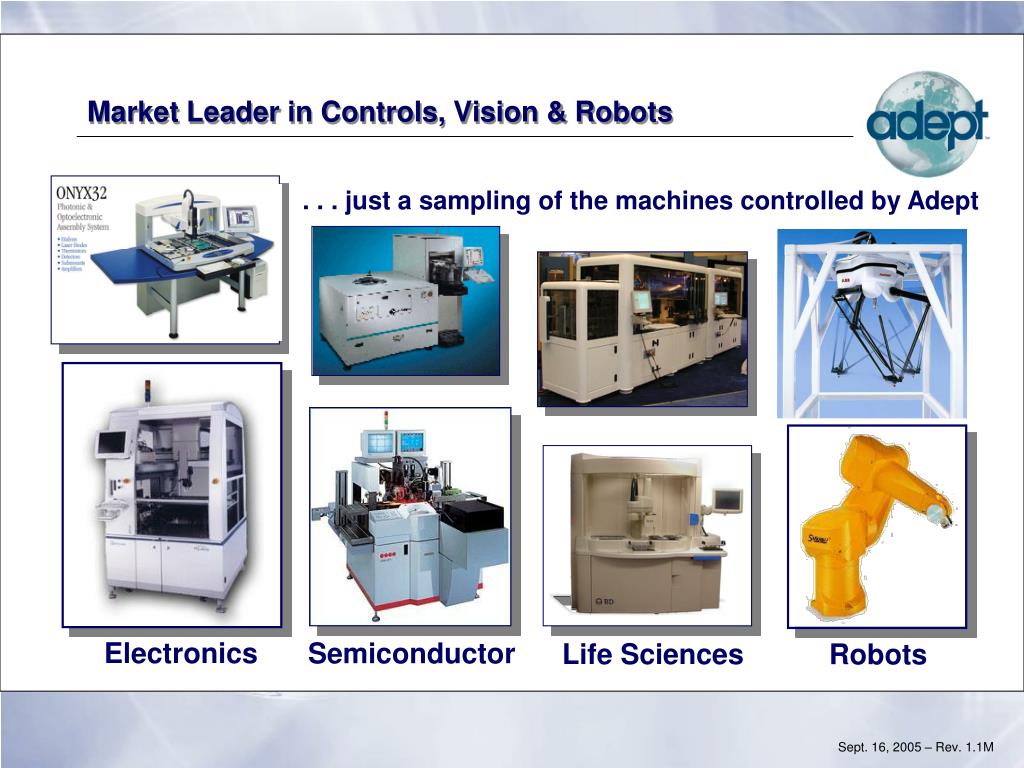

  27. Market Leader in Controls, Vision & Robots . . . just a sampling of the machines controlled by Adept Robots Electronics Semiconductor Life Sciences

  28. Robot Specifications • Reach 350 mm • Footprint 150 mm x 150 mm • Payload 5.5 kg (max) • Joint 4 inertia (max) 450 kg-cm2 • Downward Push Force 10 kgf • Joint Range • Joint 1 ±155° • Joint 2 ±145° • Joint 3 200 mm • Joint 4 ±360° • Repeatability • XY ±0.015 mm • Z ±0.01 mm • Theta ±0.005° • Pass-Through User Connections • Electrical 19 conductor • Pneumatic 6 mm (x2), 4 mm (x2) List Price: $23,750
