  1. Model # USR8000A (Rev 02) U.S. Robotics Broadband Router

  2. Support Universal Plug & Play Eases install - (Win Me/XP) Automatically detected on the network! Integrated print server Everyone on the network shares a single parallel printer Flexible Ethernet design Connects to either a Cable or DSL Ethernet modem Integrated 4-Port Ethernet switch Share the Internet with up to 4 PCs / MACs right out of the box MAC Address filtering Let’s you decide which PCs can connect to your network USR8000A - Features and Benefits

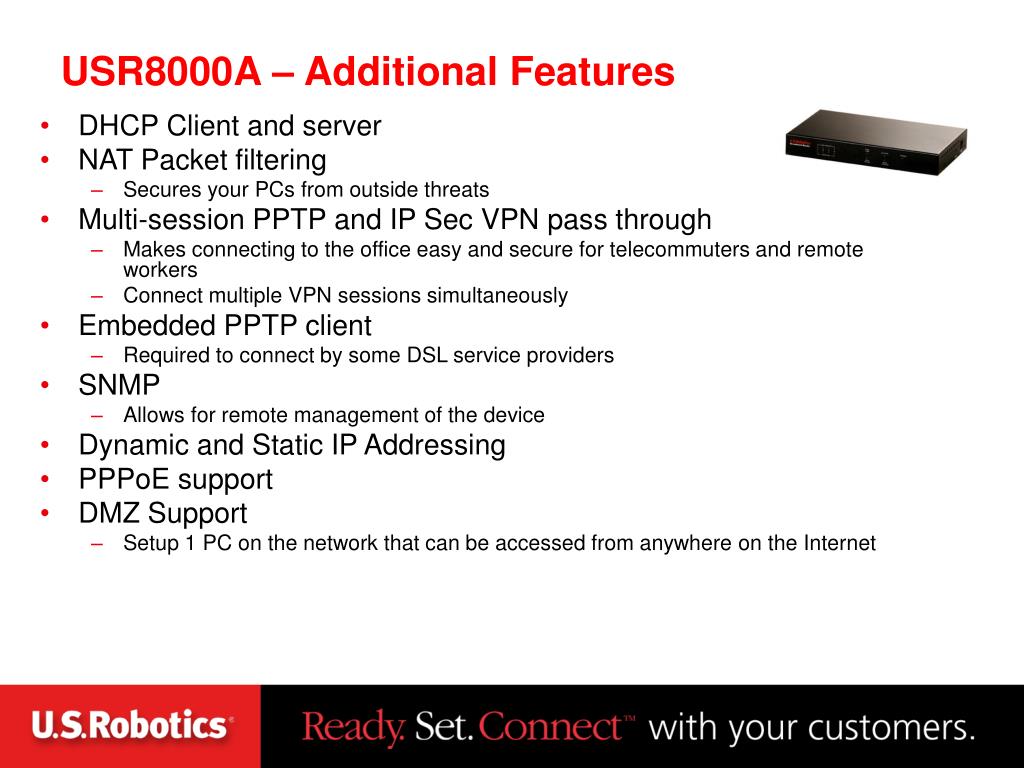

  3. DHCP Client and server NAT Packet filtering Secures your PCs from outside threats Multi-session PPTP and IP Sec VPN pass through Makes connecting to the office easy and secure for telecommuters and remote workers Connect multiple VPN sessions simultaneously Embedded PPTP client Required to connect by some DSL service providers SNMP Allows for remote management of the device Dynamic and Static IP Addressing PPPoE support DMZ Support Setup 1 PC on the network that can be accessed from anywhere on the Internet USR8000A – Additional Features

  4. Win Me/XP PCs will automatically detect the USR8000A on the network USR8000A - Universal Plug & Play (Win Me/XP)

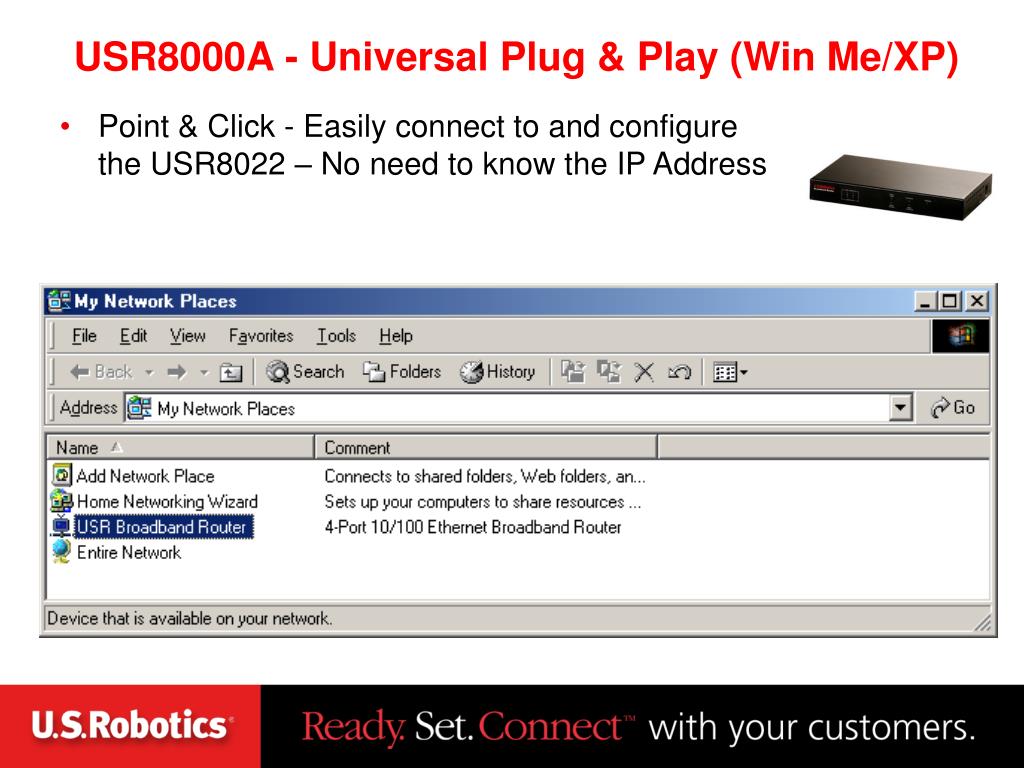

  5. Point & Click - Easily connect to and configure the USR8022 – No need to know the IP Address USR8000A - Universal Plug & Play (Win Me/XP)

  6. UPnP* makes it easy to connect to your router (previous slides) Once connected, the HTML-based configuration software makes it easy to configure and manage your wireless router * Windows Me/XP USR8000A – Easy Management

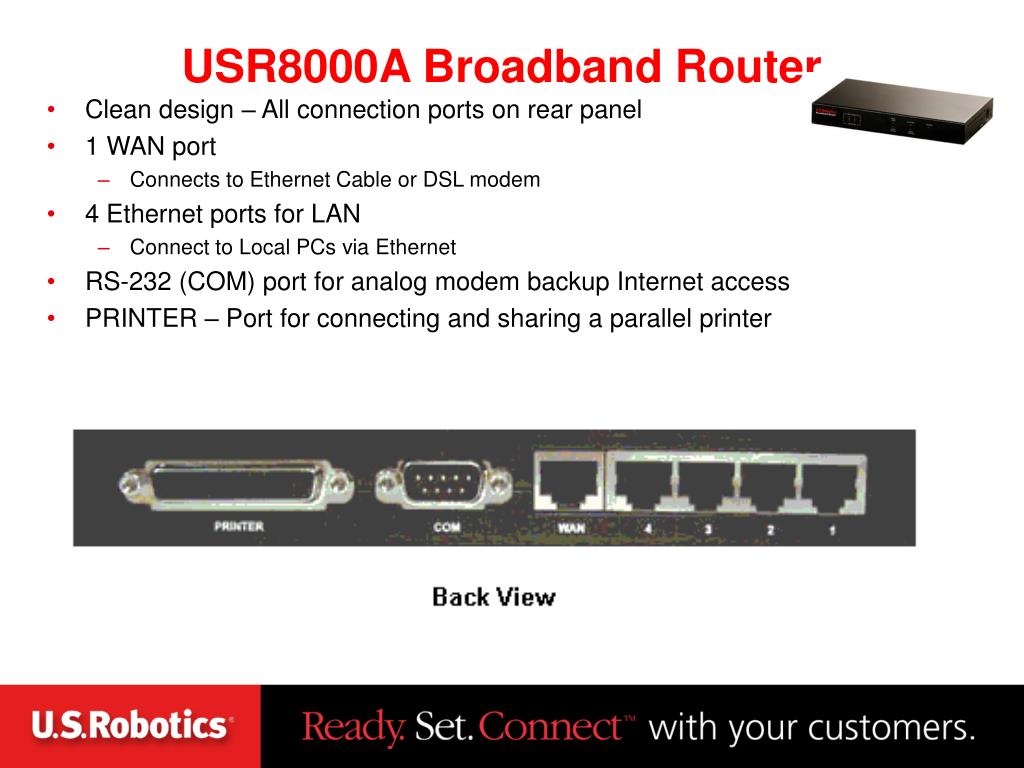

  7. Clean design – All connection ports on rear panel 1 WAN port Connects to Ethernet Cable or DSL modem 4 Ethernet ports for LAN Connect to Local PCs via Ethernet RS-232 (COM) port for analog modem backup Internet access PRINTER – Port for connecting and sharing a parallel printer USR8000A Broadband Router

  8. USR8000A – Broadband Router, 4-Port Switch and Print Server all in one device Parallel Printer USR8000A Broadband Router Internet ADSL Ethernet Bridge or Cable Ethernet Bridge Modem USR997901 10/100 PCMCIA Adapter Desktops with USR997900PCI 10/100 NIC

  9. Broadband goes down? Broadband Modem connection goes down? Parallel Printer USR8000A Broadband Router Internet • The U.S. Robotics Wireless Cable and DSL Router is perfect for the residential customer offering the value of Ethernet with the convenience of wireless networking in one simple solution USR997900 10/100 Fast Ethernet Adapter USR997900 10/100 Fast Ethernet Adapter USR997900 10/100 Fast Ethernet Adapter USR997901 10/100 PCMCIA Adapter

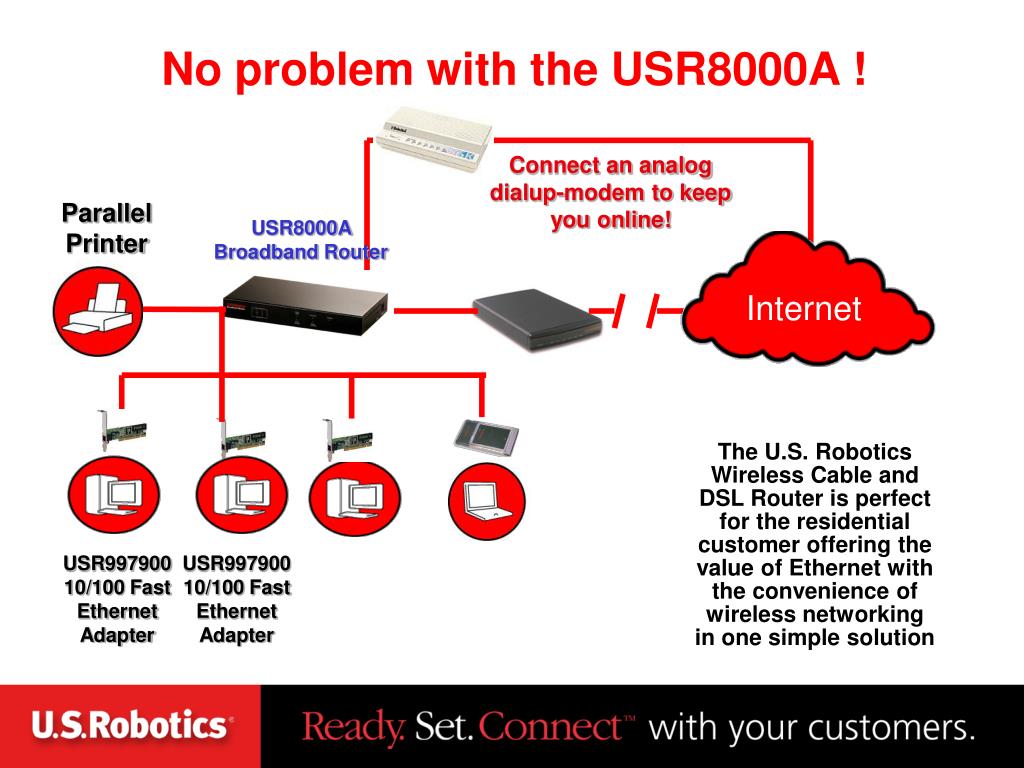

  10. No problem with the USR8000A ! Connect an analog dialup-modem to keep you online! Parallel Printer USR8000A Broadband Router Internet • The U.S. Robotics Wireless Cable and DSL Router is perfect for the residential customer offering the value of Ethernet with the convenience of wireless networking in one simple solution USR997900 10/100 Fast Ethernet Adapter USR997900 10/100 Fast Ethernet Adapter

  11. The USR8000A offers the most features at the right price Support for Windsor Universal Plug & Play for easy networking Integrated Print Server Multi-Session VPN support SNMP for remote management RS232 port for backaup analog modem Internet access Competitive Matrix – 4-Port SOHO Routers

  12. 100M Switches USR847905 – 5 port USR847908 – 8 port USR997924 – 24 Port Juan M. Lopez Product Line Manager March 18, 2002

  13. No software – easy install Simple networking solution Easily Network up to 5/8/24 Ethernet devices (Windows PCs, Apple Macs, and other devices) Add additional switches for more devices Simply plug networked devices into USR Switch & plug power supply in and it works! Low-cost yet robust product Full featured without high cost More than just a hub A Switch manages network traffic more efficiently than a simple hub Separates out 10M from 100M until joined at the switch in the unit 100M Product Switch Range

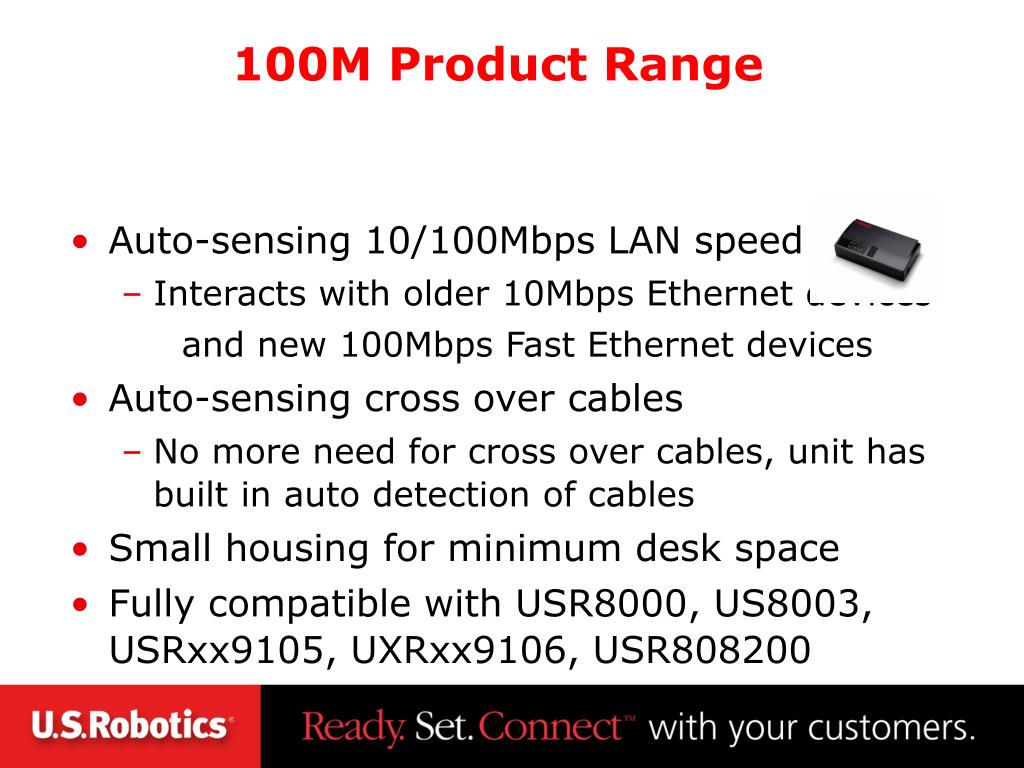

  14. Auto-sensing 10/100Mbps LAN speed Interacts with older 10Mbps Ethernet devices and new 100Mbps Fast Ethernet devices Auto-sensing cross over cables No more need for cross over cables, unit has built in auto detection of cables Small housing for minimum desk space Fully compatible with USR8000, US8003, USRxx9105, UXRxx9106, USR808200 100M Product Range

  15. New Range of GE products June 04 Brand New Technology lowers the costs

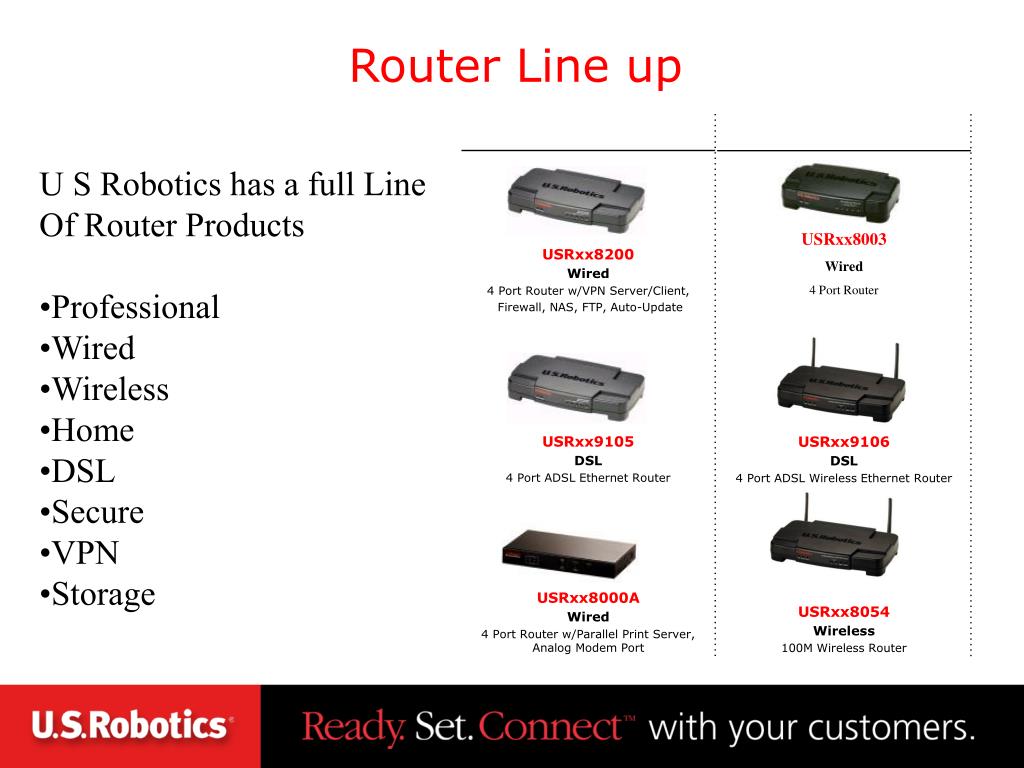

  16. Router Line up USRxx8200 Wired 4 Port Router w/VPN Server/Client, Firewall, NAS, FTP, Auto-Update USRxx8003 Wired 4 Port Router USRxx9105 DSL 4 Port ADSL Ethernet Router USRxx9106 DSL 4 Port ADSL Wireless Ethernet Router USRxx8000A Wired 4 Port Router w/Parallel Print Server, Analog Modem Port USRxx8054 Wireless 100M Wireless Router • U S Robotics has a full Line • Of Router Products • Professional • Wired • Wireless • Home • DSL • Secure • VPN • Storage

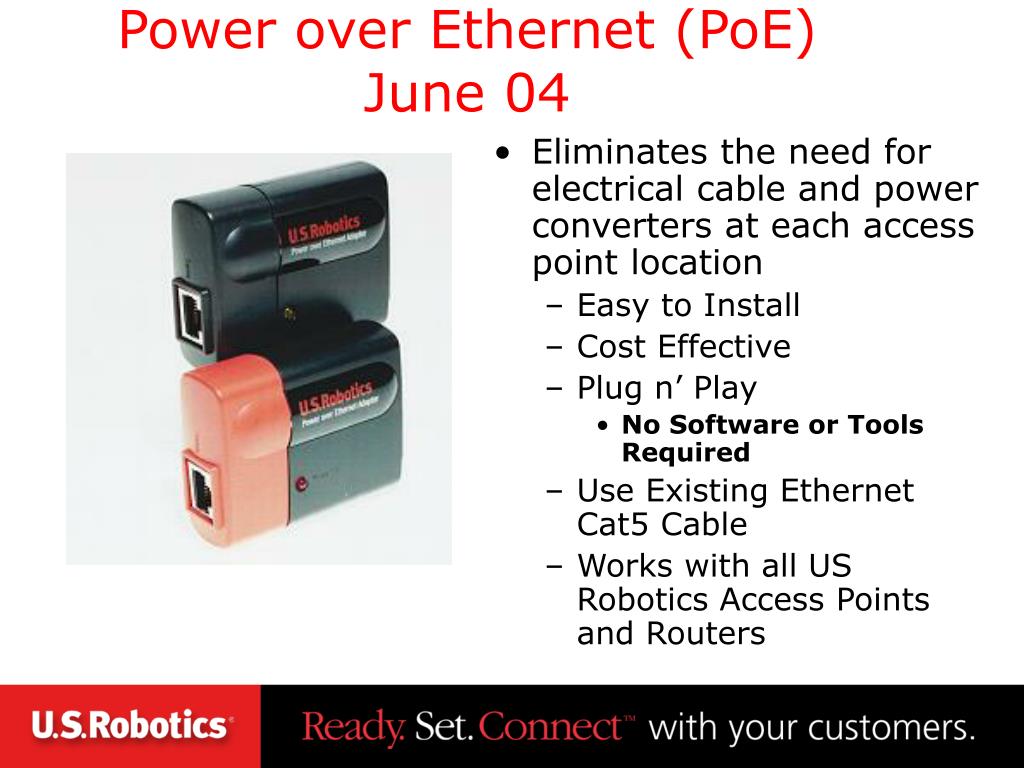

  17. Power over Ethernet (PoE) June 04 • Eliminates the need for electrical cable and power converters at each access point location • Easy to Install • Cost Effective • Plug n’ Play • No Software or Tools Required • Use Existing Ethernet Cat5 Cable • Works with all US Robotics Access Points and Routers
