  1. Chapter 4.INTERNAL REPRESENTATION OF FILES THE DESIGN OF THE UNIX OPERATING SYSTEM Maurice J. bach Prentice Hall

  2. contents • Inodes • Structure of a regular file • Conversion of a path name to an inode • Super block • Inode assignment to a new file • Delete Inode

  3. File System Algorithms namei alloc free ialloc ifree iget iput buffer allocation algorithms getblk brelse bread bwrite Lower Level File system Algorithms

  4. 4.1 Inode • contains the information necessary for a process to access a file • exits in a static form on disk and the kernel reads them into an in-core inode

  5. 4.1 Inodes • consists of - file owner identifier - file type - file access permissions - file access times - number of links to the file - table of contents for the disk address of data in a file - file size

  6. 4.1 Inodes • in-core copy of the inode contains - status of the in-core inode - logical device number of file system - inode number - pointers to other in-core inodes - reference count

  7. iget (inode_no) //getIncoreInode • while (not done) • if (inode in inode cache) • if (inode locked) • sleep(event inode becomes unlocked) • continue • if (inode on inode free list) • remove from free list • return locked inode • if (no inode on free list) return error • remove new inode from free list • set inode number • remove inode from old hash queue and place on new one • read inode from disk • set reference count 1 • return locked indoe

  8. iput (inode_no) //releaseIncoreInode • lock inode if not locked • decrement inode refernece count • if (refernce count==0) • if (inode link==0) • free disk block • set file type to 0 • free inode • if (file accessed or inode changed or file changed) • update disk inode • put inode on free list • Release inode lock

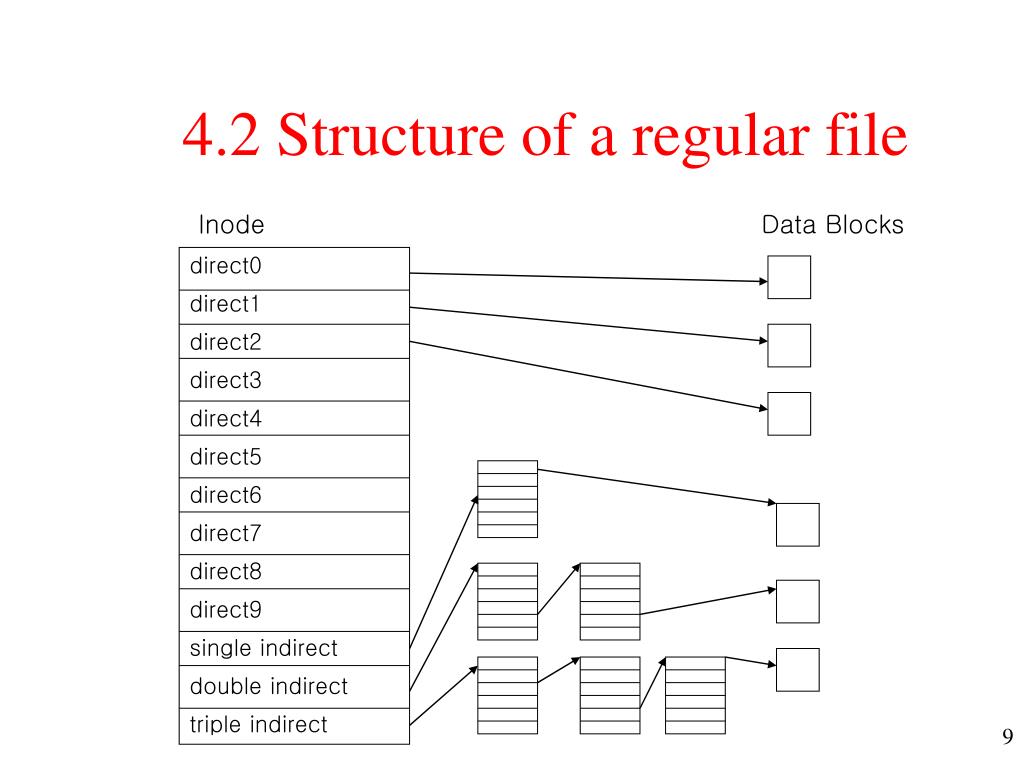

  9. 4.2 Structure of a regular file Inode Data Blocks direct0 direct1 direct2 direct3 direct4 direct5 direct6 direct7 direct8 direct9 single indirect double indirect triple indirect

  10. 4.2 Structure of a regular file Suppose System V UNIX Assume that a logical on the file system holds 1K bytes and that a block number is addressable by a 32 bit integer, then a block can hold up to 256 block numbers 10 direct blocks with 1K bytes each=10K bytes 1 indirect block with 256 direct blocks= 1K*256=256K bytes 1 double indirect block with 256 indirect blocks= 256K*256=64M bytes 1 triple indirect block with 256 double indirect blocks= 64M*256=16G bytes

  11. 4.4 Path conversion to an inode • if (path name starts with root) • working inode= root inode • else • working inode= current directory inode • while (there is more path name) • read next component from input • read directory content • if (component matches an entry in directory) • get inode number for matched component • release working inode • working inode=inode of matched component • else • return no inode • return (working inode)

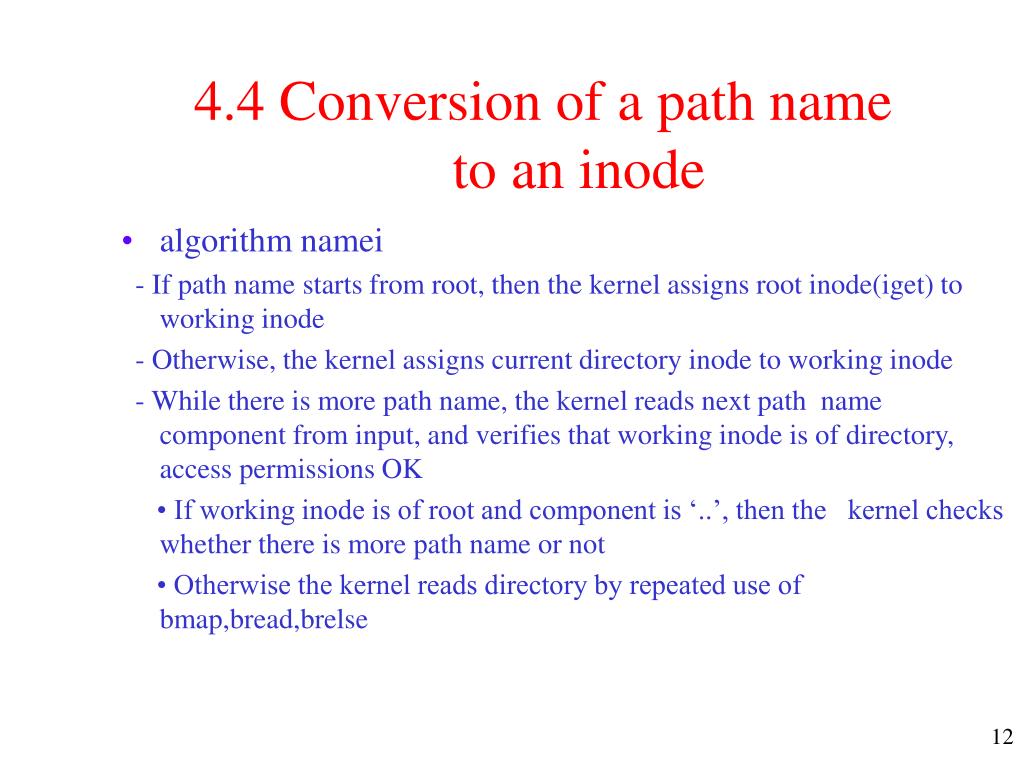

  12. 4.4 Conversion of a path name to an inode • algorithm namei - If path name starts from root, then the kernel assigns root inode(iget) to working inode - Otherwise, the kernel assigns current directory inode to working inode - While there is more path name, the kernel reads next path name component from input, and verifies that working inode is of directory, access permissions OK • If working inode is of root and component is ‘..’, then the kernel checks whether there is more path name or not • Otherwise the kernel reads directory by repeated use of bmap,bread,brelse

  13. 4.5 Super block boot block super block inode list data blocks • File System • consists of - the size of the file system - the number of free blocks in the file system - a list of free blocks available on the file system - the index of the next free block in the free block list - the size of the inode list - the number of free inodes in the file system - a list of free inodes in the file system - the index of the next free inode in the free inode list - lock fields for the free block and free inode lists - a flag indicating that the super block has been modified

  14. 4.6 Inode assignment to a new file Super Block Free Inode List free inodes 83 48 empty 18 19 20 array1 index Super Block Free Inode List free inodes 83 empty 18 19 20 array2 index Assigning Free Inode from Middle of List

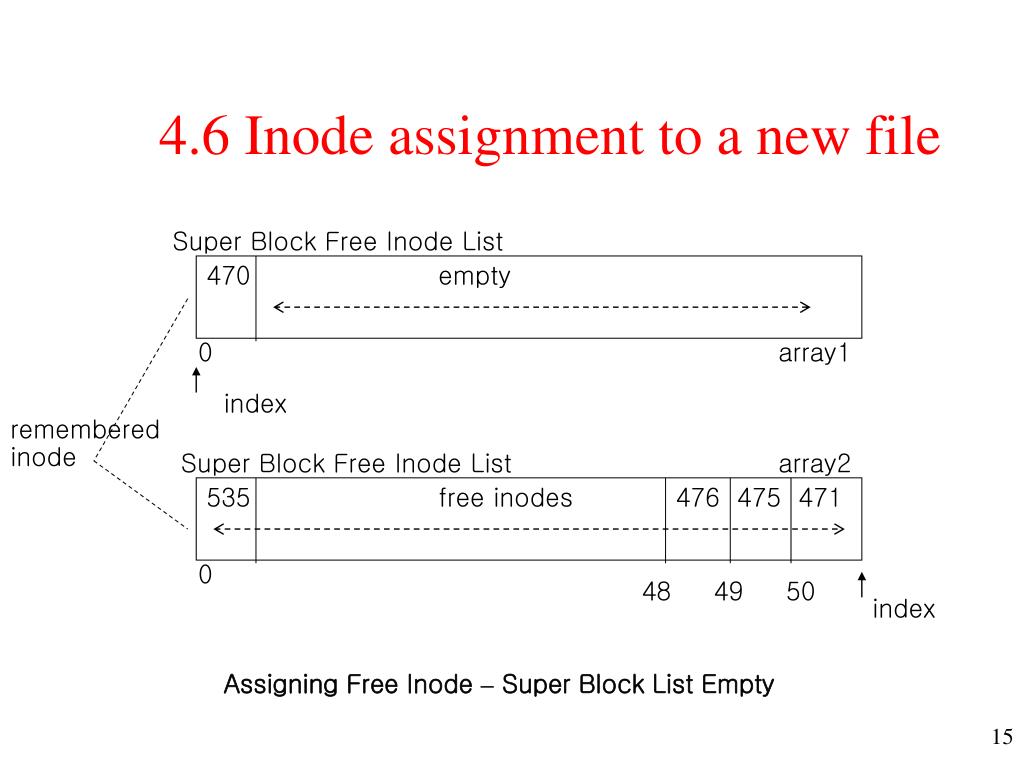

  15. 4.6 Inode assignment to a new file Super Block Free Inode List 470 empty 0 array1 index Super Block Free Inode List array2 535 free inodes 476 475 471 0 48 49 50 Assigning Free Inode – Super Block List Empty remembered inode index

  16. 4.6 Inode assignment to a new file 535 476 475 471 499 476 475 471 499 476 475 471 free inodes free inodes free inodes remembered inode remembered inode remembered inode index index index Original Super Block List of Free Inodes Free Inode 499 Free Inode 601

  17. 4.6 Inode assignment to a new file • Locked inode illoc() • while (not done) • If (super block locked) • Sleep (event super block becomes free) • Continue • If (inode list in super block empty) • Lock super block • Get remember inode for free inode search • Search until super block full or no more free inode • Unlock super block and wake up (event super block free)\ • If no free inode found on disk return error • Set remmbered inode for next free inode search • Get inode number from super block inode list • Get inode • Write inode to disk • Decrement free inode count • Return inode

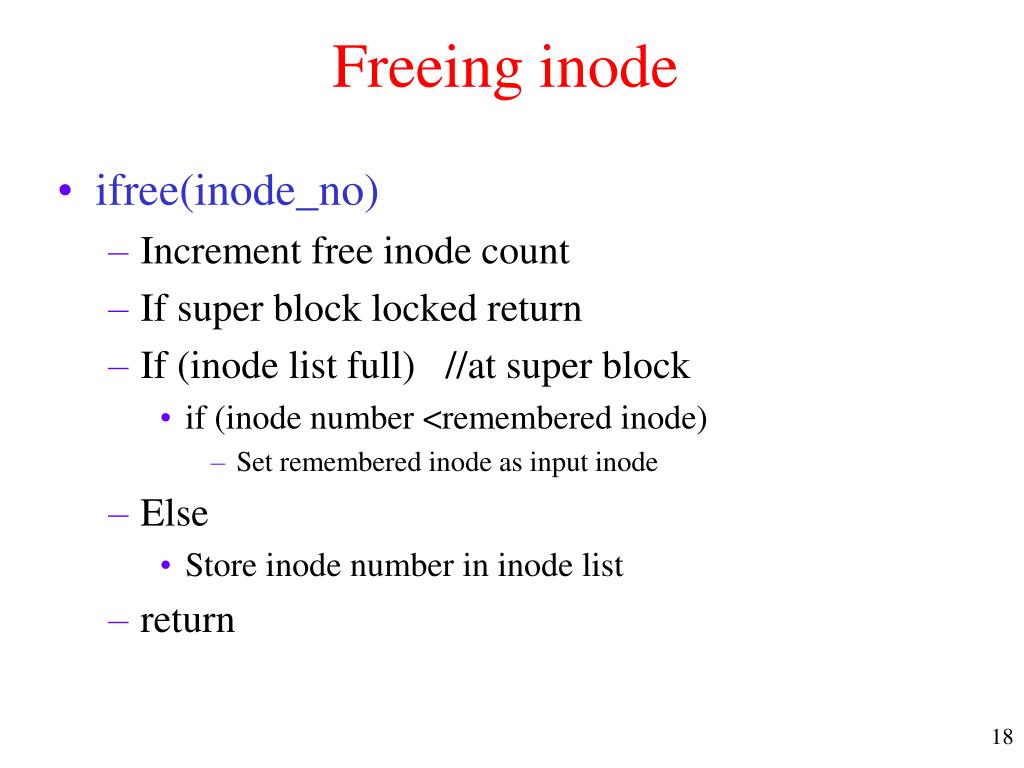

  18. Freeing inode • ifree(inode_no) • Increment free inode count • If super block locked return • If (inode list full) //at super block • if (inode number <remembered inode) • Set remembered inode as input inode • Else • Store inode number in inode list • return

  19. 4.7 Allocation of disk blocks 109 106 103 100 ………………………….. 211 208 205 202 …………………… 112 310 307 304 301 …………………… 214 409 406 403 400 …………………… 313 109 211 310 linked list of free disk block number

  20. 4.7 Allocation of disk blocks • algorithm alloc - The kernel wants to allocate a block from a file system it allocates the next available block in the super block list - Once allocated , the block cannot be reallocated until it becomes free - If the allocated block is the last block , the kernel treats it as a pointer to a block that contains a list of free blocks • The kernel locks super block, reads block jut taken from free list, copies block numbers in block into super block, releases block buffer,and unlocks super block - Otherwise, • The kernels gets buffer for block removed from super block list , zero buffer contents, decrements total count of free blocks, and marks super block modified

  21. 4.7 Allocation of disk blocks super block list 109 ………………………………………………………… 109 211 208 205 202 …………………………….. 112 original configuration 109 949 ………………………………………………….. 109 211 208 205 202 ………………………………. 112 After freeing block number 949

  22. 4.7 Allocation of disk blocks 109 ……………………………………………………….. 109 211 208 205 202 ………………………………. 112 After assigning block number(949) 211 208 205 202 ……………………………… 112 211 344 341 338 335 ………………………………. 243 After assigning block number(109) replenish super block free list
