  1. Section 9-3Arcs and central angles

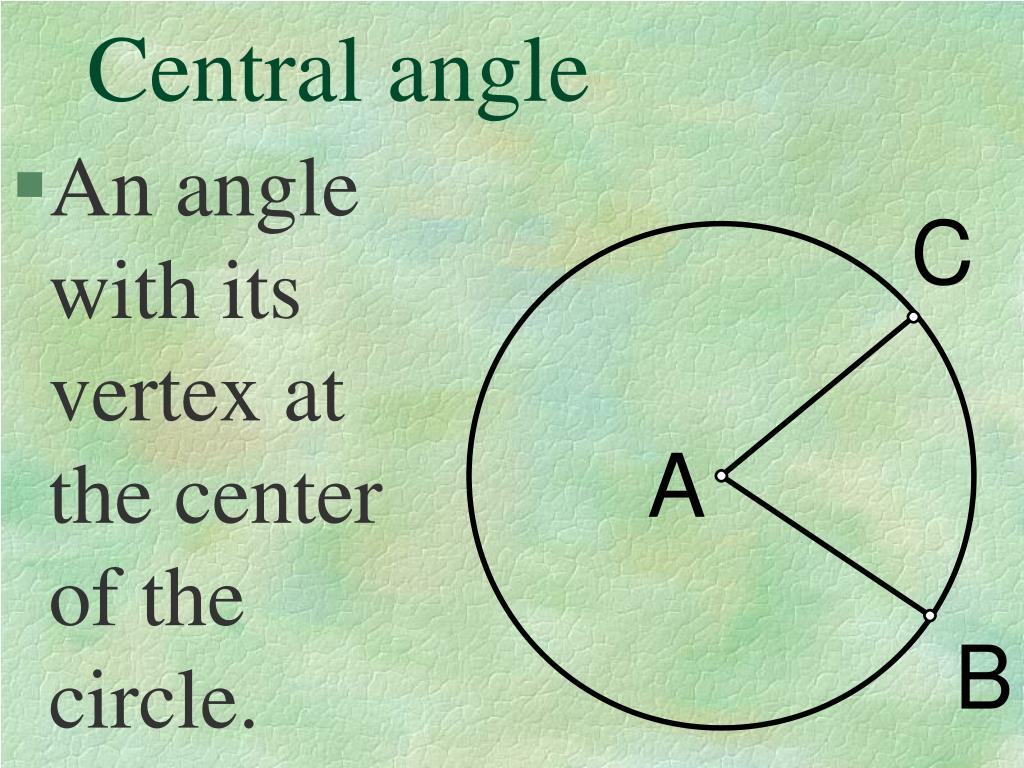

  2. Central angle • An angle with its vertex at the center of the circle.

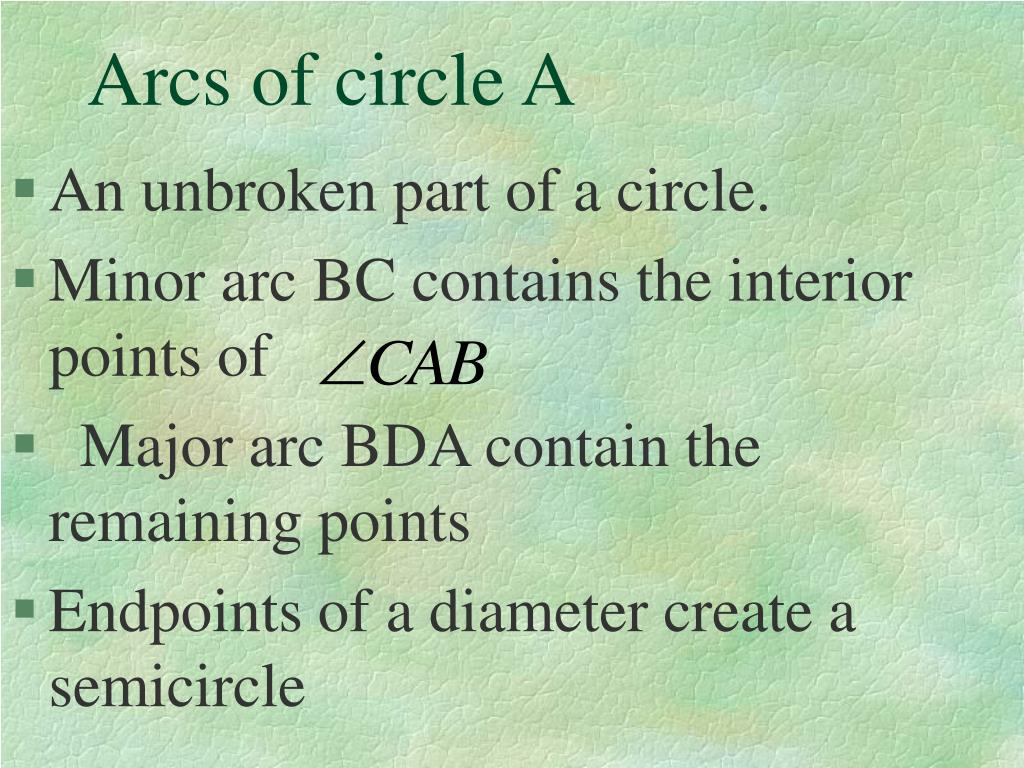

  3. Arcs of circle A • An unbroken part of a circle. • Minor arc BC contains the interior points of • Major arc BDA contain the remaining points • Endpoints of a diameter create a semicircle

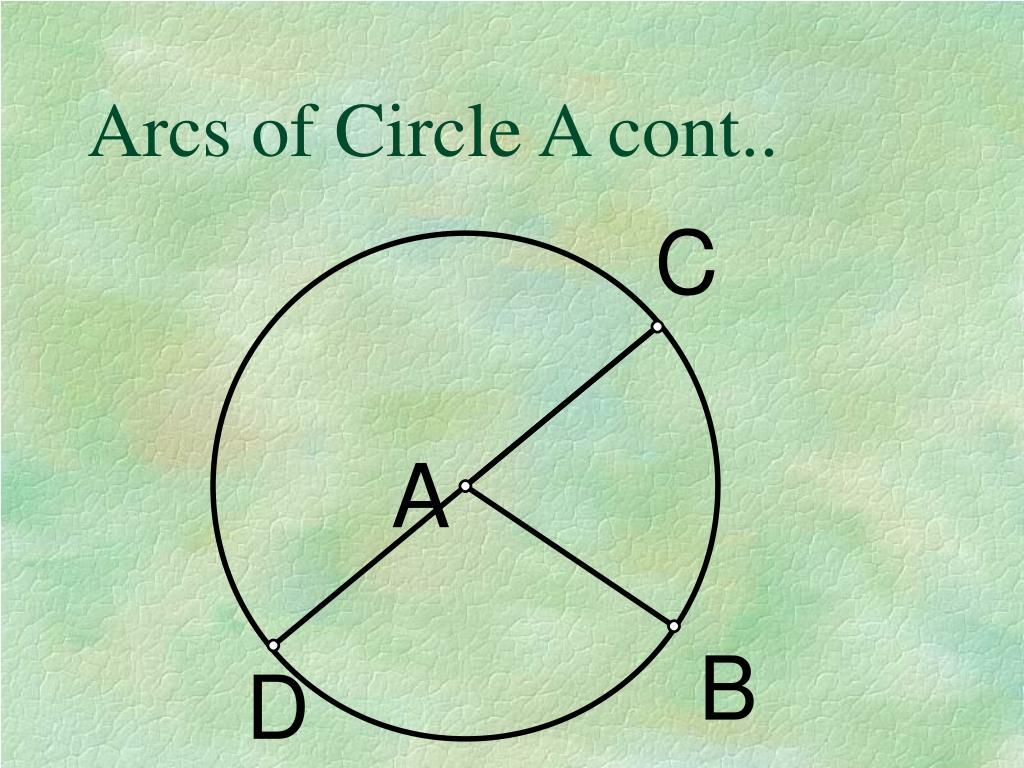

  4. Arcs of Circle A cont..

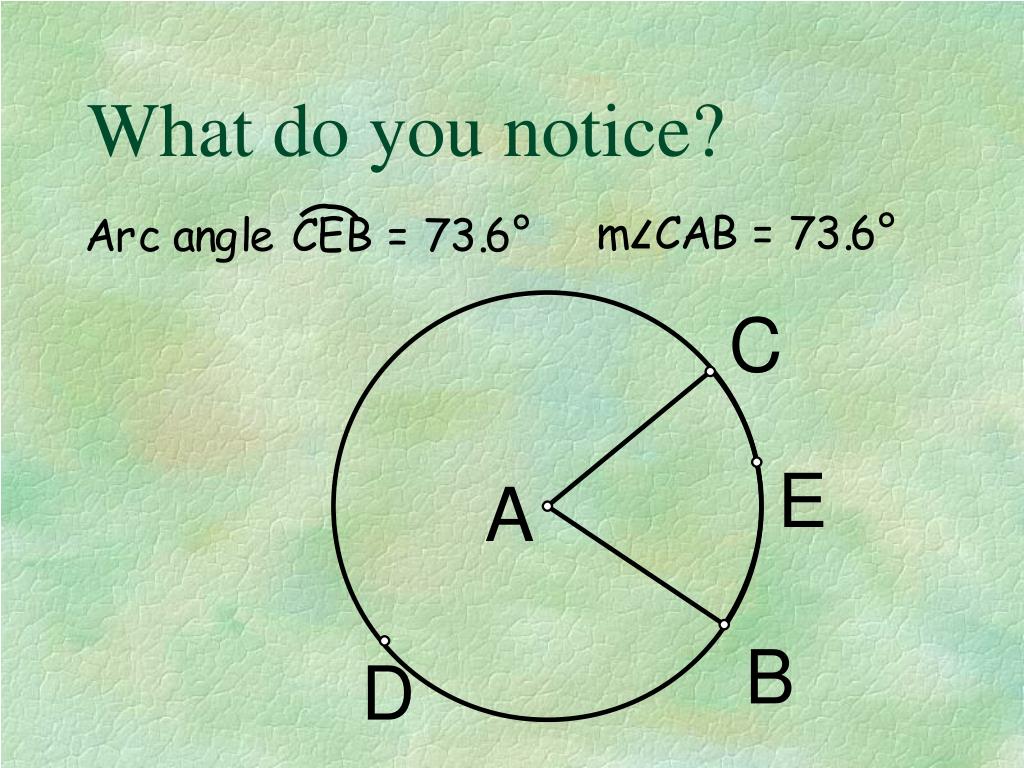

  5. What do you notice?

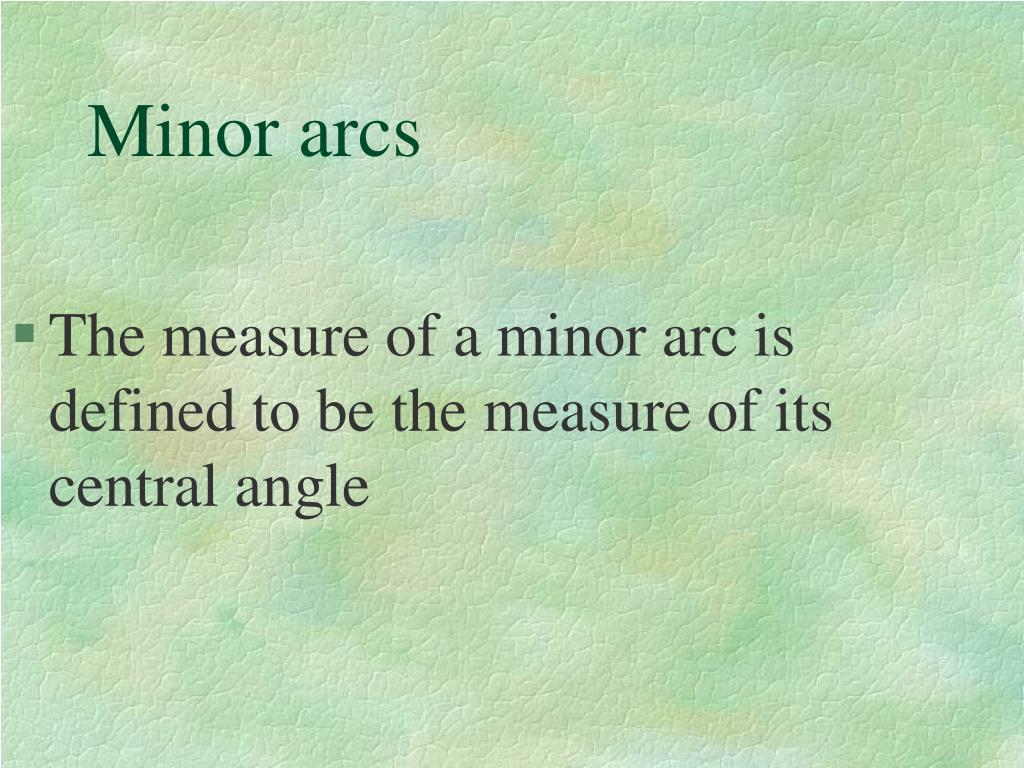

  6. Minor arcs • The measure of a minor arc is defined to be the measure of its central angle

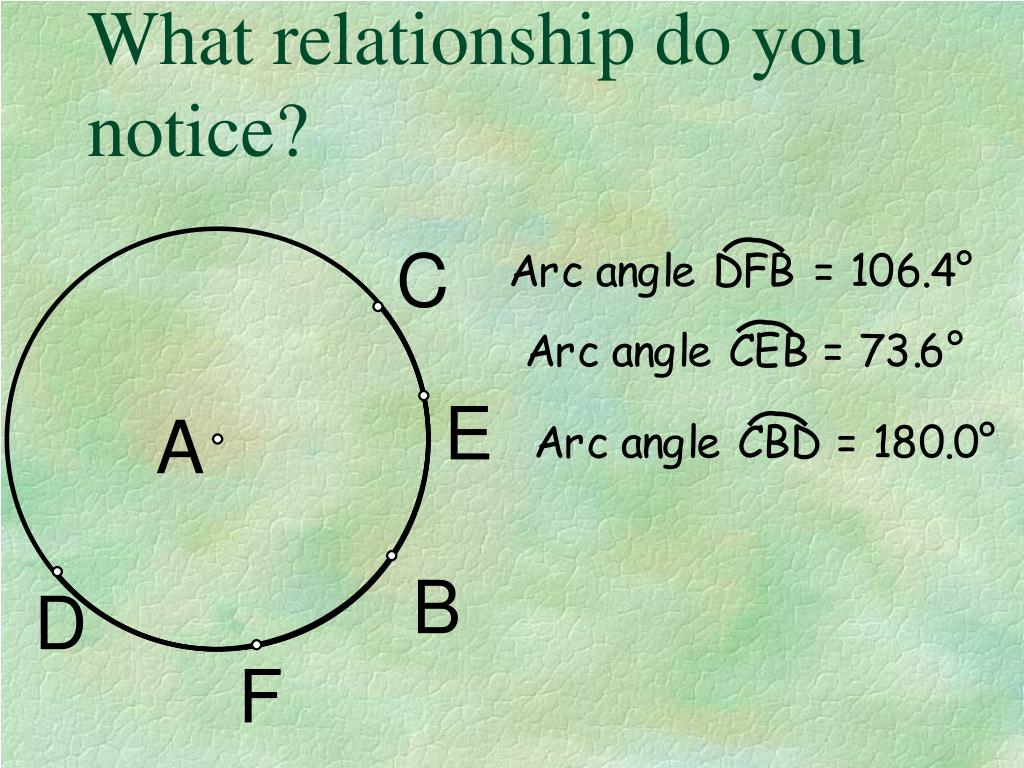

  7. What relationship do you notice?

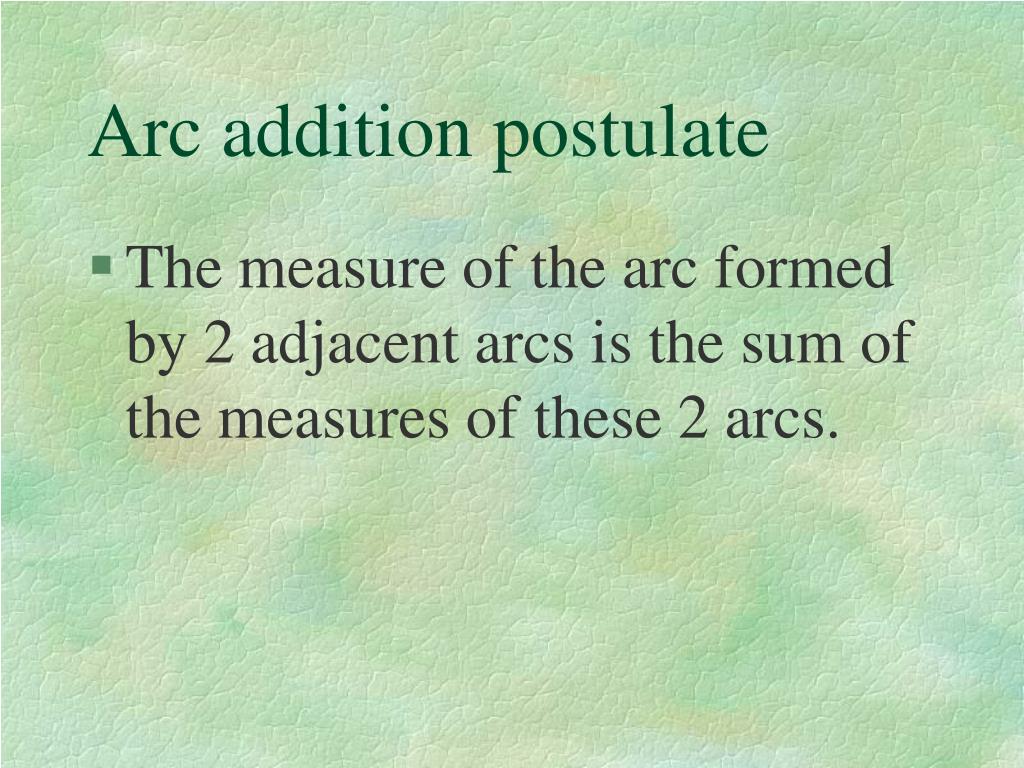

  8. Arc addition postulate • The measure of the arc formed by 2 adjacent arcs is the sum of the measures of these 2 arcs.

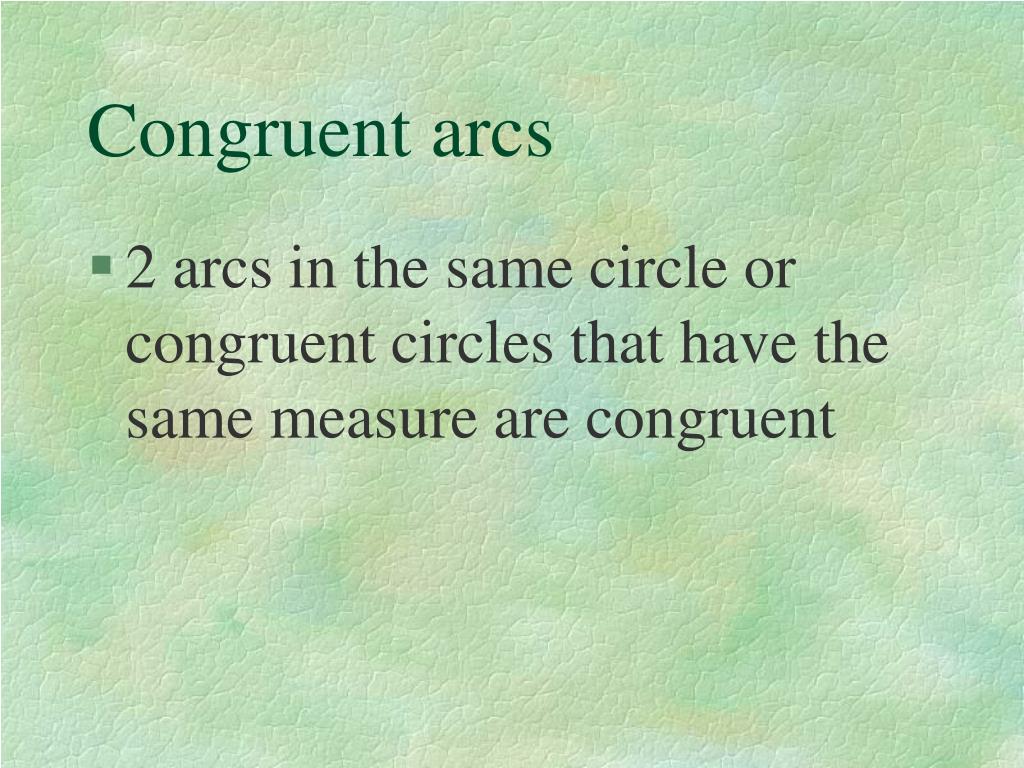

  9. Congruent arcs • 2 arcs in the same circle or congruent circles that have the same measure are congruent

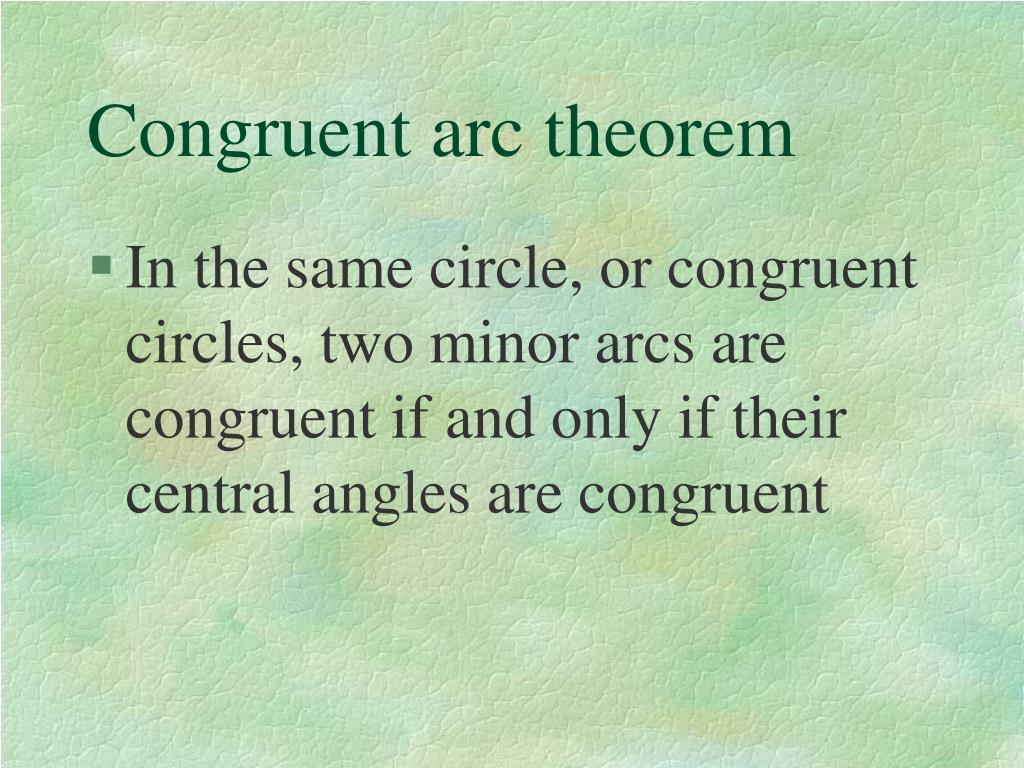

  10. Congruent arc theorem • In the same circle, or congruent circles, two minor arcs are congruent if and only if their central angles are congruent
