Presentation Transcript

  1. Notes on Uncertainty Analysis a.k.a. Error Analysis

  2. Uncertainty • Any measured or calculated value has some level of uncertainty • Not due to mistakes • Unavoidable due to the nature of the experiment • Consider measuring a grape • Uncertainties usually reported to 1 significant figure • Use several significant figures while calculating the uncertainty • When complete, report it to one significant figure • Two ways to represent uncertainty • Absolute uncertainty (AU): same units as reported value • Relative uncertainty (RU): represents AU as a fraction/percentage

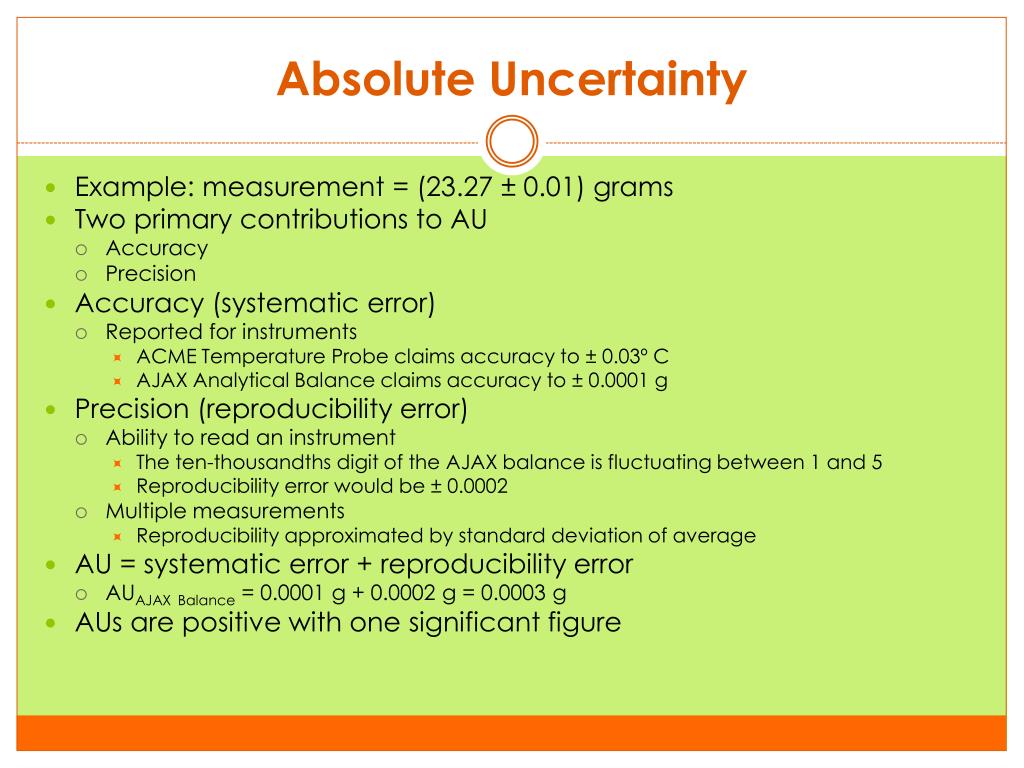

  3. Absolute Uncertainty • Example: measurement = (23.27 ± 0.01) grams • Two primary contributions to AU • Accuracy • Precision • Accuracy (systematic error) • Reported for instruments • ACME Temperature Probe claims accuracy to ± 0.03º C • AJAX Analytical Balance claims accuracy to ± 0.0001 g • Precision (reproducibility error) • Ability to read an instrument • The ten-thousandths digit of the AJAX balance is fluctuating between 1 and 5 • Reproducibility error would be ± 0.0002 • Multiple measurements • Reproducibility approximated by standard deviation of average • AU = systematic error + reproducibility error • AUAJAXBalance = 0.0001 g + 0.0002 g = 0.0003 g • AUs are positive with one significant figure

  4. Accuracy and Precision Inaccurate (systematic error) Accurate Precise xxx xx xx x xxx xx xx x Imprecise (reproducibility error) x x xx x xx x x x x x x xx x xx x x x xx x
