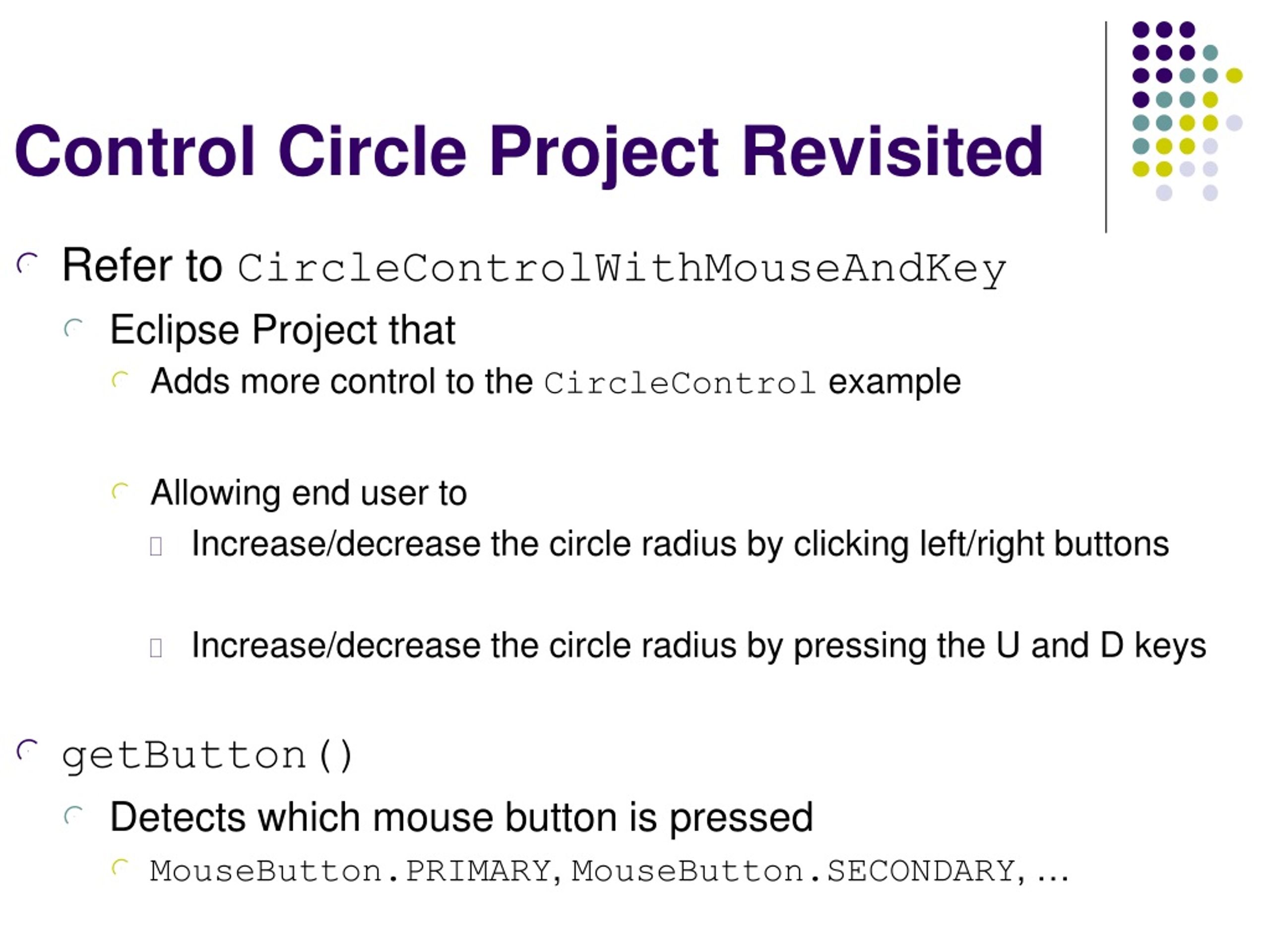

Control Circle Project Revisited

1. Control Circle Project Revisited • Refer to CircleControlWithMouseAndKey • Eclipse Project that • Adds more control to the CircleControl example • Allowing end user to • Increase/decrease the circle radius by clicking left/right buttons • Increase/decrease the circle radius by pressing the U and D keys • getButton() • Detects which mouse button is pressed • MouseButton.PRIMARY, MouseButton.SECONDARY, …

2. Listeners for Observable Objects • A listener can be added • To process a value change in an observable object • An instance of Observable class • Is known as an observable object that contains the • addListener(InvalidationListener) for adding a listener • The listener must implement • the InvalidationListenerinterface • To override the invalidated(Observable o) method • To handle value change • Once the value in Observable changes • The listener is notified through the invalidated method

3. Animation Class • JavaFX provides the Animation class • With the core functionality for all animations

4. Animation Class (Continued) • TheCycleCountproperty • Indicates the number of cycles for the animation • The constant Timeline.INDEFINITEindicates an infinite number • The rate property • Defines the speed of the animation • The status property • Indicates the status of the animation: • Animation.Status.PAUSED • Animation.Status.RUNNING • Animation.Status.STOPPED

5. PathTransition Class • This class • Animates the moves of a node along a path • From one end to the other over a given time

6. PathTransition Class (Cont’d) • The Duration class • Defines a duration of time • Constants INDEFINITE, ONE, ZERO are defined • Offers • add, subtract, multiply, and divide methods • To perform arithmetic operations • toHours(), toMinutes(), toSeconds(), and toMillis() • To return number of hours, minutes, seconds, and ms in duration • Defines • PathTransition.OrientationType.ORTHOGONAL_TO_TANGENT

7. PathTransition Class (Cont’d) • Refer to PathTransitionDemo Eclipse project • It moves a rectangle along the outline of a circle • An animation can be • Started by invoking the play() method • Paused by invoking the pause() method

8. PathTransition Class (Cont’d) • Refer to FlagRisingApp Eclipse project • It animates a flag rising • ImageView moves along a line • That may or may not be placed in the scene

9. FadeTransition Class • This class • Animates the changes of the opacity in a node • over a given time

10. FadeTransition Class (Cont’d) • Refer to FadeTransitionDemo Eclipse project • It applies a fade transition to the filled color in an ellipse • The ellipse’s • centerX, centerY, radiusX, and radiusY properties • Are bound to the pane’s size

11. Timeline Class • Timeline class • Can be used to program any animation using • One or more KeyFrames • Each KeyFrame • Is executed sequentially at a specified time interval • Can be constructed as follows: • The onFinished handler • Is called when the duration of the key frame is elapsed.

12. Timeline Class (Continued) • Refer to TimeLineDemo Eclipse project • Displays a flashing text. • The text is on and off alternating to animate flashing • A handler is used • To change the text to empty if it is not empty or • To “programming is fun” if the text is empty • The animation is set to run indefinitely

13. Timeline Class (Continued) • Refer to BouncingBallApp Eclipse project • Animates a bouncing ball • The mouse-pressed and mouse-released handlers • Are implemented to pause and resume the animation • When the UP arrow key is pressed • The ball’s movement is increased
