  1. What is iTools? • A next generation IPS for Windows • Windows 95, NT 4 • Supporting System Integrators, OEMs and end-users • Parameterization plus some Commissioning features • 2200, 2400, 2500 controllers • 2408i indicator • Modbus only

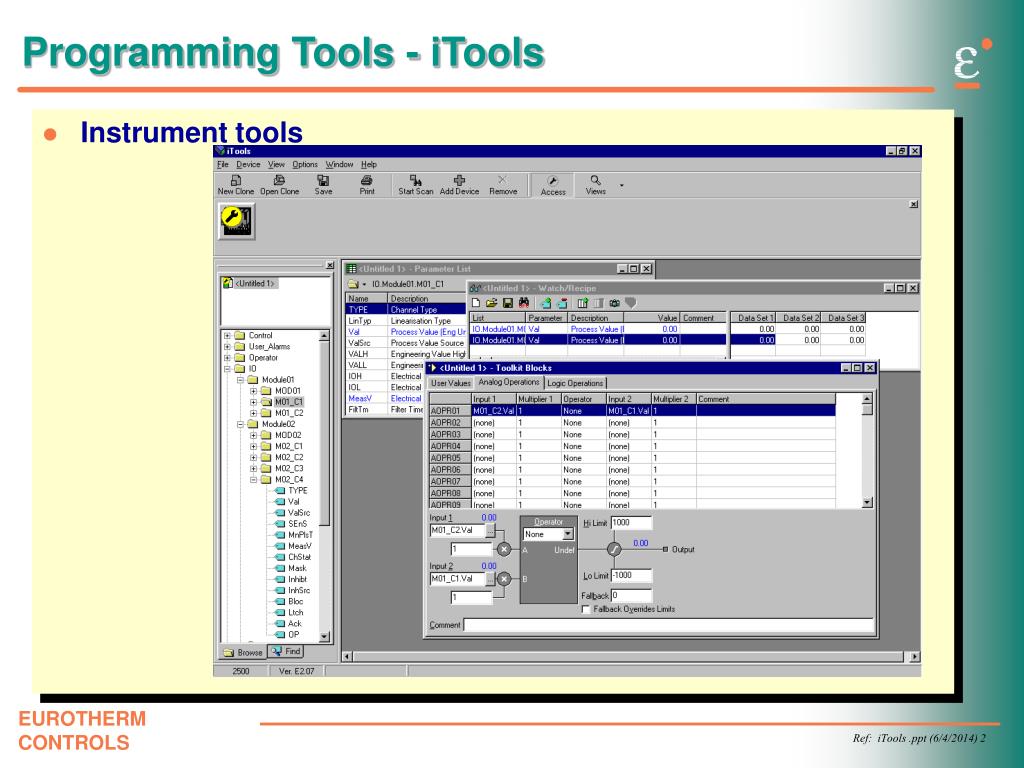

  2. Instrument tools Programming Tools - iTools

  3. iTools Functionality • Live’ panel mimics • 2200, 2400 • Full parameter lists • Option to show ‘relevant’ parameters only • Cloning • User Wiring Editor • 2500 only • Simple Recipes • Watch Window • All functionality available for both on-line and off-line configuration

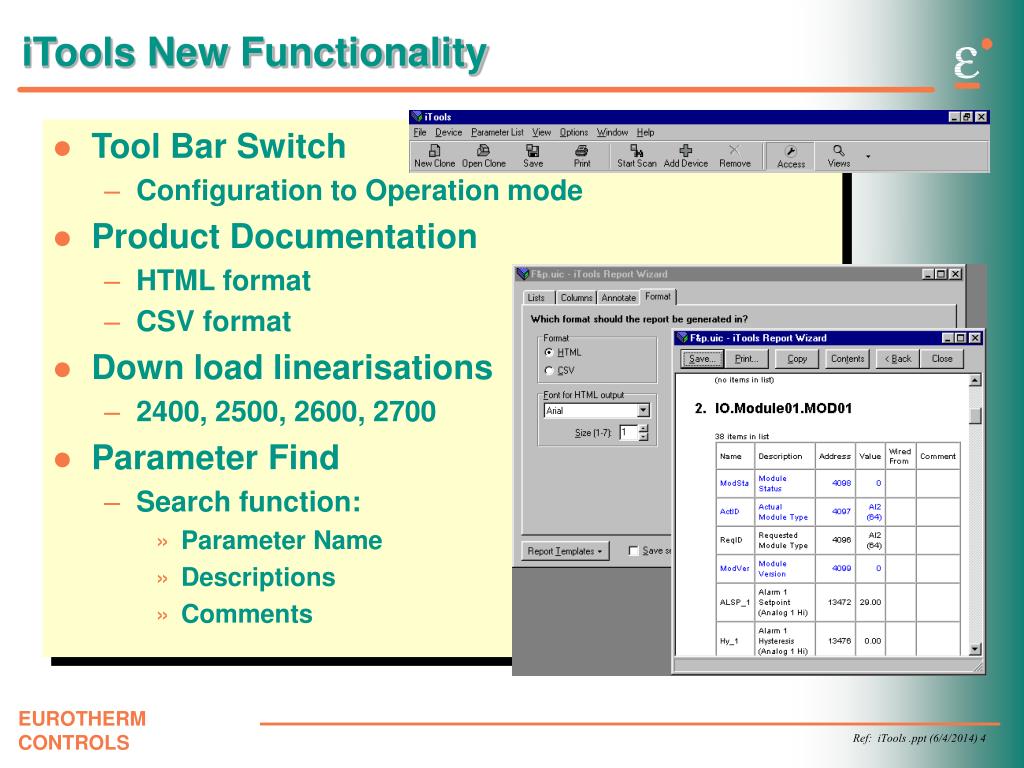

  4. iTools New Functionality • Tool Bar Switch • Configuration to Operation mode • Product Documentation • HTML format • CSV format • Down load linearisations • 2400, 2500, 2600, 2700 • Parameter Find • Search function: • Parameter Name • Descriptions • Comments

  5. Programming Tools - iTools • Set-point Programme Editor • Setpoint Program Editor supports 2400 and T2900 • Separate application • Ships with iTools

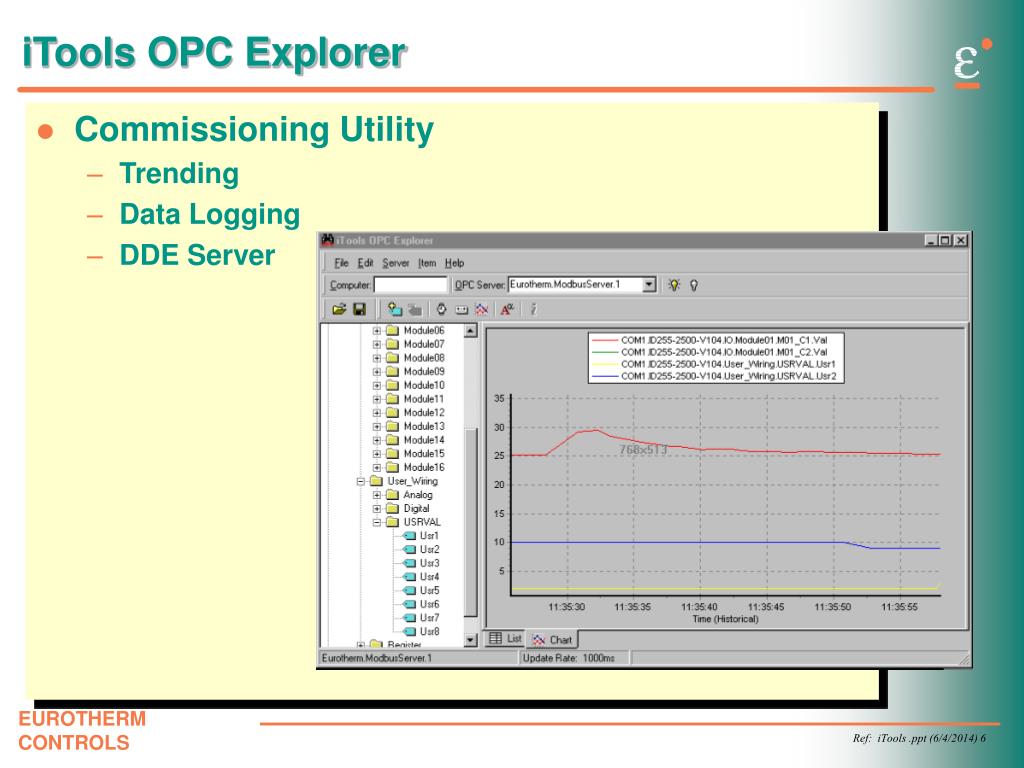

  6. iTools OPC Explorer • Commissioning Utility • Trending • Data Logging • DDE Server

  7. iTools - Access • Three Levels of Access • Demo • Runs for 30 minutes • All features except file upload and download • Standard • All features except open access to OPC • Open • All Features • Demo version and upgrades downloadable from WEB site • Security with software key.

  8. Running iTools • Minimum specification: • Windows 95 - 486 DX/2 66MHz, 16Mb RAM • Windows NT 4 - Pentium 90MHz, 24Mb RAM • Recommended - Pentium 133MHz, 32Mb RAM • Does not run on Windows 3.x • Supplied on 7 floppy disks • 5 disks for iTools • 2 disks for Setpoint Program Editor • Available on CD-ROM • Also included with Eurotherm Project Studio 99
