  1. Unyi Gábor Comfort-Netshare Kft. 1139 Budapest, Teve u. 41. Comfort@comfort.hu http:www.comfort.hu Tel: 239-5373, Fax: 239-5374 Patton Smartnode VoIP eszközök használata

  2. ISDN Fallback VoIP Access Internet Access SmartNode™ 1200 / 4552 Typical Installation Example of an Installation with a DSL Access ISDN NT ISDN S/T ADSL Annex B Copper Splitter DSL Modem Ethernet 10bT

  3. Data Network SmartNode™ 1400 Typical Installation Example of an Installation for PBX Networking with 4 simultaneous VoIP calls Site A Site B PSTN 2 x ISDN S/T DSL Modem VoIP Network

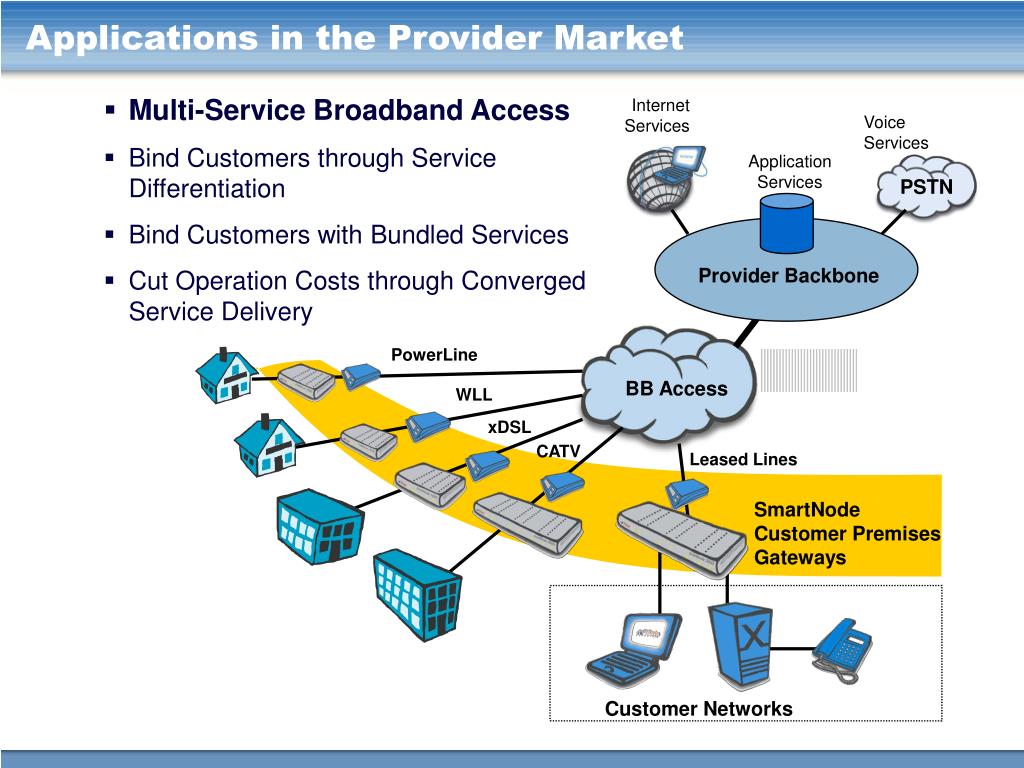

  4. Applications in the Provider Market Internet Services Voice Services • Multi-Service Broadband Access • Bind Customers through Service Differentiation • Bind Customers with Bundled Services • Cut Operation Costs through Converged Service Delivery Application Services PSTN Provider Backbone PowerLine BBAccess WLL xDSL CATV Leased Lines SmartNode Customer Premises Gateways Customer Networks

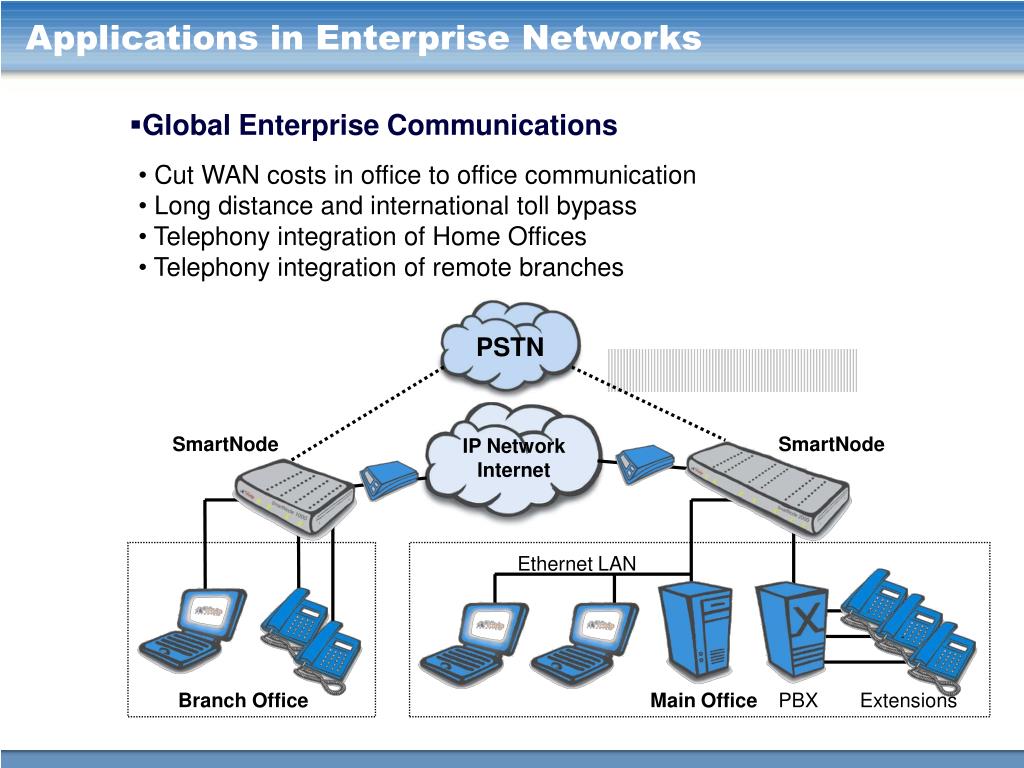

  5. Applications in Enterprise Networks • Global Enterprise Communications • Cut WAN costs in office to office communication • Long distance and international toll bypass • Telephony integration of Home Offices • Telephony integration of remote branches PSTN SmartNode SmartNode IP Network Internet Ethernet LAN Branch Office Main Office PBX Extensions

  6. PBX Networking Installation (1) Site B Site A 2 x BRI 2 x BRI TVA PBX PSTN 4 x BRI 4 x BRI 100bTX X.21 X.21 leased line • Equipment • SmartNode 2300 with 2 x IC-4BRV • SmartNode is used as Gateway, Router and Switch • 100bT LAN • Serial WAN

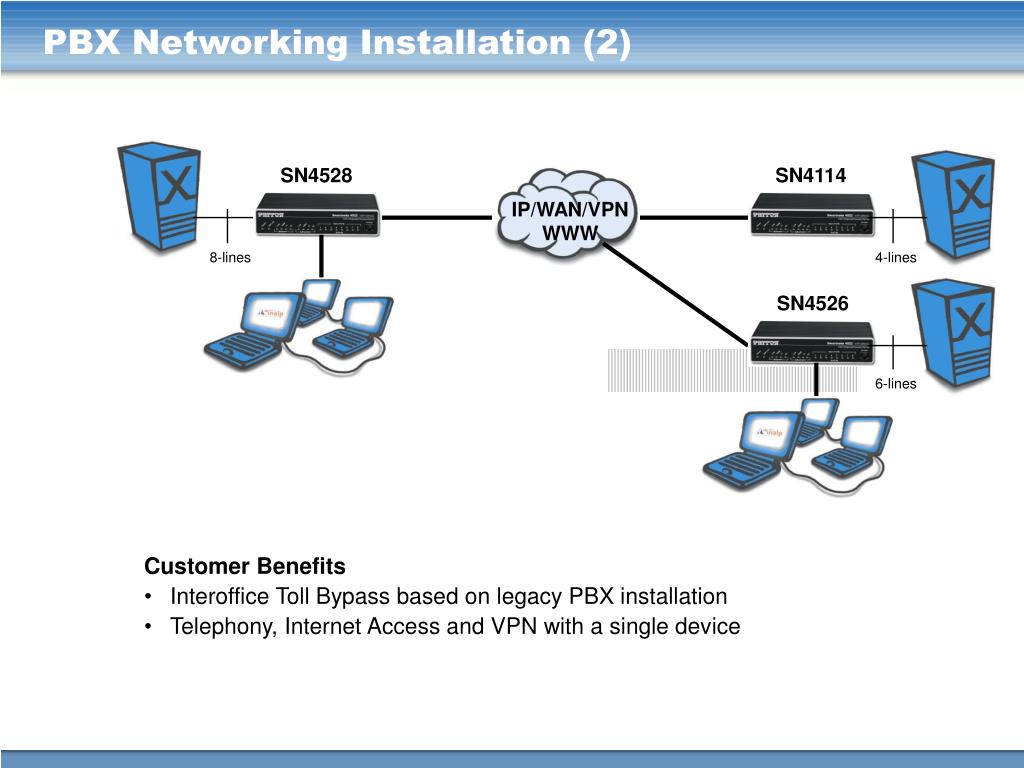

  7. PBX Networking Installation (2) SN4528 SN4114 IP/WAN/VPN WWW 8-lines 4-lines SN4526 6-lines • Customer Benefits • Interoffice Toll Bypass based on legacy PBX installation • Telephony, Internet Access and VPN with a single device

  8. PLAR – Private Line / Hot line IP/WAN/VPN WWW SN4114 SN4114 • Customer Benefits • Toll free hotline service over existing Data network Infrastructure • Connectivity on any IP network

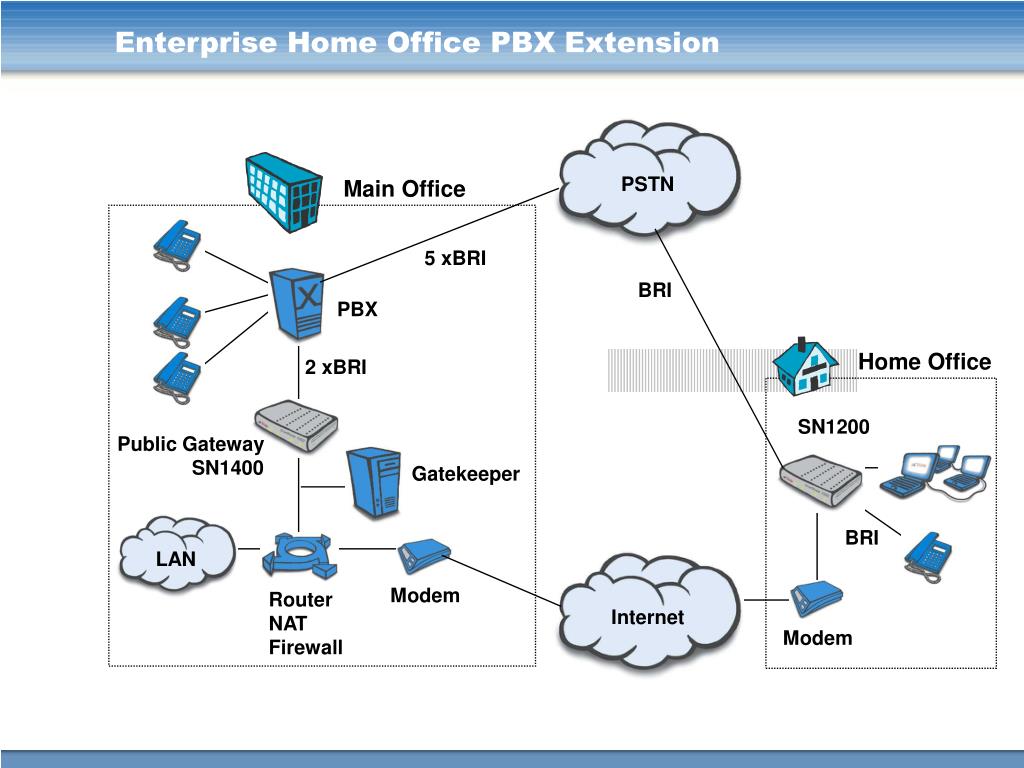

  9. Enterprise Home Office PBX Extension PSTN Main Office 5 xBRI BRI PBX Home Office 2 xBRI SN1200 Public Gateway SN1400 Gatekeeper BRI LAN Modem Router NAT Firewall Internet Modem

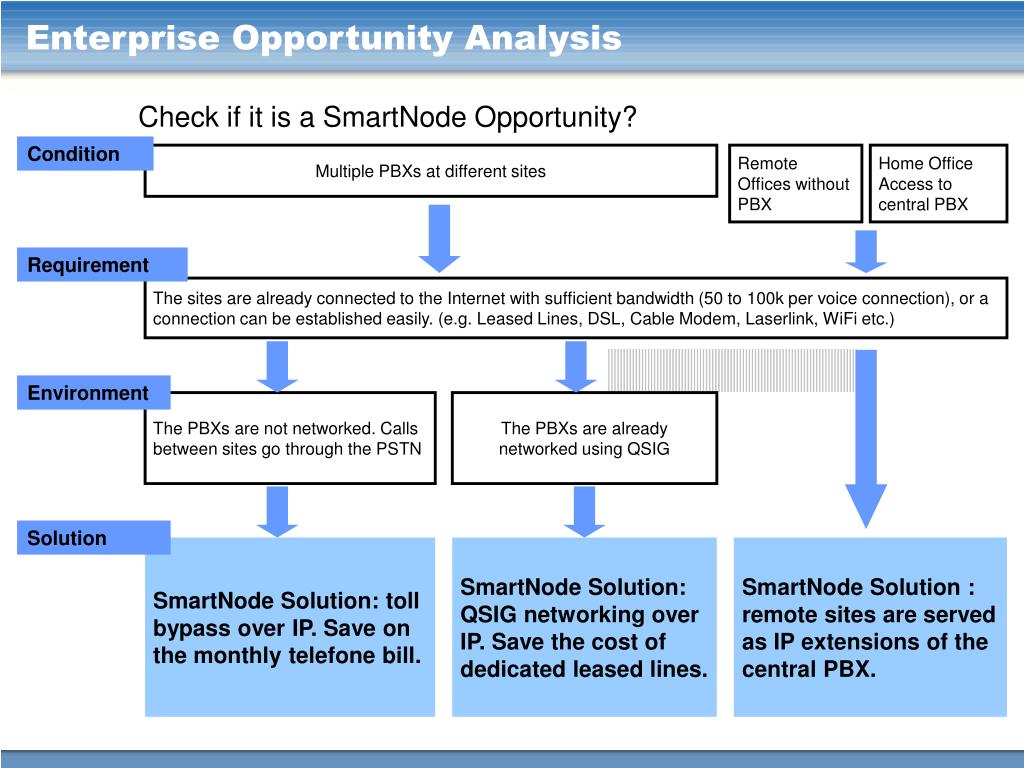

  10. Enterprise Opportunity Analysis Check if it is a SmartNode Opportunity? Condition Multiple PBXs at different sites Remote Offices without PBX Home Office Access to central PBX Requirement The sites are already connected to the Internet with sufficient bandwidth (50 to 100k per voice connection), or a connection can be established easily. (e.g. Leased Lines, DSL, Cable Modem, Laserlink, WiFi etc.) Environment The PBXs are not networked. Calls between sites go through the PSTN The PBXs are already networked using QSIG Solution SmartNode Solution: toll bypass over IP. Save on the monthly telefone bill. SmartNode Solution: QSIG networking over IP. Save the cost of dedicated leased lines. SmartNode Solution : remote sites are served as IP extensions of the central PBX.

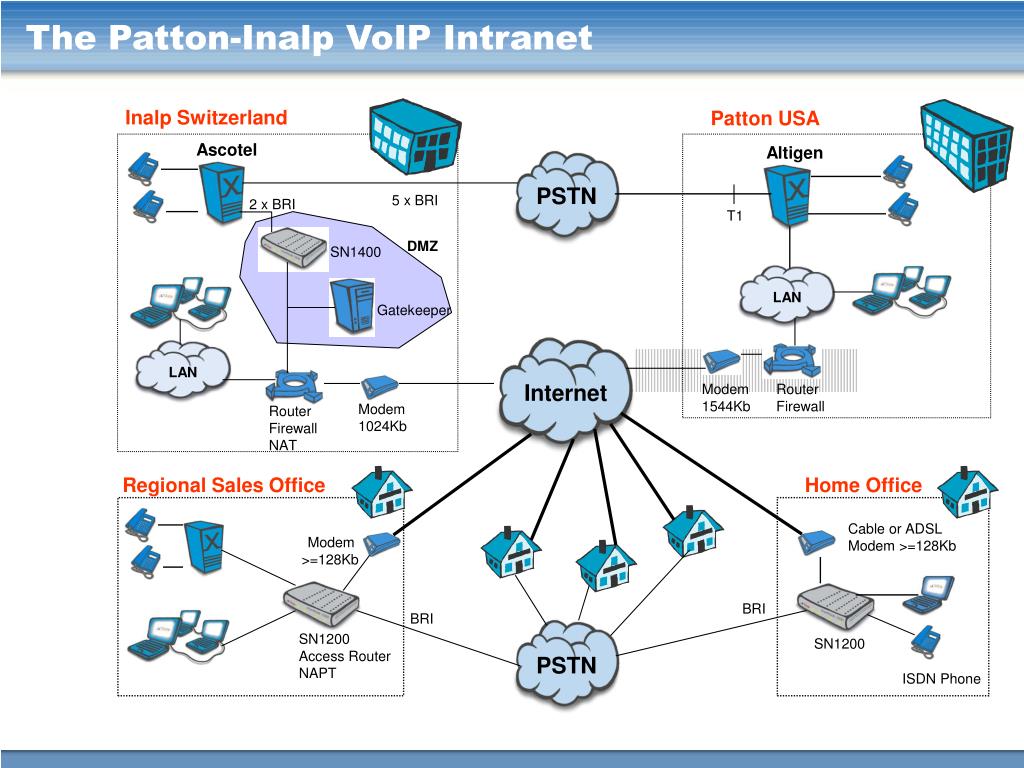

  11. Inalp Switzerland Patton USA Ascotel Altigen PSTN 5 x BRI 2 x BRI T1 DMZ SN1400 LAN Gatekeeper LAN Internet Modem 1544Kb Router Firewall Modem 1024Kb Router Firewall NAT Regional Sales Office Home Office Cable or ADSL Modem >=128Kb Modem >=128Kb BRI BRI SN1200 Access Router NAPT SN1200 PSTN ISDN Phone The Patton-Inalp VoIP Intranet

  12. Lacasa: Spain and Latin America

  13. BerliKomm City Carrier Germany Central Office BerliKomm Intranet eth SN 2300 Class 5 Switch E1/PRI Ethernet Switch & E1 NTs / Bridges 21xE1 BerliKomm Backbone SDH SDH 21 Backbone Sites . . . E1 NT/ Bridge SN 1400 eth E1 PC on Intranet ISDN Phones eth S0- Bus for Facility Supervision

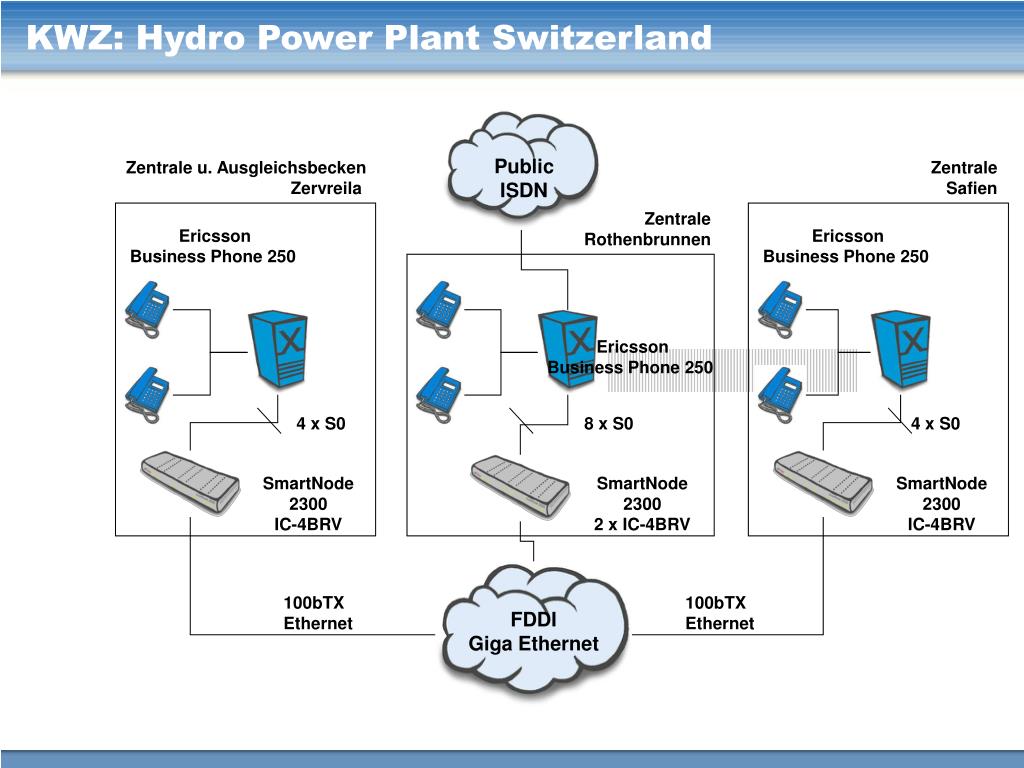

  14. FDDI Giga Ethernet Public ISDN KWZ: Hydro Power Plant Switzerland Zentrale u. Ausgleichsbecken Zervreila Zentrale Safien Zentrale Rothenbrunnen Ericsson Business Phone 250 Ericsson Business Phone 250 Ericsson Business Phone 250 4 x S0 8 x S0 4 x S0 SmartNode 2300 IC-4BRV SmartNode 2300 2 x IC-4BRV SmartNode 2300 IC-4BRV 100bTX Ethernet 100bTX Ethernet

  15. Parex Bank: Baltic States Branch in Lettland Main Office hiCom 150 Meridian M1 PSTN n x PRI 1 x BRI 4 x BRI SN1200 IP WAN LAN Russia Litauen Foreign Branches

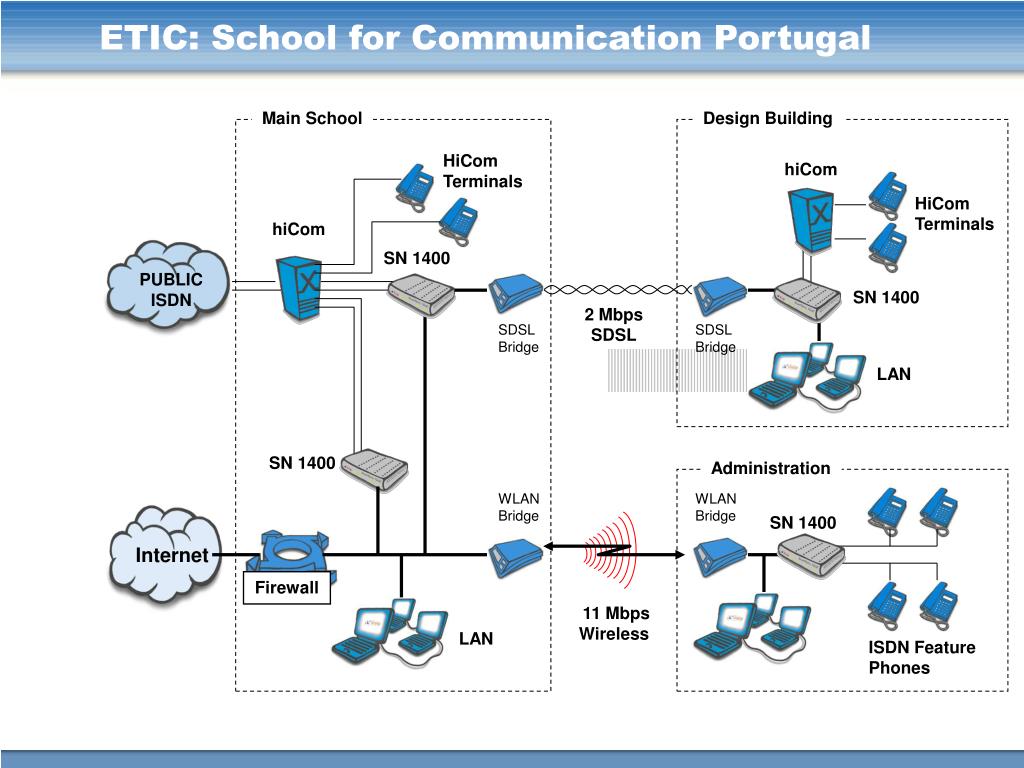

  16. ETIC: School for Communication Portugal Main School Design Building HiCom Terminals hiCom HiCom Terminals hiCom SN 1400 PUBLIC ISDN SN 1400 2 Mbps SDSL SDSL Bridge SDSL Bridge LAN SN 1400 Administration WLAN Bridge WLAN Bridge SN 1400 Internet Firewall 11 Mbps Wireless LAN ISDN Feature Phones

  17. THANK YOU VERY MUCH
