  1. Week 9 - Friday CS361

  2. Last time • What did we talk about last time? • Area lighting • Environment mapping • Blinn and Newell's method • Sphere mapping • Cubic environmental mapping

  3. Questions?

  4. Project 3

  5. Assignment 4

  6. XNA Skyboxes and Environment Mapping

  7. Student Lecture:Global Illumination

  8. Global Illumination

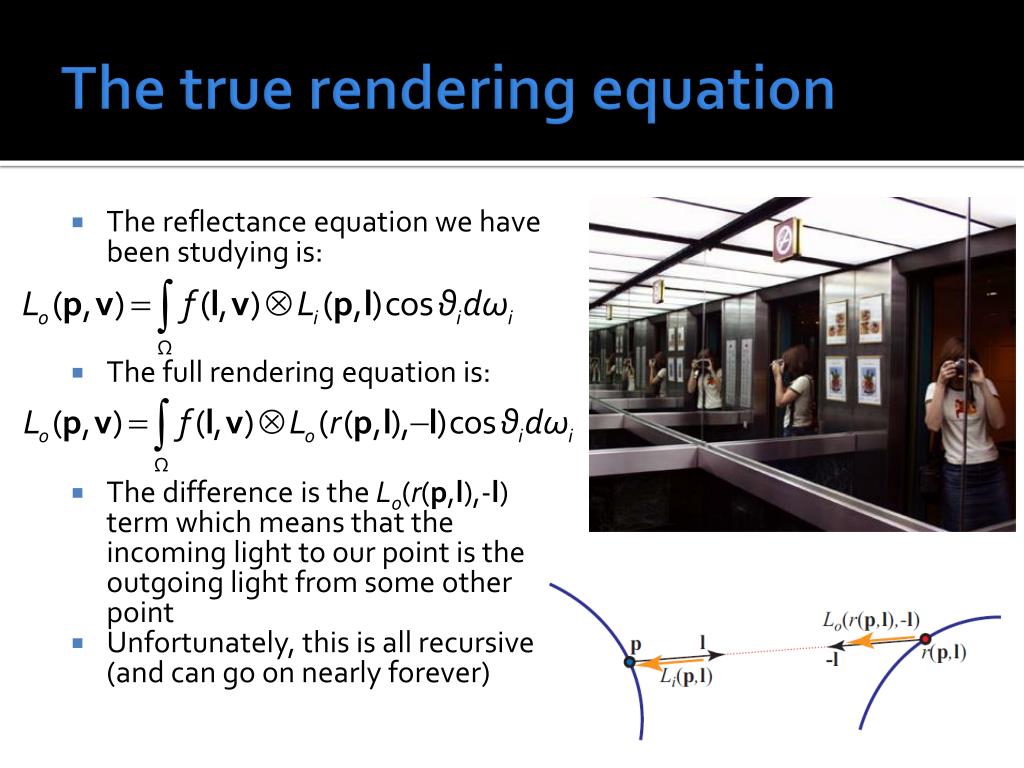

  9. The true rendering equation • The reflectance equation we have been studying is: • The full rendering equation is: • The difference is the Lo(r(p,l),-l) term which means that the incoming light to our point is the outgoing light from some other point • Unfortunately, this is all recursive (and can go on nearly forever)

  10. Local lighting • Real-time rendering uses local (non-recursive) lighting whenever possible • Global illumination causes all of our problems (unbounded object-object interaction) • Transparency • Reflections • Shadows

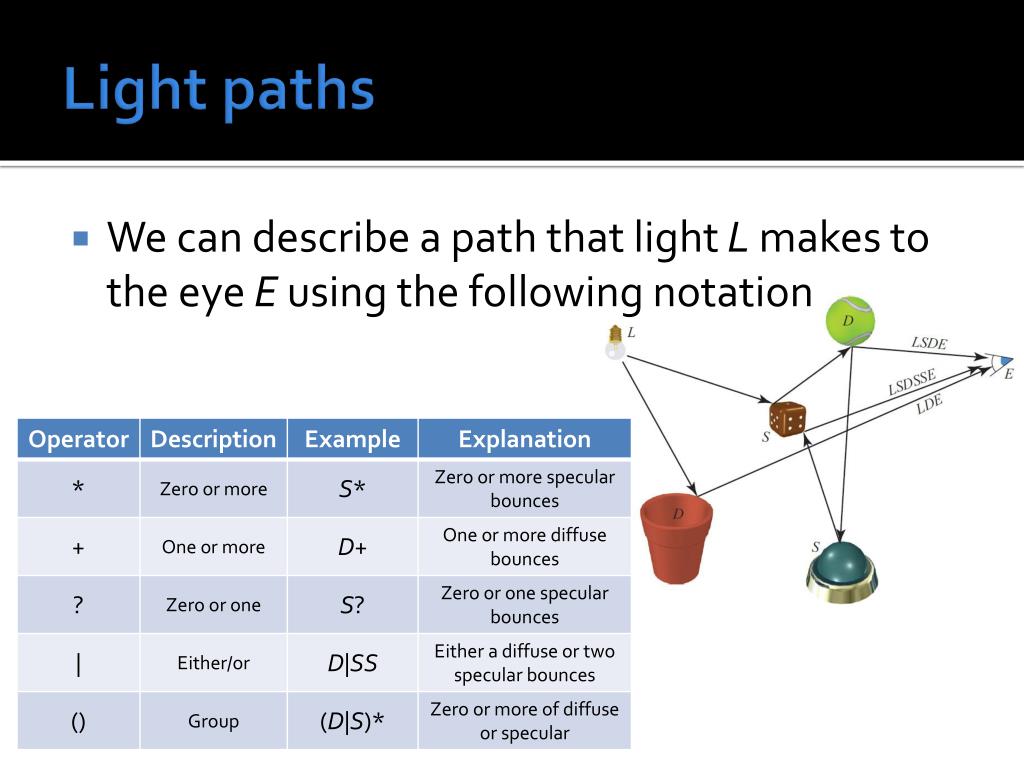

  11. Light paths • We can describe a path that light L makes to the eye E using the following notation

  12. Shadows

  13. Which ball is closer?

  14. The blue one!

  15. No, wait…

  16. Shadows • Shadow terminology: • Occluder: object that blocks the light • Receiver: object the shadow is cast onto • Point lights cast hard shadows (regions are completely shadows or not) • Area lights cast soft shadows • Umbra is the fully shadowed part • Penumbra is the partially shadowed part

  17. Projection shadows • A planar shadow occurs when an object casts a shadow on a flat surface • Projection shadows are a technique for making planar shadows: • Render the object normally • Project the entire object onto the surface • Render the object a second time with all its polygons set to black • The book gives the projection matrix for arbitrary planes

  18. Problems with projection shadows • We need to bias (offset) the plane just a little bit • Otherwise, we get z fighting and the shadows can be below the surface • Shadows can be draw larger than the plane • The stencil buffer can be used to fix this • Only opaque shadows work • Partially transparent shadows will make some parts too dark • Z-buffer and stencil buffer tricks can help with this too Hard to see example from Shogo: MAD

  19. Other projection shadow issues • Another fix for projection shadows is rendering them to a texture, then rendering the texture • Effects like blurring the texture can soften shadows softer • If the light source is between the occluder and the receiver, an antishadow is generated

  20. Soft shadows • True soft shadows occur due to area lights • We can simulate area lights with a number of point lights • For each point light, we draw a shadow in an accumulation buffer • We use the accumulation buffer as a texture drawn on the surface • Alternatively, we can move the receiver up and down slightly and average those results • Both methods can require many passes to get good results

  21. Convolution (blurring) • You can just blur based on the amount of distance from the occluder to the receiver • It doesn't always look right if the occluder touches the receiver • Haines's method is to paint the silhouette of the hard shadow with gradients • The width is proportional to the height of the silhouette edge casting the shadow

  22. Upcoming

  23. Next time… • More on shadows • Ambient occlusion

  24. Reminders • Keep working on Project 3 • Get to work on Assignment 4! • Keep reading Chapter 9
