  1. Playing with features forlearning and prediction Jongmin Kim Seoul National University

  2. Problem statement • Predicting outcome of surgery

  3. Predicting outcome of surgery • Ideal approach surgery Training Data . . . . ? Predicting outcome

  4. Predicting outcome of surgery • Initial approach • Predicting partial features • Predict witch features?

  5. Predicting outcome of surgery • 4 Surgery • DHL+RFT+TAL+FDO flexion of the knee ( min / max ) rotation of the foot ( min / max ) dorsiflexion of the ankle ( min )

  6. Predicting outcome of surgery • Is it good features? • Number of Training data • DHL+RFT+TAL : 35 data • FDO+DHL+TAL+RFT : 33 data

  7. Machine learning and feature Data Feature representation Learning algorithm Feature representation Learning algorithm

  8. Features in motion • Joint position / angle • Velocity / acceleration • Distance between body parts • Contact status • …

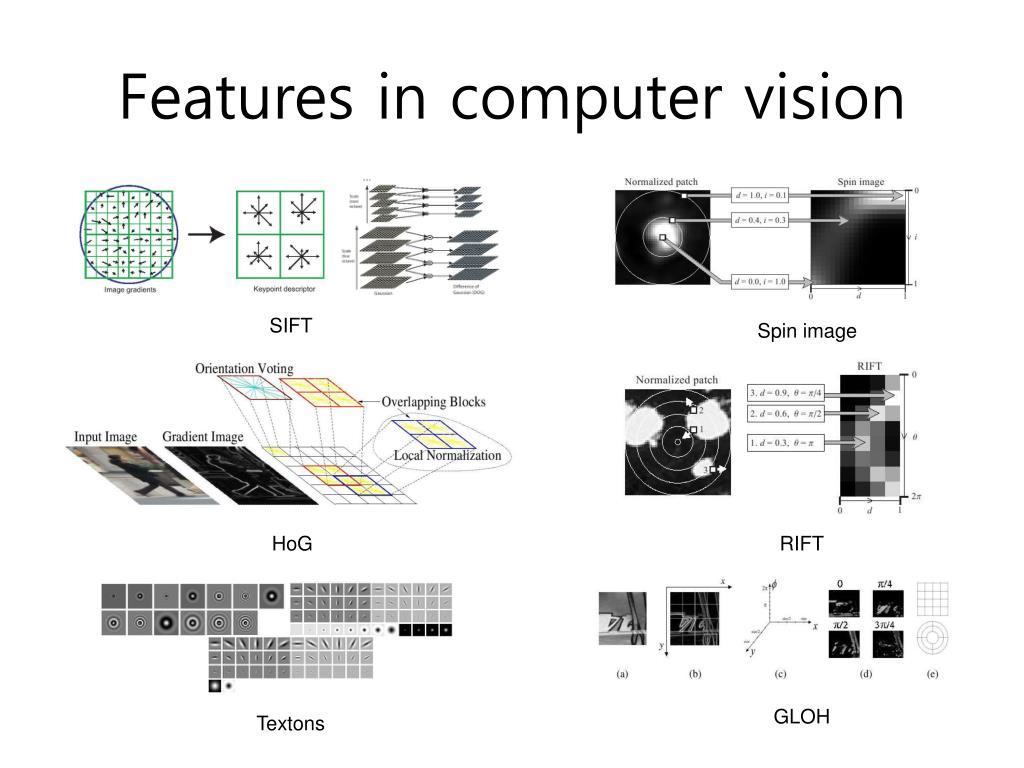

  9. Features in computer vision SIFT Spin image HoG RIFT GLOH Textons

  10. Machine learning and feature

  11. Outline • Feature selection • - Feature ranking • - Subset selection: wrapper, filter, embedded • - Recursive Feature Elimination • - Combination of weak prior (Boosting) • - ADAboosting(clsf) / joint boosting (clsf)/ Gradientboost (regression) • Prediction result with feature selection • Feature learning?

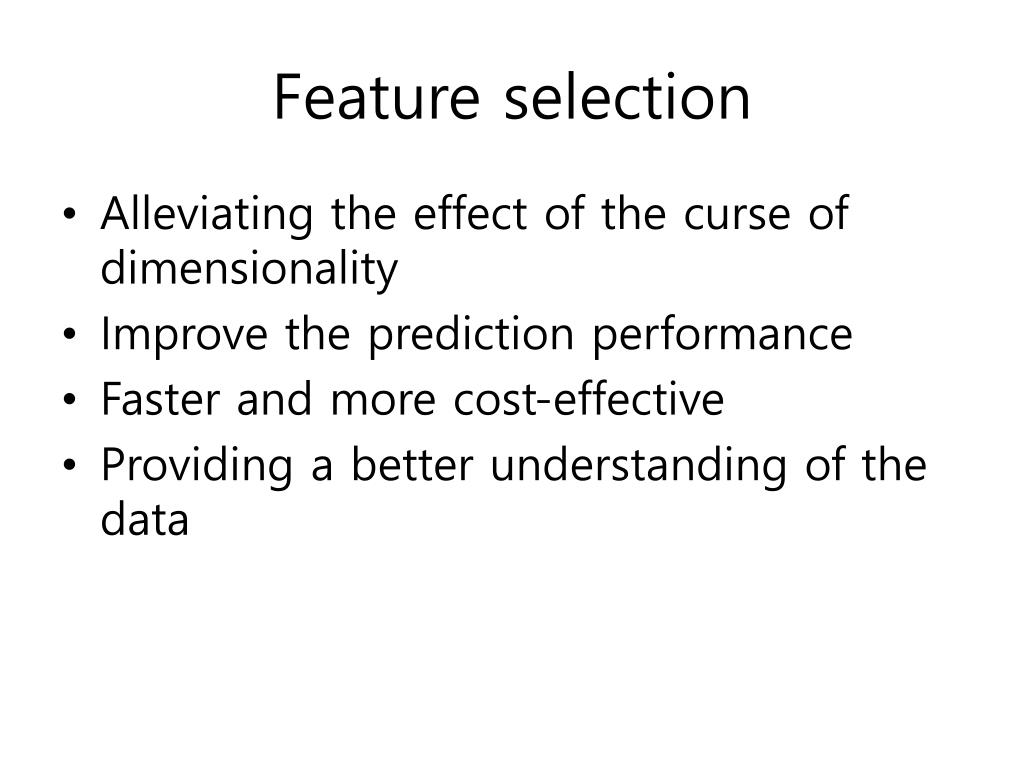

  12. Feature selection • Alleviating the effect of the curse of dimensionality • Improve the prediction performance • Faster and more cost-effective • Providing a better understanding of the data

  13. Subset selection • Wrapper • Filter • Embedded

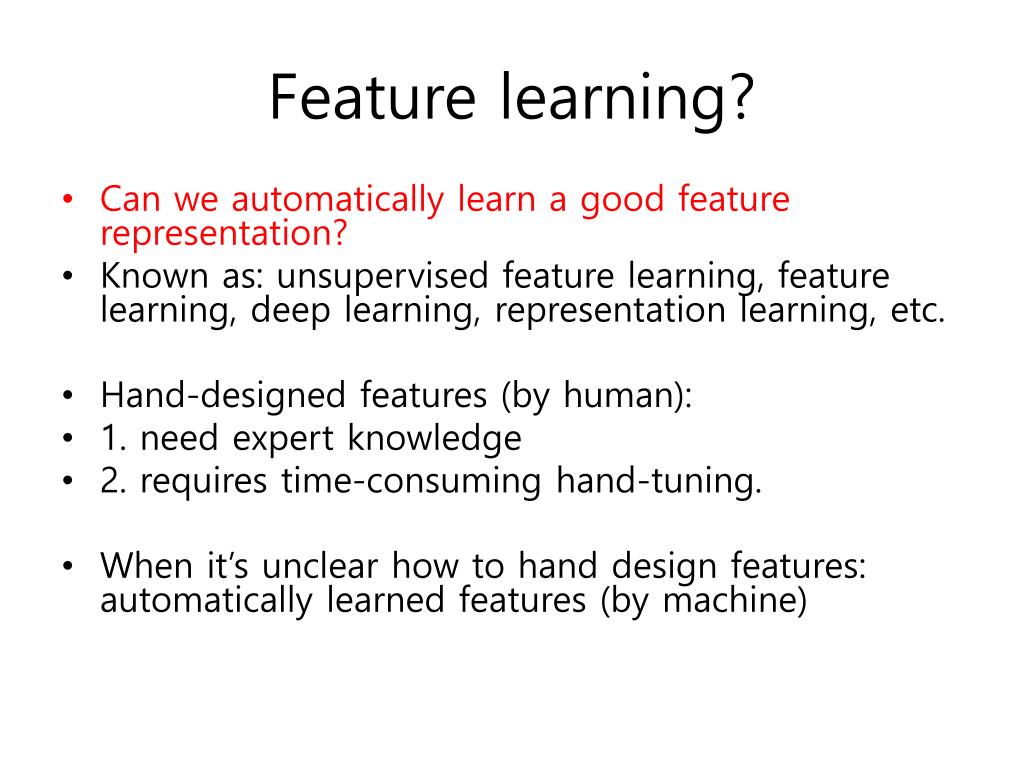

  14. Feature learning? • Can we automatically learn a good feature representation? • Known as: unsupervised feature learning, feature learning, deep learning, representation learning, etc. • Hand-designed features (by human): • 1. need expert knowledge • 2. requires time-consuming hand-tuning. • When it’s unclear how to hand design features: automatically learned features (by machine)

  15. Learning Feature Representations • Key idea: • –Learn statistical structure or correlation of the data from unlabeled data • –The learned representations can be used as features in supervised and semi-supervised settings

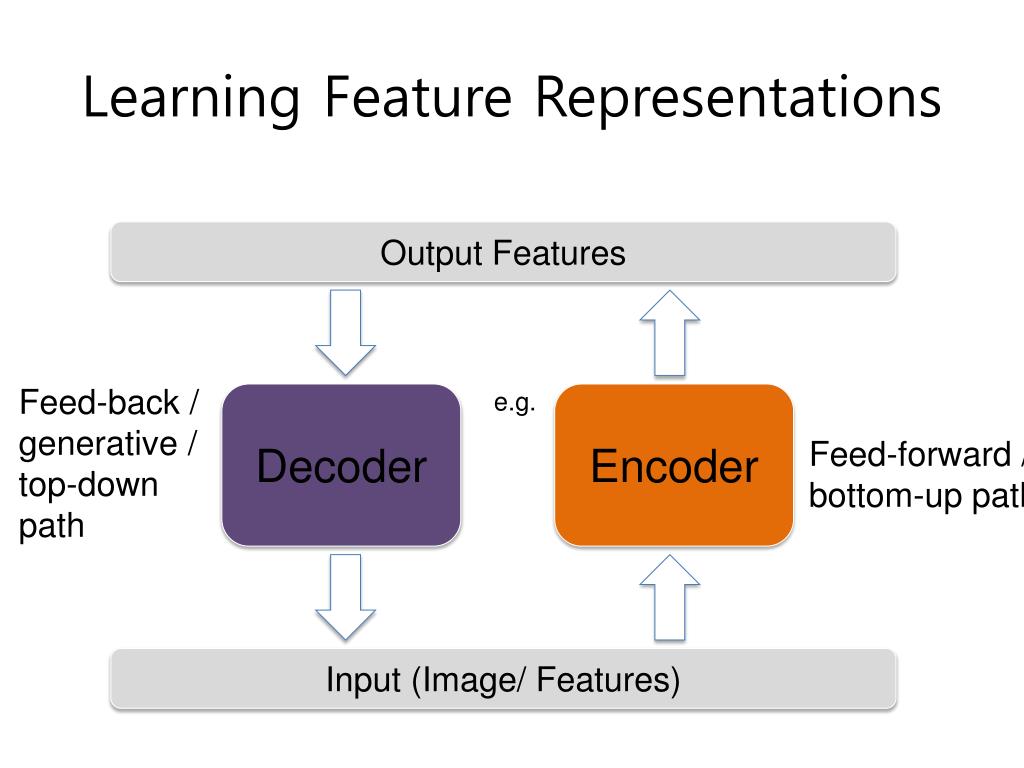

  16. Learning Feature Representations Output Features Feed-back /generative /top-down path e.g. Decoder Encoder Feed-forward /bottom-up path Input (Image/ Features)

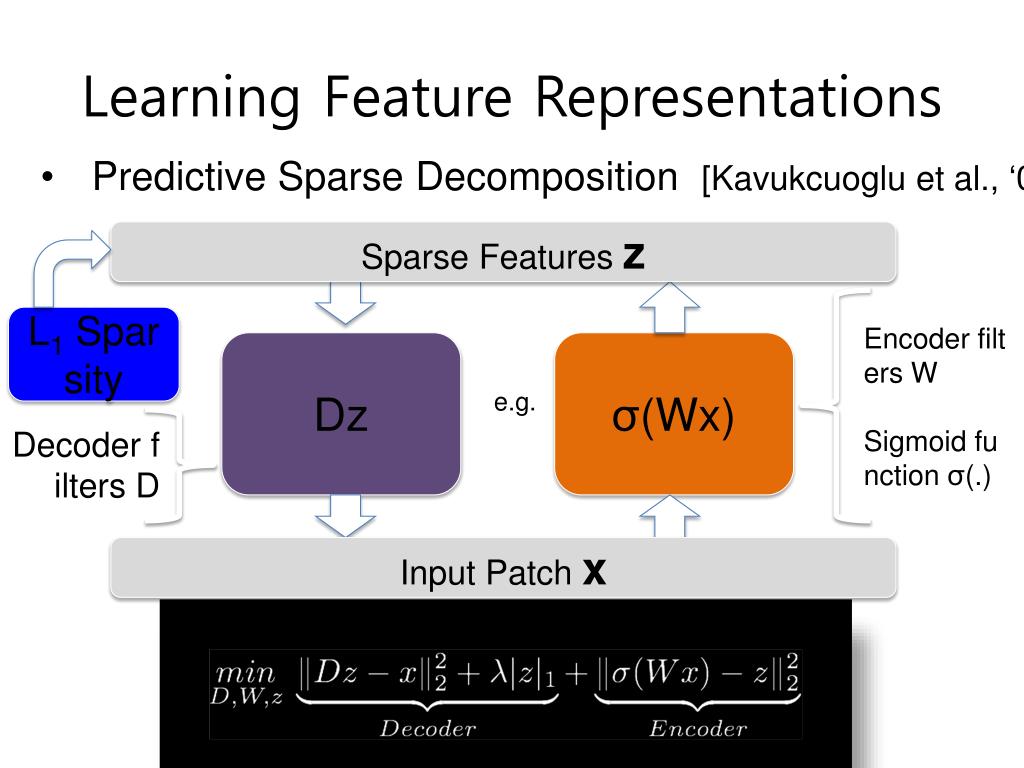

  17. Learning Feature Representations • Predictive Sparse Decomposition [Kavukcuoglu et al., ‘09] Sparse Features z L1Sparsity Encoder filters W Sigmoid function σ(.) Dz σ(Wx) e.g. Decoder filters D Input Patch x

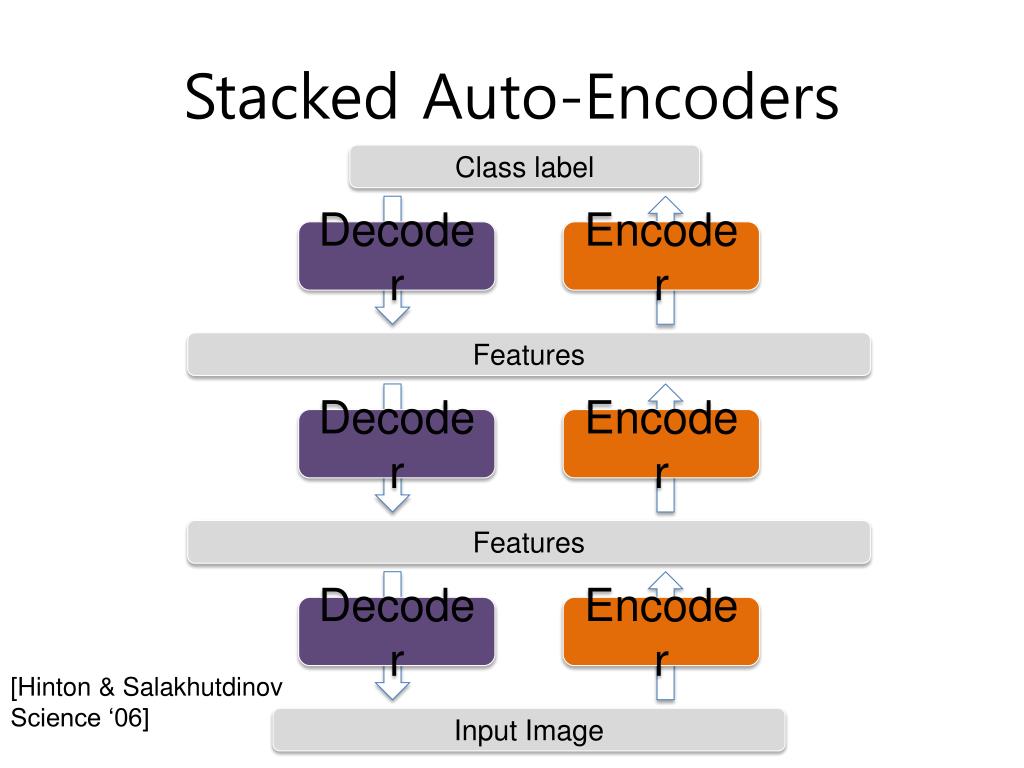

  18. Stacked Auto-Encoders Class label Decoder Encoder Features Decoder Encoder Features Decoder Encoder [Hinton & SalakhutdinovScience ‘06] Input Image

  19. At Test Time Class label • Remove decoders • Use feed-forward path • Gives standard(Convolutional)Neural Network • Can fine-tune with backprop Encoder Features Encoder Features Encoder [Hinton & SalakhutdinovScience ‘06] Input Image

  20. Status & plan • Data 파악 / learning technique survey… • Plan : 11월 실험 끝 • 12월 논문 writing • 1월 시그랩submit • 8월에 미국에서 발표 • But before all of that….

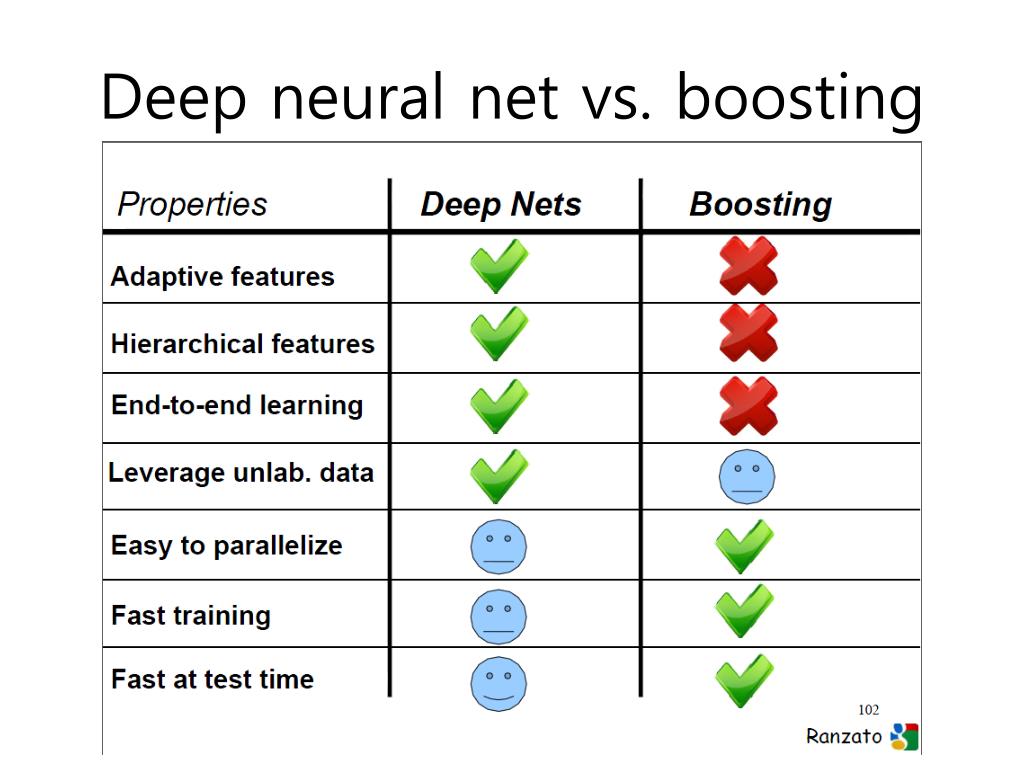

  21. Deep neural net vs. boosting • Deep Nets: • - single highly non-linear system • - “deep” stack of simpler modules • - all parameters are subject to learning • Boosting & Forests: • - sequence of “weak” (simple) classifiers that are linearly combined to produce a powerful classifier • - subsequent classifiers do not exploit representations of earlier classifiers, it's a “shallow” linear mixture • - typically features are not learned

  22. Deep neural net vs. boosting
