  1. Module2: Configuring Windows CE

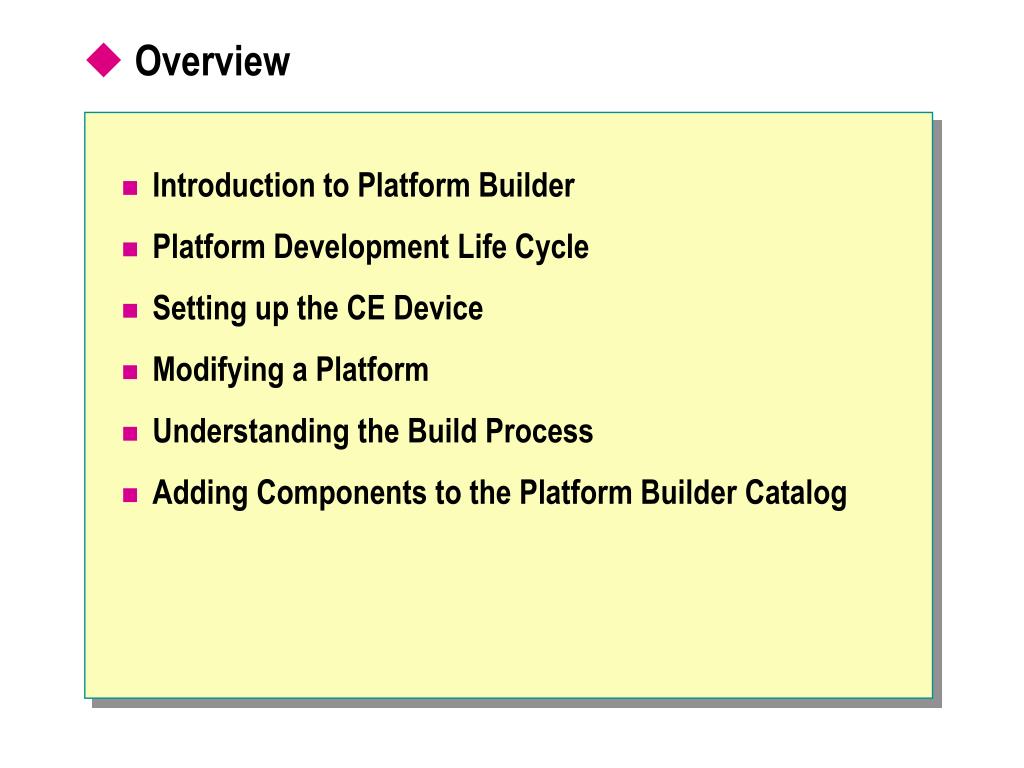

  2. Overview • Introduction to Platform Builder • Platform Development Life Cycle • Setting up the CE Device • Modifying a Platform • Understanding the Build Process • Adding Components to the Platform Builder Catalog

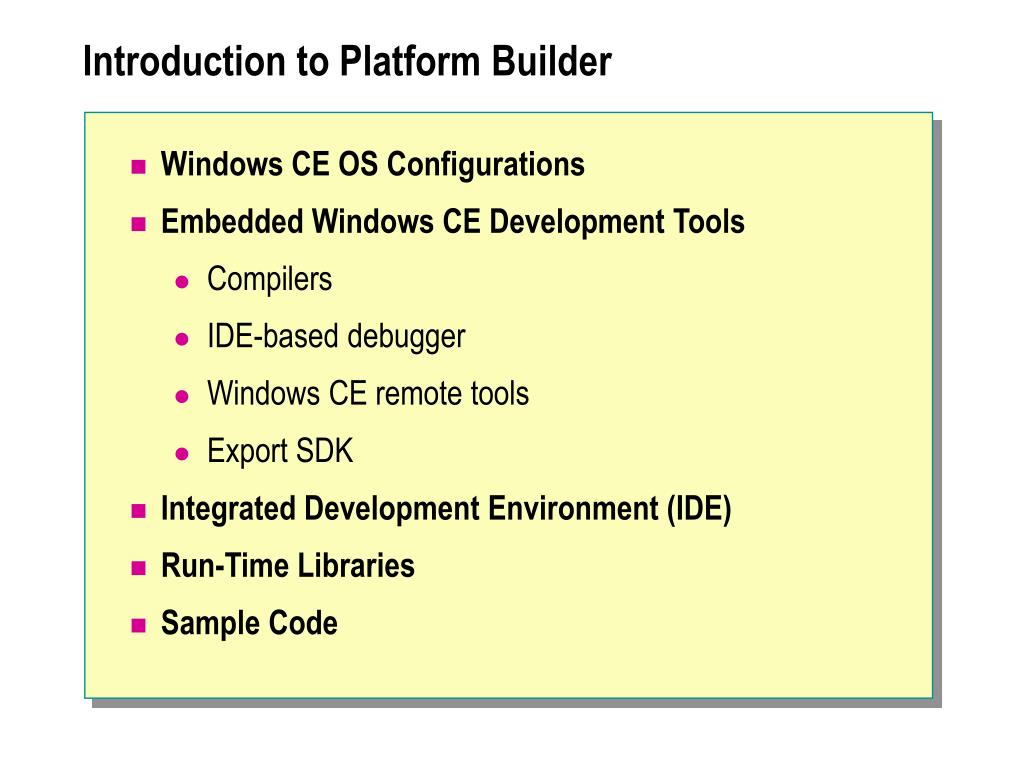

  3. Introduction to Platform Builder • Windows CE OS Configurations • Embedded Windows CE Development Tools • Compilers • IDE-based debugger • Windows CE remote tools • Export SDK • Integrated Development Environment (IDE) • Run-Time Libraries • Sample Code

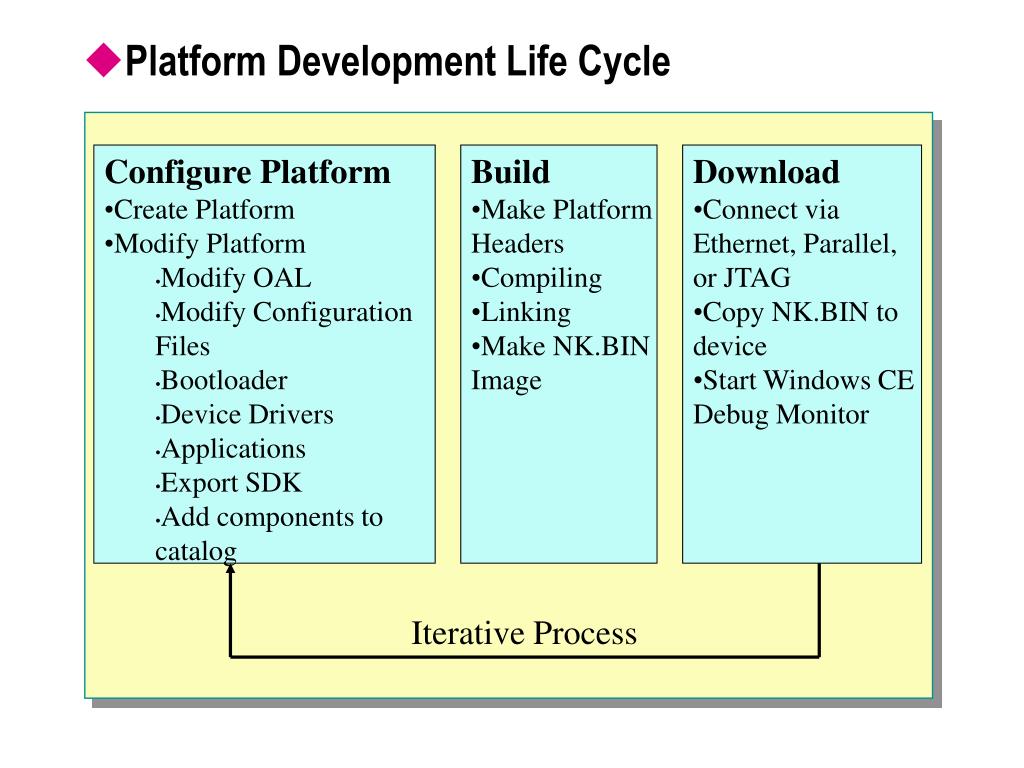

  4. Platform Development Life Cycle • Configure Platform • Create Platform • Modify Platform • Modify OAL • Modify Configuration • Files • Bootloader • Device Drivers • Applications • Export SDK • Add components to • catalog • Build • Make Platform • Headers • Compiling • Linking • Make NK.BIN • Image • Download • Connect via • Ethernet, Parallel, • or JTAG • Copy NK.BIN to • device • Start Windows CE • Debug Monitor Iterative Process

  5. Creating a Platform C B D

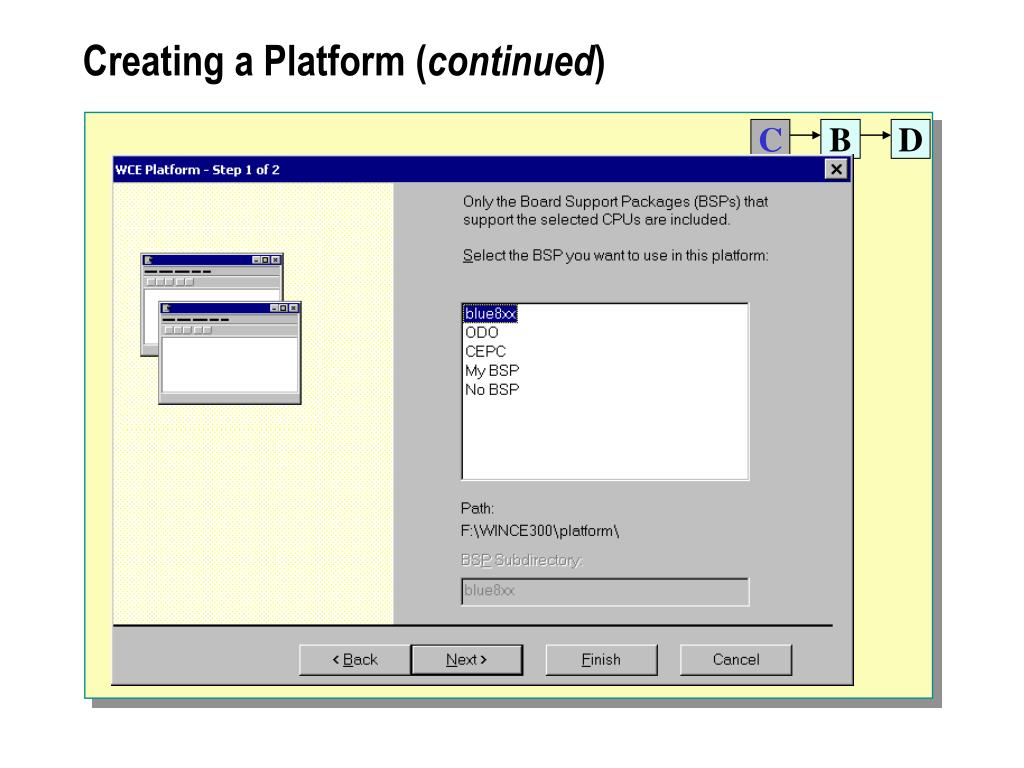

  6. Creating a Platform (continued) C B D

  7. Creating a Platform (continued) C B D

  8. Creating a Platform (continued) C B D

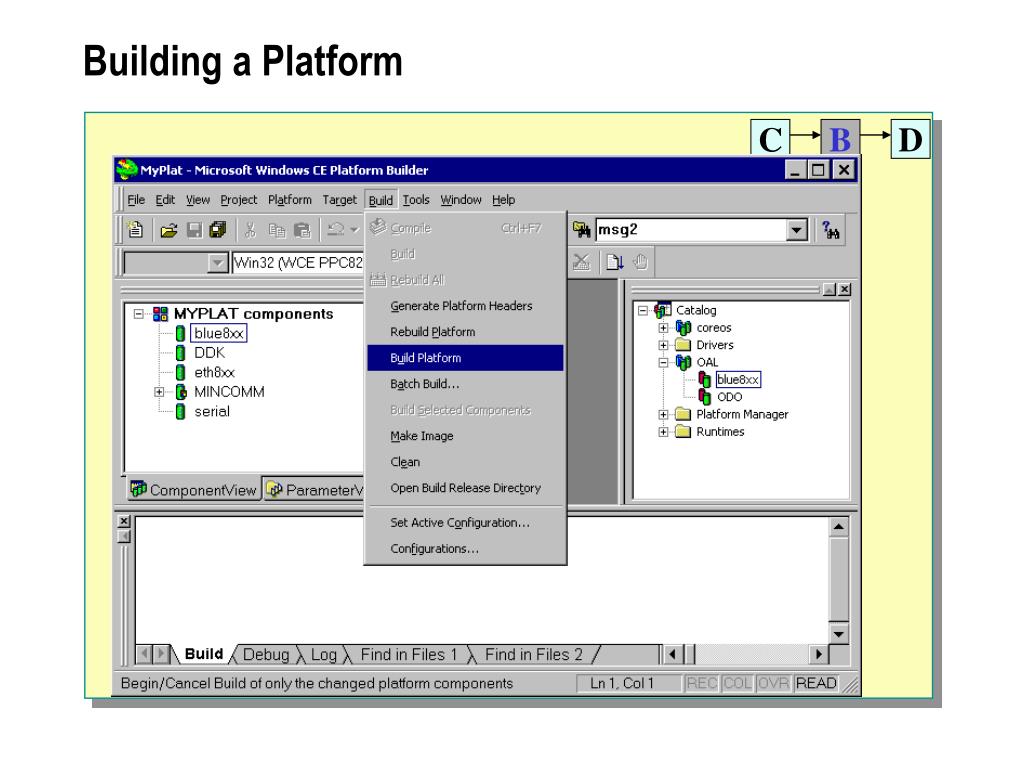

  9. C B D Building a Platform

  10. C B D Making an Image All .BIB Files CE.BIB All .REG Files REGINIT.INI FileSystem(.DAT) Files INITOBJ.DAT All Default Database (.DB) Files INITDB.INI NK.BIN Compress REGINIT.INI DEFAULT .FDF Language Strings Merge DLLs and EXEs as per CE.BIB

  11. Setting up the CE Device • Setup Device • The Board Support Package (BSP) • Set up Download Services • Ethernet Settings • BOOTME Record • Set Current Device • Download From Platform Builder to a CE Device

  12. Setup Device • Cables Connecting Dev Workstation • Download Adapter Settings • Video Adapter Settings • Device-Specific Configuration Issues

  13. The Board Support Package (BSP) • Device-Specific Files • Boot Loader • OEM Adaptation Layer (OAL) • Device Drivers • Platform Builder Includes Some BSPs • CEPC • ODO • BSP Location: • \wince300\platform

  14. Set up Download Services C B D

  15. Ethernet Settings C B D

  16. BOOTME Record C B D

  17. Set Current Device C B D

  18. Download From Platform Builder to a Windows CE Device C B D

  19. Demonstration: Configuration, Build and Download

  20. LabA: Configuring, Building and Downloading Windows CE

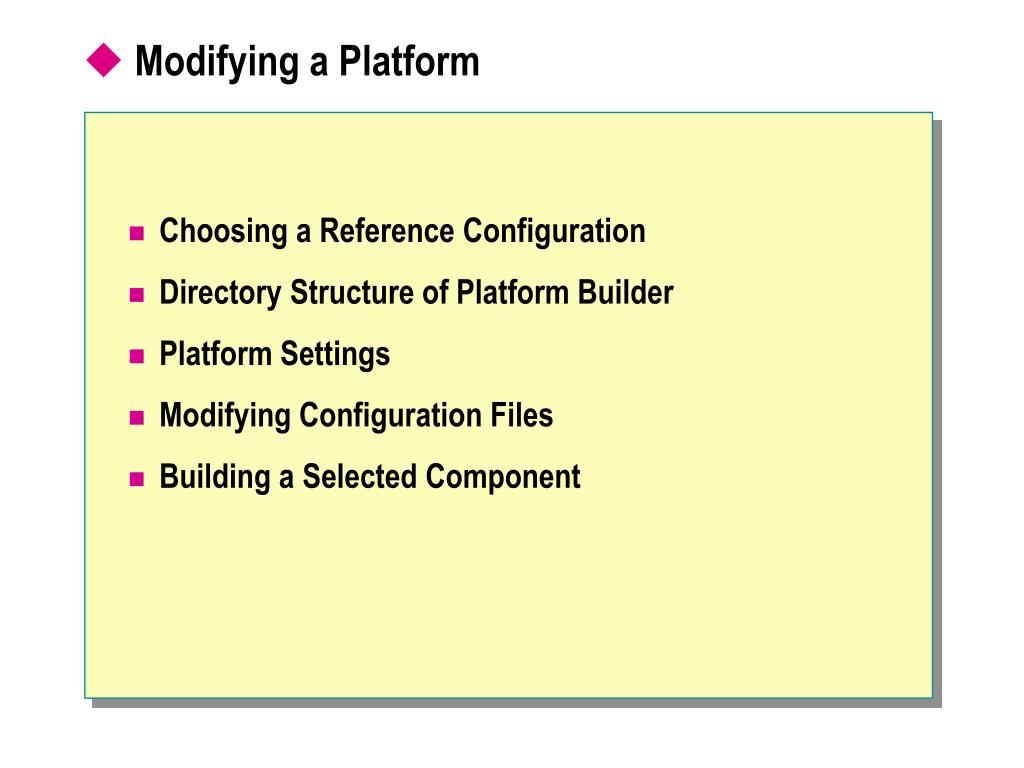

  21. Modifying a Platform • Choosing a Reference Configuration • Directory Structure of Platform Builder • Platform Settings • Modifying Configuration Files • Building a Selected Component

  22. Choosing a Reference Configuration • Microsoft provides eight reference configurations • MINKERN: Memory-minimal version of Windows CE • Memory, process, and file management • Heap and memory allocation • Registry and databases • MININPUT: Minimal version of Windows CE • User input • Native driver support (keyboard, display)

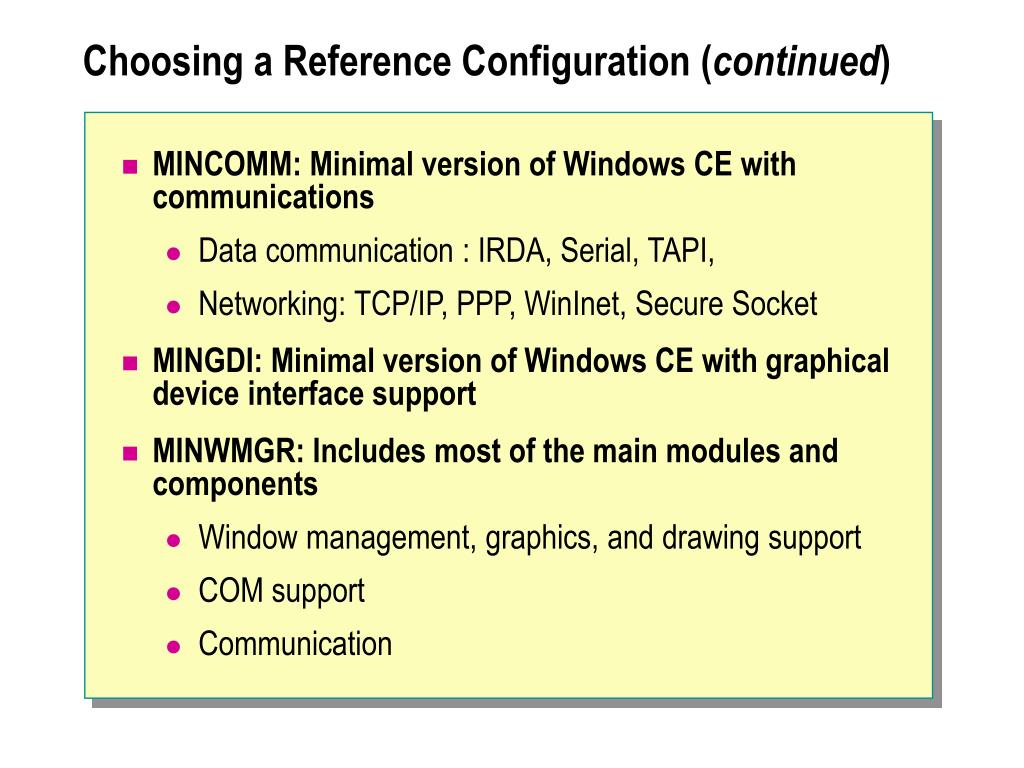

  23. Choosing a Reference Configuration (continued) • MINCOMM: Minimal version of Windows CE with communications • Data communication : IRDA, Serial, TAPI, • Networking: TCP/IP, PPP, WinInet, Secure Socket • MINGDI: Minimal version of Windows CE with graphical device interface support • MINWMGR: Includes most of the main modules and components • Window management, graphics, and drawing support • COM support • Communication

  24. Choosing a Reference Configuration (continued) • MINSHELL: Nearly complete version of Windows CE • Command processor (similar to CMD.EXE) • Task manager • MAXALL: Includes most modules and components • Microsoft Message Queue (MSMQ) • Pocket Word, Pocket Internet Explorer • IESAMPLE: Sample version with Internet Explorer 4 • MAXDX: DirectX

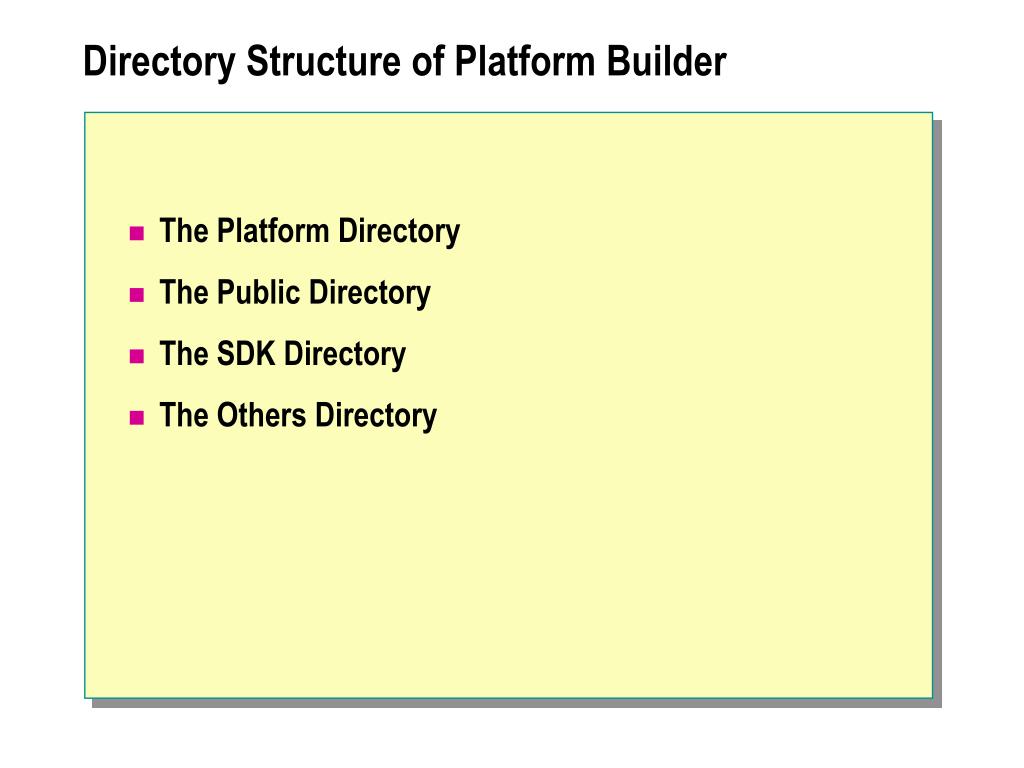

  25. Directory Structure of Platform Builder • The Platform Directory • The Public Directory • The SDK Directory • The Others Directory

  26. The Platform Directory • Hardware-specific files • Location: %_WINCEROOT%\Platform • Each directory represents a Windows CE–specific platform adaptation • CEPC for x86 reference platform • ODO for Hitachi reference platform • ODODub for ODO with dial-up boot loader • SDB8XX for Blue Planet reference platform • Place your platform-specific files in this directory

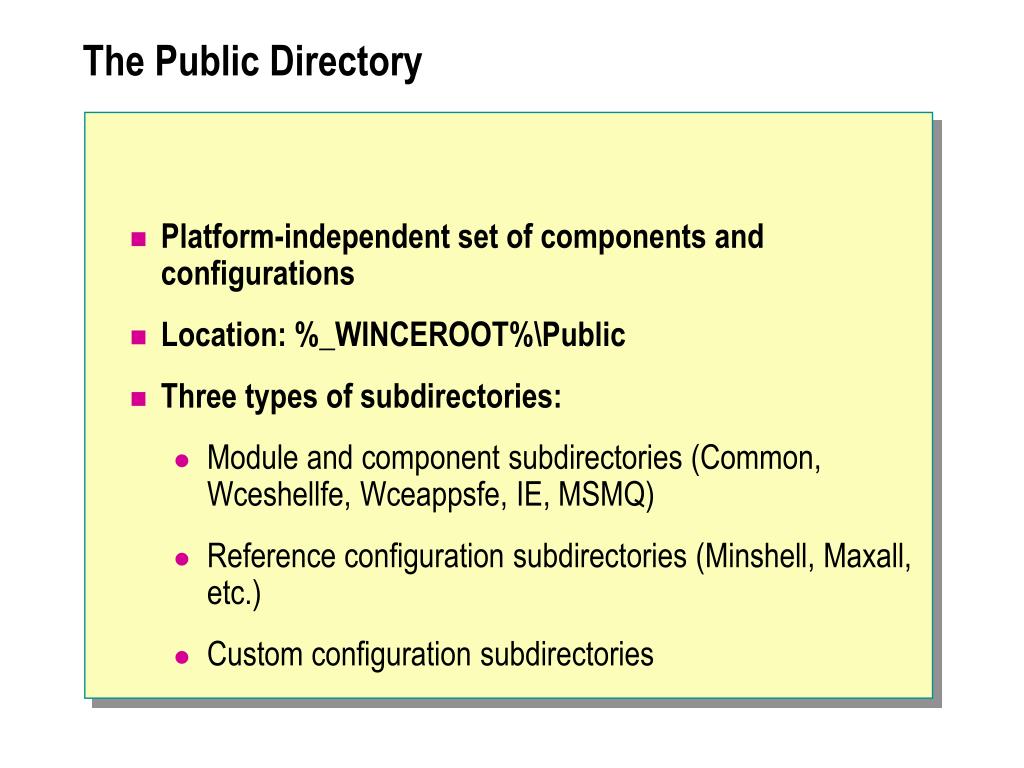

  27. The Public Directory • Platform-independent set of components and configurations • Location: %_WINCEROOT%\Public • Three types of subdirectories: • Module and component subdirectories (Common, Wceshellfe, Wceappsfe, IE, MSMQ) • Reference configuration subdirectories (Minshell, Maxall, etc.) • Custom configuration subdirectories

  28. The SDK Directory • Location: %_WINCEROOT%\SDK • Contains tools and library to support Platform Builder • Processor compilers (x86, SH3, Arm, MIPS) • Development tools • Remote tools

  29. The Others Directory • Location: %_WINCEROOT%\OTHERS • Contains: • Run-time libraries (VB, MFC, ATL) • Platform Manager component • ATL and MFC Samples • Device driver test tools

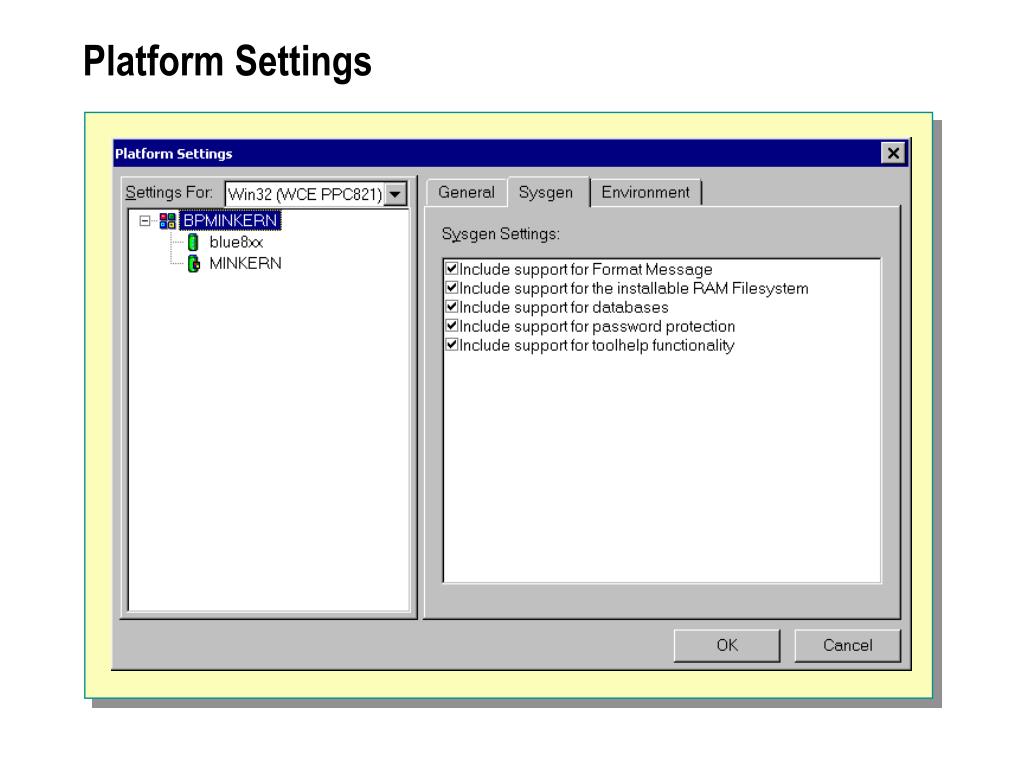

  30. Platform Settings

  31. Modifying Configuration Files • .BIB files • .REG files • .DAT files • .DB files

  32. The Configuration Files: .BIB Files • Indicate module/component to be included in the image • Text files with four types of sections: • The FILES section: Memory reservation for static data files • The MODULES section: Specifies object module to be loaded in memory ;Name Path Memory Type ----------------------------------------------------- Tahoma.ttf $(_FLATRELEASEDIR)\Tahoma.ttf NK SHU Taskman.exe $(_FLATRELEASEDIR)\Taskman.exe NK

  33. The Configuration Files: .BIB Files (continued) • The MEMORY section: Platform memory information • The CONFIG section: Define other image information (compression, ROM size) • Name Start address Size(bytes) Type • ----------------------------------------------- • NK 8C800000 00800000 RAMIMAGERAM 8C050000 007AFFFF RAM

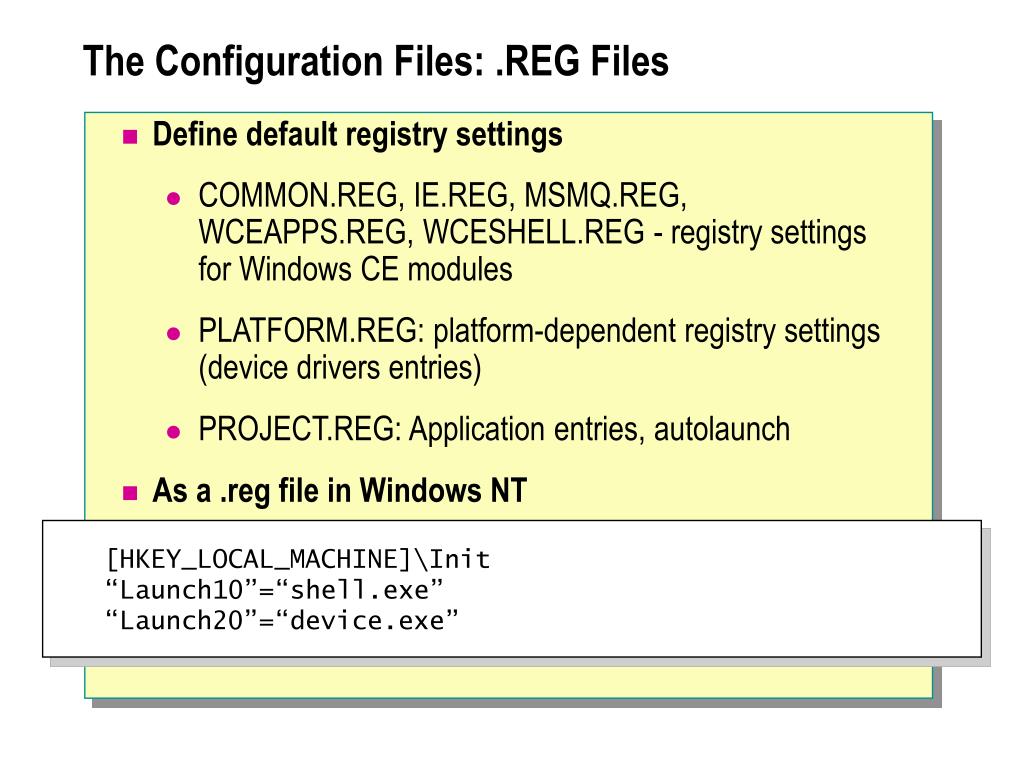

  34. The Configuration Files: .REG Files • Define default registry settings • COMMON.REG, IE.REG, MSMQ.REG, WCEAPPS.REG, WCESHELL.REG - registry settings for Windows CE modules • PLATFORM.REG: platform-dependent registry settings (device drivers entries) • PROJECT.REG: Application entries, autolaunch • As a .reg file in Windows NT • [HKEY_LOCAL_MACHINE]\Init • “Launch10”=“shell.exe” • “Launch20”=“device.exe”

  35. The Configuration Files: .DAT Files • Define folder structures of your image • COMMON.DAT, IE.DAT, MSMQ.DAT, WCEAPPS.DAT, WCESHELL.DAT • PLATFORM.DAT • PROJECT.DAT • Example: • Root:-Directory(“Program Files”) • Directory(“\Program Files”):-Directory(“My Projects”) • Root:-Directory(“My Documents”) • Directory(“\My Documents”):-File(“MyFile.doc”)

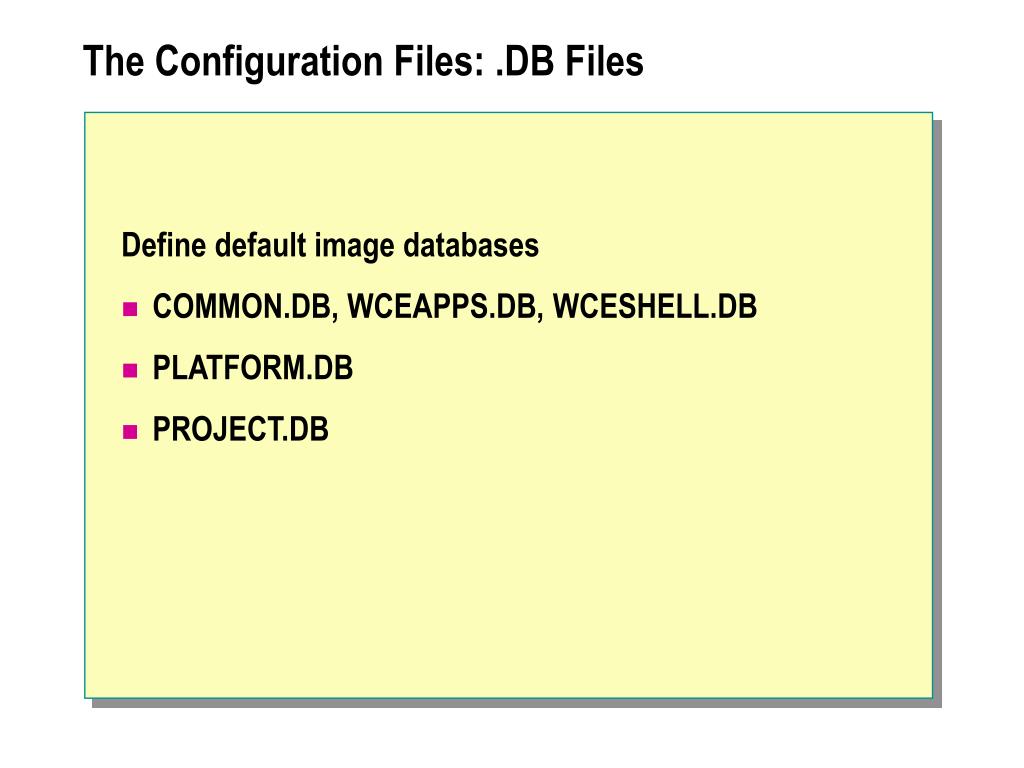

  36. The Configuration Files: .DB Files Define default image databases • COMMON.DB, WCEAPPS.DB, WCESHELL.DB • PLATFORM.DB • PROJECT.DB

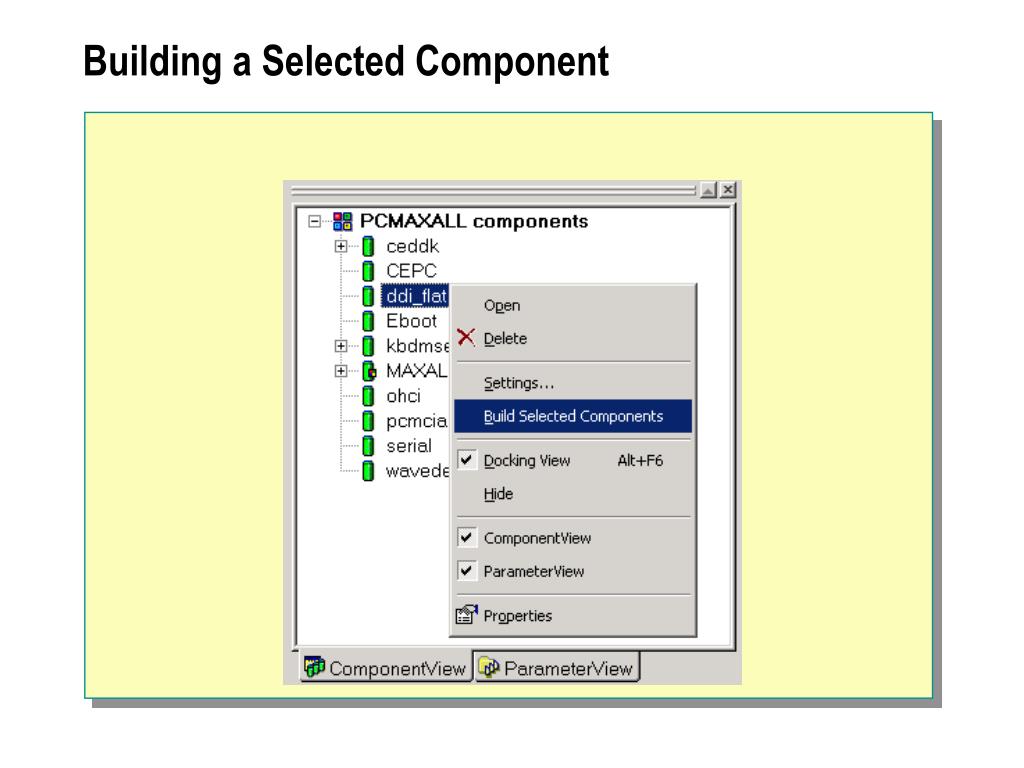

  37. Building a Selected Component

  38. Lab B: Fine -Tuning the Build Process

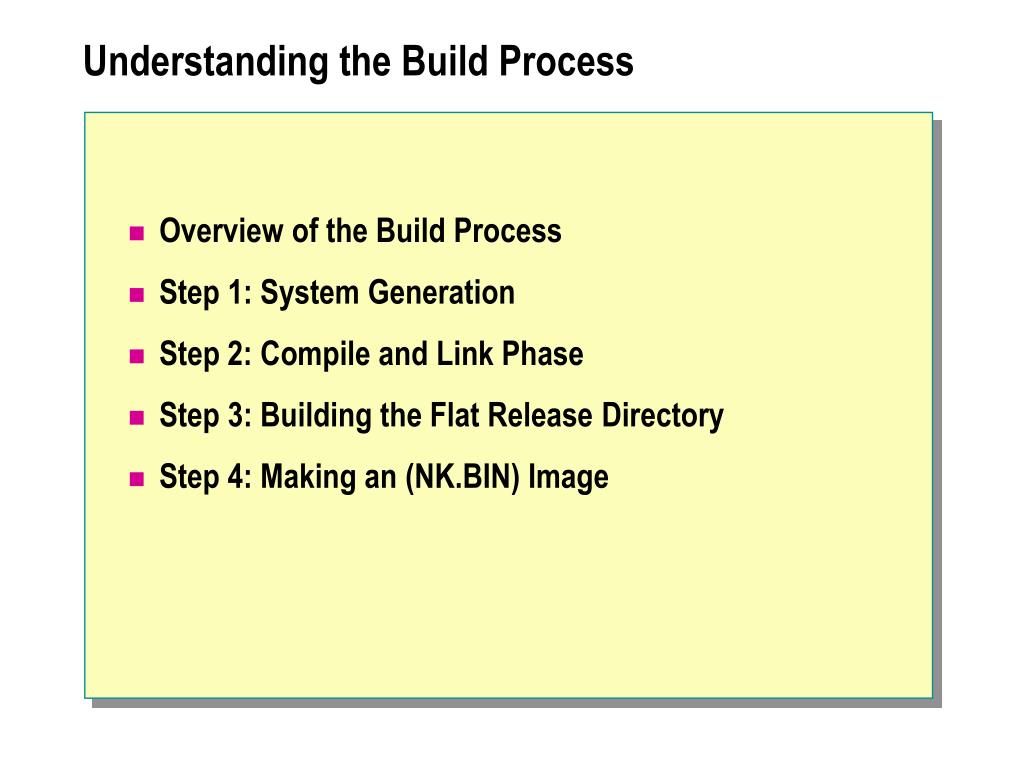

  39. Understanding the Build Process • Overview of the Build Process • Step 1: System Generation • Step 2: Compile and Link Phase • Step 3: Building the Flat Release Directory • Step 4: Making an (NK.BIN) Image

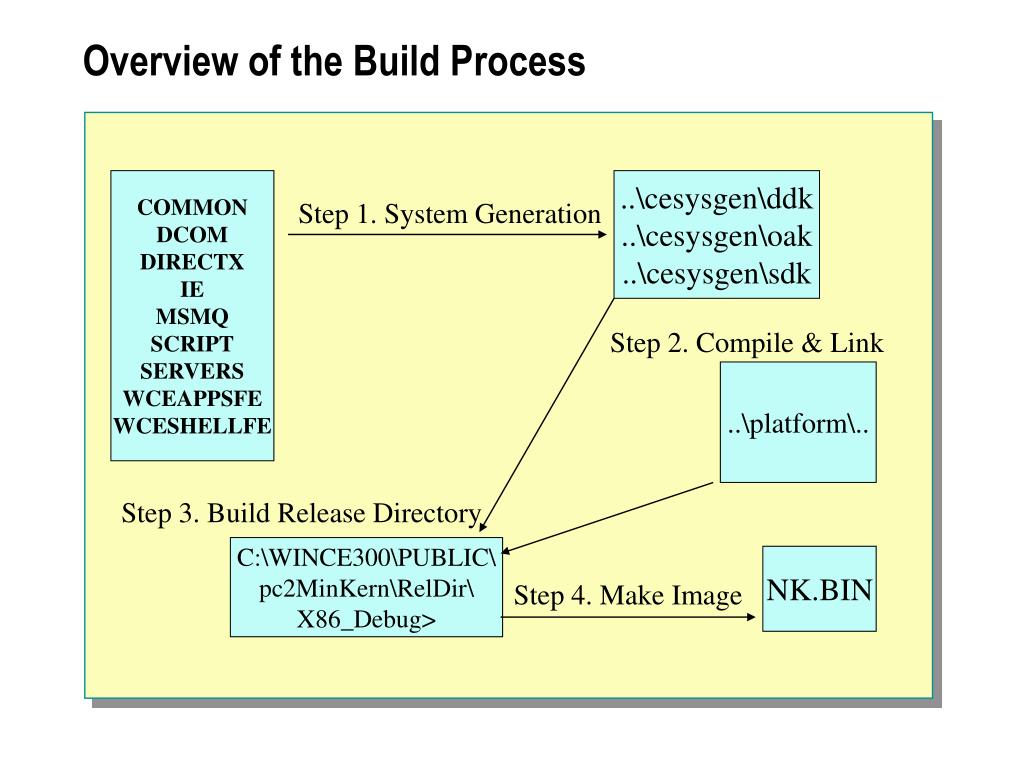

  40. Overview of the Build Process COMMON DCOM DIRECTX IE MSMQ SCRIPT SERVERS WCEAPPSFE WCESHELLFE ..\cesysgen\ddk ..\cesysgen\oak ..\cesysgen\sdk Step 1. System Generation Step 2. Compile & Link ..\platform\.. Step 3. Build Release Directory C:\WINCE300\PUBLIC\ pc2MinKern\RelDir\ X86_Debug> NK.BIN Step 4. Make Image

  41. Step 1: System Generation (CESYSGEN.BAT) Complete header files (.h) System-specific header files SYSGEN.BAT Complete system libraries Linked libraries Module definitions (.def) Specific .def files Cesysgen.bat

  42. Step 2: Compile and Link Phase • Compile source code (directories and subdirectories) • Process • Uses DIRS files to determine which subdir to compile • Uses SOURCES files to determine which files to compile • Calls NMAKE.EXE to compile and link object modules • Creates a binary file into a “target” folder for .exe, .dll (ex : Target\Shx\Sh3\CE\Debug) • Creates a binary file into a “lib” folder for .lib(ex : Lib\Shx\Sh3\CE\Debug)

  43. Step 2: Compile and Link Phase (continued) • DIRS file • Lists subdirectories to build • Subdirectories can contain DIRS files Example : • DIRS =\ • Display \ • Mouse \ • Keyboard \ • Ethernet

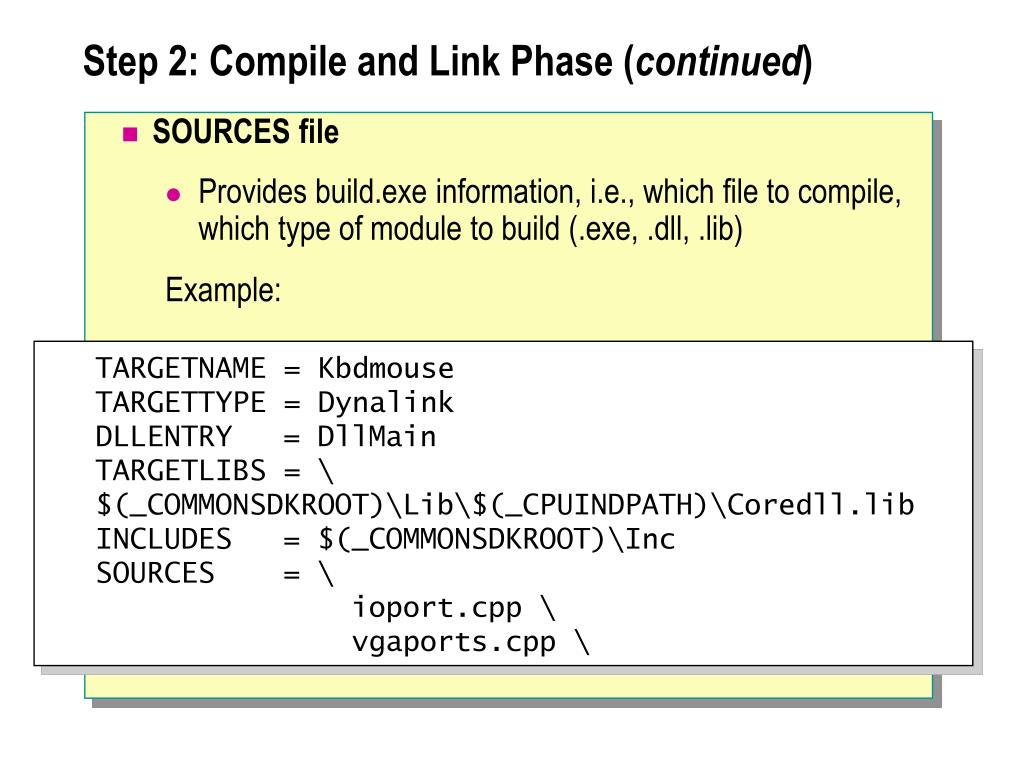

  44. Step 2: Compile and Link Phase (continued) • SOURCES file • Provides build.exe information, i.e., which file to compile, which type of module to build (.exe, .dll, .lib) Example: • TARGETNAME = Kbdmouse • TARGETTYPE = Dynalink • DLLENTRY = DllMain • TARGETLIBS = \ • $(_COMMONSDKROOT)\Lib\$(_CPUINDPATH)\Coredll.lib • INCLUDES = $(_COMMONSDKROOT)\Inc • SOURCES = \ • ioport.cpp \ • vgaports.cpp \

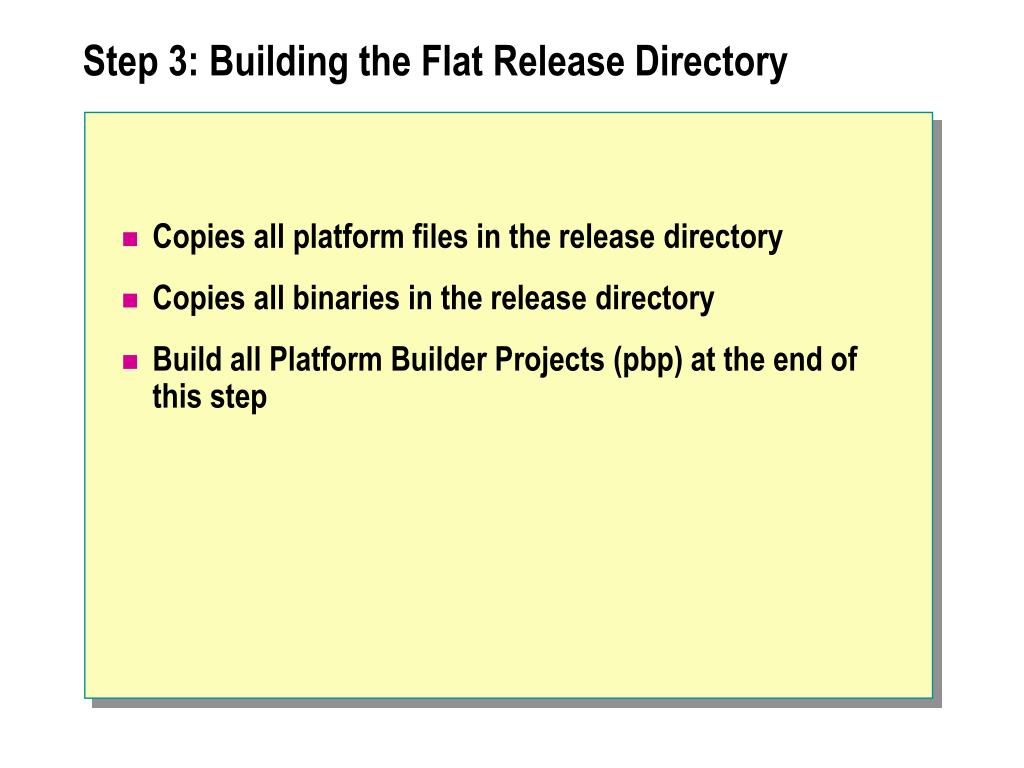

  45. Step 3: Building the Flat Release Directory • Copies all platform files in the release directory • Copies all binaries in the release directory • Build all Platform Builder Projects (pbp) at the end of this step

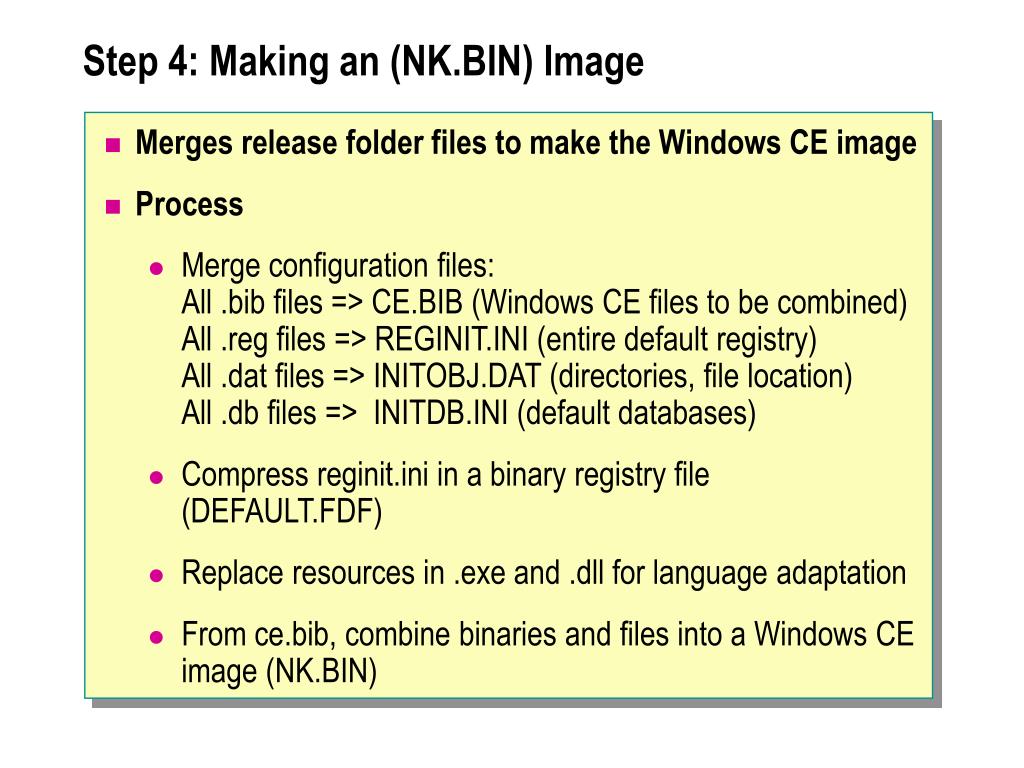

  46. Step 4: Making an (NK.BIN) Image • Merges release folder files to make the Windows CE image • Process • Merge configuration files:All .bib files => CE.BIB (Windows CE files to be combined)All .reg files => REGINIT.INI (entire default registry)All .dat files => INITOBJ.DAT (directories, file location)All .db files => INITDB.INI (default databases) • Compress reginit.ini in a binary registry file (DEFAULT.FDF) • Replace resources in .exe and .dll for language adaptation • From ce.bib, combine binaries and files into a Windows CE image (NK.BIN)

  47. Adding Components to the Platform Builder Catalog • Creating a Component File • The CECInfo Block • The ComponentType Block • The Implementation Block • The BuildMethod Block • Adding a Component File to the Catalog

  48. Creating a Component File • List of blocks in a text file that describes components to be included in the catalog • Four types of blocks: • CECInfo Block • ComponentType block • Implementation block • BuildMethod block

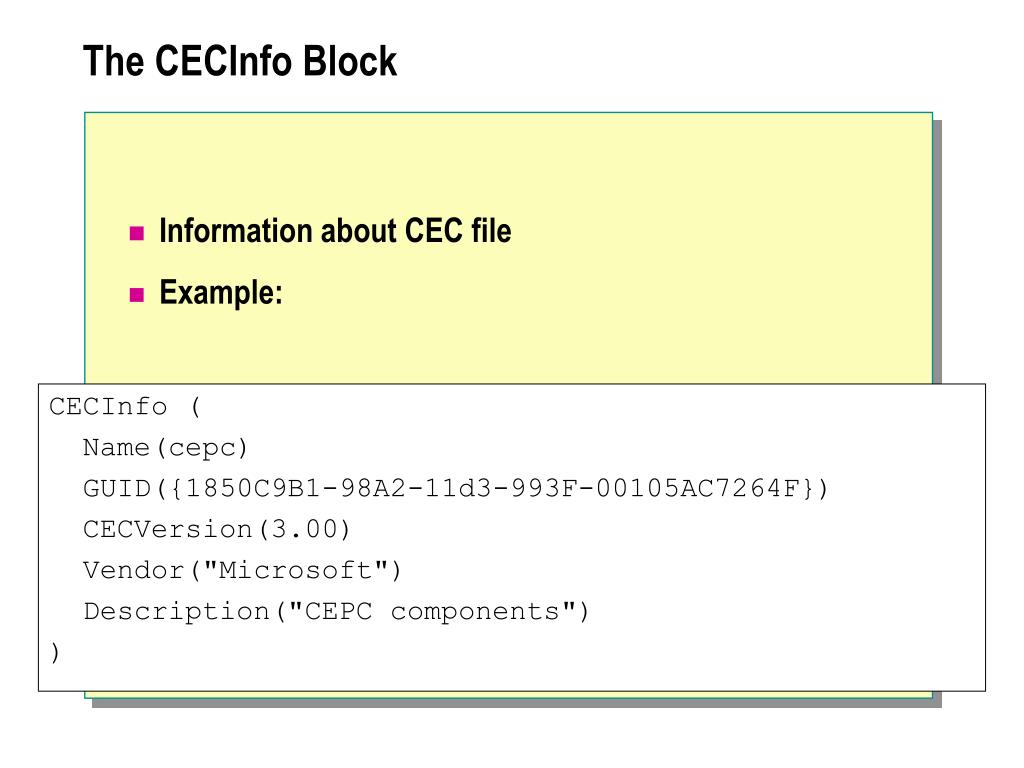

  49. The CECInfo Block • Information about CEC file • Example: CECInfo ( Name(cepc) GUID({1850C9B1-98A2-11d3-993F-00105AC7264F}) CECVersion(3.00) Vendor("Microsoft") Description("CEPC components") )

  50. The ComponentType Block • Component information to be associated with it • Example: • ComponentType ( • Name (“OAL”) • Description(“OEM Adaptation Layer”) • Vendor (“Vendor name”) • GUID( “{B3509B44-F1E4-11D2-85F6-004005365450}”) • Implementations( • Implementation( • … • )
